Analysis of Nonlinear Distortions of Dphemt Structures Based on a GaAs/InGaAs Compound with Double-Sided Delta-Doping

Cover Page

Cite item

Full Text

Open Access Open Access
Restricted Access Access granted
Restricted Access Subscription Access

Abstract

The paper presents the results of studies of C–V characteristics of GaAs/In0.53Ga0.47As HEMT before and after neutron irradiation with a fluence of (6.3 ± 1.3) × 1014 cm2. Based on the experimentally obtained characteristics, the effective electron distribution profiles of the structure were calculated before and after radiation impact. The effect of radiation defects on the δ-layers of the structure was analyzed.

About the authors

O. L. Golikov

Lobachevsky State University of Nizhny Novgorod (NNSU)

Email: tarasova@rf.unn.ru
Russian Federation, Nizhny Novgorod

N. E. Kodochigov

Lobachevsky State University of Nizhny Novgorod (NNSU)

Email: tarasova@rf.unn.ru
Russian Federation, Nizhny Novgorod

S. V. Obolensky

Lobachevsky State University of Nizhny Novgorod (NNSU)

Email: tarasova@rf.unn.ru
Russian Federation, Nizhny Novgorod

A. S. Puzanov

Lobachevsky State University of Nizhny Novgorod (NNSU)

Email: tarasova@rf.unn.ru
Russian Federation, Nizhny Novgorod

E. A. Tarasova

Lobachevsky State University of Nizhny Novgorod (NNSU)

Author for correspondence.
Email: tarasova@rf.unn.ru
Russian Federation, Nizhny Novgorod

S. V. Khazanova

Lobachevsky State University of Nizhny Novgorod (NNSU)

Email: tarasova@rf.unn.ru
Russian Federation, Nizhny Novgorod

References

  1. Agakhanyan T.M., Astvatsaturyan E.R., Skorobogatov P.K. Radiation effects in integrated circuits. M.: Energoatomizdat, 1989. 256 р.
  2. Tarasova E.A., Obolensky S.V., Khazanova S.V., Grigorieva N.N., Golikov O.L., Ivanov A.B., Puzanov A.S. Compensation for the nonlinearity of the drain-gate current-voltage characteristic in field-effect transistors with a gate length of ~100 nm // Semiconductors. V. 54. No. 9. P. 968–973.
  3. Petrovskaya A.N., Zubkov V.I. Capacitance-voltage measurements of heterostructures with InGaAs/GaAs quantum wells in the temperature range from 10 to 320 K // Semiconductors. 2009. V. 43. No. 10. P. 1368–1373.
  4. Frolov D.S., Yakovlev G.E., Zubkov V.I. Technique for electrochemical capacitance-voltage profiling of heavily doped structures with a sharp impurity distribution profile // Semiconductors. 2019. V. 53. No. 2. P. 281–286.
  5. Enisherlova K.L., Kolkovsky Yu.V., Bobrov E.A., Temper E.M., Kapilin S.A. Effect of defects with deep levels on the C–V characteristics of high-power AlGaN/GaN/SiC HEMT // Microelectronics. 2019. V. 48. No. 1. P. 47–55.
  6. Khazanova S.V., Degtyarev V.E., Tikhov S.V., Baidus N. V. Modeling of the effective concentration profile in InGaAs/GaAs heterostructures with delta-doped layers // Semiconductors. 2015. V. 49. No. 1. P. 53–57.
  7. Yakovlev G.E., Dorokhin M.V., Zubkov V.I., Dudin A.L. and others. Features of electrochemical capacitance-voltage profiling of gallium arsenide light-emitting and pHEMT structures with quantum-sized regions // Semiconductors. 2018. V. 52. No. 8. P. 873–880.
  8. Soltanovich O.A., Yakimov E.B. Analysis of temperature dependences of capacitance-voltage characteristics of light-emitting InGaN/GaN structures with multiple quantum wells // Semiconductors. 2012. V. 46. No. 12. P. 1597–1603.
  9. Lei W., Offer M., Lorke A. et al. Probing the band structure of InAs/GaAs quantum dots by capacitance-voltage and photoluminescence spectroscopy // APPLIED PHYSICS LETTERS. 2008. V. 92. P. 193111-1–193111-3.
  10. Tarasova E.A., Obolenskaya E.S., Khananova A.V., Obolensky S.V. et al. Theoretical and experimental studies of current-voltage and capacitance-voltage characteristics of HEMT structures and field-effect transistors // Semiconductors. 2016. V. 50. No. 12. P. 1599–1604.
  11. Brounkov P.N., Benyattou T., Guillotb G. Simulation of the capacitance-voltage characteristics of a single-quantum-well structure based on the self-consistent solution of the Schrödinger and Poisson equations // J. Appl. Phys. 80 (2), 15 July 1996.
  12. Obolensky S.V., Volkova E.V., Loginov A.B. and others. Comprehensive study of clusters of radiation defects in GaAs structures after neutron exposure // Technical Physics Letters. 2021. V. 47. No. 5. P. 38–41.
  13. Ventzel E.S. Probability theory. M.: Nauka, 1969. 576 p.
  14. Krivulin D.O., Pashenkin I.Yu., Gorev R.V., Yunin P.A., Sapozhnikov M.V., Grunin A.V., Zakharova S.A., Leontyev V.N. Influence of radiation on the magnetic properties of ferromagnetic/IrMn films with exchange shift // Physics and technology of semiconductors. 2023. V. 93. No. 7. P. 907–912.

Supplementary files

Supplementary Files
Action
1. JATS XML

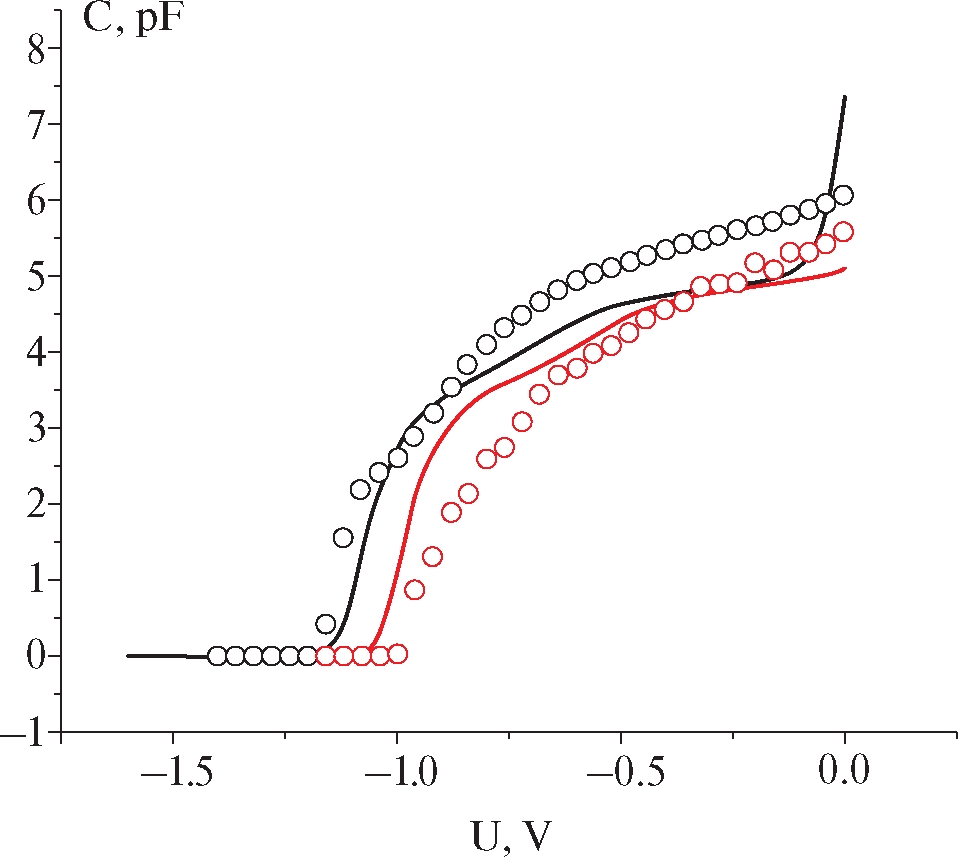

2. Fig. 1. Flow-gate VFCs of the investigated GaAs/In0.53Ga0.47As structure: before irradiation; after neutron irradiation; ○ experimental data; ○ numerical calculation

Download (132KB)

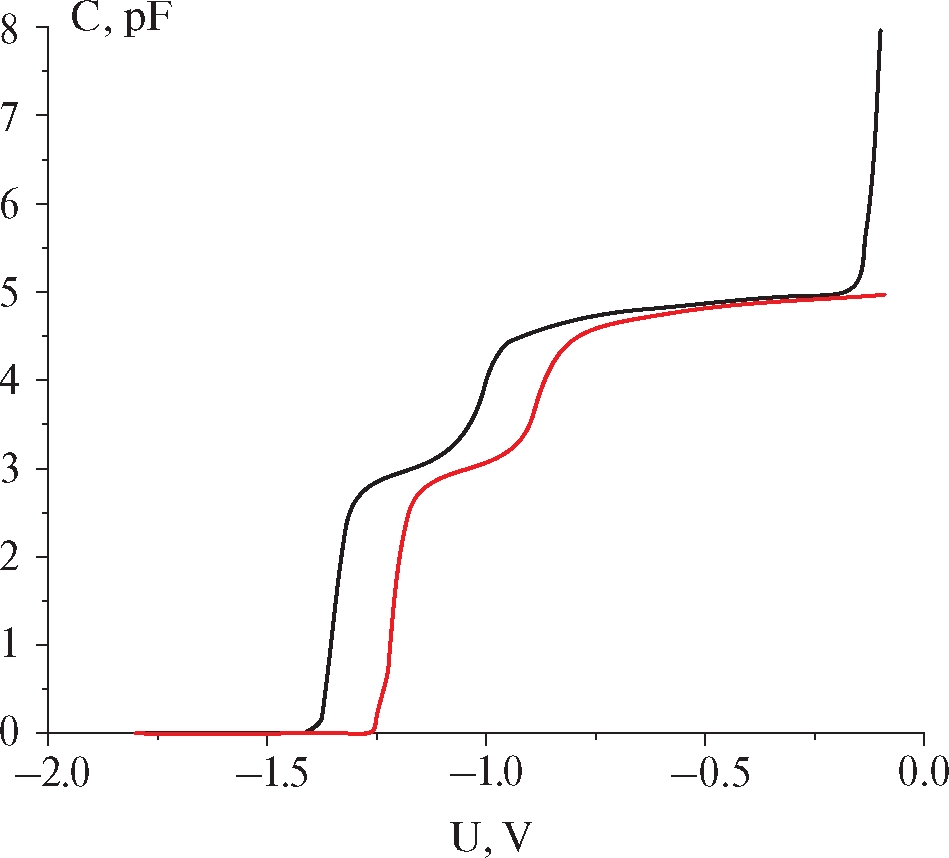

3. Fig. 2. Results of modeling of the drain-gate VFC of the GaAs/In0.53Ga0.47As structure under study for the temperature of 77 K: 1 - before irradiation; 2 - after neutron irradiation

Download (87KB)

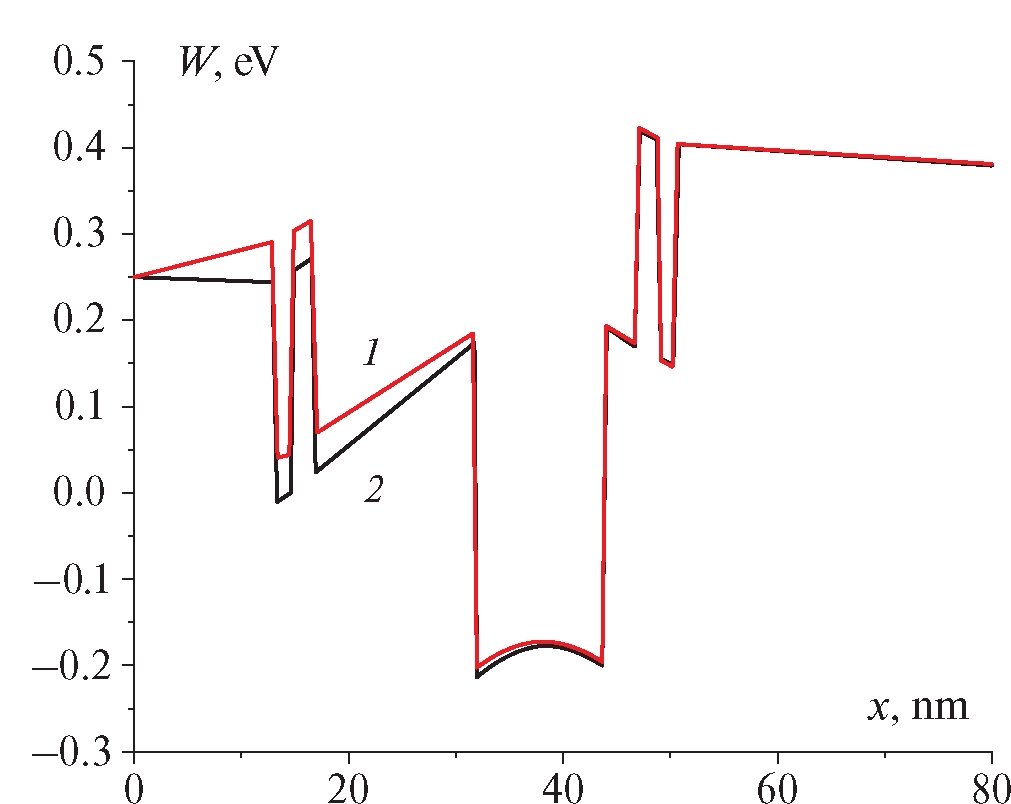

4. Fig. 3. Results of modeling of the zone diagram of the GaAs/In0.53Ga0.47As structure under study: 1 - before irradiation; 2 - after neutron irradiation

Download (112KB)

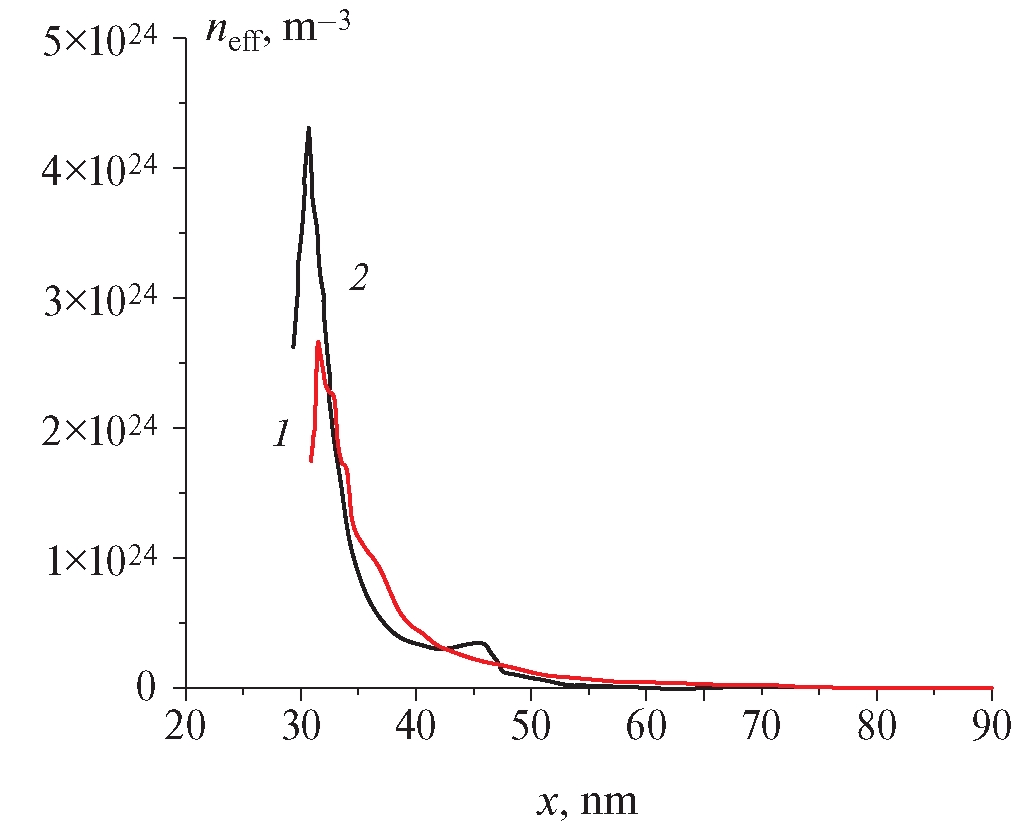

5. Fig. 4. Effective concentration profile of the GaAs/In0.53Ga0.47As structure under study: 1 - before irradiation; 2 - after neutron irradiation
