SEM Measurements of the Dimensions of Relief Structures in the Technological Process of Manufacturing Microcircuits
- Authors: Novikov Y.A.1, Filippov M.N.2
-
Affiliations:
- Prokhorov General Physics Institute, Russian Academy of Sciences
- Kurnakov Institute of General and Inorganic Chemistry, Russian Academy of Sciences
- Issue: Vol 52, No 2 (2023)
- Pages: 87-95
- Section: ДИАГНОСТИКА
- URL: https://journals.rcsi.science/0544-1269/article/view/138480
- DOI: https://doi.org/10.31857/S0544126923700254
- EDN: https://elibrary.ru/PYQINW
- ID: 138480
Cite item
Abstract

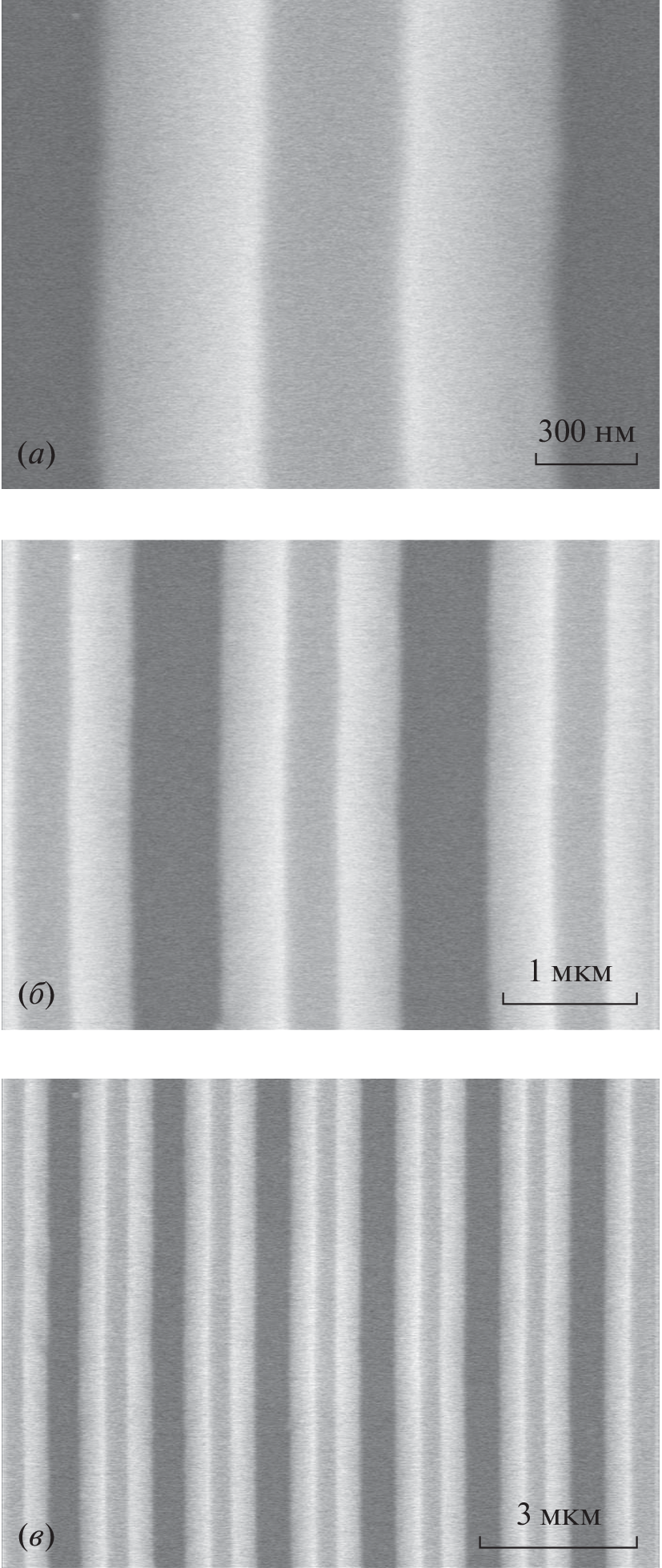

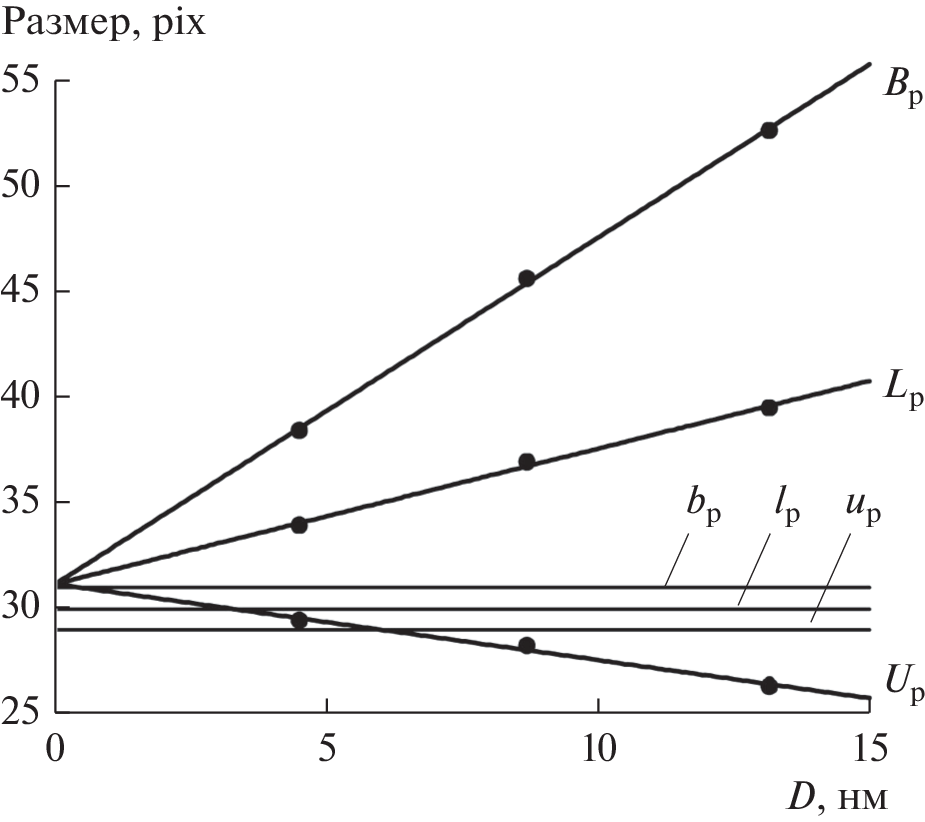

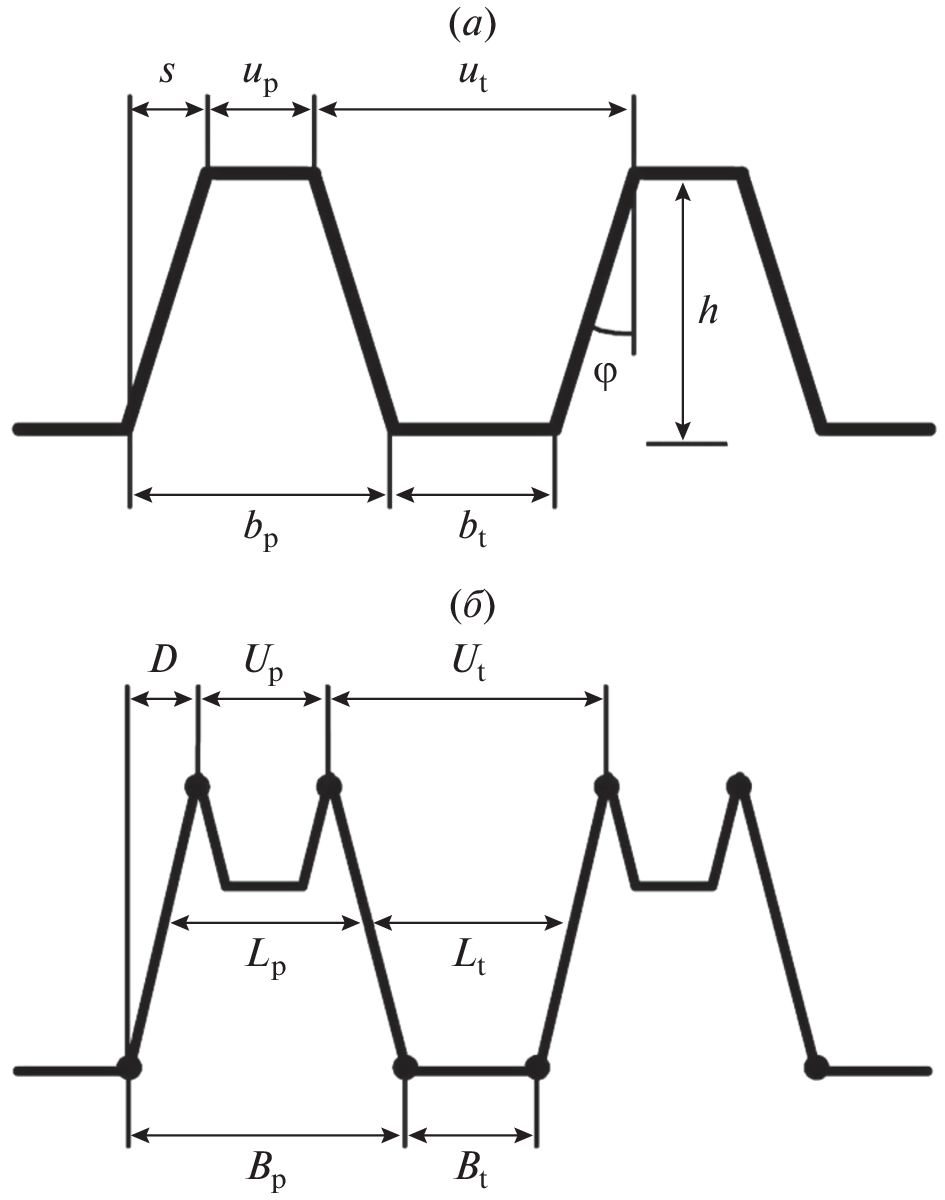

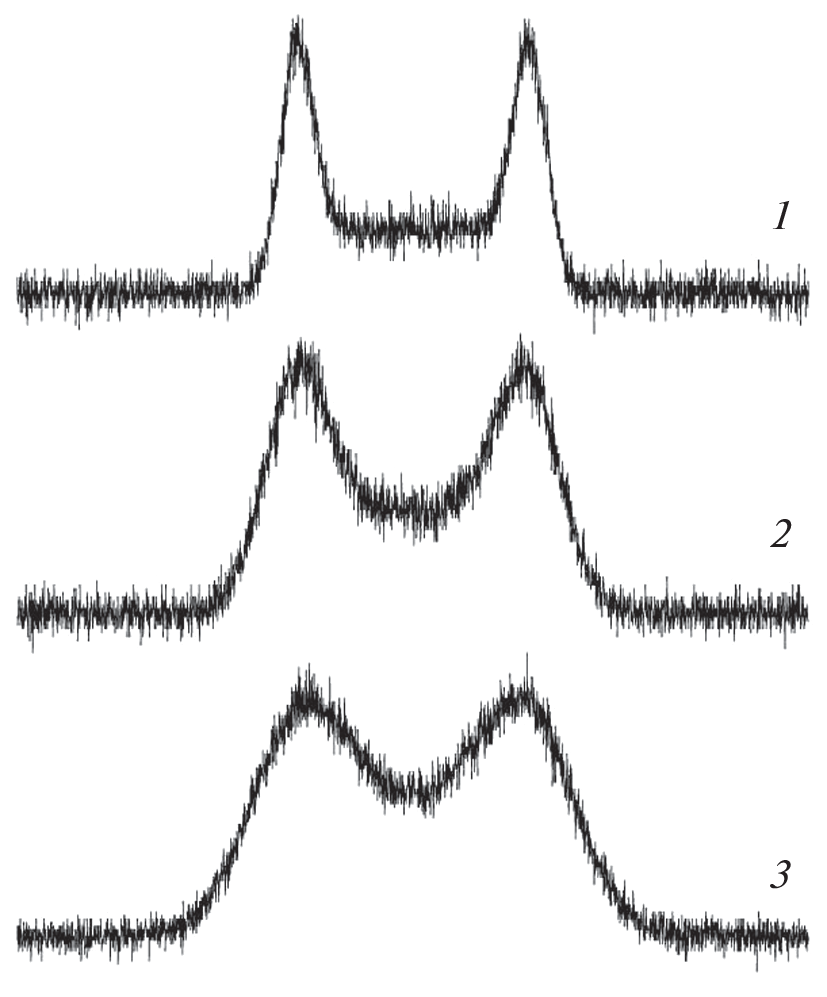

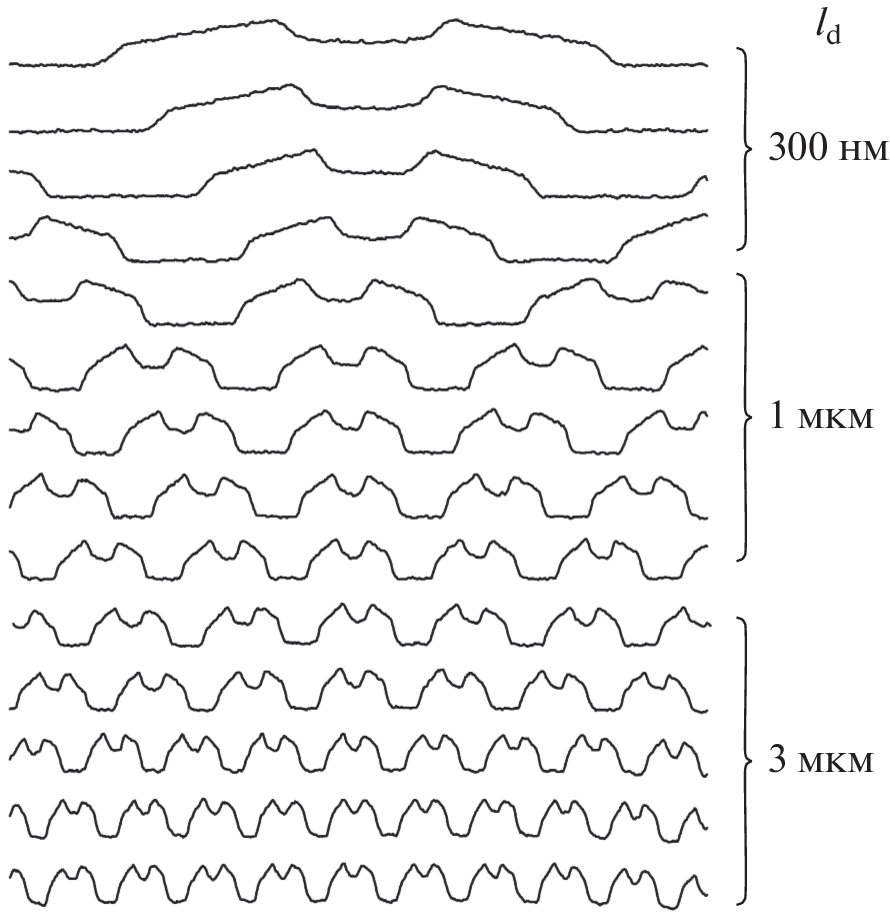

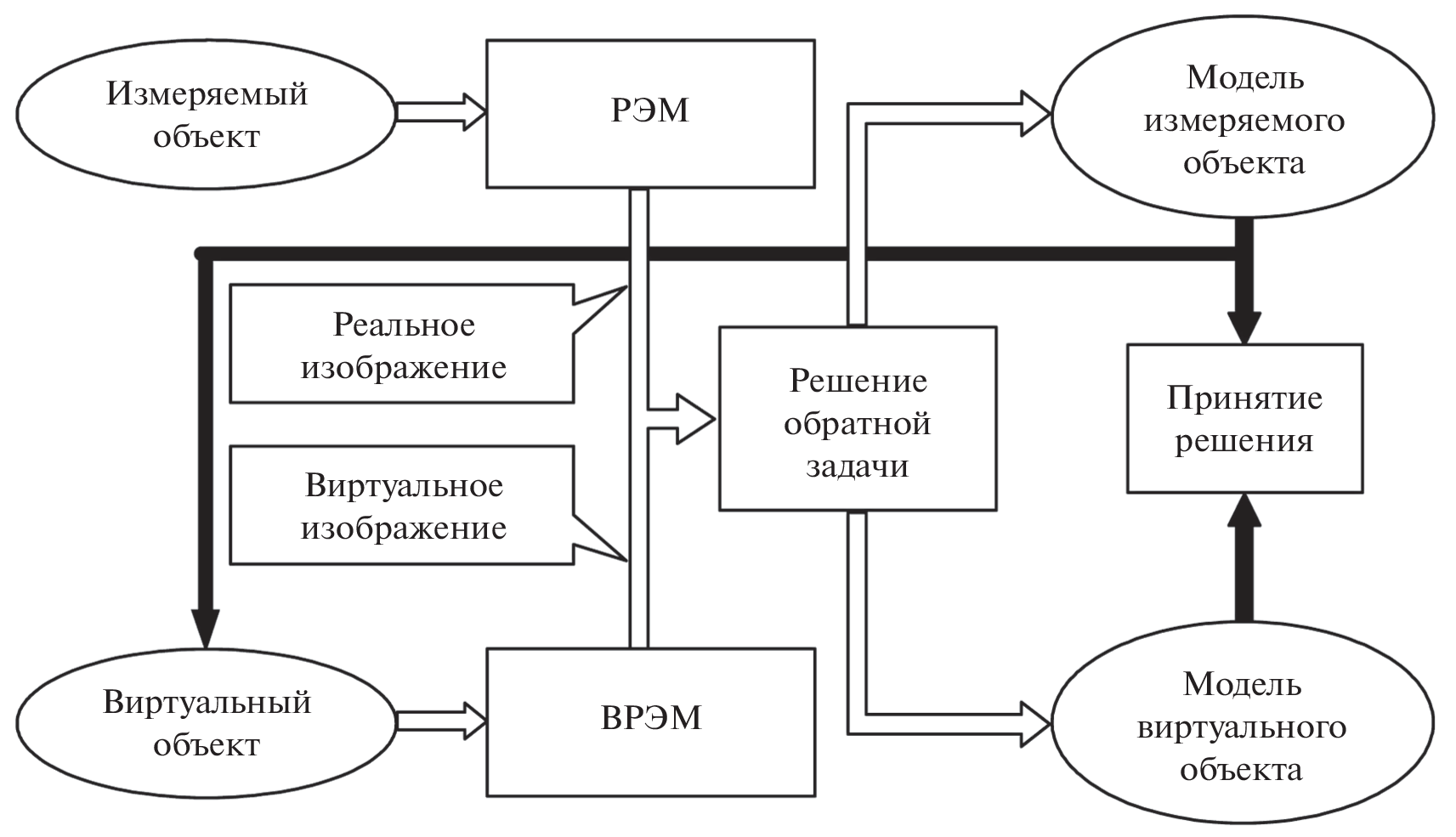

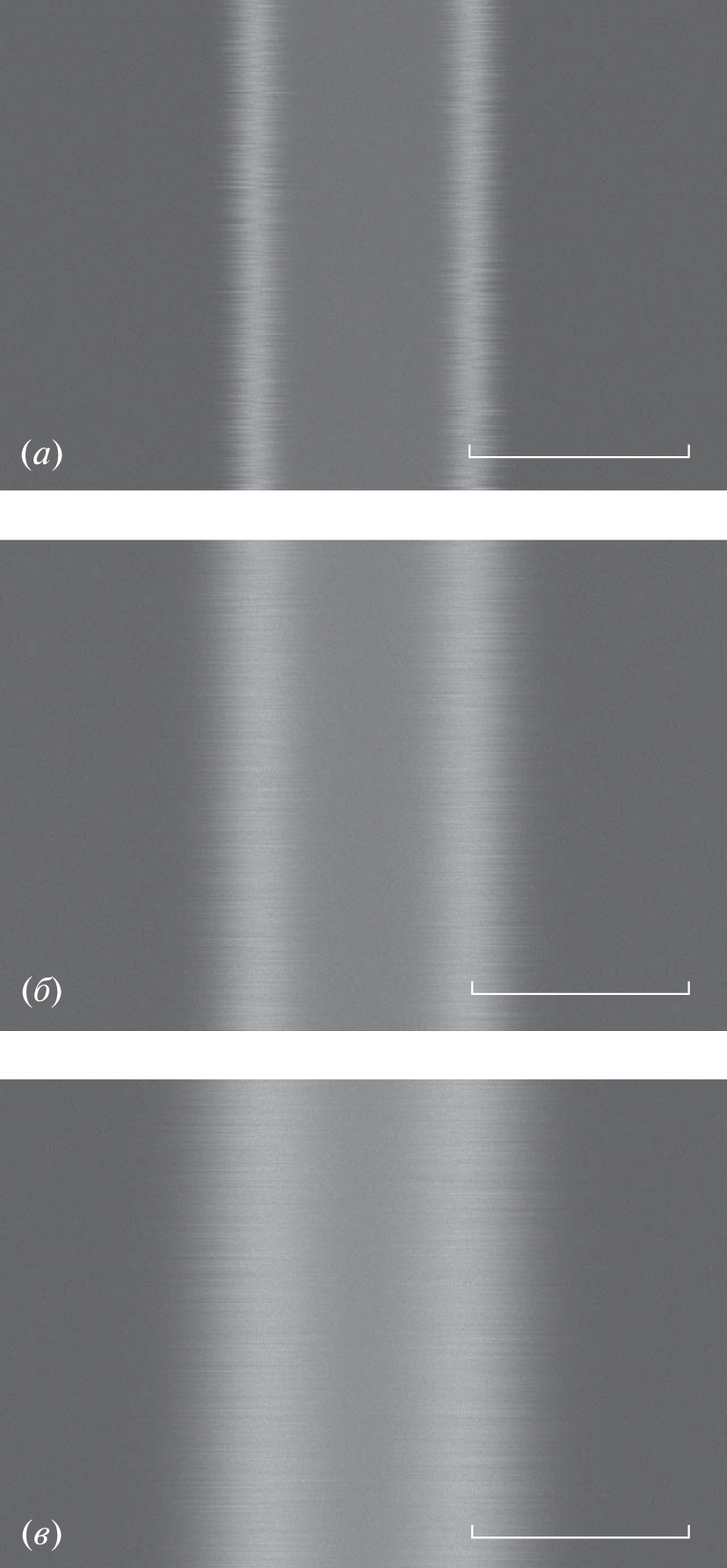

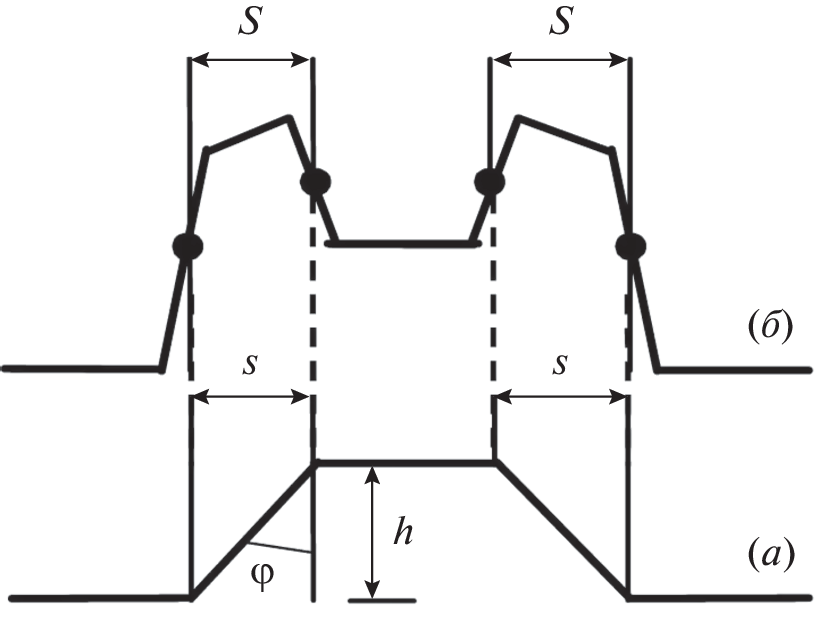

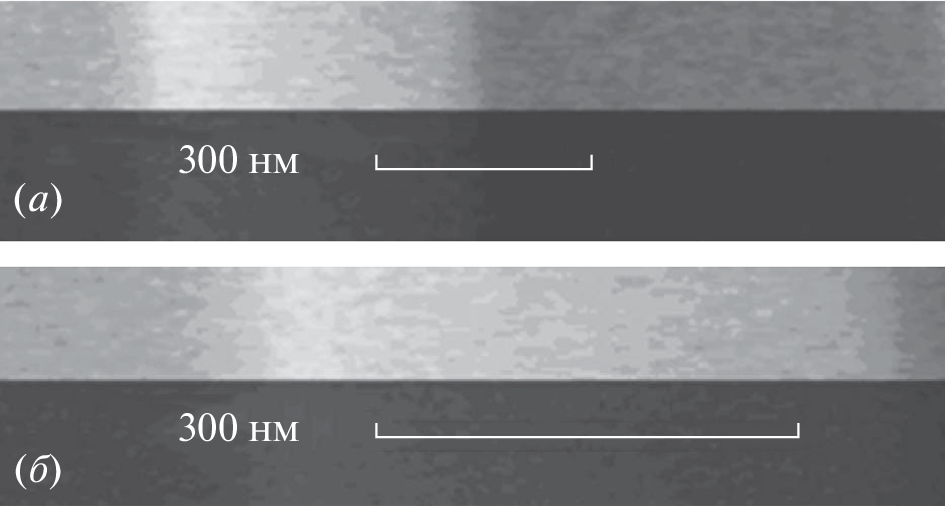

The problems of measuring the dimensions of relief elements on a scanning electron microscope (SEM) in the technological process of manufacturing microcircuits are considered. The first problem is related to the fact that the increase in the SEM during operation can vary over a wide range depending on the measured dimensions. The second problem is that the probe diameter determined in the SEM calibration process differs from the diameter used in operational measurements. The third problem is related to the fact that it is not known which relief parameter is measured in the SEM probe defocusing method. It is shown that to solve the first problem, it is necessary to calibrate the mark on the image using structures with a trapezoidal profile and large angles of inclination of the side walls. The solution of the second problem is based on the method of defocusing the SEM probe: determining the dependence of the sizes between certain points on the SEM signals on the probe diameter and extrapolating this dependence to the zero value of the diameter. The third problem is solved with the help of a virtual scanning electron microscope.
About the authors
Yu. A. Novikov
Prokhorov General Physics Institute, Russian Academy of Sciences
Email: nya@kapella.gpi.ru
Moscow, 119991 Russia
M. N. Filippov
Kurnakov Institute of General and Inorganic Chemistry, Russian Academy of Sciences
Author for correspondence.
Email: nya@kapella.gpi.ru
Moscow, 119991 Russia
References
- Gavrilenko V.P., Novikov Yu.A., Rakov A.V., Todua P.A. // Proc. SPIE. 2009. V. 7405. P. 740504. https://doi.org/10.1117/12.826164
- Gavrilenko V.P., Novikov Yu.A., Rakov A.V., Todua P.A., Volk Ch.P. // Proc. SPIE. 2009. V. 7272. P. 72720Z. https://doi.org/10.1117/12.813514
- Novikov Yu.A., Darznek S.A., Filippov M.N., Mityukhlyaev V.B., Rakov A.V., Todua P.A. // Proc. SPIE. 2008. V. 7025. P. 702511. https://doi.org/10.1117/12.802428
- Novikov Yu.A., Gavrilenko V.P., Ozerin Yu.V., Rakov A.V., Todua P.A. // Proc. SPIE. 2007. V. 6648. P. 66480R. https://doi.org/10.1117/12.733134
- Häßler-Grohne W., Bosse H. // Measurement science and technology. 1998. V. 9. P. 1120.
- Gavrilenko V.P., Novikov Yu.A., Rakov A.V., Todua P.A. // Proc. SPIE. 2008. V. 7042. P. 70420C. https://doi.org/10.1117/12.794891
- SEM Performance Standard. Standard Reference Material 2069a. NBS. 1985.
- Oho E., Sasaki T., Kanaya K. // Research Reports of Kogakuin University. 1985. № 59. P. 106 (1985).
- Gavrilenko V.P., Kalnov V.A., Novikov Yu.A., Orlikovsky A.A., Rakov A.V., Todua P.A., Valiev K.A., Zhikharev E.N. // Proc. SPIE. 2009. V. 7272. P. 727227. https://doi.org/10.1117/12.814062
- Новиков Ю.А. // Микроэлектроника. 2017. Т. 46. № 1. С. 61. https://doi.org/10.7868/S0544126917010070
- Новиков Ю.А. // Микроэлектроника. 2014. Т. 43. № 6. С. 456. https://doi.org/10.7868/S0544126914060076
