Plasma Parameters and Kinetics of Reactive Ion Etching of SiO2 and Si3N4 in an HBr/Cl2/Ar Mixture

A. M. Efremov; Ефремов А. М.; V. B. Betelin; Бетелин В. Б.; K.-H. Kwon; Kwon K.-H.

doi:10.31857/S0544126923700217

Plasma Parameters and Kinetics of Reactive Ion Etching of SiO2 and Si3N4 in an HBr/Cl2/Ar Mixture

Authors: Efremov A.M.¹, Betelin V.B.², Kwon K.³
Affiliations:
1. Ivanovo State University of Chemical and Technology
2. Federal State Institution “Federal Scientific Center Research Institute for System Research,” Russian Academy of Sciences
3. Korea University
Issue: Vol 52, No 2 (2023)
Pages: 152-159
Section: ТЕХНОЛОГИЯ
URL: https://journals.rcsi.science/0544-1269/article/view/138496
DOI: https://doi.org/10.31857/S0544126923700217
EDN: https://elibrary.ru/PYKANE
ID: 138496

Cite item

Full Text

Open Access
Restricted Access

Access granted
Restricted Access

Subscription Access

Abstract
About the authors
References
Supplementary files
Statistics

Abstract

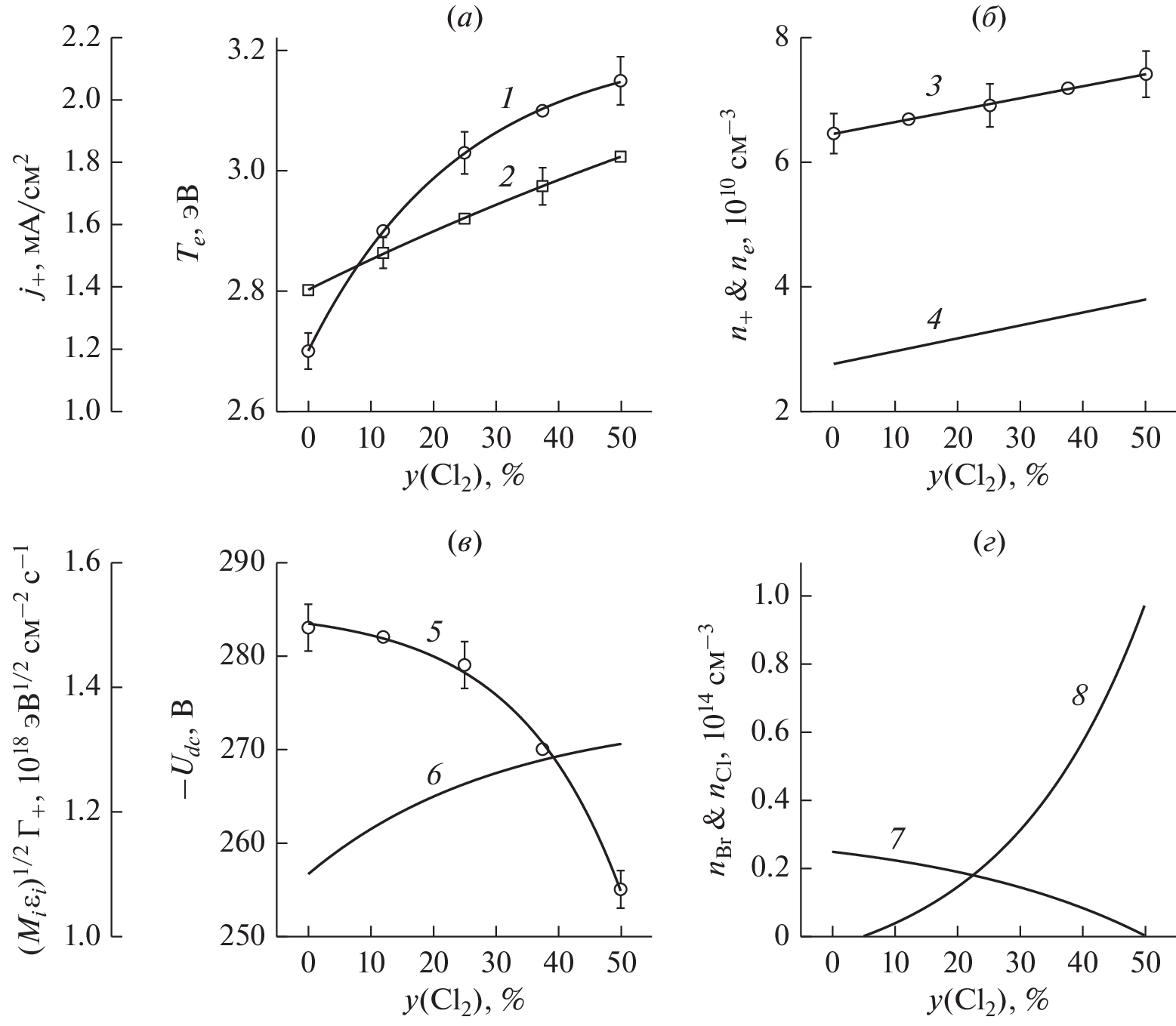

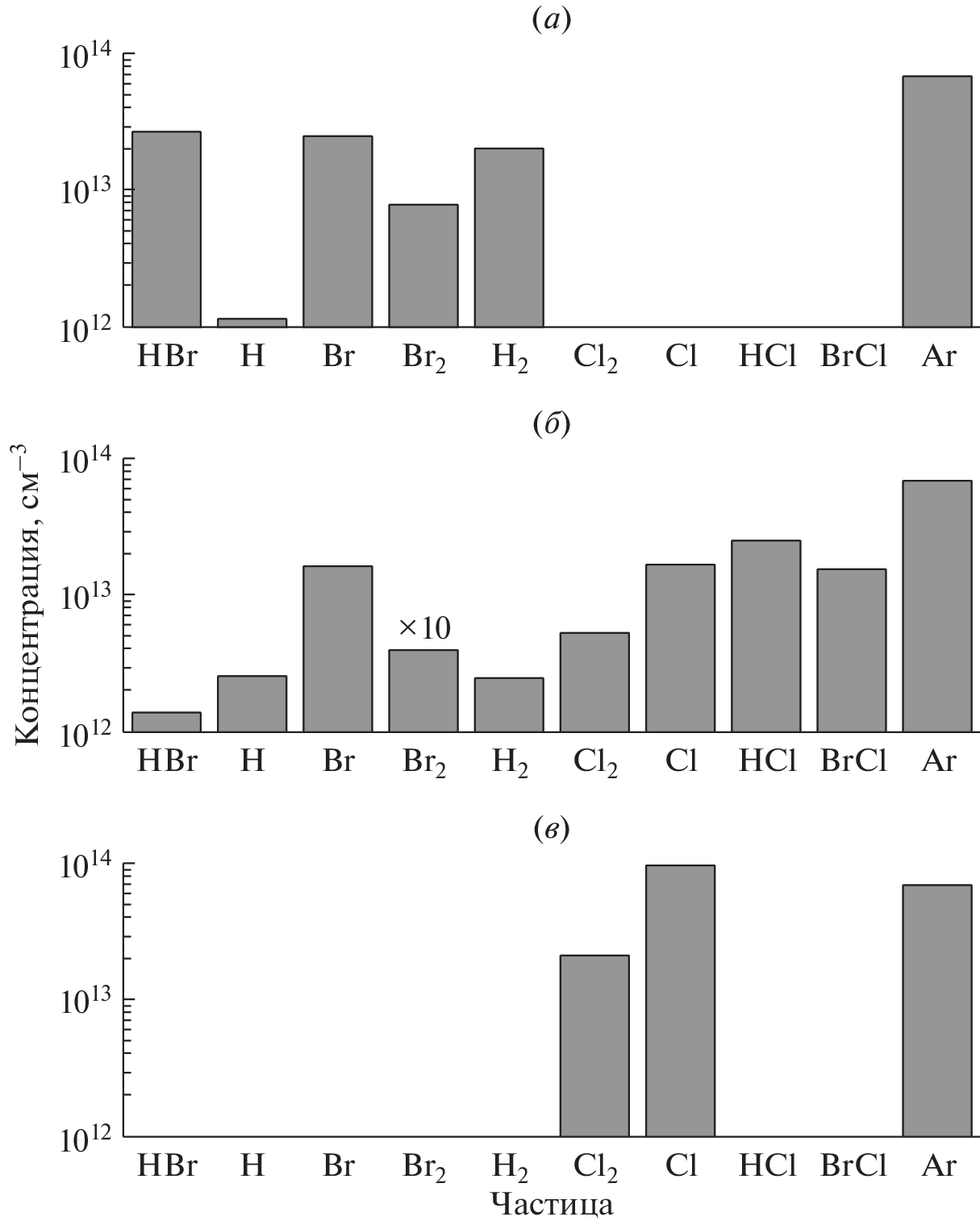

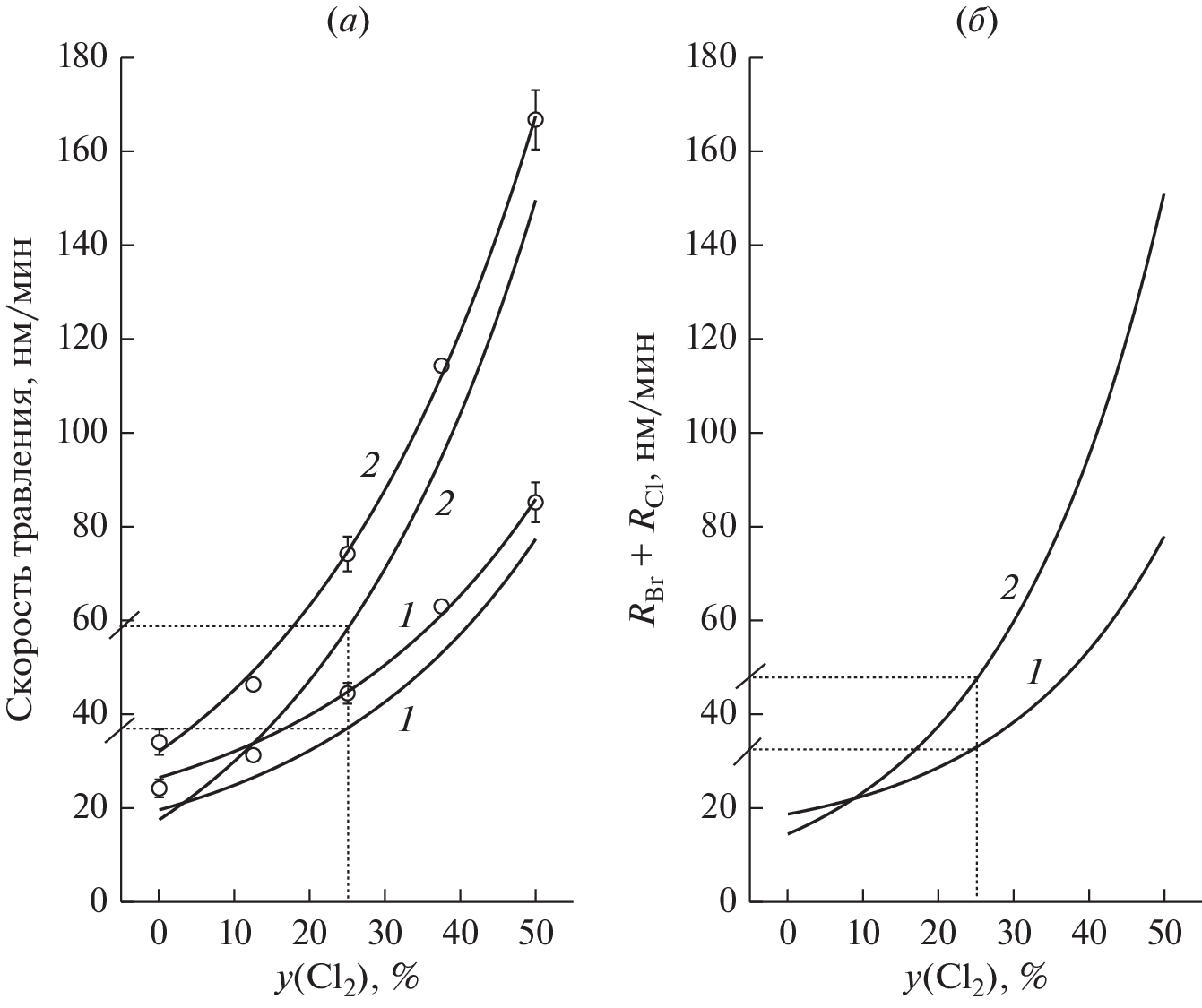

The parameters of the gas phase and the kinetics of reactive ion etching of SiO2 and Si3N4 under conditions of an induction RF (13.56 MHz) discharge with a varying HBr/Cl2 ratio is studied. The study includes plasma diagnostics using Langmuir probes, plasma modeling to find stationary concentrations of active particles, measuring velocities, and analyzing etching mechanisms in the effective interaction prob-ability approximation. It is found that the substitution of HBr by Cl2 at a constant argon content (a) is accompanied by a noticeable change in the electrical parameters of the plasma; (b) leads to a weak increase in the intensity of ion bombardment of the treated surface; and (c) causes a significant increase in the total concentration and flux density of reactive particles. It is shown that the etching rates of SiO2 and Si3N4 increase monotonically as the proportion of Cl2 increases in a mixture, while the main etching mechanism is an ion-stimulated chemical reaction. The model description of the kinetics of such a reaction in the first approximation assumes (a) the additive contribution of bromine and chlorine atoms and (b) the direct pro-portional dependence of their effective interaction probabilities on the intensity of ion bombardment. The existence of an additional channel of heterogeneous interaction with the participation of HCl molecules is proposed.

Keywords

HBr, Cl2, plasma parameters, active particles, ionization, dissociation, etching, kinetics, mechanism

References

Advanced plasma processing technology. New York: John Wiley & Sons Inc., 2008. 479 p.
Wolf S., Tauber R.N. Silicon Processing for the VLSI Era. Volume 1. Process Technology. New York: Lattice Press, 2000. 416 p.
Nojiri K. Dry etching technology for semiconductors. Tokyo: Springer International Publishing, 2015. 116 p.
Lieberman M.A., Lichtenberg A.J. Principles of plasma discharges and materials processing. New York: John Wiley & Sons Inc., 2005. 730 p.
Roosmalen J., Baggerman J.A.G., H. Brader S.J. Dry etching for VLSI, New-York: Plenum Press, 1991. 345 p.
Jin W., Vitale S.A., Sawin H.H. Plasma-surface kinetics and simulation of feature profile evolution in Cl2 + HBr etching of polysilicon // J. Vac. Sci. Technol. 2002. V. 20. P. 2106–2114.
Vitale S.A., Chae H., Sawin H.H. Silicon etching yields in F2, Cl2, Br2, and HBr high density plasmas // J. Vac. Sci. Technol. 2001. V. 19. P. 2197–2206.
Cheng C.C., Guinn K.V., Herman I.P., Donnelly V.M. Competitive halogenation of silicon surfaces in HBr/Cl2 plasmas studied with xray photoelectron spectroscopy and in situ, realtime, pulsed laserinduced thermal desorption // J. Vac. Sci. Technol. A. 1995. V. 13. P. 1970–1976.
Lim N., Efremov A., Kwon K.-H. Comparative Study of Cl2 + O2 and HBr + O2 Plasma Chemistries in Respect to Silicon Reactive-Ion Etching Process // Vacuum. 2021. V. 186. P. 110043(1–10).
Efremov A.M., Betelin V.B., Kwon K.-H. Kinetics and Mechanisms of Reactive-Ion Etching of Si and SiO2 in a Plasma of a Mixture of HBr + O2 // Russian Microelectronics. 2020. V. 49. № 6. P. 403–408.
Efremov A., Lee J., Kwon K.-H. A comparative study of CF4, Cl2 and HBr + Ar inductively coupled plasmas for dry etching applications // Thin Solid Films. 2017. V. 629. P. 39–48.
Efremov A.M., Murin D.B., Betelin V.B., Kwon K.-H. Special Aspects of the Kinetics of Reactive Ion Etching of SiO2 in Fluorine-, Chlorine-, and Bromine-Containing Plasma // Russian Microelectronics. 2020. V. 49. № 2. P. 94–102.
Shun’ko E.V. Langmuir Probe in Theory and Practice, Boca Raton: Universal Publishers, 2008. 230 p.
Efremov A., Lee B.J., Kwon K.-H. On Relationships Between Gas-Phase Chemistry and Reactive-Ion Etching Kinetics for Silicon-Based Thin Films (SiC, SiO2 and SixNy) in Multi-Component Fluorocarbon Gas Mixtures // Materials. 2021. V. 14. P. 1432(1–27).
Efremov A., Kim Y., Lee H.W., Kwon K.H. A comparative study of HBr-Ar and HBr–Cl2 plasma chemistries for dry etch applications // Plasma Chem. Plasma Proc. 2011. V. 31. № 2. P. 259–271.
Kota G.P., Coburn J.W., Graves D.B. Heterogeneous recombination of atomic bromine and fluorine // J. Vac. Sci. Technol. A. 1999. V. 17. № 1. P. 282–290.
Kota G.P., Coburn J.W., Graves D.B. The recombination of chlorine atoms at surfaces // J. Vac. Sci. Technol. A. 1998. V. 16. № 1. P. 270–277.
Efremov A.M., Kim G.H., Kim J.G., Bogomolov A.V., Kim C.I. On the applicability of self-consistent global model for the characterization of Cl2/Ar inductively coupled plasma // Microelectron. Eng. 2007. V. 84. P. 136–143.
Efremov A., Choi B.-G., Nahm S., Lee H.W., Min N.-K., Kwon K.-H. Plasma Parameters and Active Species Kinetics in an Inductively Coupled HBr Plasma // J. Korean Phys. Soc. 2008. V. 52. P. 48–55.
NIST Chemical Kinetics Database. http://kinetics. nist.gov/kinetics/ (20.11.2022)
Kwon K.-H., Efremov A., Kim M., Min N.K., Jeong J., Kim K. A Model-Based Analysis of Plasma Parameters and Composition in HBr/X (X=Ar, He, N2) Inductively Coupled Plasmas // J. Electrochem. Soc. 2010. V. 157. № 5. P. H574–H579.
Smirnov A.A., Efremov A.M., Svettsov V.I. Effect of Additions of Ar and He on the Parameters and Composition of the HBr Plasma // Russian Microelectronics. 2010. V. 39. № 5. P. 366–375.
Efremov A., Min N.K., Choi B.G., Baek K.H., Kwon K.-H. Model-Based Analysis of Plasma Parameters and Active Species Kinetics in Cl2/X (X=Ar, He, N2) Inductively Coupled Plasmas // J. Electrochem. Soc. 2008. V. 155. № 12. P. D777–D782.
Malyshev M.V., Donnelly V.M., Kornblit A., Ciampa N.A. Percent dissociation of Cl2 in inductively coupled chlorine-containing plasmas // J. Appl. Phys. 1998. V. 84. P. 137–141.
Gray D.C., Tepermeister I., Sawin H.H. Phenomenological modeling of ion-enhanced surface kinetics in fluorine-based plasma-etching // J. Vac. Sci. Technol. B. 1993. V. 11. № 4. P. 1243–1257.
Seah M.P., Nunney T.S. Sputtering yields of compounds using argon ions // J. Phys. D: Appl. Phys. 2010. V. 43. № 25. P. 253001(1–24).
Dominguez C., Pastor G., Dominguez E. Low pressure chemical etching of silicon by HCl/Cl2 gas mixture // J. Electrochem. Soc. 1987. V. 143. № 1. P. 199–202.
Isheden C., Hellstrom P.-E., Radamson H.H., Zhang S.-L., Ostling M. Selective Si Etching Using HCl Vapor // Physica Scripta. 2004. V. T114. P. 107–109.
