On the Estimation of the Sensitivity of the Coefficients of Models for Inhomogeneous Solids

Capa

Citar

Texto integral

Acesso aberto Acesso aberto
Acesso é fechado Acesso está concedido
Acesso é fechado Somente assinantes

Resumo

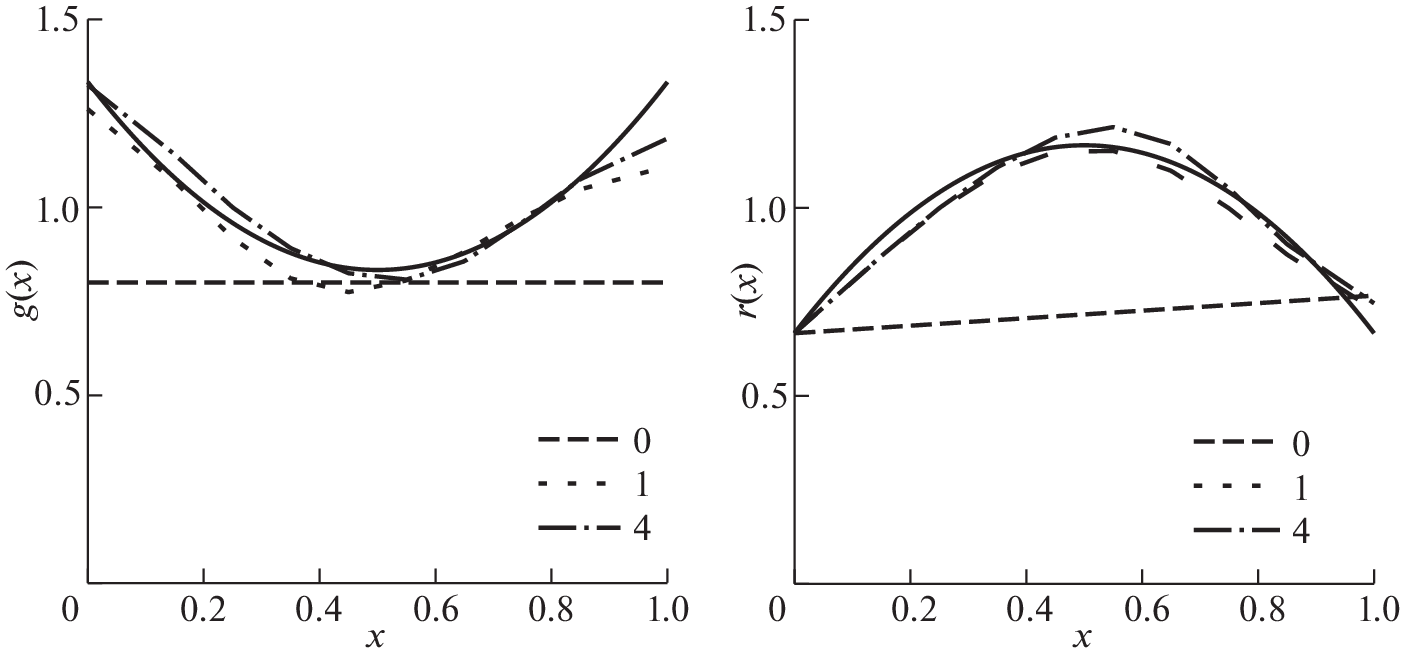

The problem of determining the characteristics of the sensitivity of inhomogeneous isotropic elastic solids with respect to three functions characterizing the inhomogeneity - Lame coefficients and density - is considered. The corresponding boundary value problems are formulated, equations for determining the sensitivity are obtained. An example is presented for a cylindrical rod in the analysis of longitudinal and bending oscillations, the sensitivity to changes in Young's modulus and density is analyzed. Using the iterative algorithm and the A.N. Tikhonov's regularization method, a number of inverse problems were solved to determine these characteristics for monotone and non-monotone laws of their change, and the results of computational experiments are presented. The norm of the difference between the exact and reconstructed solutions is analyzed. Recommendations are given for choosing the most efficient frequency range for sounding from the point of view of reconstruction.

Sobre autores

A. Vatulyan

Southern Federal University

Email: aovatulyan@sfedu.ru
Rostov-on-Don, 344006 Russia

V. Yurov

Southern Federal University; Southern Mathematical Institute - the Affiliate of Vladikavkaz Scientific Center of RAS

Autor responsável pela correspondência
Email: vitja.jurov@yandex.ru
Rostov-on-Don, 344006 Russia; Vladikavkaz, 362025 Russia

Bibliografia

  1. Баничук Н.В., Кобелев В.В., Рикардс Р.Б. Оптимизация элементов конструкций из композиционных материалов М.: Машиностроение, 1988. 224 с.
  2. Кабанихин С.И. Обратные и некорректные задачи. Новосибирск: Сибирское научное издательство, 2009. 458 с.
  3. Тихонов А.Н., Арсенин В.Я. Методы решения некорректных задач. М.: Наука, 1986. 288 с.
  4. Bui H.D. Inverse Problems in the Mechanic of Materials: An Introduction. Boca Raton: CRC Press, 1994. 224 p.
  5. Isakov V. Inverse problems for PDE. Springer-Verlag, 2005. 284 p.
  6. Bonnet M., Constantinescu A. Inverse problems in elasticity // Inverse Probl. 2005. № 21. P. 1–50. https://doi.org/10.1088/0266-5611/21/2/R01
  7. Глэдвелл Г.М.Л. Обратные задачи теории колебаний. М.-Ижевск: Регулярная и хаотическая динамика. Институт компьютерных исследований, 2008. 608 с.
  8. Neto F.D.M., Neto A.J.S. An Introduction to Inverse Problems with Applications. Berlin: Springer, 2013. 255 p.
  9. Ватульян А.О. Коэффициентные обратные задачи механики. М.: Физматлит, 2019. 272 с.
  10. Sinkus R., Lorenzen J., Schrader D., Lorenzen M., Dargatz M., Holz D. High-resolution tensor MR elastography for breast tumour detection // Phys. Med. Biol. 2000. V. 45. P. 1649–1664. https://doi.org/10.1088/0031-9155/45/6/317
  11. Manduca A., Oliphant T.E., Dresner M.A., Mahowald J.L., Kruse S.A., Amromin E., Felmlee J.P., Greenleaf J.F., Ehman R.L. Magnetic resonance elastography: Non-invasive mapping of tissue elasticity // Medical Image Analysis. 2001. V. 5. № 4. P. 237–254. https://doi.org/10.1016/S1361-8415(00)00039-6
  12. Сарвазян А.П., Руденко О.В., Свенсон С.Д., Фаулкс Ю.Б., Емельянов С.Ю. Упругая визуализация сдвиговых волн: новая ультразвуковая технология медицинской диагностики // УЗИ Мед. Биол. 1998. Т. 24. С. 1419–1435.
  13. Arani A., Manduca A., Ehman R.L., Huston Ill.J. Harnessing brain waves: a review of brain magnetic resonance elastography for clinicians and scientists entering the field // Br. J. Radiol. 2021. V. 94. № 1119. P. 20200265. https://doi.org/10.1259/bjr.20200265
  14. Cicirello A., Mace B.R., Kingan M.J., Yang Y. Sensitivity analysis of generalised eigenproblems and application to wave and finite element models // J. Sound Vibr. 2020. V. 478. P. 115345. https://doi.org/10.1016/j.jsv.2020.115345
  15. Perkowski Z., Czabak M. Description of behaviour of timber-concrete composite beams includinginterlayer slip, uplift, and long-term effects: Formulation of the model and coefficient inverse problem // Eng. Struct. 2019. 194. P. 230–250. https://doi.org/10.1016/j.engstruct.2019.05.058
  16. Ватульян А.О., Юров В.О. Об определении механических характеристик стержневых элементов из функционально-градиентных материалов // Изв. РАН. МТТ. 2021. № 4. С. 52–63. https://doi.org/10.31857/S0572329921040139
  17. Vatulyan A.O., Dudarev V.V., Mnukhin R.M. Identification of characteristics of a functionally graded isotropic cylinder // Int. J. Mech. Mater.Des. 2021. V. 17. № 2. P. 321–332. https://doi.org/10.1007/s10999-020-09527-5
  18. Vatulyan A.O., Dudarev V.V., Mnukhin R.M., Nedin R.D. Identification of the Lamé parameters of an inhomogeneous pipe based on the displacement field data // Eur. J. Mech. A/Solids. 2020. V. 81. P. 103939. https://doi.org/10.1016/j.euromechsol.2019.103939
  19. Dudarev V.V., Vatulyan A.O., Mnukhin R.M., Nedin R.D. Concerning an approach to identifying the Lamé parameters of an elastic functionally graded cylinder // Math. Meth. Appl. Sci. 2020. V. 43. № 11. P. 6861–6870. https://doi.org/10.1002/mma.6428
  20. Vatulyan A.O., Yurov V.O. On the reconstruction of material properties of a radially inhomogeneous cylindrical waveguide // Math. Meth. Appl. Sci. 2021. V. 44. № 6. P. 4756–4769. https://doi.org/10.1002/mma.7067
  21. Хатсон В., Пим Дж. Приложения функционального анализа и теории операторов. М.: Мир, 1983. 432 с.
