Investigation of the Plasma-Chemical Synthesis of Thin Ga2O3 Films Doped with Zn in One Step in Plasma

L. A. Mochalov; Мочалов Л. А.; M. A. Kudryashov; Кудряшов М. А.; I. O. Prokhorov; Прохоров И. О.; M. A. Vshivtsev; Вшивцев М. А.; Yu. P. Kudryashova; Кудряшова Ю. П.; E. A. Slapovskaya; Слаповская Е. А.; A. V. Knyazev; Князев А. В.

doi:10.31857/S0023119323060116

Investigation of the Plasma-Chemical Synthesis of Thin Ga2O3 Films Doped with Zn in One Step in Plasma

Authors: Mochalov L.A.¹, Kudryashov M.A.¹, Prokhorov I.O.¹, Vshivtsev M.A.¹, Kudryashova Y.P.¹, Slapovskaya E.A.¹, Knyazev A.V.¹
Affiliations:
1. Lobachevsky State University of Nizhny Novgorod (National Research University)
Issue: Vol 57, No 6 (2023)
Pages: 478-484
Section: PLASMA CHEMISTRY
URL: https://journals.rcsi.science/0023-1193/article/view/232808
DOI: https://doi.org/10.31857/S0023119323060116
EDN: https://elibrary.ru/RVETZB
ID: 232808

Cite item

Full Text

Open Access
Restricted Access

Access granted
Restricted Access

Subscription Access

Abstract
About the authors
References
Supplementary files
Statistics

Abstract

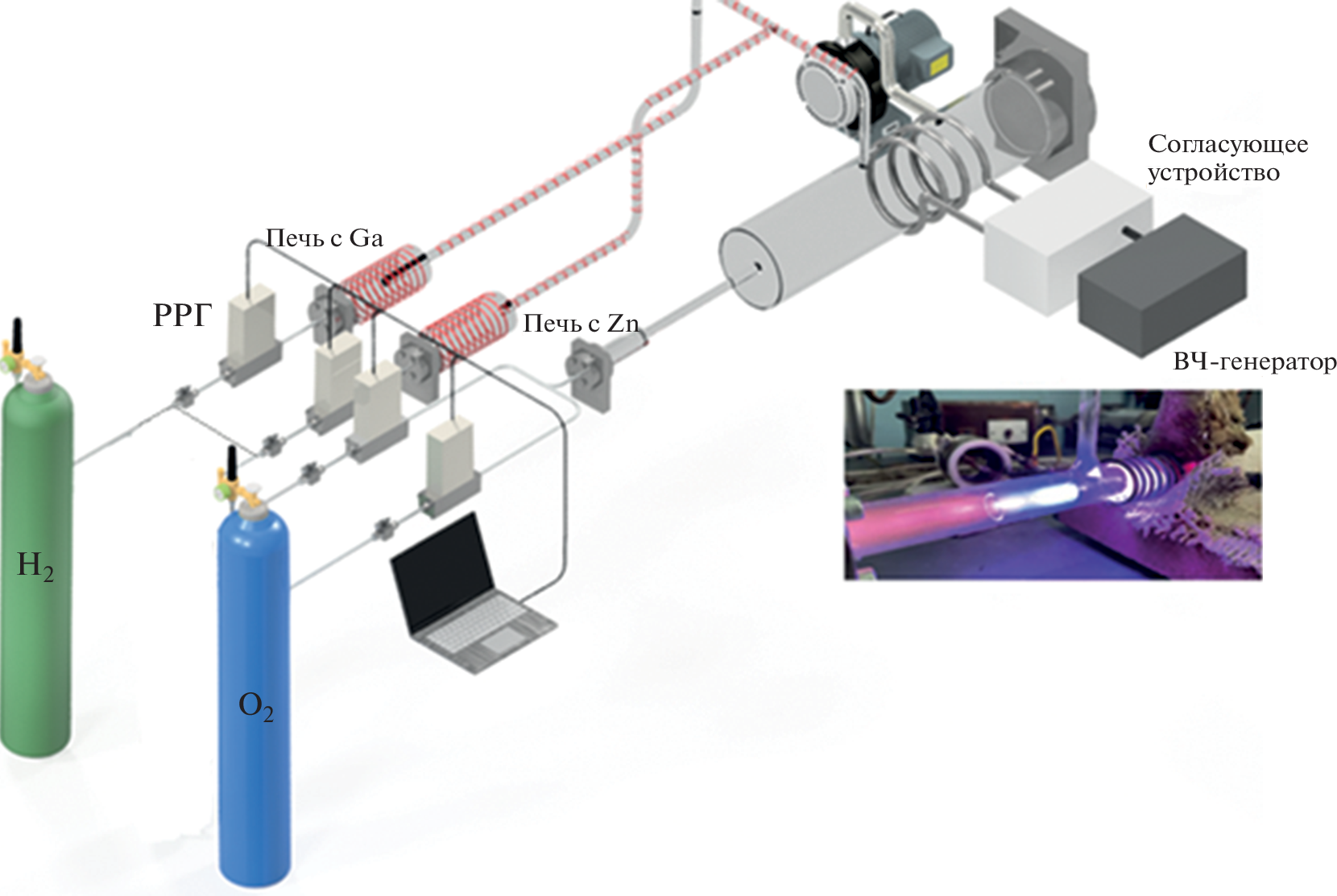

A process for fabricating Zn-doped (up to 10 at %) β-Ga2O3 thin films by plasma-enhanced chemical vapor deposition has been studied. High-purity gallium, zinc, and oxygen were used as starting materials, and hydrogen was chosen as the carrier and plasma gas. A low-temperature nonequilibrium RF (40.68 MHz) discharge plasma at a reduced pressure (0.01 torr) was used to initiate chemical reactions of precursors. The

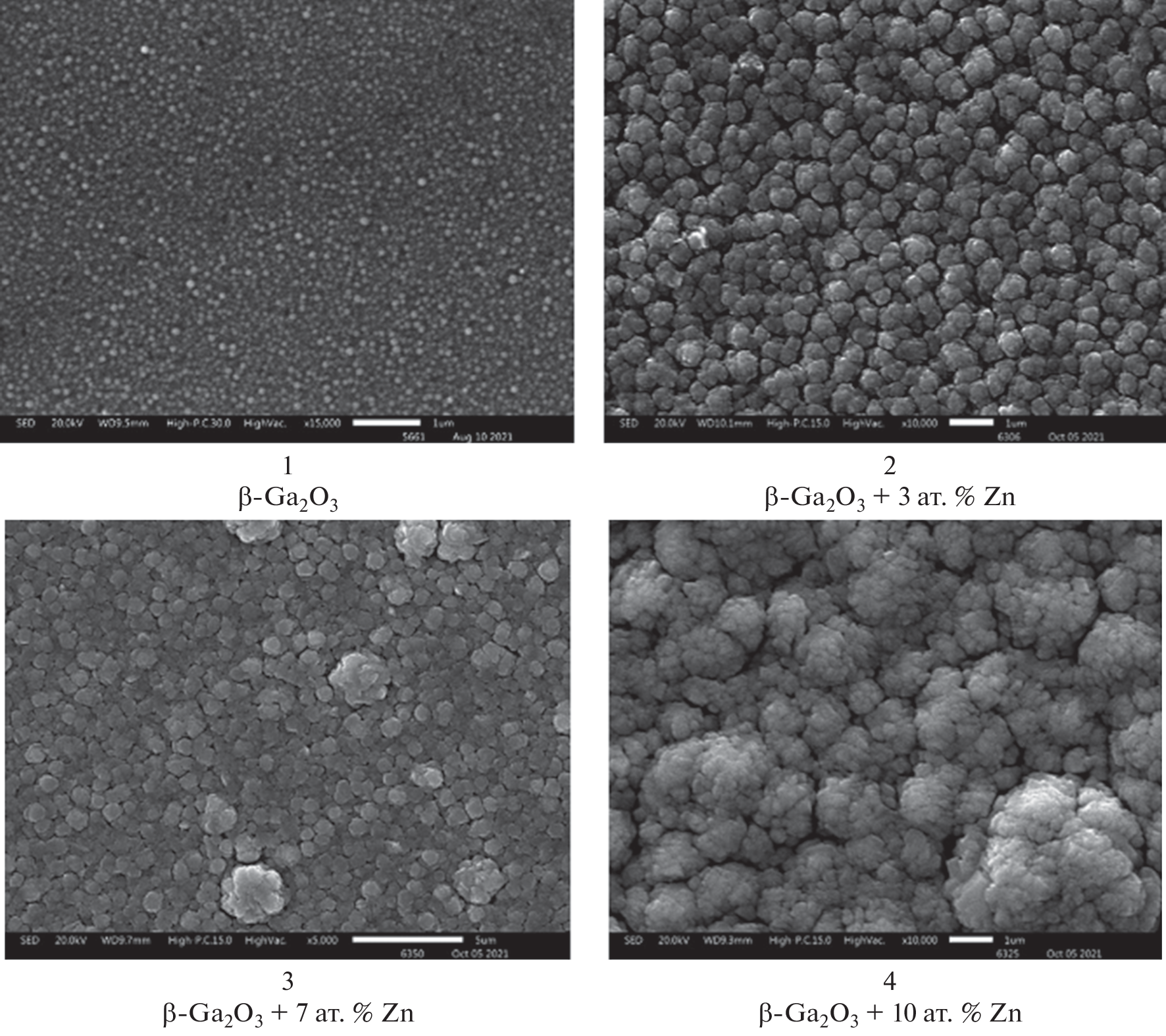

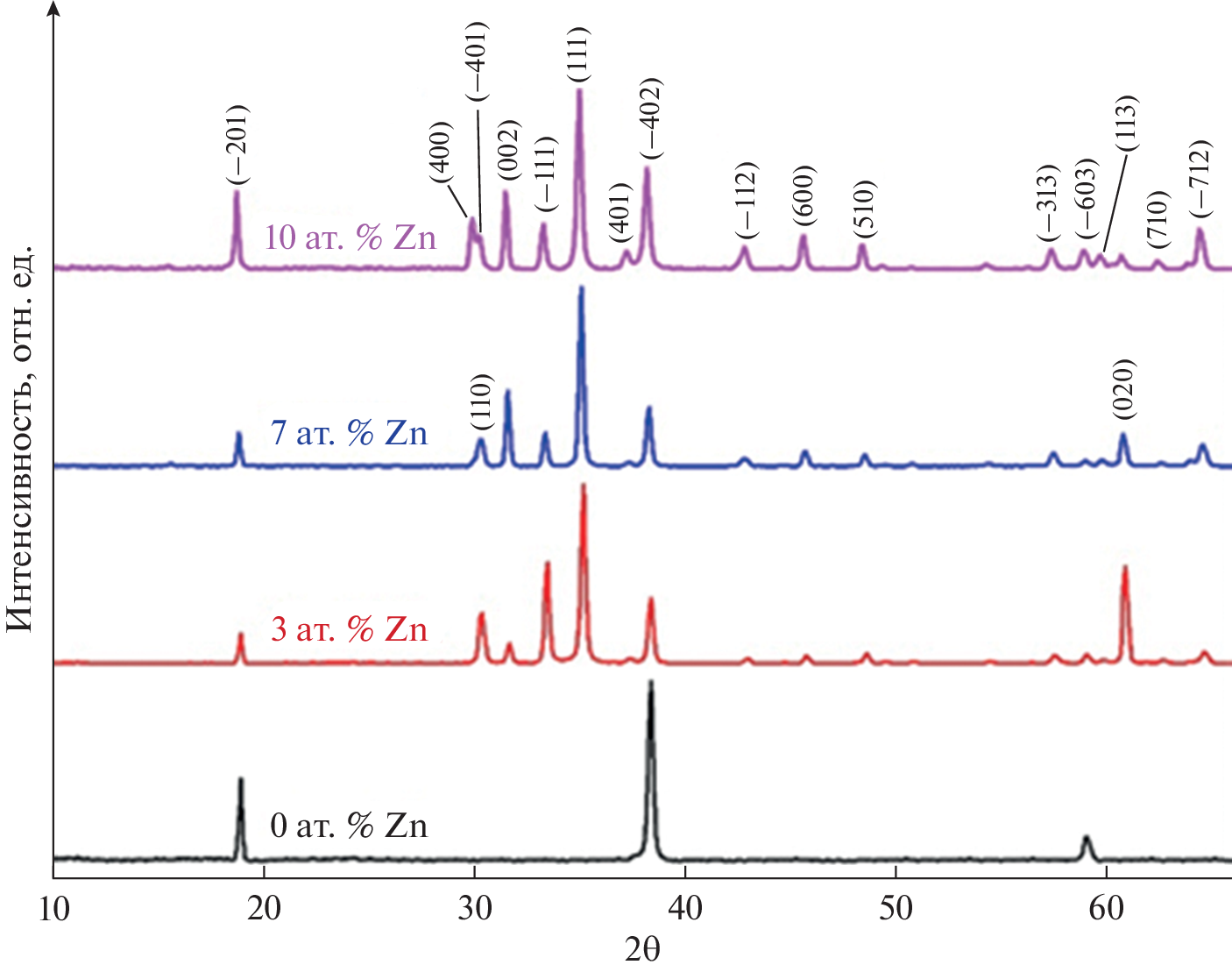

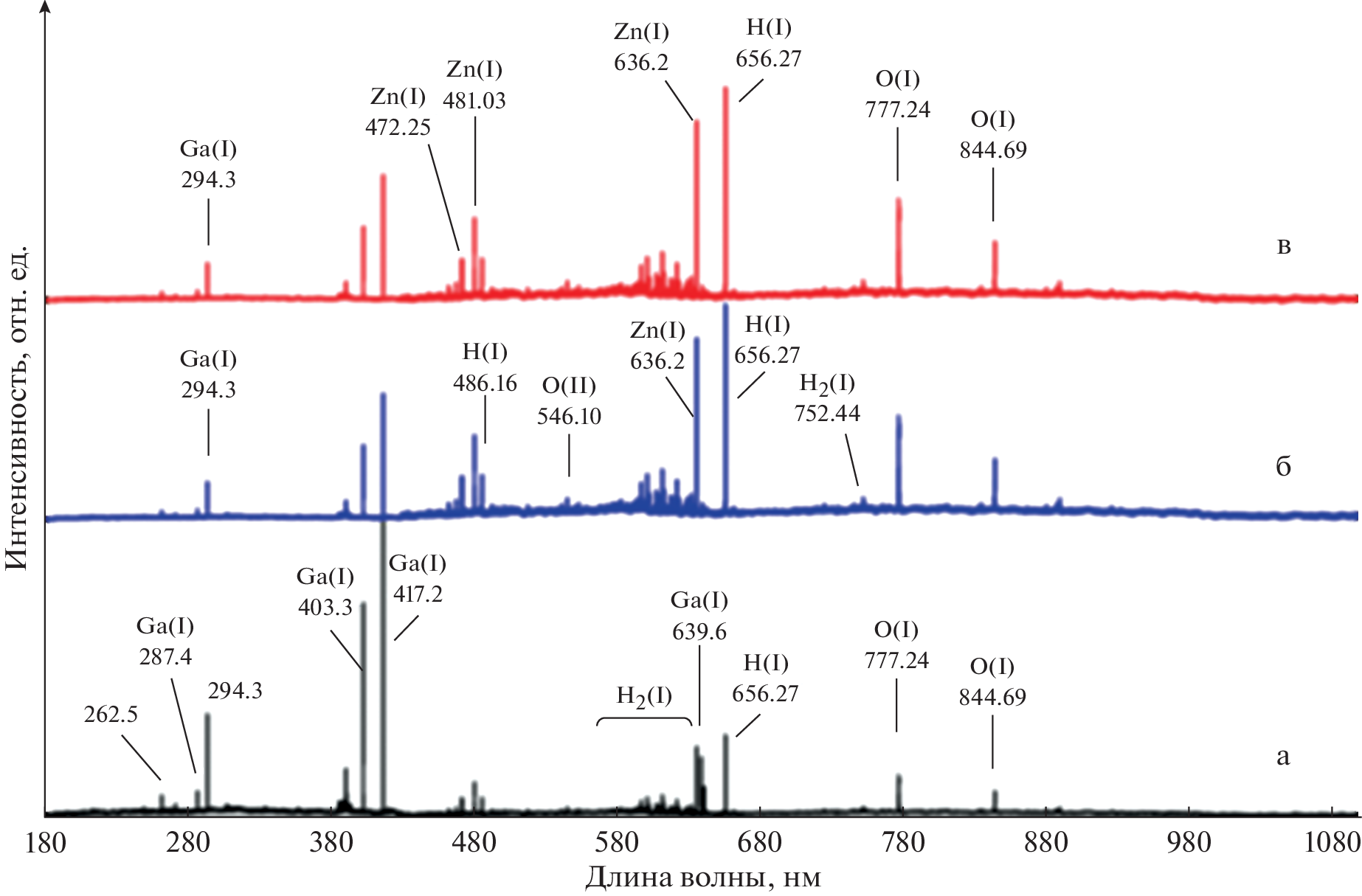

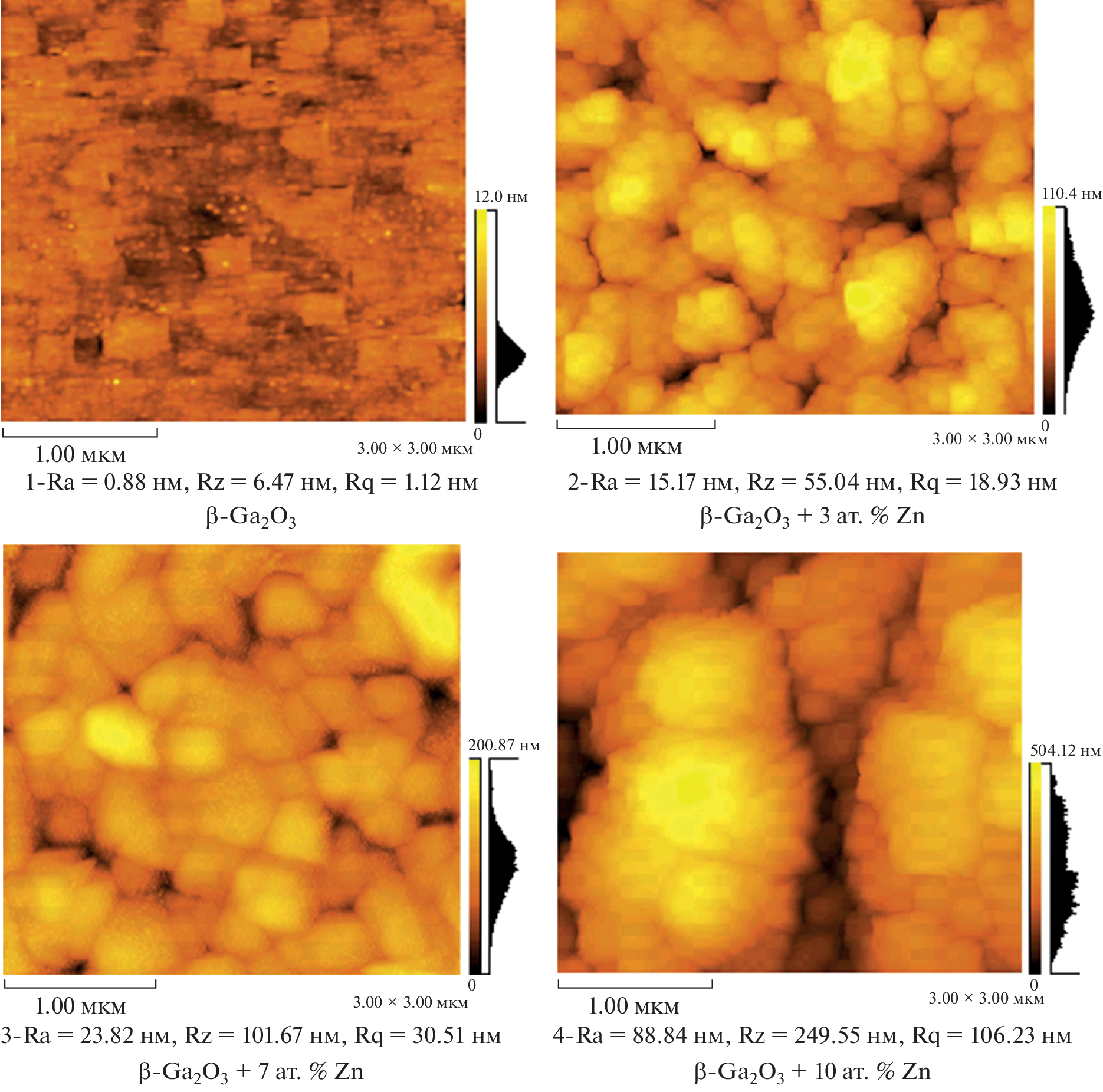

plasma-chemical process was monitored using optical emission spectroscopy. Structural properties and morphology of the deposited β-Ga2O3 films were studied by various methods.

Keywords

thin films, gallium oxide, PECVD

References

Peelaers H., Lyons J.L., Varley B., Van de Walle C.G. // APL Mater. 2019. V. 7. P. 022519.
Wang X.H., Zhang F.B., Saito K., Tanaka T., Nishio M., Guo Q.X. // J. Phys. Chem. Solids. 2014. V. 75. № 11. P. 1201.
Skachkov D., Lambrecht W.R.L. // Appl. Phys. Lett. 2019. V. 114. № 20. P. 202102.
Pearton S.J. et al. // Appl. Phys. Rev. 2018. V. 5. № 1. P. 011301.
Higashiwaki M., Jessen G.H. // Appl. Phys. Lett. 2018. V. 112. № 6. P. 060401.
Mastro M.A., Kuramata A., Calkins J., Kim J., Ren F., Pearton S.J. // ECS J. Solid State Sci. Technol. 2017 V. 6. № 5. P. 356.
Varley J.B., Weber J.R., Janotti A., Van de Walle C.G. // Appl. Phys. Lett. 2010. V. 97. № 14. P. 142106.
Wang X.H., Zhang F.B., Saito K., Tanaka T., Nishio M., Guo Q.X. // J. Phys. Chem. Solids. 2014 V. 75. № 11. P. 1201.
Wei Y. et al. // Semicond. 2012. V. 33. P. 073003.
Meng L. // Thesis. Presented in Partial Fulfillment of the Requirements for the Degree Master of Science in the Graduate School of The Ohio State University. 2020.
Gu J.H., Lu Z., Long L., Zhong Z.Y., Yang C.Y., Hou J. // Mater. Sci. Pol. 2015. V. 33. P. 470.
Zhao H., Hu J., Chen S., Xie Q., He J. // Ceram. Int. 2016. V. 42. № 4. P. 5582.
Sowmya P., Kasturi V., Shivakumar G.K. // Semiconductors. 2012. V. 46. № 12. P. 1545.
Aleksandrova M., Ivanova T., Hamelmann F., Strijkova V., Gesheva K. // Coatings. 2020. V. 10. № 7. P. 650.
Mochalov L.A., Logunov A.A., Kudryashov M.A. // J. Phys: Conf. Ser. 2021. № 1967. P. 012037.
Mochalov L., Logunov A., Gogova D., Letnianchik A., Vorotyntsev V. // Optical and Quantum Electronics. 2020. V. 52 № 12. P. 510.
Mochalov L., Logunov A., Kudryashov M., Prokhorov I., Sazanova T., Yunin P., Pryakhina V., Vorotuntsev I., Malyshev V., Polyakov A., Pearton S.J. // ECS J. Solid State Sci. Technol. 2021. V. 10. P. 073002.
Mochalov L., Logunov A., Sazanova T., Kulikov A., Rafailov E.U., Zelentsov S. // 22nd International Conference on Transparent Optical Networks (ICTON). 2020. P. 19991648.
Logunov A., Mochalov L., Gogova D., Vorotyntsev V. // International Conference on Transparent Optical Networks (ICTON). 2019. P. 8840331.
Mochalov L., Logunov A., Vorotyntsev V. // Sep. Purif. Technol. 2021. V. 258. P. 118001.
Mochalov L., Logunov A., Kitnis A., Gogova D., Vorotyntsev V. // Sep. Purif. Technol. 2020. V. 238. P. 116446.
