STRUCTURE AND PROPERTIES OF A HIGH-ENTROPY AlCrFeCoNi ALLOY AFTER ELECTRON-ION-PLASMA TREATMENT
- Authors: Gromov V.E.1, Ivanov Y.F.2, Efimov M.O.1, Shliarova Y.A.1
-
Affiliations:
- Siberian State Industrial University
- Institute of High Current Electronics, Siberian Branch of the Russian Academy of Sciences
- Issue: Vol 511, No 1 (2023)
- Pages: 5-9
- Section: ФИЗИКА
- URL: https://journals.rcsi.science/2686-7400/article/view/135929
- DOI: https://doi.org/10.31857/S2686740023040041
- EDN: https://elibrary.ru/VQNVCP
- ID: 135929
Cite item
Abstract

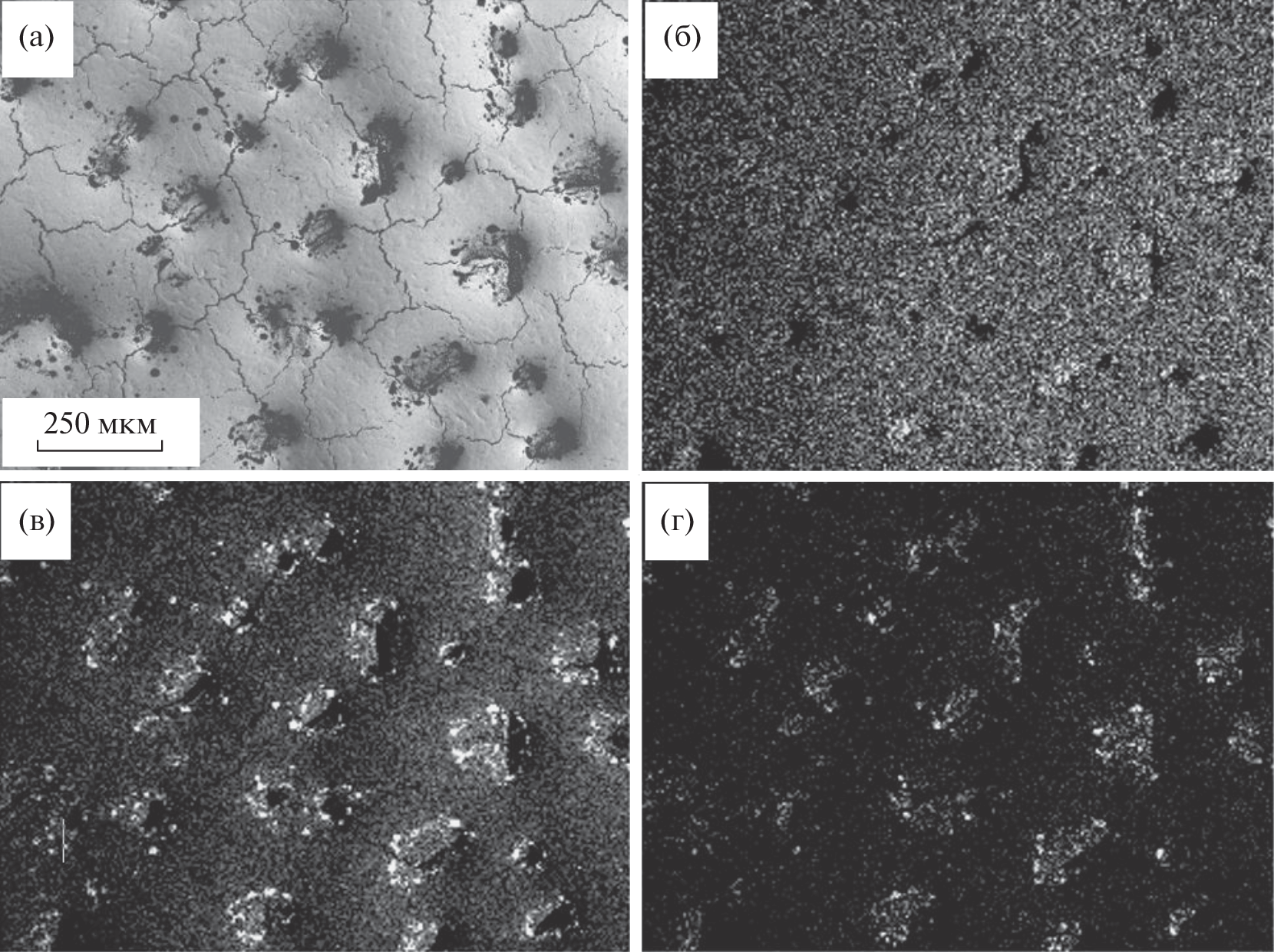

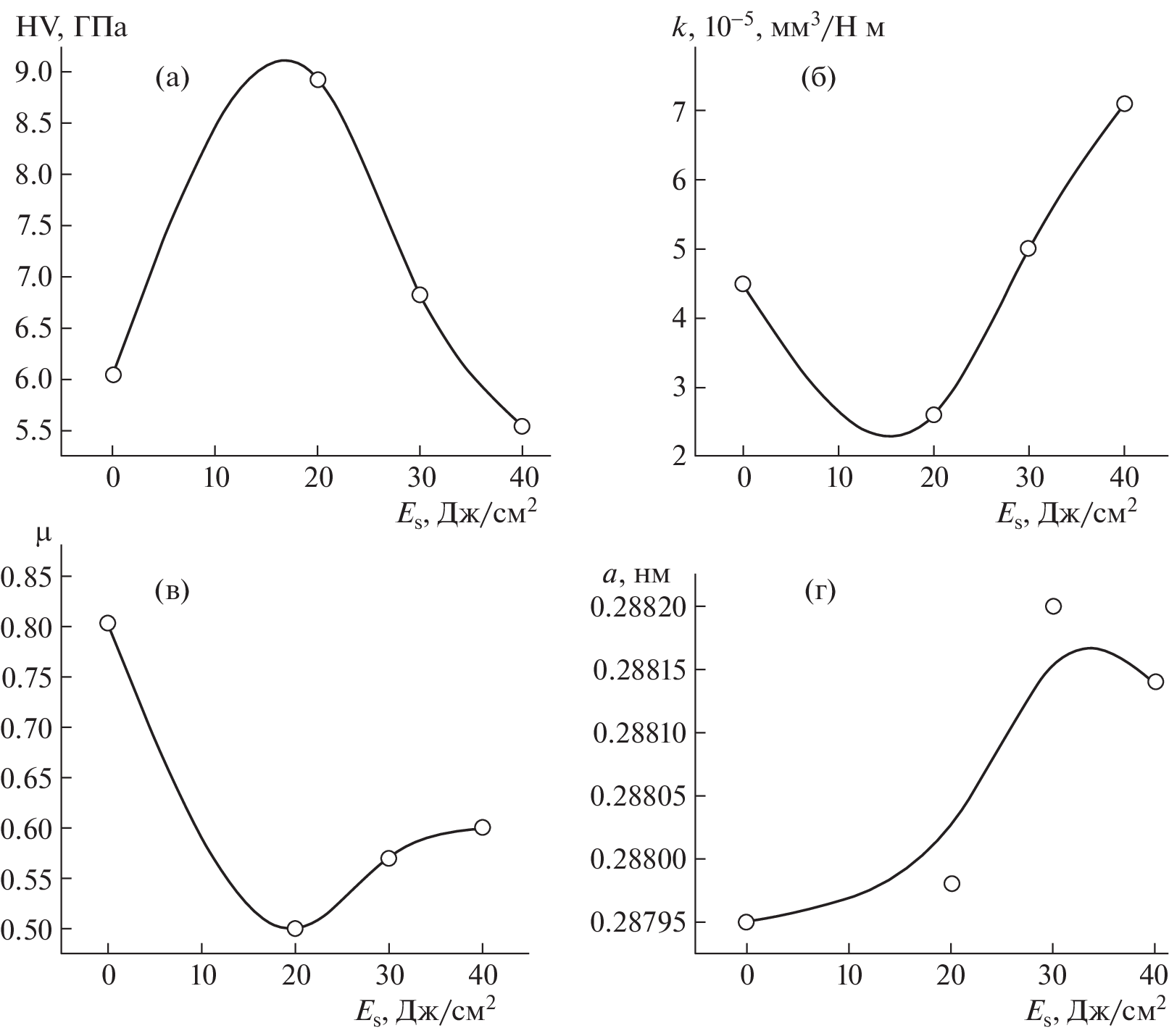

With the help of wire arc additive manufacturing, a HEA of AlCrFeCoNi was prepared: of a non-equiatomic composition, on which a B + Cr film with a thickness of ~1 μm was deposited by plasma-assisted RF sputtering. Subsequent processing consisted in electron-beam irradiation of the surface with the following parameters: energy density 20–40 J/cm2, pulse duration 200 μs, frequency 0.3 s–1, number of pulses 3. A quasi-periodic distribution of chemical elements (at. %) 33.4Al; 8.3Cr; 17.1 Fe; 5.4Co; 35.7 Ni is established. It is shown that at the energy density of the electron beam Es = 20 J/cm2, the microhardness increases by a factor of 2, wear resistance by a factor of 5, and the friction coefficient decreases by a factor of 1.3. High-speed crystallization of the surface layer leads to the formation of a subgrain structure with subgrain sizes (150–200 nm). The increase in strength and tribological properties during electron-beam processing is interpreted taking into account the reduction in grain size, the formation of chromium and aluminum oxyborides, and the formation of a solid solution of boron incorporation into the HEA crystal lattice.
About the authors
V. E. Gromov
Siberian State Industrial University
Author for correspondence.
Email: gromov@physics.sibsiu.ru
Russia, Novokuznetsk
Yu. F. Ivanov
Institute of High Current Electronics, Siberian Branch of the Russian Academy of Sciences
Email: gromov@physics.sibsiu.ru
Russia, Tomsk
M. O. Efimov
Siberian State Industrial University
Email: gromov@physics.sibsiu.ru
Russia, Novokuznetsk
Yu. A. Shliarova
Siberian State Industrial University
Email: gromov@physics.sibsiu.ru
Russia, Novokuznetsk
References
- Wang Z., Huang Y., Yang Y., et al. Atomic- size effect and solid solubility of multicomponent alloys // Scripta Mater. 2015. V. 94. P. 28–31.
- Li D.Y., Zhang Y. The ultrahigh charpy impact toughness of forged AlCoCrFeNi high entropy alloys at room and cryogenic temperatures // Intermetallics. 2016. V. 70. P. 24–28.
- Yeh J.-W., Chen S.-K., Lin S.J., et al. Nanostructured high-entropy alloys with multiple principal elements: Novel design concepts and outcomes // Adv. Eng. Mater. 2004. V. 6. № 5. P. 299–303.
- Cantor B., Chang I.T.H., Knight P., et al. Microstructural development in equiatomic multicomponent alloys // Mater. Sci. Eng. A 2004. V. 375–377. P. 213–218.
- Yeh J.-W., Chen S.-K., Gan J.-Y., et al. Formation of simple crystal structures in Cu-Co-Ni–Cr–Al–Fe–Ti–V alloys with multiprincipal metallic elements // Metal. Mater. Trans. A. 2004. V. 35A. P. 2533–2536.
- Yeh J.-W., Chen Y.-L., Lin S.-J., et al. High-entropy alloys – a new era of exploration // Mater. Sci. Forum. 2007. V. 560. P. 1–9.
- Chang S.Y., Lin S.Y., Huang Y.C., et al. Mechanical properties, deformation behaviors and interface adhesion of (AlCrTaTiZr)Nx multi-component coatings // Surf. Coat. Technol. 2010. V. 204. P. 3307–3314.
- Shen W.-J., Tsai M.-H., Chang Y.-S., et al. Effects of substrate bias on the structure and mechanical properties of (Al1.5CrNb0.5Si0.5Ti)Nx coatings // Thin Solid Films. 2012. V. 520. P. 6183–6188.
- Braic V., Vladescu A., Balaceanu M., et al. Nanostructured multielement (TiZrNbHfTa)N and (TiZrNbHfTa)C hard coatings // Surf. Coat. Technol. 2012. V. 211. P. 117–121.
- Lin M.I., Tsai M.H., Shen WJ., et al. Evolution of structure and properties of multi-component (AlCrTaTiZr)Ox films // Thin Solid Films. 2010. V. 518. P. 2732–2737.
- Zhao Y., Zhang J., Wang Y., et al. Size- dependent mechanical properties and deformation mechanisms in Cu/NbMoTaW nanolaminates // Sci. China Mater. 2020. V. 63. P. 444–452.
- Cao Z.H., Ma Y.J., Cai Y.P., et al. High strength dual-phase high entropy alloys with a tunable nanolayer thickness // Scripta Mater. 2019. V. 173. P. 149–153.
- Rong Z., Wang C., Wang Y., et al. Microstructure and properties of FeCoNiCrX (X=Mn,Al) high entropy alloy coatings // Journal of Alloys and Compounds. 2022. V. 921. P. 166061.
- Guo J., Goh M., Zhu Z., et al. On the machining of selective laser melting CoCrFeMnNi high-entropy alloy // Materials and Design. 2018. V. 153. P. 211–220.
- Lindner T., Löbel M., Sattler B., et al. Surface hardening of FCC phase high-entropy alloy system by powder-pack boriding // Surface and Coatings Technology. 2019. V. 371. P. 389–394.
- Ivanov Yu.F., Gromov V.E., Zagulyaev D.V., et al. Prospects for the application of surface treatment of alloys by electron beams in state of the art technologies // Progress in Physics of metals. 2020. V. 21. № 3. P. 345–362.
- Ivanov Yu.F., Gromov V.E., Zagulyaev D.V., et al. Improvement of functional properties of alloys by electron beam treatment // Steel in Translation. 2022. V. 52. № 1. P. 71–75.
