Change in the Charge State of MOS Structures with a Radiation-Induced Charge under High-Field Injection of Electrons

D. V. Andreev; Андреев Д. В.; G. G. Bondarenko; Бондаренко Г. Г.; V. V. Andreev; Андреев В. В.

doi:10.31857/S1028096023010053

Change in the Charge State of MOS Structures with a Radiation-Induced Charge under High-Field Injection of Electrons

Authors: Andreev D.V.¹, Bondarenko G.G.², Andreev V.V.¹
Affiliations:
1. Bauman Moscow State Technical University, The Kaluga Branch
2. National Research University Higher School of Economics
Issue: No 1 (2023)
Pages: 55-60
Section: Articles
URL: https://journals.rcsi.science/1028-0960/article/view/137659
DOI: https://doi.org/10.31857/S1028096023010053
EDN: https://elibrary.ru/BKNMNM
ID: 137659

Cite item

Full Text

Open Access
Restricted Access

Access granted
Restricted Access

Subscription Access

Abstract
About the authors
References
Supplementary files
Statistics

Abstract

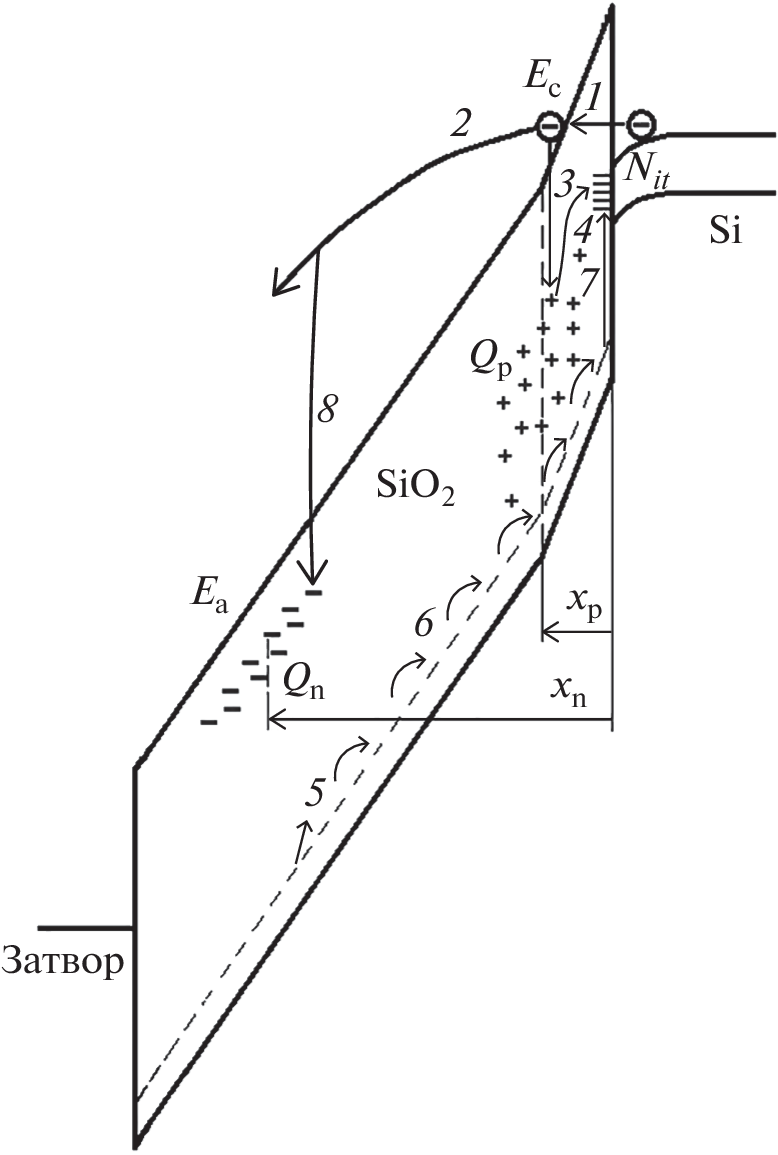

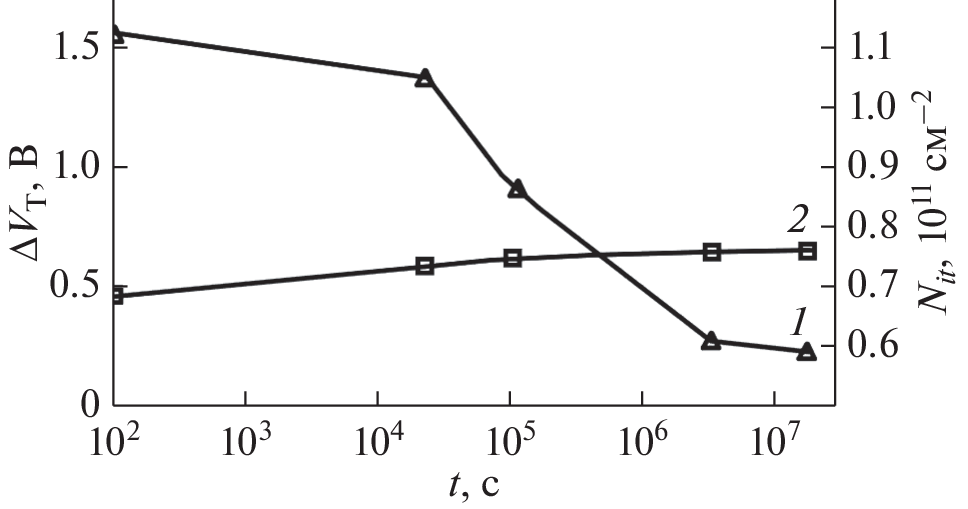

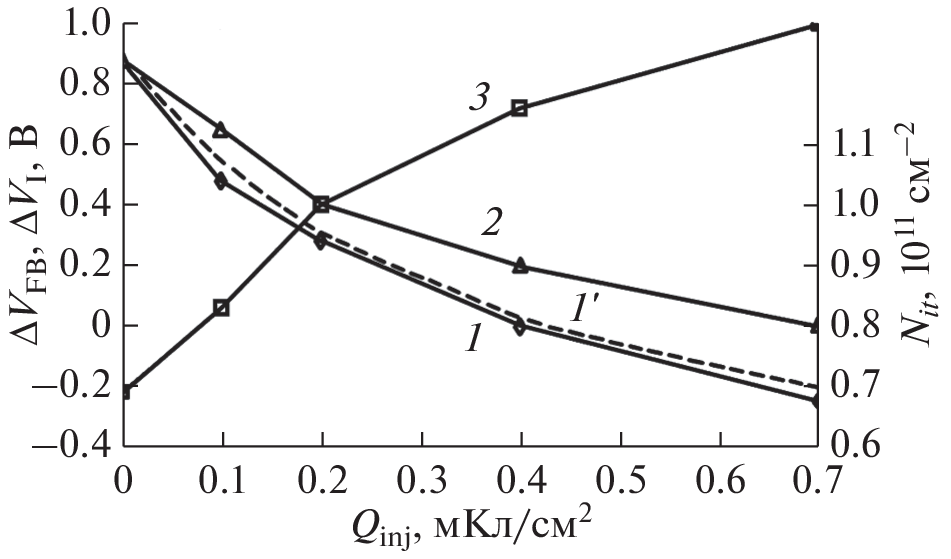

The influence of high-field electron injection modes on the charge state and defectiveness of metal–oxide–semiconductor (MOS) structures after irradiation is studied. It is shown that to erase the radiation-induced positive charge accumulated in the SiO₂ film of MOS structures, it is necessary to apply high-field Fowler–Nordheim tunnel injection of electrons in electric field that do not cause the hole generation. It has been established that erasure of the radiation-induced positive charge in the SiO₂ film of MOS structure and the generation of new interface traps are mainly determined by the magnitude of the charge injected into the dielectric. It has been found that, upon annihilation of the holes trapped in SiO₂ as a result of the interaction with the injected electrons, a significant increase in the number of the interface traps is observed, which significantly exceeds the number of interface traps arising upon annealing of a radiation-induced positive charge at room temperature. A model is proposed that describes the annihilation of a radiation-induced positive charge upon interaction with injected electrons.

Keywords

MOS structure, radiation-induced charge, gate dielectric, high-field injection, MOS sensors, proton radaition.

References

Oldham T.R., McLean F.B. // IEEE Trans. Nucl. Sci. 2003. V. 50. P. 483. https://doi.org/10.1109/TNS.2003.812927
Schwank J.R., Shaneyfelt M.R., Fleetwood D.M., Felix J.A., Dodd P.E., Paillet P., Ferlet-Cavrois V. // IEEE Trans. Nucl. Sci. 2008. V. 55. P. 1833. https://doi.org/10.1109/TNS.2008.2001040
Fleetwood D.M. // IEEE Trans. Nucl. Sci. 2018. V. 65. P. 1465. https://doi.org/10.1109/TNS.2017.2786140
Hughes H.L., Benedetto J.M. // IEEE Trans. Nucl. Sci. 2003. V. 50. P. 500. https://doi.org/10.1109/TNS.2003.812928
Esqueda I.S., Barnaby H.J., King M.P. // IEEE Trans. Nucl. Sci. 2015. V. 62. P. 1501. https://doi.org/10.1109/TNS.2015.2414426
Murata K., Mitomo S., Matsuda T., Yokoseki T., Makino T., Onoda S., Takeyama A., Ohshima T., Okubo S., Tanaka Y., Kandori M., Yoshie T., Hijikata Y. // Phys. Stat. Sol. A. 2017. V. 214. P. 1600446. https://doi.org/10.1002/pssa.201600446
Fleetwood D.M. // IEEE Trans. Nucl. Sci. 2020. V. 67. P. 1216. https://doi.org/10.1109/TNS.2020.2971861
Holmes-Siedle A., Adams L. // Radiat. Phys. Chem. 1986. V. 28. P. 235. https://doi.org/10.1016/1359-0197(86)90134-7
Pejović M.M. // Radiat. Phys. Chem. 2017. V. 130. P. 221. https://doi.org/10.1016/j.radphyschem.2016.08.027
Ristic G.S., Vasovic N.D., Kovacevic M., Jaksic A.B. // Nucl. Instrum. Methods Phys. Res. B. 2011. V. 269. P. 2703. https://doi.org/10.1016/j.nimb.2011.08.015
Lipovetzky J., Holmes–Siedle A., Inza M.G., Carbonetto S., Redin E., Faigon A. // IEEE Trans. Nucl. Sci. 2012. V. 59. P. 3133. https://doi.org/10.1109/TNS.2012.2222667
Siebel O.F., Pereira J.G., Souza R.S., Ramirez-Fernandez F.J., Schneider M.C., Galup-Montoro C. // Radiat. Measurements. 2015. V. 75. P. 53. https://doi.org/10.1016/j.radmeas.2015.03.004
Kulhar M., Dhoot K., Pandya A. // IEEE Trans. Nucl. Sci. 2019. V. 66. P. 2220. https://doi.org/10.1109/TNS.2019.2942955
Camanzi B., Holmes-Siedle A.G. // Nature Mater. 2008. V. 7. P. 343. https://doi.org/10.1038/nmat2159
Andreev D.V., Bondarenko G.G., Andreev V.V., Stolyarov A.A. // Sensors. 2020. V. 20. P. 2382. https://doi.org/10.3390/s20082382
Andreev V.V., Maslovsky V.M., Andreev D.V., Stolyarov A.A. // Proc. SPIE. 2019. V. 11022. P. 1102207. https://doi.org/10.1117/12.2521985
Andreev V.V., Bondarenko G.G., Andreev D.V., Stolyarov A.A. // J. Contemp. Phys. (Armenian Acad. Sci.). 2020. V. 55. P. 144. https://doi.org/10.3103/S106833722002005X
Andreev D.V., Bondarenko G.G., Andreev V.V., Maslovsky V.M., Stolyarov A.A. // J. Surf. Invest.: X-ray, Synchrotron Neutron Tech. 2020. V. 14. P. 260. https://doi.org/10.1134/S1027451020020196
Lipovetzky J., Redin E.G., Faigon A. // IEEE Trans. Nucl. Sci. 2007. V. 54. P. 1244. https://doi.org/10.1109/TNS.2007.895122
Peng L., Hu D., Jia Y., Wu Y., An P., Jia G. // IEEE Trans. Nucl. Sci. 2017. V. 64. P. 2633. https://doi.org/10.1109/TNS.2017.2744679
Andreev V.V., Bondarenko G.G., Maslovsky V.M., Stolyarov A.A., Andreev D.V. // Phys. Stat. Sol. C. 2015. V. 12. P. 299. https://doi.org/10.1002/pssc.201400119
Andreev D.V., Maslovsky V.M., Andreev V.V., Stolyarov A.A. // Phys. Stat. Sol. A. 2022. V. 219. P. 2100400. https://doi.org/10.1002/pssa.202100400
Lai S.K. // J. Appl. Phys. 1983. V. 54. P. 2540. https://doi.org/10.1063/1.332323
Arnold D., Cartier E., DiMaria D.J. // Phys. Rev. B. 1994. V. 49. P. 10278. https://doi.org/10.1103/PhysRevB.49.10278
Strong A.W., Wu E.Y., Vollertsen R., Sune J., Rosa G.L., Rauch S.E., Sullivan T.D. Reliability Wearout Mechanisms in Advanced CMOS Technologies. Wiley-IEEE Press, 2009. 624 p.
Palumbo F., Wen C., Lombardo S., Pazos S., Aguirre F., Eizenberg M., Hui F., Lanza M. // Adv. Funct. Mater. 2019. V. 29. P. 1900657. https://doi.org/10.1002/adfm.201900657
Wu E.Y. // IEEE Trans. Electron Devices. 2019. V. 66. P. 4523. https://doi.org/10.1109/TED.2019.2933612
Zebrev G.I., Orlov V.V., Gorbunov M.S., Drosdetsky M.G. // Microelectron. Reliab. 2018. V. 84. P. 181. https://doi.org/10.1016/j.microrel.2018.03.014
Andreev D.V., Bondarenko G.G., Andreev V.V., Maslovsky V.M., Stolyarov A.A. // Acta Phys. Pol. A. 2019. V. 136. P. 263. https://doi.org/10.12693/APhysPolA.136.263
Cerbu F., Madia O., Andreev D.V., Fadida S., Eizenberg M., Breuil L., Lisoni J.G., Kittl J.A., Strand J., Shluger A.L., Afanas’ev V.V., Houssa M., Stesmans A. // Appl. Phys. Lett. 2016. V. 108. P. 222901. https://doi.org/10.1063/1.495271
