Anisotropy of Residual Stress Energy in Two-Component Plate Crystal Structures

D. S. Lisovenko; Лисовенко Д. С.; A. I. Epishin; Епишин А. И.

doi:10.31857/S0572329923600524

Anisotropy of Residual Stress Energy in Two-Component Plate Crystal Structures

Authors: Lisovenko D.S.¹, Epishin A.I.²
Affiliations:
1. Ishlinsky Institute for Problems in Mechanics RAS
2. Merzhanov Institute of Structural Macrokinetics and Materials Science RAS
Issue: No 6 (2023)
Pages: 136-154
Section: Articles
URL: https://journals.rcsi.science/1026-3519/article/view/231738
DOI: https://doi.org/10.31857/S0572329923600524
EDN: https://elibrary.ru/BNGLGT
ID: 231738

Cite item

Full Text

Open Access
Restricted Access

Access granted
Restricted Access

Subscription Access

Abstract
About the authors
References
Supplementary files
Statistics

Abstract

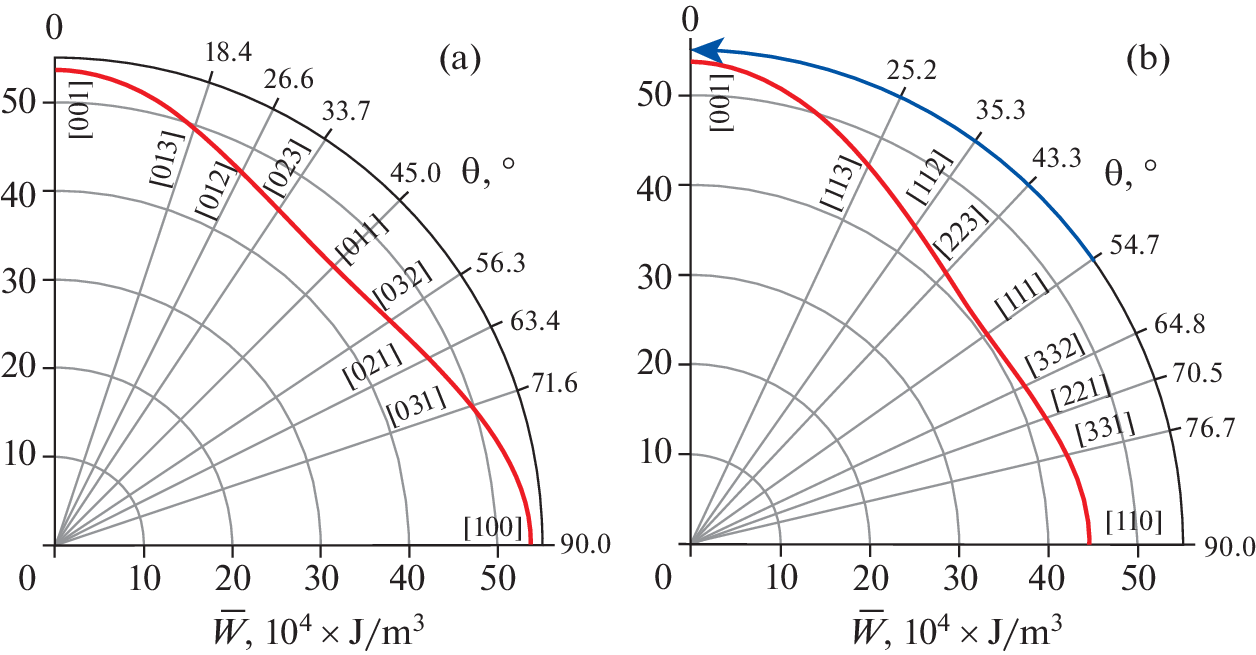

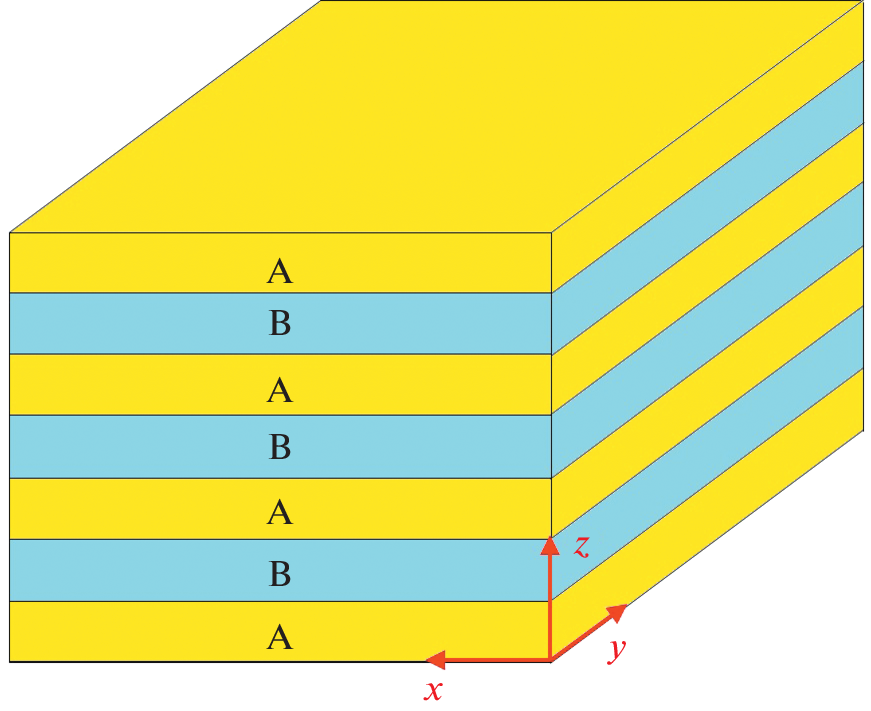

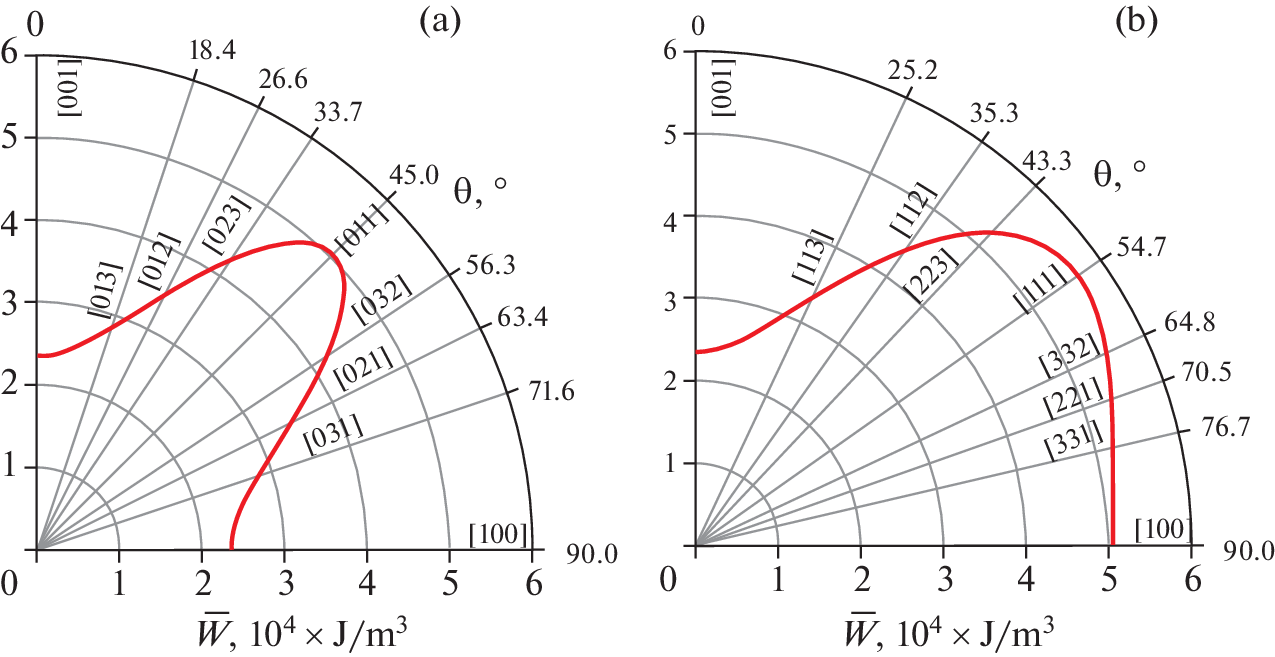

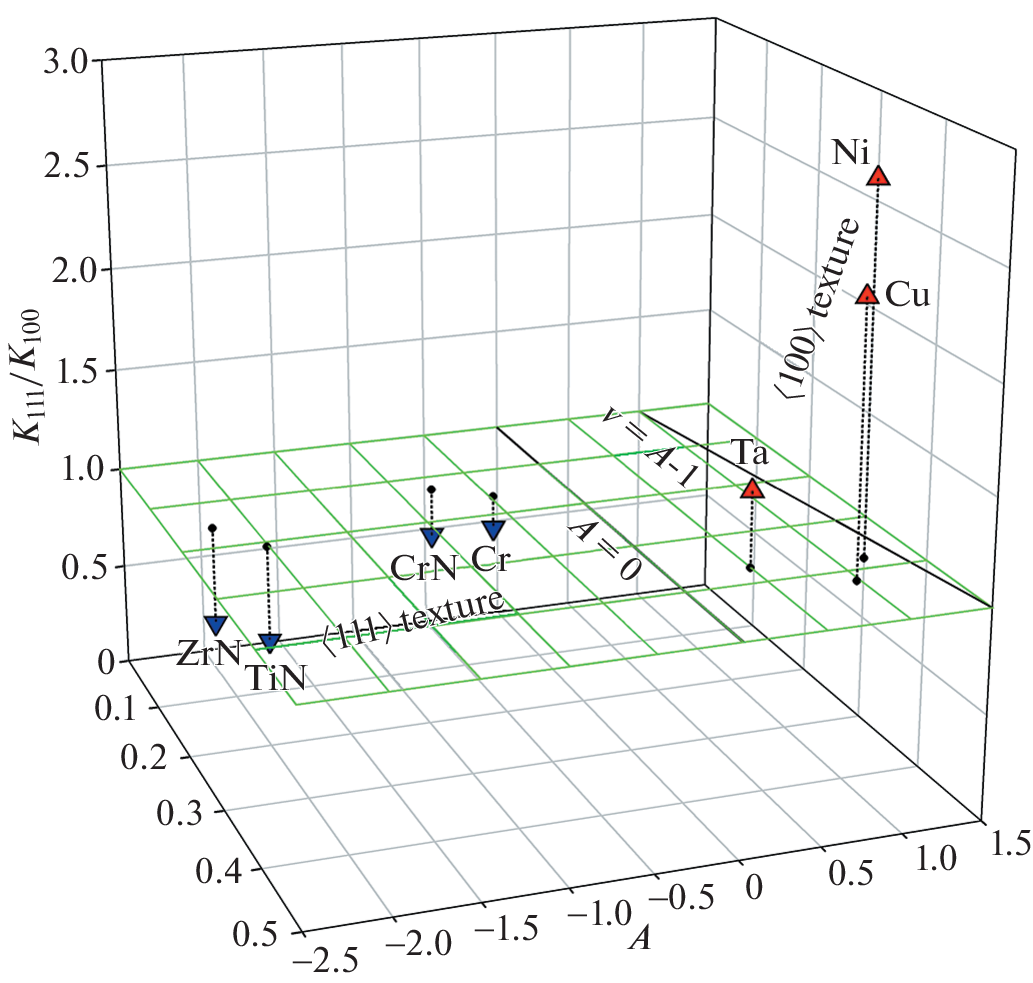

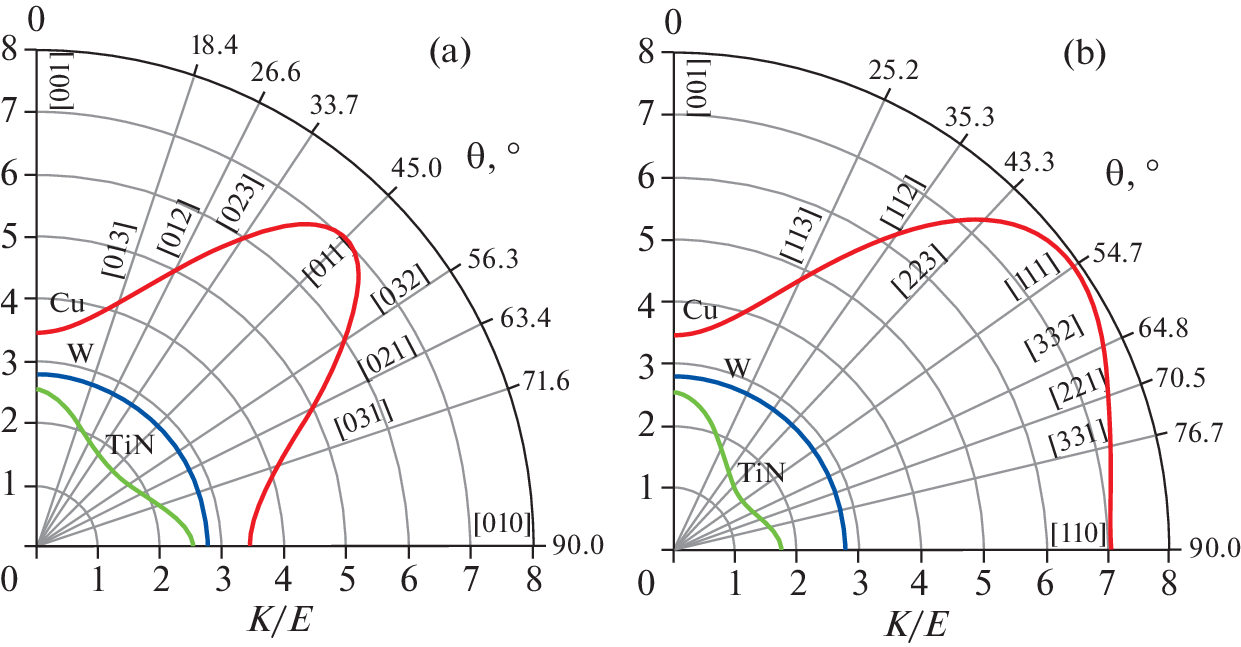

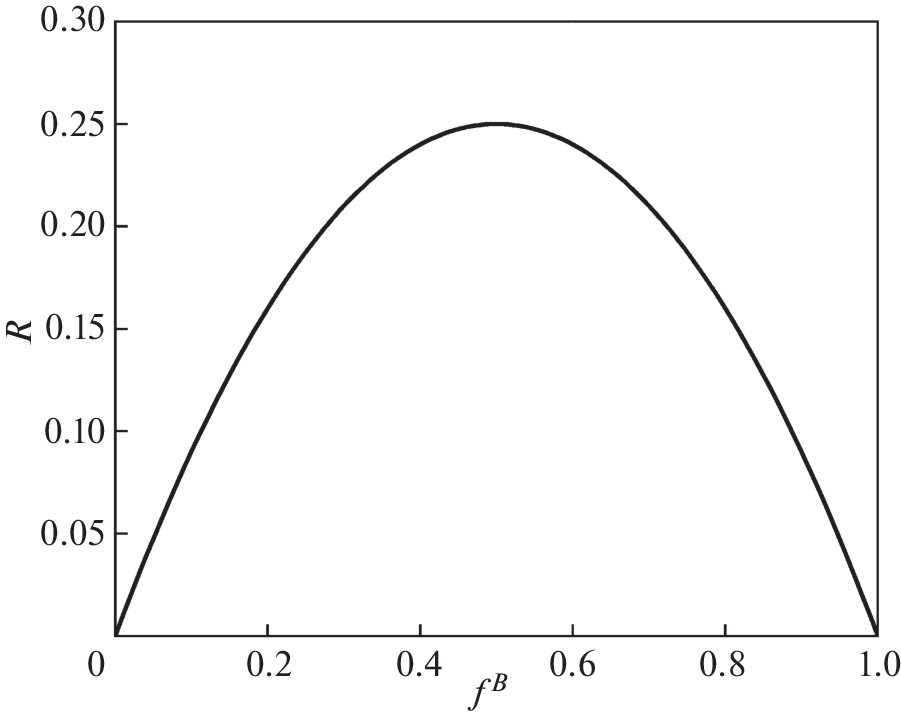

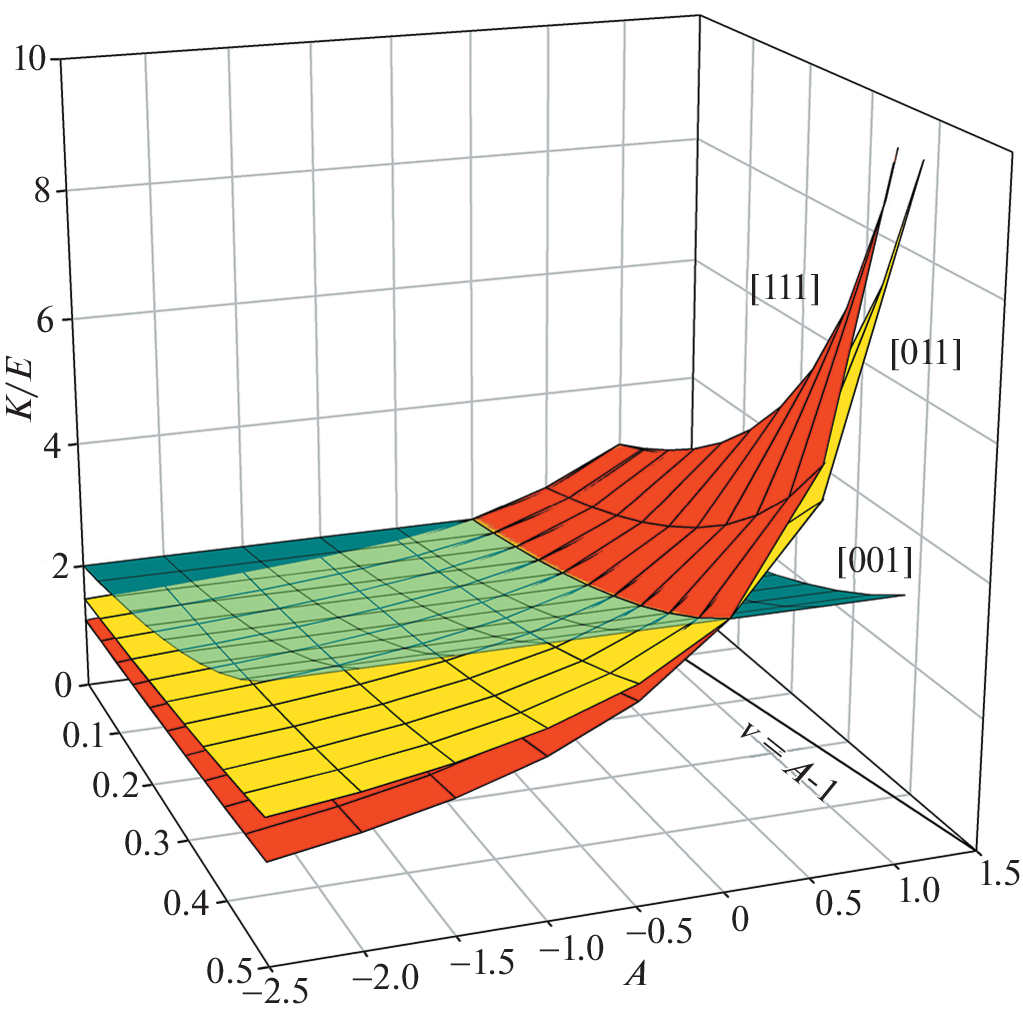

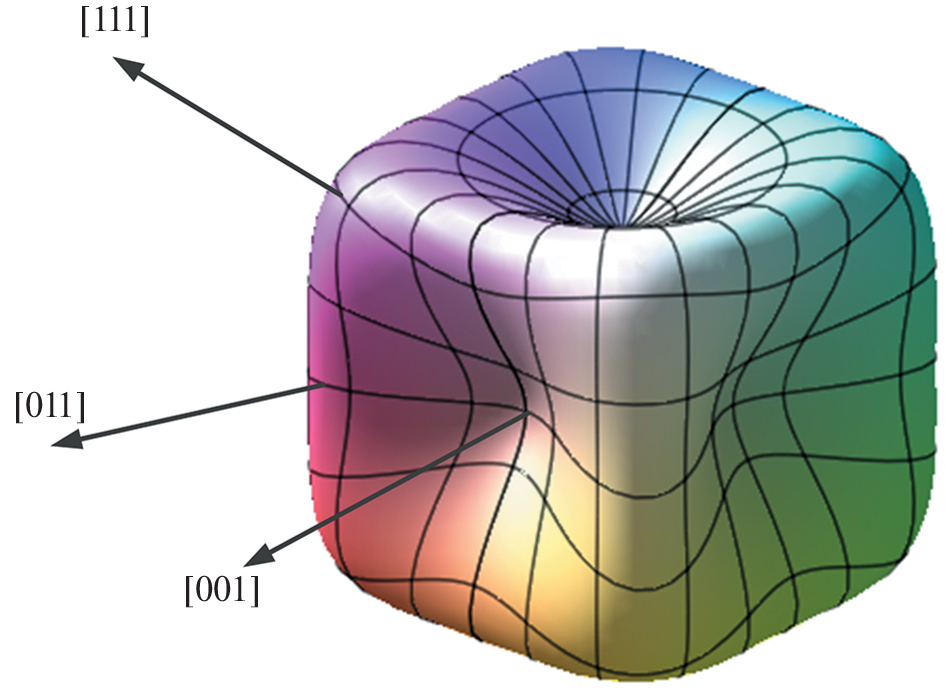

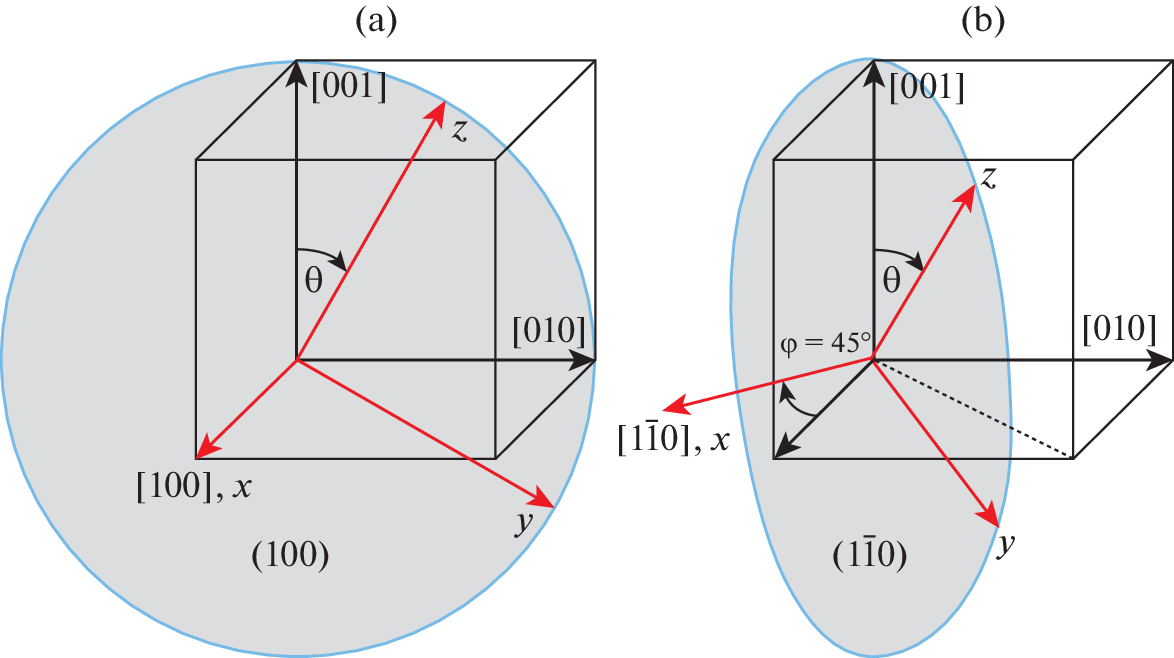

An analytical solution for residual stresses and their energy in an elastically anisotropic two-component plate structure, where the components have an identical type of elastic anisotropy, identical or proportional elastic constants and coinciding principal axes of elastic anisotropy is obtained. The obtained solution has been applied to analyze the anisotropy of the elastic energy of such crystalline structures as the raft structure γ/γ' of single-crystal nickel-base superalloys, multilayer erosion-resistant nanocoatings ZrN/CrN and single-layer coatings of various types. It has been shown that the factor of minimizing the elastic energy of residual stresses has a significant effect on the crystallographic orientation of the interface in multilayer structures and the direction of axis of the growth texture axis of coatings.

Keywords

plate structure, elastic anisotropy, residual stresses, elastic energy, cubic crystals

About the authors

D. S. Lisovenko

Ishlinsky Institute for Problems in Mechanics RAS

Email: lisovenk@ipmnet.ru
119526, Moscow, Russia

A. I. Epishin

Merzhanov Institute of Structural Macrokinetics and Materials Science RAS

Author for correspondence.
Email: a.epishin2021@gmail.com
142432, Chernogolovka, Moscow Region, Russia

References

Tabatabaeian A., Ghasemi A.R., Shokrieh M.M. et al. Residual stress in engineering materials: A review // Adv. Eng. Mater. 2022. V. 24. № 3. P. 2100786. https://doi.org/10.1002/adem.202100786
Wang X., Zurob H.S., Xu G. et al. Influence of microstructural length scale on the strength and annealing behavior of pearlite, bainite, and martensite // Metall. Mater. Trans. A. 2013. V. 44. P. 1454–1461. https://doi.org/10.1007/s11661-012-1501-1
Appel F., Clemens H., Fischer F. Modeling concepts for intermetallic titanium aluminides. Prog. Mater. Sci. 2016. V. 81. P. 55–124. https://doi.org/10.1016/j.pmatsci.2016.01.001
Svetlov I.L., Kuzmina N.A., Neiman A.V. et al. Effect of the rate of solidification on the microstructure, phase composition, and strength of Nb/Nb5Si3 in-situ composites // Bull. Russ. Acad. Sci. Phys. 2015. V. 79. P. 1146–1150. https://doi.org/10.3103/S1062873815090245
Muboyadzhyan S.A., Aleksandrov D.A., Gorlov D.S. Ion-plasma erosion-resistant nanocoatings based on metal carbides and nitrides // Russ. Metall. 2010. V. 2010. P. 790–799. https://doi.org/10.1134/S0036029510090077
Epishin A., Link T., Bruckner U., Portella P.D. Evolution of the γ/γ'-microstructure during high temperature creep of a nickel-base superalloy // Acta Mater. 2000. V. 48. P. 4169–4177. https://doi.org/10.1016/S1359-6454(00)00197-X
Епишин А.И., Лисовенко Д.С. Экстремальные значения коэффициента Пуассона кубических кристаллов // ЖТФ. 2016. Т. 86. № 10. С. 74–82.
Harris K., Erickson G.L., Sikkenga S.L. et al. Development of the rhenium containing superalloys CMSX-4 & CM 186 LC for single crystal blade and directionally solidified vane applications in advanced turbine engines // Superalloys. 1992. Warrendale, PA: TMS. P. 297–306. https://doi.org/10.7449/1992/Superalloys_1992_297_306
Epishin A., Link T., Brückner U. Microstructural stability of CMSX-4 and CMSX-10 under high temperature creep conditions. Materials for Advanced Power Engineering, FZ Jülich, 2006, P. 507–520.
Epishin A., Fedelich B., Finn M., Künecke G., Rehmer B., Nolze G., Leistner C., Petrushin N., Svetlov I. Investigation of elastic properties of the single-crystal nickel-base superalloy CMSX-4 in the temperature interval between room temperature and 1300°C // Crystals. 2021. V. 11. P. 152. https://doi.org/10.3390/cryst11020152
Glatzel U. Microstructure and internal strains of undeformed and creep deformed samples of a nickel-base superalloy. Berlin.: Verlag Dr. Köster, 1994. 80 p.
Chen X.-J., Struzhkin V.V., Wu Z. et al. Hard superconducting nitrides // PNAS USA. 2005. V. 102. № 9. P. 3198–3201. https://doi.org/10.1073/pnas.0500174102
Antonov V., Iordanova I. First principles study of crystallographic structure and elastic properties of chromium // AIP Conf. Proc. 2010. V. 1203. P. 1149–1154. https://doi.org/10.1063/1.3322328
Samim P.M., Fattah-alhosseini A., Elmkhah H., Imantalab O. Nanoscale architecture of ZrN/CrN coatings: microstructure, composition, mechanical properties and electrochemical behavior // J. Mater. Res. Technol. 2021. V. 15. P. 542–560. https://doi.org/10.1016/j.jmrt.2021.08.018
McKenzie D.R., Yin Y., McFall W.D., Hoang N.H. The orientation dependence of elastic strain energy in cubic crystals and its application to the preferred orientation in titanium nitride thin films // J. Phys.: Condens. Matter. 1996. V. 8. P. 5883–5890. https://doi.org/10.1088/0953-8984/8/32/008
Betsofen S.Y., Ashmarin A.A., Petrov L.M., Grushin I.A., Lebedev M.A. Effect of the ion-plasma process parameters on the texture and properties of TiN and ZrN coatings // Russ. Metall. 2021. V. 2021. P. 1238–1244. https://doi.org/10.1134/S0036029521100037
Second and higher order elastic constants // Ed. by D.F. Nelson. Springer, 1992. V. 29a of Landolt-Börnstein – Group III Condensed Matter. https://doi.org/10.1007/b44185
Kim J.O., Achenbach J.D., Mirkarimi P.B. et al. Elastic constants of single crystal transition metal nitride films measured by line focus acoustic microscopy // J. Appl. Phys. 1992. V. 72. P. 1805–1811. https://doi.org/10.1063/1.351651
Sampath S., Herman H. Rapid solidification and microstructure development during plasma spray deposition // J. Therm. Spray Technol. 1996. V. 5. P. 445–456. https://doi.org/10.1007/BF02645275
Ковенский И.М., Поветкин В.В. Металловедение покрытий, М.: СП Интермет Инжиниринг, 1999. 296 с.
Гончаров О.Ю., Ильин И.А., Титоров Д.Б., Титорова Д.В. Текстуры покрытий молибдена, тантала и борида гафния, полученных химическим газофазным осаждением // Перспективные материалы. 2008. № 4. С. 69–73.
Kirchlechner C., Martinschitz K.J., Daniel R. et al. Residual stresses and thermal fatigue in CrN hard coatings characterized by high-temperature synchrotron X-ray diffraction // Thin Solid Films. 2010. V. 518. № 8. P. 2090–2096. https://doi.org/10.1016/j.tsf.2009.08.011
Лехницкий С.Г. Теория упругости анизотропного тела. М.: Наука, 1977. 416 с.
Макклинток Ф., Аргон А. Деформация и разрушение материалов, М.: Мир, 1970. 443 с.
Голдстейн Г. Классическая механика. М.: Гостехиздат, 1957. 408 с.
