Flow Structure and Transition to Local Turbulence Downstream of an Asymmetric Narrowing that Imitates Arterial Stenosis

V. M. Molochnikov; Молочников В. М.; N. S. Dushin; Душин Н. С.; N. D. Pashkova; Пашкова Н. Д.; Ya. A. Gataulin; Гатаулин Я. А.; E. M. Smirnov; Смирнов Е. М.; A. D. Yukhnev; Юхнев А. Д.

doi:10.31857/S056852812260093X

Flow Structure and Transition to Local Turbulence Downstream of an Asymmetric Narrowing that Imitates Arterial Stenosis

Authors: Molochnikov V.M.¹^,2, Dushin N.S.¹, Pashkova N.D.¹^,2, Gataulin Y.A.³, Smirnov E.M.³, Yukhnev A.D.³
Affiliations:
1. Federal Research Center “Kazan Scientific Center of the Russian Academy of Sciences,”
2. Tupolev Kazan National Research Technical University (KAI)
3. Peter the Great Saint-Petersburg Polytechnic University
Issue: No 2 (2023)
Pages: 72-84
Section: Articles
URL: https://journals.rcsi.science/1024-7084/article/view/135069
DOI: https://doi.org/10.31857/S056852812260093X
EDN: https://elibrary.ru/NTTDUV
ID: 135069

Cite item

Full Text

Open Access
Restricted Access

Access granted
Restricted Access

Subscription Access

Abstract
About the authors
References
Supplementary files
Statistics

Abstract

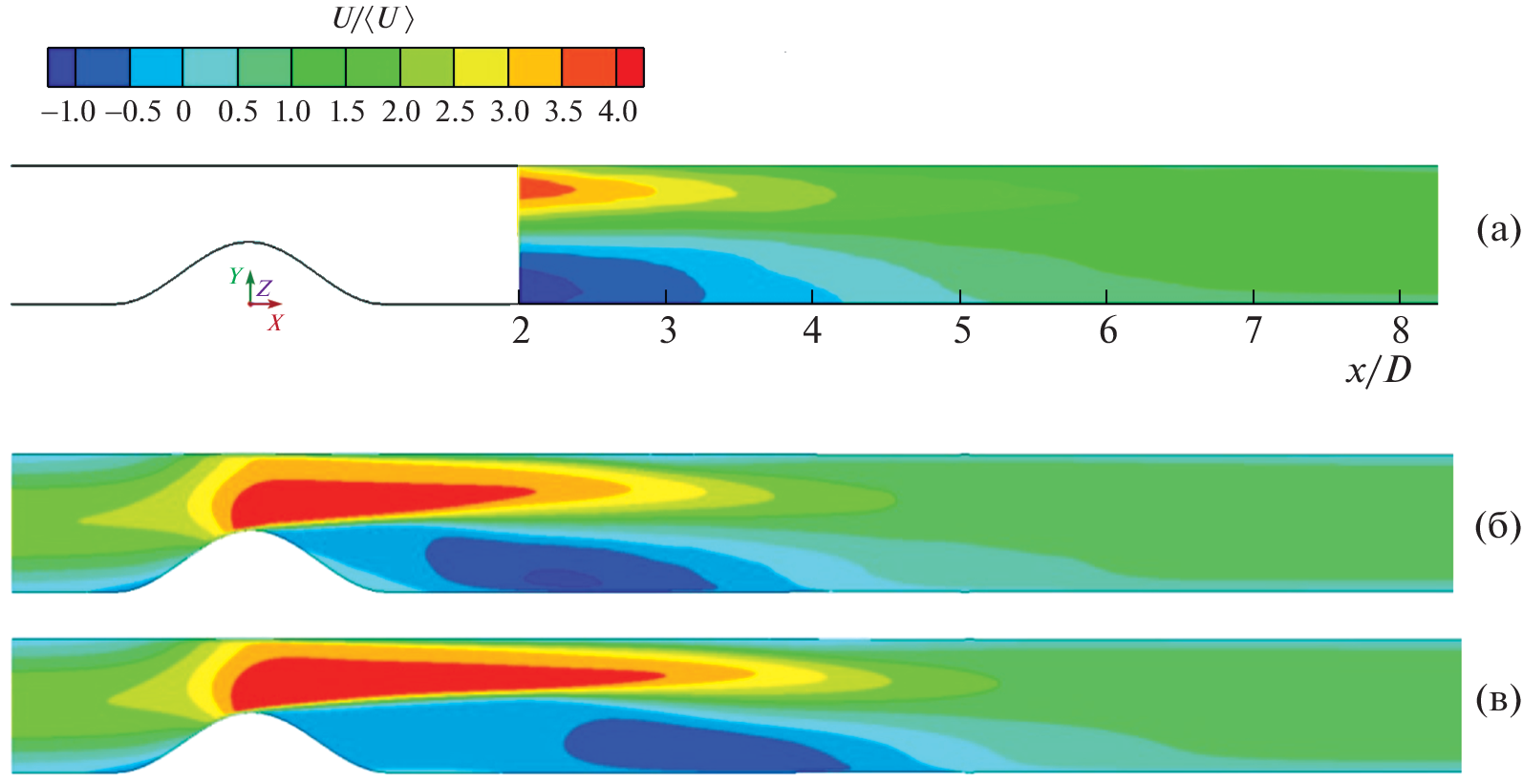

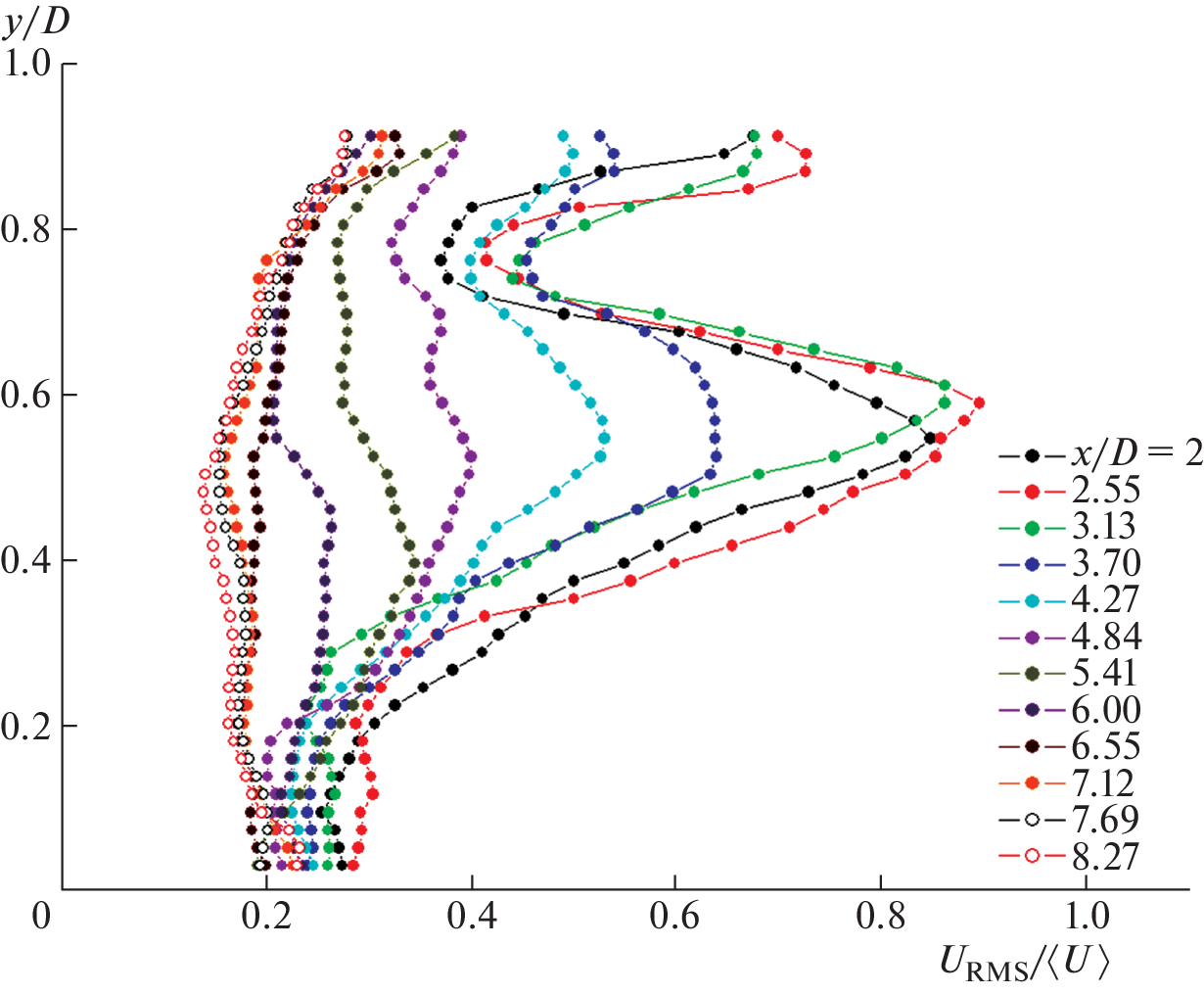

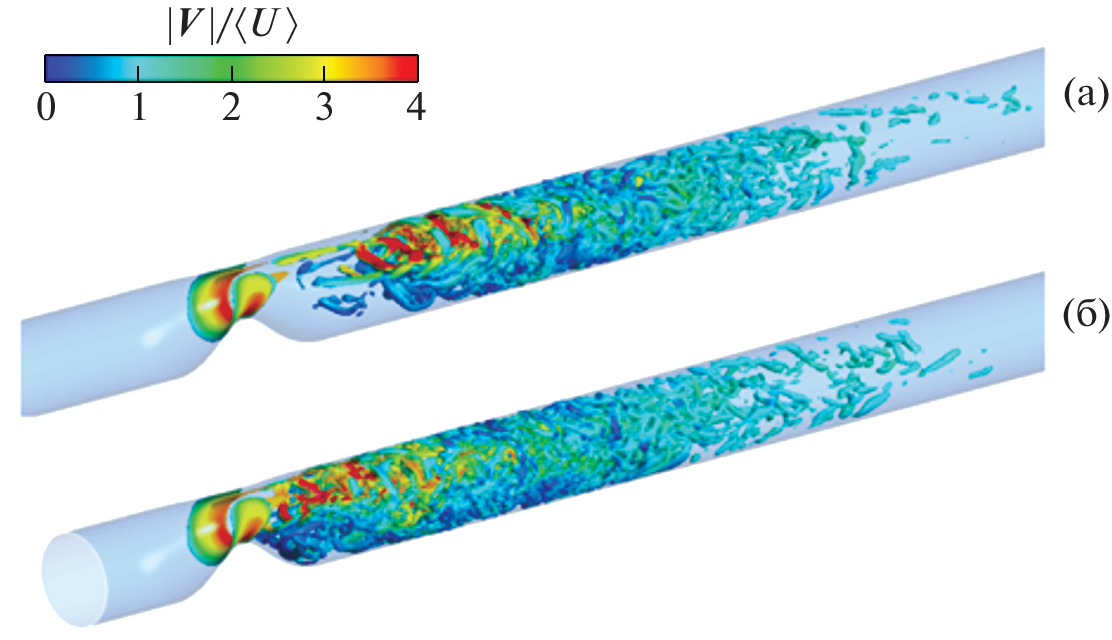

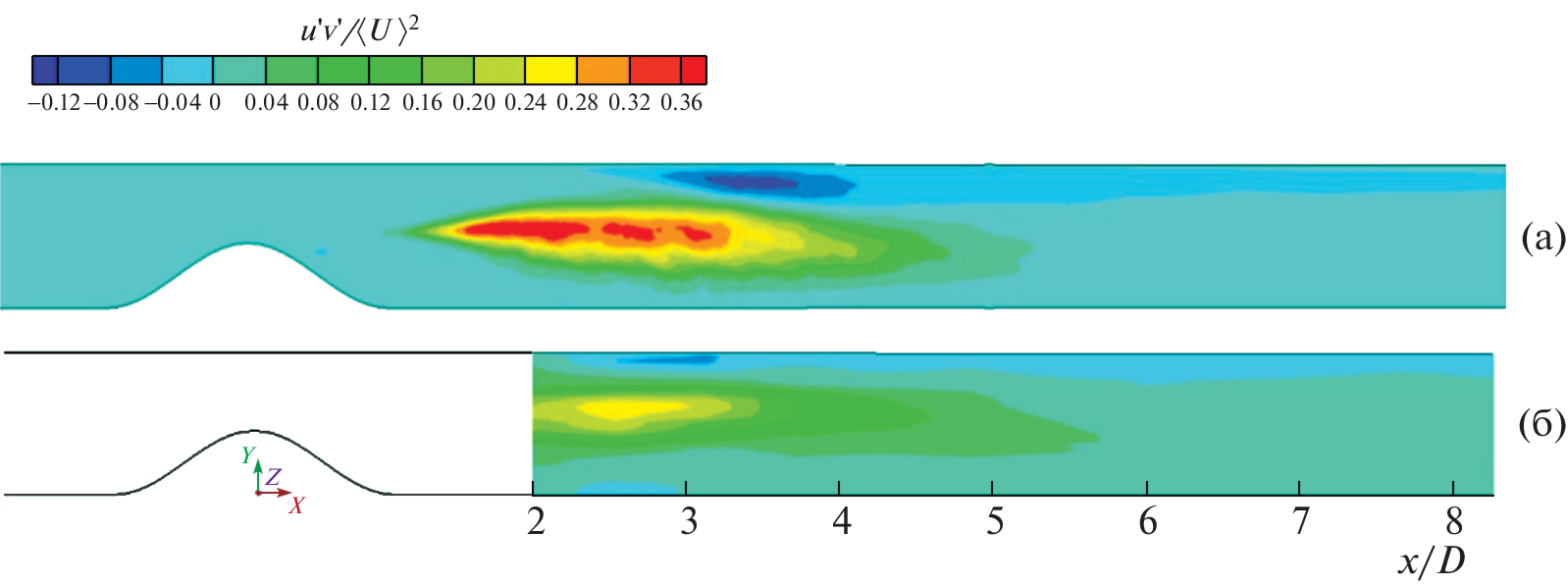

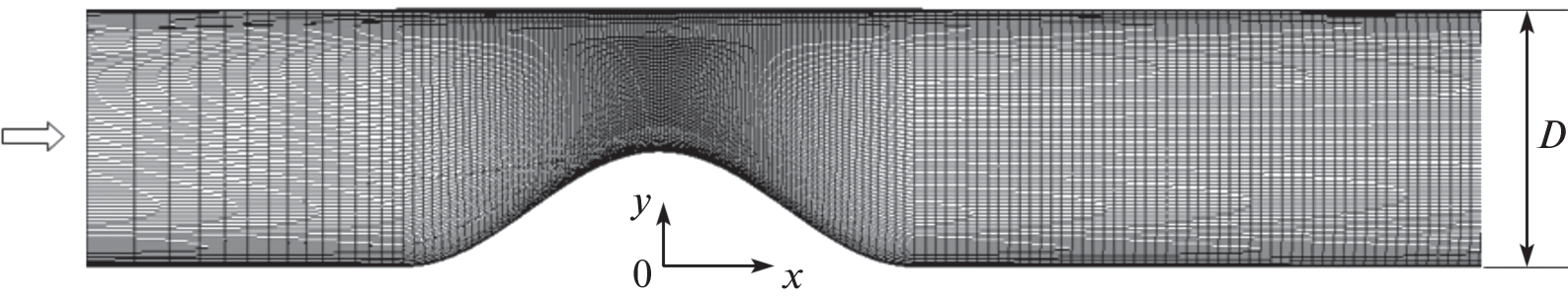

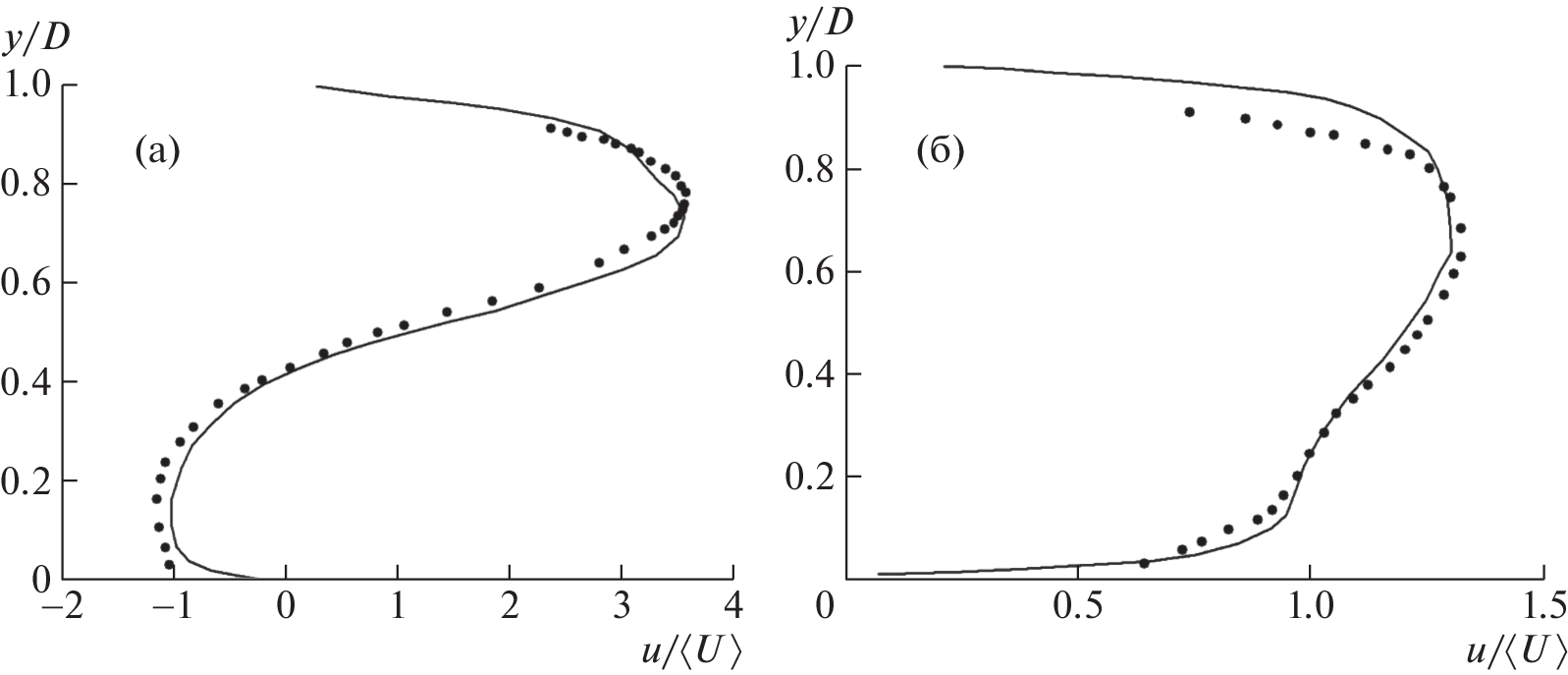

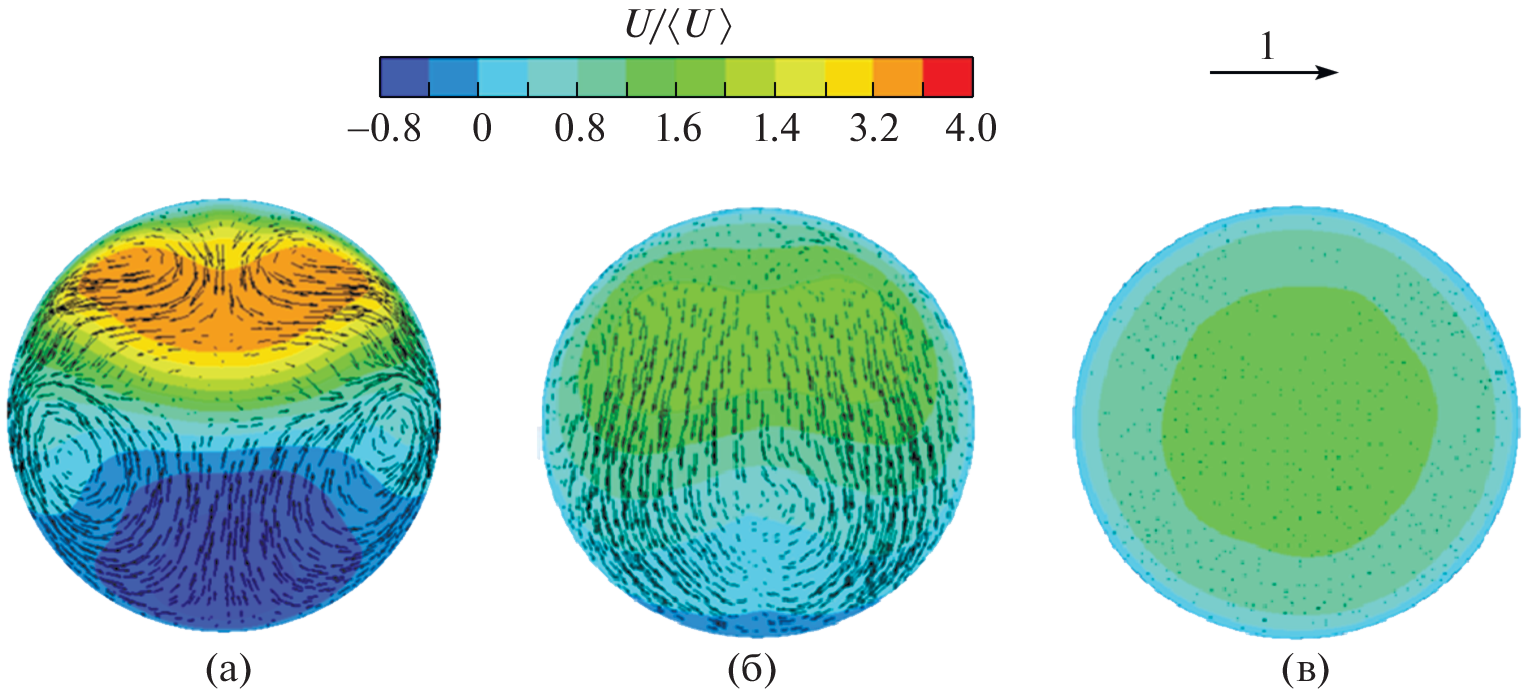

The results of experimental studies and numerical simulation of the flow structure in the separation region downstream of an asymmetric narrowing of smooth canal that simulates 70% onesided stenosis of the artery are presented. The Reynolds number was equal to 1800. The instantaneous flow velocity vector fields were measured using the SIV technique. The numerical solution was obtained by the large eddy simulation (LES) method. Setting the disturbances in numerical simulation close to the experimental conditions made it possible to obtain a satisfactory agreement between the calculated and experimental velocity fields and the components of the Reynolds stress tensor. The data on formation of the local flow turbulence region behind the constriction and subsequent downstream flow relaminarization are obtained. It is shown that a pair of secondary eddies localized within the region of flow separation is formed near the throat of the constriction.

Keywords

asymmetric channel narrowing, eddy-resolving simulation, flow separation, local turbulence, input disturbances, relaminarization

References

Glagov S., Zarins C., Giddens D.P., Ku D.N. Hemodynamics and atherosclerosis. Insights and perspectives gained from studies of human arteries // Arch. Pathol. Lab. Med. 1988. V. 112. № 10. P. 1018–1031.
Wootton D.M., Ku D.N. Fluid mechanics of vascular systems, diseases, and thrombosis // Annu. Rev. Biomed. Eng. 1999. V. 1. № 1. P. 299–329.
Berger S.A., Jou L.D. Flows in stenotic vessels // Annu. Rev. Fluid Mech. 2000. V. 32. № 1. P. 347–382.
Weinberg P.D. Hemodynamic wall shear stress, endothelial permeability and atherosclerosis-A triad of controversy // Front Bioeng. Biotechnol. 2022. V. 10. Art. 836680. P. 1–29.
Caro C.G., Fitz-Gerald J.M., Schroter R.C. Atheroma and arterial wall shear-observation, correlation and proposal of a shear dependent mass transfer mechanism for atherogenesis // Proc. R. Soc. Lond.Ser. B. Biological Sciences. 1971. V. 177. № 1046. P. 109–133.
Gibson C.M., Diaz L., Kandarpa K., Sacks F.M., Pasternak R.C., Sandor T., Feldman C., Stone P.H. Relation of vessel wall shear stress to atherosclerosis progression in human coronary arteries // Arterioscler. Thromb. Vasc. Biol. 1993. V. 13. № 2. P. 310–315.
Caro C.G. Discovery of the role of wall shear in atherosclerosis // Arterioscler. Thromb. Vasc. Biol. 2009. V. 29. № 2. P. 158–161.
Barber T. Wall shear stress and near-wall flows in the stenosed femoral artery // Comput. Methods Biomech. Biomed. Eng. 2017. V. 20. № 10. P. 1048–1055.
Khalifa A.M.A., Giddens D.P. Analysis of disorder in pulsatile flows with application to poststenotic blood velocity measurement in dogs // J. Biomech. 1978. V. 11. № 3. P. 129–141.
Hutchison K.J., Karpinski E. In vivo demonstration of flow recirculation and turbulence downstream of graded stenoses in canine arteries //J. Biomech. 1985. V. 18. № 4. P. 285–296.
Wong E.Y., Nikolov H.N., Rankin R.N., Holdsworth D.W., Poepping T.L. Evaluation of distal turbulence intensity for the detection of both plaque ulceration and stenosis grade in the carotid bifurcation using clinical Doppler ultrasound // Eur. Radiol. 2013. V. 23. № 6. P. 1720–1728.
Педли Т. Гидродинамика крупных кровеносных сосудов. М.: Мир. 1983. 400 с.
Ku D.N. Blood flow in arteries // Annu. Rev. Fluid Mech. 1997. V. 29. № 1. P. 399–434.
Cassanova R.A., Giddens D.P. Disorder distal to modeled stenoses in steady and pulsatile flow. // J. Biomech. 1978. V. 11. № 10–12. P. 441–453.
Ahmed S.A., Giddens D.P. Flow disturbance measurements through a constricted tube at moderate Reynolds numbers // J. Biomech. 1983. V. 16. № 12. P. 955–963.
Ojha M., Cobbold C., Johnston K., Hummel R. Pulsatile flow through constricted tubes: An experimental investigation using photochromic tracer methods // J. Fluid Mech. 1989. V. 203. P. 173–197.
Mallinger F., Drikakis D. Instability in three-dimensional unsteady stenotic flows // Int. J. Heat Fluid Flow. 2002. V. 23. № 5. P. 657–663.
Sherwin S.J., Blackburn H.M. Three-dimensional instabilities of steady and pulsatile axisymmetric stenotic flows // J. Fluid Mech. 2005. V. 533. P. 297–327.
Varghese S.S., Frankel S.H., Fischer P.F. Direct numerical simulation of stenotic flows. Part 1. Steady flow // J. Fluid Mech. 2007. V. 582. P. 253–280.
Varghese S.S., Frankel S.H., Fischer P.F. Direct numerical simulation of stenotic flows. Part 2. Pulsatile flow // J. Fluid Mech. 2007. V. 582. P. 281–318.
Paul M.C., Molla M.M. Investigation of physiological pulsatile flow in a model arterial stenosis using large-eddy and direct numerical simulations // Appl. Math. Model. 2012. V. 36. № 9. P. 4393–4413.
Choi W., Park J.H., Byeon H. Flow characteristics around a deformable stenosis under pulsatile flow condition // Phys. Fluids. 2018. V. 30. № 1. P. 011902.
Гатаулин Я.А., Смирнов Е.М. Численное исследование структуры и локальной турбулизации течения в кровеносном сосуде с односторонним стенозом // Науч.-техн. ведомости С.-Петербург. гос. политехн. ун-та. Физ.-мат. науки. 2021. Т. 14. № 1. С. 72–84.
Freidoonimehr N., Chin R., Zander A., Arjomandiet V. Effect of shape of the stenosis on the hemodynamics of a stenosed coronary artery // Phys. Fluids. 2021. V. 33. № 8. P. 081914.
Михеев Н.И., Душин Н.С. Метод измерения динамики векторных полей скорости турбулентного потока по видеосъемке дымовой визуализации // Приборы и техника эксперимента. 2016. № 6. С. 114–122.
