Study of the sensitivity of moisture-sensitive structures with UV reduction on the basis of ZnO produced by the sol-gel method

D. S. Permyakov; Пермяков Д. С.; M. A. Belykh; Белых М. А.; A. V. Strogonov; Строгонов А. В.

doi:10.31857/S0367676523702368

Study of the sensitivity of moisture-sensitive structures with UV reduction on the basis of ZnO produced by the sol-gel method

作者: Permyakov D.¹, Belykh M.¹, Strogonov A.¹
隶属关系:
1. Voronezh State Technical University
期: 卷 87, 编号 9 (2023)
页面: 1343-1347
栏目: Articles
URL: https://journals.rcsi.science/0367-6765/article/view/135495
DOI: https://doi.org/10.31857/S0367676523702368
EDN: https://elibrary.ru/JIIMCH
ID: 135495

如何引用文章

全文:

开放存取

##reader.subscriptionAccessGranted##
受限制的访问

订阅存取

详细
作者简介
参考
补充文件
统计

详细

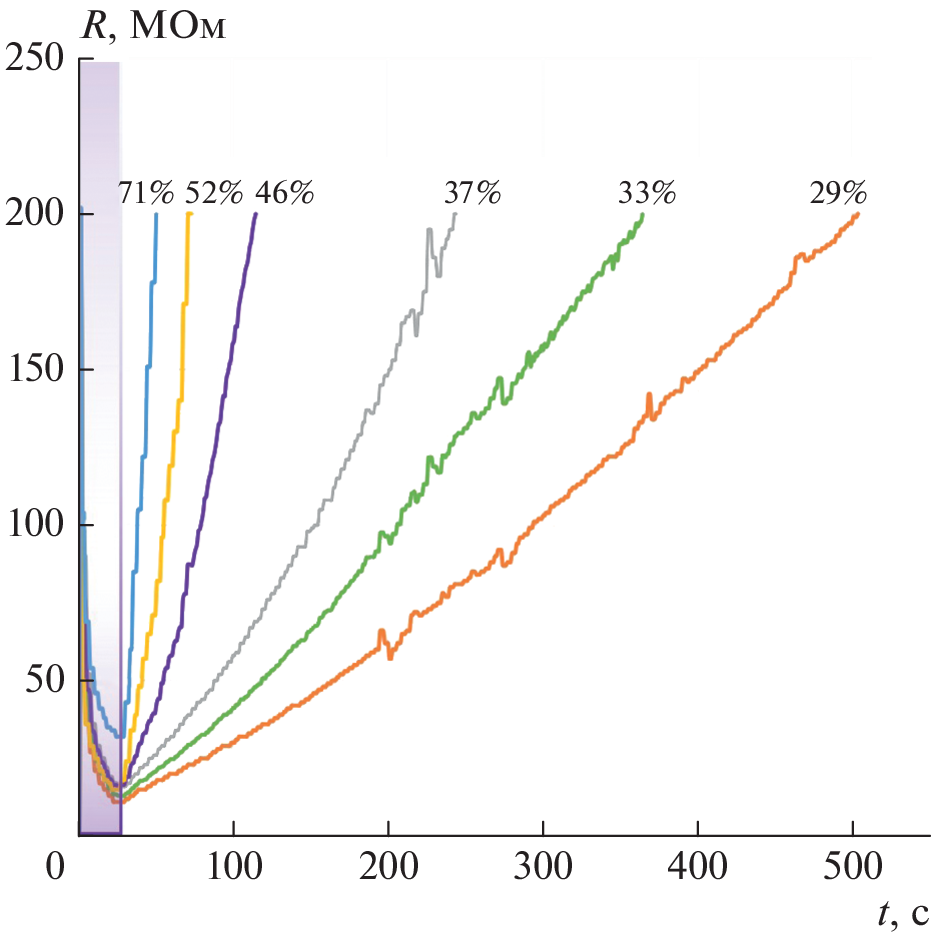

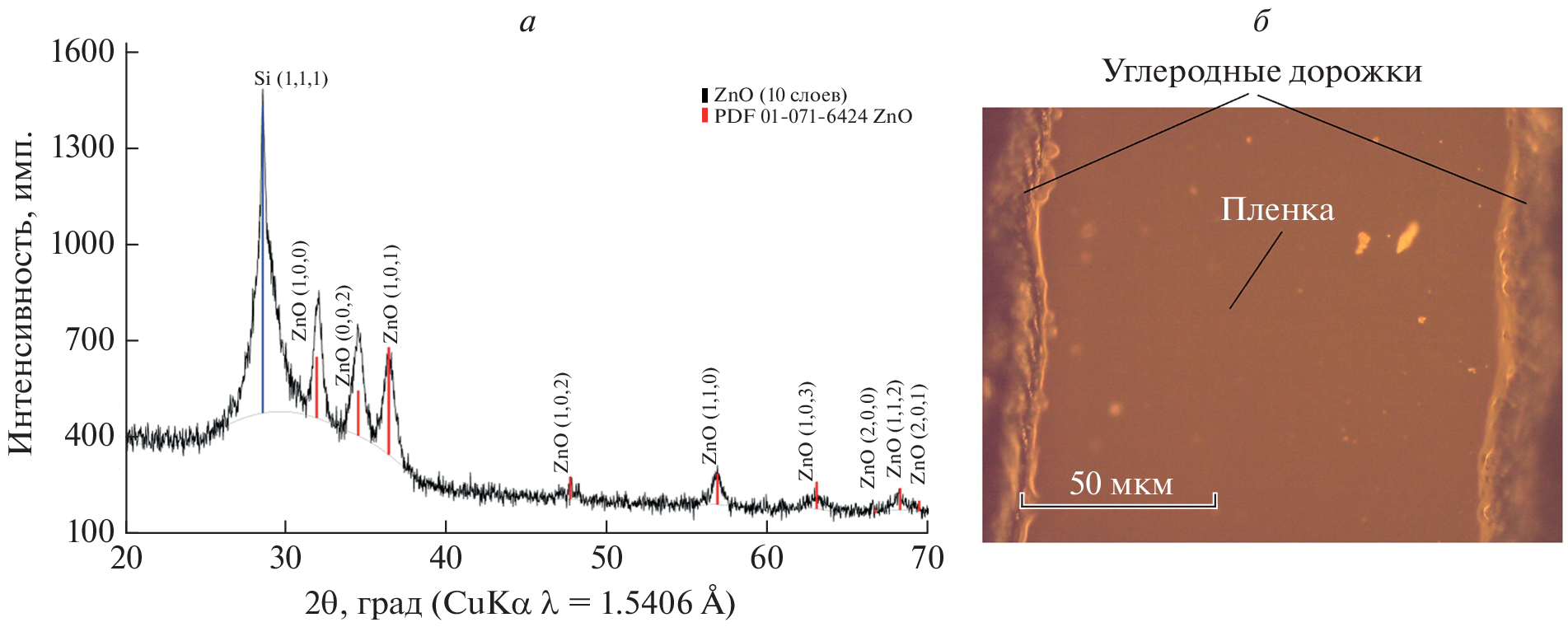

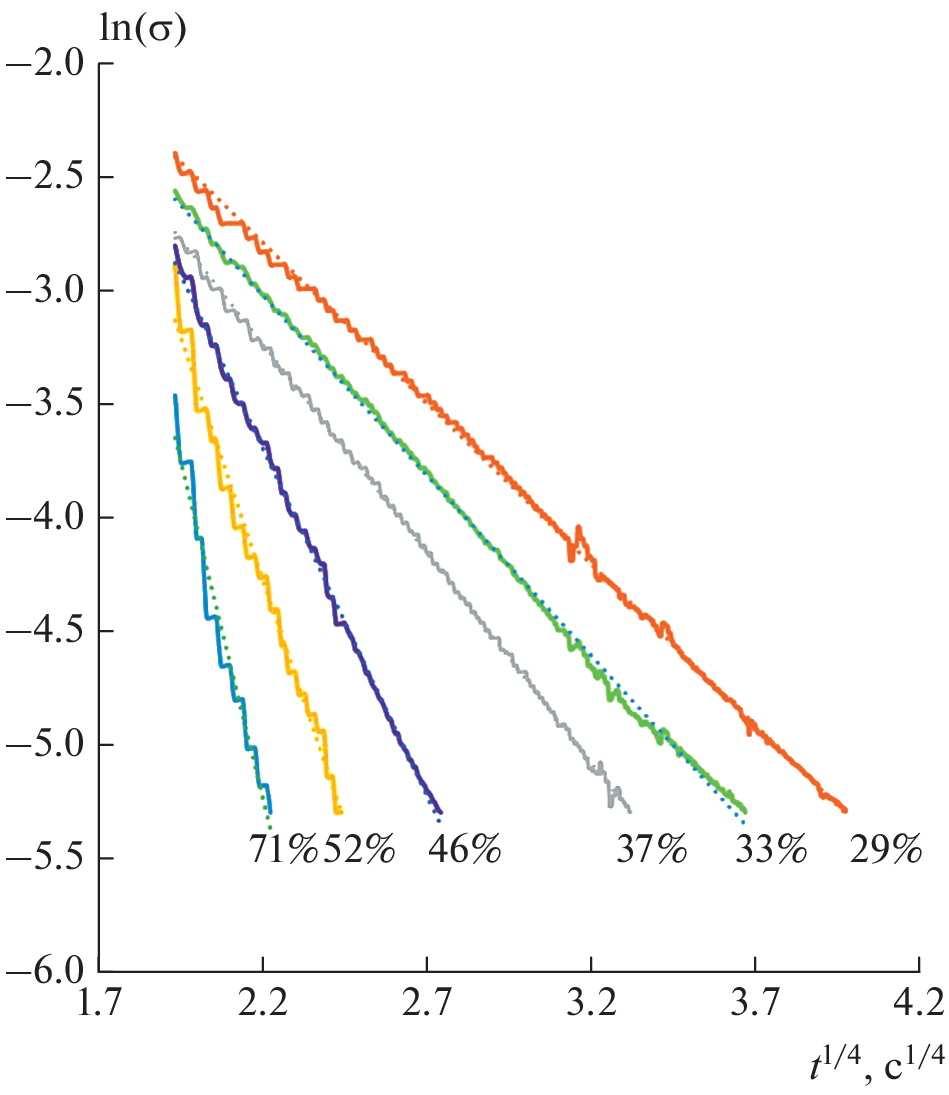

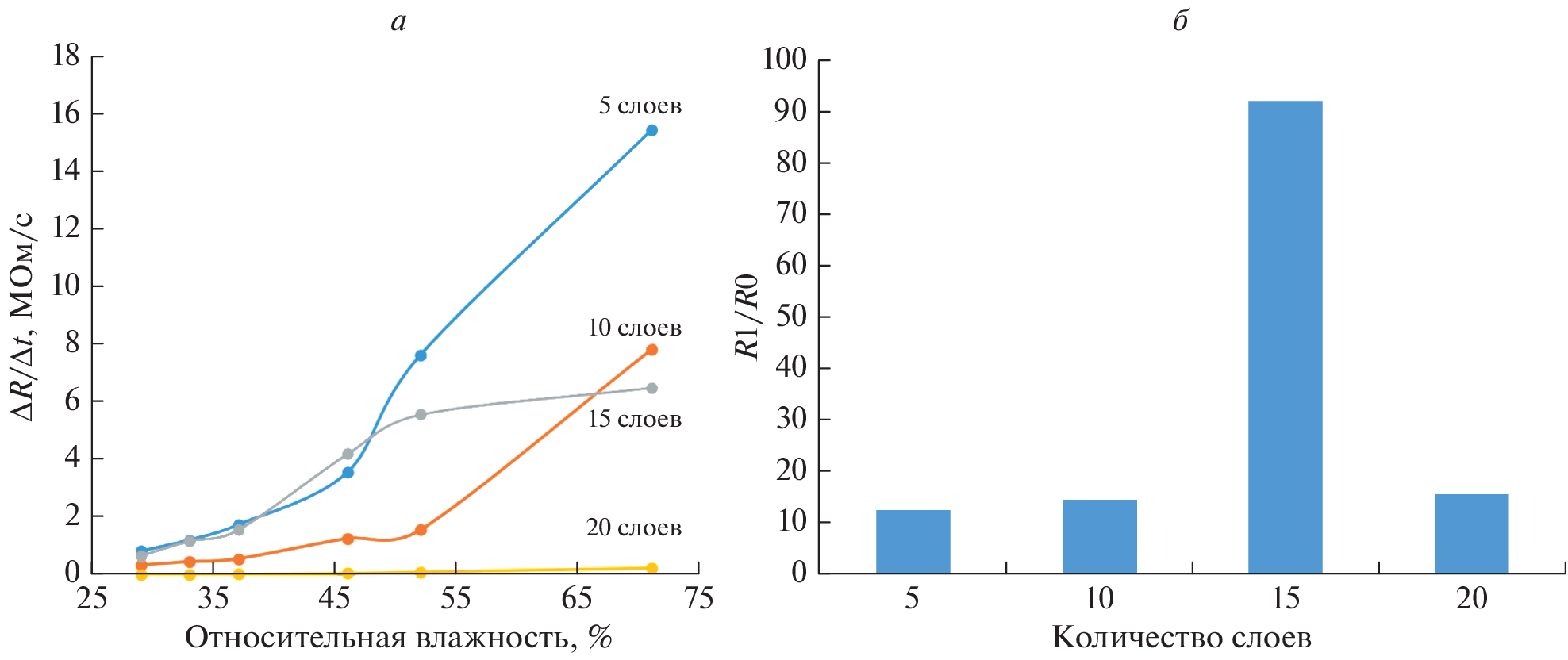

A structure based on a thin-film nanocrystalline zinc oxide obtained by the sol-gel method on a flexible Kapton substrate has been developed. It has been established that its electrical resistance increases significantly under the influence of moisture contained in the air. When irradiated with ultraviolet radiation, the resistance of the structure decreases by almost two orders of magnitude. After the UV exposure finish, a long-term process of restoration of electrical conductivity is observed, which is described by the fractional-exponential Kohlrausch function.

参考

Гаськов А.М., Румянцева М.Н. // Неорг. матер. 2000. Т. 36. № 3. С. 369; Gas’kov A.M., Rumyantseva M.N. // Inorg. Mater. 2000. V. 36. No. 3. P. 293.
Christopher B. // Sci. Reports. 2017. V. 7. No. 6053. P. 1.
Singh H., Kumar A., Bansod B.S. et al. // RSC Advances. 2018. V. 8. P. 3839.
Droepenu E.K., Wee B.S., Chin S.F. et al // Biointerface Res. Appl. Chem. 2022. V. 12. No. 3. P. 4261.
Tsoutsouva M., Panagopoulos C.N., Papadimitriou D. // Mater. Sci. Engin. B. 2011. V. 176. No. 6. P. 480.
Pranav D., Kartik P., Kamlesh C. // Proc. Technol. 2016. V. 23. P. 328.
Skowronski L., Ciesielski A., Olszewska A. // Materials (Basel). 2020. V. 13. No. 16. P. 3510.
Sonima M., Mini V., Arun A. // Nano Express. 2020. V. 1. No. 3. P. 1.
Zoltan K., Csanad M., Tamas G. // Catalysis Today. 2022. V. 397. P. 16.
Poornajar M., Marashi P., Fatmehsari D.H. // Ceram. Int. 2016. V. 42. No. 1. P. 173.
Heitmann U., Westraadt J., O’Connell J. et al. // ACS Appl. Mater. Interfaces. 2022. V. 14. No. 36. P. 41 149.
Aljameel A.I., Ali M.K.M. // J. Non-Oxide Glass. 2021. V. 13. No. 2. P. 21.
Kidalov V., Dyadenchuk A., Bacherikov Y. et al // Turk. J. Phys. 2020. V. 44. No. 1. P. 55.
Wisz G., Virt I., Sagan P. et al // Nanoscale Res. Lett. 2017. V. 12. No. 253. P. 1.
Белых М.А. // Межвуз. сб. науч. тр. “Твердотельная электроника, микроэлектроника и наноэлектроника”. Воронеж: Изд-во ВГТУ, 2020. С. 37.
Пермяков Д.С., Белых М.А., Строгонов А.В. // Межвуз. сб. науч. тр. “Микроэлектроника и наноэлектроника: актуальные проблемы”. Воронеж: Изд-во ВГТУ, 2021. С. 4.
Jian Lin // Nature Commun. 2014. V. 5. No. 5714. P. 2.
Коренблит И.Я., Шендер Е.Ф. // УФН. 1989. Т. 157. № 2. С. 267; Korenblit I.Ya., Shender E.F. // Sov. Phys. Usp. 1989. V. 32. No. 2. P. 139.
Hochli U.T., Knorr K., Loidl A. // Adv. Phys. 1990. V. 39. P. 405.
