Fundamentals and Some Results of Numerical Modeling the Cylinder-Piston Group Jet-Oil Supply in a High-speed Four-Stroke Internal Combustion Engine

S. V. Putintsev; Путинцев С. В.; S. A. Anikin; Аникин С. А.; S. S. Strelnikova; Стрельникова С. С.

doi:10.31857/S023571192303015X

Fundamentals and Some Results of Numerical Modeling the Cylinder-Piston Group Jet-Oil Supply in a High-speed Four-Stroke Internal Combustion Engine

作者: Putintsev S.V.¹, Anikin S.A.², Strelnikova S.S.³
隶属关系:
1. Bauman Moscow State Technical University, 105005, Moscow, Russia
2. Zhukov Military Academy of Air and Space Defense, 170022, Tver, Russia
3. Mechanical Engineering Research Institute of the Russian Academy of Sciences, 101990, Moscow, Russia
期: 编号 3 (2023)
页面: 89-99
栏目: АВТОМАТИЗАЦИЯ И УПРАВЛЕНИЕ В МАШИНОСТРОЕНИИ
URL: https://journals.rcsi.science/0235-7119/article/view/137591
DOI: https://doi.org/10.31857/S023571192303015X
EDN: https://elibrary.ru/PQUTRI
ID: 137591

如何引用文章

全文:

开放存取

##reader.subscriptionAccessGranted##
受限制的访问

订阅存取

详细
作者简介
参考
补充文件
统计

详细

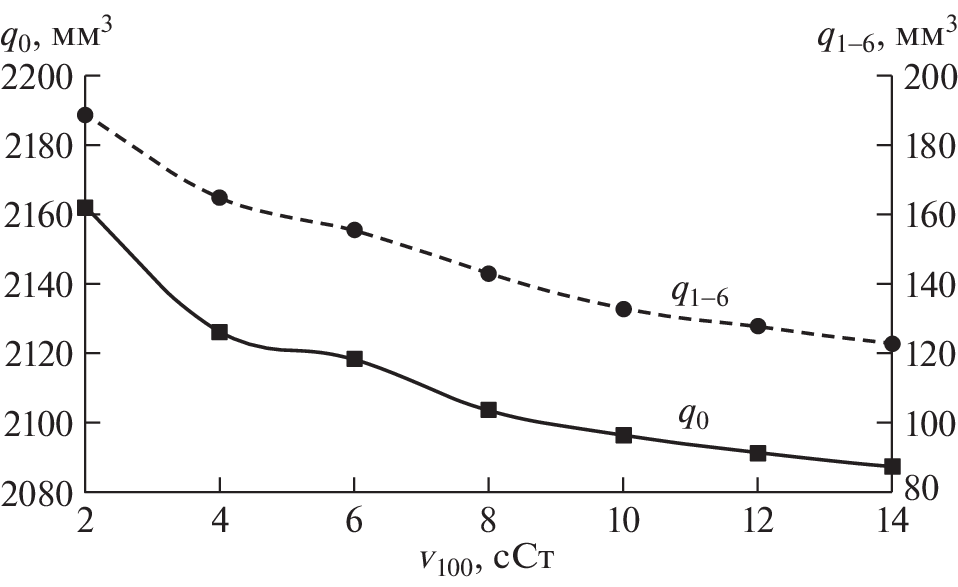

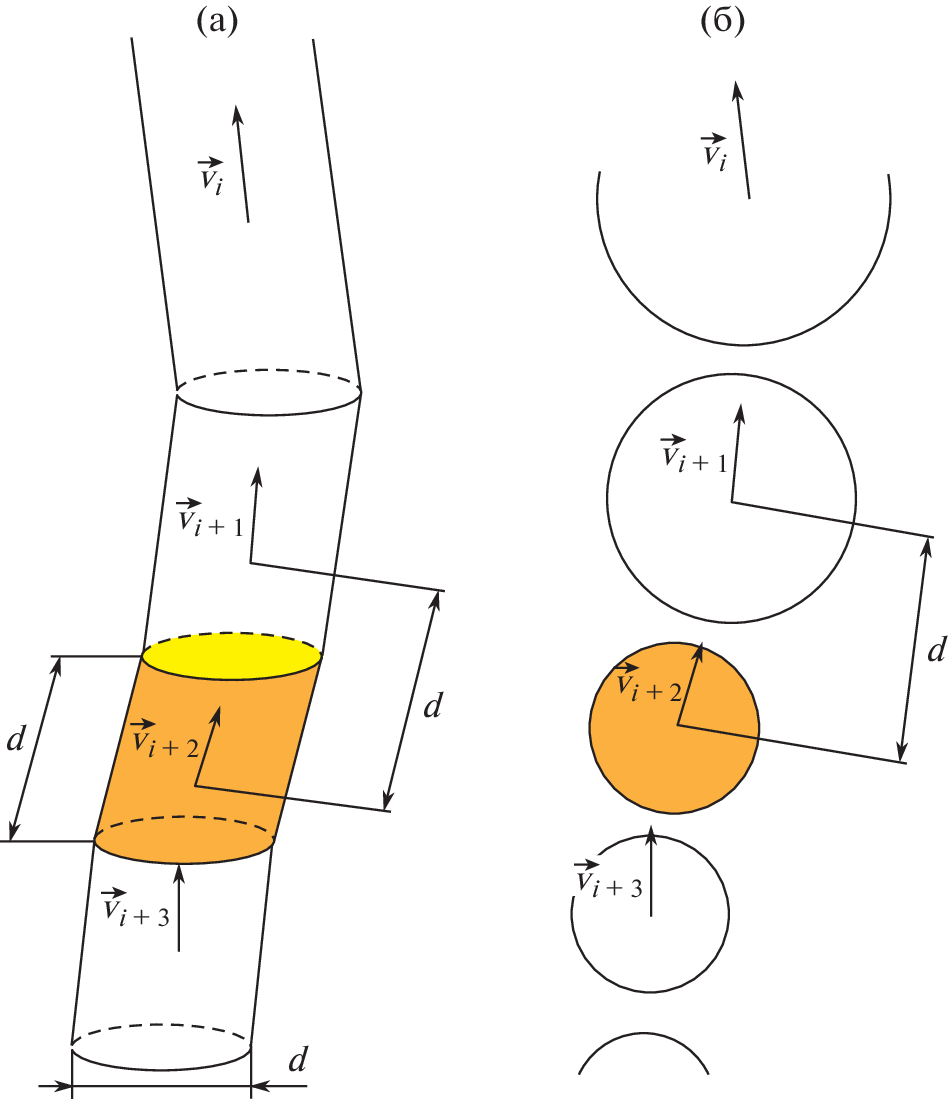

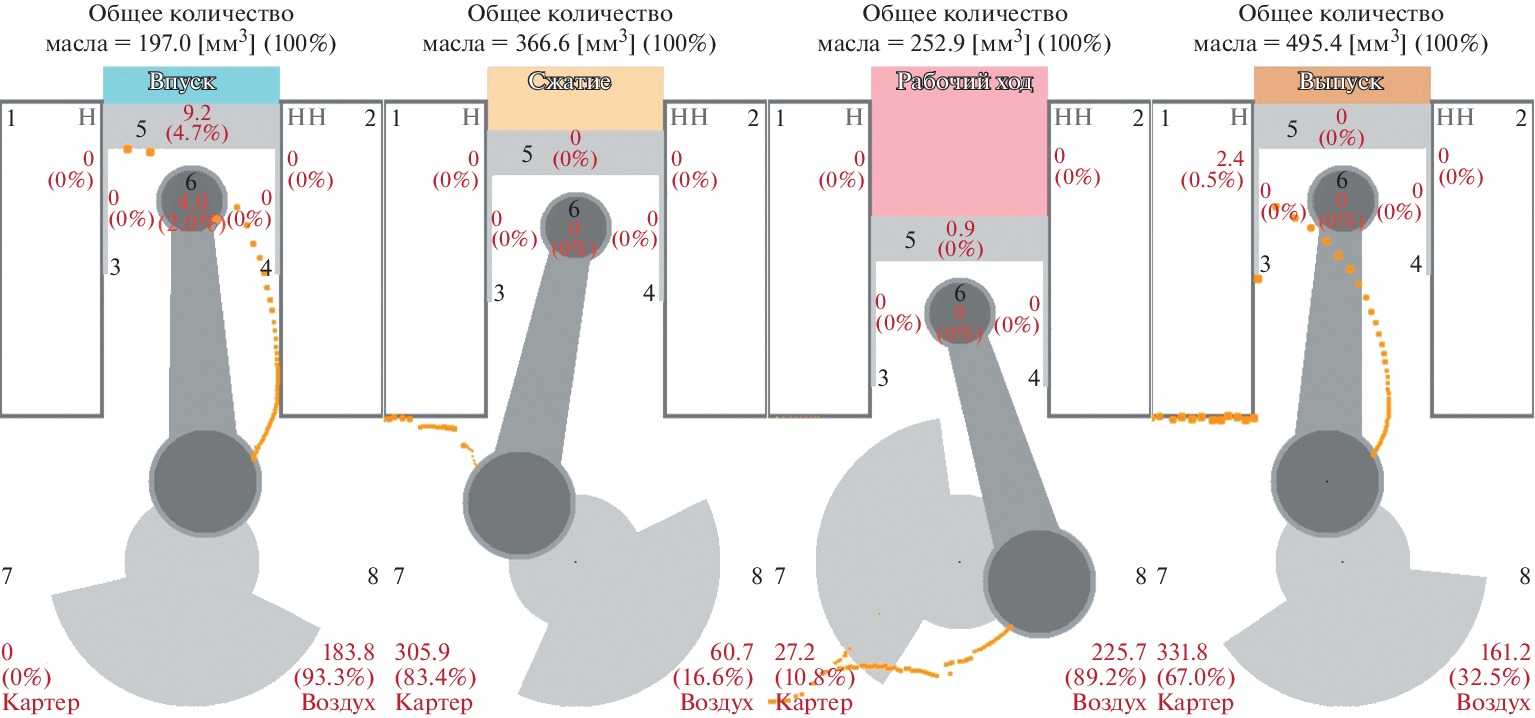

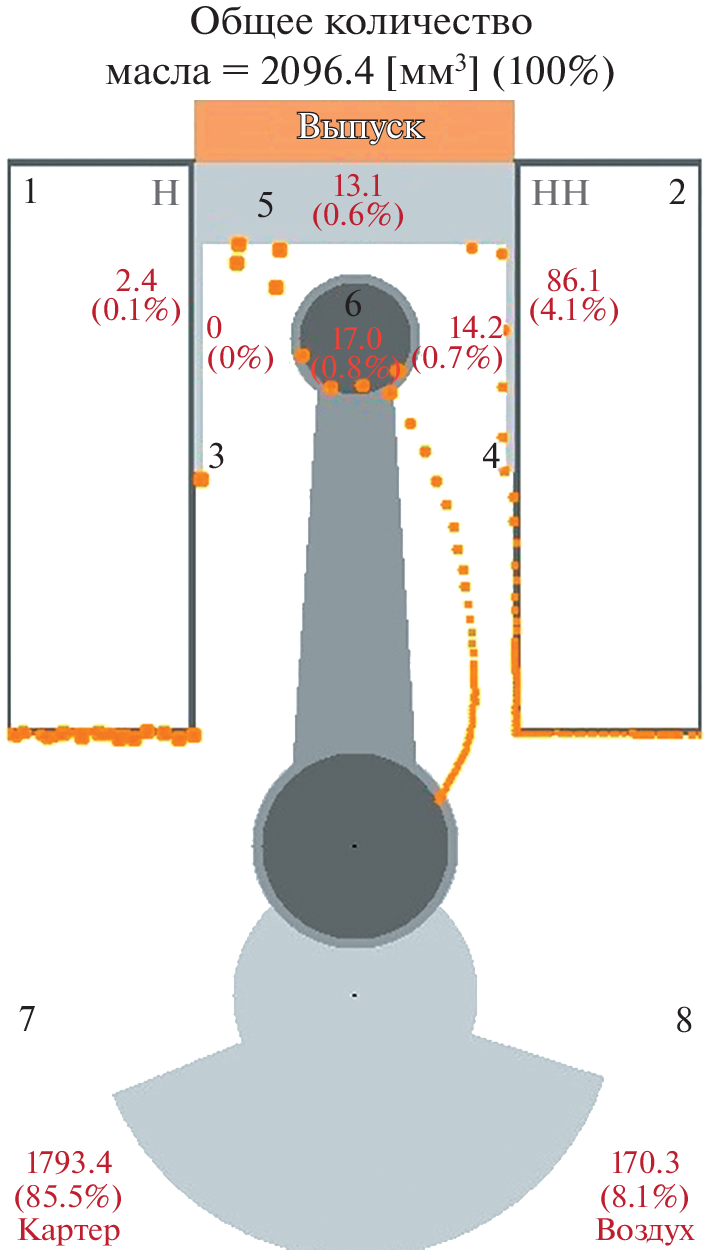

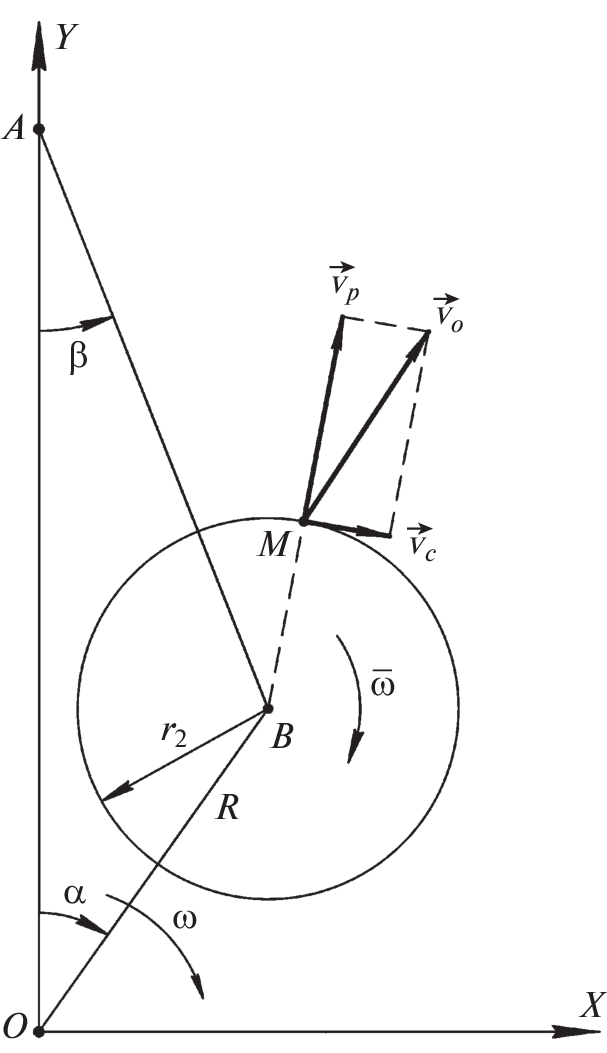

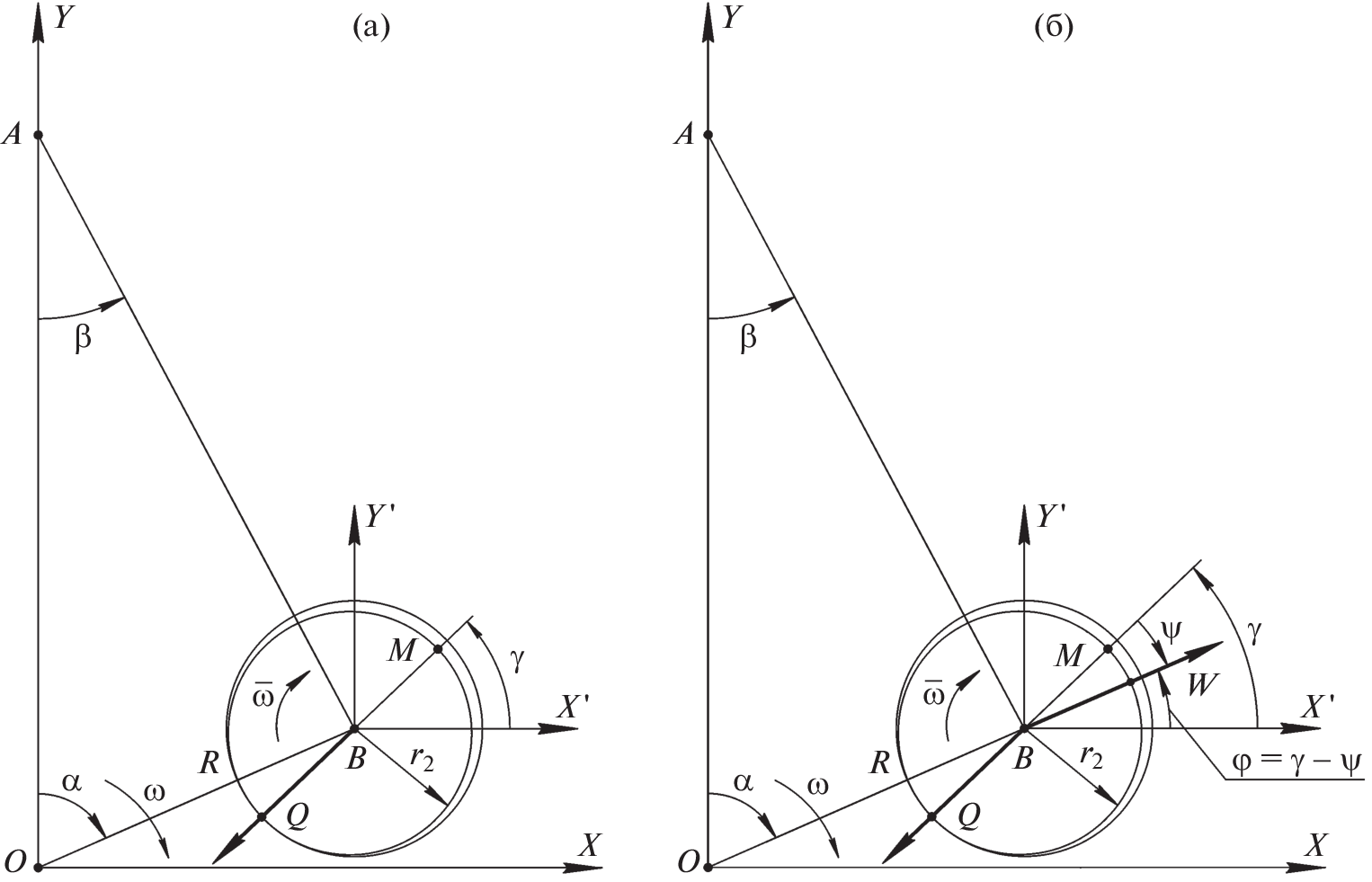

Scientific substantiation of the design and simulation techniques for one of the understudied aspects of oil supply, namely, jet supply of engine oil from the gaps of the rotating journal bearing to the “cylinder–piston” pairing of a high-speed four-stroke universal diesel engine, is given. The simulation resulted in visualization of the trajectory and zones of oil ingress on the friction surfaces of parts of the cylinder–piston group presented in this article, as well as a quantitative assessment of the oil volume in these zones and in the crankcase. The simulation technique and the results of its application can be of both scientific and practical interest for specialists in the field of lubrication design and reliability of piston machines.

关键词

friction, lubrication, oil supply, journal bearing, diesel engine, numerical simulation

参考

Bedajangam S.K., Jadhav N.P. Friction losses between piston ring-liner assembly of internal combustion engine: A review // Int. J. of Scientific and Research Publications. 2013. V. 3. № 6. C. 1.
Heywood J.B. Internal combustion engine fundamentals, Second Edition. New York: McGraw-Hill Education, 2018. 1056 p.
Ganesan V. Internal combustion engines. New York: McGraw Hill Education, 2012. 573 p.
Coy R.C. Practical applications of lubrication models in engines // Tribology Int. 1998. V. 31. № 10. P. 563.
Путинцев С.В., Агеев А.Г. Экспериментальное исследование условий маслоснабжения цилиндра быстроходного четырехтактного двигателя внутреннего сгорания // Тракторы и сельхозмашины. 2016. Т. 83. № 10. С. 45.
Pulkrabek W.W. Engineering fundamentals of the internal combustion engine // J. Eng. Gas Turbines Power. 2004. V. 126. № 1. P. 198.
Xiaohua X. Influence of piston-bore clearance on second motion characteristics of piston and skirt wear // Mechanics and Industry. 2019. V. 20. № 2. P. 205.
Delprete C., Razavykia A. Piston dynamics, lubrication and tribological performance evaluation: A review // Int. J. of Engine Research. 2020. V. 21. № 5. P. 725.
Damaged pistons. How to identify and eliminate them [Электронный ресурс] // Technical brochure MS Motor Service International GmbH [2006] URL: https://www.ms-motorservice.com/en/technical-know-how/technical-information/ (дата обращения: 21.07.2022)
Cameron A. Basic Lubrication Theory. London: Ellis Horwood Ltd., 1981. 256 p.
Singh S.K., Singh S., Sehgal A.K. Impact of low viscosity engine oil on performance, fuel economy and emissions of light duty diesel engine // Conference: SAE 2016 Int. Powertrains, Fuels & Lubricants Meeting. October 17, 2016. Technical Paper, 2016-01-2316. https://doi.org/10.4271/2016-01-2316
