Diagnostic complex «MicroLab-Z2» for non-destructive evaluation of structural and deformation parameters of metal conscructions

Cover Page

Cite item

Full Text

Open Access Open Access
Restricted Access Access granted
Restricted Access Subscription Access

Abstract

The behavior of the construction under the influence of external factors is determined by three key groups of parameters of the metal composition (chemical, structural and deformation). Obtaining information about these parameters directly on the construction will effectively solve the problem of assessing its actual technical condition. The problem of non-destructive evaluation of the chemical composition of a metal is solved using portable spectrometers. The MicroLab-Z2 diagnostic complex has been developed to evaluate the other two groups of parameters. It has two functional blocks. The surface preparation unit ensures that the surface of the construction site has a roughness, flatness and level of applied mechanical hardening corresponding to the laboratory preparation of metallographic grinds. The research unit is a platform on which a metallographic microscope and a portable microhardness tester are installed. It allows metallographic researches with magnification up to x1000, surface microindentation, measurement of microhardness values at load of 0—200 gs and optical study of the morphology of imprints in any spatial position. The reliability of the data obtained by the MicroLab-Z2 diagnostic complex has been confirmed during comparative tests with stationary equipment. With the help of the developed device, an assessment of the structure parameters, contamination of metal with non-metallic inclusions, assessment of the degree of hardening and embrittlement of metal, detection of aging processes can be performed. The use of the MicroLab-Z2 diagnostic complex for operational non-destructive evaluation of structural and deformation parameters of metal constructions will allow us to reach a qualitatively different level of efficiency in performing production and input control of manufactured products, assessing the maintainability of defects, planning repairs and other compensating measures, and industrial safety expertise.

Full Text

Restricted Access

About the authors

A. E. Zorin

UGTU

Author for correspondence.
Email: zorinae86@rambler.ru
Russian Federation, 169300, Ukhta, Pervomaiskaya str., 13

V. I. Krasnenkov

OMICON Technologies LLC

Email: info@omicon-tech.ru
Russian Federation, Moscow, Marshal Sokolovsky str., 10, building 1

References

  1. Lisin Yu.V. Pipes keep pressure // Pipeline transportation of oil. 2015. No. 8. P. 5—14.
  2. Mishetyan A.R. Shabalov I.P., Chevskaya O.N., Filippov G.A. Influence of pipe conversion conditions and structural condition on operational reliability of high-strength pipe steels // Ferrous metallurgy. Bulletin of scientific and technical information. 2021. V. 77. No. 4. P. 455—463.
  3. Khlybov O.S. Prediction and control of mechanical properties of rolled products by probabilistic modeling methods // Metallurg. 2020. No. 4. P. 71—74.
  4. Lisin Yu.V., Neganov D.A., Surikov V.I., Gumerov K.M. Studies of changes in the properties of pipeline metal during operation: generalization of results and promising developments of the Ufa Scientific school // Science and technology of pipeline transport of oil and petroleum products. 2017. V. 7. No. 2. P. 22—30.
  5. Yapchigulov R.S., Alaberdin I.R. Studying the degradation of mechanical properties of pipes of the main gas pipeline // Gas industry. 2021. No. 1(811). P. 90—93.
  6. Skorodumov S.V., Neganov D.A., Studenov E.P., Poshibaev P.V., Nikitin N.Yu. Statistical analysis of the results of mechanical tests of metal and pipes of main pipelines // Factory laboratory. Diagnostics of materials. 2022. V. 88. No. 1—1. P. 82—91.
  7. Goldstein M.I., Farber V.M. Dispersion hardening of steel. M.: Metallurgy, 1979. 208 p.
  8. Schmitt-Thomas K.G. Metallology for mechanical engineering. Handbook. M.: Metallurgy, 1995. 511 p.
  9. Lavrentiev A.A., Ilyin A.V. Crack resistance of high-strength medium-alloy steels and its relation to the characteristics of the metal structure / In the collection: An appendix to the journal. Bulletin of Tambov University. Ser. "Natural and technical sciences" Tambov, 2018. P. 152—156.
  10. Sych O.V., Khlusova E.I. Relationship of structure parameters with performance characteristics of shipbuilding steels of various alloying // Issues of materials science. 2020. No. 4 (104). P. 17—31.
  11. Getmanova M.E., Livanova O.V., Fillipov G.A., Yandimirov A.A., Sukhov A.V. Structural heterogeneity and fracture toughness of wheel steel // Deformation and destruction of materials. 2006. No.12. P. 32—37.
  12. Zorin A.E. Non-destructive evaluation of the mechanical characteristics of metal of critical structures based on the analysis of its key structural, chemical and deformation parameters // Science and technology of pipeline transport of oil and petroleum products. 2023. V.13. No. 5. P. 402—410.
  13. GOST 9450—75 Measurement microhardness by indentation of diamond tips.
  14. Grigorovich V.K. Hardness and microhardness of metals. M.: Nauka, 1976. 232 p
  15. Khrushchev M.M. Friction, wear and microhardness of materials: Selected works. M.: KRASAND, 2012. 512 p.
  16. Pat. 2738201 Russian Federation SEC G01N 3/42 Portable microhardometer / A.E. Zorin, S.L. Vinogradov; applicant and patent holder of OMICON Technologies LLC; application 03.06.2020, publ. 09.12.2020.
  17. Zorin A.E. Development of a portable microhardometer for performing non-destructive assessment of the state of metal of gas pipelines // Oil, gas and business. 2015. No. 8. P. 35—38.
  18. GOST 1778-2022 Metal products made of steels and alloys. Metallographic methods for the determination of non-metallic inclusions.
  19. GOST 5639—82 Steels and alloys. Methods for detecting and determining the grain size.
  20. GOST 5640—2020 Steel. Metallographic method for evaluating the microstructure of rolled flat steel.
  21. GOST 8233—56 Steel. Standards of microstructure.
  22. Zorin A.E., Romantsov A.S. Evaluation of embrittlement of structural steels by microindentation method // Zavodskaya lab. Diagnostics of materials. 2023. V. 89. No. 9. P. 64—72.
  23. Bulatov M., Shatsov A., Grigirev N., Malkov N. Strenght, crack resistance and optical loses of heat-treated silica fibers coated with non-ferrous metal // Optical Fiber Technology. V. 75. 2023. Art.103174.
  24. Henry R., Le Roux N., Zacharie-Aubrun I. Indentation cracking in mono and polycrystalline cubic zirconia: Methodology of an apparent fracture toughness evaluation // Material Science and Engineering: A. V. 860. 2022. Art. 144261.
  25. Vabishevich S.A., Vabishevich N.V., Brinkevich D.I. Microproof properties of implanted silicon single crystals // Bulletin of the Polotsk State University. Series C. Fundamental Sciences. 2012. No.12. P. 79—88.
  26. Shcherbak G.V., Murashov A.A., Smetanin K.E. Investigation of the anisotropy of the properties of a cutting plate obtained using ceramic 3D printing (LCM) technology from an Al2O3/ZrO2 composite (ZTA) // Factory Laboratory. Diagnostics of materials. 2021. V. 87. No. 11. P. 64—69.
  27. Tyurin A.I., Povinova G.V., Kupriyakin A.M. The influence of the relative deformation rate on the crack resistance of Si and Ge during dynamic microindentation // Bulletin of the Tambov University. Series: Natural and Technical Sciences. 2007. V.12. No.1. P. 84—87.
  28. Lube T. Fracture Toughness Measurement // Encyclopedia of Materials: Technical Ceramics and Glasses. 2021. V. 1. P. 762—774.
  29. Zorin A.E. Development of a method for qualitative assessment of the technical condition of metal structures // The territory of NEFTEGAZ. 2015. No. 9. P. 46—50.
  30. Zorin A.E. On the features of accumulation of metal damage to gas pipelines during operation // Oil, gas and business. 2012. No. 7. P. 69—71.
  31. Kazakov Yu.V., Zorin A.E., Zorin N.E. Resistance of gas pipelines to stress-corrosion destruction // The territory of NEFTEGAZ. 2013. No. 11. P. 46—50.

Supplementary files

Supplementary Files
Action
1. JATS XML
Download

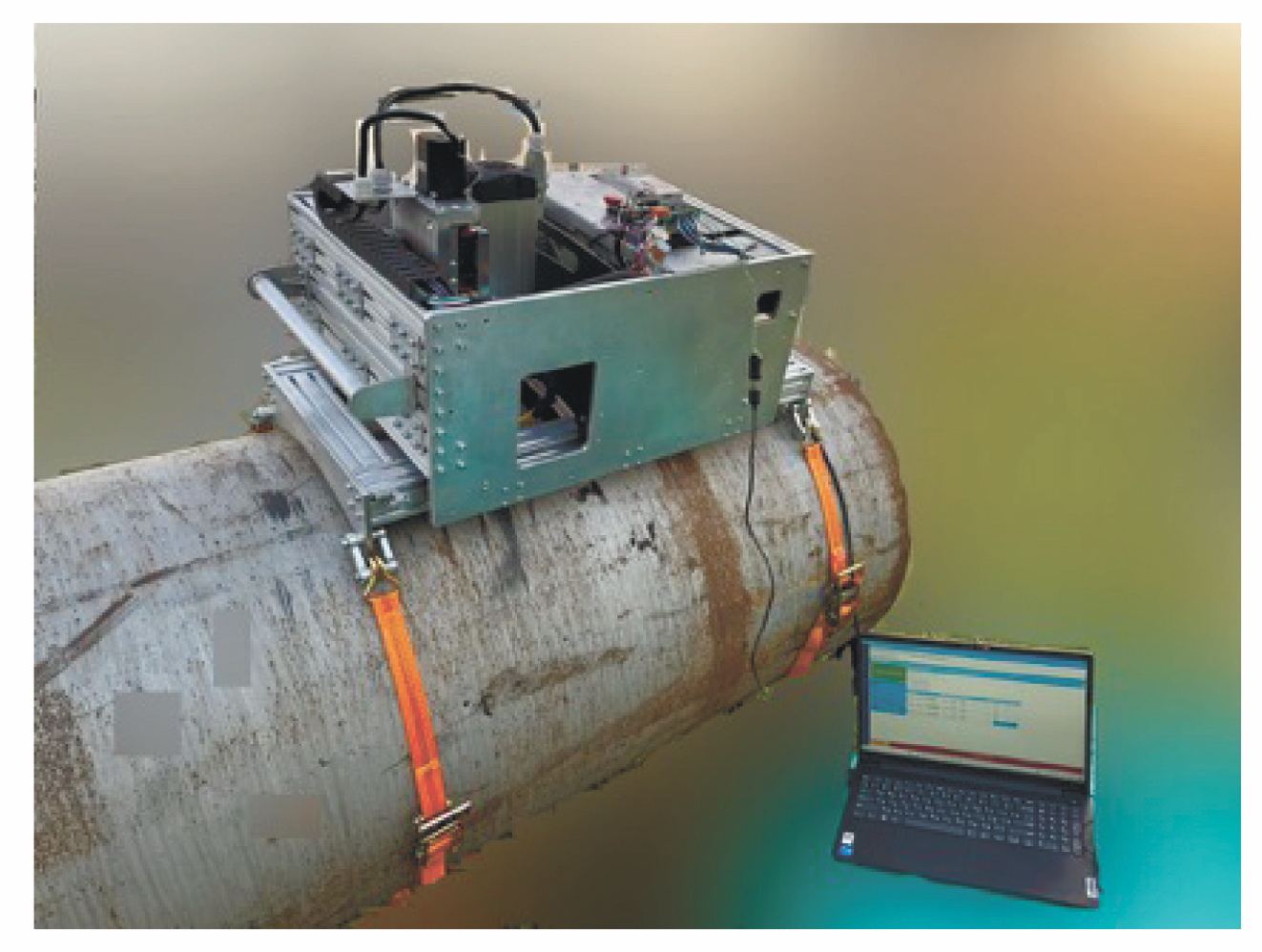

2. Fig. 1. General view of the MicroLab-Z2 diagnostic complex.

Download (1MB)
Indexing metadata

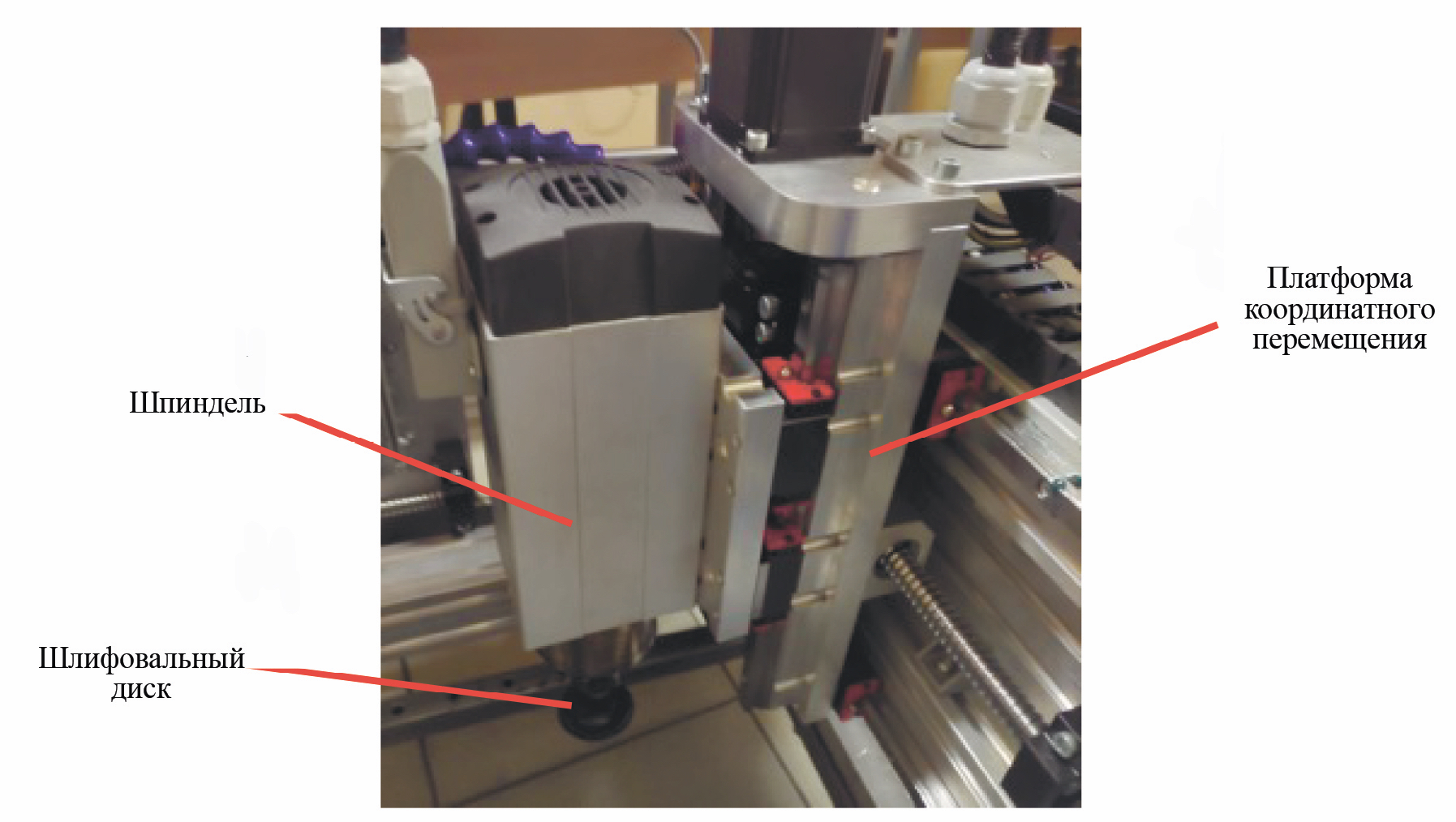

3. Fig. 2. The surface preparation unit of the MicroLab-Z2 diagnostic complex.

Download (855KB)
Indexing metadata

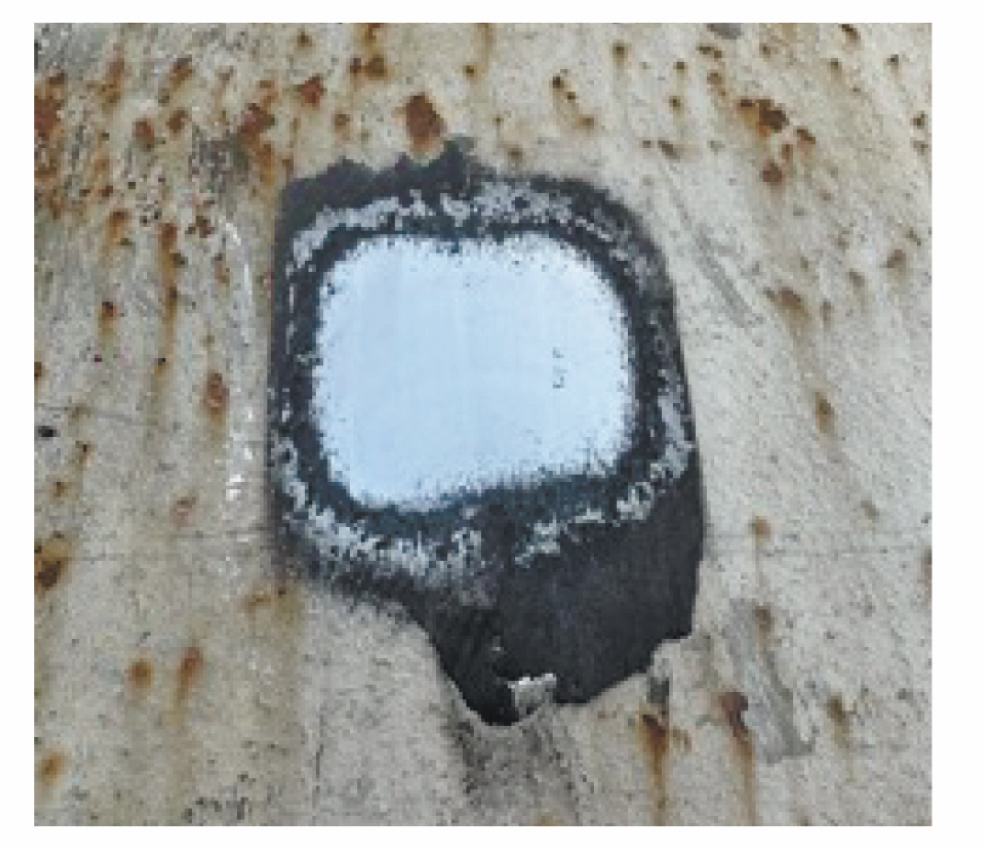

4. Fig. 3. General view of the prepared site on the surface of the pipe DN 830 mm.

Download (718KB)
Indexing metadata

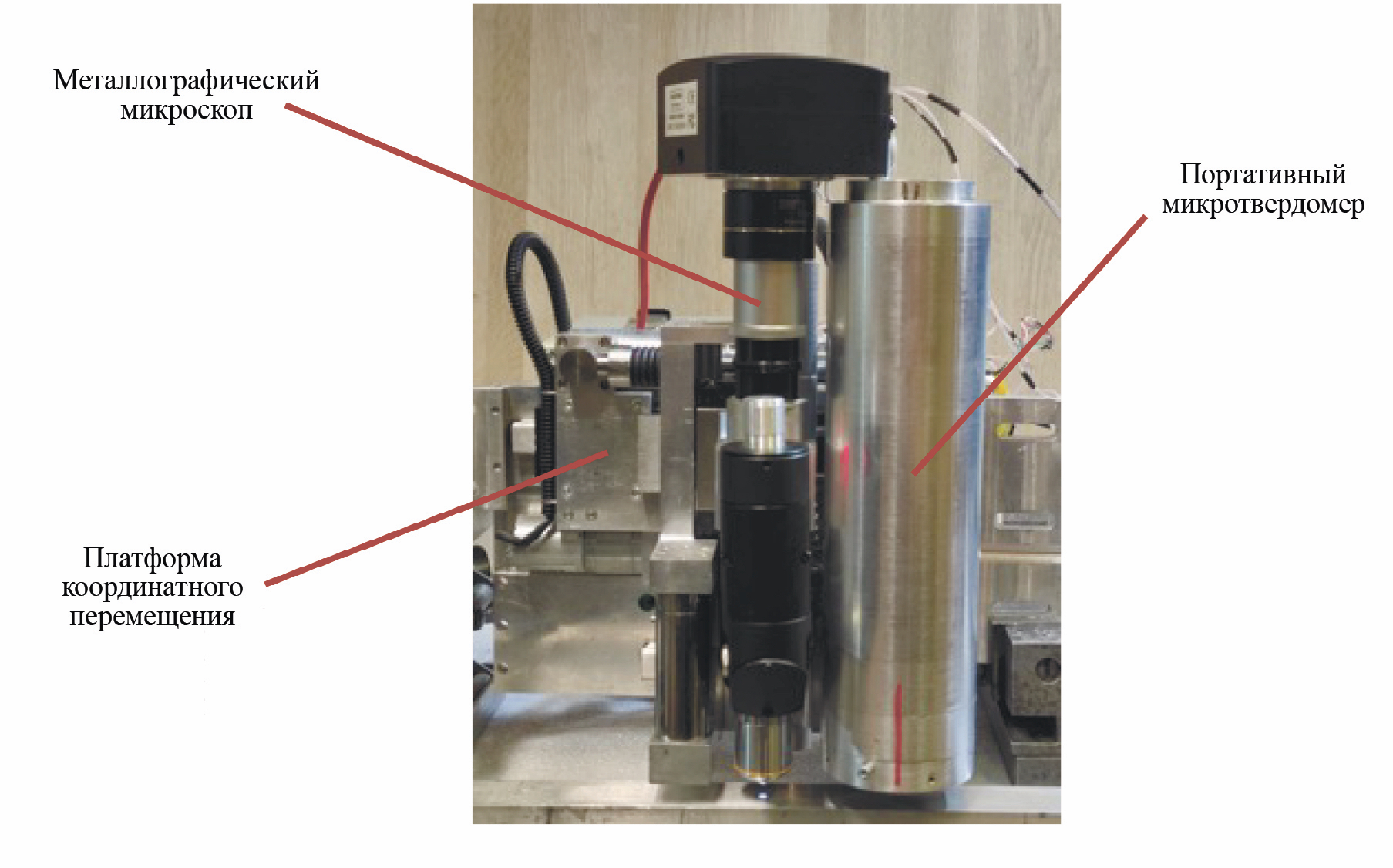

5. Fig. 4. Research block.

Download (914KB)
Indexing metadata
6. Fig. 5. Image of the surface of the 09G2C steel sheet (×200): a, c — respectively, an image of an etched and etched surface obtained on a microscope of the MicroLab-Z2 diagnostic complex; b, d — respectively, an image of an etched and etched surface obtained on a stationary microscope

Download (830KB)
Indexing metadata

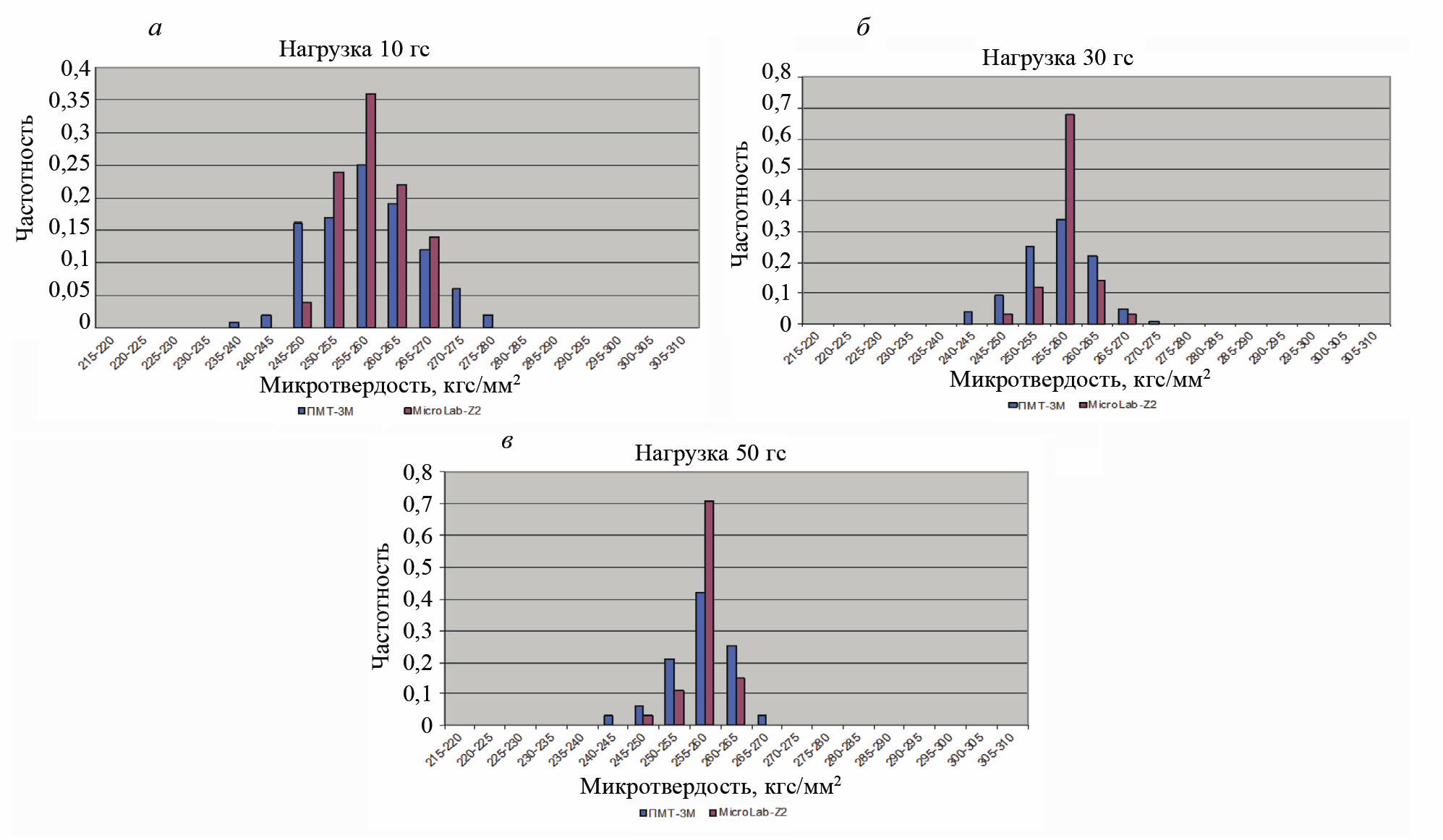

7. Fig. 6. Comparative histograms of microhardness values obtained using the microhardness meter of the MicroLab-Z2 diagnostic complex and the stationary microhardness meter PMT-3M on the measure of microhardness MTB-MET: a — at a load of 10 gs; b — at a load of 30 gs; c — at a load of 50 gs

Download (679KB)
Indexing metadata
8. Fig. 7. Different morphology of localized metal shifts near the print during microindentation (transition from homogeneous plastic deformation to localized).

Download (752KB)
Indexing metadata
9. Fig. 8. The release of carbides along the boundaries of ferrite grains as a result of aging of steel 20 (magnification ×200).

Download (619KB)
Indexing metadata
