Email this article Applying data fusion procedures to evaluation of impact damage in carbon fiber reinforced plastic by using optical infrared thermography and laser vibrometry techniques
- Authors: Shpilnoi V.Y.1, Derusova D.A.1, Vavilov V.P.1
-
Affiliations:
- National Research Tomsk Polytechnic University
- Issue: No 3 (2024)
- Pages: 56-66
- Section: Comprehensive application of non-destructive testing methods
- URL: https://journals.rcsi.science/0130-3082/article/view/255548
- DOI: https://doi.org/10.31857/S0130308224020051
- ID: 255548
Cite item
Open Access
Access granted
Abstract

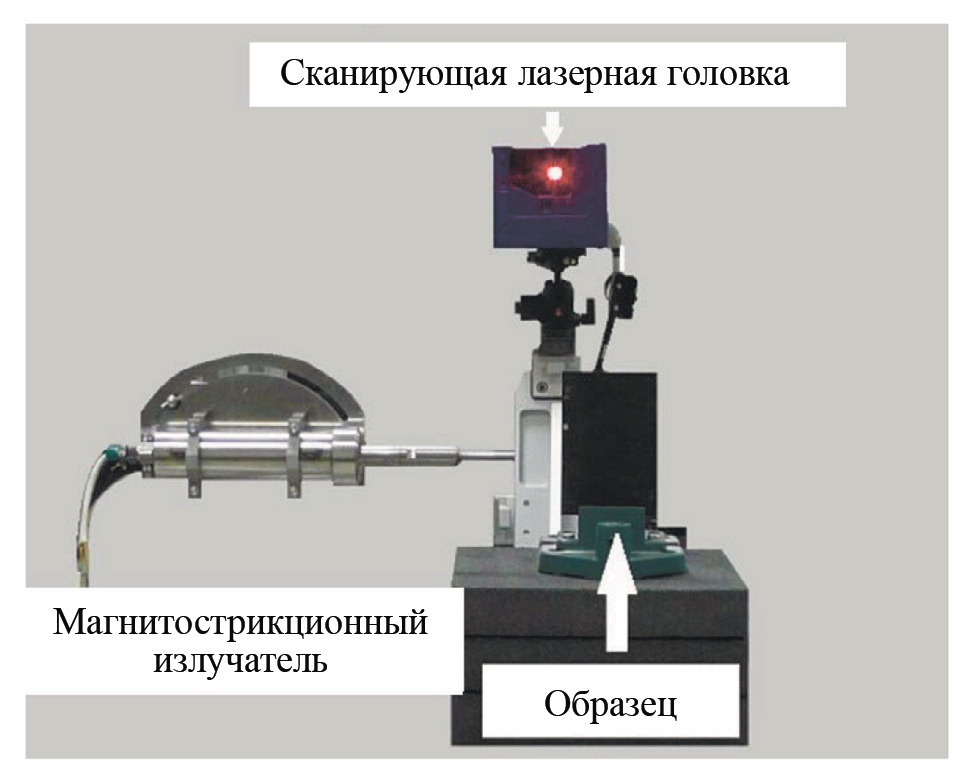

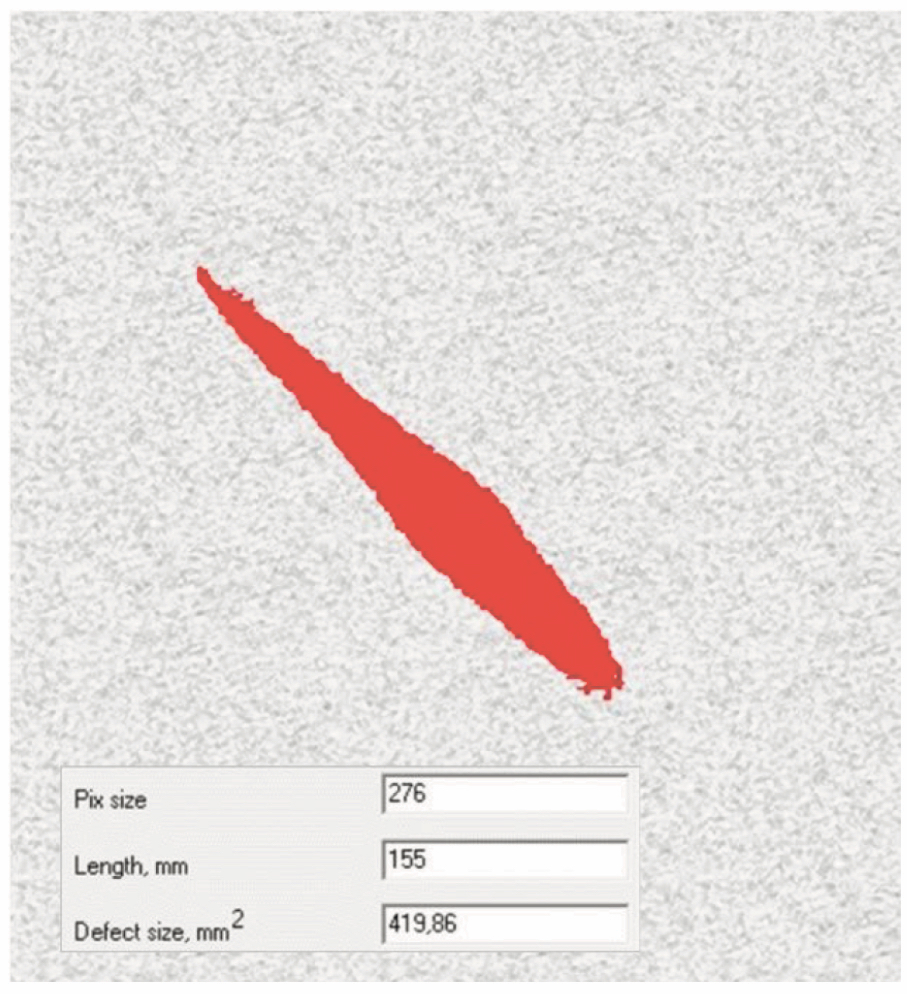

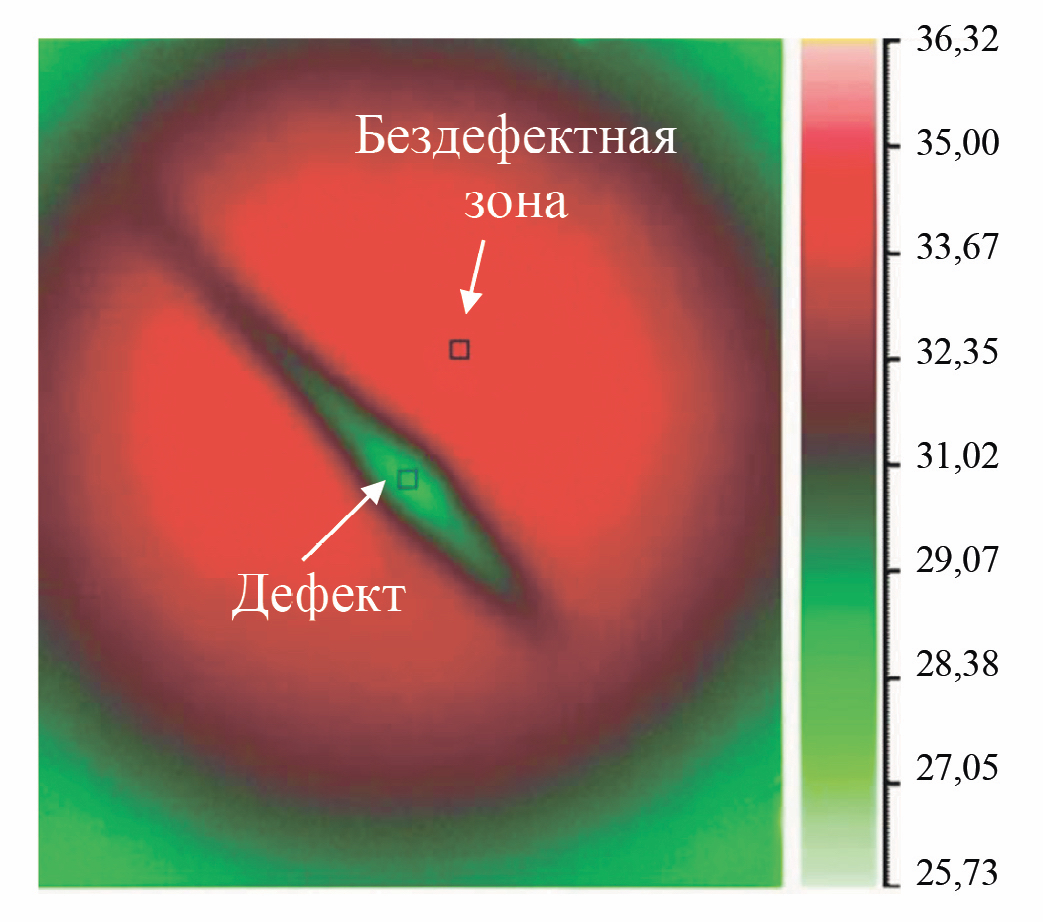

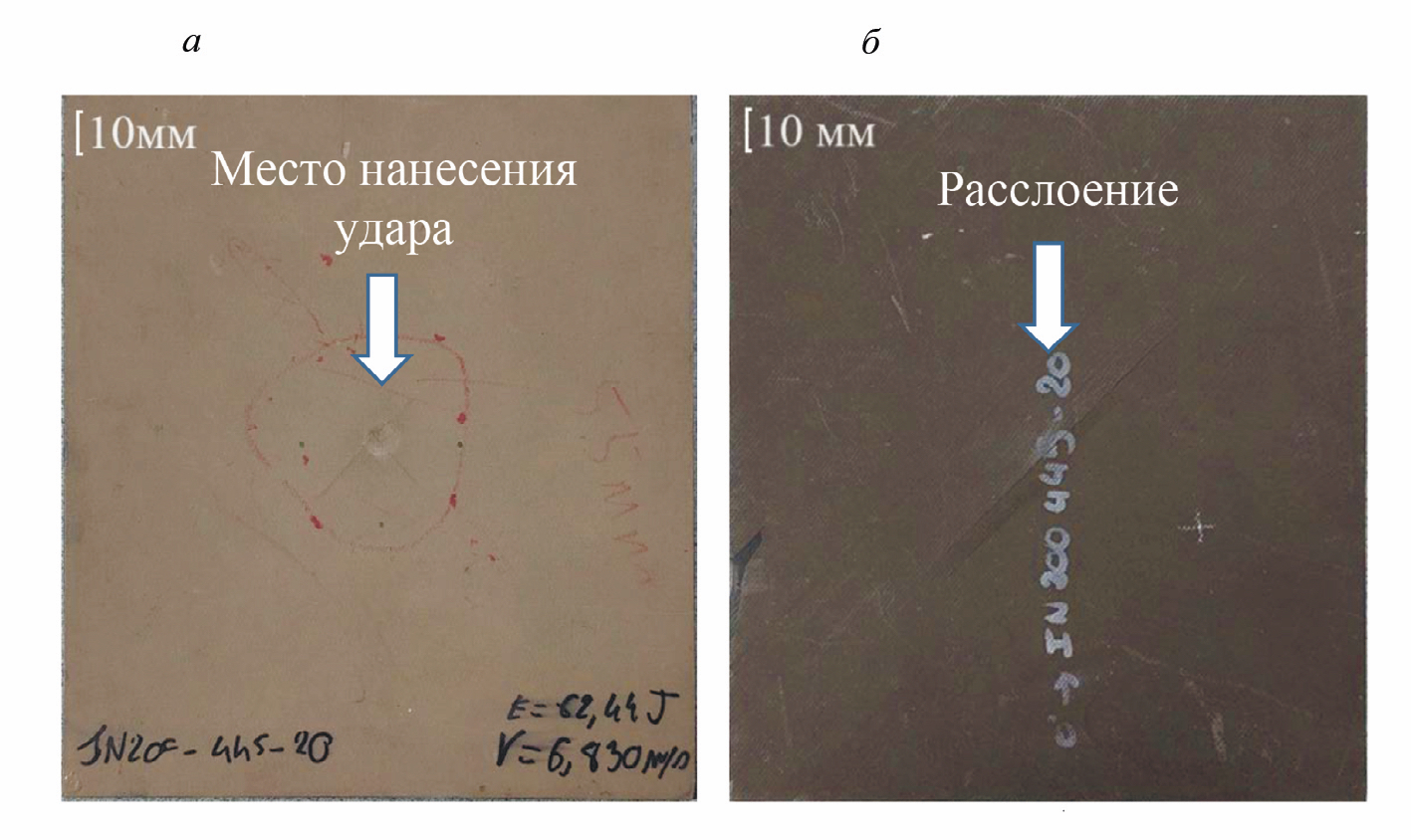

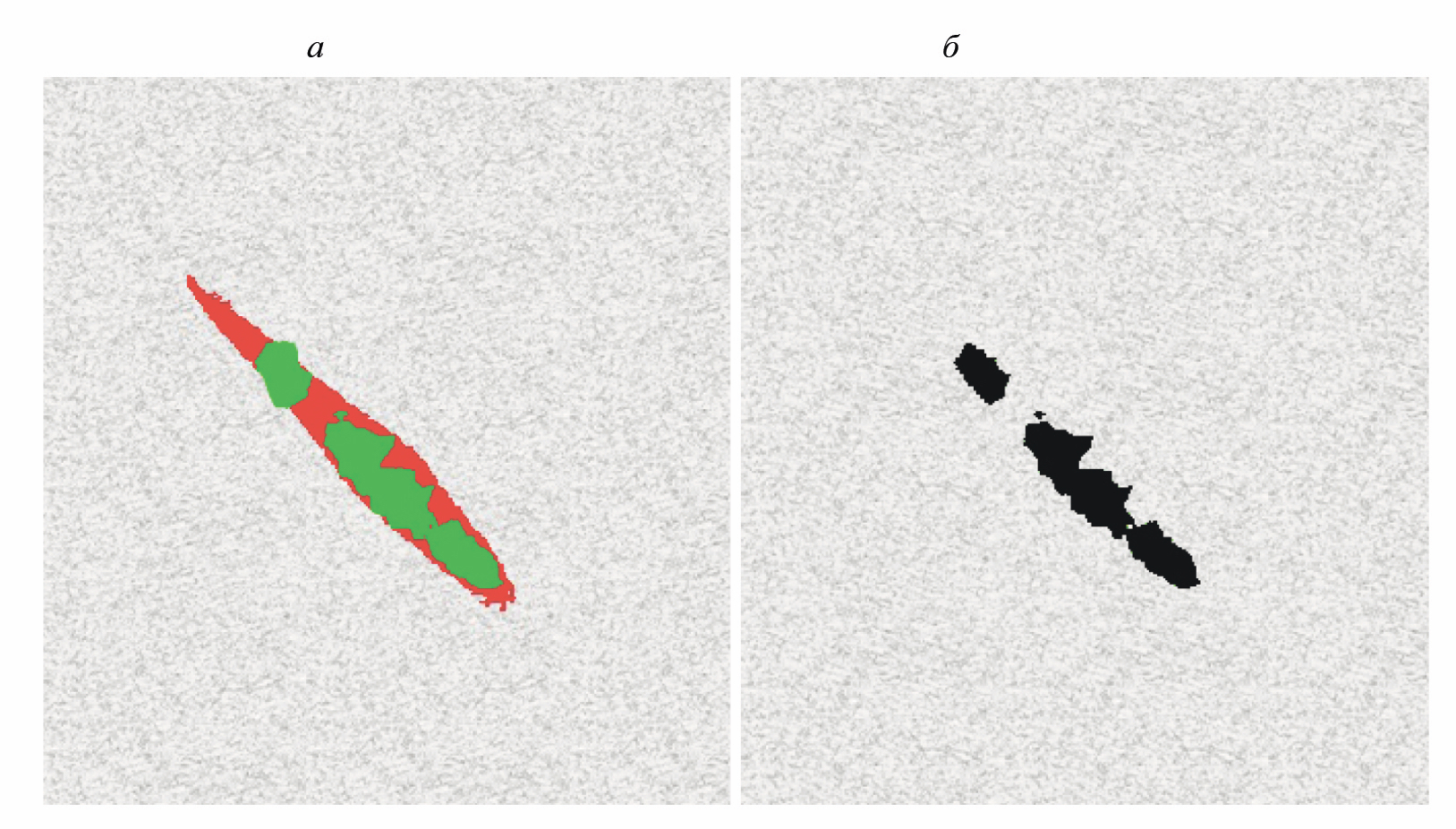

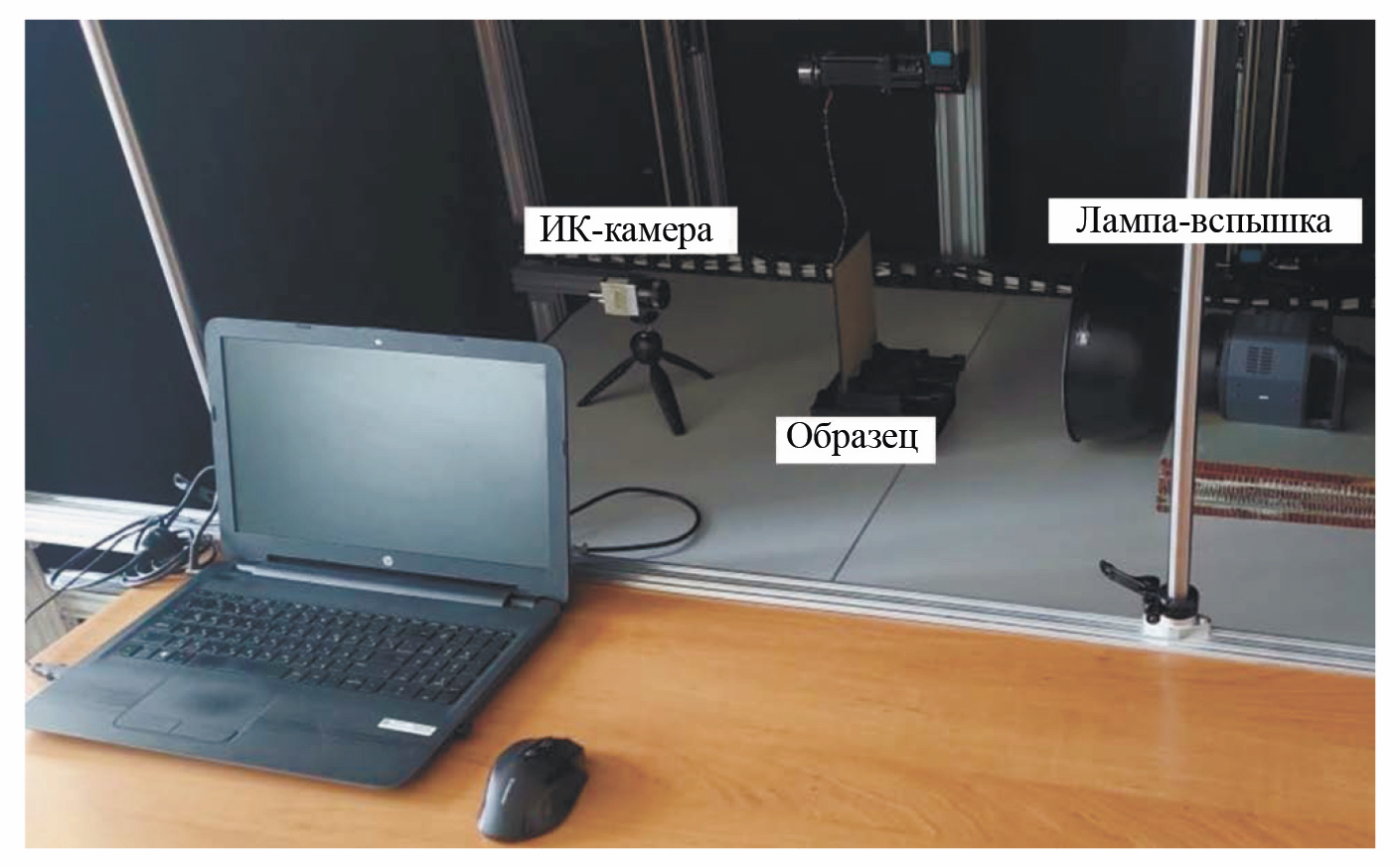

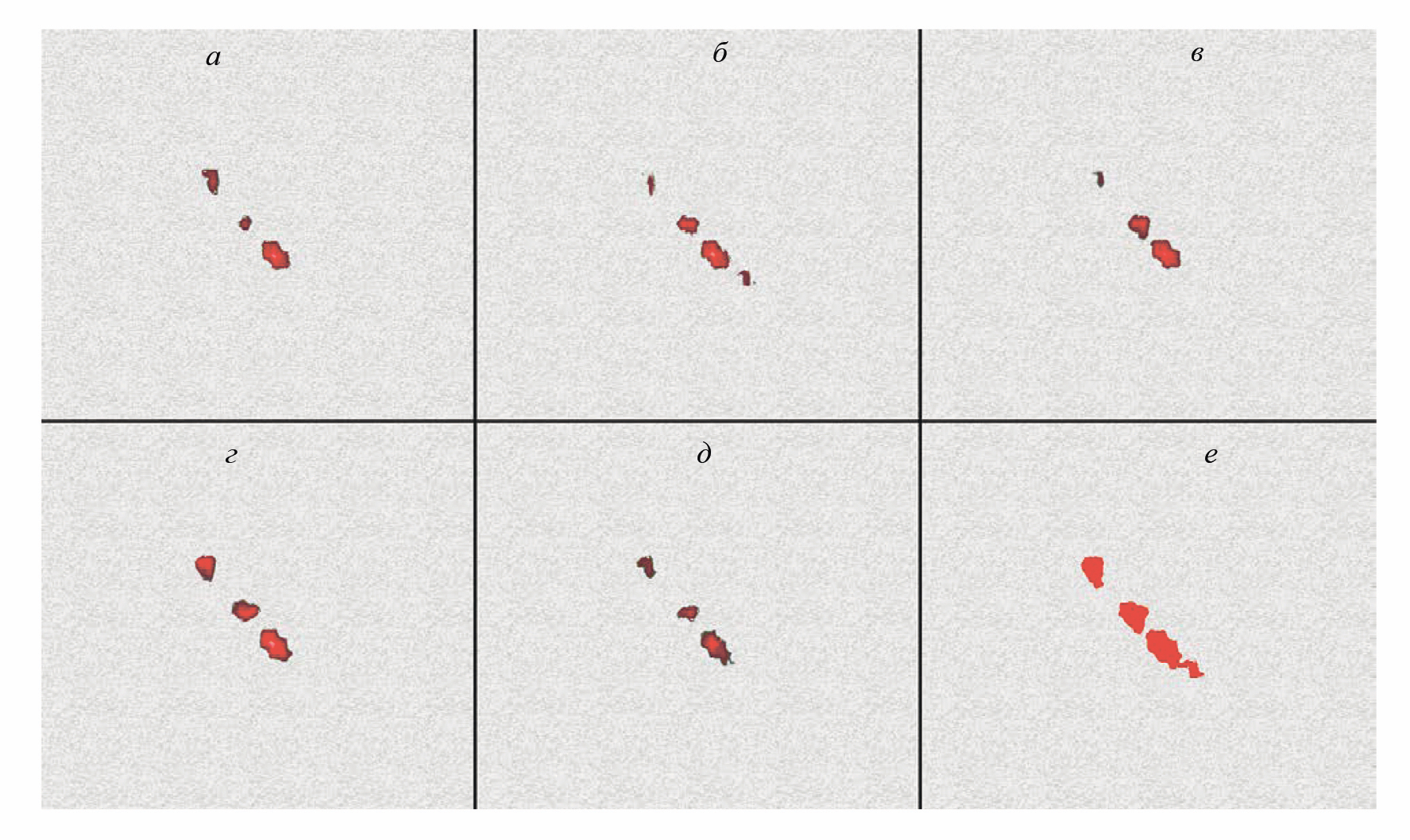

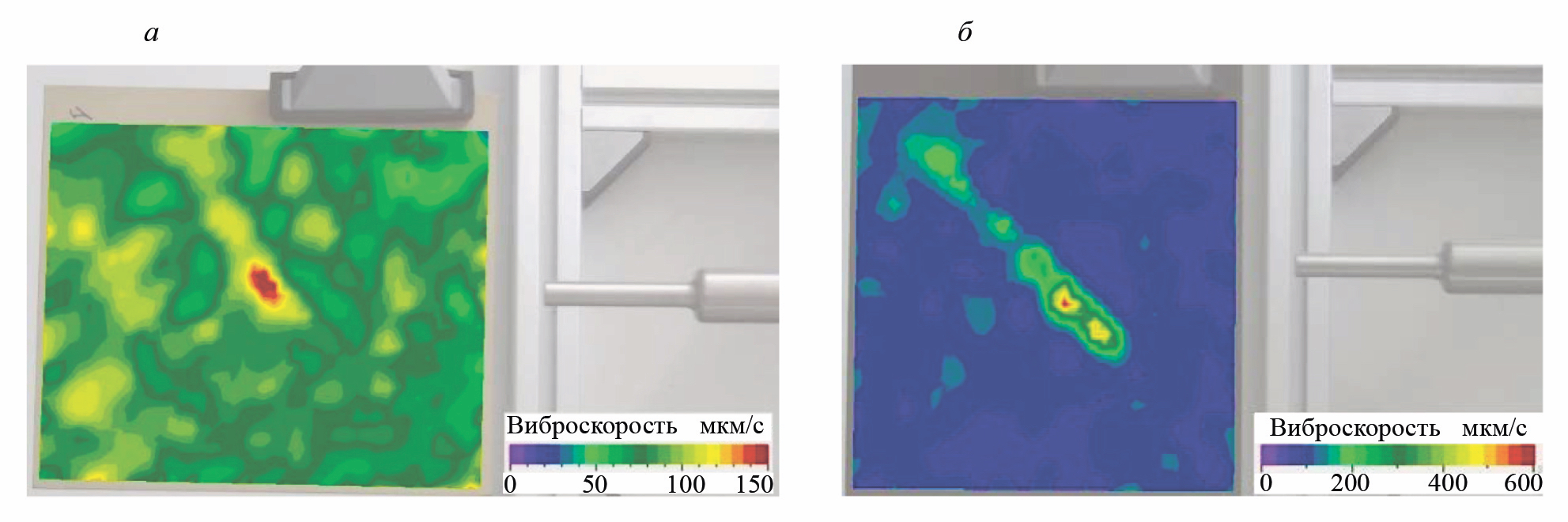

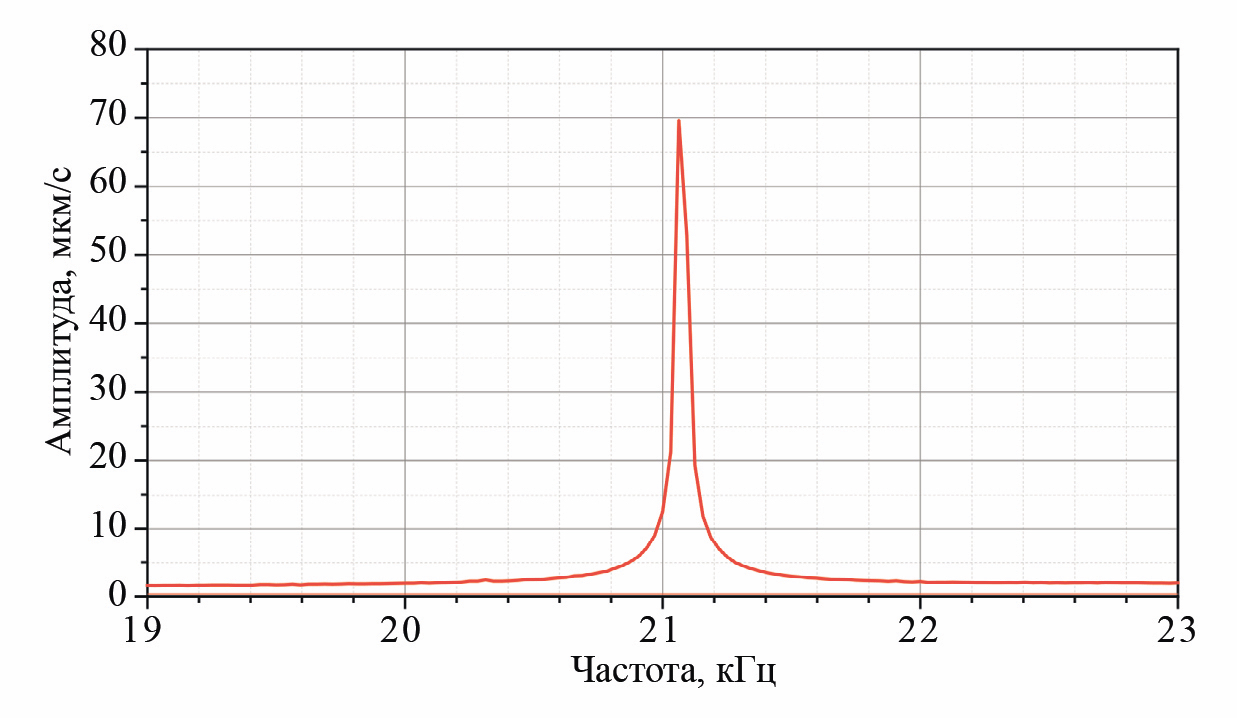

This study was devoted to the development of data fusion techniques obtained by one or several nondestructive testing (NDT) methods. Experimental results were obtained by applying laser vibrometry and optical infrared thermography to evaluation of impact damage in carbon fiber composite. These NDT techniques are different by their physical nature and supply specific testing results. The proposed data fusion method allows increasing reliability of inspection results and enables estimating defect parameters. It involves both averaging data of each single NDT technique and merging the results obtained by two methods. Vibrograms obtained by laser vibrometry were used to analyze acoustic response of the test sample toward stimulation at different frequencies. In its turn, infrared thermographic NDT supplies the sample response toward thermal stimulation. It has been shown that the fusion of these two techniques supplies a comprehensive information on defect size and location. Also, the automation of the fusion procedure increases NDT productivity and reduces subjectivity of testing results.
Full Text
About the authors
V. Yu. Shpilnoi
National Research Tomsk Polytechnic University
Author for correspondence.
Email: vshpilnoy@list.ru
Russian Federation, 634028 Tomsk, Lenin Ave., 30
D. A. Derusova
National Research Tomsk Polytechnic University
Email: red@tpu.ru
Russian Federation, 634028 Tomsk, Lenin Ave., 30
V. P. Vavilov
National Research Tomsk Polytechnic University
Email: vavilov@tpu.ru
Russian Federation, 634028 Tomsk, Lenin Ave., 30
References
- Zhukov V.V., Karpov A.A., Karpov I.A., Koktsinskaya E.M., Khusainov R.R. Analysis of trends in promising materials for the oil and gas industry // PRONEFT. PROFESSIONALLY ABOUT OIL. 2022. No. 3 (25). P. 136—147.
- Fanran Meng, Cui Yuanlong, Pickering Steve, McKechnie Jon. From aviation to aviation: Environmental and financial viability of closed-loop recycling of carbon fibre composite // Composites Part B: Engineering. 1 November 2020. V. 200. P. 108362.
- Tian Pei-Xiu, Li Yi-Dong, Hu Zhi, Zeng Jian-Bing. Fire-resistant and high-performance epoxy vitrimers for fully recyclable carbon fiber-reinforced composites // Materials Today Chemistry. March 2024. V. 36. P. 101965.
- Pothnis Ja.R., Hajagolkar A.K., Anilchandra A.R., Das R., Gururaja S. Open-hole fatigue testing of ud-gfrp composite laminates containing aligned cnts using infrared thermography/// COMPOSITE STRUCTURES. 2023. No. 324. P. 117557.
- Liu W. Influence of nano-cutting fluid in new cutting and forming processes on heat transfer performance of mechanical engineering // International Journal of Analytical Chemistry. 2022. No. 2022. P. 5603355.
- Dolmatov D.O., Khairulin A.R., Smolyansky V.A. Ultrasound tomography using sparse matrix antenna arrays and digital coherent processing with calculations in the frequency domain // Defektoskopiya. 2023. No. 5. P. 3—11.
- GOST R 58062—2018 National standard of the Russian Federation «Fabrics based on carbon fibers». Access mode: https://docs.cntd.ru/document/1200158294 (last appeal 04.03.2024г.).
- Caballol David, Raposo Álvaro P., Gil-Carrillo Francisco. Non-destructive testing of concrete layer adhesion by means of vibration measurement///Construction and Building Materials. 12 January 2024. V. 411. P. 134548.
- Glushkov E.V., Glushkova N.V., Ermolenko O.A. Modeling the operation of a non-contact ultrasonic transducer in active wave monitoring systems of thin-walled structures // Defektoskopiya. 2022. No. 8. P. 12—24.
- Bazulin A.E., Bazulin E.G., Vopilkin A.Kh., Tikhonov D.S., Smotrova S.A., Ivanov V.I. Inspection of samples made of polymer composite materials using ultrasonic antenna arrays // Defektoskopiya. 2022. No. 6. P. 3—16.
- Dubinsky S.V., Kazmin E.A., Kovalev I.E., Kornilov A.B., Kornilov G.A., Kostenko V.M., Chernyavsky A.A. Development of vibrothermography as a method of non-destructive testing of products made of polymer structural materials using forced mechanical vibrations // Defektoskopiya. 2021. No. 6. P. 35—45.
- Bi Wenda, Zhao Yonghui, Shen Ruiqing, Li Bo, Hu Shufan, Ge Shuangcheng. Multi-frequency GPR data fusion and its application in NDT // NDT & E International. October 2020. V. 115. P. 102289.
- Gros X.E., Bousigue J., Takahashi K. NDT data fusion at pixel level // DT & E International. July 1999. V. 32. Is. 5. P. 283—292.
- Han Wei, Feng Kan, Yang Huagen. Phase Reversal Method for Damage Imaging in Composite Laminates Based on Data Fusion // Applied Sciences. 2022. V. 12. Is. 6. P. 2894.
- Hassani Sahar, Dackermann Ulrike, Mousavi Mohsen, Li Jianchun. A systematic review of data fusion techniques for optimized structural health monitoring // NDT & E International. March 2024. V. 103. P. 102136.
- Nomenclature and technical characteristics of IR cameras PI Series (The Precision Line). Access mode: https://www.optris.com/en/products/infrared-cameras/pi-series/ (last appeal 04.03.2024г.).
- Filatov K.A. Methods for identifying pipeline sections on the ground without stripping operations (capillary and ultrasonic methods) // Innovations. The science. Education. 2021. No. 47. P. 1945—1951.
