PRODUCTION OF FUNCTIONALLY GRADIENT MATERIALS BASED ON SILICON CARBIDE AND HIGH-ALLOY STEEL USING SPARK PLASMA SINTERING TECHNOLOGY

Capa

Citar

Texto integral

Acesso aberto Acesso aberto
Acesso é fechado Acesso está concedido
Acesso é fechado Somente assinantes

Resumo

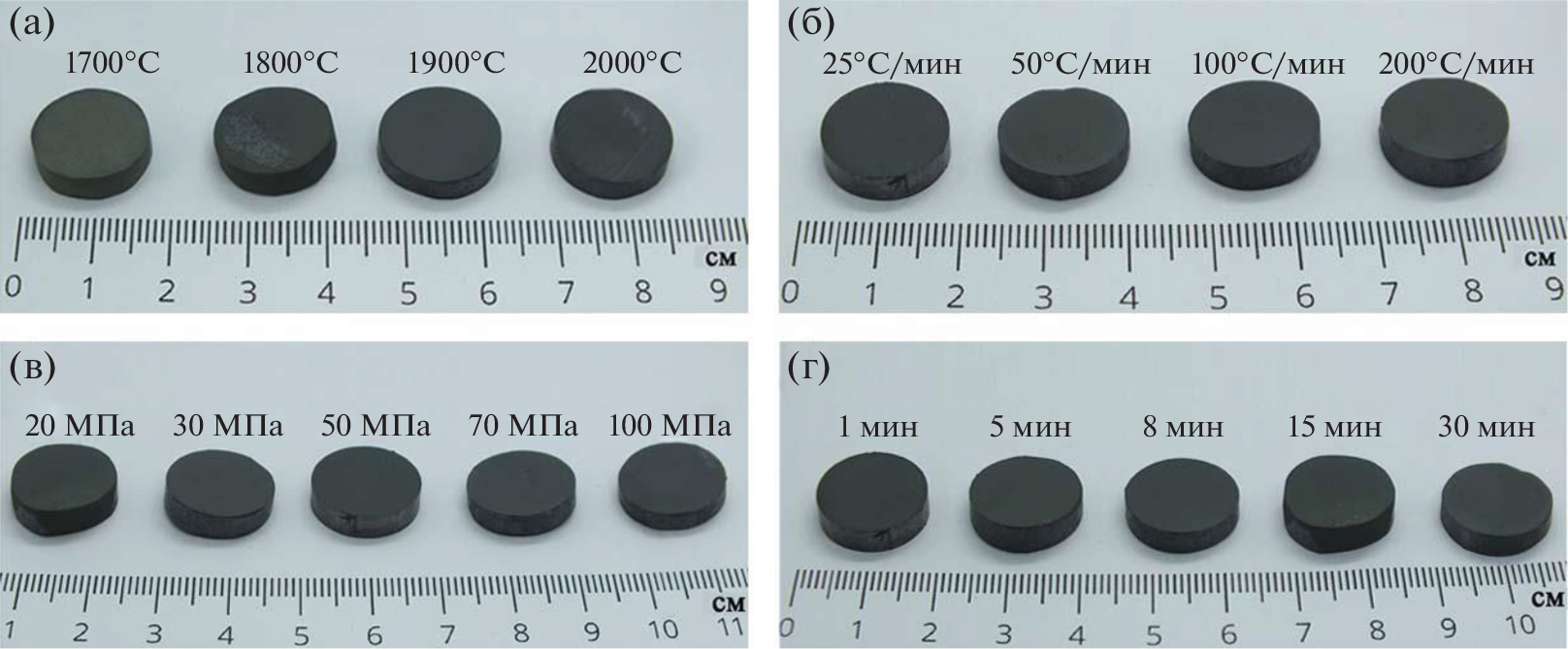

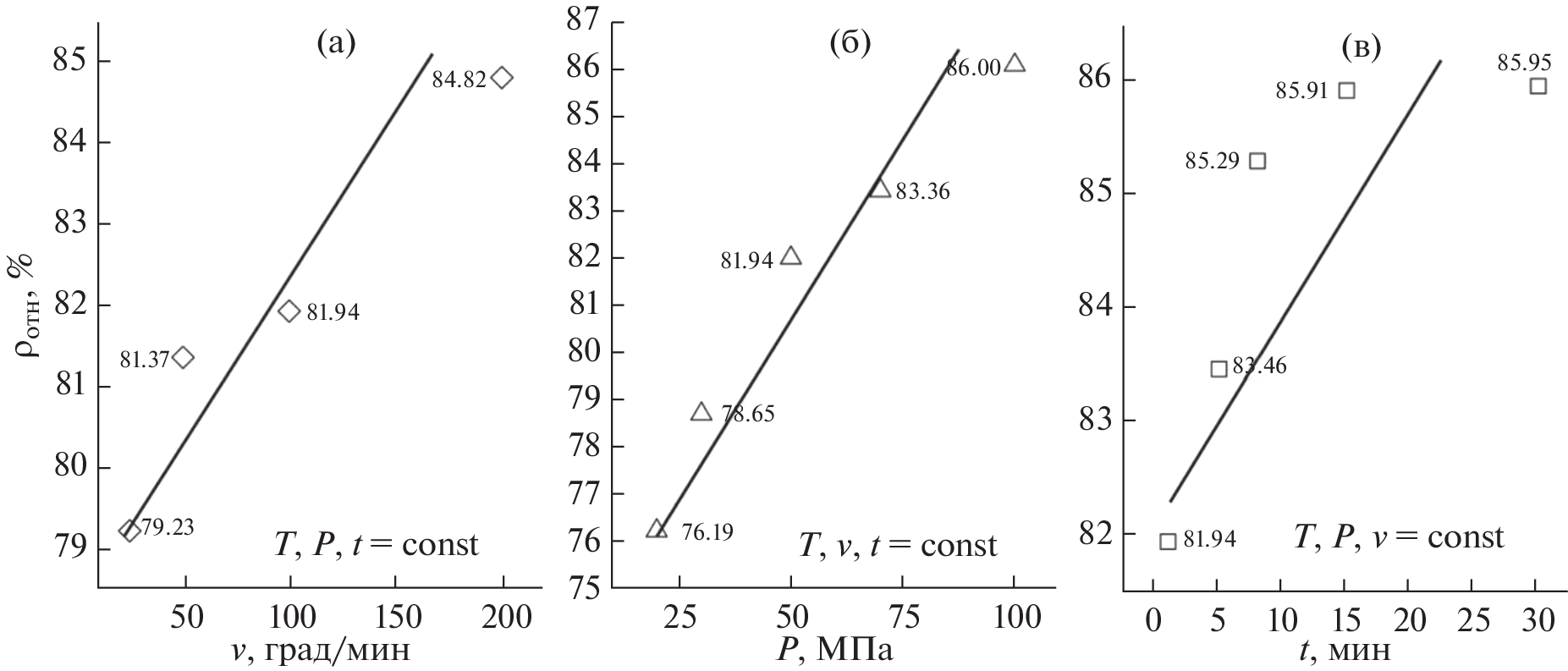

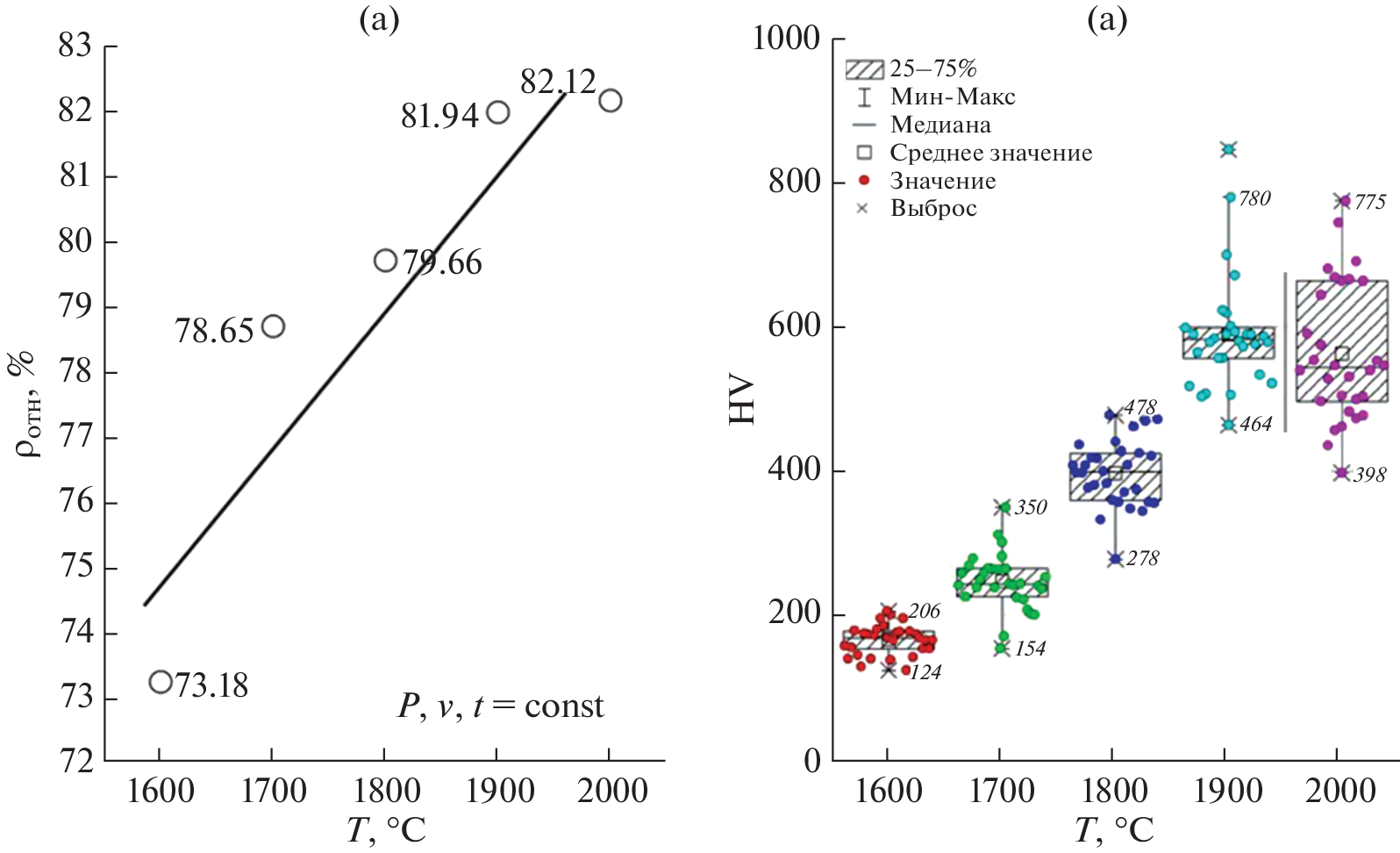

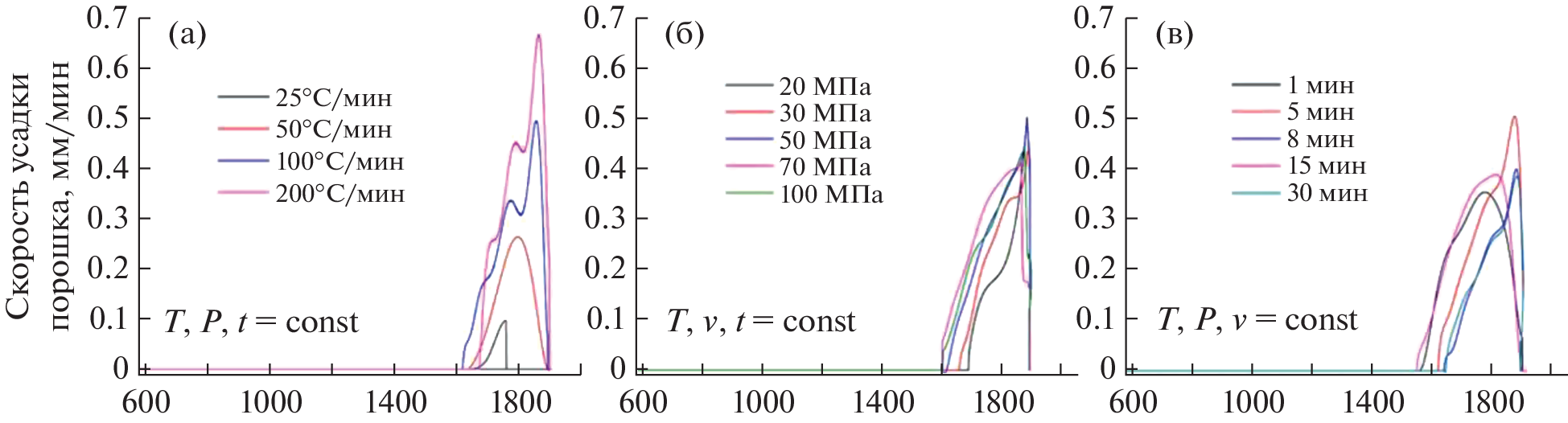

An important scientific task of practical materials science is the production of metal-ceramic composites in the form of functional gradient materials (FGM) for special-purpose products. In this regard, a study was conducted on the application of spark plasma sintering (IPS) technology for the effective diffusion connection of SiC ceramics and high-alloy steel (grade X18R15) to obtain a combined FGM composite. In a comprehensive experimental study, the dynamics of consolidation and changes in the phase composition of dispersed SiC under conditions of different temperatures and heating rates, pressing pressure, and holding time were studied. As a result, the IPS conditions were optimized for obtaining SiC ceramics of high relative density (>82%) and microhardness (>500 HV) of stable phase composition. The physicochemical foundations of the formation of a strong compound of a two-component SiC-ceramic and steel system under IPS conditions without additives and using a mixture of additives in the form of a binder, a reaction binder and a damper (Ti–Ag, Ti–TiH2, Ti–Ag–TiH2 and Ti–Ag/Mo additive systems) have been studied. The structure, composition of ceramics and intermediate (binding and damping) layers, as well as the diffusion of elements at the boundary of the formed compounds in FGM composites, were studied using XRF, SEM and EMF methods. It was found that the Ti–Ag/Mo additive in the ratio of 30 wt. % Ti–70 wt. % Ag and a dense layer of Mo (thickness ~ 2 mm), acting as a damper to compensate for the temperature coefficient of linear expansion, ensure the formation of a connected FGM composite of an integral shape. The presented studies have been implemented for the first time, are promising and require further development in order to gain scientific knowledge of the manufacture of composite products for special purposes.

Sobre autores

S. CHUKLINOV

Moscow Aviation Institute (National Research University)

Email: papynov@mail.ru
Moscow, Russia

V. SERGIENKO

Presidium of the Far Eastern Branch of the Russian Academy of Sciences

Email: papynov@mail.ru
Vladivostok, Russia

E. PAPYNOV

Far Eastern Federal University

Email: papynov@mail.ru
Russian Island, Russia

O. SHICHALIN

Far Eastern Federal University

Email: papynov@mail.ru
Russian Island, Russia

A. BELOV

Far Eastern Federal University

Email: papynov@mail.ru
Russian Island, Russia

E. MARCHUKOV

Moscow Aviation Institute (National Research University)

Email: papynov@mail.ru
Moscow, Russia

A. MUKHIN

Moscow Aviation Institute (National Research University)

Autor responsável pela correspondência
Email: papynov@mail.ru
Moscow, Russia

Bibliografia

  1. Kieback B., Neubrand A., Riedel H. // Mater. Sci. Eng. A. 2003. V. 362. № 1–2. P. 81. https://doi.org/10.1016/S0921-5093(03)00578-1
  2. Saleh B., Jiang J., Fathi R. et al. // Compos. Part B. 2020. V. 201. P. 108376. https://doi.org/10.1016/j.compositesb.2020.108376
  3. Sam M., Jojith R., Radhika N. // J. Manuf. Process. 2021. V. 68. P. 1339. https://doi.org/10.1016/S0921-5093(03)00578-1
  4. Pasha A., B.M.R. // Mater. Today Proc. 2022. V. 52. P. 413. https://doi.org/10.1016/j.matpr.2021.09.077
  5. Ruys A.J., Sutton B.A. // Met. Ceram., Elsevier. 2021. P. 327. https://doi.org/10.1016/B978-0-08-102869-8.00009-4
  6. Martinsen K., Hu S.J., Carlson B.E. // CIRP Ann. 2015. V. 64. P. 679. https://doi.org/10.1016/j.cirp.2015.05.006
  7. Uday M.B., Ahmad-Fauzi M.N., Noor A.M. et al. // Current Issues and Problems in the Joining of Ceramic to Metal. Join. Technol., InTech, 2016. P. 159–193. https://doi.org/10.5772/64524
  8. Zhang Y., Chen Y.K., Yu D.S. et al. // J. Mater. Res. Technol. 2020. V. 9. № 6. P. 16214. https://doi.org/10.1016/j.jmrt.2020.11.088
  9. Hausner S., Wielage B. // Adv. Brazing Sci. Technol. Appl., Woodhead Publishing Limited, 2013. P. 361–393. https://doi.org/10.1533/9780857096500.2.361
  10. Nascimento R.M. do, Martinelli A.E., Buschinelli A.J.A. // Cerâmica. 2003. V. 49. № 312. P. 178. https://doi.org/10.1590/s0366-69132003000400002
  11. Hu Z.Y., Zhang Z.H., Cheng X.W. et al. // Mater. Des. 2020. V. 191. P. 108662. https://doi.org/10.1016/j.matdes.2020.108662
  12. Simonenko E.P., Simonenko N.P., Sevastyanov V.G. et al. // Russ. J. Inorg. Chem. 2019. V. 64. № 14. P. 1697. https://doi.org/10.1134/S0036023619140079
  13. Papynov E.K., Portnyagin A.S., Modin E.B. et al. // Mater. Charact. 2018. V. 145. P. 294. https://doi.org/10.1016/j.matchar.2018.08.044
  14. Simonenko E.P., Simonenko N.P., Nagornov I.A. et al. // Russ. J. Inorg. Chem. 2021. V. 66. № 12. P. 1887. https://doi.org/10.1134/S0036023621120172
  15. Shapkin N.P., Papynov E.K., Shichalin O.O. et al. // Russ. J. Inorg. Chem. 2021. V. 66. № 5. P. 629. https://doi.org/10.1134/S0036023621050168
  16. Papynov E.K., Shichalin O.O., Buravlev I.Y. et al. // Russ. J. Inorg. Chem. 2020. V. 65. № 2. P. 263. https://doi.org/10.1134/S0036023620020138
  17. Shichalin O.O., Frolov K.R., Buravlev I.Y. et al. // Russ. J. Inorg. Chem. 2020. V. 65. № 8. P. 1245. https://doi.org/10.1134/S0036023620080148
  18. Simonenko E.P., Simonenko N.P., Gordeev A.N. et al. // Russ. J. Inorg. Chem. 2018. V. 63. № 4. P. 421. https://doi.org/10.1134/S0036023618040186
  19. Shichalin O.O., Buravlev I.Y., Portnyagin A.S. et al. // J. Alloys Compd. 2020. V. 816. P. 152547. https://doi.org/10.1016/j.jallcom.2019.152547
  20. Shichalin O.O., Buravlev I.Y., Papynov E.K. et al. // Int. J. Refract. Met. Hard Mater. 2022. V. 102. P. 105725. https://doi.org/10.1016/j.ijrmhm.2021.105725
  21. Buravlev I.Y., Shichalin O.O., Papynov E.K. et al. // Int. J. Refract. Met. Hard Mater. 2021. V. 94. P. 105385. https://doi.org/10.1016/j.ijrmhm.2020.105385
  22. Naveen Kumar N., Janaki Ram G.D., Bhattacharya S.S. // Trans. Indian Inst. Met. 2019. V. 72. № 7. P. 1837. https://doi.org/10.1007/s12666-019-01662-8
  23. Tsakiris V., Kappel W., Talpeanu D. et al. // Adv. Mater. Res. 2014. V. 1029. P. 200. https://doi.org/10.4028/www.scientific.net/AMR.1029.200
  24. Okuni T., Miyamoto Y., Abe H. et al. // Ceram. Int. 2014. V. 40. P. 1359. https://doi.org/10.1016/j.ceramint.2013.07.017
  25. Rizzo S., Grasso S., Salvo M. et al. // J. Eur. Ceram. Soc. 2014. V. 34. № 4. P. 903. https://doi.org/10.1016/j.jeurceramsoc.2013.10.028
  26. Miriyev A., Barlam D., Shneck R. et al. // J. Mater. Process. Technol. 2014. V. 214. № 12. P. 2884. https://doi.org/10.1016/j.jmatprotec.2014.06.026
  27. Miriyev A., Stern A., Tuval E. et al. // J. Mater. Process. Technol. 2013. V. 213. № 2. P. 161. https://doi.org/10.1016/j.jmatprotec.2012.09.017
  28. Zhang B., Chen C., He J. et al. // Materials (Basel). 2020. V. 13. № 15. P. 1. https://doi.org/10.3390/ma13153300
  29. Dudina D.V., Matvienko A.A., Sidelnikov A.A. et al. // Mater. Today Proc. 2019. V. 16. P. 187. https://doi.org/10.1016/j.matpr.2019.05.242
  30. Dudina D.V., Matvienko A.A., Sidelnikov A.A. et al. // Metals (Basel). 2018. V. 8. № 7. https://doi.org/10.3390/met8070538
  31. Хениш Г., Рой Р. // Карбид кремния. М., 1972.
  32. Bokhonov B.B., Ukhina A.V., Dudina D.V. et al. // RSC Adv. 2015. V. 5. № 98. P. 80228. https://doi.org/10.1039/C5RA15439A
  33. Bernard–Granger G., Benameur N., Guizard C. et al. // Scr. Mater. 2009. V. 60. № 3. P. 164. https://doi.org/10.1016/j.scriptamat.2008.09.027
  34. Bertrand A., Carreaud J., Delaizir G. et al. // J. Am. Ceram. Soc. 2014. V. 97. № 1. P. 163. https://doi.org/10.1111/jace.12657
  35. Papynov E.K., Shichalin O.O., Mironenko A.Y. et al. // Radiochemistry. 2018. V. 60. № 4. P. 362. https://doi.org/10.1134/S1066362218040045
