A Thin Layer Method for the LA-ICP-MS Analysis of Trace Element Concentrates

N. S. Medvedev; Медведев Н. С.; V. D. Kurbatova; Курбатова В. Д.; A. I. Saprykin; Сапрыкин А. И.

doi:10.31857/S004445022303009X

A Thin Layer Method for the LA-ICP-MS Analysis of Trace Element Concentrates

Authors: Medvedev N.S.¹, Kurbatova V.D.¹^,2, Saprykin A.I.¹^,2
Affiliations:
1. Nikolaev Institute of Inorganic Chemistry, Siberian Branch, Russian Academy of Sciences
2. Novosibirsk National State Research University
Issue: Vol 78, No 3 (2023)
Pages: 208-215
Section: ОРИГИНАЛЬНЫЕ СТАТЬИ
URL: https://journals.rcsi.science/0044-4502/article/view/135994
DOI: https://doi.org/10.31857/S004445022303009X
EDN: https://elibrary.ru/FTVMEJ
ID: 135994

Cite item

Full Text

Open Access
Restricted Access

Access granted
Restricted Access

Subscription Access

Abstract
About the authors
References
Supplementary files
Statistics

Abstract

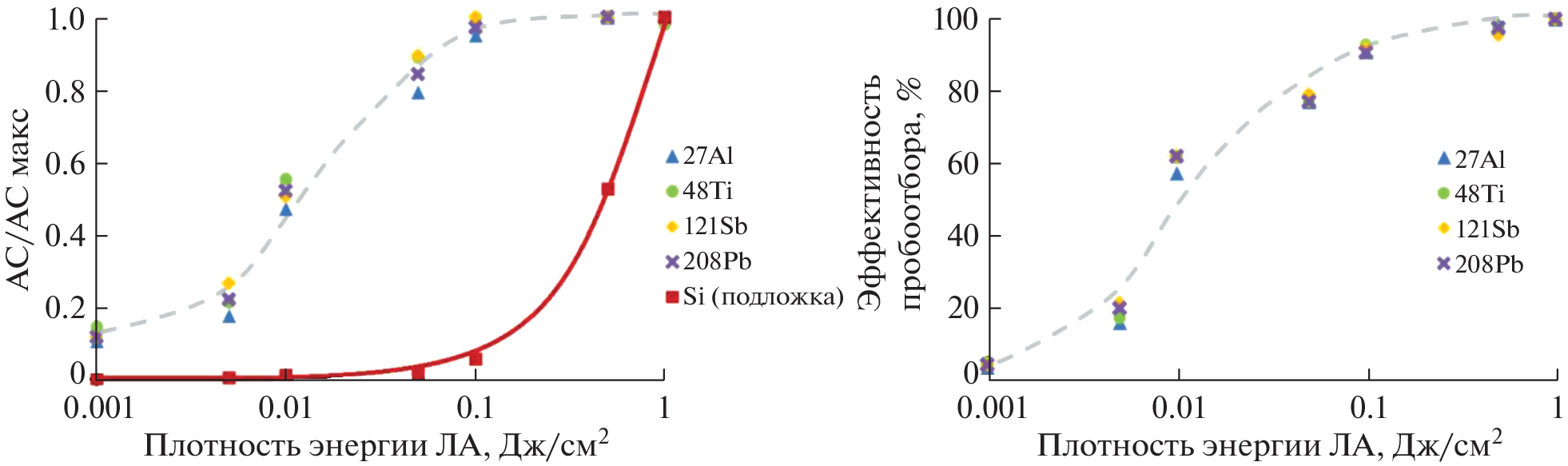

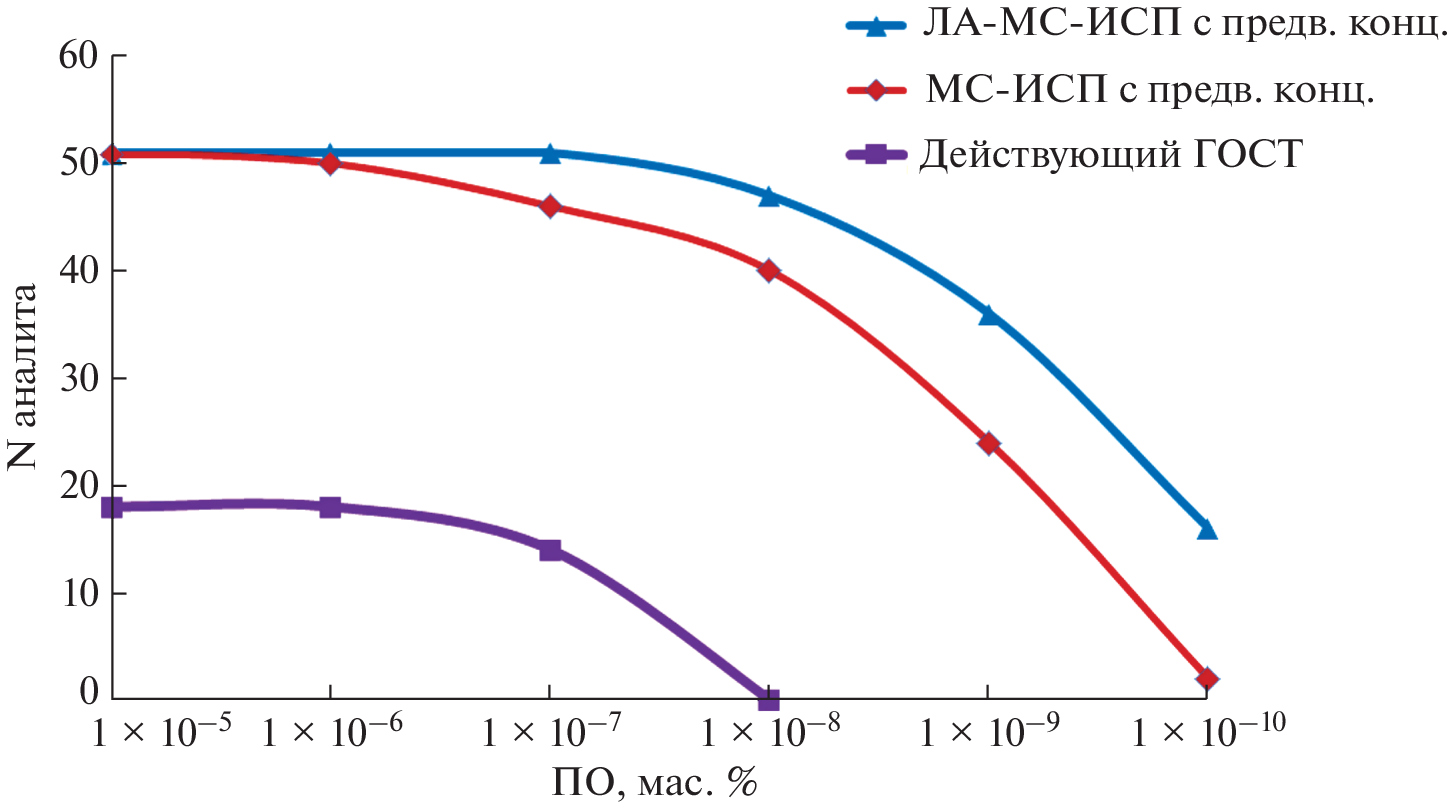

A method is proposed for the analysis of trace element concentrates by a thin layer method in combination with inductively coupled plasma mass spectrometry (ICP-MS) and laser ablation (LA). Trace elements concentrates were evaporated on preliminarily prepared areas of a high-purity silicon substrate, after which an LA-ICP-MS analysis was performed. The influence of the LA parameters and the conditions for recording the spectra on the signal of the analytes and the substrate material was studied. The analytical capabilities of the thin layer method in combination with LA-ICP-MS for the analysis of high-purity substances with the preconcentration of trace elements were evaluated. Using an analysis of high-purity nitric acid as an example, it was shown that the limits of detection for analytes in the LA-ICP-MS analysis of trace element concentrates using the thin layer method are in the range from n × 10–11 to n × 10–8 wt %. Thus, the development of combined procedures of analysis, including the preconcentration of trace elements and an analysis of concentrates by LA-ICP-MS, makes it possible to reduce the limits of detection for most analytes by one order of magnitude compared to instrumental ICP-MS analysis.

Keywords

mass spectrometry, inductively coupled plasma, thin layer method, laser ablation, high-purity substances, preconcentration of trace element

References

Becker J.S., Dietze H.J. State-of-the-art in inorganic mass spectrometry for analysis of high-purity materials // Int. J. Mass Spectrom. 2003. V. 228. P. 127. https://doi.org/10.1016/S1387-3806(03)00270-7
Пименов В.Г., Тимонин Д.А., Шишов В.Н. Атомно-эмиссионный анализ высокочистого диоксида германия с предварительным парофазным автоклавным концентрированием примесей в электроде // Журн. аналит. химии. 1986. Т. 41. С. 1173.
Цизин Г.И. Развитие методов концентрирования микрокомпонентов в России (1991–2010 гг.) // Журн. аналит. химии. 2011. Т. 66. № 11. С. 1135.
Цыганкова А.Р., Шаверина А.В., Шелпакова И.Р., Сапрыкин А.И. Сравнение аналитических возможностей комбинированных методик анализа высокочистых веществ с возбуждением излучения в дуге постоянного тока и индуктивно связанной плазме // Аналитика и контроль. 2012. Т. 16. № 4. С. 420.
Medvedev N.S., Shaverina A.V., Tsygankova A.R., Saprykin A.I. Analysis of high-purity germanium dioxide by ETV-ICP-AES with preliminary concentration of trace elements // Talanta. 2016. V. 155. P. 358. https://doi.org/10.1016/j.talanta.2016.02.052
Lundovskaya O.V., Medvedev N.S., Tsygankova A.R., Volzhenin A.V., Saprykin A.I. Multi-element optical emission and mass-spectrometry analysis of high-purity cadmium with vacuum preconcentration by matrix volatilization // Spectrochim. Acta B: At. Spectrosc. 2021. V. 177. Article 106049. https://doi.org/10.1016/j.sab.2020.106049
Сапрыкин А.И., Шелпакова И.Р., Чанышева Т.А., Юделевич И.Г. Метод тонкого слоя в искровой масс-спектрометрии. Анализ поверхности кремниевых пластин // Журн. аналит. химии. 1983. Т. 38. № 7. С. 1238.
Шелпакова И.Р., Сапрыкин А.И., Чанышева Т.А., Юделевич И.Г. Метод тонкого слоя в искровой масс-спектрометрии. Анализ особо чистой воды // Журн. аналит. химии. 1983. Т. 38. № 4. С. 581.
Чанышева Т.А., Шелпакова И.Р., Сапрыкин А.И., Янковская Л.М., Юделевич И.Г. Анализ кислот особой чистоты химико-спектральным и искровым масс-спектрометрическим методами с концентрированием примесей // Журн. аналит. химии. 1983. Т. 38. № 6. С. 979.
Шелпакова И.Р., Сапрыкин А.И., Юделевич И.Г. Искровой масс-спектрометрический анализ материалов высокой чистоты с концентрированием примесей // Проблемы аналит. химии.1984. Т. 7. С. 143.
Gray A.L. Solid sample introduction by laser ablation for inductively coupled plasma source mass spectrometry // Analyst. 1985. V. 110. P. 551. https://doi.org/10.1039/AN9851000551
Von der Linde D., Sokolowski-Tinten K. The physical mechanisms of short-pulse laser ablation // Appl. Surface Sci. 2000. V. 154–155. P. 1. https://doi.org/10.1016/S0169-4332(99)00440-7
Koch J., Günther D. Review of the state-of-the-art of laser ablation inductively coupled plasma mass spectrometry // Appl. Spectrosc. 2011. V. 65. № 5. P. 155. https://doi.org/10.1366/11-06255
Resano M., Belarra M.A., García-Ruiz E., Aramendía M., Rello Varas L. Dried matrix spots and clinical elemental analysis. Current status, difficulties, and opportunities // Trends Anal. Chem. 2017. V. 99. P. 75. https://doi.org/10.1016/j.trac.2017.12.004
Aramendia M., Rello L., Berail S., Donard A., Pecheyrand C., Resano M. Direct analysis of dried blood spots by femtosecond-laser ablation-inductively coupled plasma-mass spectrometry. Feasibility of split-flow laser ablation for simultaneous trace element and isotopic analysis // J. Anal. At. Spectrom. 2015. V. 30. P. 525. https://doi.org/10.1039/C4JA00313F
Yang L., Sturgeon R.E., Mester Z. Quantitation of trace metals in liquid samples by dried-droplet laser ablation inductively coupled plasma mass spectrometry // Anal. Chem. 2005. V. 77. P. 2971. https://doi.org/10.1021/ac048275a
Villasenor A., Greatti C., Boccongelli M., Todolí J.L. A dried droplet calibration approach for the analysis of solid samples through laser ablation – Inductively coupled plasma mass spectrometry // J. Anal. At. Spectrom. 2017. V. 32. P. 587. https://doi.org/10.1039/C6JA00343E
Kuczelinis F., Petersen J.H., Weis P., Bings N.H. Calibration of LA-ICP-MS via standard addition using dried picoliter droplets // J. Anal. At. Spectrom. 2020. V. 35. P. 1922. https://doi.org/10.1039/D0JA00184H
ГОСТ 11125-84 Кислота азотная особой чистоты. Технические условия. Введен 1986-01-01. М.: Стандартинформ, 2006. 28 с.
