Cliff dynamics in western Crimea

Cover Page

Cite item

Full Text

Open Access Open Access
Restricted Access Access granted
Restricted Access Subscription Access

Abstract

The paper considers the long-term dynamics of clayey cliffs of the Western Crimea in view of the problem of further recreational development of the Crimean Peninsula. Open-source satellite imagery and long-term (over 40 years) cliff section measurements were analyzed. The paper provides data on the geomorphology of individual coastal sites. It is shown that landslides are the main mechanism causing the cliff retreat on the larger part of the coastline. Slumps are typical for the southern part of the region and their movement episodes are relatively rare. Landslides become more active during the winter — spring period, when the moisture content of clayey cliff rocks increases substantially and the abrasion intensifies. Landslides can also be triggered by short-term heavy precipitation, which is usually observed in the summer. There is no definite relationship between the amount of annual precipitation, storm activity and landslide activity, either synchronous or with a time lag. No regularity in landslide dynamics was identified. It was found that the average long-term rates of cliff edge retreat are 0.1–1.2 m/year. In the northern part of the coast, the rates are the highest, decreasing towards the southern part of the region. The obtained average annual rates of cliff edge retreat are significantly less than those previously reported in the literature. There is a decrease in the beach-forming sediment supply due to a reduction in the stretch of the cliffs. Out of 50 km coastline with cliffs, only 39 km are left in the study area due to being covered by various structures and terracing. The paper also discusses anthropogenic activity, which leads to the formation and movement of man-made landslides and an increase in natural landslide activity. It is shown that the construction of transverse beach-retaining structures leads to blocking of littoral sediment transport, and to increase in the cliff retreat rate outside the protected reach.

Full Text

Restricted Access

About the authors

Yu. N. Goryachkin

Marine Hydrophysical Institute of RAS

Author for correspondence.
Email: yngor@mhi-ras.ru
Russian Federation, Sevastopol

References

  1. Agarkova-Lyakh I.V. (2014). Modern state of beaches of the western Crimean coast and essential issues of coastal nature management. Ekologicheskaya bezopasnost’ pribrezhnykh i shel’fovykh zon i kompleksnoe ispolzovanie resursov shel’fa. № 29. P. 50–60. (in Russ.)
  2. Berdnikov S.V. (Ed.). (2022). Opasnye abrazionnye i opolznevye protsessy v beregovoi zone Azovskogo morya i sotsial’no-ekonomicheskie posledstviya ikh proyavlenii (Hazardous abrasion and landslide processes in the coastal zone of the Sea of Azov and the socio-economic consequences of their occurrence). Postov-na-Donu: UNTS RAN (Publ.). 288 p. (in Russ.)
  3. Constantinescu Ș., Giosan L. (2017). Marginal deltaic coasts in transition: from natural to anthropogenic along the southern Romanian cliffed coast. Anthropocene. V. 19. P. 35–44. https://doi.org/10.1016/J.ANCENE.2017.08.005
  4. Fokina N.A. (2008). Recreational activity and abrasion processes. Stroitel’stvo i tekhnogennaya bezopasnost’. V. 23. P. 88–92. (in Russ.)
  5. Fomin V.V., Goryachkin Yu.N. (2022). Accounting for the Local Wave and Morphodynamic Processes in Coastal Hydraulic Engineering. Physical Oceanography. V. 29. Iss. 3. P. 271–290. https://doi.org/10.22449/1573-160X-2022-3-271-290
  6. Goryachkin Y.N., Kharitonova L.V. (2010). Crimean coastline changes according to the satellite data. Prichornomorskii ekologіchnii byuleten. V. 1 (35). P. 122–129. (in Russ.)
  7. Goryachkin Yu.N. (2012). Coastal erosion and protection in Ukraine. Coastal erosion and protection in Europe. London: Routledge. P. 413–426.
  8. Goryachkin Yu.N. (2016). Coast protections of Crimea: West Coast. Part 1. Hydrotechnika. № 1. P. 49–54. (in Russ.)
  9. Goryachkin Yu.N. (2016). Coast protections of Crimea: West Coast. Part 2. Hydrotechnika. № 2. P. 38–43. (in Russ.)
  10. Goryachkin Yu.N. (2020). On strategy of use of the coastal zone of Western Crimea. In: Morya Rossii: issledovaniya beregovoi i shel’fovoi zon. Tez. dokl. Vseross. nauch. konf. Sevastopol: FGBUN FITS MGI (Publ.). P. 28–30 (in Russ.)
  11. Goryachkin Yu.N., Dolotov V.V. (2019). Morskie berega Kryma (Sea Coasts of Crimea). Sevastopol: Colorit (Publ.). 256 p. (in Russ.)
  12. Goryachkin Yu.N., Fedorov A.P., Dolotov V.V. et al. (2020). Natural conditions and anthropogenic change of the coastal zone in the area of Kacha Village. Ekologicheskaya bezopasnost’ pribrezhnoi i shel’fovoi zon morya. No. 4. P. 5–21. (in Russ.). https://doi.org/10.22449/2413-5577-2020-4-5-21
  13. Goryachkin Yu.N., Repetin L.N. (2009). Storm wind and wave regime near the Black Sea coast of Crimea. Ekologicheskaya bezopasnost’ pribrezhnoi i shel’fovoi zon i kompleksnoe ispol’zovanie resursov shel’fa. № 19. P. 56–69. (in Russ.)
  14. Ignatov E.I. (2010). Current state of the Black Sea coastal zone along south-western Crimea. Prichernomorskii ekologіcheskii byulleten. № 1 (35). P. 102–120. (in Russ.)
  15. Ignatov E.I., Lukyanova S.A., Solovieva G.D. (2016). The seashores of the Crimea. Geomorphologiya. № 1. P. 55–63. (in Russ.). https://doi.org/10.15356/0435-4281-2016-1-55-63
  16. Ivanenko T.A., Sapronova Z.D. (2011). Geomorphology and dynamics of seashore of the Western Crimea. Ekologicheskaya bezopasnost’ pribrezhnykh i shel’fovykh zon i kompleksnoe ispolzovanie resursov shel’fa. № 25. P. 19–25. (in Russ.)
  17. Krylenko V.V., Goryachkin Yu.N., Kosyan R.D. et al. (2021). Similarities and differences of small bay-bars of the north-eastern part of the Black Sea. Ekologicheskaya bezopasnost’ pribrezhnoi i shel’fovoi zon morya. № 1. P. 63–83. (in Russ.). https://doi.org/10.22449/2413-5577-2021-1-63-83
  18. Naumova V.A., Evstigneev M.P., Evstigneev V.P. (2010). Wind and wave forming conditions in Azov-Black Sea coast region. Naukovi Pratsi UkrNDHMI. № 259. P. 263–283. (in Russ.)
  19. Peychev V. (1998). The abrasion process of the Bulgarian Black Sea coast. Bregoukrepvahe i dolgotraino stabilizirane na sklonovete na Chernomorskoto kraibrezhie. Sofia: Academic Publishing house “Prof. Marin Drinov”. P. 139–142. (in Bulg.)
  20. Peychev V. (2004). Morfodinamichni i litodinamichni protsesi v bregovata zona (Morphodynamical and lithodynamical processes in coastal zone). Varna: Slavena (Publ.). 231 p. (in Bulg.)
  21. Peychev V., Stancheva M. (2009). Changes of sediment balance at the Bulgarian Black Sea coastal zone influenced by anthropogenic impacts. C. R. Acad. Bulg. Sci. V. 62. № 2. P. 277–284. (in Bulg.)
  22. Polonsky A.B., Voskresenskaya E.N., Maslova V.N. (2012). Variability in cyclonic activity in the Black Sea — Mediterranean region in relation to processes in the Pacific and Atlantic. Doklady NAN Ukrainy. № 3. P. 123–131. (in Russ.)
  23. Romanyuk O.S. (1967). Genesis of Crimean beaches. Geologiya poberezhya i dna Chernogo i Azovskogo morei v predelakh USSR. Iss. 1. Kiev: KGU (Publ.). P. 178–182. (in Russ.)
  24. Rud’ko G.I., Erysh I.F. (2006). Opolzni i drugie geodinamicheskie protsessy gorno-skladchatykh oblastei Ukrainy (Krym, Karpaty) (Landslides and other geodynamic processes in the mountainous Regions of Ukraine (Crimea, Carpathians)). Kiev: Zadruga (Publ.). 620 p. (in Russ.)
  25. Shuisky Yu.D. (1974). Abrasion processes and rates on the Ukrainian coasts of the Black Sea and the Sea of Azov. Izvestiya AN SSSR. Seriya Geograficheskaya. № 6. P. 108–117. (in Russ.)
  26. Shuisky Yu.D. (2005). Main regularities of morphology and dynamics of the western coast of the Crimean Peninsula. Ekologicheskaya bezopasnost’ pribrezhnykh i shel’fovykh zon i kompleksnoe ispol’zovanie resursov shel’fa. № 13. P. 19–25. (in Russ.)
  27. Shuisky Yu.D., Vykhovanets G.V. (2006). Map of average abrasion and accumulation rates 1960–1994. Atlas okhrany prirody Chernogo i Azovskogo morei. Saint Petersburg: GUNiO MO RF (Publ.). P. 44. (in Russ.)
  28. Shuisky Yu.D., Vykhovanets G.V. (2009). Average abrasion and accumulation rates 1960–1994. Okeanografichnyi atlas Chornogo ta Azovskogo moriv: Rozdil 2. Beregova zona Chornogo morya. Kiev: DU Derzhgidrografiya (Publ.). 356 p. (in Ukrain)
  29. Shuyskiy Yu.D. (2007). Mechanical composition of beach alluvium on west coast of the Crimea. Ekologicheskaya bezopasnost’ pribrezhnykh i shel’fovykh zon i kompleksnoe ispolzovanie resursov shel’fa. № 15. P. 370–385. (in Russ.)
  30. Stancheva M., Stanchev H., Peev P. et al. (2016). Coastal protected areas and historical sites in North Bulgaria — challenges, mismanagement and future perspectives. Ocean & Coastal Management. V. 130. P. 340–354. https://doi.org/10.1016/j.ocecoaman.2016.07.006
  31. SWAN Cycle III version 41.20, User Manual. (2018). Delft University of Technology, Netherlands. 121 p.
  32. Tătui F., Pîrvana M., Popa M., et al. (2019). The Black Sea coastline erosion: Index-based sensitivity assessment and management-related issues. Ocean & Coastal Management. V. 182. 104949. https://doi.org/10.1016/j.ocecoaman.2019.104949
  33. Wilkinson G.R., Spratt T. (1856). Sevastopol, shewing the Russian defence works and the approaches of the allied armies: map. R.N.C.B. 1:18,300. [London]: Hydrographic Office. 1 map: col. 77×118 cm.
  34. Zenkovich V.P. (1960). Morfologiya i dinamika sovetskikh beregov Chernogo morya (Morpho-logy and Dynamics of the Soviet Black Sea Coast). Iss. 2. Moscow: AN SSSR (Publ.). 216 p. (in Russ.)
  35. Zenkovich V.P. (1962). Osnovy ucheniya o razvitii morskikh beregov (The fundamentals of coastal development theory). Moscow: AN SSSR (Publ.). 710 p. (in Russ.)

Supplementary files

Supplementary Files
Action
1. JATS XML
Download
2. Fig. 1. Schematic map of Western Crimea (а), the numerals indicate site numbers and typical long-term average annuals of the cliff retreat rate, m/year (б), index A indicates coastal sites with terraced cliffs.

Download (705KB)
Indexing metadata

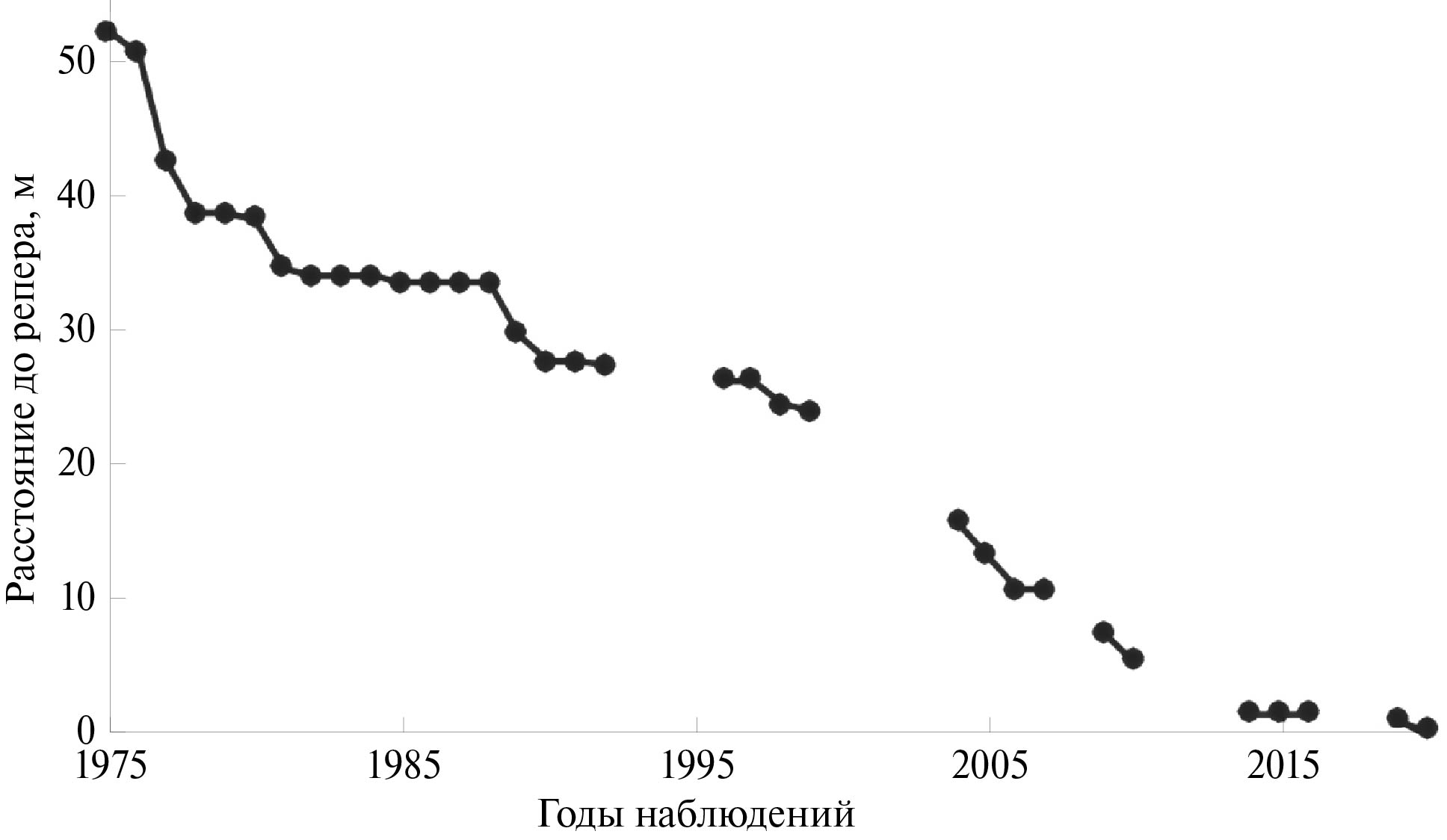

3. Fig. 2. Cliff edge dynamics at Section 17 at the site between Kyzyl-Yar Lake and Bogaily Lake.

Download (75KB)
Indexing metadata

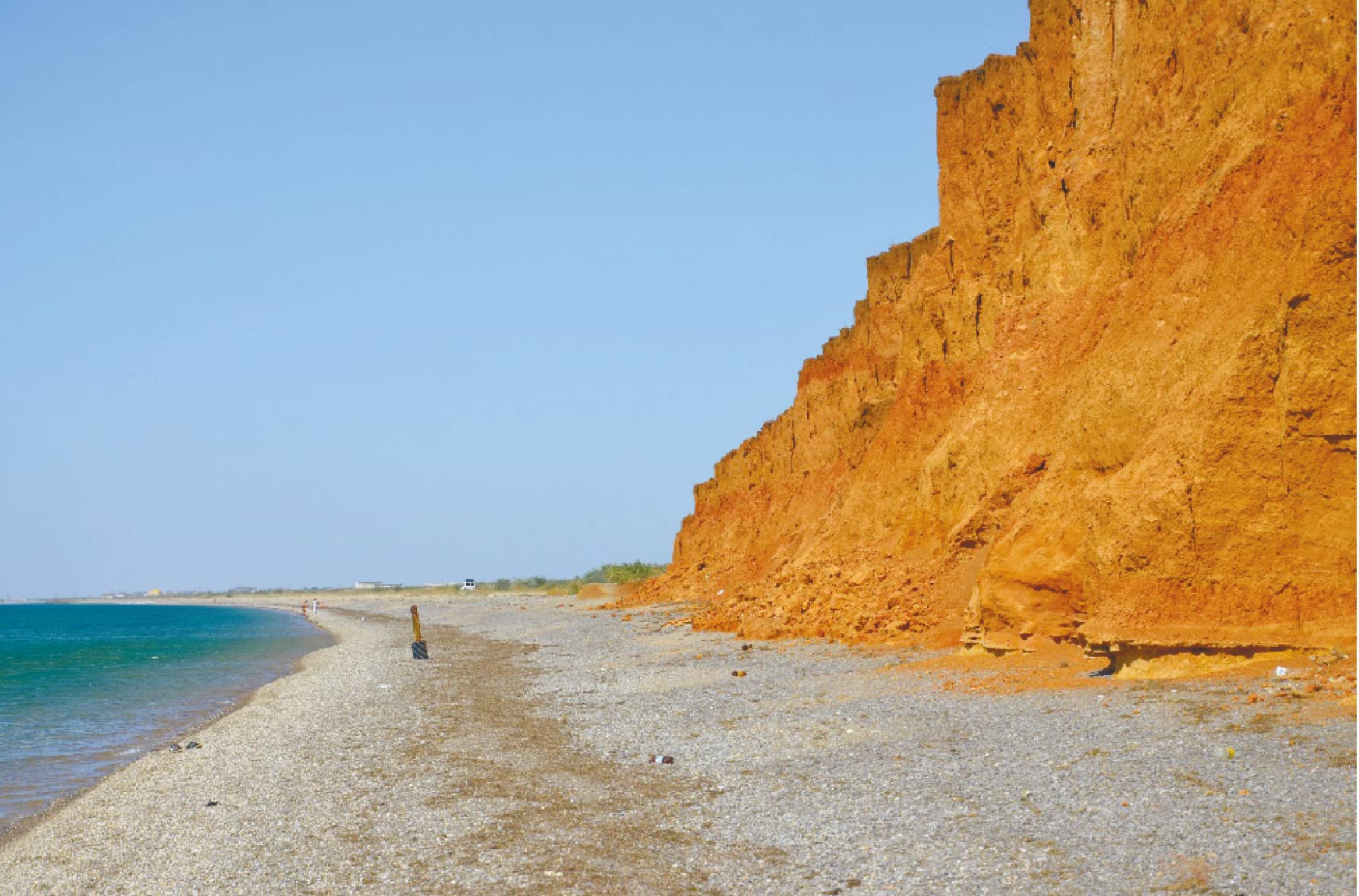

4. Fig. 3. Coast in the Krasnaya Gorka Upland area: on the beach, the casing of a well can be seen, which was drilled in 1977 on the plateau 27 meters from the cliff edge (Photo by Yu.N. Goryachkin, 2019).

Download (300KB)
Indexing metadata

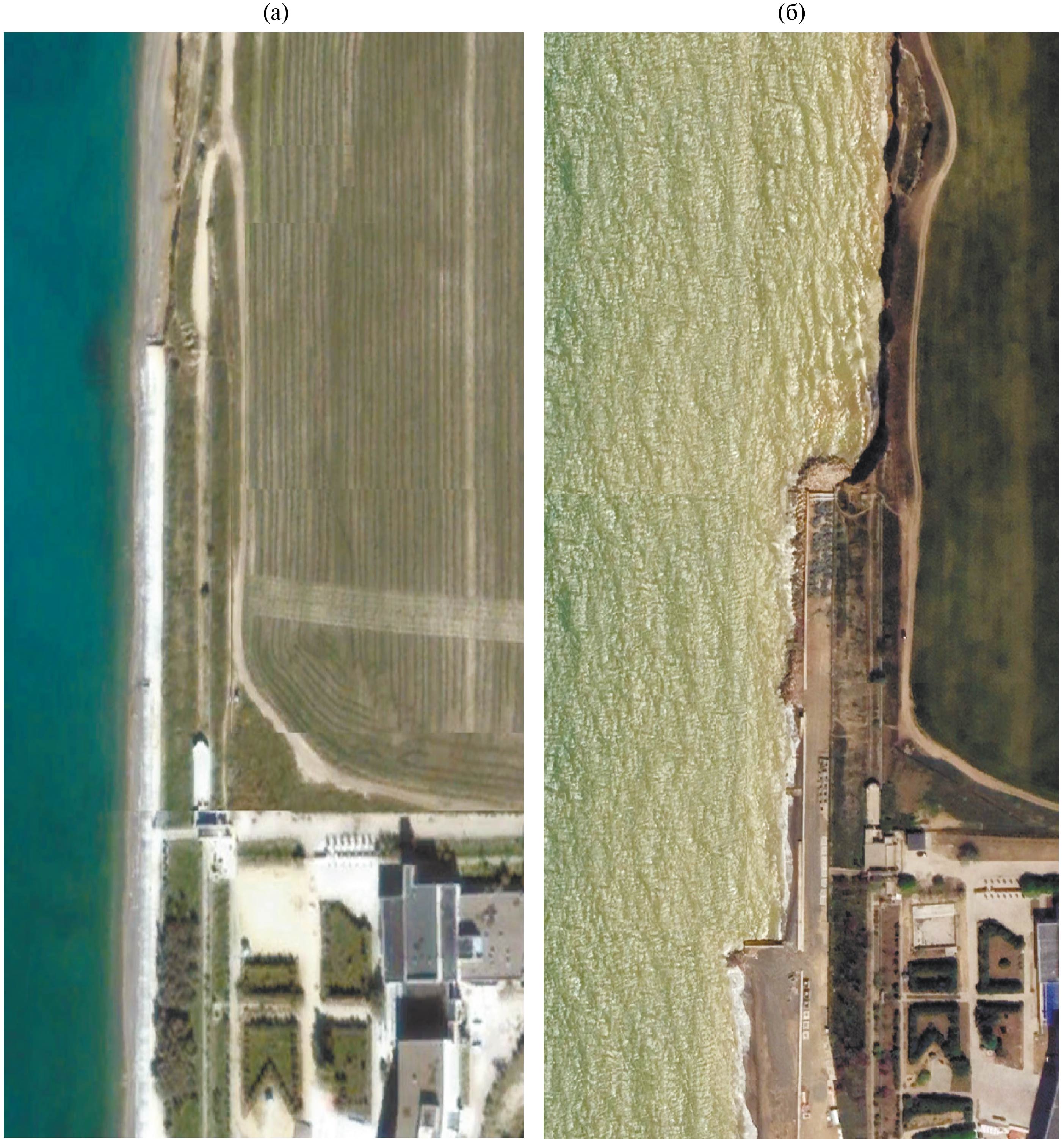

5. Fig. 4. Satellite imagery of the seafront area in the village of Beregovoe: (а) — October 2004, (б) — May 2021.

Download (746KB)
Indexing metadata

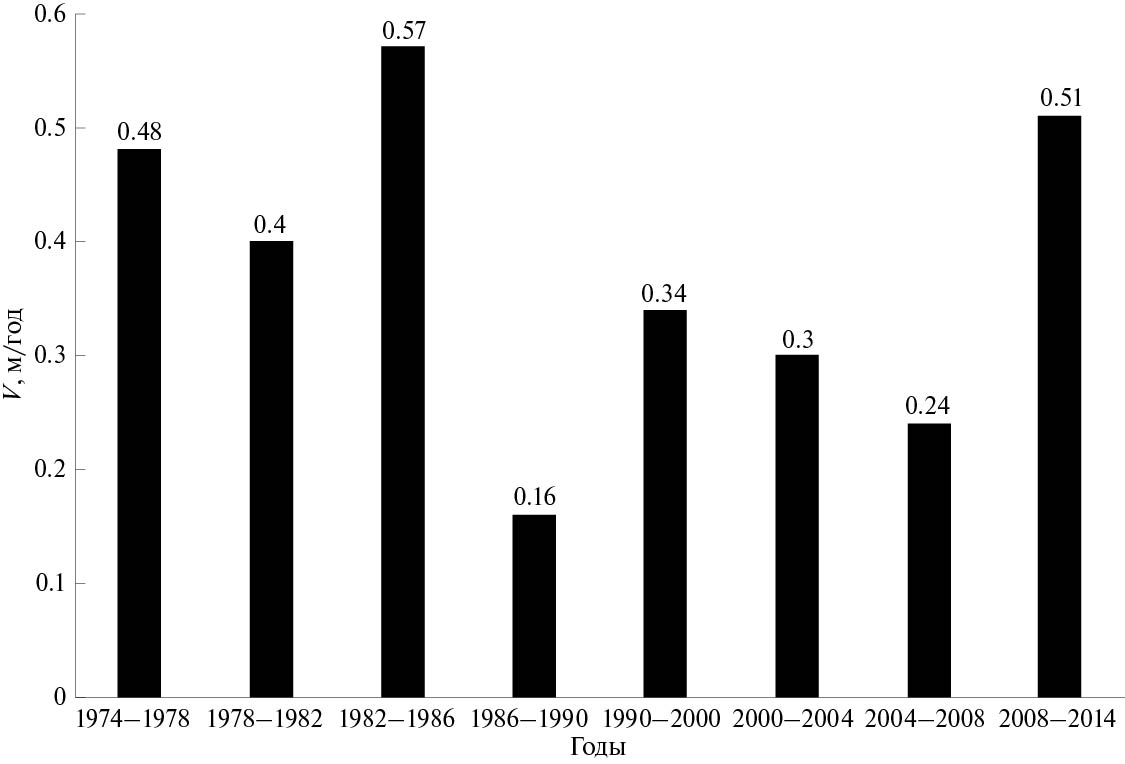

6. Fig. 5. Interannual variability of the cliff edge retreat rate at Site 5.

Download (55KB)
Indexing metadata

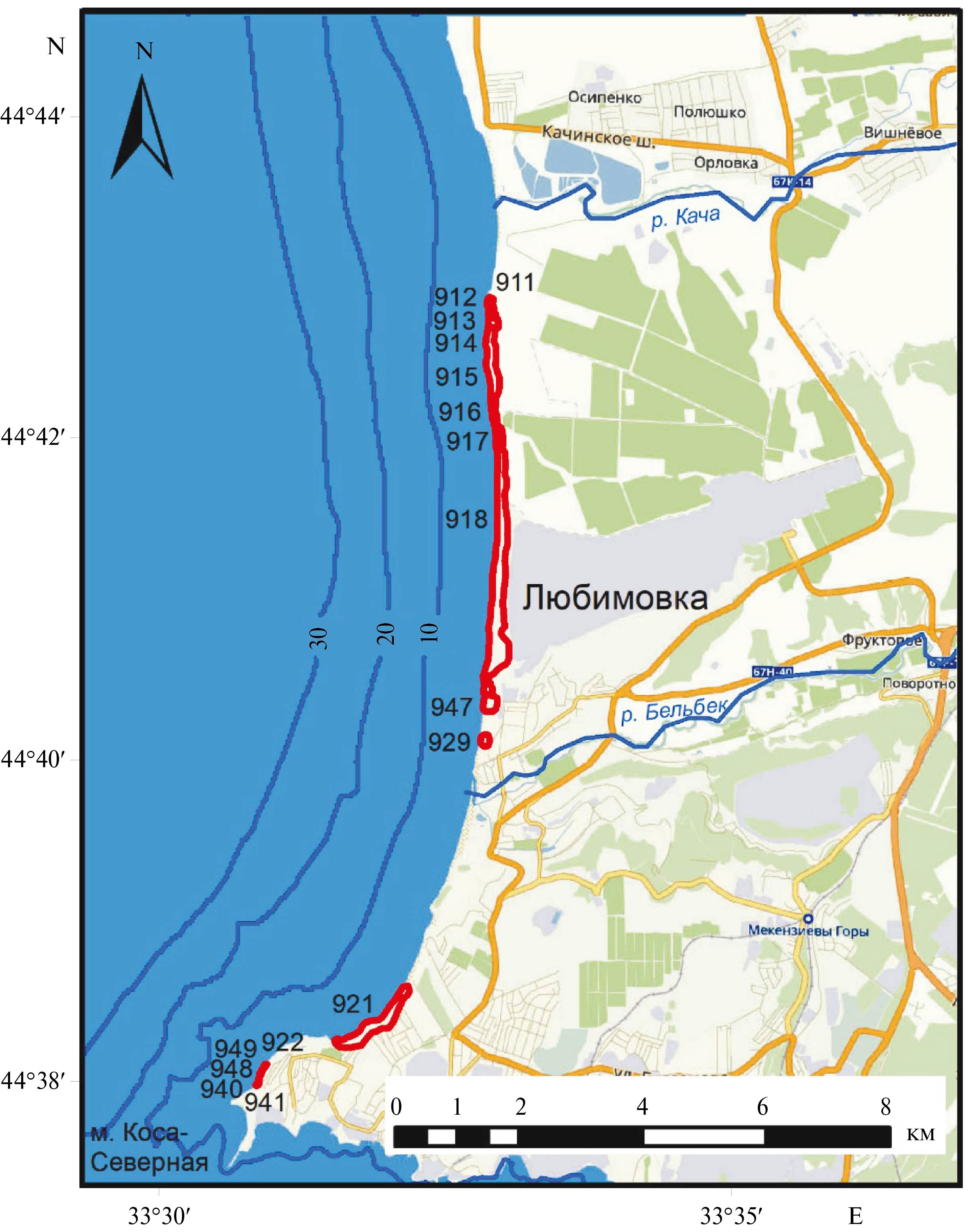

7. Fig. 6. Location of landslides at Sites 9 and 10. The numerals are for the landslide cadastral number. The red lines show the landslide outlines.

Download (518KB)
Indexing metadata
8. Fig. 7. Interannual variability of precipitation rate (mm) according to hydrometeorological station Sevastopol (1), smoothing with a moving average for 4 years (2) and periods of landslide activation (3).

Download (79KB)
Indexing metadata
