STRUCTURAL DESIGN OF Eu2+-CONTAINING GLASS AND GLASS-CERAMICS BASED ON THE SYSTEM BaO–ZrO2–SiO2–MgF2 FOR LED APPLICATION
- Autores: Evstropiev S.1,2,3, Stolyarova V.4,5, Kyazyan N.6, Manukyan G.6, Shashkin A.2
-
Afiliações:
- ITMO University
- JVC “RPA “Vavilov State Optical Institute””
- Saint-Petersburg State Technological Institute (Technical University)
- I.V. Grebenshikov Institute of Silicate Chemistry, Russian Academy of Sciences
- Saint-Petersburg State University
- Institute of General and Inorganic Chemistry of the National Academy of Sciences of Armenia
- Edição: Volume 512, Nº 1 (2023)
- Páginas: 101-106
- Seção: ХИМИЧЕСКАЯ ТЕХНОЛОГИЯ
- URL: https://journals.rcsi.science/2686-9535/article/view/247188
- DOI: https://doi.org/10.31857/S2686953523700231
- EDN: https://elibrary.ru/UZAVGL
- ID: 247188
Citar
Resumo

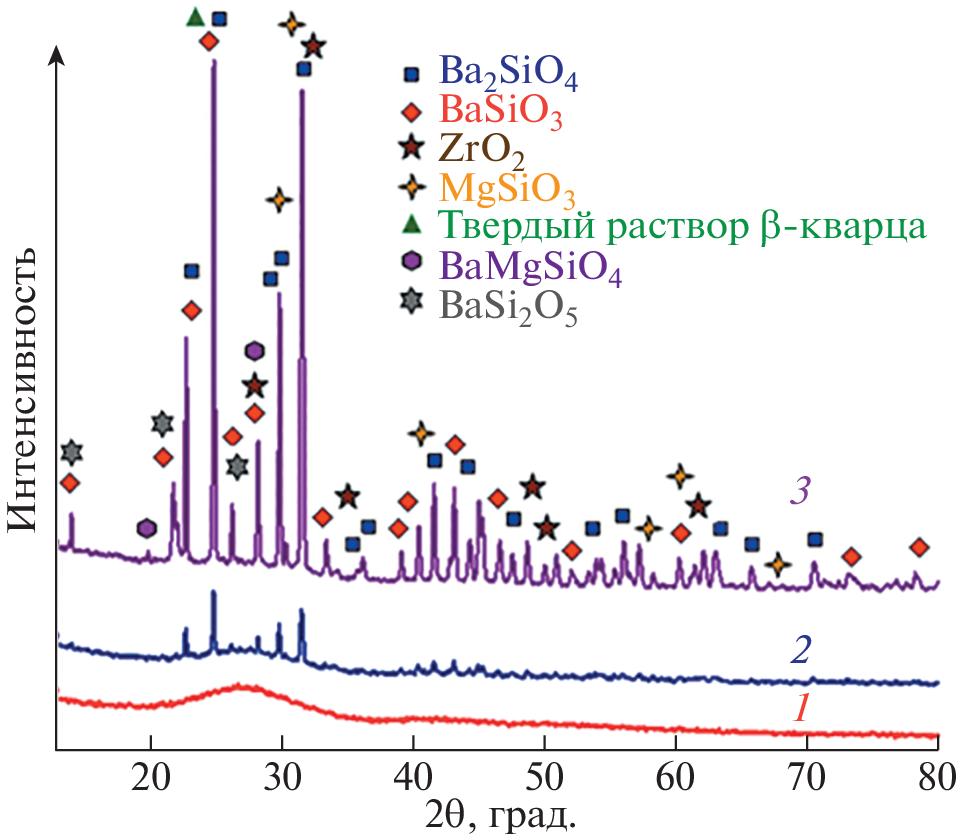

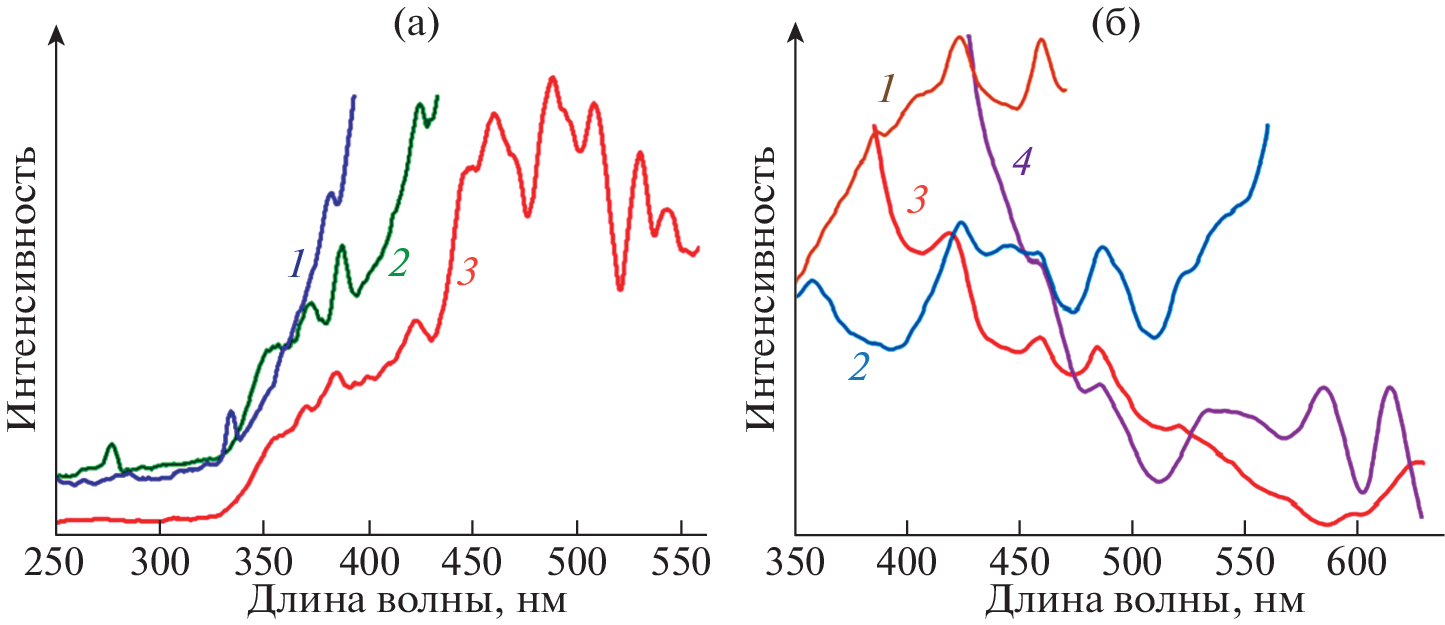

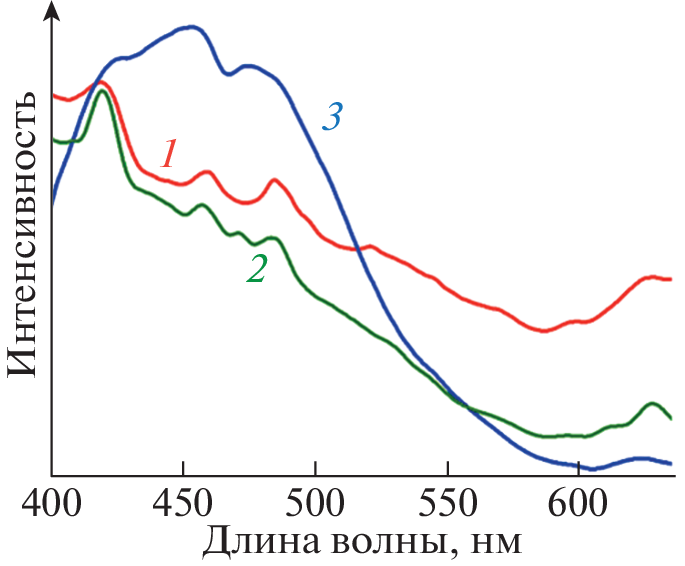

For the first time, an approach to designing the structure of Eu2+ containing silicate glass-ceramics materials has been experimentally implemented, which consists in the fact that rare earth activator is introduced into various crystals formed during glass crystallization. Transparent Eu-containing glass and glass ceramics based on the system BaO–ZrO2–SiO2–MgF2 were prepared by the traditional glass melting method at 1450°C. The crystal structure and properties of materials were characterized by XRD analysis and photoluminescence spectroscopy during different stages of glass crystallization. It is shown that the simultaneous incorporation of Eu into different silicate crystals (Ba2SiO4, BaMgSiO4, and BaSiO3) formed during the glass crystallization leads to the formation of a material with a wide luminescence band in the visible part of the spectrum. The study of photoluminescence and luminescence excitation spectra of the glass suggests the possibility of energy transfer from Eu2+ to Eu3+ ions. The structures of Eu2+ luminescent centers are similar in the glass and glass-ceramics that is related to some phase separation in the glass before crystallization. The study of luminescence properties of prepared materials showed that these materials can be promising for the application in LEDs techniques.
Palavras-chave
Sobre autores
S. Evstropiev
ITMO University; JVC “RPA “Vavilov State Optical Institute””; Saint-Petersburg State Technological Institute (Technical University)
Autor responsável pela correspondência
Email: evstropiev@bk.ru
Russian Federation, 197101, St.-Petersburg; Russian Federation, 192171, St.-Petersburg; Russian Federation, 190013, St.-Petersburg
V. Stolyarova
I.V. Grebenshikov Institute of Silicate Chemistry, Russian Academy of Sciences; Saint-Petersburg State University
Email: evstropiev@bk.ru
Russian Federation, 199034, St.-Petersburg; Russian Federation, 199034, St.-Petersburg
N. Kyazyan
Institute of General and Inorganic Chemistry of the National Academy of Sciences of Armenia
Email: evstropiev@bk.ru
Republic of Armenia,
0051, Yerevan
G. Manukyan
Institute of General and Inorganic Chemistry of the National Academy of Sciences of Armenia
Email: evstropiev@bk.ru
Republic of Armenia,
0051, Yerevan
A. Shashkin
JVC “RPA “Vavilov State Optical Institute””
Email: evstropiev@bk.ru
Russian Federation, 192171, St.-Petersburg
Bibliografia
- Liu J., Wang Z., He K., Wei L., Zhang Z., Wei Z., Yu H., Zhang H., Wang J. // Opt. Express. 2014. V. 22. № 22. P. 26933–26938. https://doi.org/10.1364/OE.22.026933
- Булыга Д.В., Евстропьев С.К. // Опт. и спектр. 2022. Т. 130. № 9. С. 1455–1463. https://doi.org/10.21883/OS.2022.09.53309.3617-22
- Vu N.-N., Kaliaguine S., Do T.-O. // Adv. Funct. Mater. 2019. V. 29. P. 1901825. https://doi.org/10.1002/adfm.201901825
- Hu T., Ning L., Gao Y., Qiao J., Song E., Chen Z., Zhou Y., Wang J., Molokeev M.S., Ke X., Xia Z., Zhang Q. // Light Sci. Appl. 2021. V. 10. P. 56. https://doi.org/10.1038/s41377-021-00498-6
- Biswas K., Sontakke A.D., Sen R., Annapurna K. // J. Fluoresc. 2012. V. 22. P. 745–752. https://doi.org/10.1007/s10895-011-1010-4
- Lin H., Hu T., Cheng Y., Chen M., Wang Y. // Laser Photon. Rev. 2018. V. 12. № 6. P. 1700344. https://doi.org/10.1002/lpor.201700344
- Nakanishi T., Tanabe S. // J. Light Vis. Env. 2008. V. 32. № 2. P. 93–96. https://doi.org/10.2150/jlve.32.93
- Evstropiev S.K., Shashkin A.V., Knyazyan N.B., Manu-kyan G.G., Bagramyan V.V., Timchuk A.V., Stolyaro-va V.L. // J. Non-Cryst. Solids. 2022. V. 580. P. 121386. https://doi.org/10.1016/j.jnoncrysol.2021.121386
- Lima S.M., da Cunha Antrade L.H., Silva J.R., Bento A.C., Baesso M.L., Sampaio J.A., de Oliveira Nunes L.A., Guyot Y., Boulon G. // Opt. Express. 2012. V. 20. № 12. P. 12658–12665. https://doi.org/10.1364/OE.20.012658
- Chen D., Xiang W., Liang X., Zhong J., Yu H., Ding M., Lu H., Ji Z. // J. Eur. Ceram. Soc. 2015. V. 35. № 3. P. 859–869. https://doi.org/10.1016/j.jeurceramsoc.2014.10.002
- Yu H., Zi W., Lan S., Gan S., Zou H., Xu X., Hong G. // Luminescence. 2013. V. 28. № 5. P. 679–684. https://doi.org/10.1002/bio.2415
- Qiao J., Xia Z. // J. Appl. Phys. 2021. V. 129. P. 200903. https://doi.org/10.1063/5.0050290
- Zhao M., Zhang Q., Xia Z. // Acc. Mater. Res. 2020. V. 1. № 2. P. 137–145. https://doi.org/10.1021/accountsmr.0c00014
- Shannon R.D. // Acta Cryst. 1976. V. A32. P. 751–767. https://doi.org/10.1107/S0567739476001551
- Han J.K., Hannah M.E., Piquette A., Talbot J.B., Mishra K.C., McKittrick J. // J. Lumin. 2015. V. 161. P. 20–24. https://doi.org/10.1016/j/jlumin.2014.12.032
- Xu J., Zhao Y., Chen J., Mao Z., Yang Y., Wang D. // Luminescence. 2017. V. 32. № 6. P. 957–963. https://doi.org/10.1002/bio.3277
- Ling H., Hu T., Cheng Y., M. Chen, Wang Y. // Laser Photonics Rev. 2018. V. 12. № 6. P.1700344. https://doi.org/10.1002/lpor.201700344
- Bispo Jr. A.G., Ceccato D.A., Lima S.A.M., Pires A.M. // RSC Adv. 2017. V. 7. P. 53752–53762. https://doi.org/10.1039/c7ra10494d
- Chen J., Liu Y.-G., Liu H., Yang D., Ding H., Fang M., Huang Z. // RSC Adv. 2014. V. 4. P. 18234–18239. https://doi.org/10.1039/C4RA00452C
- Kim D., Jeon K.-W., Jin J.S., Kang S.-G., Seo D.-K., Park J.-C. // RSC Adv. 2015. V. 5. P. 105339–105346. https://doi.org/10.1039/C5RA19712K
- Ji W., Lee M.-H., Hao L., Xu X., Agathopoulos S., Zheng D., Fang C. // Inorg. Chem. 2015. V. 54. P. 1556–1562. https://doi.org/10.1021/ic502568s
- Zhang Q., Wang Q., Wang X., Ding X., Wang Y. // New J. Chem. 2016. V. 40. P. 8549–8555. https://doi.org/10.1039/C6NJ01831A
- Sao S.K., Brahme N., Bisen D.P., Tiwari G. // Luminescence. 2016. V. 31. № 7. P. 1364–1371. https://doi.org/10.1002/bio.3116
- Craievich A.F., Zanotto E.E., James P.F. // Bull. Minéral. 1983. V. 106. № 1–2. P. 169–184.
