RELAXATION ROTATION DURING MARTENSITIC TRANSFORMATION AND SCATTERING OF MARTENSITE TEXTURE

V. M. Gundyrev; Гундырев В. М.; V. I. Zel’dovich; Зельдович В. И.; V. M. Schastlivtsev; Счастливцев В. М.

doi:10.31857/S2686740023010066

RELAXATION ROTATION DURING MARTENSITIC TRANSFORMATION AND SCATTERING OF MARTENSITE TEXTURE

Authors: Gundyrev V.M.¹, Zel’dovich V.I.¹, Schastlivtsev V.M.¹
Affiliations:
1. M.N. Mikheev Institute of Metal Physics of Ural Branch of Russian Academy of Sciences
Issue: Vol 508, No 1 (2023)
Pages: 15-18
Section: ФИЗИКА
URL: https://journals.rcsi.science/2686-7400/article/view/135906
DOI: https://doi.org/10.31857/S2686740023010066
EDN: https://elibrary.ru/UNGUEE
ID: 135906

Cite item

Full Text

Open Access
Restricted Access

Access granted
Restricted Access

Subscription Access

Abstract
About the authors
References
Supplementary files
Statistics

Abstract

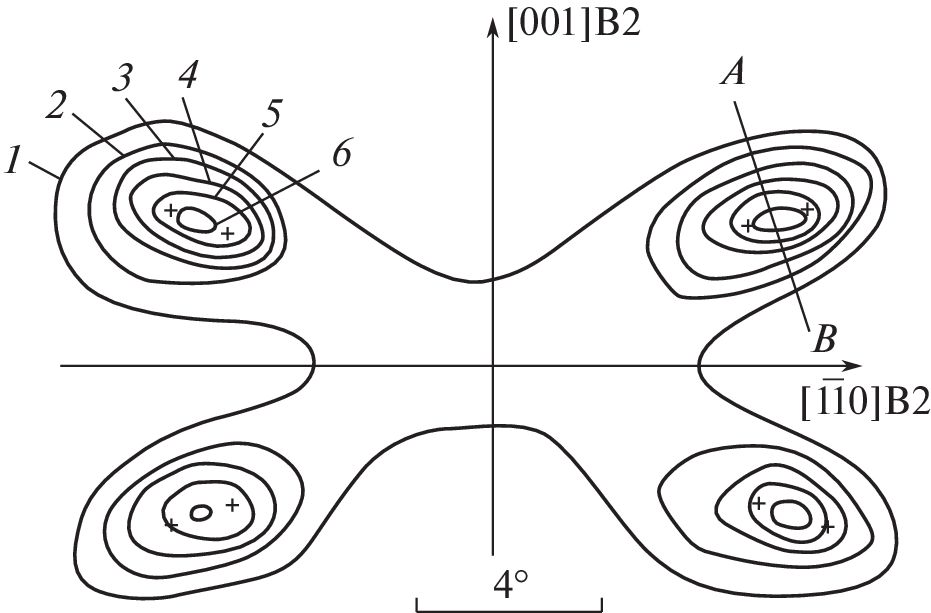

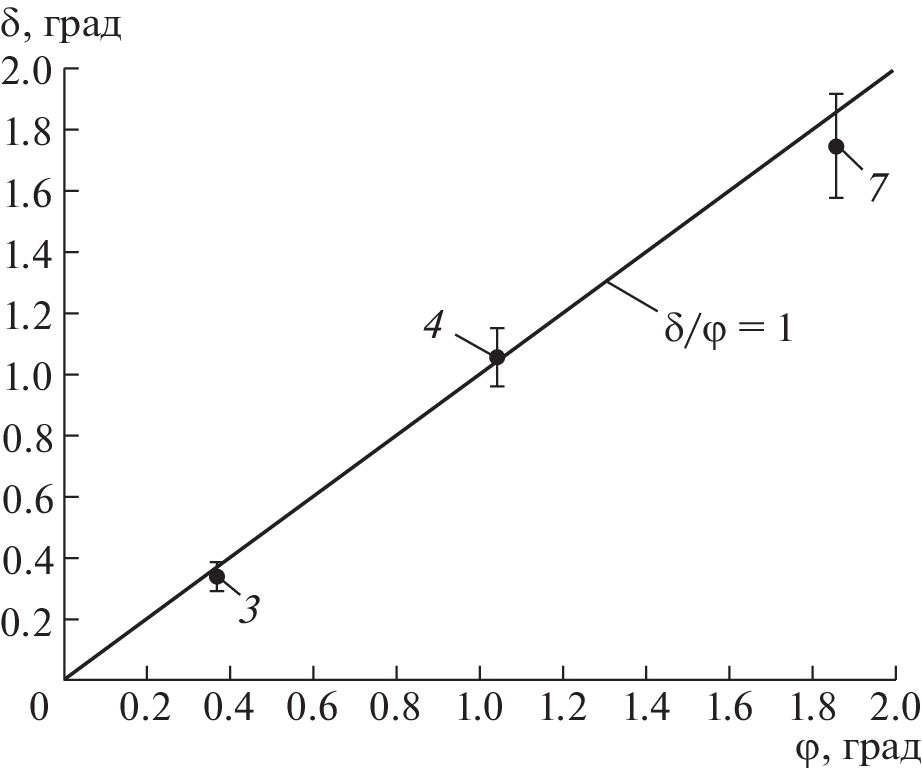

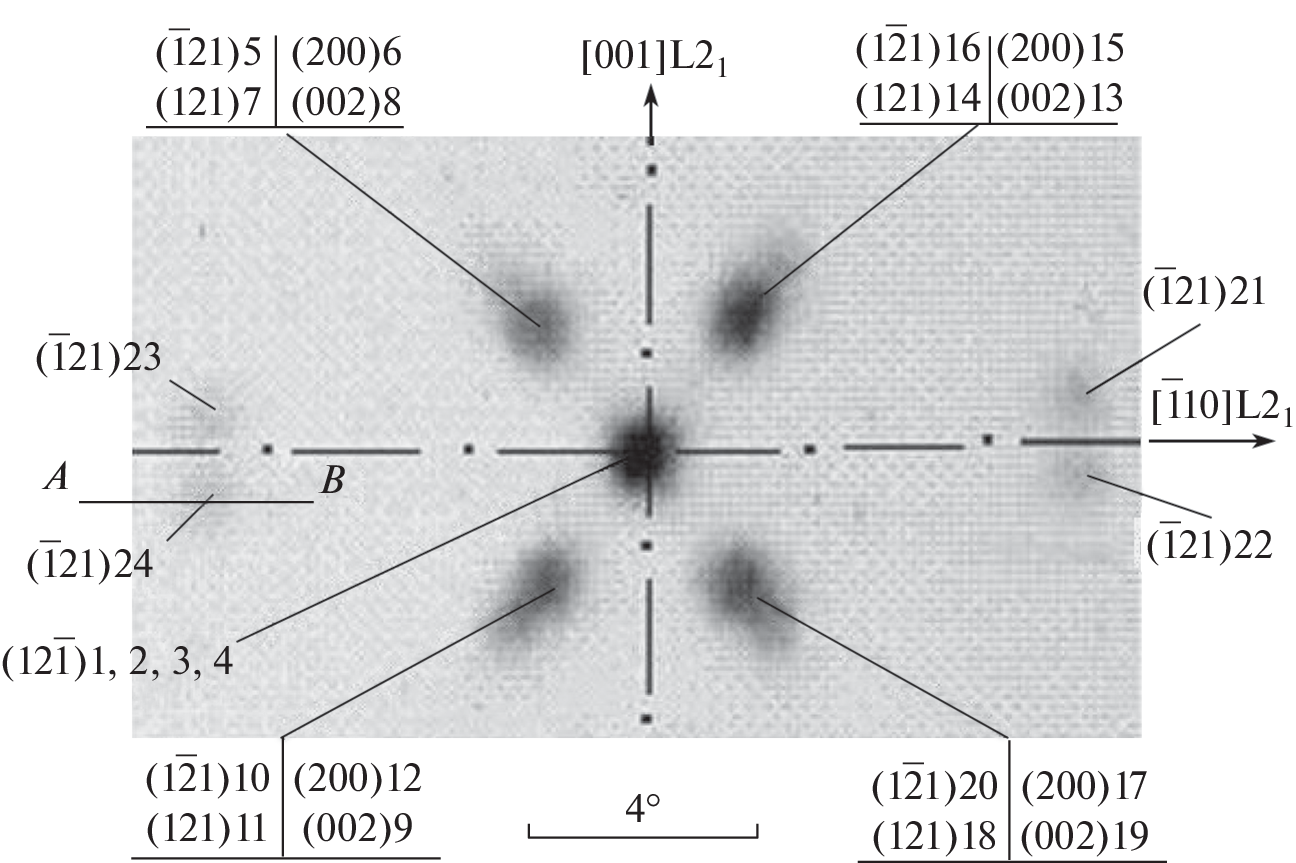

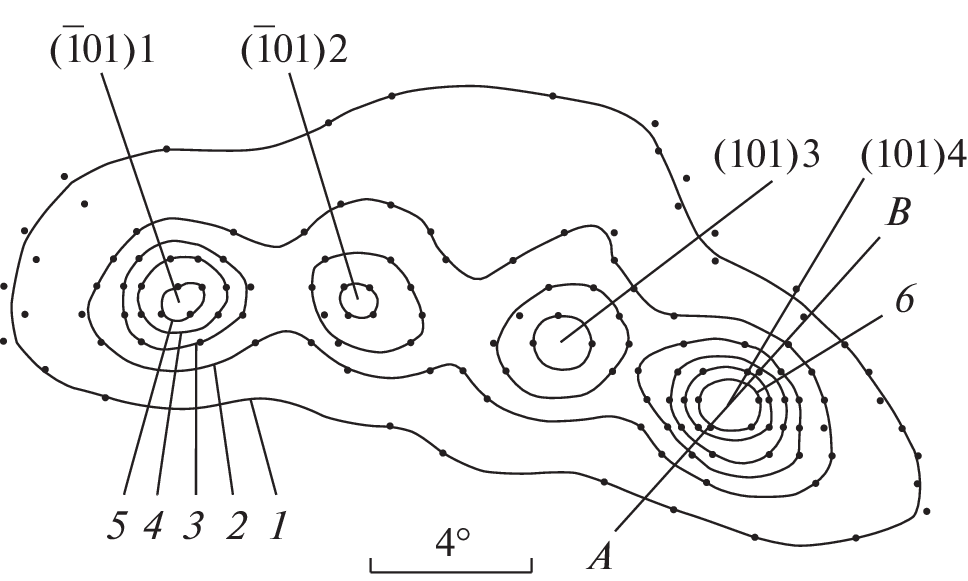

In the our crystallographic theory of martensitic transformation, a new characteristic of martensitic transformation appears – a relaxation rotation, which was not in the generally accepted phenomenological theory of martensitic transformation. The relaxation rotation is necessary to obtain an invariant plane. The calculated angle of relaxation rotation for iron alloys with non-thermoelastic martensite is 1.75–1.85 degrees, for thermoelastic Geisler alloys with multilayer martensite 0.19–0.36 degrees. The relaxation rotation leads to the scattering of the texture of martensite. The scattering angles of single X-ray reflections of martensite in different alloys were measured and it was found that the scattering angle corresponds to the angle of relaxation rotation. This result shows that the our crystallographic theory of martensitic transformation describes the real mechanism of martensitic transformation.

Keywords

crystallographic theory of martensitic transformation, relaxation rotation, scattering of martensite texture

References

Wechsler M.S., Lieberman D.S., Read T.A. On the Theory of the Formation of Martensite // Trans. AIME. 1953. V. 197. P. 1503–1515.
Wayman C.M. Introduction to the Crystallography of Martensitic Transformations. N.Y.–L., 1964. 193 p.
Гундырев В.М., Зельдович В.И., Счастливцев В.М. Кристаллографический анализ и механизм мартенситного превращения в сплавах железа // ФММ. 2020. Т. 121. № 11. С. 1142–1161.
Курдюмов Г.В., Утевский Л.М., Энтин Р.И. Превращения в железе и стали. М.: Наука, 1977. 238 с.
Гундырев В.М., Зельдович В.И. Кристаллографический анализ и механизм термоупругого мартенситного превращения в сплавах Гейслера с семислойной структурой мартенсита // ФММ. 2022. Т. 123. № 1. С. 27–34.
Гундырев В.М., Калетина Ю.В. Кристаллографический анализ и механизм мартенситного превращения в сплаве Гейслера Ni47Mn42In11 // ФММ. 2019. Т. 120. № 11. С. 1193–1199.
Лободюк В.А., Эстрин Э.И. Мартенситные превращения. М.: Физматлит, 2009. 351 с.
Murakami Y., Otsuka K., Hanada S., Watanabe S. Self-accommodation and morphology of 14M (7R) martensites in an Ni-37.0at%Al alloy // Materials Science and Engineering. 1994. A189. P. 191–199.
Martynov V.V. X-ray diffraction study of thermally and stress-induced phase transformations in single crystalline Ni–Mn–Ga alloys // J. Phys. IV (Paris). 1995. V. 5. P. 8–91.
Тейлор А. Рентгеновская металлография. М.: Металлургия, 1965. 663 с.
