Development of a new technological scheme of the carousel milking platform based on the principles of magnetic levitation
- Authors: Lobachevsky Y.P.1, Kirsanov V.V.1, Kirsanov S.V.1
-
Affiliations:
- Federal Scientific Agroengineering Center VIM
- Issue: No 2 (2024)
- Pages: 63-67
- Section: Mechanization, electrification, automation and digitalization
- URL: https://journals.rcsi.science/2500-2627/article/view/260375
- DOI: https://doi.org/10.31857/S2500262724020128
- EDN: https://elibrary.ru/GSIZFQ
- ID: 260375
Cite item
Abstract

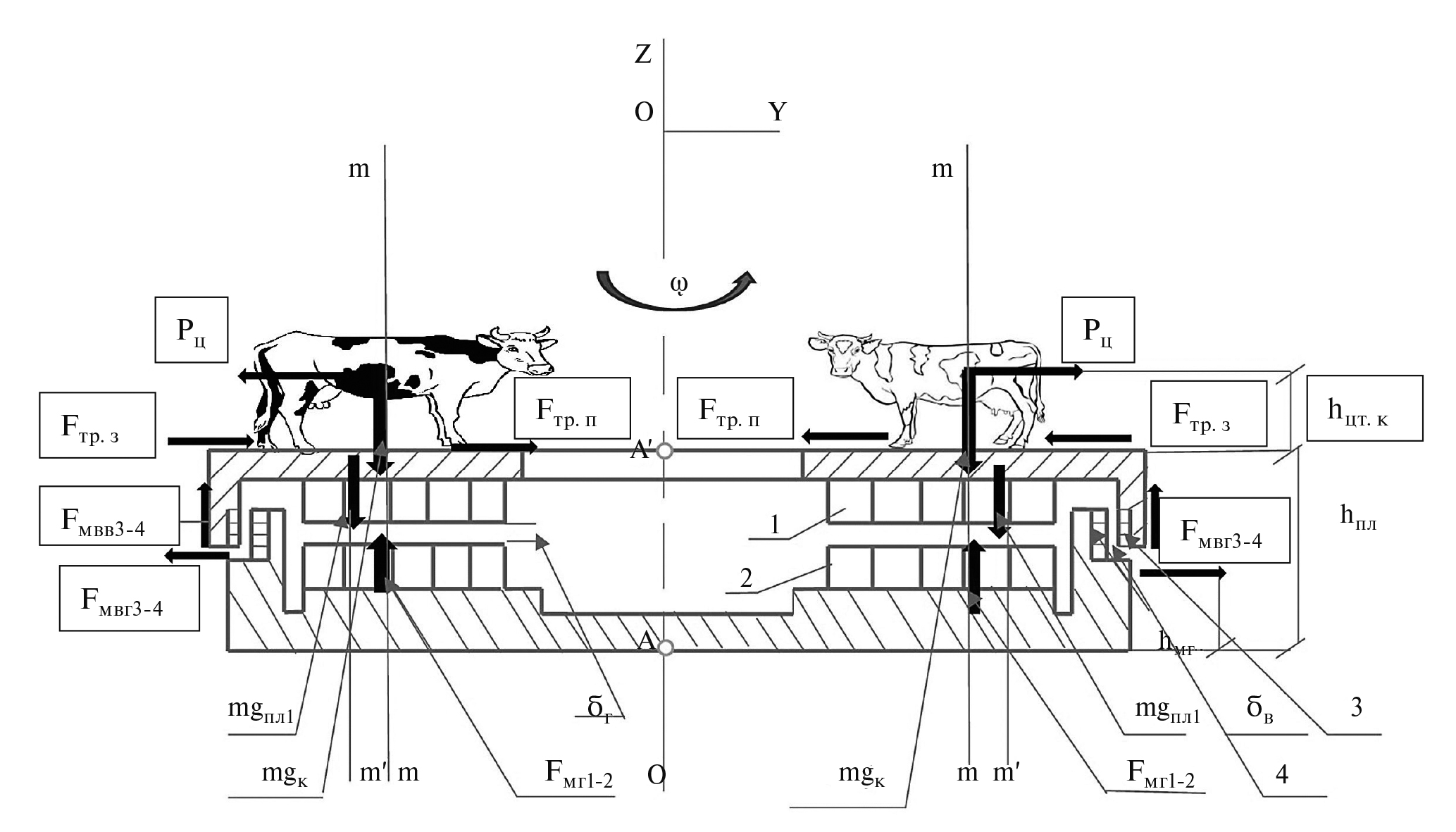

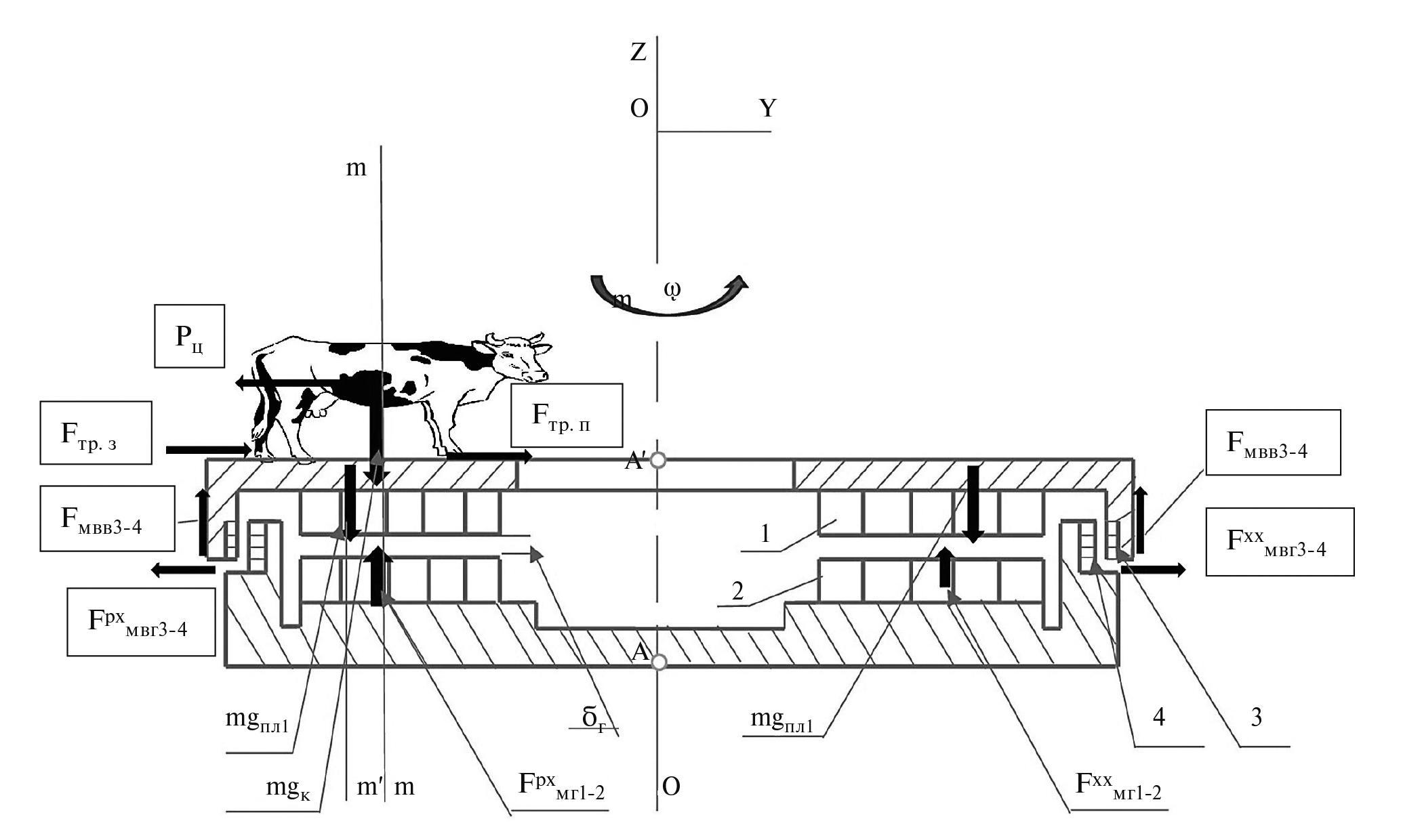

The Carousel, the most capital–intensive and loaded milking unit, is a rotating platform that carries a large mechanical load. Its own weight, combined with the weight of the animals being moved, can reach 1200 kg per milking place or more. To reduce friction in the wheeled systems of high-loaded vehicles, large-sized assemblies and mechanisms of machinery and equipment, including agricultural machinery and aggregates, the use of magnetic suspension technology is promising. The research was carried out in order to develop a new technological scheme of a levitating rotating milking platform Carousel based on the principles of magnetic levitation. The creation of a fundamentally new resource-saving design of the Carousel milking platform based on the principles of magnetic levitation in order to increase its reliability and reduce operating costs due to the exclusion of wear on the propellers of the rail-wheel system is possible. A new scheme of a rotating milking platform Carousel using permanent magnet magnetic suspension technology without the use of wheel thrusters is proposed. Its force calculation was performed in the main mode of steady motion with the platform fully filled with animals and partially filled at the beginning and end of the milking cycle of animals, obtaining basic equations for determining the necessary repulsive forces in horizontal and vertical magnetic assemblies providing magnetic levitation (suspension) and lateral stabilization (centering) of the rotating platform.
Full Text
About the authors
Ya. P. Lobachevsky
Federal Scientific Agroengineering Center VIM
Author for correspondence.
Email: lobachevsky@yandex.ru
доктор технических наук, академик РАН
Russian Federation, 109428, Moskva, 1-i Institutskii proezd, 5V. V. Kirsanov
Federal Scientific Agroengineering Center VIM
Email: kirvv2014@mail.ru
доктор технических наук, член-корреспондент РАН
Russian Federation, 109428, Moskva, 1-i Institutskii proezd, 5S. V. Kirsanov
Federal Scientific Agroengineering Center VIM
Email: sergejkirsanovv@gmail.com
аспирант
Russian Federation, 109428, Moskva, 1-i Institutskii proezd, 5References
- Научно-технические достижения агроинженерных научных организаций в условиях цифровой трансформации сельского хозяйства / Я. П. Лобачевский, Ю. Ф. Лачуга, А. Ю. Измайлов и др. // Техника и оборудование для села. 2023. № 3 (309). С. 2–12.
- Куртеманш А. Патент 2551565. Вращающаяся доильная станция, комплект для ее монтажа и способы ее монтажа и эксплуатации. Опубликовано 27.05.2015 в бюлл. № 15.
- Зайцев А. А., Соколова Я. В., Пантина Т. А. Инновационное развитие транспортной системы с применением технологии магнитной левитации // Мир транспорта. 2019. Т. 17. № 4 (83). С. 36–45.
- Киселенко А. Н., Сундуков Е. Ю., Тарабукина Н. А. Методы прогнозирования развития транспортных систем в современных условиях // Мир транспорта. 2022. Т. 20. № 3. С. 40–49.
- Vandalaele V., Lambert P., Delchambre A. Non- contact handling in microassembly: acoustical levitation // Precision Engineering. 2005. Vol. 29. No. 4. P. 491–505.
- Антонов Ю. Ф. Устройство левитации и боковой стабилизации на базе ленточного высокотемпературного сверхпроводника второго поколения // Транспортные системы и технологии. 2019. Т. 5. № 4. С. 115–123.
- Зайцев А. А. Грузовая транспортная платформа на магнитнолевитационной основе: опыт создания // Инновационные транспортные системы и технологии. 2015. Т. 1. № 2. С. 5–15. doi: 10.17816/transsyst2015125-15.
- Лачуга Ю. Ф., Кирсанов В. В. Анализ цикличности развития техники и технологий в различных технологических укладах на примере молочного животноводства // Российская сельскохозяйственная наука. 2021. № 2. С. 54–58.
- Лобачевский Я. П., Миронов Д. А., Миронова А. В. Основные направления повышения ресурса быстроизнашиваемых рабочих органов сельскохозяйственных машин // Сельскохозяйственные машины и технологии. 2023. Т. 17. № 1. С. 41–50.
- Пятаков М. А., Поляков П. А., Русакова Н. Е. Изучение взаимодействия ферромагнетиков и расчет меры этого взаимодействия // Известия Российской академии наук. Серия физическая. 2020. Т. 84. № 5. С. 719–722.
- Брюханов С. В. Патент РФ № 2683122. Устройство магнитной левитации и поперечной стабилизации на постоянных магнитах. Опубл. 26.03.2019. Бюл. № 9.
