Сomposites with a Matrix Based on Niobium and Molybdenum Reinforced with Sapphire Fibers

V. M. Kiiko; Кийко В. М.; V. P. Korzhov; Коржов В. П.; V. N. Kurlov; Курлов В. Н.

doi:10.31857/S1028096023090066

Сomposites with a Matrix Based on Niobium and Molybdenum Reinforced with Sapphire Fibers

Authors: Kiiko V.M.¹, Korzhov V.P.¹, Kurlov V.N.¹
Affiliations:
1. Institute of Solid State Physics of Russian Academy of Sciences
Issue: No 9 (2023)
Pages: 37-43
Section: Articles
URL: https://journals.rcsi.science/1028-0960/article/view/137810
DOI: https://doi.org/10.31857/S1028096023090066
EDN: https://elibrary.ru/ZKQTNC
ID: 137810

Cite item

Full Text

Open Access
Restricted Access

Access granted
Restricted Access

Subscription Access

Abstract
About the authors
References
Supplementary files
Statistics

Abstract

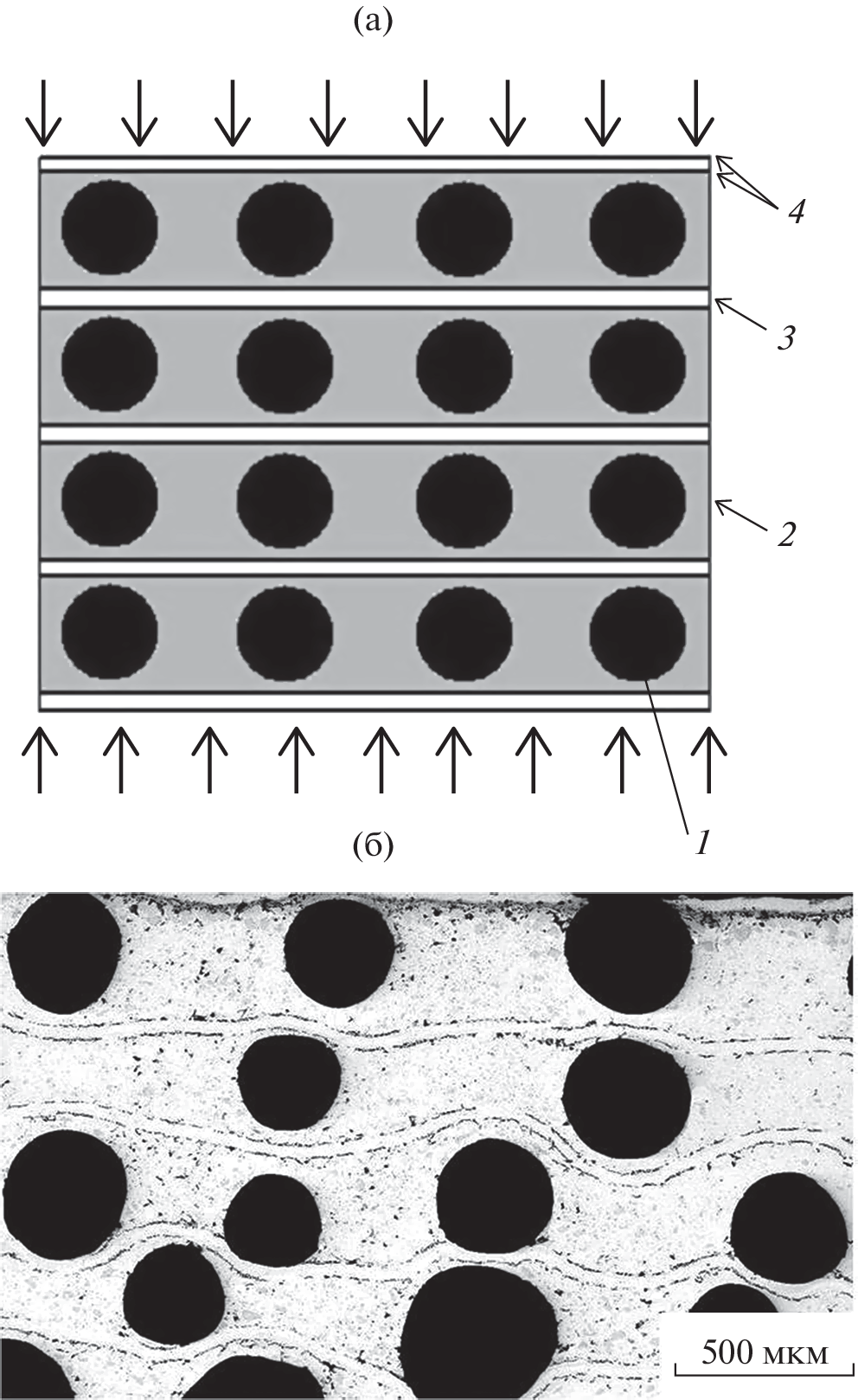

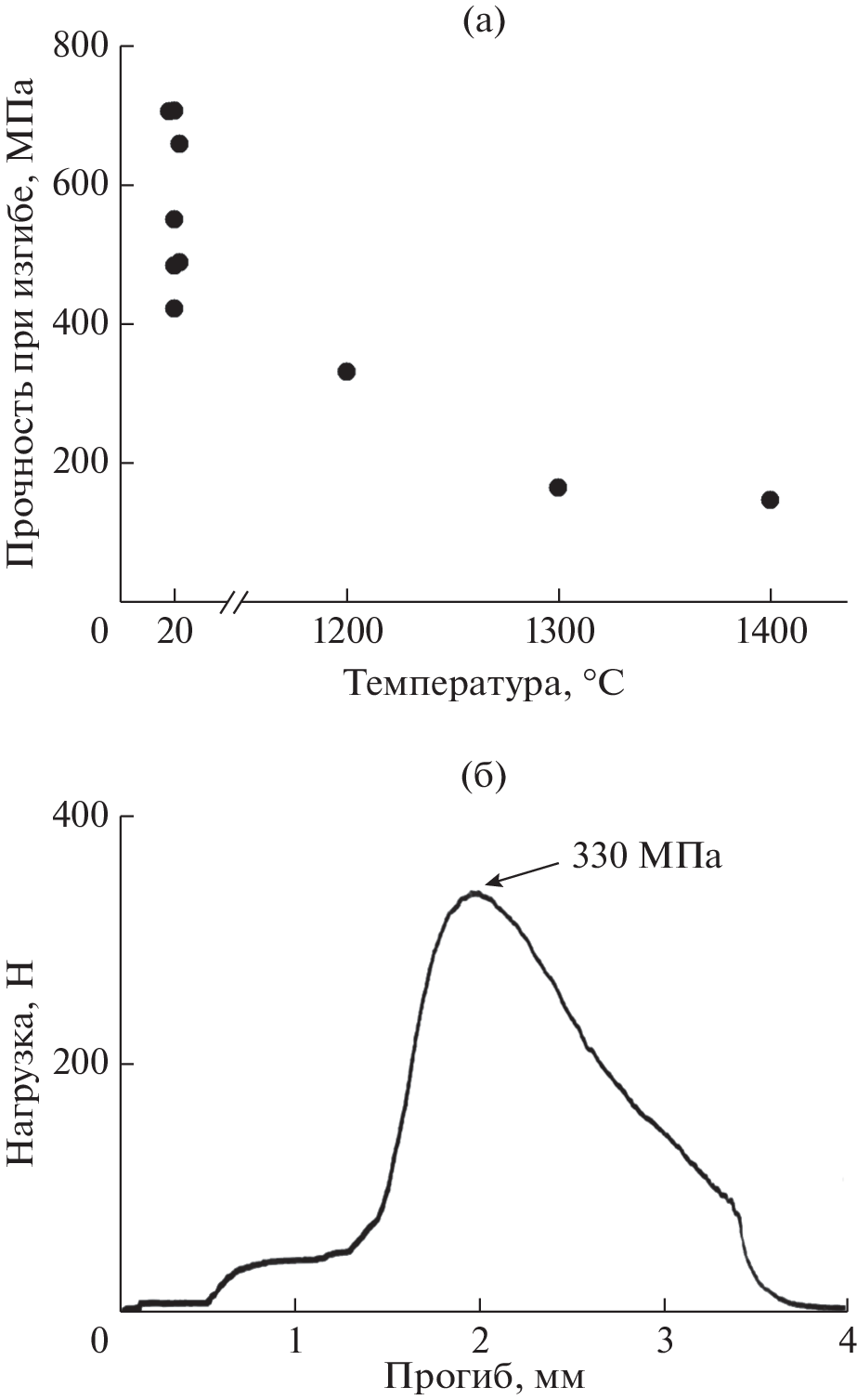

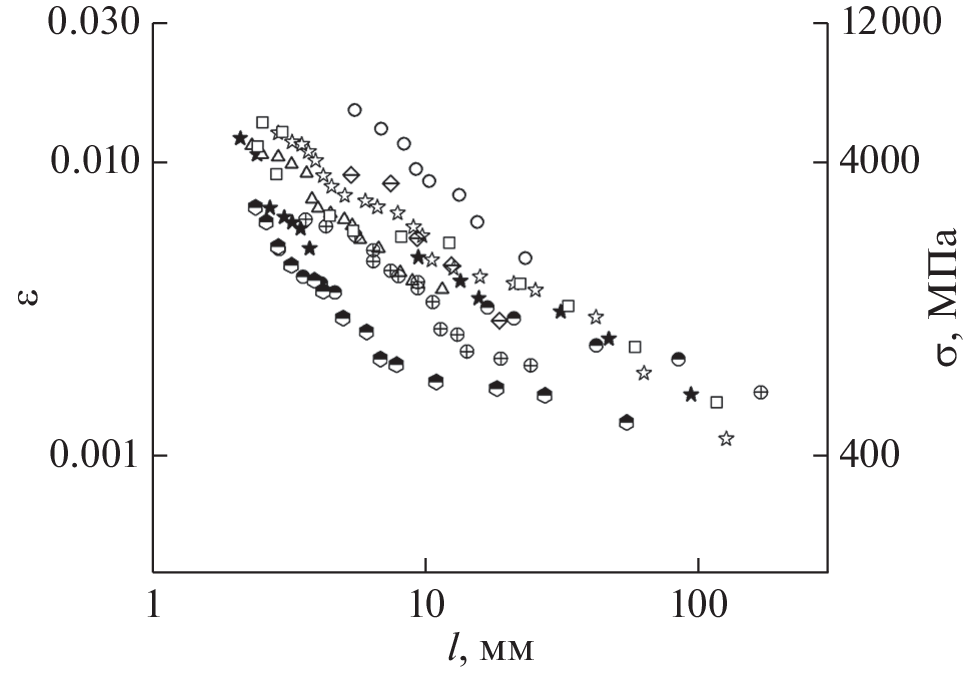

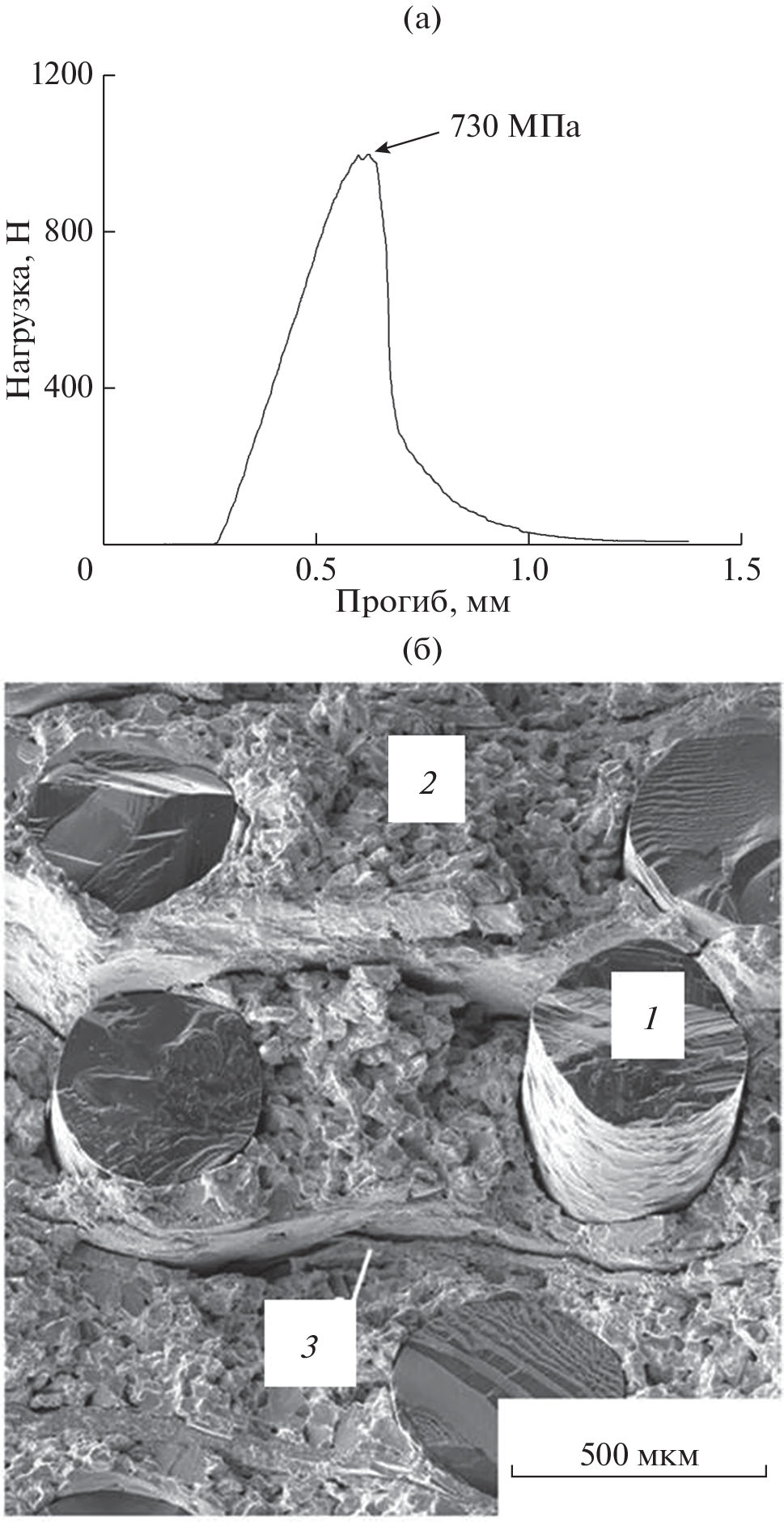

Single-crystal sapphire fibers were obtained by the Stepanov method/EFG – Edge defined Film-fed Growth. The procedure for obtaining them is described. Mechanical testings of the fibers were carried out according to the presented scheme, and the dependences of the ultimate deformation and strength of the fibers on the length were determined. The dependences are power-law, and decrease with the length of the fibers. The strength of the obtained fibers corresponds to the world level and meets the conditions for their use as reinforcing for high-temperature composite materials. From workpieces containing layer-by-layer unidirectionally arranged sapphire fibers, niobium powder, metal foils of molybdenum and aluminum, layered-fibrous composites were obtained by solid-phase diffusion welding under load. Using scanning electron microscopy with X-ray analysis, the structure of the composites was studied, it was found that, in addition to the initial components, it includes intermetallic compounds of niobium, molybdenum and aluminum, as well as solid solutions of these metals formed in the technological process. As a result of mechanical testing of composite samples, deformation curves of load-deflection dependences were obtained, which, together with developed fracture surfaces, indicate the non-brittle nature of the fracture of composites containing brittle components. The dependences of the strength of composites on temperature in the range of 20–1400°C are obtained, which meet the requirements for high-temperature structural materials of this kind.

Keywords

metal matrix composites, layered fiber composites, sapphire fibers, Stepanov method/EFG – Edge defined Film-fed Growth, intermetallic compounds, non-brittle fracture.

References

Kelly A., Tyson W.R. // J. Mechanics Phys. Solids. 1965. V. 13. Iss. 6. P. 329. https://www.doi.org/10.1016/0022-5096(65)90035-9
Келли A. // Наука – производству. 2007. № 2. С. 1.
Милейко С.Т. // Наука – производству. 2007. № 2. С. 10.
Karpov M.I., Vnukov V.I., Stroganova T.S., Prokhorov D.V., Zheltyakova I.S., Gnesin B.A., Kiiko V.M., Svetlov I.L. // Bull. RAS: Phys. 2019. V. 83. Iss. 10. P. 1235. https://doi.org/10.3103/S1062873819100113
Свойства, получение и применение тугоплавких соединений / Ред. Косолапова Т.Я. и др. М.: Металлургия, 1986. 928 с.
Милейко С.Т. // Композиты и наноструктуры. 2015. Т. 7. № 4. С. 191.
Степанов А.В. Будущее металлообработки. Ленинград: Лениздат, 1963. 131 с.
Chalmers B., LaBelle H.E., Jr., Mlavsky A.I. // J. Crystal Growth. 1972. V. 13/14. P. 84. https://www.doi.org/10.1016/0022-0248(72)90067-X
LaBelle H.E.Jr., Mlavsky A.I. // Mater. Res. Bull. 1971. V. 6. Iss. 7. P. 571. https://www.doi.org/10.1016/0025-5408(71)90006-7
Kurlov V.N., Stryukov D.O., Shikunova I.A. // J. Phys.: Conf. Series. 2016. V. 673. P. 012017. https://www.doi.org/10.1088/1742-6596/673/1/012017
Shahinian P. // J. Am. Ceramic Soc. 1971. V 54. Iss. 1. P. 67. https://www.doi.org/10.1111/j.1151-2916.1971.tb12180.x
Pollock J.T.A. // J. Mater. Sci. 1972. V. 7. P. 787. https://www.doi.org/10.1007/BF00549907
Kurlov V.N., Mileiko S.T., Kolchin A.A., Starostin M.Yu., Kiiko V.M. // Crystallography Reports, Suppl. 1, 2002. V. 47. P. S53.
Fitzgibbon J.J., Collins J.M. // Proc. SPIE. 1998. V. 3262. https://www.doi.org/10.1117/12.309487
Kiiko V.M., Mileiko S.T. // Composites Sci. Technol. 1999. V. 59. Iss. 13. P. 1977. https://doi.org/10.1016/S0266-3538(99)00054-8
Mileiko S.T // Recrystallization in Materials Processing / Ed. Glebovsky V. United Kingdom: IntechOpen Ltd., 2015. P. 125. https://www.doi.org/10.5772/61024
Кийко В.М., Коржов В.П. // Поверхность. Рентген., синхротр. и нейтрон. исслед. 2017. № 11. С. 42. https://www.doi.org/107868/S0207352817110051
Диаграммы состояния двойных металлических систем. Т. 1 / Ред. Лякишев Н.П. Москва: Машиностроение, 1996. 992 с.
Гринберг Б.А., Иванов М.А. Интерметаллиды Ni3А1 и ТiАl: микроструктура, деформационнное поведение. Екатеринбург: УрО РАН, 2002. 360 с.
Jackson M.R., Bewlay B.P., Rowe R.G., Skelly D.W., Lipsitt H.A. // J. Metals. 1996. V. 48. P. 39. https://doi.org/10.1007/BF03221361
Bewlay B.P., Jackson M.R., Zhao J.C., Subramanian P.R. // Metallurgical and Materials Transactions A. 2003. V. 34A. № 10. P 2043. https://doi.org/10.1007/s11661-003-0269-8
Светлов И.Л. // Материаловедение. 2010. № 9. С. 29.
Светлов И.Л. // Материаловедение. 2010. № 10. С. 18.
