Geometry Design Optimization of High-Frequency Ion Thrusters and Ion Sources

V. K. Abgaryan; Абгарян В. К.; A. V. Melnikov; Мельников А. В.; A. Yu. Kupreeva; Купреева А. Ю.; O. D. Peisakhovich; Пейсахович О. Д.

doi:10.31857/S1028096023050023

Geometry Design Optimization of High-Frequency Ion Thrusters and Ion Sources

Autores: Abgaryan V.¹, Melnikov A.¹, Kupreeva A.¹, Peisakhovich O.¹
Afiliações:
1. Research Institute of Applied Mechanics and Electrodynamics of the Moscow Aviation Institute
Edição: Nº 5 (2023)
Páginas: 103-112
Seção: Articles
URL: https://journals.rcsi.science/1028-0960/article/view/137760
DOI: https://doi.org/10.31857/S1028096023050023
EDN: https://elibrary.ru/KUZDAY
ID: 137760

Citar

Texto integral

Acesso aberto
Acesso é fechado

Acesso está concedido
Acesso é fechado

Somente assinantes

Resumo
Sobre autores
Bibliografia
Arquivos suplementares
Estatísticas

Resumo

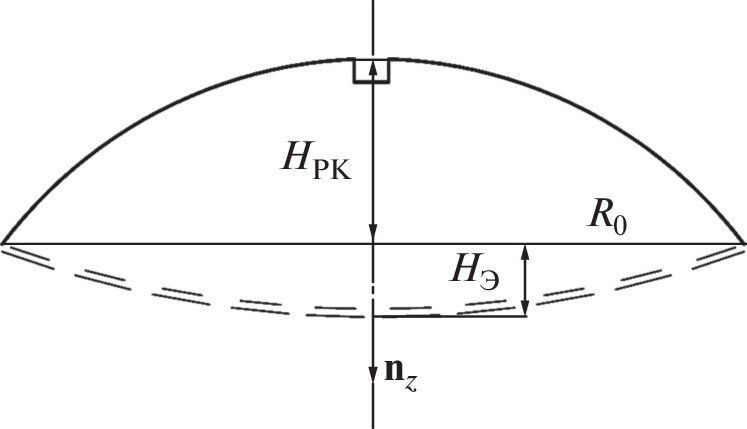

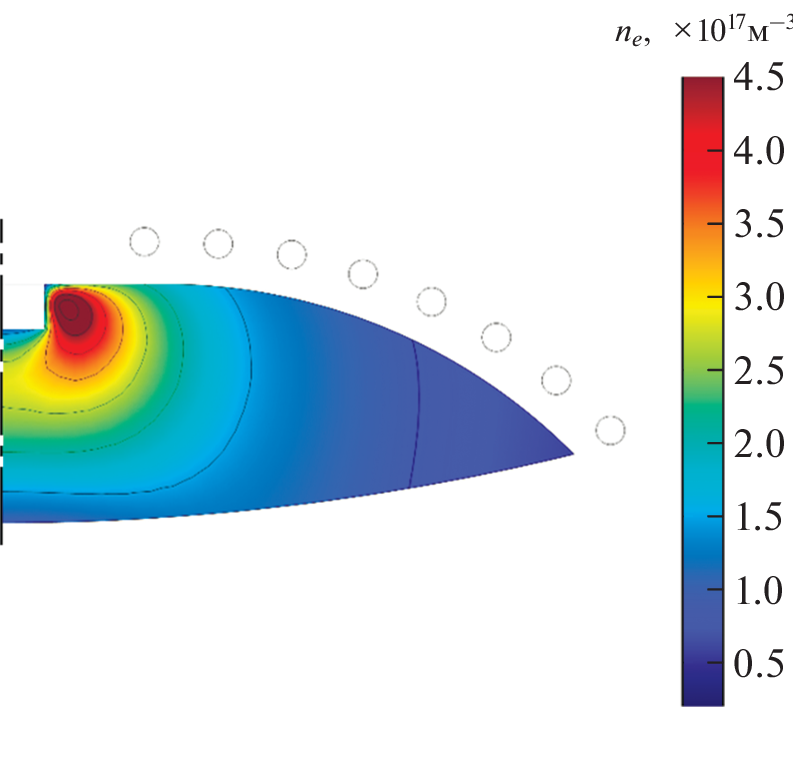

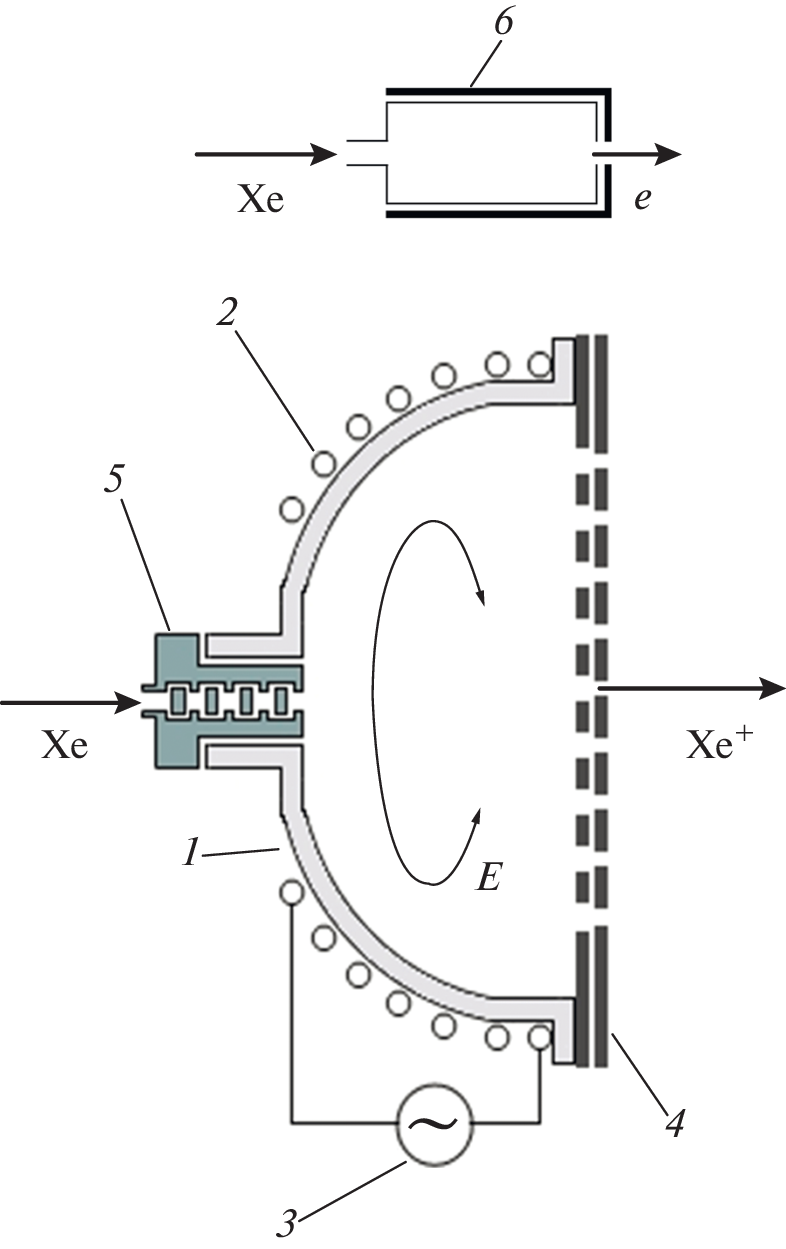

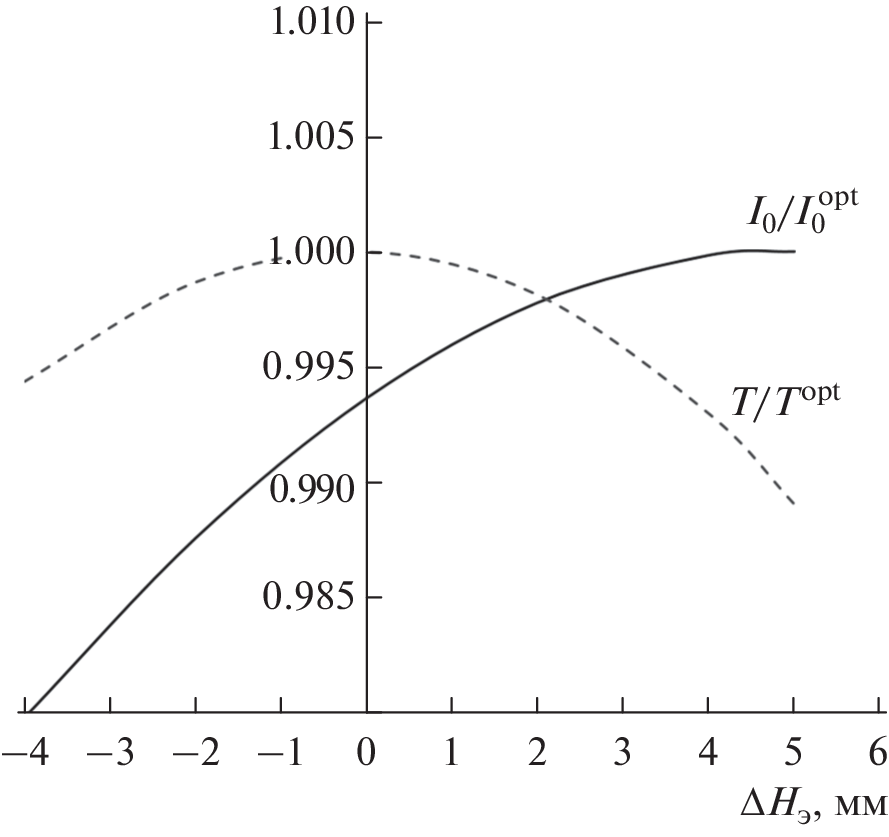

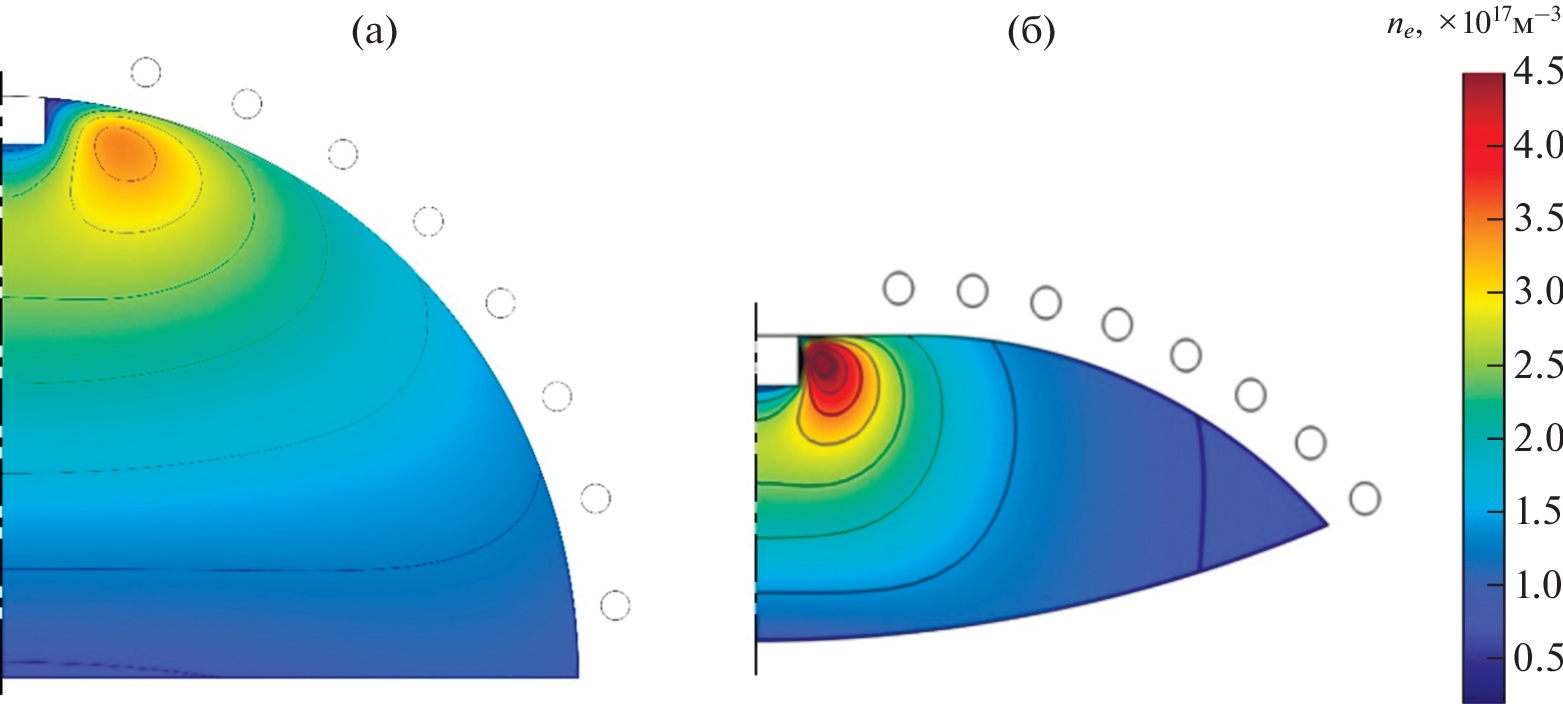

The article presents the results of the computational determination of the optimal design geometry of a certain type of quasi-neutral plasma source. The scheme of an ion source with an inductive plasma discharge formed and maintained by a radio-frequency electromagnetic field in a MHz frequency range is considered. The surface profiles optimization of the main design units – namely, gas discharge chamber and ion extraction system – was carried out via computational modelling. Calculations were carried out using the previously developed engineering model of inductive discharge in plasma. The optimization criteria are the thrust and the value of the ion current extracted from the source, determined from the calculated distributions of electron density and electron temperature within the discharge chamber. Optimization calculations were carried out for an ion source with a discharge chamber diameter of 16 cm on a type of surfaces that are segments of a spherical surface. The results of the thrust calculations are presented in relative values in comparison with the values calculated for the basic configuration of the ion source scheme with a hemispherical discharge chamber and a flat ion extraction system. A significant increase in the value of the extracted ion current and thrust in the determined optimal configuration of the ion source was obtained in comparison with the same values calculated for the basic configuration of the ion source with a hemispherical discharge chamber and flat grids of the ion extraction system.

Palavras-chave

radio-frequency ion thruster, low-temperature plasma, discharge chamber, electrodes of the ion-optical system, high-frequency inductor, simulation.

Bibliografia

Kanarov V., Hayes A.V., Yevtukhov R., Vidinsky B., Navy A. // Rev. Sci. Instrum. 1998. № 69. P. 874. https://www.doi.org/10.1063/1.1148742
Jet Propulsion Laboratory NASA. 2003. https://www.jpl.nasa.gov/missions/hayabusa Cited 10 April 2022
Jet Propulsion Laboratory NASA. 1998. https://www.jpl.nasa.gov/missions/deep-space-1-ds1 Cited 10 April 2022
Van Noord J. // In 43rd AIAA/ASME/SAE/ASEE Joint Propulsion Conference & Exhibit. 2007. P. 5218. https://www.doi.org/10.2514/6.2007-5218
Van Noord J., Herman D. // In 44th AIAA/ ASME/SAE/ASEE Joint Propulsion Conference & Exhibit. 2008. P. 4526. https://www.doi.org/10.2514/6.2008-4526
Васин А.И., Коротеев А.С., Ловцов А.С., Муравлев В.А., Шагайда А.А., Шутов В.Н. // Труды МАИ. 2012. Т. 60. С. 8.
Herman D.A. // 57th Joint Army-Navy-NASA-Air Force (JANNAF) Propulsion Meeting. 2010. No. E-17447.
Антропов Н.Н., Ахметжанов Р.В., Балашов В.В., Богатый А.В., Дьяконов Г.А., Могулкин А.И., Обухов В.А., Плохих А.П., Попов Г.А. // Тезисы 14-й Международной конференции “Авиация и космонавтика-2015”. 2015. С. 141.
Tsukizaki R., Ise T., Koizumi H., Togo H., Nishiyama K., Kuninaka H. // J. Propulsion and Power. 2014. V. 30. № 5. P. 1383. https://www.doi.org/10.2514/1.B35118
Foster J., Haag T., Kamhawi H., Patterson M., Malone S., Elliot F. // In 40th AIAA/ASME/SAE/ASEE Joint Propulsion Conference and Exhibit. 2004. P. 3812. https://www.doi.org/10.2514/6.2004-3812
Loeb H. // Astronautica Acta. 1962. V. 8. № 1. P. 49.
Abgaryan V.K., Nadiradze A.B., Semenov A.A., Troshin A.E. // J. Surf. Invest.: X-Ray, Synchrotron Neutron Tech. V. 13. 2019. № 6. P. 1054. https://www.doi.org/10.1134/S102745101906003X
Goebel D.M., Katz I. // Fundamentals of Electric Propulsion: Ion and Hall. N.Y.: John Wiley & Sons, 2008. P. 100.
Абгарян В.К., Леб Х.В., Обухов В.А., Шкарбан И.И. // Поверхность. Рентген., синхротр. и нейтрон. исслед. 2012. № 8. С. 70.
Канев С.В., Кожевников В.В., Хартов С.А. // Известия РАН. Энергетика. 2017. Т. 3. С. 21.
Cifali G., Misuri T., Rossetti P., Andrenucci M., Valentian D., Feili D., Lotz B. // 32nd International Electric Propulsion Conference. 2011. № 11. P 15.
Девдариани А.З., Артамонова А.О., Беляев А.К. // Письма в ЖТФ. 2020. Т. 46. Вып. 4. С. 45. https://www.doi.org/10.21883/PJTF.2020.04.49051.17990
Абгарян В.К., Ахметжанов Р.В., Леб Х.В., Обухов В.А., Черкасова М.В. // Поверхность. Рентген., синхротр. и нейтрон. исслед. 2013. №11. С. 82.
Balashov V., Cherkasova M., Kruglov K., Kudriavtsev A., Masherov P., Mogulkin A., Obukhov V., Riaby V., Svotina V. // Rev. Sci. Instrum. 2017. V. 88. № 8. P. 083304. https://www.doi.org/10.1063/1.4998247
Holste K., Dietz P., Scharmann S., Keil K., Henning T., Zschätzsch D., Reitemeyer M., Nauschütt B., Kiefer F., Kunze F., Zorn J., Heiliger C., Joshi N., Probst U., Thüringer R., Volkmar C., Packan D., Peterschmitt S., Brinkmann K.-T., Zaunick H.-G., Thoma M.H., Kretschmer M., Leiter H.J., Schippers S., Hannemann K., Klar P.J. // Rev. Sci. Instrum. 2020. V. 91. P. 061101. https://www.doi.org/10.1063/5.0010134
Мельников А.В., Хартов С.А. // Известия РАН. Энергетика. 2018. Т. 3. С. 4.
Kanev S., Melnikov A., Nazarenko I., Khartov S. // IOP Conference Series: Mater. Sci. Engineer. 2020. P. 012010. https://www.doi.org/10.1088/1757-899X/868/1/012010
Porst, J.P., Kuhmann J., Kukies R., Leiter H. // In Proceedings of the 34th International Electric Propulsion Conference. 2015.
Leiter H.J., Kukies R., Porst J.P., Kuhmann J., Berger M, Rath M., // In 50th AIAA/ASME/SAE/ASEE Joint Propulsion Conference. 2014. P. 3421. https://www.doi.org/10.2514/6.2014-3421
Porst J.P., Altmann C., Arnold C., Kuhmann J., Syring C., Leiter H.J., Berger M., Scholze F., Eichhorn C., Bundesmann C. // 35th International Electric Propulsion Conference. 2017.
