Properties and Prospects for Application of Lithium Liquid Glass in Thermal Control Coatings of Spacecraft

M. M. Mikhailov; Михайлов М. М.; A. N. Lapin; Лапин А. Н.; S. A. Yuryev; Юрьев С. А.; V. A. Goronchko; Горончко В. А.

doi:10.31857/S1028096023050138

Properties and Prospects for Application of Lithium Liquid Glass in Thermal Control Coatings of Spacecraft

作者: Mikhailov M.¹, Lapin A.¹, Yuryev S.¹, Goronchko V.¹
隶属关系:
1. Tomsk State University of Control Systems & Radioelectronics
期: 编号 5 (2023)
页面: 46-52
栏目: Articles
URL: https://journals.rcsi.science/1028-0960/article/view/137753
DOI: https://doi.org/10.31857/S1028096023050138
EDN: https://elibrary.ru/KVKUZO
ID: 137753

如何引用文章

全文:

开放存取

##reader.subscriptionAccessGranted##
受限制的访问

订阅存取

详细
作者简介
参考
补充文件
统计

详细

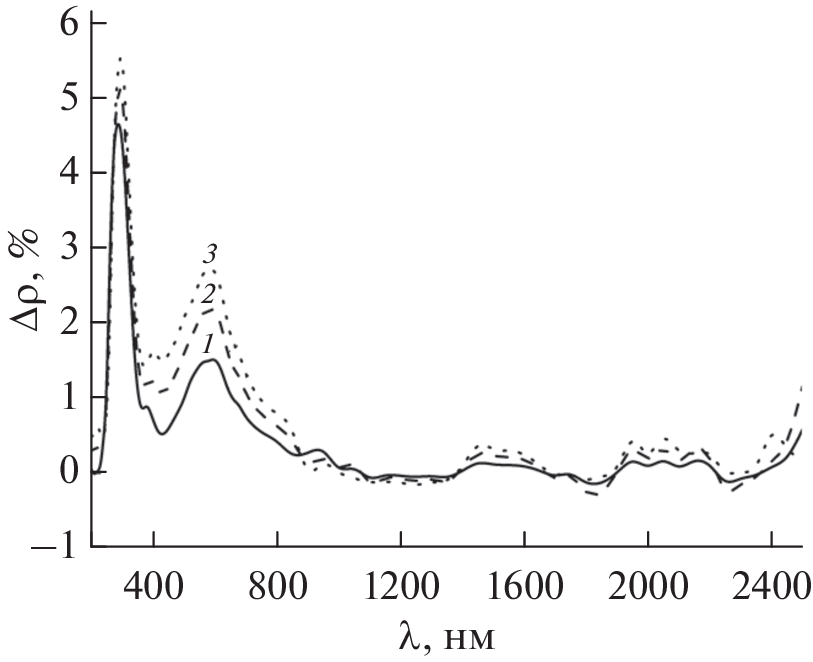

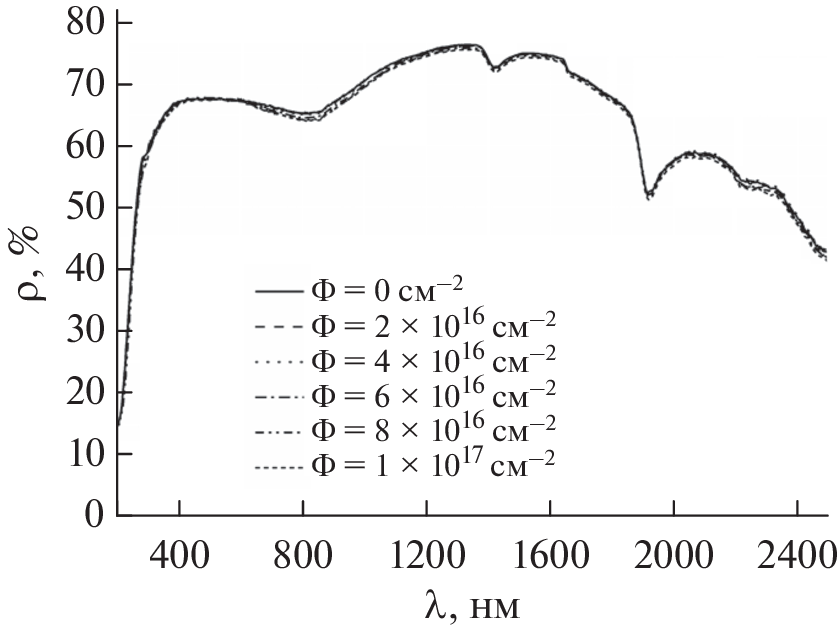

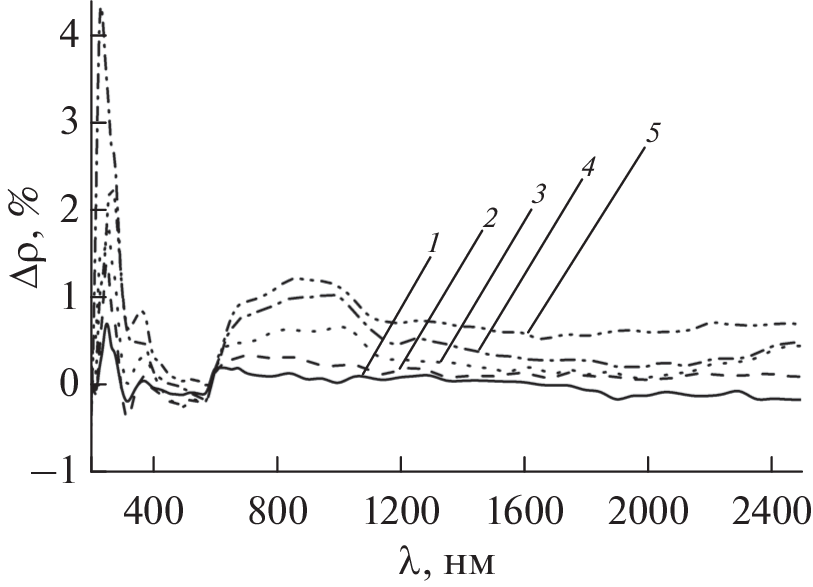

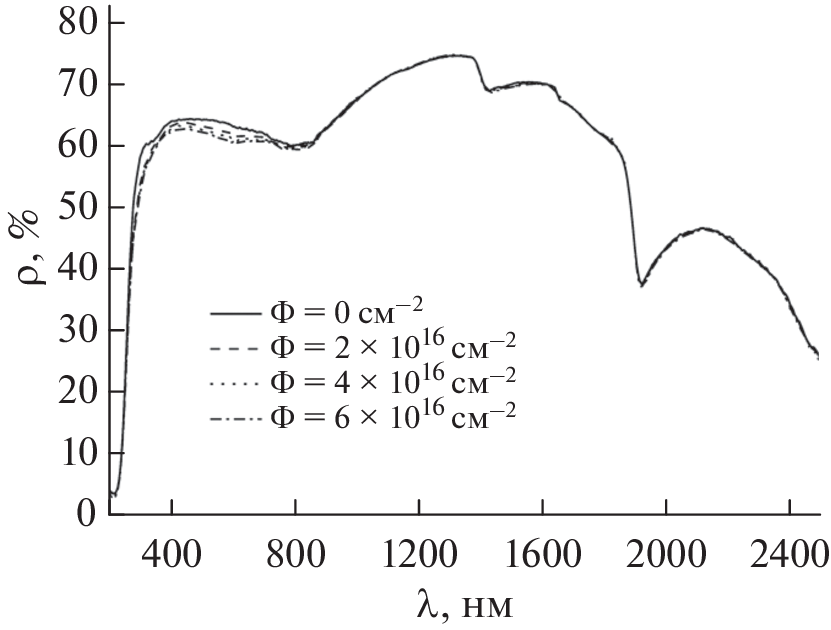

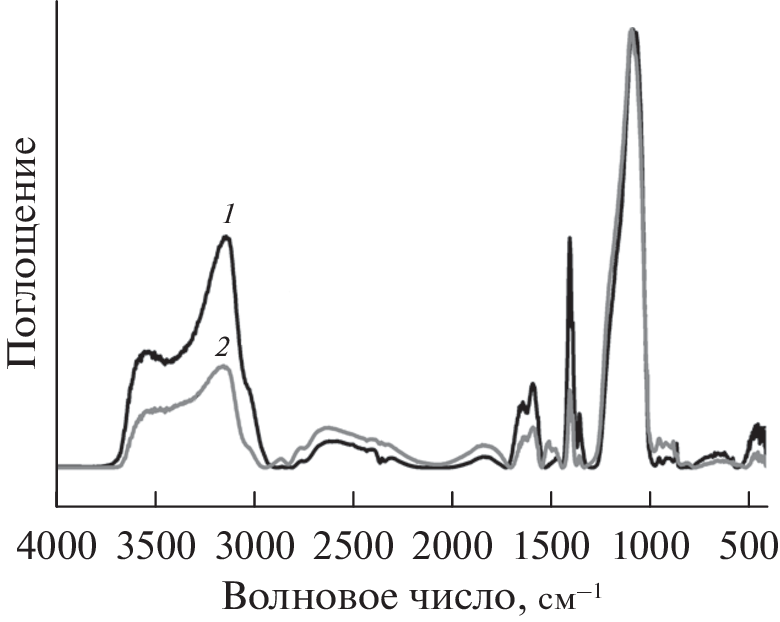

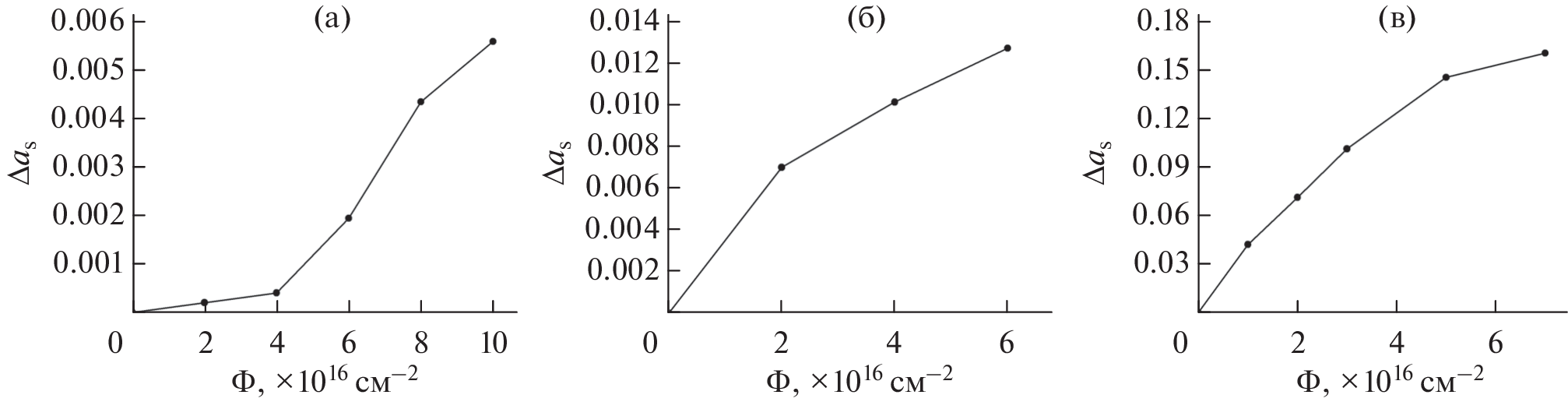

A comparative study of the radiation resistance of the optical properties of binders for spacecraft thermostatic housings was carried out: widely sold liquid glass K₂SiO₃ and newly developed liquid glass Li₂SiO₃. At the analisis of diffuse reflection spectra (ρ_λ) in the wavelenght range 0.2–2.5 μm and the integral radiation absorption coefficient (а_s) both before and after electron radiation, an incomparably higher radiation resistance of Li₂SiO₃ liquid glass compared to K₂SiO₃ glass was established. The values of the change in the absorption coefficient ∆а_s of liquid glass Li₂SiO₃ comparing to one of K₂SiO₃ liquid glass are several times less: for electron radiation with an estimate of 30 keV at a fluence Ф = 2 × 10¹⁶ cm^–2 – 35 times; at Ф = 4 × 10¹⁶ cm^–2 – 25 times; at Ф = 6 × 10¹⁶ cm^–2 – 7 times. Analysis of of the factors that determine the radiation resistance of these glasses was made. The advantage in the radiation resistance of Li₂SiO₃ liquid glass is making it prospective for use as connecting compounds in thermal control coatings of spacecraft, in paints, ceramics and other areas of technology and industry with the presence of ionizing traces.

关键词

lithium and potassium liquid glass, optical properties, absorption bands, radiation resistance.

参考

Михайлов М.М. Спектры отражения терморегулирующих покрытий космических аппаратов. Том 1. Томск: Изд-во Томского университета, 2007. 314 с.
Thermal Control Coatings. Nonmetallic Materials. JSC “Kompozit”. Cited 16 September 2022. https://kompozit-mv.ru/index.php/nemetallicheskie-materialy/lakokrasochnye-termoreguliruyushchie-pokrytiya.html
Токарь С.В., Баринова О.П. // Техника и технология силикатов. 2019. Т. 26. № 1. С. 6.
Kositsyn L.G., Mikhailov M.M., Kuznetsov N.Y., Dvoretskii M.I. // Instrum. Experimental Tech. 1985. V. 28. P. 929.
Burns D.A., Ciurczak E.W. Handbook of Near-Infrared Analysis. Dekker: N.Y., 2001. 814 p.
Blanco M., Coello J., Iturriaga H., Maspoch S., Pezuela C. // Analyst. 1998. V. 123. P. 135. https://www.doi.org/10.1039/A802531B
Brauer G., Anwand W., Grambole D., Grenzer J., Skorupa W., Čížek J., Kuriplach J., Procházka I., Ling C.C., So C.K., Schulz D., Klimm D. // Phys. Rev. B. 2009. V. 79. P. 115212. https://www.doi.org/10.1103/PhysRevB.79.115212
Davydov A. Molecular Spectroscopy of Oxide Catalyst Surfaces. Chichester: John Wiley & Sons Ltd, 2003. 641 p.
Boccuzzi F., Morterra C., Scala R., Zecchina A. // J. Chem. Soc. Faraday Trans. II. 1981. V. 77. P. 2059. https://www.doi.org/10.1039/F29817702059
Keyes B.M., Gedvilas L.M., Li X., Coutts T.J. // J. Crystal Growth. 2005. V. 281. P. 297. https://www.doi.org/10.1016/j.jcrysgro.2005.04.053
Noei H., Qiu H., Wang Y., Löffler E., Wöll C., Muhler M. // Phys. Chem. Chem. Phys. 2008. V. 10. P. 7092. https://www.doi.org/10.1039/b811029h
Cooper C.D., Mustard J.F. // Icarus. 1999. V. 142. Iss. 2. P. 557. https://www.doi.org/10.1006/icar.1999.6221
Окабе Х. Фотохимия малых молекул. М.: Мир, 1981. 504 с.
Shardakov N.T. // Glass Phys. Chem. 2021. V. 47. № 6. P. 548. https://www.doi.org/10.1134/S1087659621060250
Johnson F.S. // J. Meteorological. 1954. V. 11. № 6. P. 431.
ASTM E490-00a Standard Solar Constant and Zero Air Mass Solar Spectral Irradiance Tables, 2005.
ASTM E903-96 Standard Test Method for Solar Absorptance, Reflectance, and Transmittance of Materials Using Integrating Spheres, 2005.
Патент 2 160 294 (РФ). Дата подачи заявки: 10.07.1998г. Модификатор для светоотражающих покрытий на основе диоксида циркония / Томский политехнический университет. Владимиров В.М., Михайлов М.М. // Опубликован 10.12.2000 г.
Нещименко В.В. Исследование структуры, свойств и радиационной стойкости оксидных порошков, модифицированных наночастицами. Дис. … д-ра физико-математических наук: 01.04.07. Томск: ТУСУР. 2017. 273 с.
Hong R., Pan T., Qian J., Li H. // Chem. Engineering J. 2006. V. 119. P. 71. https://www.doi.org/10.1016/j.cej.2006.03.003
Макарова Е.А., Харитонов А.В. Распределение энергии Солнца и солнечная постоянная. М.: Наука, 1972. 88 с.
