Prototype of a Two-Coordinate Position-Sensitive Detector Based on a  6 LiF/ZnS(Ag) Scintillator

M. M. Podlesnyy; Подлесный М. М.; V. M. Milkov; Милков В. М.; A. A. Bogdzel; Богдзель А. А.; V. I. Bodnarchuk; Боднарчук В. И.; A. A. Hassan; Хассан А. А.

doi:10.31857/S1028096023040167

Prototype of a Two-Coordinate Position-Sensitive Detector Based on a ⁶LiF/ZnS(Ag) Scintillator

Autores: Podlesnyy M.¹^,2, Milkov V.¹, Bogdzel A.¹, Bodnarchuk V.¹, Hassan A.¹^,3
Afiliações:
1. Joint Institute for Nuclear Research
2. Moscow Institute of Physics and Technology (National Research University)
3. National Research Nuclear University (Moscow Engineering Physics Institute MEPhI)
Edição: Nº 4 (2023)
Páginas: 67-70
Seção: Articles
URL: https://journals.rcsi.science/1028-0960/article/view/137740
DOI: https://doi.org/10.31857/S1028096023040167
EDN: https://elibrary.ru/JNIBPB
ID: 137740

Citar

Texto integral

Acesso aberto
Acesso é fechado

Acesso está concedido
Acesso é fechado

Somente assinantes

Resumo
Sobre autores
Bibliografia
Arquivos suplementares
Estatísticas

Resumo

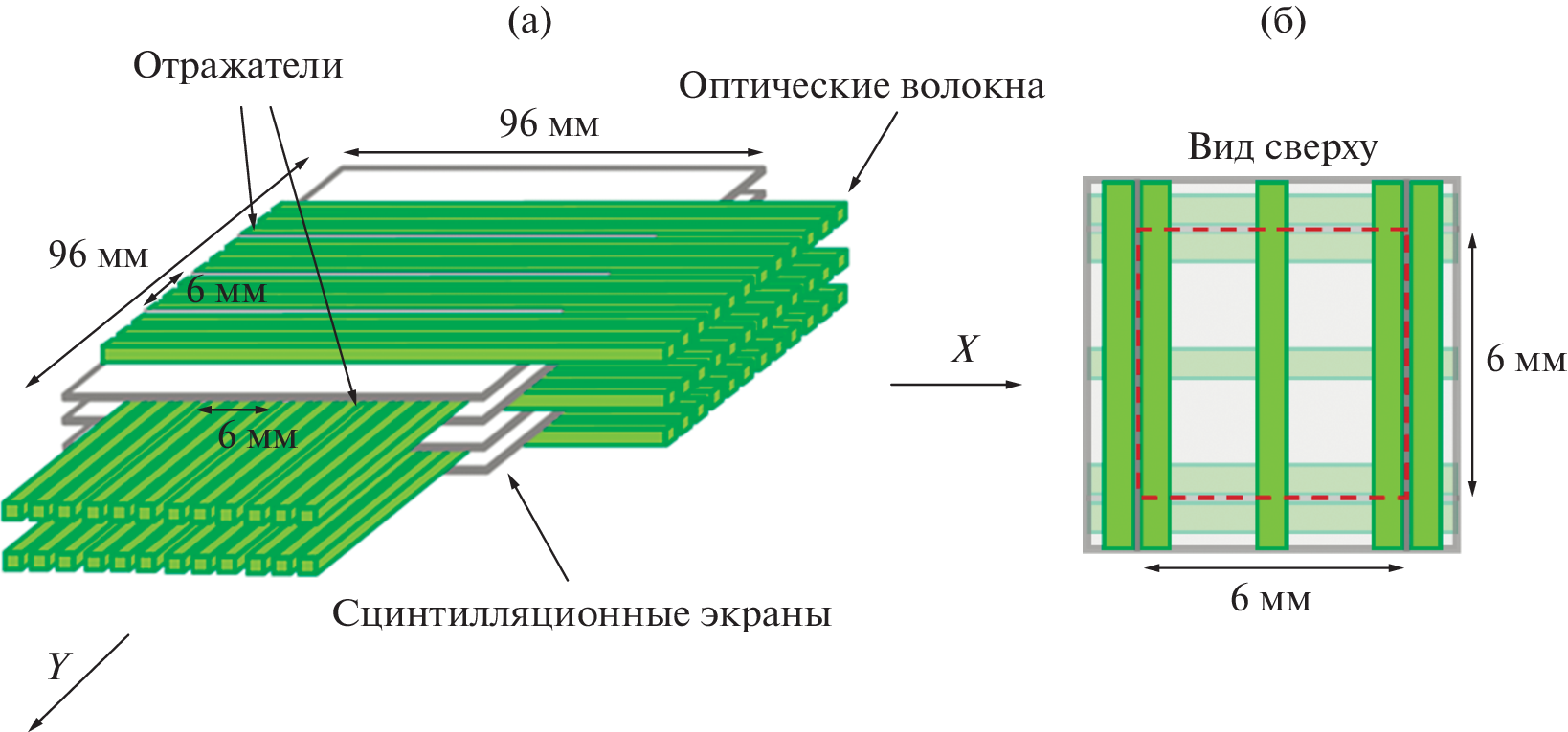

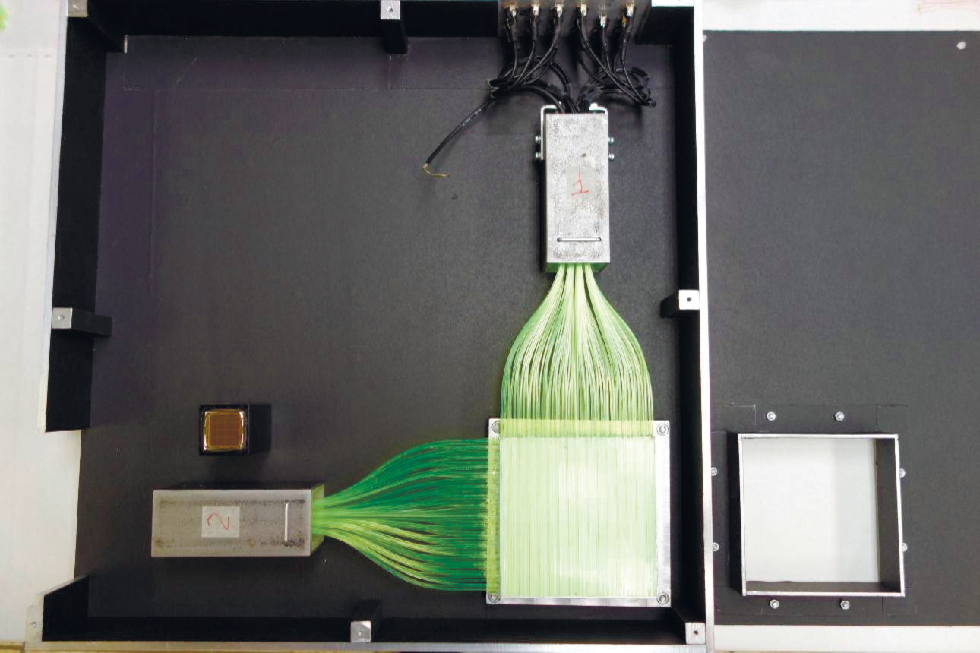

A prototype of a two-coordinate position-sensitive detector based on a small-area ⁶LiF/ZnS(Ag) scintillator, fabricated using square-section spectrum-shifting optical fibers, is presented. The size of the square active area of the detecting surface (96 × 96 cm) corresponds to 16 channels along the X axis and 16 channels along the Y axis. The obtained neutron detection efficiency is 8%.

Palavras-chave

registration of thermal neutrons, position-sensitive detector, wavelength-shifting optical fibers, detection efficiency.

Sobre autores

M. Podlesnyy

Joint Institute for Nuclear Research; Moscow Institute of Physics and Technology (National Research University)

Autor responsável pela correspondência
Email: podlesny@phystech.edu
Russia, 141980, Dubna; Russia, 115184, Dolgoprudny

V. Milkov

Joint Institute for Nuclear Research

Email: podlesny@phystech.edu
Russia, 141980, Dubna

A. Bogdzel

Joint Institute for Nuclear Research

Email: podlesny@phystech.edu
Russia, 141980, Dubna

V. Bodnarchuk

Joint Institute for Nuclear Research

Email: podlesny@phystech.edu
Russia, 141980, Dubna

A. Hassan

Joint Institute for Nuclear Research; National Research Nuclear University (Moscow Engineering Physics Institute MEPhI)

Email: podlesny@phystech.edu
Russia, 141980, Dubna; Russia, 115409, Moscow

Bibliografia

Бокучава Г.Д., Балагуров А.М., Сумин В.В., Папушкин И.В. // Поверхность. Рентген., синхротр. и нейтрон. исслед. 2010. № 11. С. 9.
Kuzmin E.S., Balagurov A.M., Bokuchava G.D., Zhuk V.V., Kudryashev V.A., Bulkin A.P., Trounov V.A. // J. Neutron Res. 2002. V. 10. № 1. P. 31. https://doi.org/10.1080/10238160290027748
Balagurov D.A., Balagurov A.M., Bobrikov I.A., Bogzdel A.A. // Nucl. Instrum. Methods Phys. Res. B. 2018. V. 436. P. 263.https://doi.org/10.1016/j.nimb.2018.09.045
Kruglov V.V., Balagurov A.M., Belova M.O., Bobrikov I.A., Bogdzel A.A., Bodnarchuk V.I., Bulavina V.V., Daulbaev O., Drozdov V.A., Zhuravlev V.V., Kirilov A.S., Kulikov S.A., Kurilkin A.K., Milkov V.M., Murashkevich S.M., Podlesnyy M.M., Prikhodko V.I., Churakov A.V., Shvetsov V.V. // J. Neutron Res. 2021. V. 23. № 4. P. 243. https://doi.org/10.3233/JNR-210001
IBR-2 pulsed reactor. http://flnph.jinr.ru/en/facilities/ibr-2
Kuzmin E.S., Balagurov A.M., Bokuchava G.D., Zhuk V.V., Kudryashev V.A., Bulkin A.P., Trounov V.A. // J. Neutron Res. 2002. V. 10. № 1. P. 31. https://doi.org/10.1080/10238160290027748
Organic Scintillation Materials and Assemblies. https://www.crystals.saint-gobain.com/radiation-detection-scintillators/fibers
Henkel Loctite Stycast 1266 Epoxy. https://www.ellsworth.com/products/by-manufacturer/henkel-loctite/encapsulants/epoxy
Hamamatsu Multianode Photomultiplier Tube Assembly. https://www.hamamatsu.com/jp/en/product/optical-sensors/pmt/pmt-assembly/metal-package-type/ H8711-100.html
Philips Scientific 16 Channel Variable Gain Amplifier. https://hallcweb.jlab.org/hchkswiki/images/PS778.pdf
CAEN 8 Channel 14-bit 500 MS/s Digitizer. https://www.caen.it/products/n6730/
Sakai K., Hirota K., Adachi T., Ikeda K., Morishima T., Shimizu H.M., Furusaka M., Sato S., Kiyanagi Y., Sakamoto N., Sakuma T., Oku T., Suzuki J., Littrell K., Loong C.-K., Czirr J.B., McKnight T.K. // Nucl. Instrum. Methods Phys. Res. A. 2004. V. 529. № 1–3. P. 301. https://doi.org/101016/jnima200404170
Katagiri M., Nakamura T., Ebine M., Birumachi A., Sato S., Shooneveld E.M., Rhodes N.J. // Nucl. Instrum. Methods Phys. Res. A. 2007. V. 573. № 1–2. P. 149. https://doi.org/10.1016/j.nima.2006.11.011
