Investigation of the Thermo Barrier Coatings of the Y–Al–O System Using Synchrotron Radiation

A. Yu. Nazarov; Назаров А. Ю.; E. L. Vardanyan; Варданян Э. Л.; A. A. Maslov; Маслов А. А.; A. A. Nikolaev; Николаев А. А.; K. N. Ramazanov; Рамазанов К. Н.; A. M. Khusainova; Хусаинова А. М.; A. N. Shmakov; Шмаков А. Н.

doi:10.31857/S1028096023040155

Investigation of the Thermo Barrier Coatings of the Y–Al–O System Using Synchrotron Radiation

Authors: Nazarov A.Y.¹, Vardanyan E.L.¹, Maslov A.A.¹, Nikolaev A.A.¹, Ramazanov K.N.¹, Khusainova A.M.¹, Shmakov A.N.²
Affiliations:
1. Ufa State Aviation Technical University
2. Budker Institute of Nuclear Physics of Siberian Branch RAS
Issue: No 4 (2023)
Pages: 25-29
Section: Articles
URL: https://journals.rcsi.science/1028-0960/article/view/137734
DOI: https://doi.org/10.31857/S1028096023040155
EDN: https://elibrary.ru/JRUDAN
ID: 137734

Cite item

Full Text

Open Access
Restricted Access

Access granted
Restricted Access

Subscription Access

Abstract
About the authors
References
Supplementary files
Statistics

Abstract

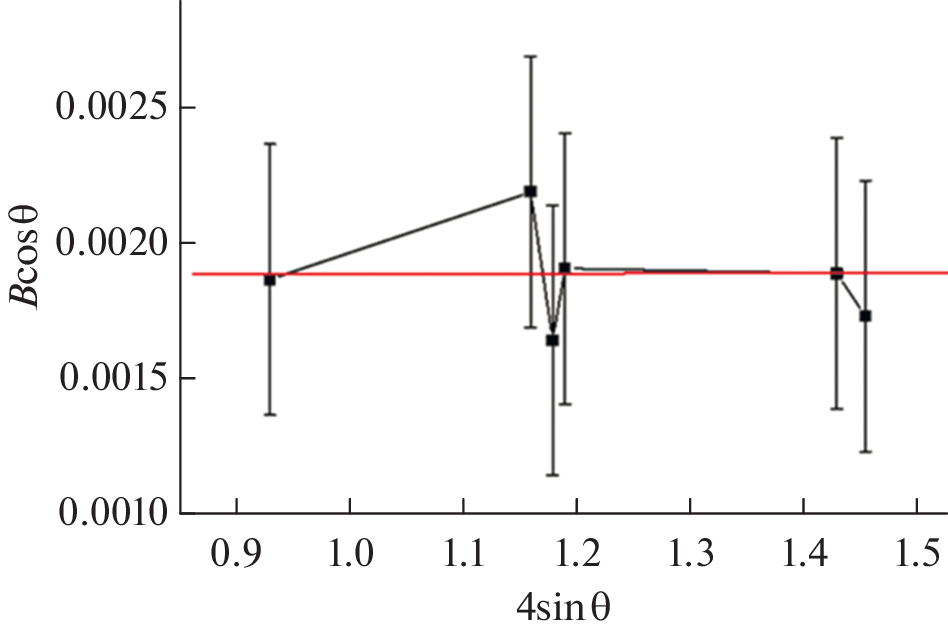

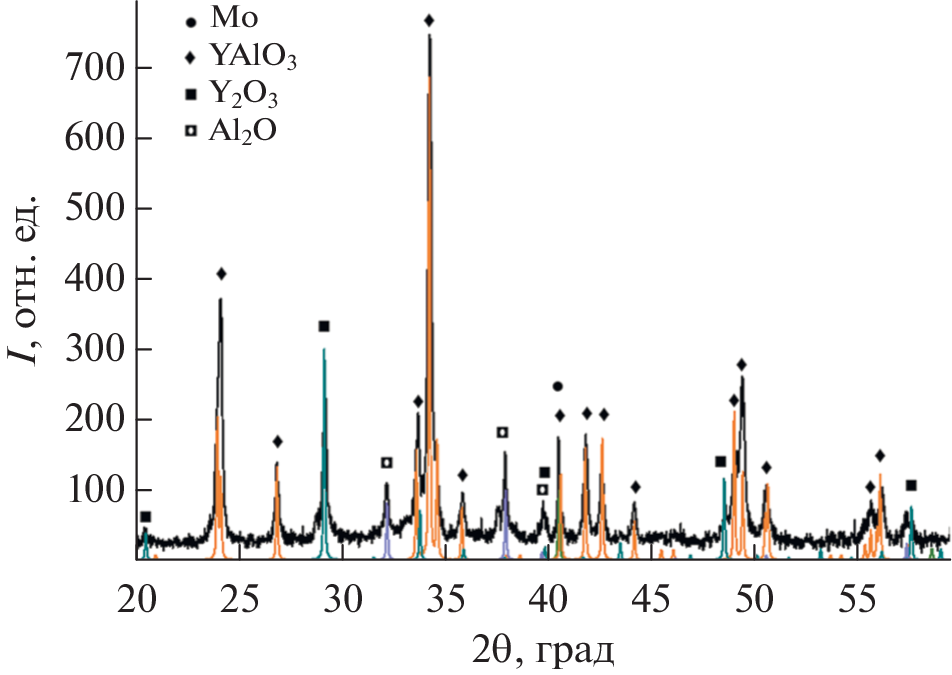

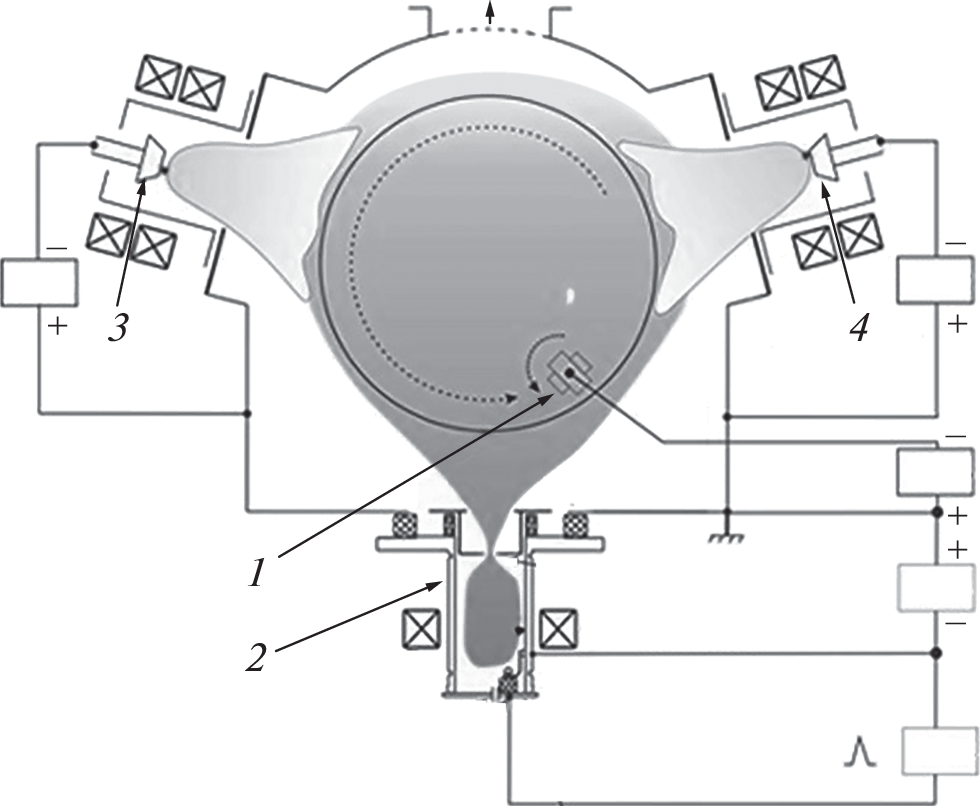

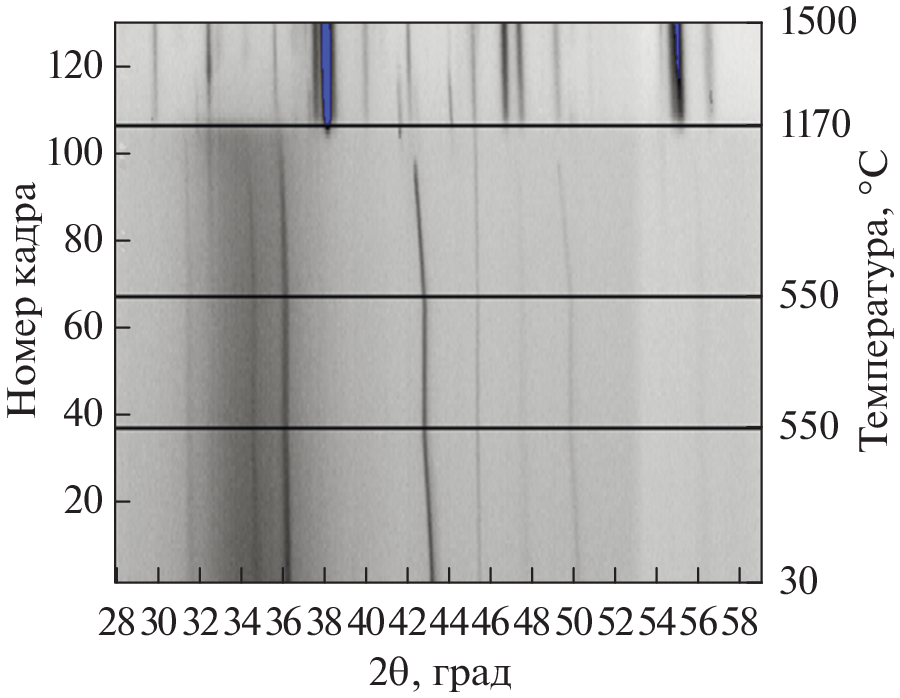

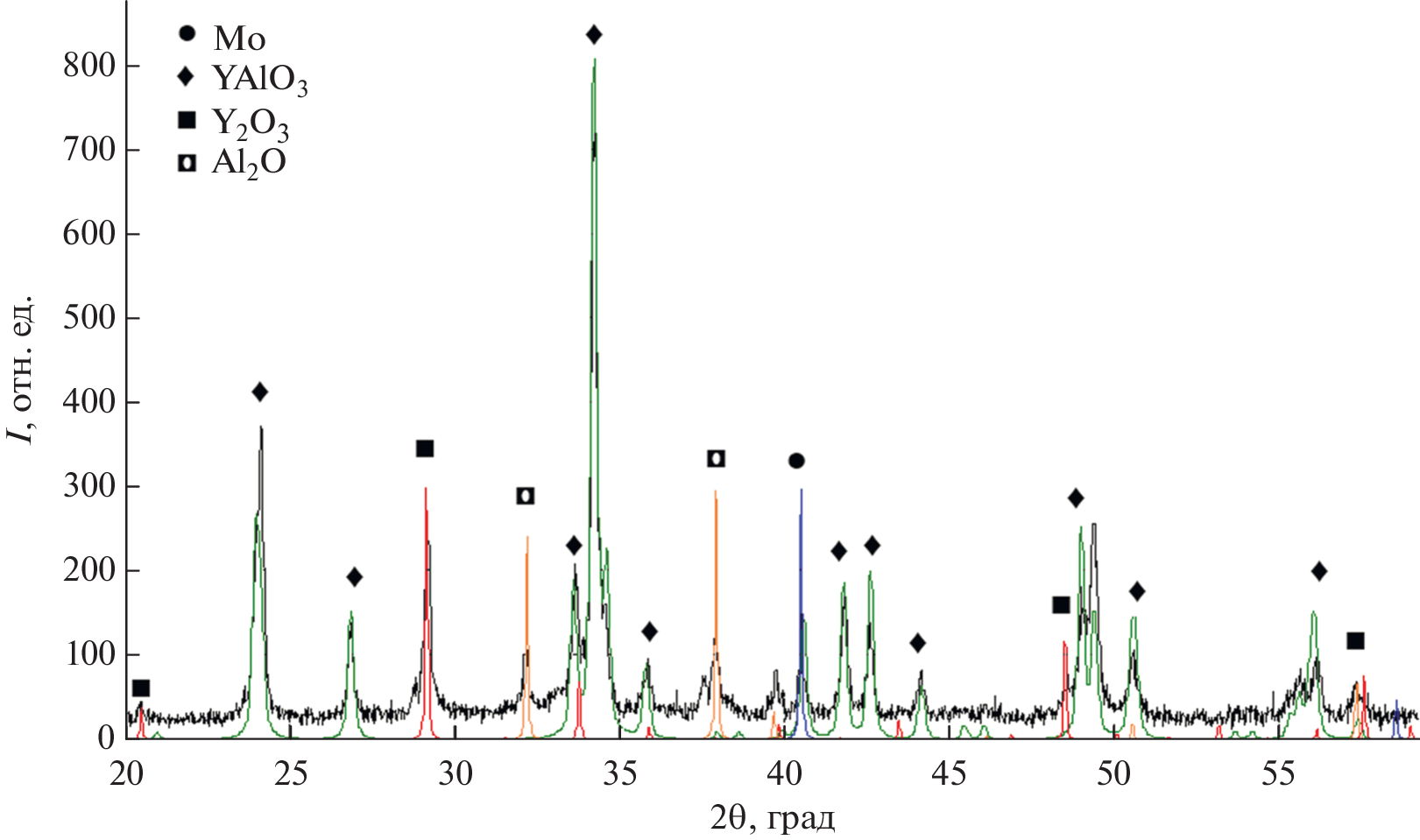

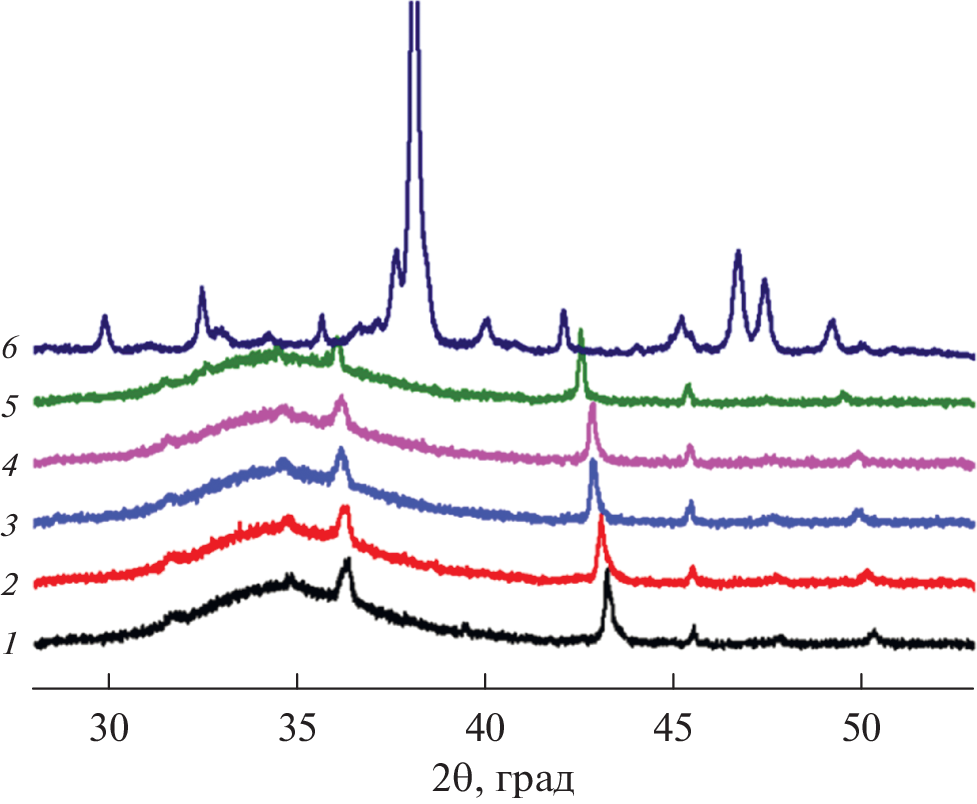

Y–Al–O thermal barrier coating was investigated using synchrotron radiation. Y–Al–O coating was deposited on molybdenum substrate using cathodic-arc deposition with two elemental cathodes made from aluminum and yttrium respectively. Phase evolution was investigated during samples heating up to 1500°C in vacuum. It was found that as-deposited coating has amorphous structure and crystallization process take place at 1160–1170°C, no another phase transformations was observed. Qualitative phase composition of coating as well as microstresses in film were determined. The results of evaluation demonstrates lack of microstresses in obtained coating. Obtained results demonstrates a possibility of Y–Al–O coating deposition by cathodic arc deposition Arc-PVD technology, and deposited coating consist of YAlO₃ (predominantly), Y₂O₃ oxides and YAl₂ intermetallic.

Keywords

plasma treatment, vacuum arc deposition, thermal barrier coating, synchrotron radiation, X-ray diffraction analysis, microstress.

References

Riallant F., Cormier J., Longuet A. // Metall. Mater. Trans. A. 2014. V. 45. P. 351. https://www.doi.org/10.1007/s11661-013-1961-y
Kunal M., Luis N., Calvin M.D. // Industrial & Engineering Chem. Res. 2021. V. 60. № 17. P. 6061. https://www.doi.org/10.1021/acs.iecr.1c00788
Zhang C., Lv P., Xia H., Yang Z., Konovalov S. // Vacuum. 2019. V. 167. P. 263. https://www.doi.org/10.1016/j.vacuum.2019.06.022
Alymov M.I., Stolin A.M., Bazhin P.M. // Industrial Laboratory. Materials Diagnostics. 2022. V. 88. № 2. P. 40. https://www.doi.org/10.26896/1028-6861-2022-88-2-40-48
Bin L, Yuchen L, Changhua Z. // J. Mater. Sci. Technol. 2019. V. 35. № 5. P 833. https://www.doi.org/10.1016/j.jmst.2018.11.016
Yoo Y.S. // Korean J. Chem. Eng. 2014. V. 17. P. 1.
Vaßen R., Jarligo M.O., Steinke T., Mack D. E., Stöver D. // Surf. Coat. Technol. 2010. V. 205. № 4. P. 938. https://www.doi.org/10.1016/j.surfcoat.2010.08.151
Uwe S. // Aerospace Sci. Technol. 2003. V. 7. № 1. P. 73. https://www.doi.org/10.1016/S1270-9638(02)00003-2
Clarke D., Oechsner M., Padture N. // MRS Bulletin. 2012. V. 37. № 10. P. 891. https://www.doi.org/10.1557/mrs.2012.232
Padture N. // Nature Mater. 2016. V. 15. P. 804. https://www.doi.org/10.1038/nmat4687
Cao X.Q., Vassen R., Stoever D. // J. Europ. Ceram. Soc. 2004. V. 24. № 1. P. 1. https://www.doi.org/10.1016/S0955-2219(03)00129-8
Мубояджян С.А. , Будиновский С.А., Гаямов А.М., Матвеев П.В. // Авиационные материалы и технологии. 2013. № 1. С. 17.
Bacos M.-P., Dorvaux J.-M., Lavigne O. et al. // Aerospace Lab. 2011. Iss. 3. P. AL03-03.
Shi M., Xue Zh., Zhang Zh. et al. // Surf. Coat. Technol. 2020. V. 395. P. 125913. https://www.doi.org/10.1016/j.surfcoat.2020.125913
Zhan X., Li Zhen, Liu B. et al. // J. Am. Ceram. Soc. 2012. V. 95. № 4. P. 1429. https://www.doi.org/10.1111/j.1551-2916.2012.05118.x
Xin Z., Zhenhua X., Xizhi F. // Mater. Lett. 2014. V. 134. P. 146. https://www.doi.org/10.1016/j.matlet.2014.07.027
Lu Z. et al. // Materials Today: Proceedings. 2014. V. 1. № 1. P. 35. https://www.doi.org/10.1016/j.matpr.2014.09.009.
Zhou X., Xu Zh., Fan X. et al. // Mater. Lett. 2014. V. 134. P. 146. https://www.doi.org/10.1016/j.matlet.2014.07.027
