Groundwater flow modeling to justify safe mining of the Yakovlevsky iron ore deposit (KMA)

封面

如何引用文章

全文:

开放存取 开放存取
受限制的访问 ##reader.subscriptionAccessGranted##
受限制的访问 订阅存取

详细

The unique Yakovlevskoe iron ore deposit of the Kursk magnetic anomaly (KMA) is confined to a 40-km-long strip with an average width of 440 m, and the thickness of ore layers varying from 50 to 465 m. Rich iron ores are confined to the crystalline basement and lie at a depth of 470–550 m with an angle of incidence 60–70°. Industrial mining began in 2005 at the Yakovlevsky underground mine using a system with backfilling of mined-out space. Mining is carried out under very difficult hydrogeological conditions: at the top of the productive horizon there is a high-pressure multi-layer system of the Dnieper-Donets artesian basin. Directly on the foundation rocks lies the Lower Carboniferous aquifer (under natural conditions with a pressure of up to 440 m), there is no reliable sustained aquitard: the separating weakly permeable strata is represented by clay deposits (thickness from 0.2 to 30 m) and dense carbonated formations in the roof of the ore-crystalline strata (thickness from 0.2 to 30 m, up to 60 m). Drainage of the developed area of the deposit is carried out underground by draining only the ore body using horizontal and inclined-rising wells. Development of the deposit has already led to a significant decrease in groundwater levels and a change in the parameters of the separating protective layer. The possibility of expanding the front of mining operations both in area and in depth requires a serious hydrogeological justification. Further development of the Yakovlevsky iron ore deposit can be carried out by increasing the mining depth (to a horizon of –525 m) or by excavating a safety pillar in the range from –300 to –370 m. The implementation of these options will require preliminary drainage of the Lower Carboniferous aquifer, the consumption of such water reduction will be about 4 thousand m3/hour and will lead to the formation of an extensive depression cone.

全文:

受限制的访问

作者简介

P. Rybnikov

Institute of Mining of the Ural Branch of the Russian Academy of Sciences

编辑信件的主要联系方式.
Email: ribnikoff@yandex.ru
俄罗斯联邦, 58, Mamin-Sibiryak St., Ekaterinburg, 620075

L. Rybnikova

Institute of Mining of the Ural Branch of the Russian Academy of Sciences

Email: luserib@mail.ru
俄罗斯联邦, 58, Mamin-Sibiryak St., Ekaterinburg, 620075

参考

  1. [Analysis of hydrogeomechanical conditions of the mine field of the Yakovlevskoe deposit, assessment of the quality of the rock mass and the adopted iron ore mining systems]. Belgorod, OOO NTC “NOVOTEK”,2002. (in Russian)
  2. Genzel, G.N., Elantseva, L.A., Zaitsev, D.A. [Creation of a numerical geofiltration model of the Yakovlevskoe deposit and forecast of groundwater inflows into the designed mine workings]. Belgorod, OOO NTC “NOVOTEK”,2018. (in Russian)
  3. Genzel, G.N., Osipenko,Yu.S., Elantseva, L.A. [To carry out a substantiation of safe conditions for mining the Yakovlevskoe iron ore deposit under an undrained lower Carboniferous aquifer complex without the construction of waterproof lintels. Coordination of the results with the Gosgortekhnadzor of Russia]. Belgorod, OOO NTC “NOVOTEK”, 2004121 p. (in Russian)
  4. [Geology, hydrogeology and iron ores of the Kursk Magnetic Anomaly basin (KMA)] A.T. Bobrysheva, Ed., Moscow, Nedra Publ., 1972, vol. II, 480 p. (in Russian)
  5. [Hydrogeology of the USSR. Voronezh, Kursk, Belgorod, Oryol, Lipetsk, Tambov regions]. A.T. Bobrysheva, Ed., Moscow, Nedra Publ., 1972, vol. IV, 498 p. (in Russian)
  6. Golubnichii, D.V., Gilyazev, D.Kh., Ignatenko, I.M., Khaustov, V.V. [Features of ensuring environmental safety of underground mining of the Yakovlevskoye rich iron ore deposit]. Vestnik Voronezhskogo gosudarstvennogo universiteta. Seriya: Geologiya, 2023, no. 2, pp. 94–103. (in Russian)
  7. Grigoriev, A.M., Zoteev, O.V., Makarov, A.B. [Geomechanical justification for massif monitoring during the development of ores of the Yakovlevskoye KMA deposit under undrained aquifers]. Gornyi informatsionno-analiticheskii byulleten’ (nauchno-tekhnicheskii zhurnal), 2013, no. S4, pp. 27–37. (in Russian)
  8. Gurkin, A.Ya., [The study of drainage system efficiency under complex draining conditions by the example of Yakovlevskoe ore deposit KMA]. Extended abstract Cand. Sci. (Techn.) dissertation. Moscow, 1964, 17 p. (in Russian)
  9. Gusev, V.N., Ilyukhin, D.A., Zhuravlev, A.E. [Assessment of the degree of undermining strata disturbance by man-made water-conducting cracks according to geomechanical monitoring data in mine workings at the Yakovlevskoe mine]. Zapiski Gornogo instituta. 2013, vol. 204, pp. 74–81. (in Russian)
  10. Gusev, V.N. [Forecast of safe conditions for developing a suite of coal seams under water bodies based on the geomechanics of man-made water-conducting cracks]. Zapiski Gornogo instituta, 2016, vol. 221, pp. 638–643. (in Russian)
  11. Dashko R.E. [Engineering geological characteristics and assessment of rich iron ores of the Yakovlevskoe mine]. Zapiski Gornogo instituta, 2006, vol. 168, pp. 97–104. (in Russian)
  12. Dashko, R.E., Feller, E.N. [Geotechnical and engineering geological assessment of the safety of mining rich iron ores at the Yakovlevskoe mine (Kursk magnetic anomaly)]. Geotekhnika, 2013, no. 5–6, pp. 26–38. (in Russian)
  13. Dashko, R.E., Feller, E.N. [Formation and development of mining geological processes depending on changes in engineering geological and hydrogeological conditions at the Yakovlevskoe mine]. Zapiski Gornogo instituta, 2012, vol. 199, pp. 151–160. (in Russian)
  14. Efremov, E.Yu., Rybnikov, P.A., Rybnikova, L.S. [Justification for draining the hydrogeodynamic system “water-bearing sediments - disintegrated massif” upon underground mining of iron ore deposits]. Uspekhi sovremennogo estestvoznaniya, 2023, no. 3, pp. 47–57. (in Russian)
  15. Zhurin, S.N. [Management of the massif state upon underground mining of ferrous metal ore deposits under difficult hydrogeological conditions]. Extended abstract Doctoral Sci. (Techn.) dissertation. Moscow, MGGU Publ., 1998, 45 p. (in Russian)
  16. Zoteev, O.V. [Justification for safe mining of the central section of the Yakovlevskoe deposit upon expanding the excavation boundaries to –525 m horizon and existing mining allotment at the sides]. Yekaterinburg, IGD UrO RAN, 2020, 206 p. (in Russian)
  17. Zoteev, O.V. [Justification of safe and effective conditions for mining the Yakovlevskoe iron ore deposit under an aquifer]. Yekaterinburg, IGD UrO RAN, 2007, 110 p. (in Russian)
  18. Zoteev, O.V., Makarov, A.B., Faustov, S.I. [Problems of mining Yakovlevskoye iron ore deposit]. Izvestiya vysshikh uchebnykh zavedenii. Gornyi zhurnal, 2008, no. 8, pp. 4–8. (in Russian)
  19. Ilyukhin, D.A. [Forecast of the development of water-conducting fracture zone during the development of Yakovlevskoe deposit of rich iron ores]. Cand. Sci. (Techn.) dissertation. St. Petersburg, 2014, 125 p. (in Russian)
  20. Kotlov, S.N., Tselishchev, N.A., Sotnik, E.A. Gilyazev, D.Kh. [Geological and hydrogeological factors of the formation of water inflows into the mine workings of the Yakovlevskoe mine]. Gornyi zhurnal, 2023, no. 5, pp. 108–113. (in Russian)
  21. Kramchaninov, N.N., Petin, A.N., Pogorel’tsev, I.A. [Analysis of the groundwater state in the KMA mining region in the territory of the Belgorod oblast]. Nauchnye vedomosti Belgorodskogo gosudarstvennogo universiteta. Seriya: Estestvennye nauki, 2011, no. 9 (104), pp. 166–172. (in Russian)
  22. Petrov, D.N. [Formation of the stress-strain state of a mountain massif before and after drainage]. Zapiski Gornogo instituta, 2011, vol. 190, pp. 232–239. (in Russian)
  23. Protosenya, A.G., Petrov, D.N., Sinyakin, K.G., Martem’yanov, G.A. [Field observations of the settlement of the ore ceiling during mining operations at the Yakovlevskoe mine]. Zapiski Gornogo instituta, 2011, vol. 190, pp. 158–162. (in Russian)
  24. Protosenya, A.G., Potemkin, D.A. [Geomechanical justification of the parameters of the waterproof roof and protective ceiling during the development of the Yakovlevskoe deposit]. Zapiski Gornogo instituta, 2006, vol. 168, no. 3, pp. 127–136. (in Russian)
  25. [Development of recommendations for improving the mine field drainage system during the construction of the Yakovlevskii mine]. Zabeida, M.A., Zubova, A.V., Elantseva, L.A. Belgorod, VIOGEM Publ., 1990, 321 p. (in Russian)
  26. Sergeev, S.V., Lyabakh, A.I., Zaitsev, D.A. [Experience in the development of rich iron ores at the Yakovlevskoe deposit of the KMA]. Nauchnye vedomosti Belgorodskogo gosudarstvennogo universiteta. Seriya Estestvennye nauki, 2011, no. 3 (98), pp. 200–208. (in Russian)
  27. Sergeev, S.V., Lyabakh, A.I., Kvachev, V.N., Sevryukov, V.V. [Geological and hydrogeological characteristics of the Yakovlevskoe deposit]. Nauchnye vedomosti Belgorodskogo gosudarstvennogo universiteta. Seriya Estestvennye nauki. 2011, no. 9 (104), pp. 147–154. (in Russian)
  28. Sergeev, S.V. [Formation of rock pressure during the opening of KMA deposits]. Nauchnye vedomosti Belgorodskogo gosudarstvennogo universiteta. Seriya Estestvennye nauki, 2008, no. 3 (43), pp. 197–202. (in Russian).
  29. Sokolov, I.V., Smirnov, A.A., Antipin, Yu.G., Nikitin, I.V. [About formation of protective cushion in mining under open pit bottom with the caving methods at Udachnaya pipe]. Izvestiya Tul’skogo gosudarstvennogo universiteta. Nauki o Zemle, 2023, no. 2, pp. 322–334 (in Russian).
  30. Trubitsyn, D.S., Deshevykh, G.Yu. [Hydrogeological zoning of the territory of the southern part of the Central Federal District with clarification of the boundaries of structures of II and III orders]. Vestnik Voronezhskogo gosudarstvennogo universiteta. Seriya Geologiya, 2021, no. 2, pp. 83–93. (in Russian)
  31. Trushko, V.L., Protosenya, A.G., Dashko, R.E. G [Geomechanical and hydrogeological problems of development of the Yakovlevskoye deposit]. Zapiski Gornogo instituta, 2010, vol. 185, pp. 9–18. (in Russian)
  32. Trushko, V.L., Trushko, O.V. [Integrated development of iron ore deposits based on competitive underground geotechnologies]. Zapiski Gornogo instituta, 2021, vol. 250, pp. 569–577. (in Russian)
  33. Trushko, O.V., Streletskii, A.V. [Modeling of the stress-strain state of ore mass at the Yakovlevskii mine during mining operations under a protective cover]. Zapiski Gornogo instituta, 2012, vol. 199, pp. 60–63. (in Russian)
  34. Tyutyukova, V.A., Golubnichii, D.V., Gilyazev, D.Kh. [Determination of the Earth’s surface subsidence based on the results of joint interferometric processing of space radar sounding data from the Sentinel-1a and Sentinel-1b satellites]. Marksheideriya i nedropol’zovanie, 2023, no. 2 (124), pp. 69–75. (in Russian)
  35. Ustyugov, D.L. [Permanent hydrodynamic model of the Yakovlevskoe deposit of rich iron ores (Kursk magnetic anomaly)]. Zapiski Gornogo instituta, 2013, vol. 200, pp. 332–335. (in Russian)
  36. Anderson, M.P., Woessner, W.W., Hunt, R.J. Applied groundwater modeling simulation of flow and advective transport. Academic Press, 2nd Edition, 2015, 564 p.
  37. Gambolati, G., Teatini, P. Geomechanics of subsurface water withdrawal and injection, Water Resour. 2015, vol. 51, pp. 3922–3955.
  38. Minderhoud, P.S.J., Erkens, G., Pham, V.H. et al. Impacts of 25 years of groundwater extraction on subsidence in the Mekong delta, Vietnam. Environ. Res. Lett., 2017, no. 12(6), paper 064006, 14 р.
  39. Pratt, W.E., Johnson, D.W. Local subsidence of the Goose Creek oil field. Journal of Geology,1926, vol. 34, pp. 577–590.

补充文件

附件文件
动作
1. JATS XML
下载

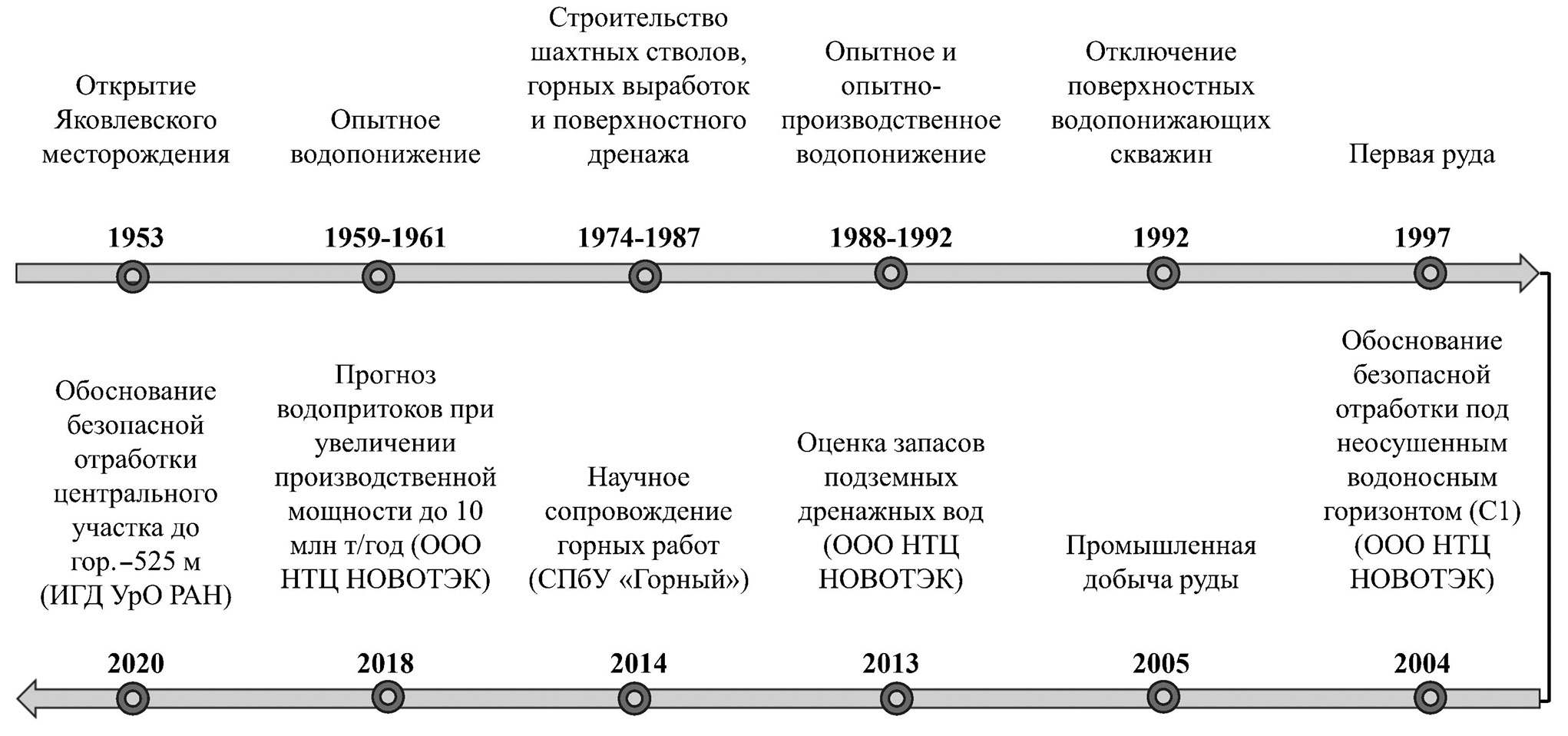

2. Fig. 1. Main stages of mining and R&D development at the Yakovlevskoye deposit.

下载 (297KB)
索引源数据

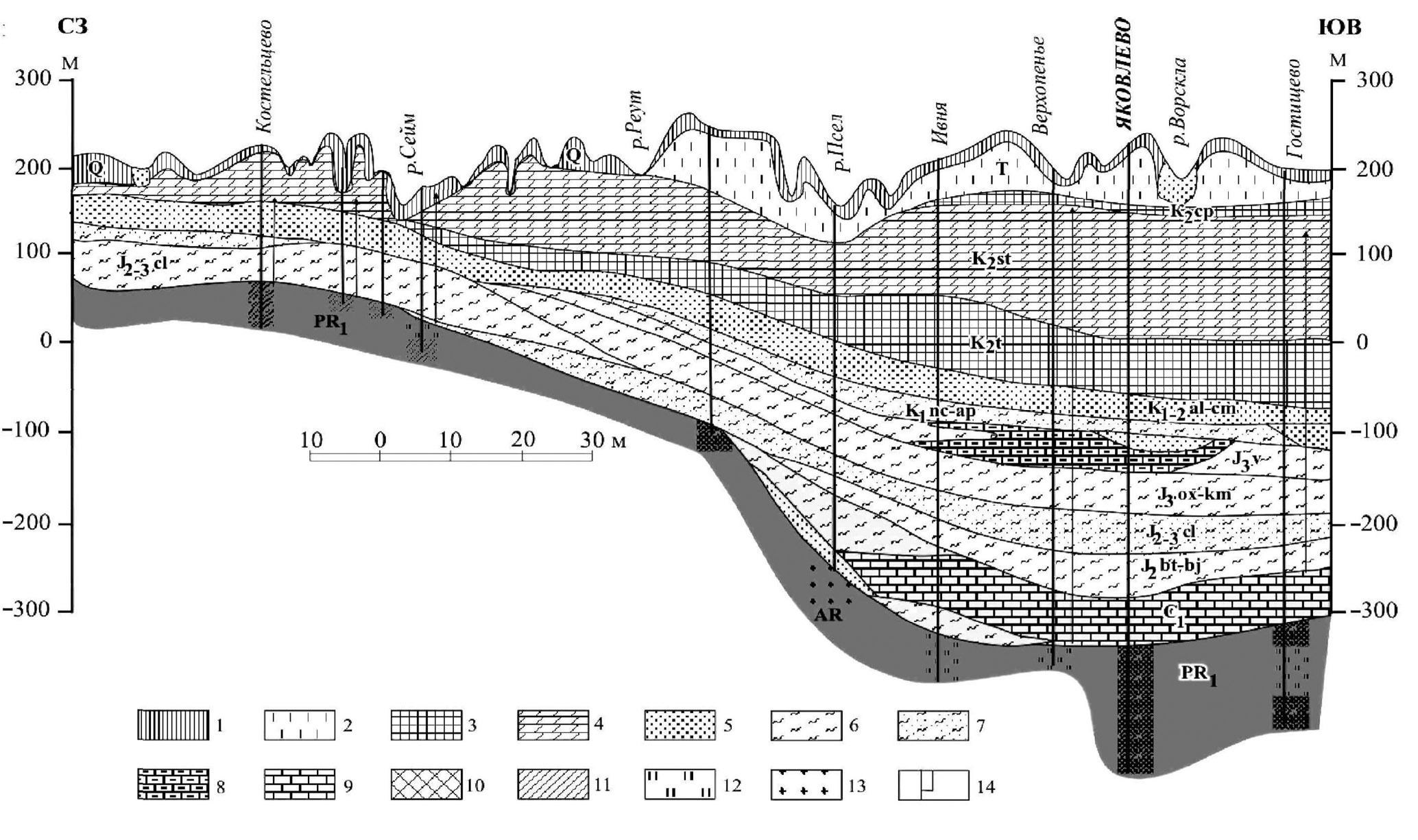

3. Fig. 2. Hydrogeological section of the Dnieper-Donets artesian basin [31]. 1 - loams; 2 - interlacing of sands and clays; 3 - chalk; 4 - marl; 5 - clays; 6 - sandy clays; 8 - sandstones; 9 - limestones; 10 ores; 11 - quartzites; 12 - crystalline schists; 13 - granites; 14 - piezometric level of aquifers.

下载 (566KB)
索引源数据

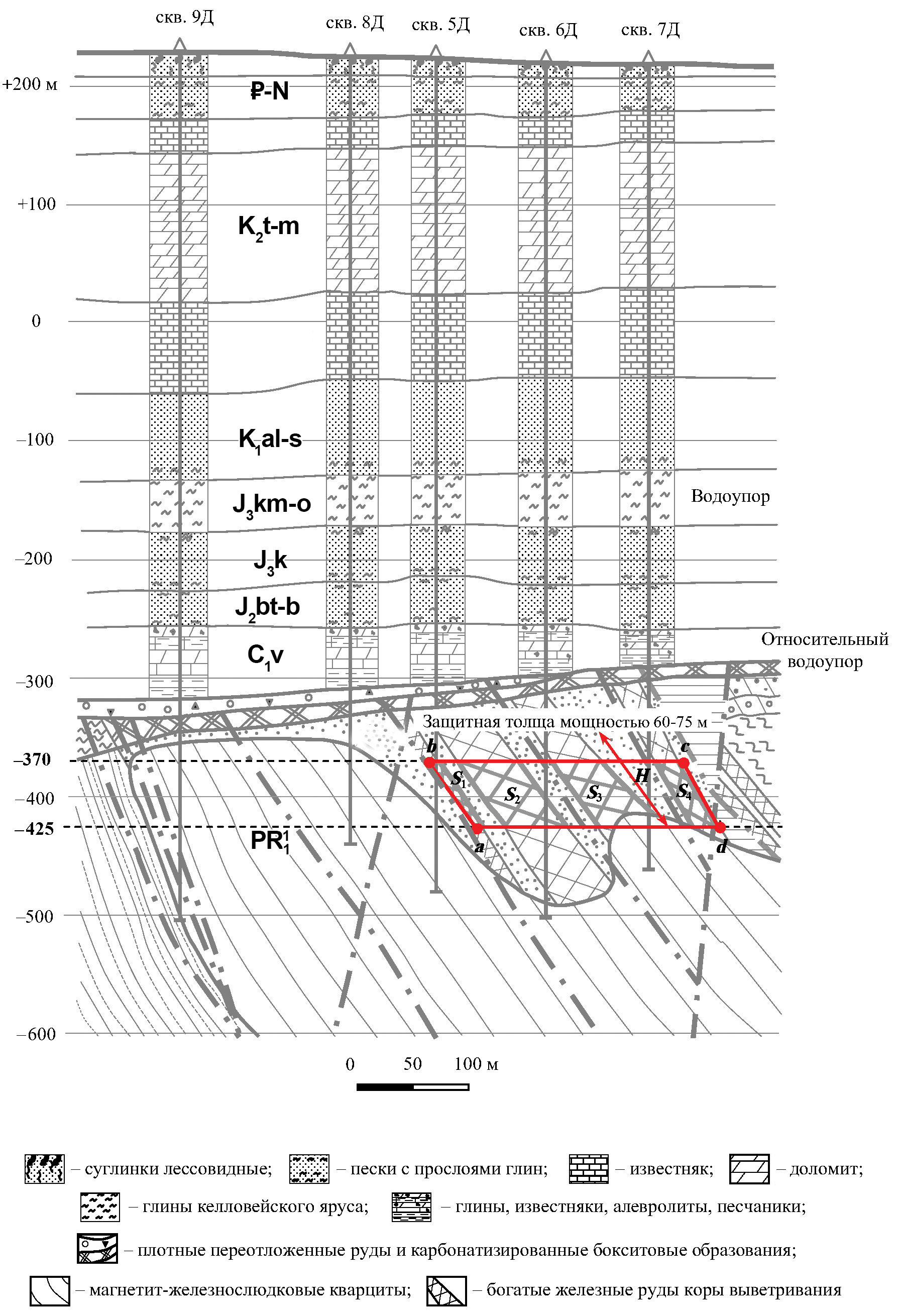

4. Fig. 3. Geological section along line 29 [9]. a, b, c, d - mining contour between -370 m and -425 m horizon; S1, S2, S3, S4 - contours of rich iron ores.

下载 (948KB)
索引源数据

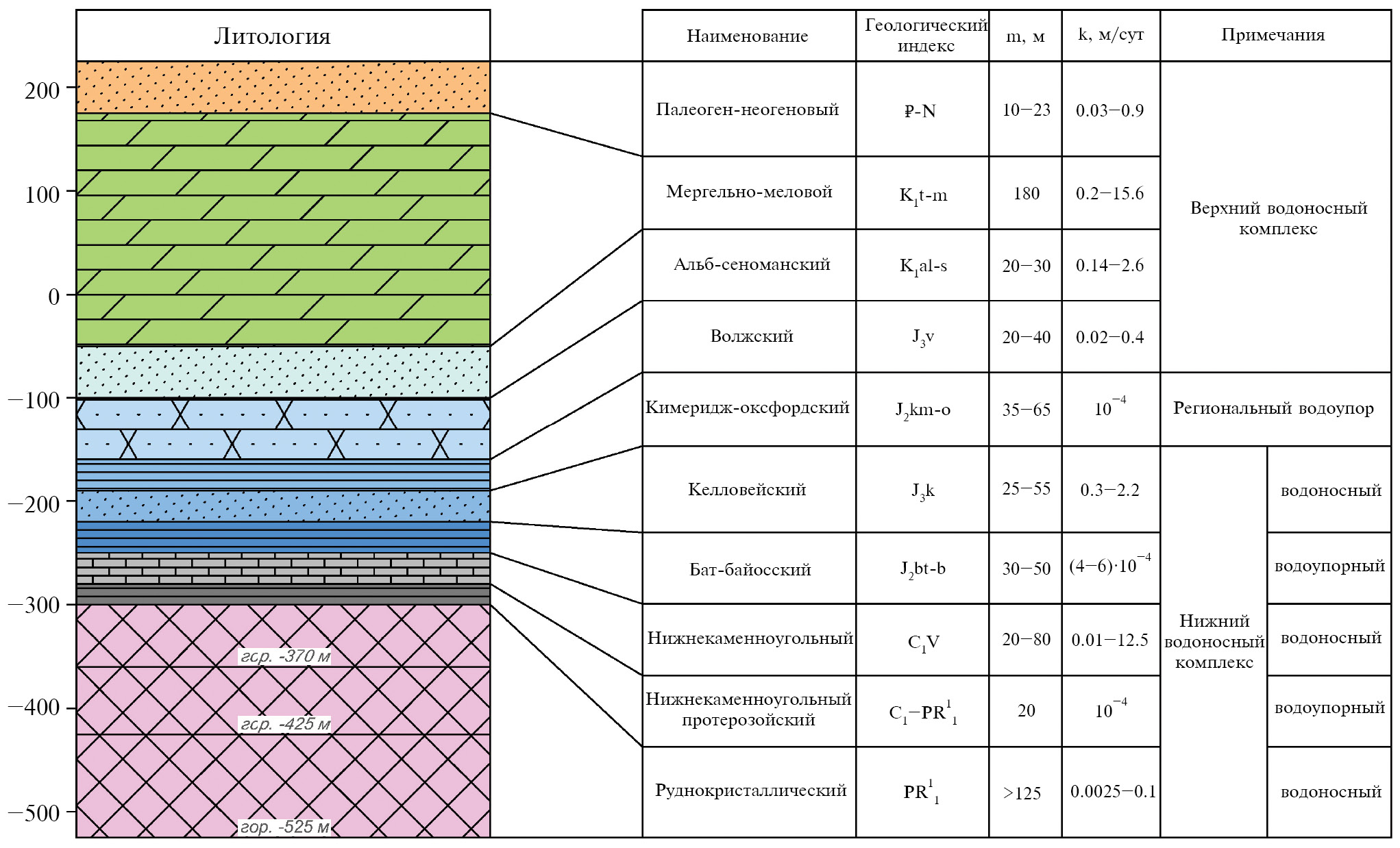

5. Fig. 4. Geofiltration scheme of the Yakovlevskoye field mining area.

下载 (481KB)
索引源数据

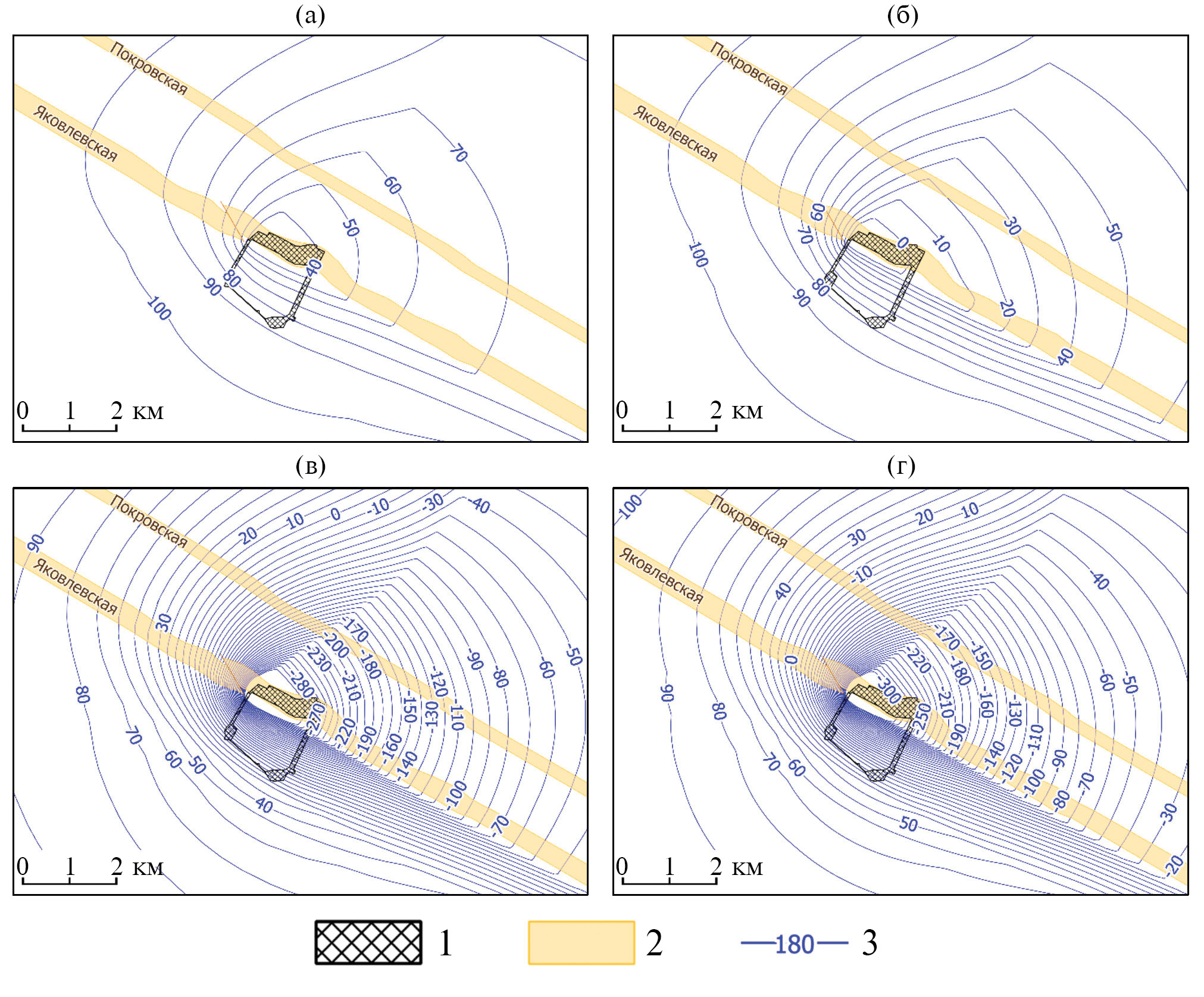

6. Fig. 5. Distribution of groundwater levels in the Lower Carboniferous aquifer (inset to the central part): a - current state; b - variant No. 1 (mining in the interval -370 ÷ -425 m); c - variant No. 2 (mining in the interval -425 ÷ -525 m); d - variant No. 3 (target mining). 1 - mine workings, 2 - iron ore strip contour, 3 - hydroisopiezas.

下载 (867KB)
索引源数据

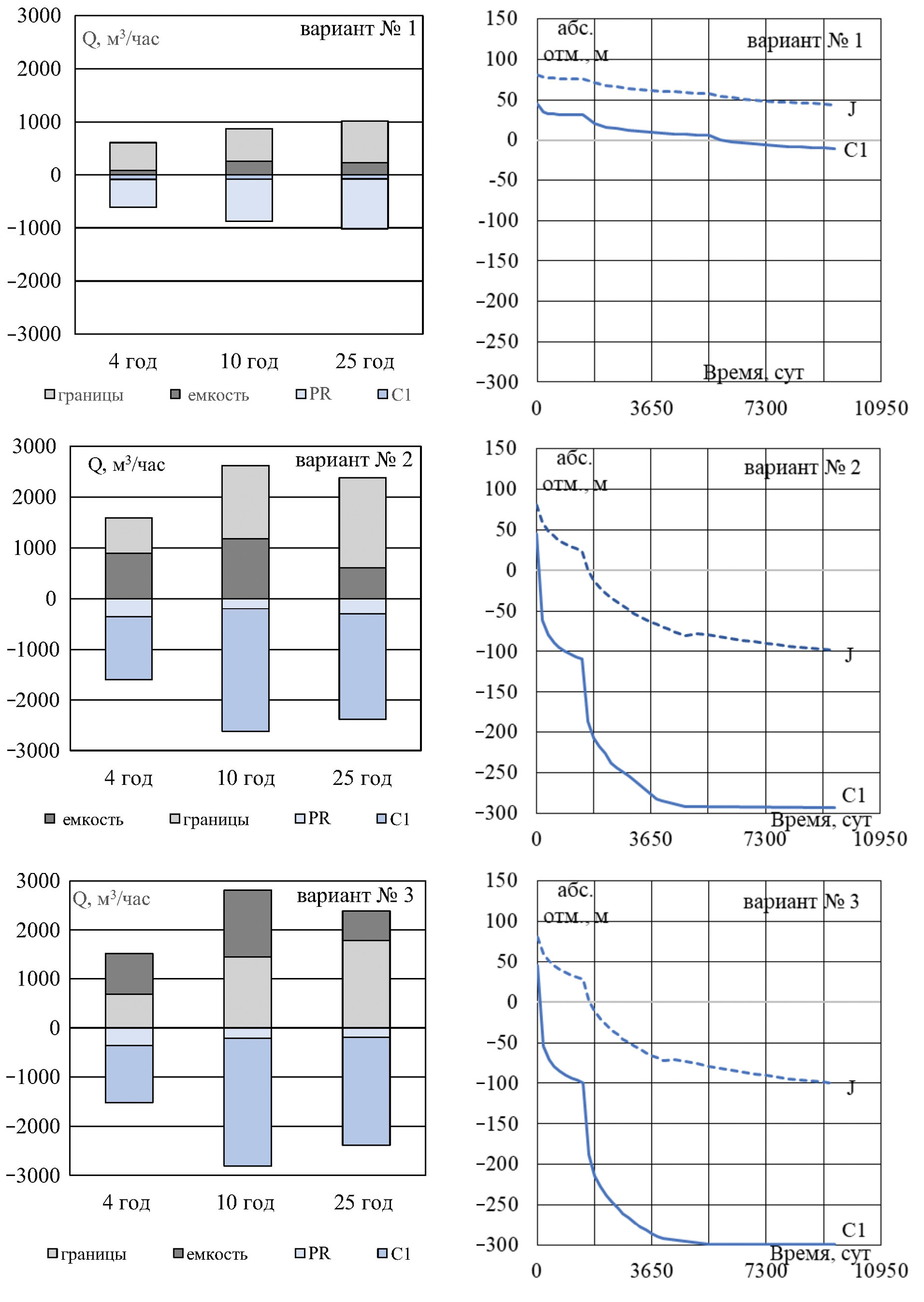

7. Fig. 6. Balance components (Q, m3/h, PR - water inflow from ore-crystalline horizon; C1 - water inflow from Lower Carboniferous horizon taking into account overflow from Kellovian horizon) and groundwater levels (abs. altitude), m, C1 - Lower Carboniferous horizon, J - Kelloggian horizon) under the following mining scenarios: variant No. 1, mining in the interval -370 ÷ -425 m; variant No. 2, mining in the interval -425 ÷ -525 m; variant No. 3, target mining.

下载 (497KB)
索引源数据

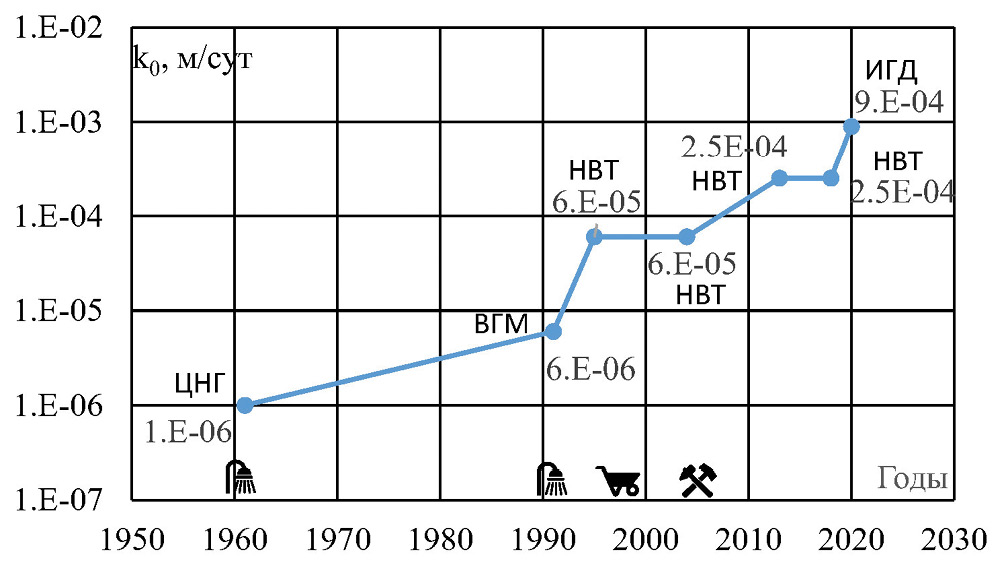

8. Fig. 7. Variation of the value of the seepage coefficient of the separating strata obtained by hydrogeological calculations. Organisation that carried out the works: TsNG - TsNIIgorosuschestvo [8]; VGM - VIOGEM [25]; NVT - NTC NOVOTEK [1, 2]; IGD - IGD Ural RAS [16].
