A POSSIBLE IMPACT OF SCENARIO EARTHQUAKES IN THE CAUCASIAN MINERAL WATERS ZONE

N. I. Frolova; Фролова Н. И.; I. P. Gabsatarova; Габсатарова И. П.; V. I. Larionov; Ларионов В. И.; S. P. Suchshev; Сущев С. П.; N. S. Malaeva; Малаева Н. С.; G. Yu. Dontsova; Донцова Г. Ю.

doi:10.31857/S0869780923040033

A POSSIBLE IMPACT OF SCENARIO EARTHQUAKES IN THE CAUCASIAN MINERAL WATERS ZONE

作者: Frolova N.¹, Gabsatarova I.², Larionov V.¹^,3, Suchshev S.³, Malaeva N.¹, Dontsova G.²
隶属关系:
1. Sergeev Institute of Environmental Geoscience, Russian Academy of Sciences
2. Geophysical Survey, Russian Academy of Sciences
3. Bauman Moscow State Technical University
期: 编号 4 (2023)
页面: 3-17
栏目: ФУНКЦИОНИРОВАНИЕ ПРИРОДНЫХ И ПРИРОДНО-ТЕХНИЧЕСКИХ СИСТЕМ
URL: https://journals.rcsi.science/0869-7809/article/view/139137
DOI: https://doi.org/10.31857/S0869780923040033
EDN: https://elibrary.ru/WXXBWW
ID: 139137

如何引用文章

全文:

开放存取

##reader.subscriptionAccessGranted##
受限制的访问

订阅存取

详细
作者简介
参考
补充文件
统计

详细

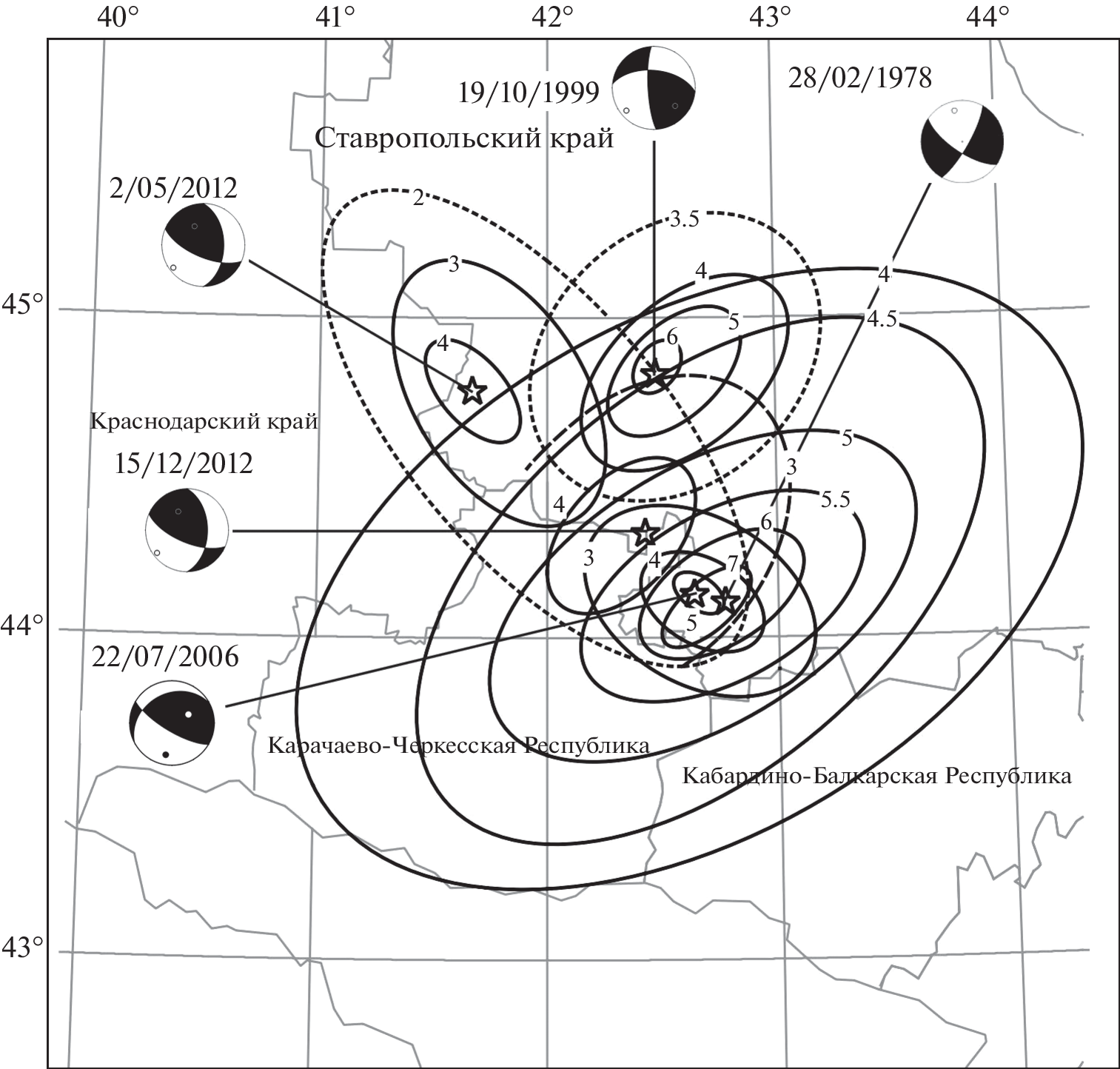

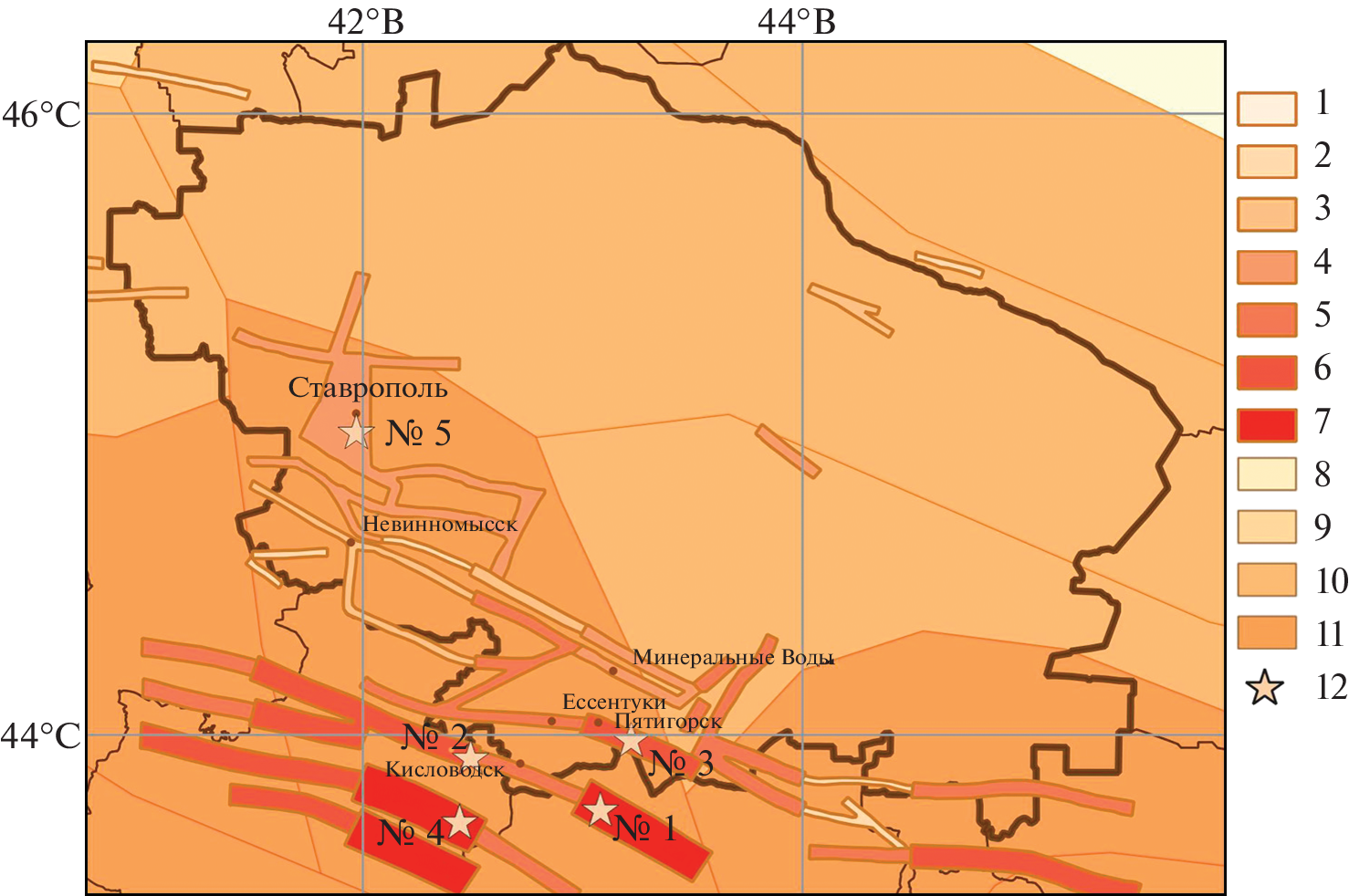

This paper analyzes a possible impact of scenario earthquakes in the zones of high seismic hazard in order to justify measures for ensuring population safety by the example of the southern Stavropol krai area. Over the past twenty years, the Central CisCaucasus region shows elevated seismicity based on the data recorded by the Geophysical Survey RAS network, reporting the occurrence of seismic events within a wide range of magnitudes, М≥1. One of the last felt events with mb = 4.4 occurred in the studied area on April 1, 2023, producing shaking intensity of 3 to 4 grades on the MSK-64 scale in large resort cities of the region. The parameters for the scenario events are based on the results of detailed seismic zoning (DSZ) and review seismic zoning (RSZ-2016) obtained by the Schmidt Institute of Physics of the Earth RAS. The Extremum system was used to assess felt effects in resort centers located in the southern Stavropol krai. We analyzed the influence of seismic intensity propagation and the parameters of macroseismic field equation on the assessed impact of the scenario earthquakes. Special attention was paid to the depths of strong and moderate events in the considered area of the Northern Caucasus and to the orientation of macroseismic isoseismals. Pre-calibration of the Extremum system loss models is recommended. Estimates of possible simulated damage due to scenario earthquakes with M=6.0 and M = 5.0 for individual large resort cities of the Kavminvody zone are given. The results can be used in the development of both preventive measures and response plans in case of possible events in the region.

关键词

Extremum system, zones of possible earthquake generation, earthquake effects, scenario events, Stavropol krai, Caucasian Mineral Waters zone

参考

Akimov, V.A., Zaitsev, V.A., Lar’kov, A.S., Lutikov, A.I. et al. Maps of seismic hazard of the Northwestern and Central Caucasus on a detailed scale. Voprosy inzhenernoi seismologii, 2019, vol. 46, no. 4, pp. 57–74. (in Russian)
Anan’in, I.V. Seismicity of the Northern Caucasus. Moscow, Nauka Publ., 1977, p. 148. (in Russian)
Babayan, T.O., Kuliev, F.T., Papalashvili,V.G., Shebalin, N.V., Vandysheva N.V. Greater Caucasus (50–1974, M ≥ 4.0, I0 ≥ 5). In: New catalogue of strong earthquakes in the USSR territory from ancient ages to 1975. Moscow, Nauka Publ., 1977, pp. 69–170. (in Russian)
Gabsatarova, I.P., Devyatkina, L.V., Ivanova, L.E. et al. Suvorovskoe earthquake on July 22, 2006 with КP = = 11.3, = 5–6 (Stavropol krai). In: Earthquakes in the Northern Eurasia, 2006. Obninsk, 2012, pp. 340–350. (in Russian)
Gabsatarova, I.P., Koroletski, L.N., Ivanova, L.E. et al. Zavetnenskoe earthquake on May 2, 2012 with Кр = = 11.2, Mwreg = 4.3, = 5 and Vorovskolesskoe-II earthquake on December 15, 2012 with Кр = 10.8, Mwreg = 4.2, = 4 (Stavropol krai). In: Earthquakes of Northern Eurasia 2012]. Obninsk, 2018, pp. 79–94. (in Russian)
Zaraiskii, M.P., Dobrychenko, A.V., Kazin, E.A. Novitskaya, N.A. Stavropol earthquake on October 2, 1971. In: Earthquakes in the USSR, 1971. Moscow, Nauka Publ., 1975, pp. 32–35. (in Russian)
Kazin, E.A. Caucasian Mineral Waters earthquake on February 28, 1978. In: Seismological bulletin of the Caucasus, 1979. Tbilisi, Metsniereba Publ., 1982, pp. 215–226. (in Russian)
Larionov, V.I., Frolova, N.I. [Peculiarities of vulnerability assessment for seismic impacts. In: Natural Hazards of Russia. Vol. 6: Assessment and management of natural risks. A.L. Ragozin, Ed., Moscow, KRUK Publ., 2003, pp. 120-130. (in Russian)
Larionov, V.I., Sushchev, S.P., Ugarov, A.N., Frolova, N.I. Seismic risk assessment using GIS technologies. In: [Natural Hazards of Russia. Vol. 6: Assessment and management of natural risks. A.L. Ragozin, Ed., Moscow, KRUK Publ., 2003, pp. 209–231. (in Russian)
Larionov, V.I., Frolova, N.I., Ugarov, A.N., Su-shchev, S.P. et al. Seismic risk assessment. Geoekologiya, 2017, no. 2, pp. 11–26. (in Russian)
Lutikov, A.I., Rogozhin, E.A, Ovsyuchenko, A.N. Seismic hazard assessment method at the initial seismicity refinement stage. In: [Modern methods of processing and interpretation of seismological data. Proc. the 3rd Intern. seismological school. Obninsk, GS RAN Publ., 2008, pp. 81–86. (in Russian)
Medvedev, S.V., Shponkhoier, V., Karnik, V. Seismic intensity scale MSK-64. Moscow, MGC AS USSR Publ., 1965, 11 p. (in Russian)
Milanovskii, E.E., Rastsvetaev, L.M., Kukhmazov, S.U., Birman, A.S. et al. The latest geodynamics of the Elbrus – Caucasian Mineral Waters region, the Northern Caucasus. In: The Caucasus geodynamics. Moscow, Nauka Publ., 1989, pp. 99–105. (in Russian)
Nikonov, A.A. Significant earthquakes and seismic potential of the Caucasian Mineral Waters region (according to macroseismic data). Fizika Zemli, 1994, no. 2, pp. 10–19. (in Russian)
Nikonov, A.A., Reisner, G.I. Assessment of the seismic potential in the Caucasus with the account of paleoseismological and seismotectonic data. In: Catastrophic processes and their impact on the natural environment. vol. 2. Seismicity. Moscow, Regional Public Organization of Scientists on Applied Geophysics Problems Publ., 2002, pp. 381–400. (in Russian)
General seismic zoning of the Russian Federation territory. Explanatory note to the set of OSR-2016 maps and a list of settlements located in seismically active zones. Inzhenernye izyskaniya, 2016, no. 7/2016, pp. 49–121. (in Russian)
Papalashvili, V.G., Bagramyan, A.Kh., Gotsadze, O.V. The Caucasus Earthquakes. In: Earthquakes in the USSR in 1978. Moscow, Nauka Publ., 1982, pp. 11-19. (in Russian)
Reisner, G.I., Ioganson, L.I., Reisner, M.G., Bara-nov, Yu.E. Typification of the Earth’s crust and modern geological processes. Moscow, IFZ Publ., 1993, 207 p. (in Russian)
Rogozhin, E.A. Modern geodynamics and potential sources of earthquakes in the Caucasus region. Modern mathematical and geological models of the natural environment, Moscow, OIFZ RAN Publ., 2002, pp. 244–254. (in Russian)
Rogozhin, E.A., Nechaev, Yu.V., Solodilov, L.N., Ismail-zade, T.A. The trend in the development of the seismicity of the Caucasus and the seismogenic zones of the Stavropol Territory. Razvedka i okhrana nedr, 1998, no. 2, pp. 23–27. (in Russian)
Rogozhin, E.A., Lutikov, A.I., Ovsyuchenko, A.N., et al. Evaluation of the seismic hazard of the Northern Caucasus on a detailed scale. Seismostoikoe stroitel’stvo. Bezopasnost’ sooruzhenii, 2013, no. 5, pp. 14–19. (in Russian)
Rogozhin, E.A., Ovsyuchenko, A.N., Lutikov, A.I., Sobisevich A.L., et al. Endogenous hazards of the Greater Caucasus. Moscow, IFZ RAN Publ., 2014, 256 p. (in Russian)
Fabritsius, V.Z., Fabritsius, Z.E., Shavkan’, P.V., et al. Upper-Yankul earthquake on October 19, 1999 with Ms = 4.4, Io = 6-7 (Northern Caucasus. In: Earthquakes of Northern Eurasia in 1999. Obninsk, FOP Publ., 2005, pp. 311–322. (in Russian)
Frolova, N.I., Gabsatarova, I.P., Lutikov, A.I., Sushchev, S.P., Malaeva, N.S. Seismic risk assessment in the Stavropol krai. Geofizicheskie protsessy i biosfera, 2022, vol. 21, no. 3, pp. 111–136. (in Russian)
Shebalin, N.V., Ershov, I.A., Shestoperov, G.S., Gekhman, A.S. [An improved version of the seismic intensity scale (MMSK-86) based on the MSK-64 and MSSSS-73 scales (final report). Moscow, MSSSS, IFZ Publ., 1986, 61 p. (in Russian)
