CHANGES IN GEODYNAMIC SITUATION MANIFESTED IN SOIL RADON AND TEMPERATURE VARIATIONS AND ABNORMAL NATURAL PHENOMENA IN THE ZONE OF KATAV-IVANOVSK EARTHQUAKE (05.09.2018), THE SOUTHERN URALS

A. K. Yurkov; Юрков А. К.; I. A. Kozlova; Козлова И. А.; S. V. Biryulin; Бирюлин С. В.; B. D. Khatskevich; Хацкевич Б. Д.

doi:10.31857/S086978092302011X

CHANGES IN GEODYNAMIC SITUATION MANIFESTED IN SOIL RADON AND TEMPERATURE VARIATIONS AND ABNORMAL NATURAL PHENOMENA IN THE ZONE OF KATAV-IVANOVSK EARTHQUAKE (05.09.2018), THE SOUTHERN URALS

Autores: Yurkov A.¹, Kozlova I.¹, Biryulin S.¹, Khatskevich B.¹
Afiliações:
1. Institute of Geophysics, Ural Branch, RAS
Edição: Nº 3 (2023)
Páginas: 47-55
Seção: ПРИРОДНЫЕ И ТЕХНОПРИРОДНЫЕ ПРОЦЕССЫ
URL: https://journals.rcsi.science/0869-7809/article/view/139131
DOI: https://doi.org/10.31857/S086978092302011X
EDN: https://elibrary.ru/TWYNMW
ID: 139131

Citar

Texto integral

Acesso aberto
Acesso é fechado

Acesso está concedido
Acesso é fechado

Somente assinantes

Resumo
Sobre autores
Bibliografia
Arquivos suplementares
Estatísticas

Resumo

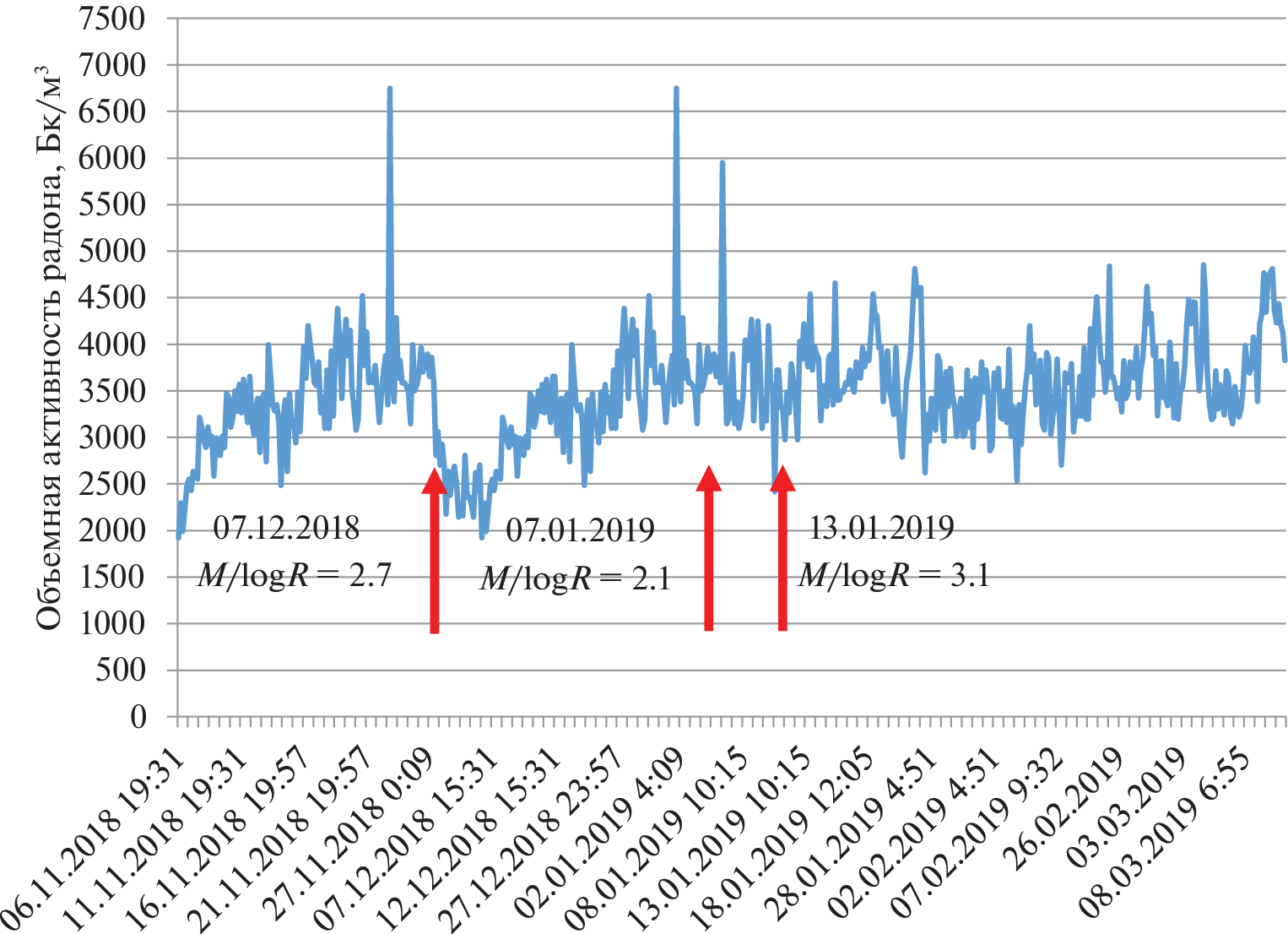

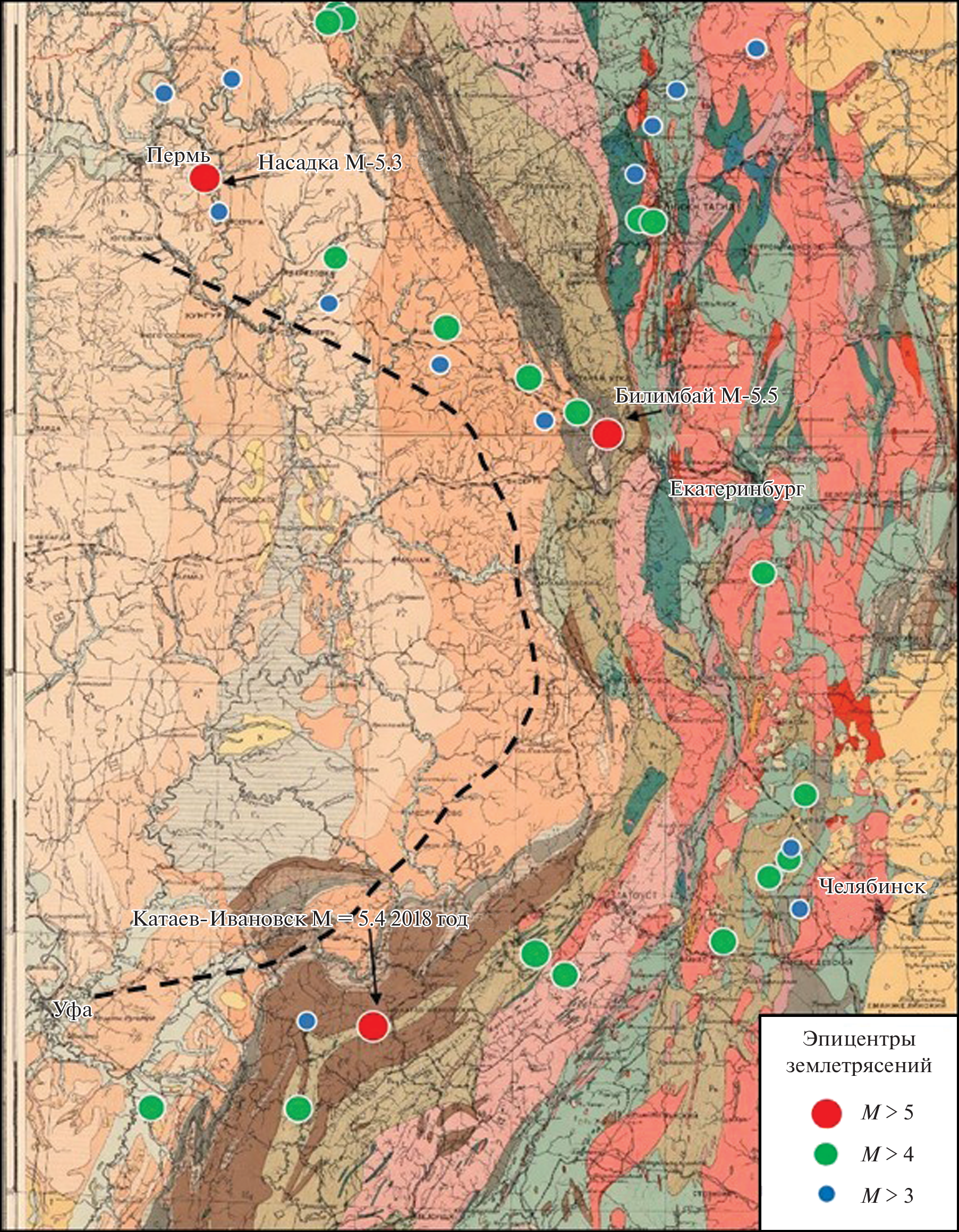

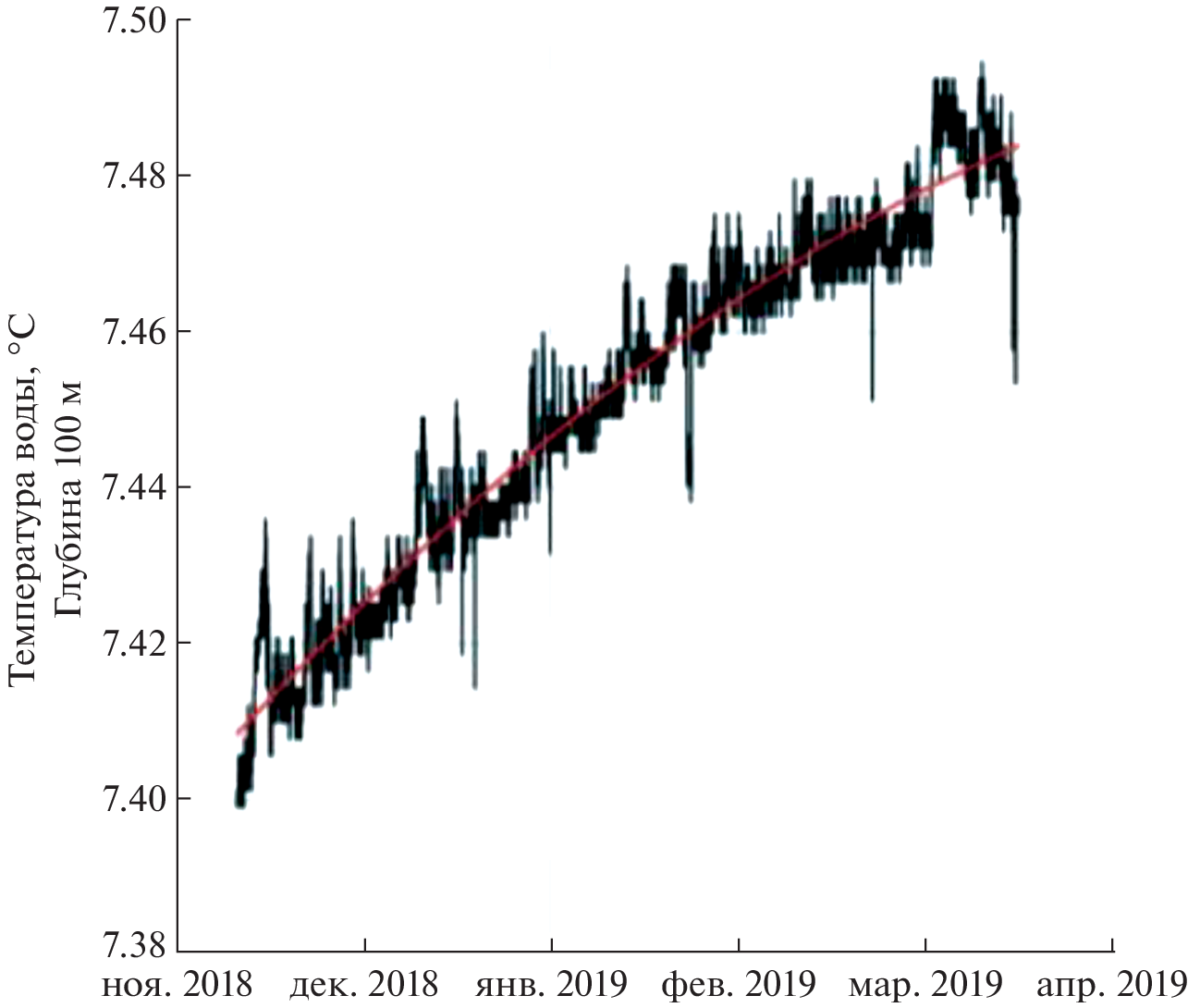

The strongest earthquake in the Urals registered during the period of instrumental observations, with a magnitude of M_L-5.4 occurred in the area of Katav-Ivanovsk city, Chelyabinsk region, on 05.09.2018. In October 2018, Institute of Geophysics, the Ural Branch RAS organized temperature and radon observations. The conducted studies have shown that the behavior patterns of the volume radon activity (VRA) established for the tectonic event preparation in the subduction zone (Southern Kuriles), are also true for the South Ural region. The natural phenomena caused by the earthquake 2018 preparation are analyzed. During the observation period from 28.11.2018 to 23.05.2019, there was an increase in temperature with a gradient of 0.02°C per month. The observed patterns of VRA abnormal behavior before aftershocks in the Katav-Ivanovsk area are typical for the compression zone in the radon monitoring area. It is noted that the assumed compression deformations were manifested in the hydrogeodynamic field at least 10 years before the event proper. The proximity of earthquake foci to the identified aseismic zone within the boundaries of the East European Platform, the Pre-Ural Regional Trough, and the Bashkir anticlinorium indicates the most likely places of seismic events. The arranged temperature and radon monitoring network in the epicentral zone by observing aftershocks has shown the possibility of tracking the earthquake preparation process.

Palavras-chave

earthquake, aftershock, monitoring, temperature, borehole, radon, Ural, aseismic zone

Bibliografia

Geological map of the Urals. M: 1:1 000 000. Compiled by: The Main Geological Exploration Department. Edited by D.V. Nalivkin, N.K. Vysotsky, 1930. http://etomesto.ru "map-atlas_geologiya_ural-1930/
Golovanova, I.V., Sal’manova, R.Yu., Tagirova, Ch.D. Otsenka temperatury glubokikh gorizontov zapadnoi chasti respubliki Bashkortostan [Deep horizons temperature assessment in the western part of the Republic of Bashkortostan]. Neftegazovoe delo, 2013, no. 2, pp. 19–31. (in Russian)
Dyagilev, R.A., Verkholantsev, F.G., Varlashova, Yu.V., et al. Katav-Ivanovskoe zemletryasenie 04.09.2018, mb = 5.4 (Ural) [Katav-Ivanovsk earthquake on 04.09.2018, mb =5.4 (Urals)]. Rossiiskii seismologiche-skii zhurnal, 2020, vol. 2, no. 2, pp. 7–20. https://doi.org/10.35540/2686-7907.2020.2.01. (in Russian)
Kozlova, I.A., Biryulin, S.V., Yurkov, A.K., Demezhko, D.Yu. Izmeneniya ob’emnoi aktivnosti pochvennogo radona i temperaturnye variatsii v skvazhine vo vremya protsessa podgotovki zemletryaseniya [Volume radon activity changes and temperature variations in the well during earthquake preparation]. Geoekologiya, 2021, no. 6, pp. 28–36. https://doi.org/10.31857/S0869780921060059. (in Russian)
Malovichko, A.A., Morozov, A.N., Vaganova, N.V. et al. Bilimbaevskoe zemletryasenie 17 avgusta 1914 g.: parametry gipotsentra po instrumental’nym dannym [The Bilimbai earthquake on August 17, 1914: the hypocenter location based on instrumental data]. Rossiiskii seismologicheskii zhurnal, 2020, vol. 2, no. 1, pp. 40–47. https://doi.org/10.35540/2686-7907.2020.1.04. (in Russian)
Kozlova, I.A., Yurkov, A.K. Otrazhenie posledovatel’nykh seismicheskikh sobytii v pole ob’emnoi aktivnosti radona [Reflection of consecutive seismic events in the field of radon volume activity]. Ural’skii geofizicheskii vestnik, 2016, no. 1 (27), pp. 35–39. (in Russian)
Ovcharenko, A.V., Davydov, V.A., Shchapov, V.A., Yurkov, A.K. Geofizicheskie issledovaniya v epitsentral’noi oblasti Katav-Ivanovskogo zemletryaseniya (05.09.2018, M5.8) [Geophysical study in the epicentral area of the Katav-Ivanovsk earthquake (05.09.2018, M5.8)]. Litosfera, 2020, no. 20 (3), pp. 4320–448. https://doi.org/10.24930/1681-9004-2020-20-3-432-448. (in Russian)
Tevelev, Al.V., Tevelev, Ark.V., Khotylev, A.O., Prudnikov, I.A., et al. Tektonicheskaya obstanovka v raione Katav-Ivanovskogo zemletryaseniya v sentyabre 2018 g. (Yuzhnyi Ural) [Tectonic situation in the area of Katav-Ivanovsk earthquake in September 2018 (the Southern Urals)]. Vestnik MGU, Ser. 4. Geologiya, 2019, no. 2, pp. 23–29. (in Russian)
Utkin, V.I., Belousova, A.A., Tyagunov, D.S., Balandin, D.V. Issledovanie geodinamiki Severnogo i Srednego Urala po dannym GPS [The study of geodynamics in the Northern and Middle Urals by GPS data]. Doklady Akademii nauk, 2010, vol. 431, no. 2, pp. 246–251. (in Russian)
Shchapov, V.A. Geotermicheskie issledovaniya Urala [Geothermal studies in the Urals]. Doctoral (Geol.-Min.) Dissertation, Yekaterinburg, 2006, 216 p. (in Russian)
Albarello, D. Short-term earthquake prediction and preparation. DPC-INGV-S3 Project, Final report. 2013. 31 p.
Favara, R., Grassa, F., Inguaggiato, S., Valenza, M. Hydrogeochemistry and stable isotopes of thermal springs: earthquake-related chemical changes along Belice Fault (Western Sicily). Applied Geochemistry, 2001, vol. 16, no. 1, pp. 1–17.
King, C.Y. Radon monitoring for earthquake prediction in China. Earthquake Prediction Research, 1985, vol. 3, no. 1, pp. 47–68.
Kuo, T., Fan, K., Kuochen, H., Han, Y. et al. Anomalous decrease in groundwater radon before the Taiwan M6.8 Chengkung earthquake. Journal of Environmental Radioactivity, 2006, vol. 88, no. 1, pp. 101–106.
Omori, Y., Yasuoka, Y., Nagahama, H., Kawada, Y. et al. Anomalous radon emanation linked to preseismic electromagnetic phenomena. Nat. Hazards Earth Syst. Sci, 2007, no. 7, pp. 629–635.
Ramola, R.C., Prasad, Y., Prasad, G., Kumar, S., Choubey, V.M. Soil-gas radon as seismotectonic indicator in Garhwal Himalaya. Applied Radiation and Isotopes, 2008, vol. 66, no. 10, pp. 1523–1530.
Walia, V., Lin, S.J., Hong, W.L., Fu, C.C. et al. Continuous temporal soil-gas composition variations for earthquake precursory studies along Hsincheng and Hsinhua faults in Taiwan. Radiation Measurements, 2009, vol. 44, no. 9–10, pp. 934–939.
