First Experiments on Reduction the Heat Load on the Divertor Plates
of the Globus-M2 Tokamak Using Nitrogen Seeding
and Their Comparison with Simulation Results

N. S. Zhiltsov; Жильцов Н. С.; E. O. Kiselev; Киселев Е. О.; G. S. Kurskiev; Курскиев Г. С.; V. B. Minaev; Минаев В. Б.; I. V. Miroshnikov; Мирошников И. В.; P. A. Molchanov; Молчанов П. А.; A. N. Novokhatsky; Новохацкий А. Н.; Yu. V. Petrov; Петров Ю. В.; V. A. Rozhansky; Рожанский В. А.; N. V. Sakharov; Сахаров Н. В.; A. Yu. Telnova; Тельнова А. Ю.; V. M. Timokhin; Тимохин В. М.; E. E. Tkachenko; Ткаченко Е. Е.; V. A. Tokarev; Токарев В. А.; E. A. Tukhmeneva; Тюхменева Е. А.; P. B. Shchegolev; Щеголев П. Б.; N. A. Khromov; Хромов Н. А.; N. N. Bakharev; Бахарев Н. Н.; E. O. Vekshina; Векшина Е. О.; V. K. Gusev; Гусев В. К.; K. V. Dolgova; Долгова К. В.

doi:10.31857/S0367292123601029

First Experiments on Reduction the Heat Load on the Divertor Plates of the Globus-M2 Tokamak Using Nitrogen Seeding and Their Comparison with Simulation Results

Authors: Zhiltsov N.S.¹, Kiselev E.O.¹, Kurskiev G.S.¹, Minaev V.B.¹, Miroshnikov I.V.¹, Molchanov P.A.², Novokhatsky A.N.¹, Petrov Y.V.¹, Rozhansky V.A.³, Sakharov N.V.¹, Telnova A.Y.¹, Timokhin V.M.³, Tkachenko E.E.¹, Tokarev V.A.¹, Tukhmeneva E.A.¹, Shchegolev P.B.¹, Khromov N.A.¹, Bakharev N.N.¹, Vekshina E.O.³, Gusev V.K.¹, Dolgova K.V.³
Affiliations:
1. Ioffe Institute, Russian Academy of Sciences
2. Peter the Great Saint Petersburg Polytechnic University
3. Peter the Great St. Petersburg Polytechnic University
Issue: Vol 49, No 12 (2023)
Pages: 1327-1336
Section: ТОКАМАКИ
URL: https://journals.rcsi.science/0367-2921/article/view/233142
DOI: https://doi.org/10.31857/S0367292123601029
EDN: https://elibrary.ru/CFFAWX
ID: 233142

Cite item

Full Text

Open Access
Restricted Access

Access granted
Restricted Access

Subscription Access

Abstract
About the authors
References
Supplementary files
Statistics

Abstract

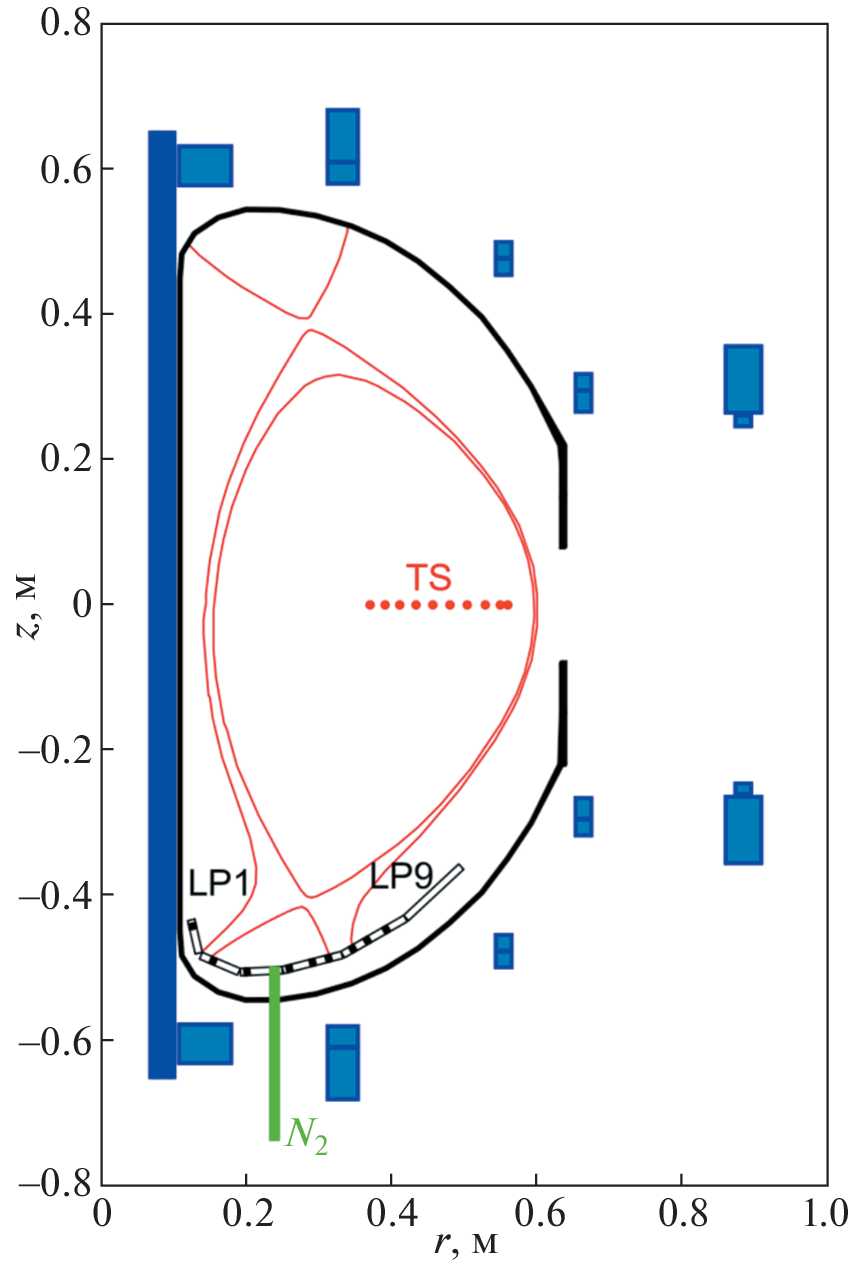

At the compact spherical Globus-M2 tokamak, a series of experiments was conducted to study the
effect of the injection of nitrogen on the discharge parameters. The experiments were carried out in discharges
in deuterium in the divertor configuration, and the auxiliary heating was performed by deuterium

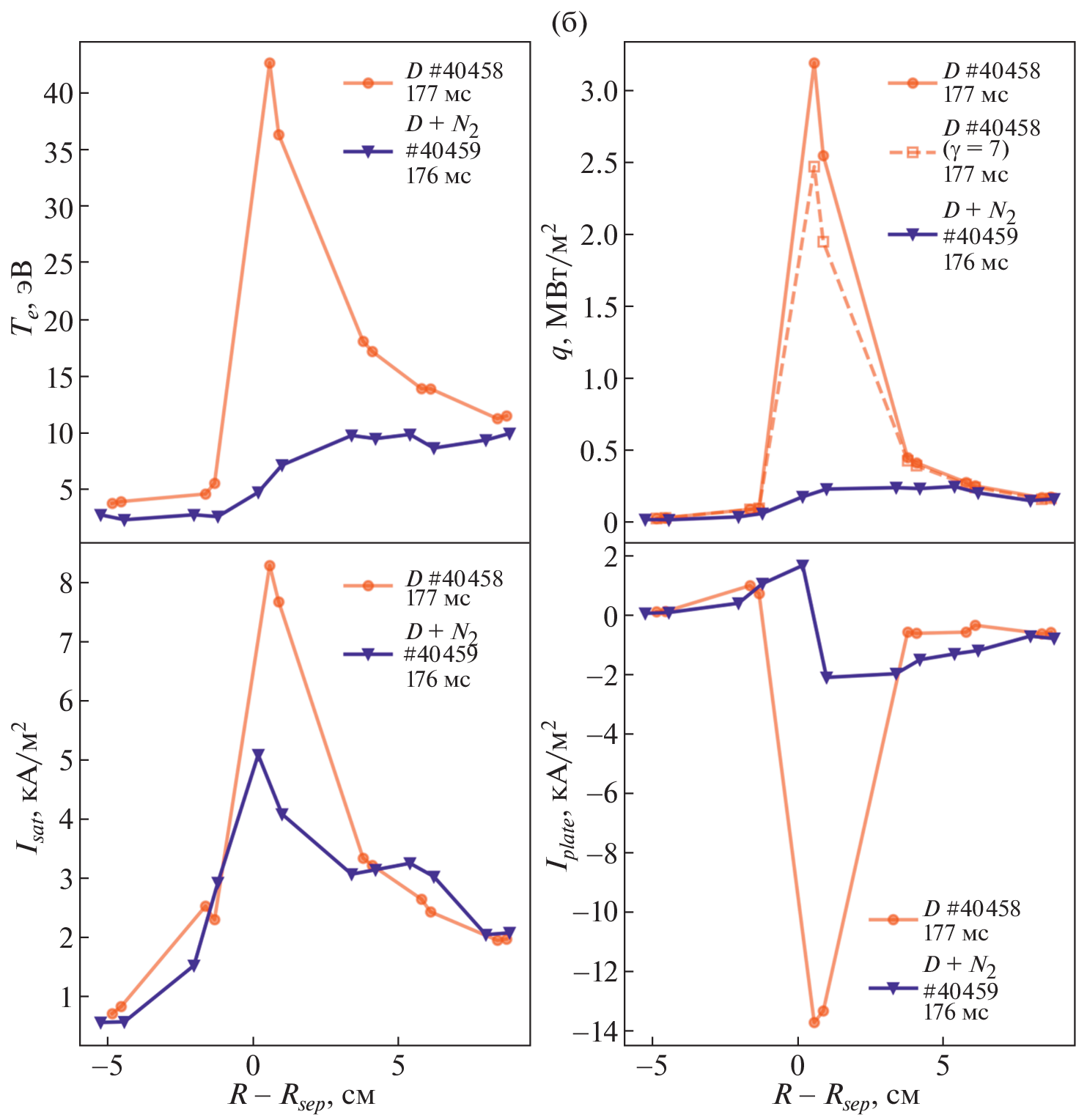

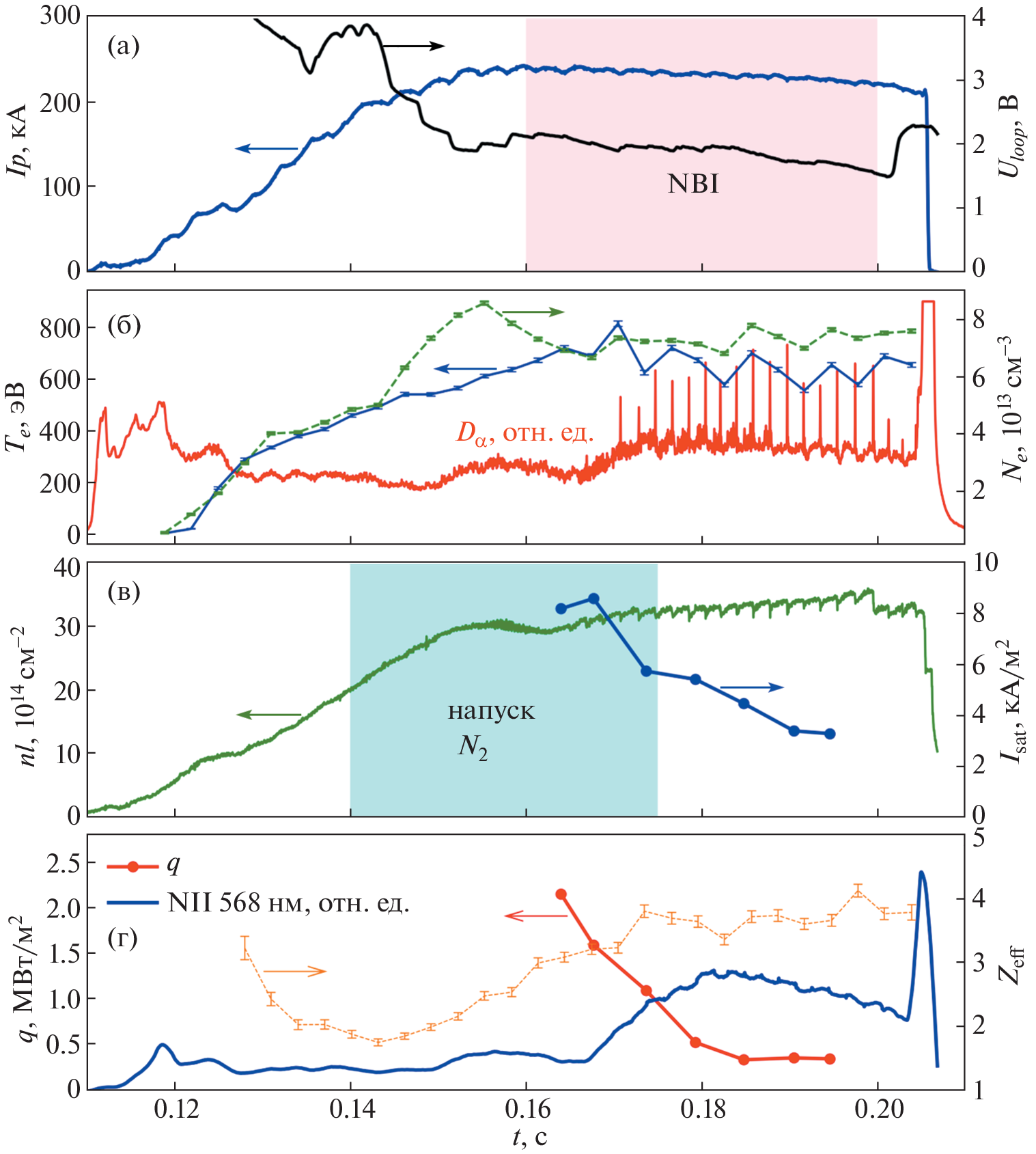

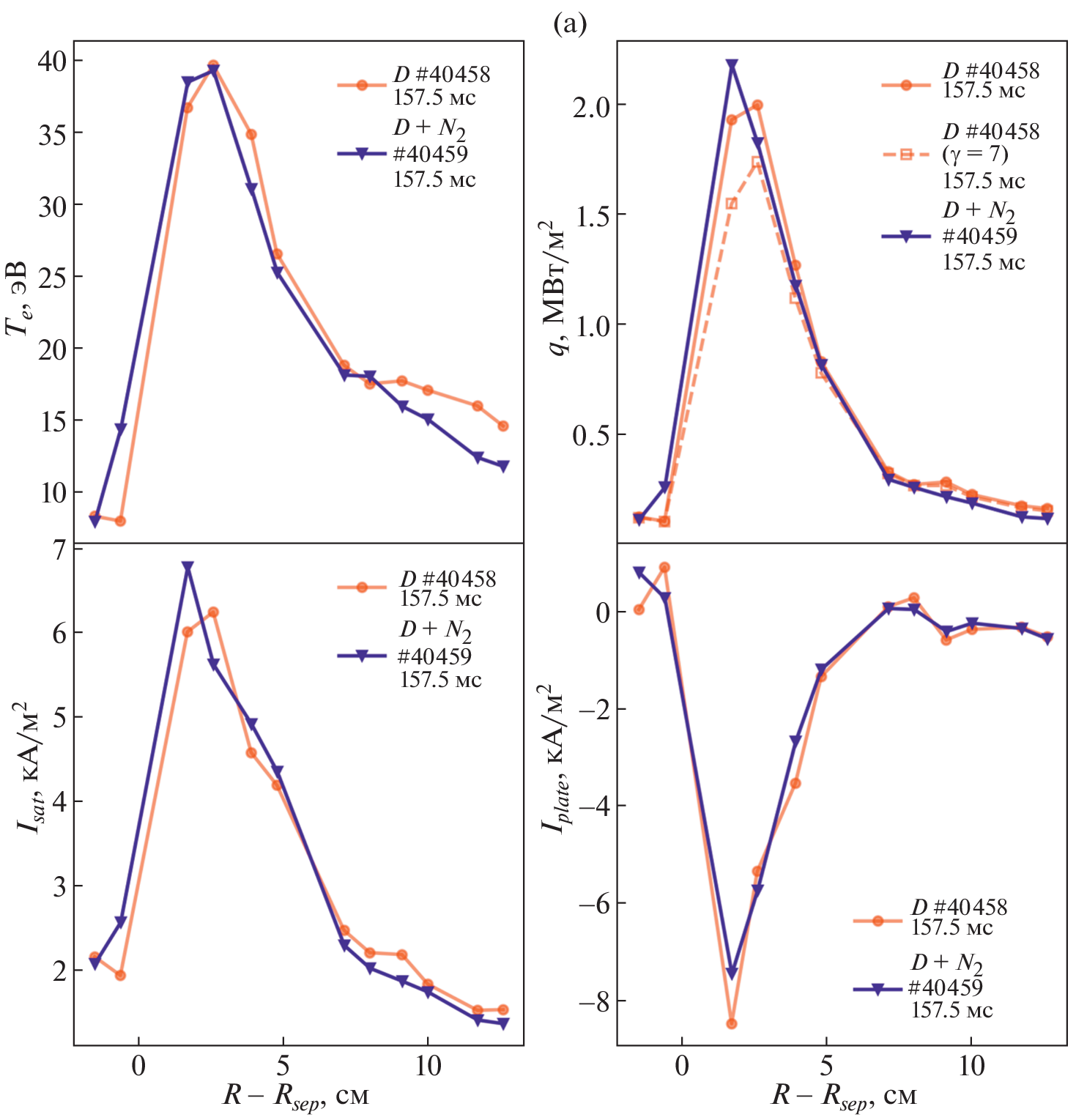

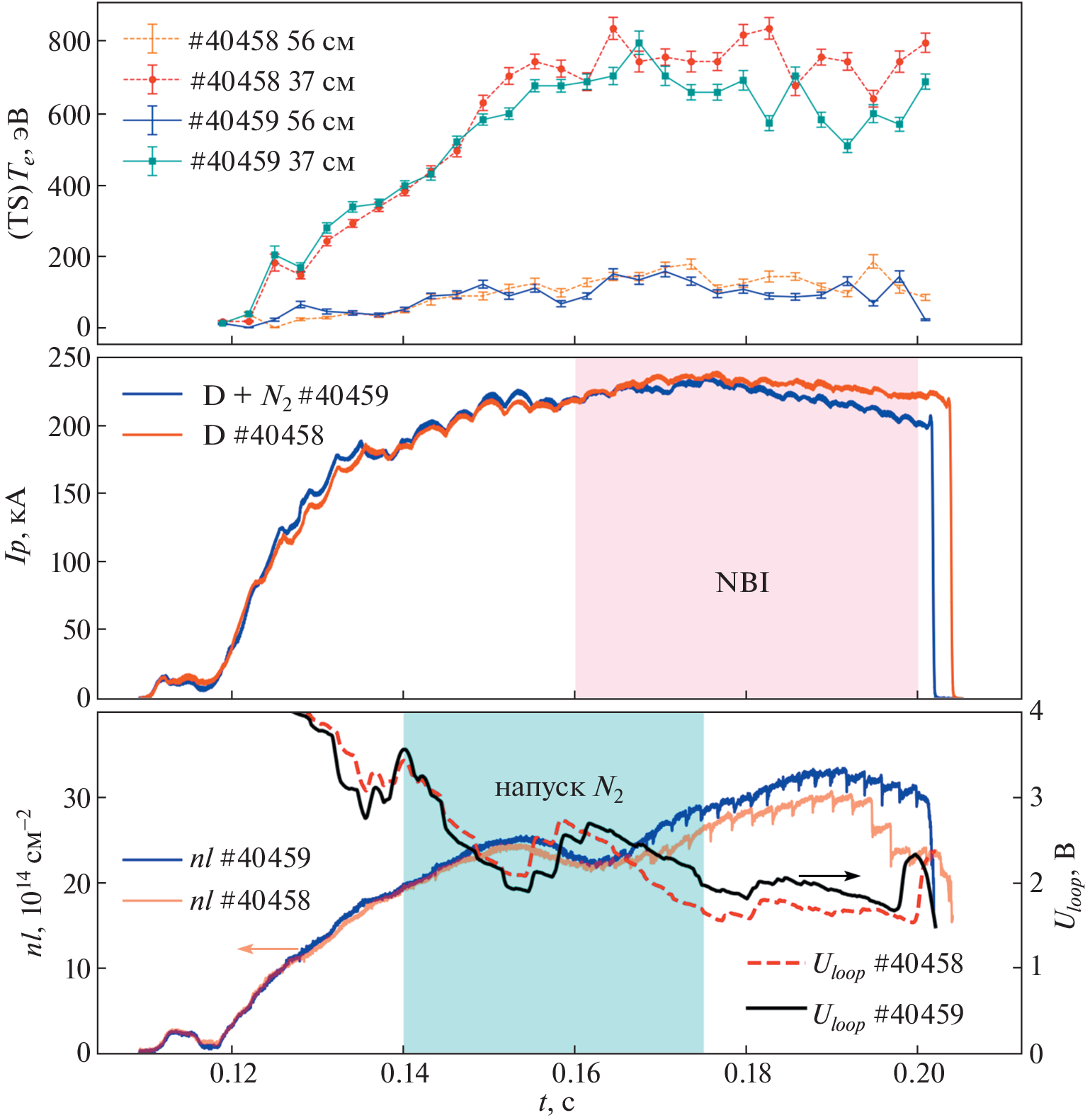

neutral beam injection. During the nitrogen seeding, a substantial decrease in electron temperature near the
divertor was recorded as well as a sharp decrease of the heat flux onto the divertor plate, while the density and

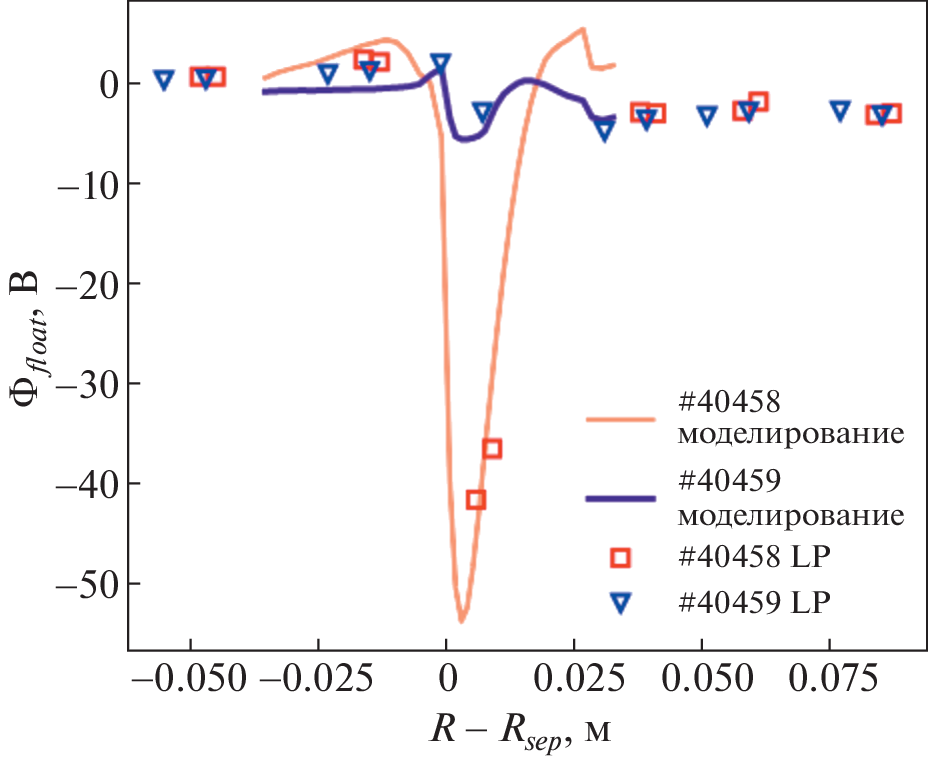

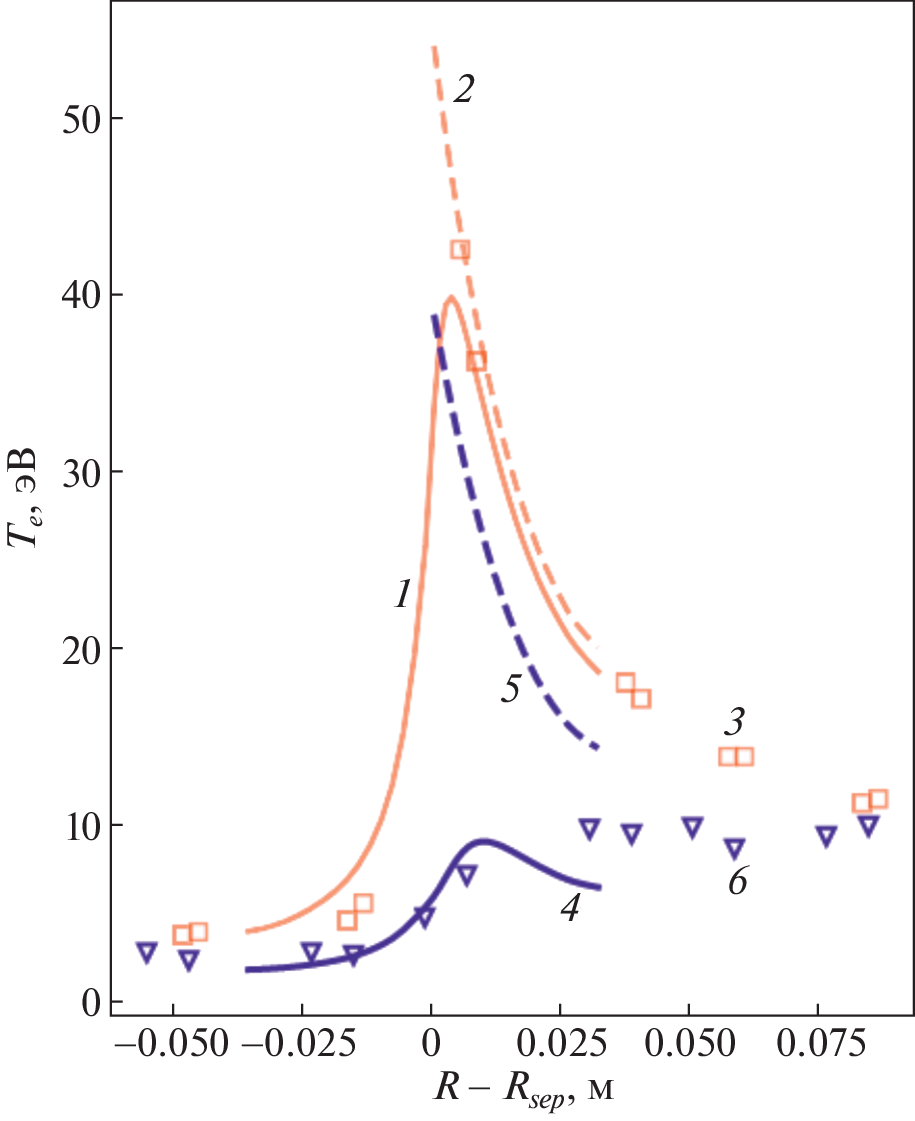

temperature of the main plasma changed insignificantly. Simulations by the SOLPS-ITER showed a satisfactory
agreement with the experiment.

Keywords

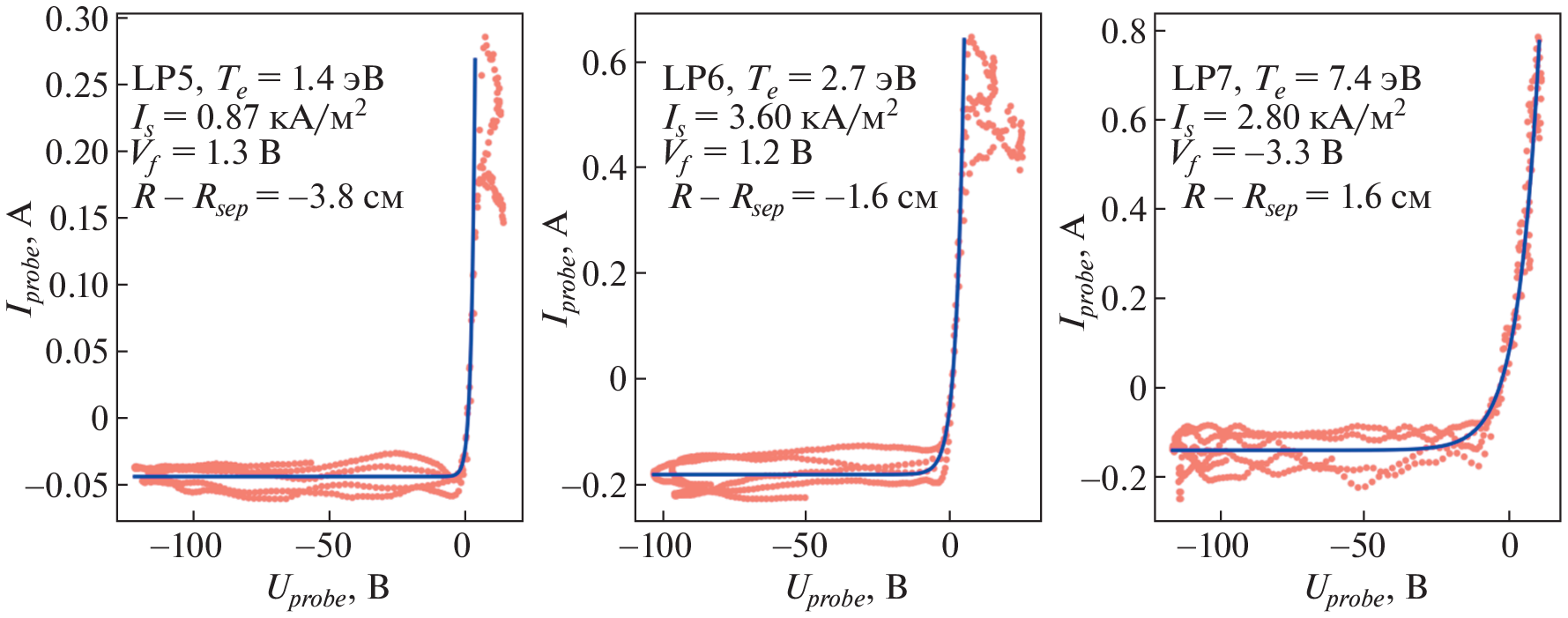

tokamak, divertor, near-wall plasma, Langmuir probes, impurity seeding

References

Kukushkin A.S., Pacher H.D., Loarte A., Komarov V., Kotov V., Merola M., Pacher G.W. and Reiter D. // Nucl. Fusion. 2009. V. 49. № 7. P. 075008. https://doi.org/10.1088/0029-5515/49/7/075008
Leonard A.W. // Plasma Phys. Control. Fusion. 2018. V. 60. № 4. 044001 https://doi.org/10.1088/1361-6587/aaa7a9
Reimold F., Wischmeier M., Bernert M., Potzel S., Kallenbach A., Müller H.W., Sieglin B., Stroth U. and the ASDEX Upgrade Team // Nucl. Fusion. 2015. V. 55. № 3. P. 033004. https://doi.org/10.1088/0029-5515/55/3/033004
Komm M., Khodunov I., Cavalier J., Vondracek P., Henderson S., Seidl J., Horacek J., Naydenkova D., Ada-mek J., Bilkova P., Bohm P., Devitre A., Dimitrova M., Elmore S., Faitsch M., Hacek P., Havlicek J., Havra-nek A., Imrisek M., Krbec J., Peterka M., Panek R., Samoylov O., Sos M., Tomes M., Tomova K., Weinzettl V. and The EUROfusion MST1 Team // Nucl. Fusion. 2019. V. 59. № 10. P. 106035. https://doi.org/10.1088/1741-4326/ab34d2
Kallenbach A., Bernert M., Dux R., Casali L., Eich T., Giannone L., Herrmann A., McDermott R., Mlynek A., Müller H.W., Reimold F., Schweinzer J., Sertoli M., Tardini G., Treutterer W., Viezzer E., Wenninger R., Wischmeier M. and the ASDEX Upgrade Team. // Plasma Phys. Control. Fusion. 2013. V. 55. № 12. P. 124041. https://doi.org/10.1088/0741-3335/55/12/124041
Курскиев Г.С., Жильцов Н.С., Коваль А.Н., Кор-нев А.Ф., Макаров А.М., Мухин Е.Е., Петров Ю.В., Сахаров Н.В., Соловей В.А., Ткаченко Е.Е., Толстяков С.Ю., Чернаков П.В. // Письма в ЖТФ. 2021. Т. 47. Вып. 24. С. 41. https://doi.org/10.21883/PJTF.2021.24.51799.19019
Counsell G.F., Ahn J.-W., Akers R., Arends E., Fiel-ding S.J., Helander P., Kirk A., Meyer H., Tabasso A., Wilson H., Yang. Y. // J. Nucl. Mater. 2003. V. 313–316. № 3. P. 804. https://doi.org/10.1016/S0022-3115(02)01439-3
Хромов Н.А., Векшина Е.О., Гусев В.К., Литунов-ский Н.В., Патров М.И., Петров Ю.В., Саха-ров Н.В. // ЖТФ. 2021. Т. 91. Вып. 3. С. 421. https://doi.org/10.21883/JTF.2021.03.50518.227-20
Février O., Theiler C., De Oliveira H., Labit B., Fedorczak N., Baillod A. // Review of Scientific Instruments. 2018. V. 89. № 5. P. 053502. https://doi.org/10.1063/1.5022459
Kuang A.Q., Brunner D., LaBombard B., Leccacorvi R., Vieira R.// Review of Scientific Instruments. 2018. V. 89. № 4. P. 043512. https://doi.org/10.1063/1.5023905
Loarte A., Monk R.D., Martin-Solis J.R., Campbell D.J., Chankin A.V., Clement S., Davies S.J., Ehrenberg J., Erents S.K., Guo H.Y., Harbour P.J., Horton L.D., Inges-son L.C., J¨ackel H., Lingertat J., Lowry C.G., Mag-gi C.F., Matthews G.F., McCormick K., O’Brien D.P., Reichle R., Saibene G., Smith R.J., Stamp M.F., Stork D., Vlases G.C. // Nucl. Fusion. 1998. V. 38. № 3. P. 331. https://doi.org/10.1088/0029-5515/38/3/303
Stangeby P.C. The Plasma Boundary of Magnetic FusionDevices (IoP Publishing, Bristol), 2000.
Antar G.Y., Counsell G., Ahn J.-W., Yang Y., Price M., Tabasso A., Kirk A. // Phys. Plasmas. 2005. V. 12. № 3. 032506. https://doi.org/10.1063/1.1861894
Stangeby P.C., McCracken G.M. // Nucl. Fusion. 1990. V. 30. № 7. 1225. https://doi.org/10.1088/0029-5515/30/7/005
Eich T., Leonard A.W., Pitts R.A., Fundamenski W., Goldston R.J., Gray T.K., Herrmann A., Kirk A., Kallenbach A., Kardaun O., Kukushkin A.S., LaBombard B., Maingi R., Makowski M.A., Scarabosio A., Sieglin B., Terry J., Thornton A. // Nucl. Fusion. 2013. V. 53. № 9. P. 093031. https://doi.org/10.1088/0029-5515/53/9/093031
Loarte A., Hughes J.W., Reinke M.L., Terry J.L., LaBom-bard B., Brunner D., Greenwald M., Lipschultz B., Ma Y., Wukitch S., Wolfe S. // Phys. Plasmas. 2011. V. 18. № 5. P. 056105. https://doi.org/10.1063/1.3567547
Kallenbach A., Dux R., Fuchs J.C., Fischer R., Geiger B., Giannone L., Herrmann A., Lunt T., Mertens V., McDermott R., Neu R., Pütterich T., Rathgeber S., Rohde V., Schmid K., Schweinzer J., Treutterer W. and ASDEX Upgrade Team // Plasma Phys. Control. Fusion. 2010. V. 52. № 5. P. 055002. https://doi.org/10.1088/0741-3335/52/5/055002
Rozhansky V., Kaveeva E., Senichenkov I., Sytova E., Veselova I., Voskoboynikov S., Coster D. // Contrib. Plasma Phys. 2018. V. 58. № 6–8. P. 540. https://doi.org/10.1002/ctpp.201700119
Vekshina E., Dolgova K., Rozhansky V., Kaveeva E., Se-nichenkov I ., Molchanov P., Timokhin V., Khromov N., Zhiltsov N., Bakharev N., Kiselev E., Tuhmeneva E. // Phys. Plasmas. 2023. V. 30. № 042504. https://doi.org/10.1063/5.0134542
Khodunov I., Komm M., Havranek A., Adamek J., Bohm P., Cavalier J., Seidl J., Devitre A., Dimitrova M., Elmore S., Faitsch M., Hacek P., Havlicek J., Hron M., Imrisek M., Krbec J., Peterka M., Panek R., Samoy-lov O., Tomes M., Tomova K., Vondracek P., Weinzettl V. and the EUROfusion MST1 Team // Plasma Phys. Control. Fusion. 2021. V. 63. № 6. P. 065012. https://doi.org/10.1088/1361-6587/abf03e
