Study of Quality of Thermodiffusion Welding of Crystals in Disk Optical Element by Optoacoustic Method
- Authors: Kazakov V.V.1, Mukhin I.B.1, Kurnikov A.A.1, Subochev P.V.1
-
Affiliations:
- Applied Physics Institute, Russian Academy of Sciences
- Issue: Vol 70, No 2 (2024)
- Pages: 273-282
- Section: ФИЗИЧЕСКИЕ ОСНОВЫ ТЕХНИЧЕСКОЙ АКУСТИКИ
- URL: https://journals.rcsi.science/0320-7919/article/view/261610
- DOI: https://doi.org/10.31857/S0320791924020143
- EDN: https://elibrary.ru/YMUCGO
- ID: 261610
Cite item
Abstract

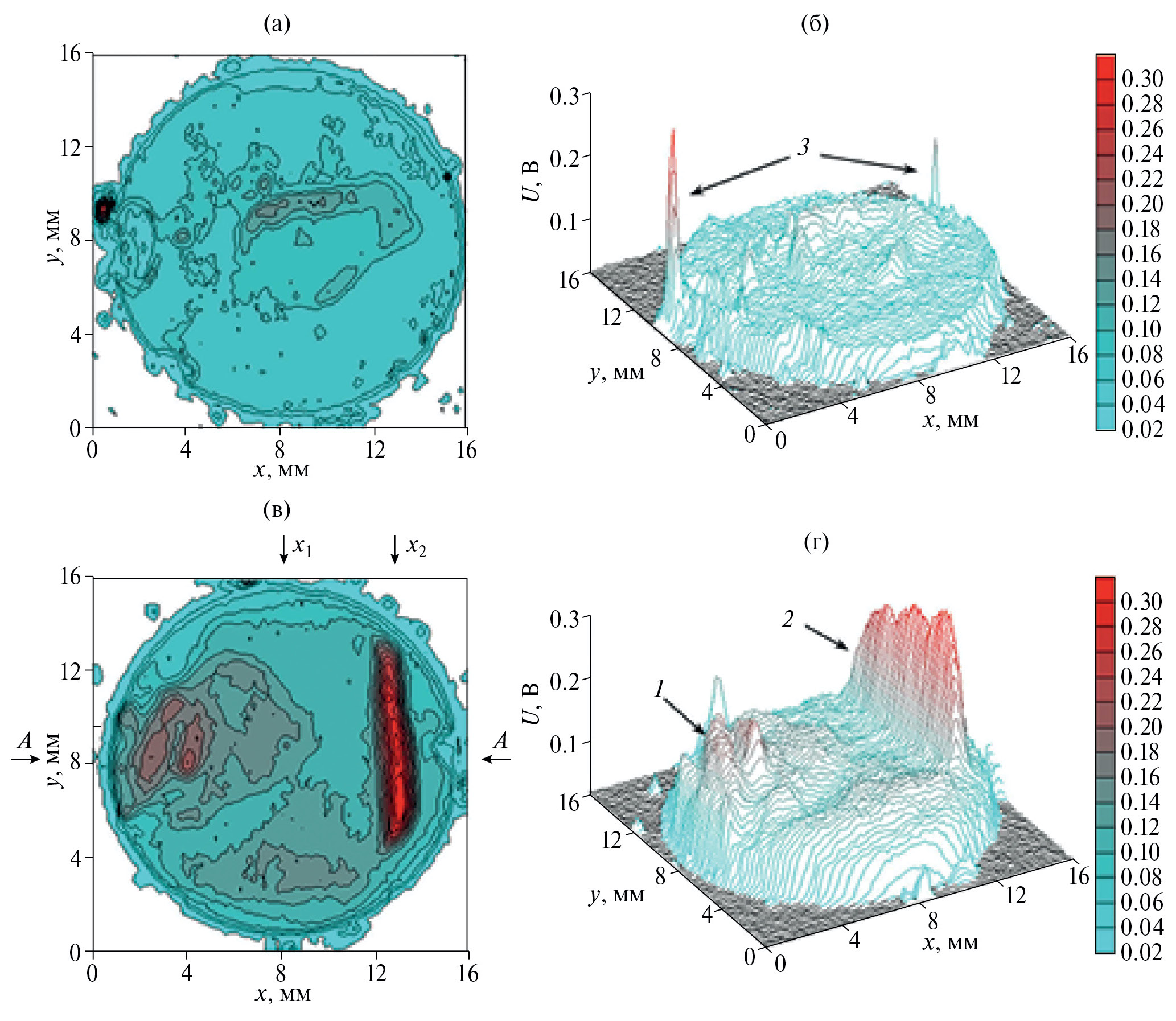

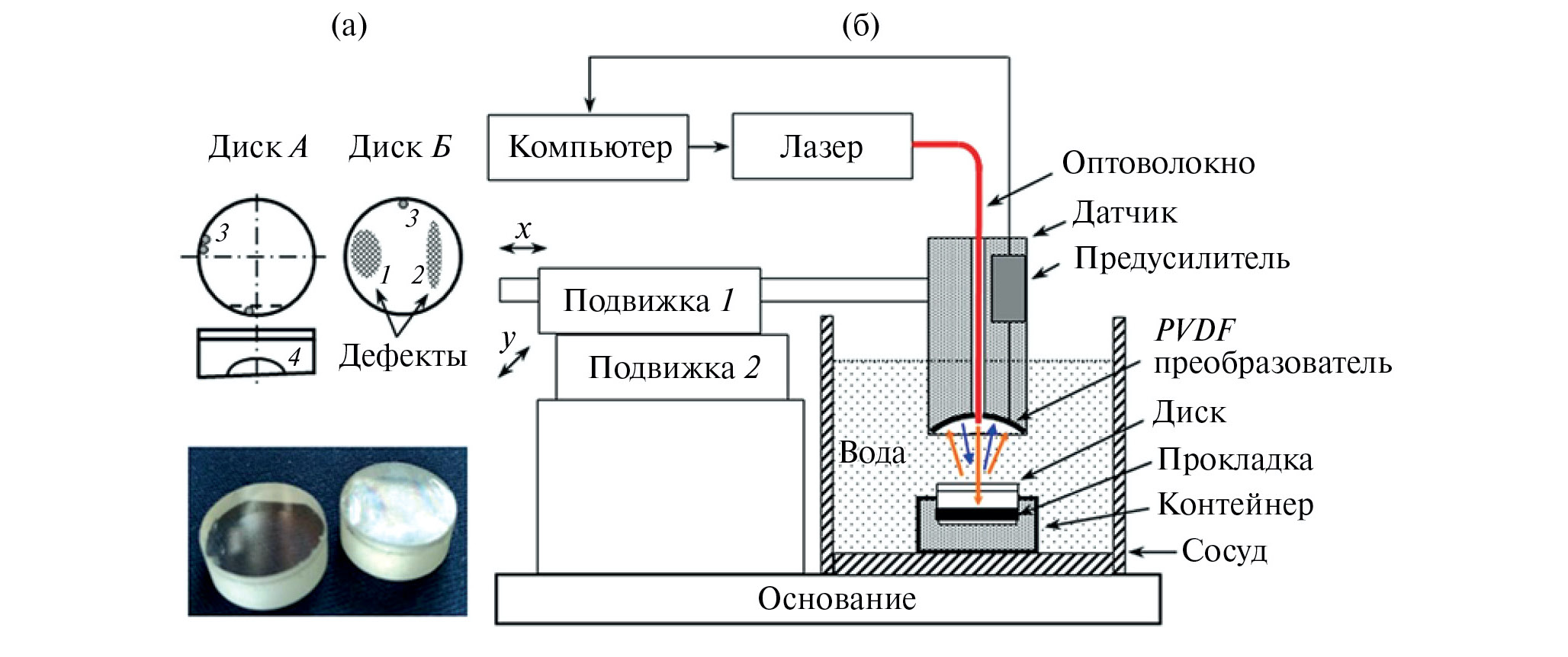

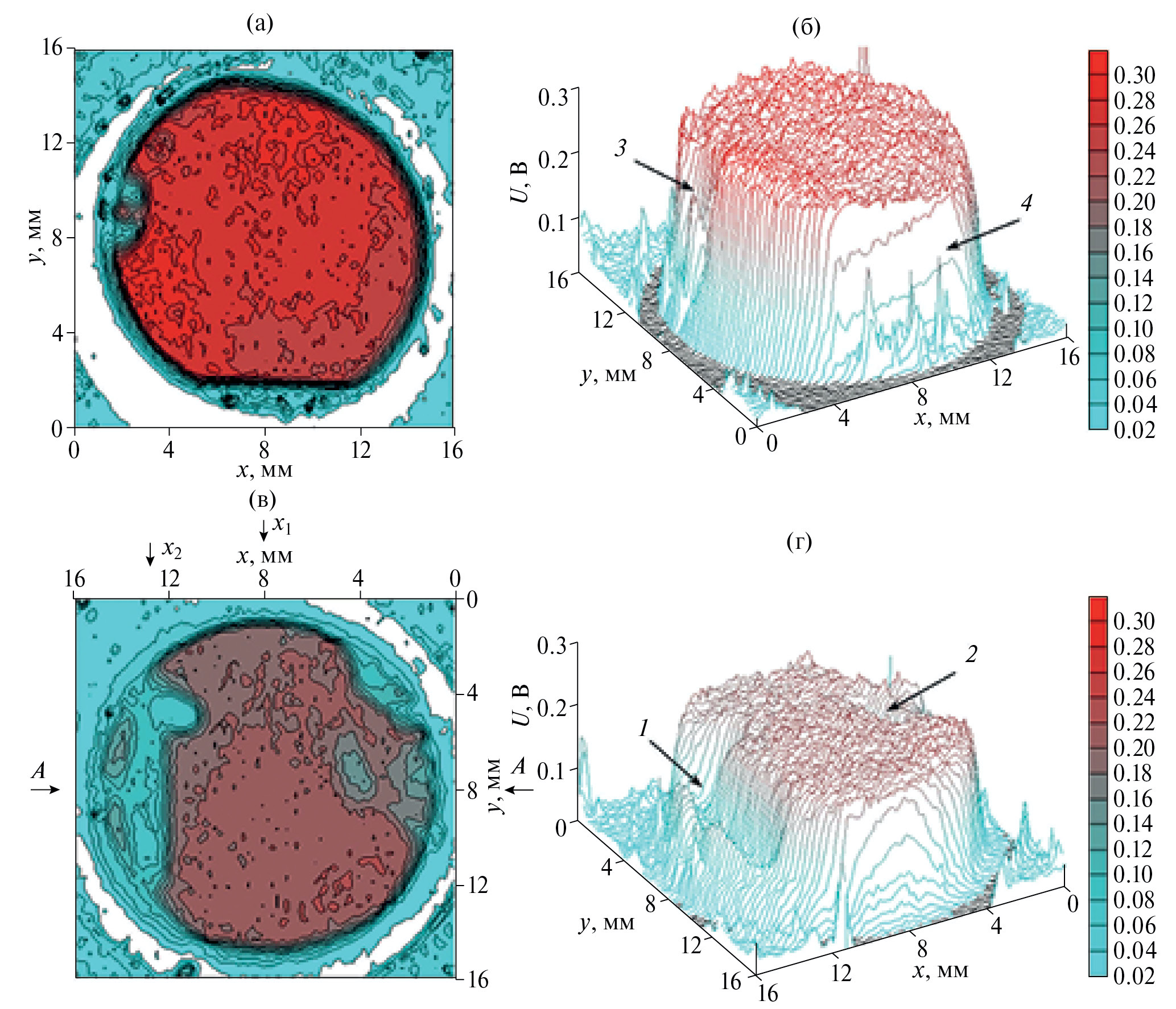

The possibility of evaluating the quality of thermodiffusion welding of two yttrium aluminum garnet crystals in a composite optical disk has been investigated using an optoacoustic method. To obtain acoustic images of thermodiffusion welding. an optoacoustic sensor connected to a pulsed laser (wavelength 532 nm. pulse duration 10 ns) by an optical fiber was scanned over the disk surface. The ultrasonic pulses in the frequency range up to 80 MHz were registered synchronously with the movement of the transducer on the area of 16x16 mm with a step of 0.1 mm. Two modes of ultrasonic location were used: on reflection and on lumen. Diagnostics of two 15 mm diameter composite disks with different quality of thermodiffusion welding was carried out. The possibility of quantifying the quality of the diffusion layer by an optoacoustic method for objective comparison of the disks is discussed. The obtained data are confirmed by the results of measurements by the optical projection method.
About the authors
V. V. Kazakov
Applied Physics Institute, Russian Academy of Sciences
Author for correspondence.
Email: kazak@ipfran.ru
Russian Federation, Nizhny Novgorod
I. B. Mukhin
Applied Physics Institute, Russian Academy of Sciences
Email: kazak@ipfran.ru
Russian Federation, Nizhny Novgorod
A. A. Kurnikov
Applied Physics Institute, Russian Academy of Sciences
Email: kazak@ipfran.ru
Russian Federation, Nizhny Novgorod
P. V. Subochev
Applied Physics Institute, Russian Academy of Sciences
Email: kazak@ipfran.ru
Russian Federation, Nizhny Novgorod
References
- Егерев С.В., Симановский Я.О. Оптоакустика неоднородных биомедицинских сред: конкуренция механизмов и перспективы применения (обзор) // Акуст. журн. 2022. Т. 68. № 1. С. 96–116. http://doi.org/10.31857/S0320791922010026
- Подымова Н.Б., Карабутов А.А. Влияние трещиноватости полевых шпатов на спектральную мощность обратнорассеянных широкополосных импульсов продольных ультразвуковых волн // Акуст. журн. 2022. Т. 68. № 6. С. 679–688. http://doi.org/10.31857/S0320791922060090
- Hayashi T., Mori N., Ueno T. Non-contact imaging of subsurface defects using a scanning laser source // Ultrasonics. 2022. V. 119. P. 106560. https://doi.org/10.1016/j.ultras.2021.106560
- Podymova N.B., Karabutov A.A. Nondestructive assessment of local microcracking degree in orthoclase and plagioclase feldspars using spectral analysis of backscattered laser-induced ultrasonic pulses // Ultrasonics. 2022. V. 125. P. 106796. https://doi.org/10.1016/j.ultras.2022.106796
- Kou X., Pei C., Chen Z. Fully noncontact inspection of closed surface crack with nonlinear laser ultrasonic testing method // Ultrasonics. 2021. V. 114. P. 106426. https://doi.org/10.1016/j.ultras.2021.106426
- Соколовская Ю.Г., Подымова Н.Б., Карабутов А.А. Лазерный оптико-акустический метод для обнаружения нарушений периодичности структуры углепластиков // Акуст. журн. 2022. Т. 68. № 4. С. 454–461. http://doi.org/10.31857/S0320791922040128
- Khokhlova T.D., Pelivanov I.M., Solomatin V.S., Karabutov A.A., Sapozhnikov O.A. Opto-acoustic diagnostics of the thermal action of high-intensity focused ultrasound on biological tissues: the possibility of its applications and model experiments // Quant. Electronics. 2006. V. 36. № 12. P. 1097–1102. http://doi.org/10.1070/QE2006v036n12ABEH013262
- Bychkov A., Simonova V., Zarubin V., Cherepetskaya E., Karabutov A. The progress in photoacoustic and laser ultrasonic tomographic imaging for biomedicine and industry: A review // Appl. Sciences. 2018. V. 8. P. 1931. http://doi.org/10.3390/app8101931
- Yddal T., Gilja O.H., Cochran S., Postema M., Kotopoulis S. Glass-windowed ultrasound transducers // Ultrasonics. 2016. V. 68. P. 108–119. http://dx.doi.org/10.1016/j.ultras.2016.02.005
- Kurnikov A.A., Pavlova K.G., Orlova A.G., Khilov A.V., Perekatova V.V., Kovalchuk A.V., Subochev P.V. Broadband (100 kHz – 100 MHz) ultrasound PVDF detectors for raster-scan optoacoustic angiography with acoustic resolution // Quant. Electronics. 2021. V. 51. № 5. P. 383–388. https://doi.org/10.1070/QEL17538
- Ren D., Sun Y., Shi J., Chen R. A review of transparent sensors for photoacoustic imaging applications // Photonics. 2021. V. 8. P. 324. https://doi.org/10.3390/photonics8080324
- Тиманин Е.М., Михайлова И.С., Фикс И.И., Курников А.А., Ковальчук А.В., Орлова А.Г., Угарова О.А., Frenz M., Jaeger M., Субочев П.В. Улучшение оптоакустических изображений биотканей методом одномерной обратной свертки с адаптивной самокалибровкой в реальном времени // Акуст. журн. 2023. Т. 69. № 6. С. 800–807. http://doi.org/10.31857/S0320791923600750
- Рудницкий А.Г. Итерационная схема коррекции изображений в оптоакустической томографии // Акуст. журн. 2022. Т. 68. № 4. С. 440–448. http://doi.org/10.31857/S0320791922040098
- Tian C., Xie Z., Fabiilli M.L., Liu S., Wang C., Cheng Q., Wang X. Dual-pulse nonlinear photoacoustic technique: A practical investigation // Biomed. Opt. Expr. 2015. V. 6. № 8. P. 2923–2933. http://doi.org/10.1364/BOE.6.002923
- Oraevsky A., Karabutov A. Ultimate sensitivity of time-resolved opto-acoustic detection // Proc. SPIE Biom. Optoacoustics. 2000. V. 3916. P. 228–239. http://doi.org/10.1117/12.386326
- Davies S.J., Edward C., Taylor G.S., Palmer S.B. Laser-generated ultrasound: its properties. mechanisms and multifarious applications // J. Phys. D: Appl. Phys. 1993. V. 26. P. 329–348. http://doi.org/10.1088/0022-3727/26/3/001
- Ruello P., Gusev V.E. Physical mechanisms of coherent acoustic phonons generation by ultrafast laser action // Ultrasonics. 2015. V. 56. P. 21–35. http://dx.doi.org/10.1016/j.ultras.2014.06.004
- Gao T., Liu X., Zhu J., Zhao B., Qing X. Multi-frequency localized wave energy for delamination identification using laser ultrasonic guided wave // Ultrasonics. 2021. V. 116. P. 106486. https://doi.org/10.1016/j.ultras.2021.106486
- Gupta S., Rajagopal P. S0 Lamb mode scattering studies in laminated composite plate structures with surface breaking cracks: insights into crack opening behavior // Ultrasonics. 2023. V. 129. P. 106901. https://doi.org/10.1016/j.ultras.2022.106901
- Karabutov A., Devichensky A., Ivochkin A., Lyamshev M., Pelivanov I., Rohadgi U., Solomatin V., Subudhi M. Laser ultrasonic diagnostics of residual stress // Ultrasonics. 2008. V. 48. P. 631–635. http://doi.org/10.1016/j.ultras.2008.07.006
- Goncalves-Novo T., Albach D., Vincent B., Arzakantsyan M., Chanteloup J.-Ch. 14 J/2 Hz Yb3+:YAG diode pumped solid state laser chain // Opt. Express 2013. V. 21. № 1. P. 855–866. http://doi.org/10.1364/OE.21.000855
- Vadimova O.L., Mukhin I.B., Kuznetsov I.I., Palashov O.V., Perevezentsev E.A., Khazanov E.A. Calculation of the gain coefficient in cryogenically cooled Yb: YAG disks at high heat generation rates // Quant. Electron. 2013. V. 43. № 3. P. 201–206. http://doi.org/10.1070/QE2013v043n03ABEH015064
- Mukhin I.B., Perevezentsev E.A., Palashov O.V. Fabrication of composite laser elements by a new thermal diffusion bonding method // Opt. Mater. Expr. 2014. V. 4. № 2. P. 266–271. http://doi.org/10.1364/OME.4.000266
- Kuznetsov I.I., Volkov M.R., Mukhin I.B. Composite Yb:YAG sapphire thin-disk active elements produced by thermal diffusion bonding // J. Opt. Soc. Am. B: Opt. Phys. 2020. V. 37. № 7. P. 2193–2198. http://doi.org/10.1364/josab.396572
- Горальник А.С., Кульбицкая М.Н., Михайлов И.Г., Ферштат Л.Н., Шутилов В.А. О температурной зависимости скорости звука в чистых и легированных кварцевых стеклах // Акуст. журн. 1972. Т. 18. № 3. С. 391–396.
- Мункуева С.Б., Санжиев Ч.П., Сандитов Д.С. Параметр Грюнайзена и отношение скоростей распространения продольной и поперечной акустических волн в стеклах // Вестн. Бурят. гос. универ. 2011. Т. 11. С. 164–168.
- Kobayashi K., Yoshida S., Saijo Y., Hozumi N. Acoustic impedance microscopy for biological tissue characterization // Ultrasonics. 2014. V. 54. P. 1922–1928. http://dx.doi.org/10.1016/j.ultras.2014.04.007
- Соколовская Ю.Г., Подымова Н.Б., Карабутов А.А. Лазерный оптико-акустический метод количественной оценки пористости углепластиков на основе измерения их акустического импеданса // Акуст. журн. 2020. Т. 66. № 1. С. 86–94. http://doi.org/10.31857/S0320791920010098
- Gonzalez M.G., Riobу L.M., Brazzano L.C., Veiras F.E., Sorichetti P.A., Santiago G.D. Generation of sub-microsecond quasi-unipolar pressure pulses // Ultrasonics. 2019. V. 98. P. 15–19. https://doi.org/10.1016/j.ultras.2019.05.002
