Improvement of the Efficiency of Machine Tools due to Coherent Operation of the Source and Consumer of Mechanical Power

A. V. Egorov; Егоров А. В.; V. G. Shram; Шрам В. Г.; Yu. F. Kaizer; Кайзер Ю. Ф.; A. V.  Lysyannikov; Лысянников А. В.; Yu. N. Bezborodov; Безбородов Ю. Н.; K. S. Stepanova; Степанова К. С.; A. V. Kuznetsov; Кузнецов А. В.; V. L. Tyukanov; Тюканов В. Л.

doi:10.31857/S0235711923010030

Improvement of the Efficiency of Machine Tools due to Coherent Operation of the Source and Consumer of Mechanical Power

Authors: Egorov A.V.¹, Shram V.G.², Kaizer Y.F.²^,3, Lysyannikov A.V.²^,3, Bezborodov Y.N.², Stepanova K.S.⁴, Kuznetsov A.V.²^,3, Tyukanov V.L.²
Affiliations:
1. Sarov Institute of Physics and Technology, Affiliate of National Research Nuclear University MEPhI, 607189, Sarov, Russia
2. Siberian Federal University, 660041, Krasnoyarsk, Russia
3. Krasnoyarsk State Agrarian University, 660049, Krasnoyarsk, Russia
4. Volga State University of Technology, 424000, Yoshkar-Ola, Russia
Issue: No 1 (2023)
Pages: 108-112
Section: АВТОМАТИЗАЦИЯ И УПРАВЛЕНИЕ В МАШИНОСТРОЕНИИ
URL: https://journals.rcsi.science/0235-7119/article/view/137569
DOI: https://doi.org/10.31857/S0235711923010030
EDN: https://elibrary.ru/ATEZVY
ID: 137569

Cite item

Full Text

Open Access
Restricted Access

Access granted
Restricted Access

Subscription Access

Abstract
About the authors
References
Supplementary files
Statistics

Abstract

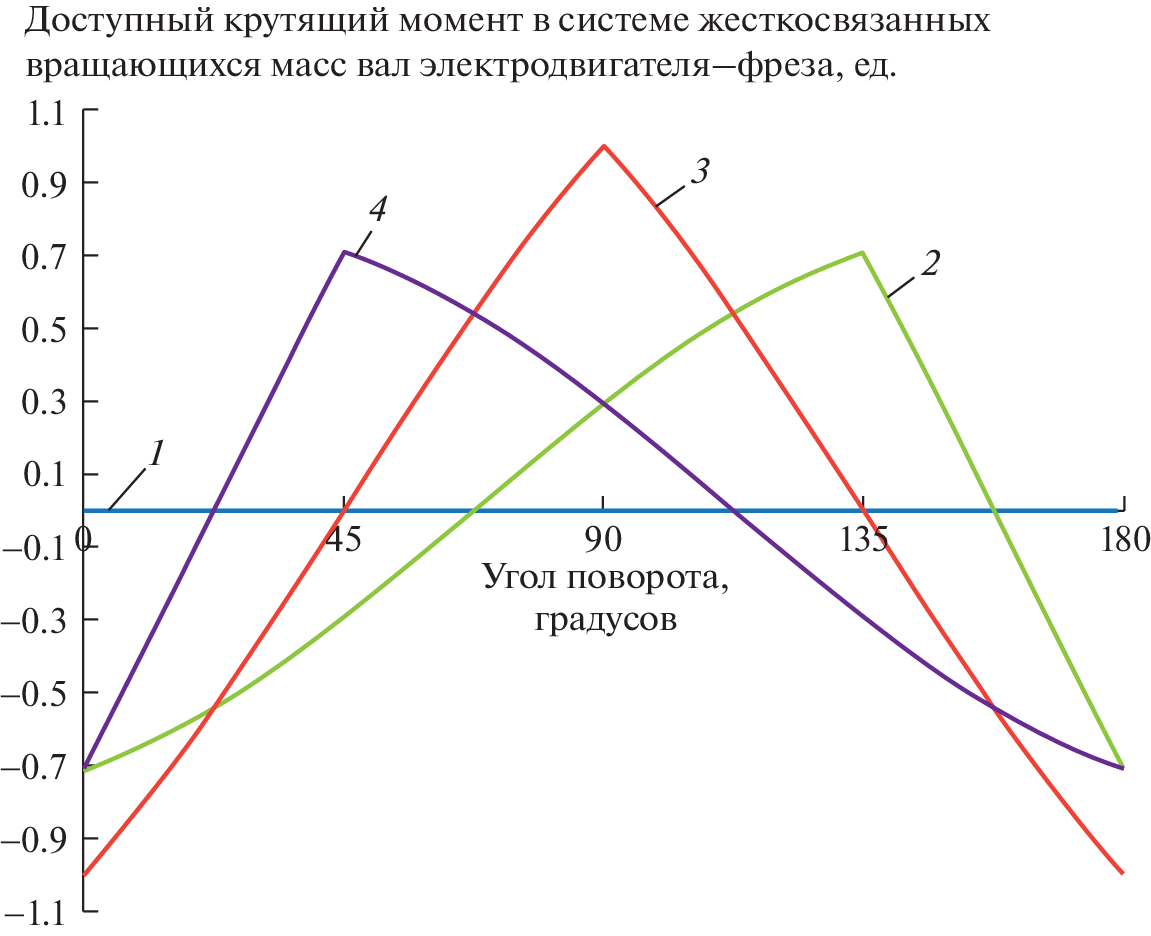

A possible way to improve the operation efficiency of complicated systems is the method of coherent operation of individual system elements. The operation efficiency of a machine tool can be improved by provision of its optimum position between the electric motor drive and a rigidly coupled cutting tool. The optimum mutual position of the electric motor shaft and the cutting tool can be achieved by coincidence of the maximums of the generated and consumed torque. Any deviation of the mutual position of the maximums of generated and consumed torque leads to alternating oscillations of torque in the system of rotating bodies: electric motor shaft–cutting tool. A drawback of the generated torque against required torque leads to an increase in sliding of the electric motor and a local decrease in efficiency for about 180 degrees of rotation of the electric motor shaft.

Keywords

machine tools, torque, electric motor shaft, efficiency

References

Benmiloud O., Arif S. Identification of Coherent Generators in Multi-Machine Power Systems // Int. Conf. on Advanced Electrical Engineering, ICAEE-2019. 2019. 9015067.
Gupta A.K., Verma K., Niazi K.R. Power system low frequency oscillations monitoring and generator coherency determination in real time // Int. Conf. on Innovative Smart Grid Technologies, ISGT Asia-2018. 2018. P. 752.
Khan S., Shariff S., Ahmad A., Saad Alam M. A Comprehensive Review on Level 2 Charging System for Electric Vehicles // Smart Science. 2018. V. 6. Iss. 3. P. 271.
Widl E., Jacobs T., Schwabeneder D., Schuelke A., Auer H. Studying the potential of multi-carrier energy distribution grids: A holistic approach // Energy. 2018. V. 153. P. 519.
Soni B.P., Saxena A., Gupta V. Online identification of coherent generators in power system by using SVM // 2017 4th Int. Conf. on Power, Control and Embedded Systems, ICPCES-2017. 2017. P. 1.
Li C., Xu J., Zhao C., Liu W. Coherency equivalence method for voltage source converter based on virtual synchronous generator. Diangong Jishu Xuebao // Transactions of China Electrotechnical Society. 2016. V. 31. Iss. 13. P. 111.
Zhang H.-B., Zheng Z.-Q., Li Z.-N., Xun G., Sun Y.-W. An analytic hierarchy process based method for identifying coherent generator groups // China Int. Conf. on Electricity Distribution, CICED, 2014. P. 490.
Pavlov A.I., Egorov A.V., Polyanin I.A., Kozlov K.E. A method for functional diagnosis of hydraulic drives of forest machinery // Int. J. of Environmental and Science Education. 2016. V. 11. Iss. 18. P. 11331.
Pavlov A.I., Tarbeev A.A., Egorov A.V., Kaizer Y.F., Matkerimov T.Y. Oscillating method for monitoring the technical condition of the hydraulic cylinders of manipulator machines // J. of Physics: Conference Series. 2020. V. 1515. Iss. 4. 042053.
Hamidieh Y.A., Seth B.B. Drill breakage detection in two spindles station in a dial machine // SAE Transactions Section 5: J. of Materials & Manufacturing. 1996. V. 105. P. 950.
Внуков Ю.Н. Автоколебания при фрезеровании тонкостенных элементов детали. Монография. Электронное издание. Запорожье: ЗНТУ, 2017. 208 с.
