Viscosity of titanium slag in separating electric melting of a metallized mixture of perovskite and ilmenite concentrates

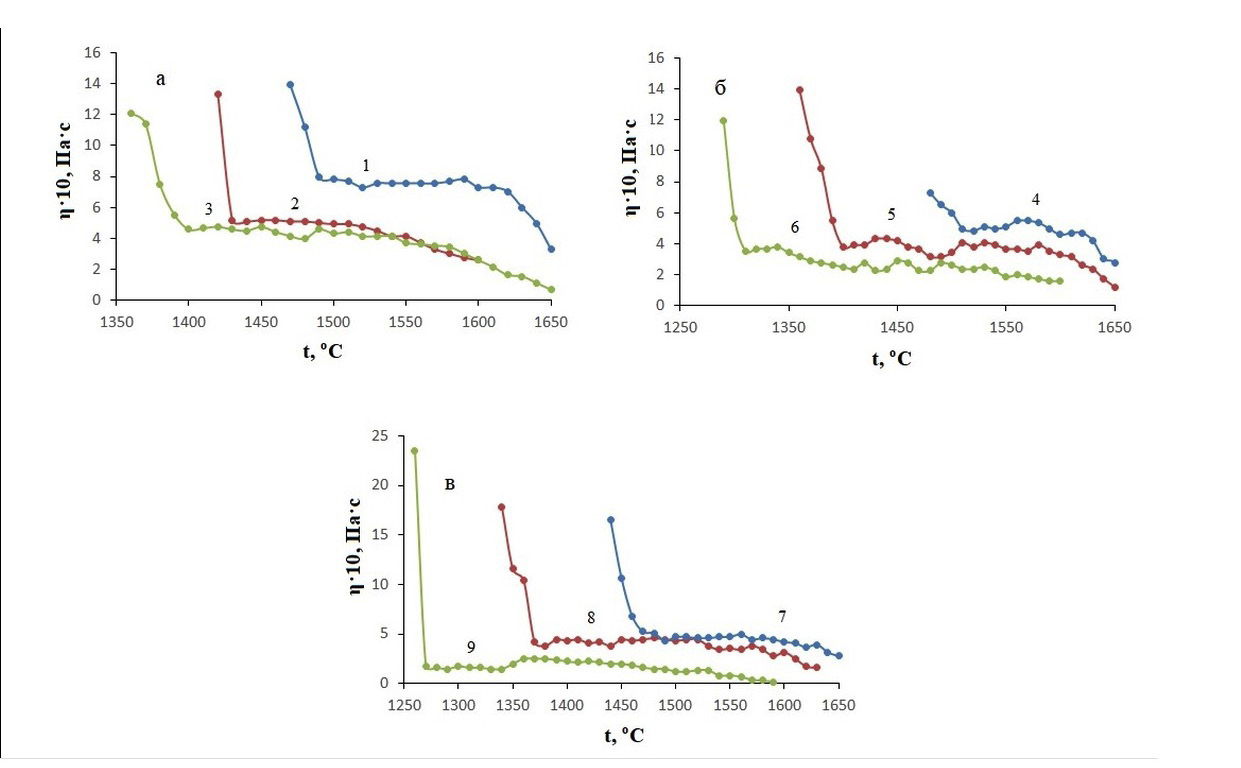

To assess the possibility of joint processing of ilmenite (FeTiO₃) and perovskite (CaTiO₃) concentrates using a duplex process involving solid-phase reduction of iron (metallization) and subsequent separating melting into pig iron and titanium slag, the properties of slag melts were studied. The crystallization beginning point (liquidus temperature) and the corresponding viscosity of titanium slag depend on its chemical composition. The increase in titanium oxides content results in increase of these properties, while the presence of iron and calcium oxides leads to their decrease. During the joint processing of ilmenite (IC) and perovskite (PC) concentrates, the CaO content in the slag can be adjusted by changing their PC/IC ratio, and the FeO fraction is determined by the degree of iron metallization during the preliminary reduction roasting of a concentrate mixture with a carbon reducing agent. To select the optimal PC/IC ratio the temperature dependences of the viscosity of model oxide melts of the TiO₂–FeO–CaO–Al₂O₃–MgO system, similar in composition to the slags formed as a result of melting mixtures of perovskite and ilmenite concentrates within the range of PC/IC ratios equaling to 0.6÷1.4, and the metallization degree from 75 to 95% were determined.

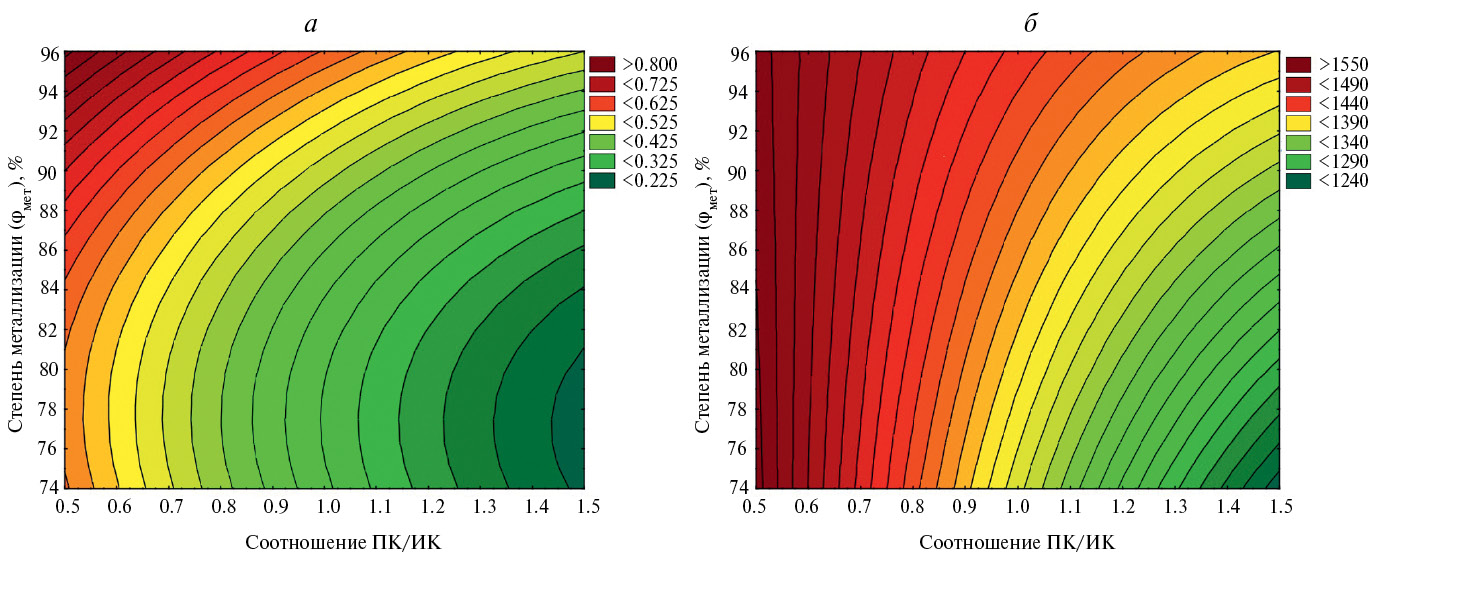

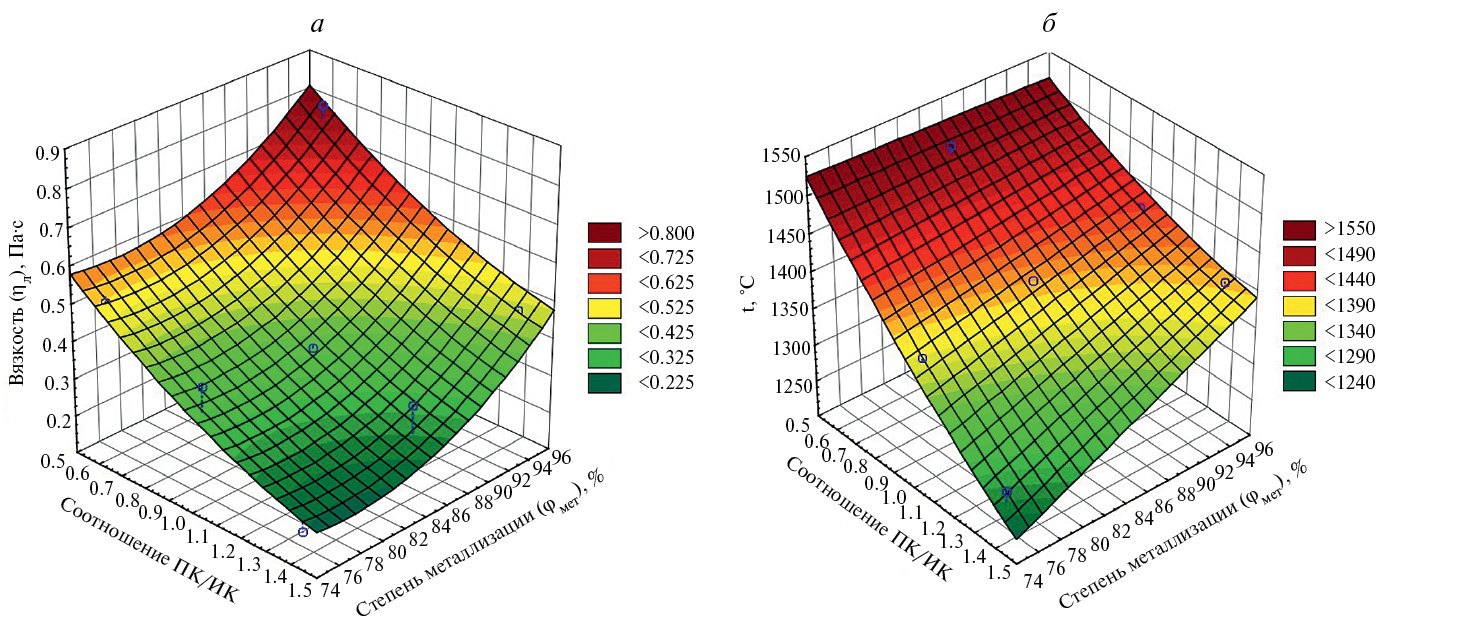

According to the results obtained, within the entire range of studied compositions and temperatures, the viscosity of slag melts does not exceed 0.8 Pa·s. That is to say, such slags will be sufficiently fluid at the tapping point if the melt temperature is higher than liquidus temperature — the crystallization beginning point. Increasing the PC/IC ratios when decreasing the metallization from 95 to 75%, results in a monotonous decrease in liquidus temperature and its corresponding viscosity from 1490 ^оC and 0.79 Pa·s up to 1270 ^оC and 0.17 Pa·s, respectively. It is recommended to use a charge containing equal mass fractions of concentrates (PC/IC equal to 1) at the consumption of carbon reducing agent based on metallization of 85% iron. In this case, slags with a relatively low iron oxide content (3.1%) will be fluid (0.38 Pa·s), and have liquidus temperature of 1400 ^оC which will allow carrying out top and bottom melt at operating temperatures of 1500–1550 ^оC.
