HIGH-TEMPERATURE PASSIVATION OF THE SURFACE OF CANDIDATE MATERIALS FOR LSR BY ADDING O 2–  TO THE SALT PHASE OF THE HALIDE MELT

E. A. Karfidov; Карфидов Э. А.; Yu. P. Zaikov; Зайков Ю. П.; E. V. Nikitina; Никитина Е. В.; K. E. Seliverstov; Селиверстов К. Е.

doi:10.31857/S0235010622040065

HIGH-TEMPERATURE PASSIVATION OF THE SURFACE OF CANDIDATE MATERIALS FOR LSR BY ADDING O^2– TO THE SALT PHASE OF THE HALIDE MELT

Authors: Karfidov E.A.¹, Zaikov Y.P.¹, Nikitina E.V.¹, Seliverstov K.E.¹
Affiliations:
1. Institute of High-Temperature Electrochemistry, Ural Branch of the Russian Academy of Sciences
Issue: No 1 (2023)
Pages: 39-47
Section: Articles
URL: https://journals.rcsi.science/0235-0106/article/view/138531
DOI: https://doi.org/10.31857/S0235010622040065
EDN: https://elibrary.ru/DHSZUO
ID: 138531

Cite item

Full Text

Open Access
Restricted Access

Access granted
Restricted Access

Subscription Access

Abstract
About the authors
References
Supplementary files
Statistics

Abstract

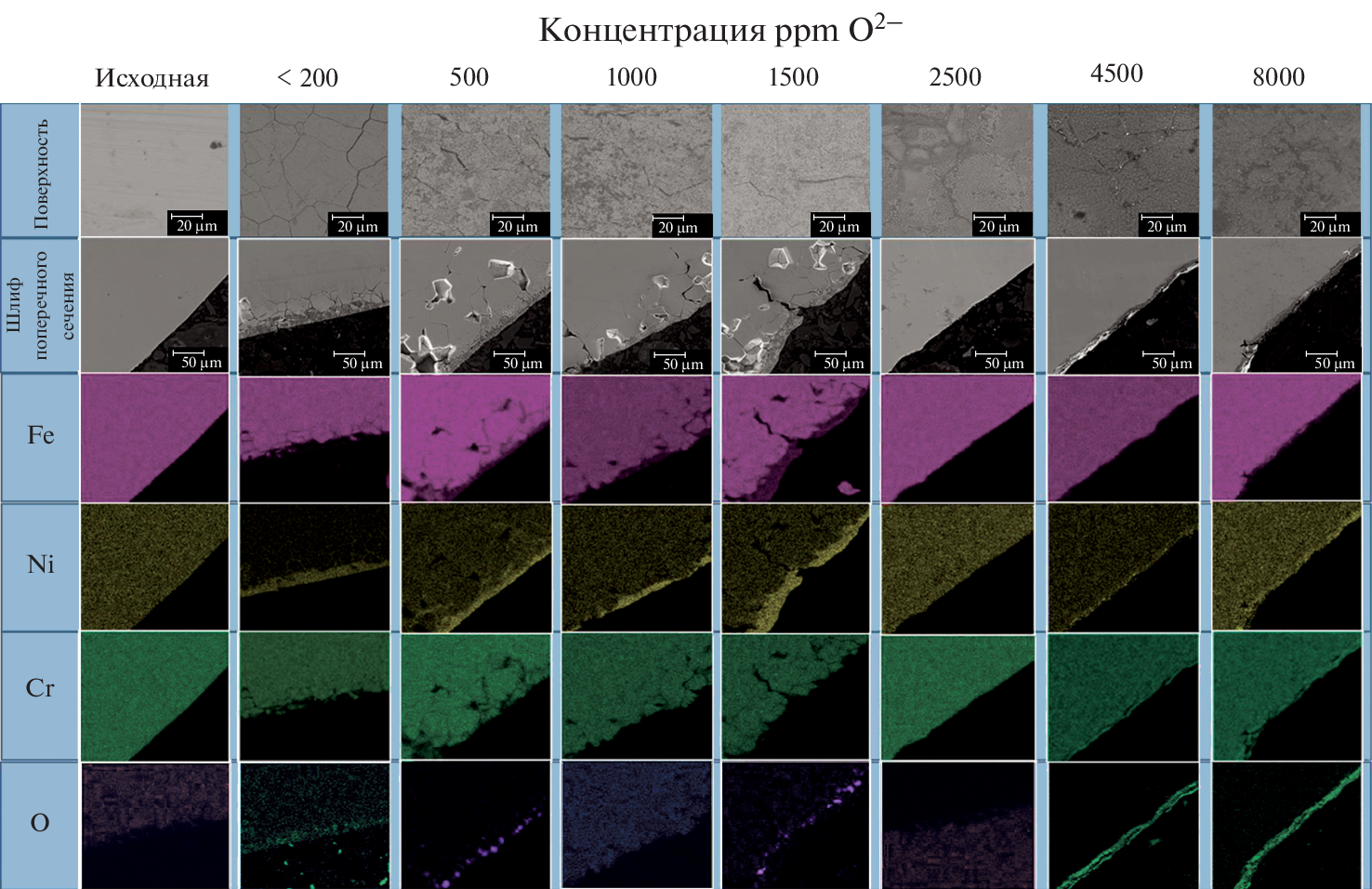

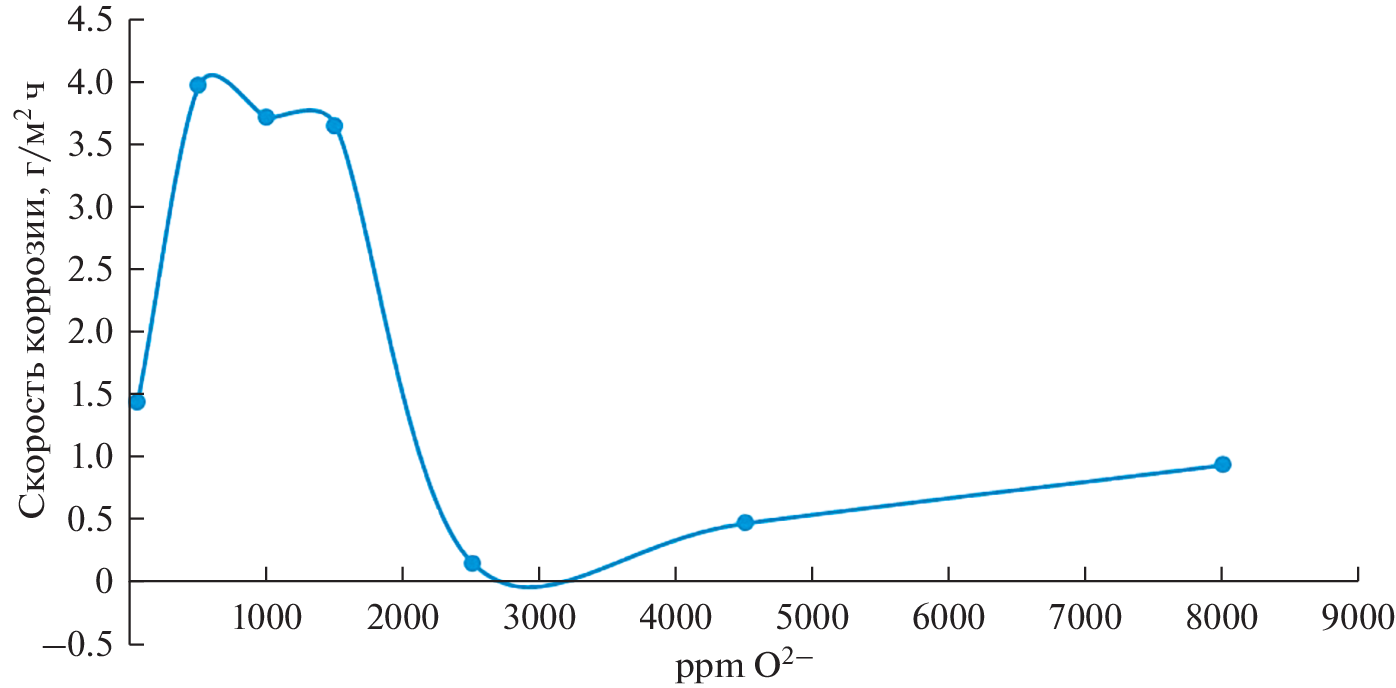

Experiments were carried out to determine the corrosion rate of stainless steel AISI 316 in a fluoride melt with different concentrations of O^2– (by adding lithium oxide to the melt in the concentration range from 0 to 5 wt %). The corrosion rate decreases by an order of magnitude at an oxygen anion concentration in the melt from 0.2 to 0.4 wt %, which may indicate the detection of the phenomenon of high-temperature passivation of the material due to the modification of the composition of the fluoride melt and a decrease in its corrosion activity. In addition, the type of intergranular and pitting corrosion typical of stainless steels in fluoride melts, which is the most dangerous from the point of view of the structural reactor material, changes to continuous when lithium oxide is added due to the “healing” of individual corrosion centers with excess oxygen-containing compounds. The formation of a protective layer of the spinel type with a thickness of 1 μm was established.

Keywords

corrosion, candidate materials for LSR, alkali metal halide melt, high-temperature passivation, spinel-type oxides

References

Komarov V.Ye, Smolenskiy V.V., Afonichkin V.K. Perspektivy ispol’zovaniya rasplavlennykh soley v radiokhimicheskikh tekhnologiyakh [Prospects for the use of molten salts in radiochemical technologies] // Rasplavy. 2000. № 2. P. 59–65. [In Russian].
LeBlanc D. // Nucl. Eng. Des. 2010. 240. Р. 1644–1656. https://doi.org/10.101j.nucengdes.2009.12.033
Khokhlov V., Ignatiev V., Afonichkin V. Evaluating physical properties of molten salt reactor fluoride mixtures // Journal of Fluorine Chemistry. 2009. 130. Р. 30–37.
Barnes J., Coutts R., Horne T., Thai J. Characterization of molten salts for application in molten salt reactors. PAM Review. 2019.
Magnusson J., Memmott M., Munro T. Review of thermophysical property methods applied to fueled and un-fueled molten salts // Annals of Nuclear Energy. 2020. 146. Р. 107608.
Serp J., Allibert M., Benes O. Delpech S., Feynberg O. and other. The molten salt reactor (MSR) in generation IV: overview and perspectives // Prog. Nucl. Energy. 2014. 77. Р. 308–319.
Williams D.F. Assessment of candidate molten salt coolants for the advanced highi-temperature reactor (AHTR), 2006.
Yadernyye reaktory. Ch. 3. Materialy dlya yadernykh reaktorov [Materials for nuclear reactors]. M.: Izd-vo inostrannoy literatury, 1956. [In Russian].
Menli V., Kubs D., de Van D, Duglas D., Inui KH., Petriarka P., Roch T., Skott D. Metallurgicheskiye problemy, svyazannyye s ispol’zovaniyem rasplavlennykh sistem ftoridov [Metallurgical problems associated with the use of molten fluoride systems] // Yadernoye goryucheye i reaktornyye materialy. 1959. P. 36–52. [In Russian].
Manly W.D., Adamson G.M., Coobs J.H., DeVan J.H., Douglas D.A., Hoffman E.E., Patriarca P., Aircraft reactor experiment-metallurgical aspects. ORNL-2349, 1957.
Ignat’yev V.V., Kryukov O.V., Khaperskaya A.V. i dr. Zhidkosolevoy reaktor dlya zamykaniya yadernogo toplivnogo tsikla po vsem aktinoidam [Liquid-salt reactor for closing the nuclear fuel cycle for all actinides] // Atomnaya energiya. 2018. 125. № 5. P. 251–255. [In Russian].
Young D.J. High Temperature Oxidation and Corrosion of Metals. Elsevier Science, 2016.
Guo S., Zhang J., Wub W., Zhou W. Corrosion in the molten fluoride and chloride salts and materials development for nuclear applications // Progress in Material Science. 2018. 97. Р. 448–487.
Wang Y., Zhang S., Ji X., Wang P., Li W. Material corrosion in molten fluoride salts // Int. J. Electrochem. Sci. 2018. 13. Р. 4891–4900.
DeVan J.H., Evans R.B. Corrosion behavior of reactor materials in fluoride salt mixtures. ORNL-TM-328, 1962.
Janz G.J. // Molten Salts Handbook. 1967. P. 383–387. https://doi.org/10.1016/B978-0-12-395642-2.50032-0
Olson L.C., Ambrosek J.W., Sridharan K., Anderson M.H., Allen T.R. Materials corrosion in molten LiF–NaF–KF salt // J. Fluorine Chem. 2009. 130. P. 67–73.
Kelleher B.C., Dolan K.P., Brooks P., Anderson M.H., Sridharan K. // J. Nucl. Eng. Radiat. Sci. 2015. 1. № 4. Р. 041010. https://doi.org/10.1115/1.4030963
Zheng G., Kelleher B., Cao G., Anderson M., Allen T., Sridharan K. // J. Nucl. Mater. 2015. 46. Р. 143–150. https://doi.org/10.1016/j.jnucmat.2015.03.004
Yang X., Zhang D., Liu M., Feng S. and other // Corrosion Sci. 2016. 109. Р. 62–67. https://doi.org/10.1016/j.corsci.2016.03.029
De Van J.H. Effect of alloying additions of corrosion behavior of nickel-molybdenum alloys in fused fluoride mixtures. ORNL TM-2021, 1969.
Ozeryanaya I.N. Corrosion of metals by molten-salts in heat-treatment processes // Met. Sci. Heat Treat. 1985. 27. № 3–4. Р. 184–188.
Fabre S., Cabet C., Cassayre L., Chamelot P., Delepech S., Finne J., Massot L., Noel D. Use of electrochemical techniques to study the corrosion of metals in model fluoride melts // J. Nucl. Mater. 2013. 441. Р. 583–591.
Delpech S., Cabet C., Slim C., Picard G.S. Molten fluorides for nuclear applications // Mater. Today. 2010. 13. № 12. Р. 34–41.
Raiman S.S., Lee S. Aggregation and data analysis of corrosion studies in molten chloride and fluoride salts // J. Nuclear Materials. 2018. 511. P. 523–535.
