Correction of Geographical Reference of the Microwave Scanner/Sounder MTVZA-GYa Operating on the Meteor-M Satellite No. 2–3
- Authors: Sadovsky I.N.1, Sazonov D.S.1
-
Affiliations:
- Space Research Institute of the Russian Academy of Sciences
- Issue: No 6 (2024)
- Pages: 76-87
- Section: МЕТОДЫ И СРЕДСТВА ОБРАБОТКИ И ИНТЕРПРЕТАЦИИ КОСМИЧЕСКОЙ ИНФОРМАЦИИ
- URL: https://journals.rcsi.science/0205-9614/article/view/281647
- DOI: https://doi.org/10.31857/S0205961424060066
- EDN: https://elibrary.ru/RQRNNT
- ID: 281647
Cite item
Open Access
Access granted
Abstract

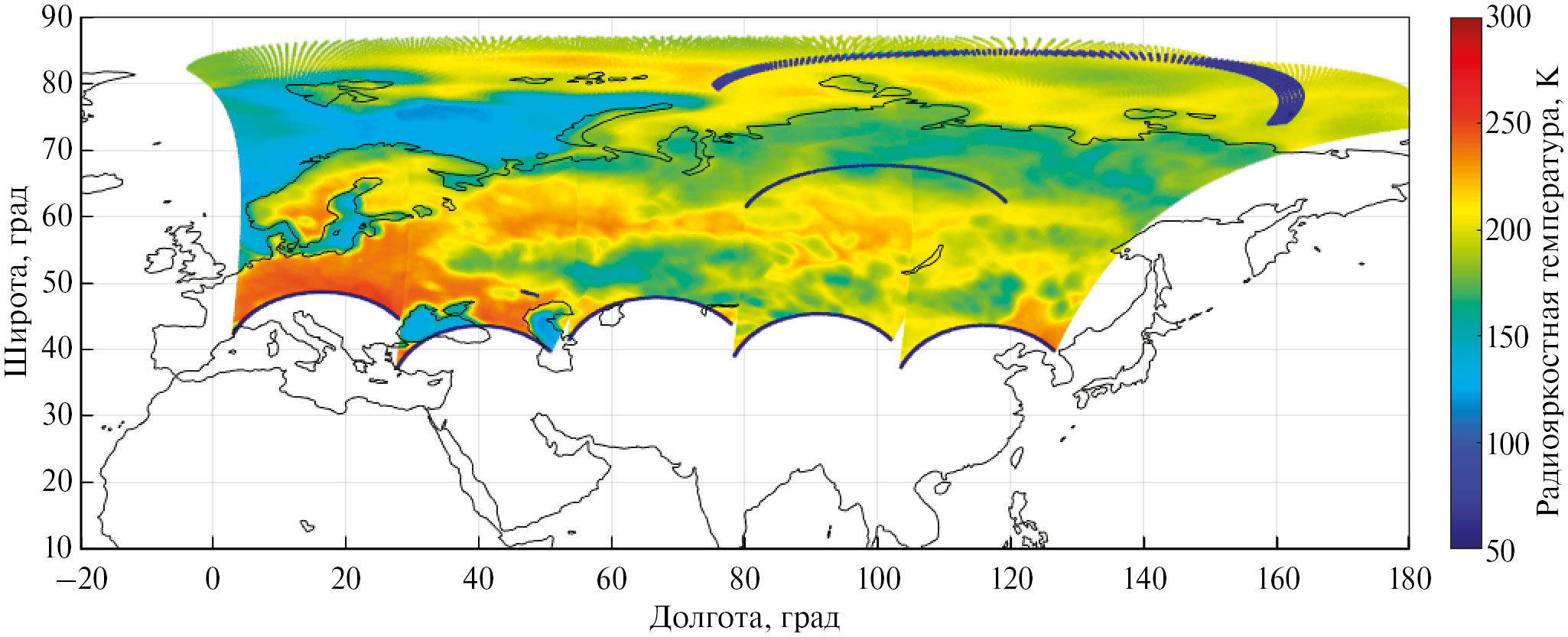

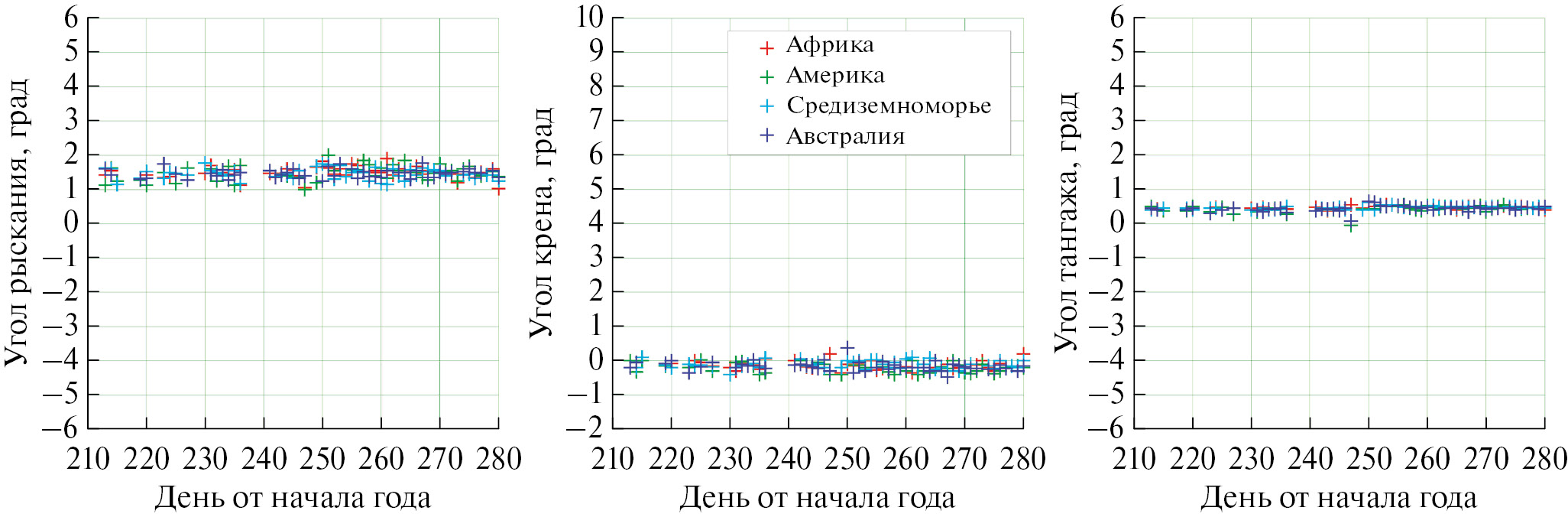

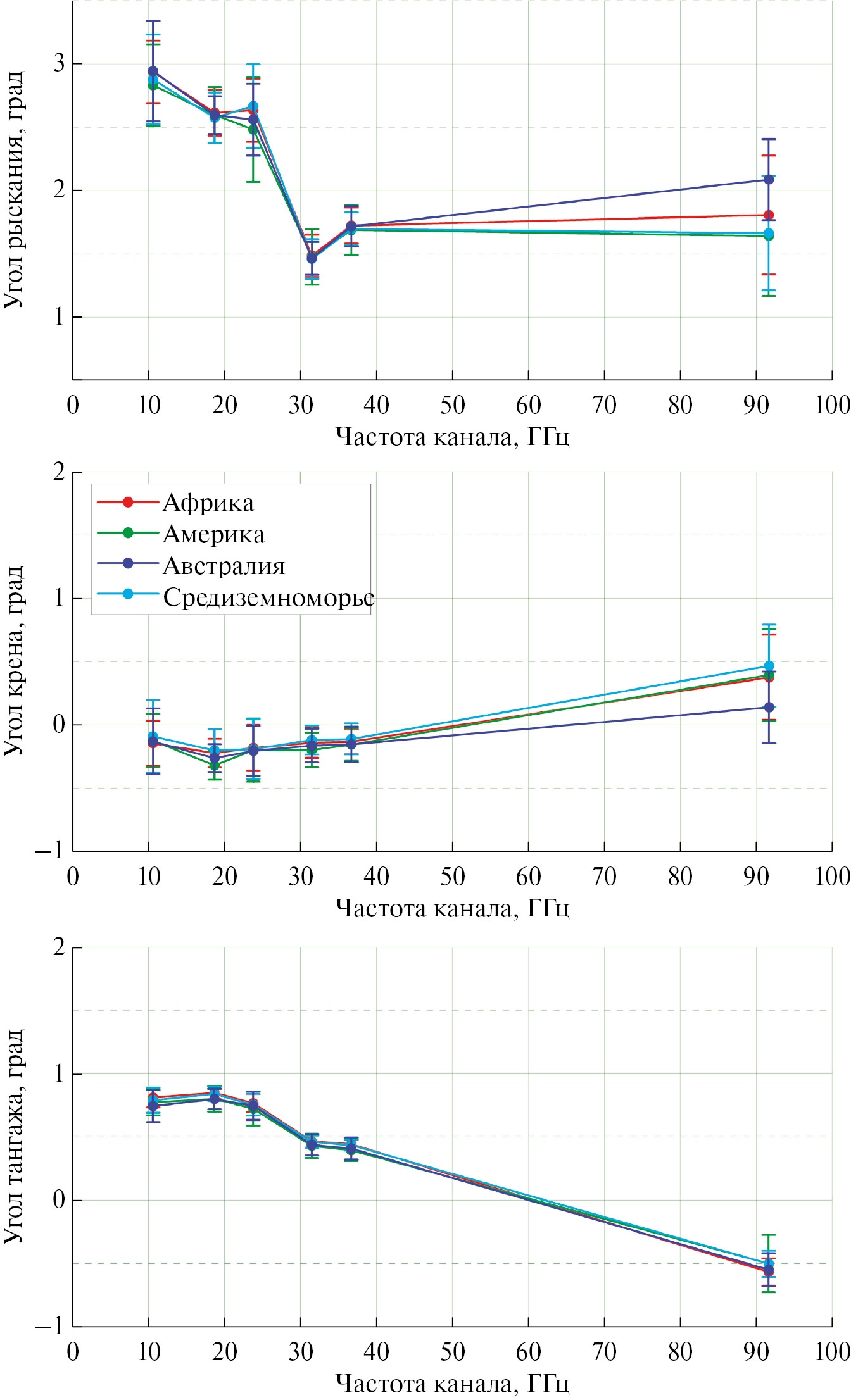

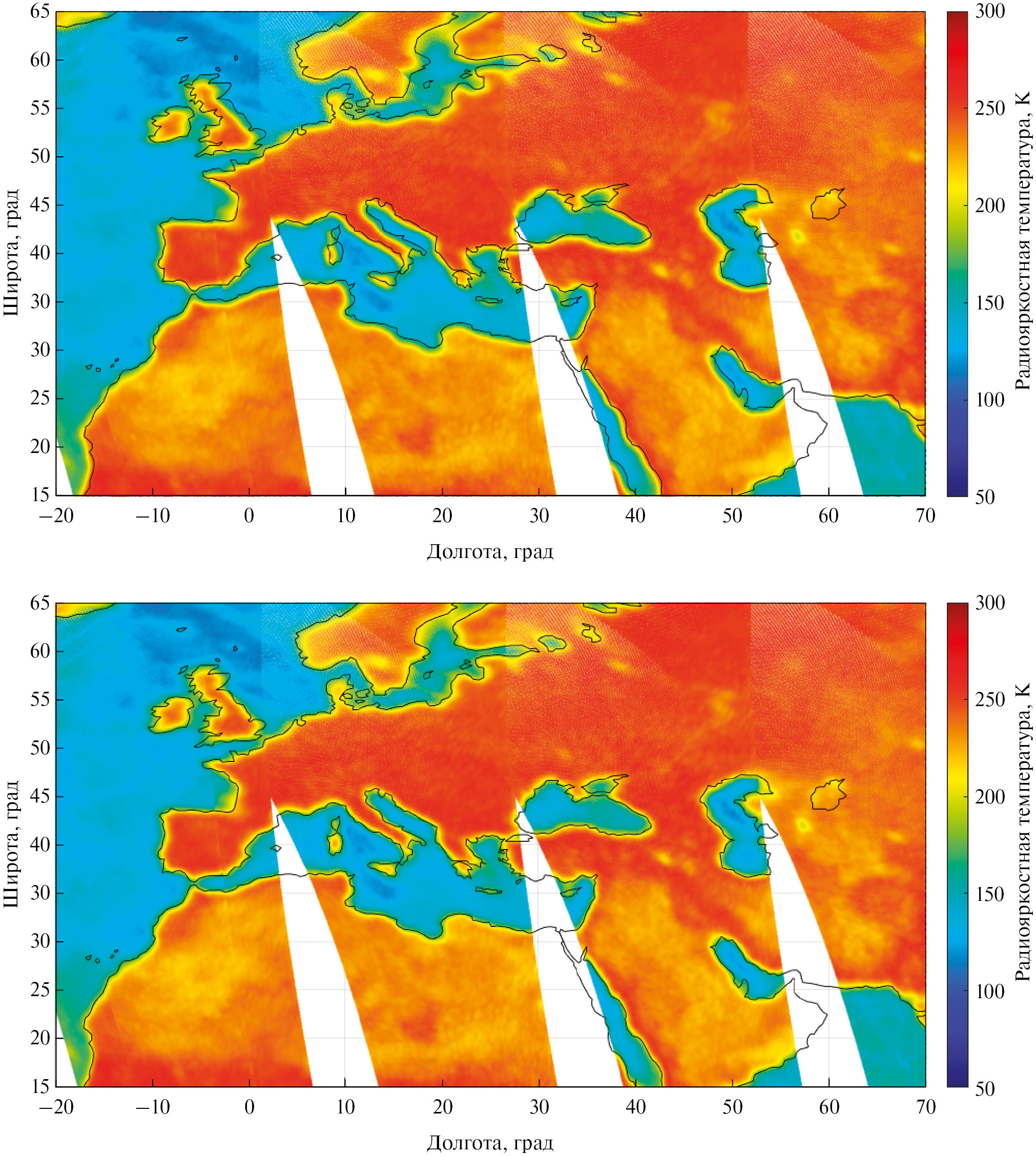

This work is focused on georeferencing of the measurements data of the Russian MTVZA-GYa scanner/sounder, installed on board the “Meteor-M” No. 2–3 spacecraft. This instrument was put into operation in August 2023 and continues to operate normally at present. The failure of the spacecraft’s centimeter communication line in October 2023 significantly reduced the coverage area of MTVZA-GYa measurements. Currently, it is limited to direct visibility of the satellite by ground-based receiving stations. The absence of all-season clear boundaries of the “sea/land surface” transition in the observation area makes it impossible to assess the quality and correct the georeference of MTVZA-GYa measurements. In this regard, within the framework of the presented paper, measurement data with global coverage over the globe, carried out by this instrument in August-September 2023, were analyzed. Based on positive experience with previous versions of MTVZA’s instruments, the authors used similar methods for assessing the georeferencing quality and searching for angles that correct it. At the same time, the existing design differences of the sample device under consideration (changed scanning directions, changed observation sectors) required some changes to be made to the algorithm for implementing georeferencing. Research has shown that the optical axes of this instrument, corresponding to individual groups of frequency channels, have different orientations. In this regard, the search for georeferencing-correcting angles was performed for each group separately. During performing a differentiated approach to georeferencing different groups of frequency channels using the found values of corrective roll, pitch and yaw angles, the authors managed to achieve the following accuracy indicators: for a group of channels 10.6–23.8 GHz – (4.59 ± 8.22) km; for a group of channels 31.5–48.0 GHz – (5.51 ± 8.83) km; for a group of channels 52 – 91.65 GHz – (8.03 ± 11.69) km.
Full Text
About the authors
I. N. Sadovsky
Space Research Institute of the Russian Academy of Sciences
Author for correspondence.
Email: ilya_nik_sad@mail.ru
Russian Federation, Moscow
D. S. Sazonov
Space Research Institute of the Russian Academy of Sciences
Email: ilya_nik_sad@mail.ru
Russian Federation, Moscow
References
- Barsukov I.A., Boldyrev V.V., Gavrilov M.I., Evseev G.E., Egorov A.N., Il’gasov P.A., Panczov V.Yu., Strel’nikov N.I., Strel’czov A.M., Chernyj I.V., Chernyavskij G.M., Yakovlev V.V. Sputnikovaya SVCh-radiometriya dlya resheniya zadach distancionnogo zondirovaniya Zemli [Satellite microwave radiometry for Earth remote sensing] // Raketno-kosm. priborostroenie i informacz. sistemy. 2021. V. 8. № 1. P. 11–23. (In Russian). https://doi.org/10.30894/issn2409-0239.2021.8.1.11.23.
- Ermakov D.M., Kuz’min A.V., Mazurov A.A., Pashinov E.V., Sadovsky I.N., Sazonov D.S., Sterlyadkin V.V., Chernushich A.P., Chernyj I.V., Strel’czov A.M., Sharkov E.A., Ekimov N.S. Koncepciya potokovoj obrabotki dannyh rossijskix sputnikovyh SVCh-radiometrov serii MTVZA na baze CzKP “IKI-Monitoring” [The concept of streaming data processing of Russian satellite microwave radiometers of the MTVZA series based on IKI-Monitoring Center for Collective Use]// Sovremennye problemy distancionnogo zondirovaniya Zemli iz kosmosa. 2021. V. 18. № 4. P. 298–303. (In Russian). https://doi.org/10.21046/2070-7401-2021-18-4-298-303.
- Zabolotskikh E. V., Balashova E. A., Azarov S. M. Vosstanovlenie splochennosti morskogo l’da po dannym izmerenii MTVZA-GYA [Sea ice concentration retrieval from MTVZA GYa measurements]//Sovremennye problemy distantsionnogo zondirovaniya Zemli iz kosmosa. 2022. V. 19. № 1. P. 27–38. (In Russian). https://doi.org/10.21046/2070-7401-2022-19-1-27-38.
- Pashinov E.V. Vosstanovlenie integral’nogo parosoderzhaniya atmosfery po dannym pribora MTVZA-GYa (“Meteor-M” № 2) nad poverkhnost’yu okeana [Retrieval of integrated water vapor content of the atmosphere over the ocean using MTVZA-GYa (Meteor-M No. 2) data] // Sovremennye problemy distantsionnogo zondirovaniya Zemli iz kosmosa. 2018. V. 15. № 4. P. 225–235. (In Russian). https://doi.org/ 10.21046/2070-7401-2018-15-4-225-235.
- Sadovsky I.N., Sazonov D.S. Geograficheskaya privyazka dannykh distantsionnykh radiometricheskikh izmerenii MTVZA-GYa [Geographic Reference of MTVZA-GYa Radiometric Remote-Sensing Data] // Issled. Zemli iz kosmosa. 2022. V. 202. № 6. P. 101–112. (In Russian). https://doi.org/10.31857/S0205961422060100.
- Sadovsky I.N., Sazonov D.S. Korrektirovka geograficheskoi privyazki dannykh MTVZA-GYa [Correction Procedure for MTVZA-GYa Georeference] // Issled. Zemli iz kosmosa. 2023. № 6. P. 73–85. (In Russian). https://doi.org/ 10.31857/S0205961423060076.
- Sazonov D.S. Algoritm vosstanovleniya temperatury poverkhnosti okeana, skorosti privodnogo vetra i integral’nogo parosoderzhaniya po dannym MTVZA-GYa [Algorithm for reconstructing ocean surface temperature, near-surface wind speed and integral vapor content from MTVZA-GYa data]//Sovremennye problemy distantsionnogo zondirovaniya Zemli iz kosmosa. 2022. V. 19. № 1. P. 50–64. (In Russian). https://doi.org/10.21046/2070-7401-2022-19-1-50-64.
- Sazonov D.S. Issledovanie vozmozhnosti vosstanovleniya intensivnosti osadkov po izmereniyam MTVZA-GYa [Study of the possibility of reconstructing precipitation intensity from MTVZA-GY measurements]// Issled. Zemli iz kosmosa. 2023. № 5. P. 23–35. (In Russian). https://doi.org/ 10.31857/S020596142305007X.
- Sazonov D.S., Sadovskii I.N. Korrektirovka geograficheskoi privyazki chastotnykh kanalov 52 – 91 GGts sputnikovogo mikrovolnovogo radiometra MTVZA-GYA [Geographical reference adjustment of MTVZA-GYa satellite microwave radiometer frequency channels 52–91 GHz]// Issled. Zemli iz kosmosa. 2024. (in print). (In Russian).
- Filei A.A., Andreev A.I., Uspenskii A.B. Ispol’zovanie iskusstvennykh neironnykh setei dlya vosstanovleniya temperaturno-vlazhnostnogo sostoyaniya atmosfery po dannym sputnikovogo mikrovolnovogo radiometra MTVZA-GYa KA Meteor-M № 2–2 [Using of a neural network algorithm for retrieval temperature and humidity sounding of the atmosphere from satellite-based microwave radiometer MTVZA-GYa measurements on-board Meteor-M No. 2–2]// Issled. Zemli iz kosmosa. 2021. № 6. P. 83–95. (In Russian). https://doi.org/10.31857/S0205961421060087.
