Email this article Investigation of the possibility detection of defects in rail foot by mfl method
- Authors: Markov A.A.1, Mosyagin V.V.1, Antipov A.G.2, Ivanov G.A.3
-
Affiliations:
- JSC «Radioavionica»
- St.Petersburg State University
- St. Petersburg Mining University
- Issue: No 1 (2024)
- Pages: 60–72
- Section: Electromagnetic methods
- URL: https://journals.rcsi.science/0130-3082/article/view/255543
- DOI: https://doi.org/10.31857/S0130308224010064
- ID: 255543
Cite item
Open Access
Access granted
Abstract
The article investigates the possibility of detecting defects in the form of transverse cracks in the rail foot at continuous inspection of rails during their operation. Magnetic method is chosen as an alternative to ultrasonic inspection. Computer modeling was carried out, based on the results of which a working model of the magnetization system and registration of control signals was developed and manufactured. Experimental studies of detection of crack models in the rail foot were carried out in laboratory conditions. The studies confirmed the results of computer modeling and proved the possibility of detecting such crack models. The minimum sizes of detectable crack models in rail foot in the zone of rail fasteners and between them have been estimated.
Full Text
About the authors
A. A. Markov
JSC «Radioavionica»
Email: george97ivanov@yandex.ru
Russian Federation, 190005, St.Petersburg, Troitskiy Avenue, 4b
V. V. Mosyagin
JSC «Radioavionica»
Email: george97ivanov@yandex.ru
Russian Federation, 190005, St.Petersburg, Troitskiy Avenue, 4b
A. G. Antipov
St.Petersburg State University
Email: george97ivanov@yandex.ru
Russian Federation, 199034, St.Petersburg, University embankment, 7/9
G. A. Ivanov
St. Petersburg Mining University
Author for correspondence.
Email: george97ivanov@yandex.ru
Russian Federation, 199106, St Petersburg, 21st Line, 2
References
- Shur E.A. et al. Evolution of the Contact-Fatigue Defects Caused Rail Failure Rate // Russian Railway Science Journal. 2015. V. 3. P. 3—9.
- Shur E.A. Rail damage. Moscow: Intext, 2012. 192 p. ISBN: 978-5-89277-108-5
- Ilyin V.A., Targonsky K.G. Method for ultrasonic check of rail base / Patent for invention No. 2085936 C1. Published on 07/27/1997.
- Mosyagin V.V., Markov A.A. Investigation of the possibility of controlling the feathers of the base of railway rails. Collection of scientific works. In the world of non-destructive testing and diagnostics of materials of industrial products and the environment // Materials of the IV All-Russian scientific and practical seminar with international participation. St. Petersburg: NWTU, 2003. P. 129.
- Nikiforenko O.J., Brandes M.P., Lonchak V.A., Nikiforenko J.G. Ultrasonic inspection of the base of railway rails by means of EMA converters // UZDM 2009. XX St. Petersburg Conference. St. Petersburg — Repino, May 26—28, 2009. P. 59—60.
- Tarabrin V.F., Ilyin V.A., Tatarinov V.O., Odynets S.A. Method of ultrasonic inspection of the base of the rail / Patent for invention No. 2353924. Published on 04/27/2009. Byul. No. 12.
- Klimov Ya. Studying without destruction // Gudok. 2020. No. 131. dated July 21. P. 5. URL: https://gudok.ru/newspaper /?ID=1528362
- Markov A.A., Oleinik V.E., Razorvin V.E., Aksakov S.V. Device for ultrasonic flaw detection of rails / Utility model patent No. 89235. Published on 11/27/2009.
- Bazulin E.G., Tarabrin V.F. The choice of the method of ultrasonic inspection of the feathers of the base of the rail // Control. Diagnostics. 2017. No. 9. P. 20—31.
- Markov A.A., Molotkov S.L. Method of ultrasonic inspection of the sole of rails. (2018).
- Syasko V.A. On the use of MFL technology to detect corrosion damage to ship skin // In the world of non-destructive testing. 2015. V. 18. No. 3. P. 7—10.
- Potapov A.I. et al. Analysis of the measurement error of the residual thickness of the bottoms of cylindrical vertical tanks using MFL technology using the finite element method // Control. Diagnostics. 2016. No. 11. P. 10—15. doi: 10.14489/td.2016.11.pp.010-015
- Markov A.A. et al. Comprehensive analysis of the condition of the track using the new AVICON-03M flaw detector car // In the World of non-destructive testing. 2013. No. 3. P. 74—79.
- Shleenkov A.S. et al. On the possibility of using magnetic flaw detection of rails in the process of their production // Defectoskopiya. 2019. No. 12. P. 49—55.
- Antipov A.G., Markov A.A. Detection of defects in rails by the magnetic method // Defectoskopiya. 2019. No. 4. P. 21—29.
- Antipov A.G., Markov A.A. Evaluation of transverse cracks detection depth in MFL rail NDT // Russian Journal of Nondestructive Testing. 2014. V. 50. No. 8. P. 481—490.
- GOST R 51685-2013. Railway rails. General technical specifications, 2014. P. 12—13.
- DIN EN 13674-1-2017. Railway applications - Track - Rail - Part 1: Vignole railway rails 46 kg/m and above.
- Potapov A.I., Syasko V.A., Pudovkin O.P. Optimization of parameters of primary measuring transducers implementing MFL technology // Defectoskopiya. 2015. No. 8. P. 64—71.
- Jia Y., Liang K., Wang P., Ji K., Xu P. Enhancement method of magnetic flux leakage signals for rail track surface defect detection. // IET Sci. Meas. Technol. V. 14. P. 711—717. https://doi.org/10.1049/iet-smt.2018.5651
- Antipov A.G., Markov A.A. Using a tail field in high-speed magnetic flux leakage testing // Journal of Nondestructive Evaluation. 2022. No. 41. P. 1—9.
- Muravyev V.V., Strizhak V.A., Balabanov E.N. To calculate the parameters of the magnetization system of an electromagnetic-acoustic transducer // Intelligent systems in Production. 2011. No. 1. P. 197—205.
- Markov A.A., Antipov A.G., Mosyagin V.V. Metod of rail base magnetic flaw detection / Patent for invention No. 2736177 C1. Published on 12/11/2020.
Supplementary files
Supplementary Files
Action
1.
JATS XML
2.

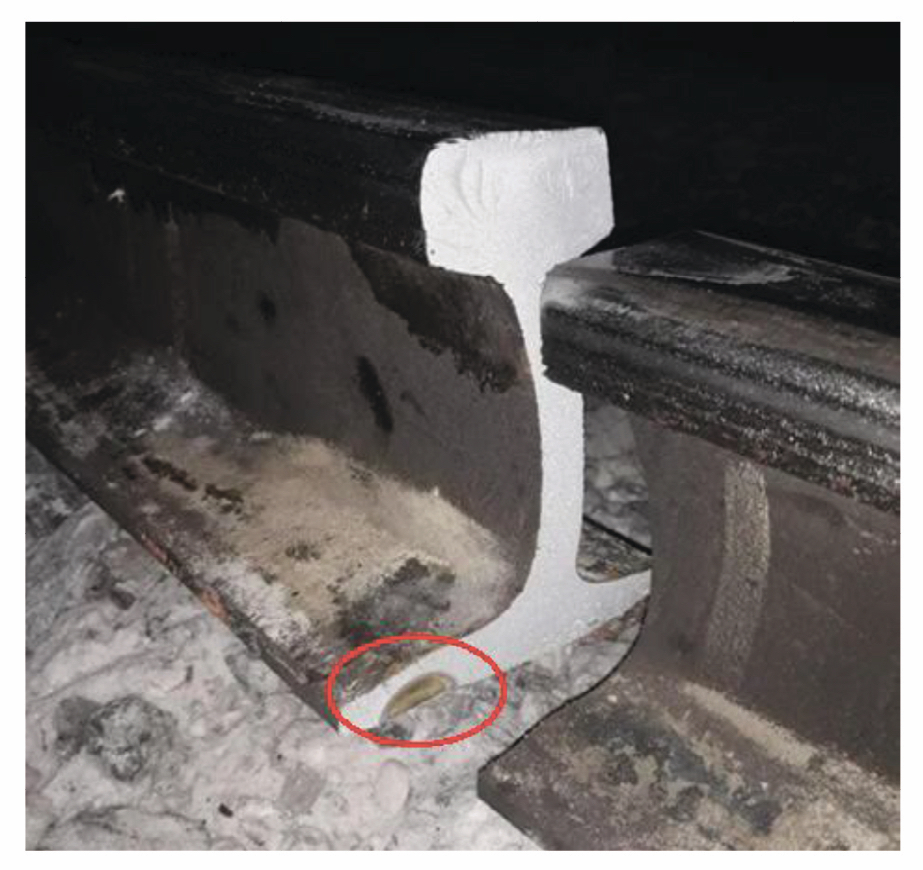

Fig. 1. An example of a rail fracture due to a transverse crack developing in the sole.
Download (607KB)
3.

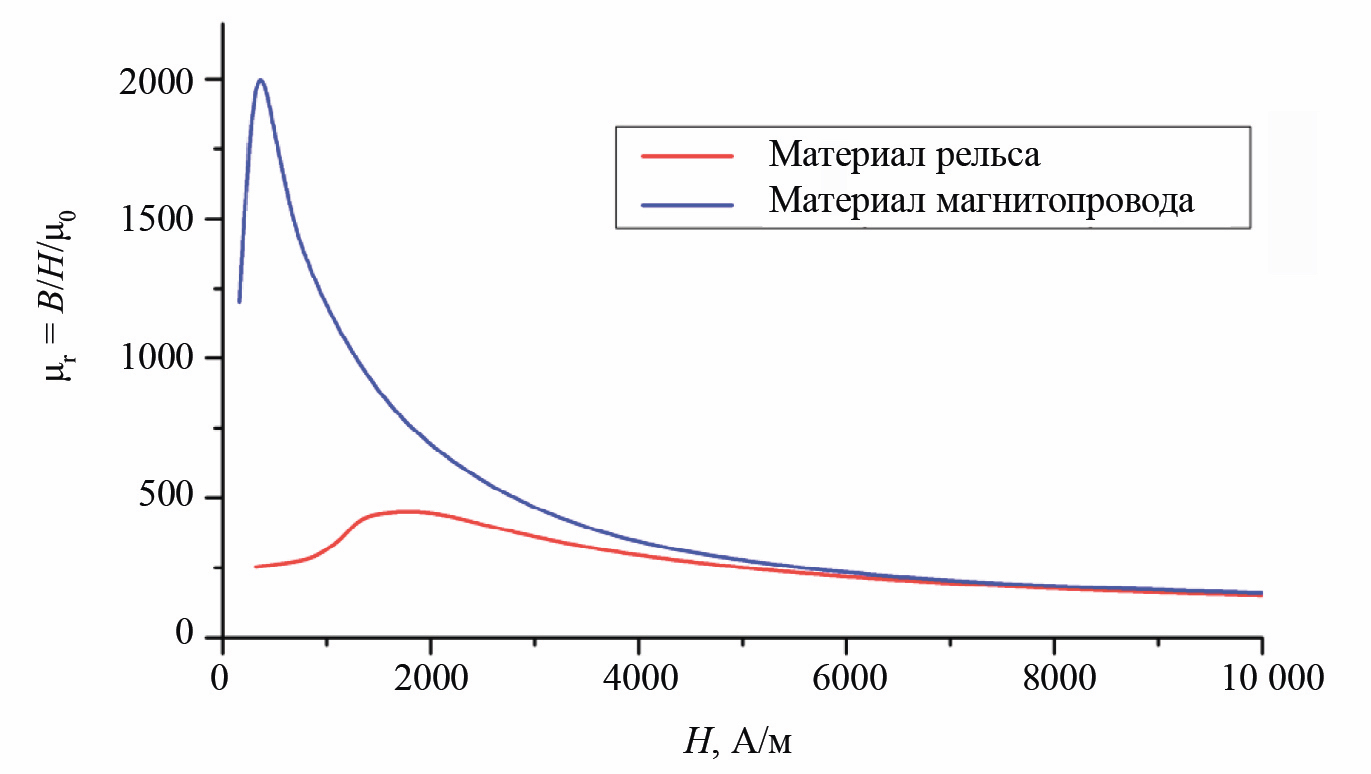

Fig. 2. Relative magnetic permeability of magnetic core and rail materials depending on the magnetic field strength used in the simulation.
Download (198KB)
4.

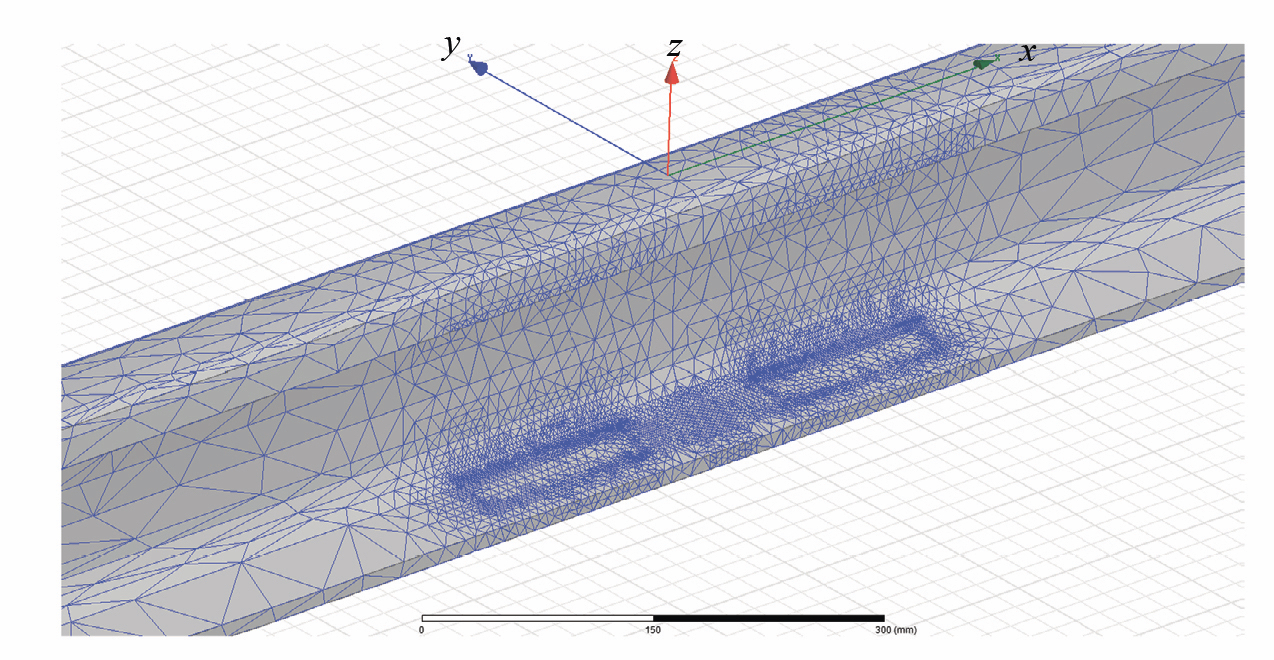

Fig. 3. The grid of points on the surface of the rail in the calculation by the finite element method.
Download (1MB)
5.

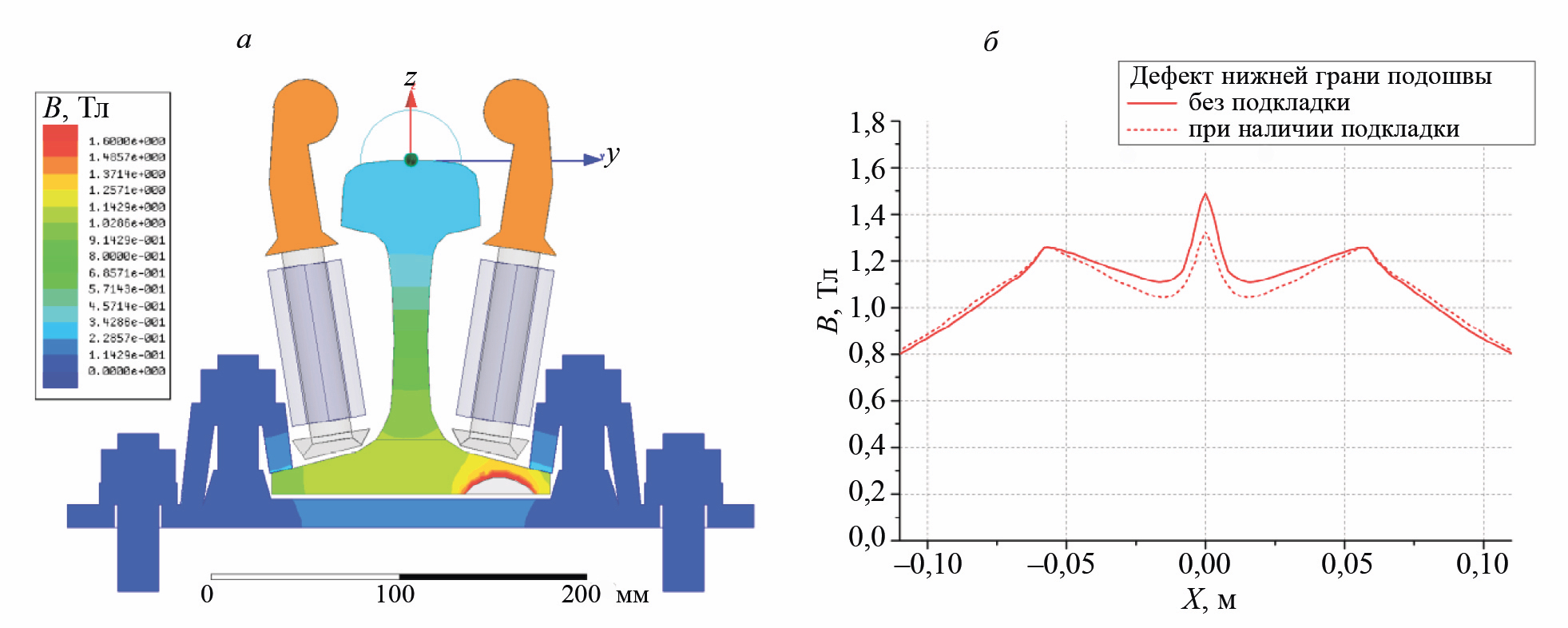

Fig. 4. Distribution of magnetic induction on the surface of the rail and on the surfaces of a two-way magnetizing system with co-directional magnets (a); in the cross section of the rail and magnetic circuit in the middle between the poles in the presence of a defect model (b).
Download (914KB)
6.

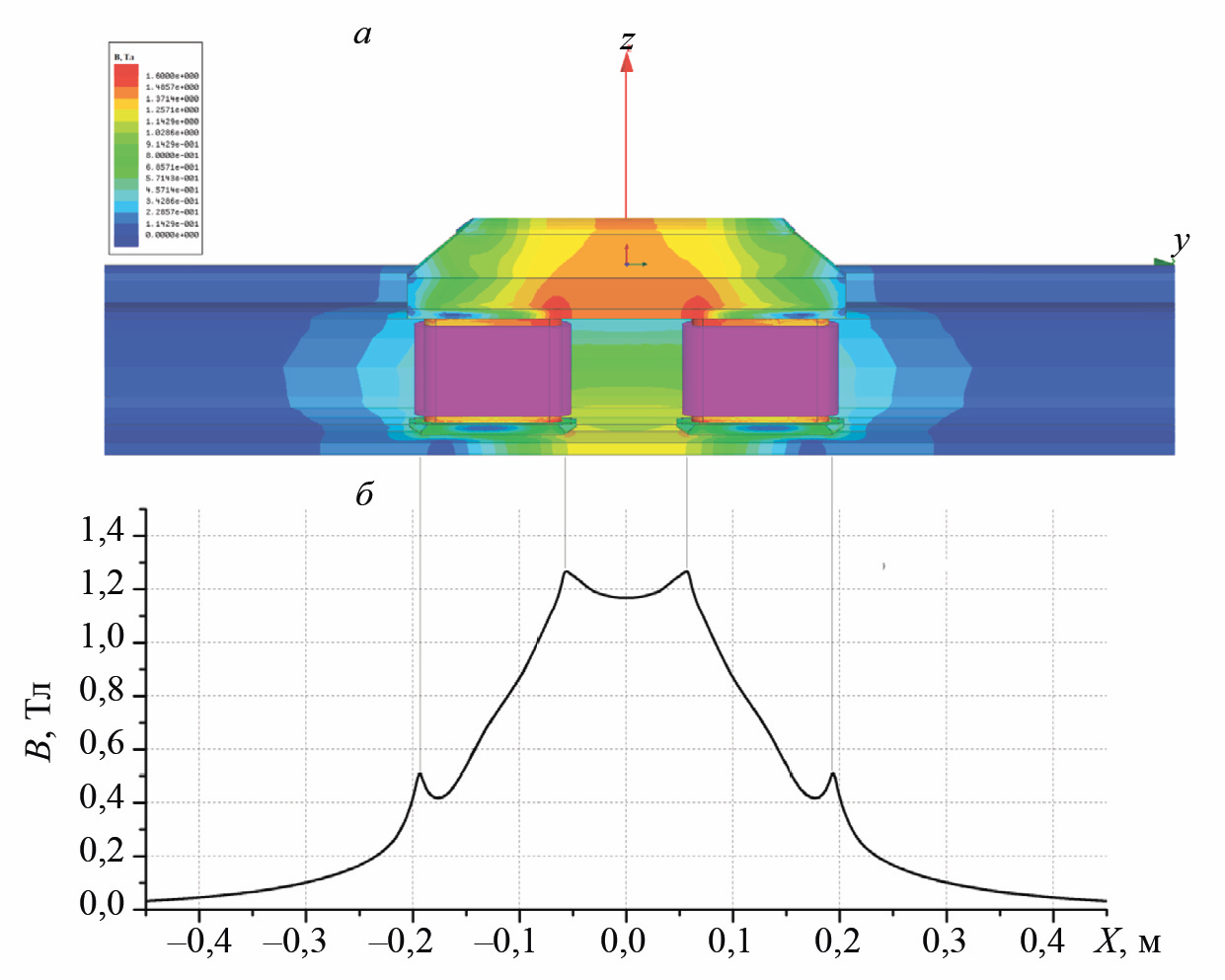

Fig. 5. Distribution of magnetic induction along the longitudinal coordinate of the sole of the rail (25 mm from the edge of the feather of the sole) when using a two-way magnetizing system: U-shaped electromagnet (a); graph of the distribution of magnetic induction (b).
Download (407KB)
7.
Fig. 6. Distribution of magnetic induction in the vicinity of defects in the sole of the rail: a, c, d — the crack model is located in the central part of the sole feather; b, d, e — on the edge of the sole feather; a, b — magnetic induction on the surface and in the cross section of the rail; c, d — distributions along the longitudinal coordinate of magnetic induction on the surface of the sole feather; e, e — distributions according to the longitudinal coordinate of the tangential component of magnetic induction in the air 2.5 mm above the surface of the sole feather.
Download (1MB)
8.
Fig. 7. Observation point (25 mm from the side face) for the magnitude of magnetic induction in the simulation process.
Download (598KB)
9.

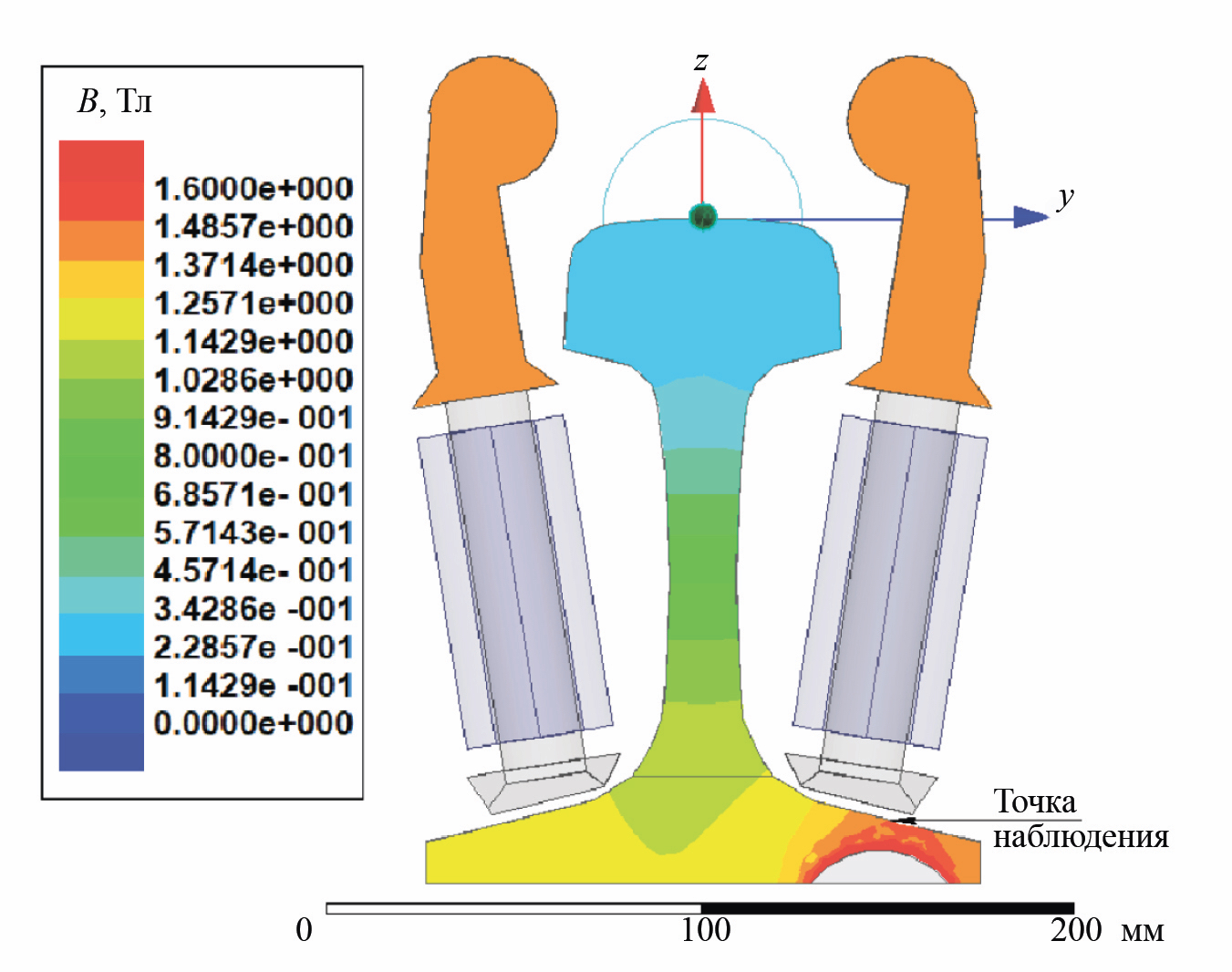

Fig. 8. Distribution of magnetic induction in the cross section of the rail, cores, rail mounting (a) and on the upper face of the sole of the rail along the longitudinal coordinate, 25 mm from the side face (b).
Download (543KB)
10.

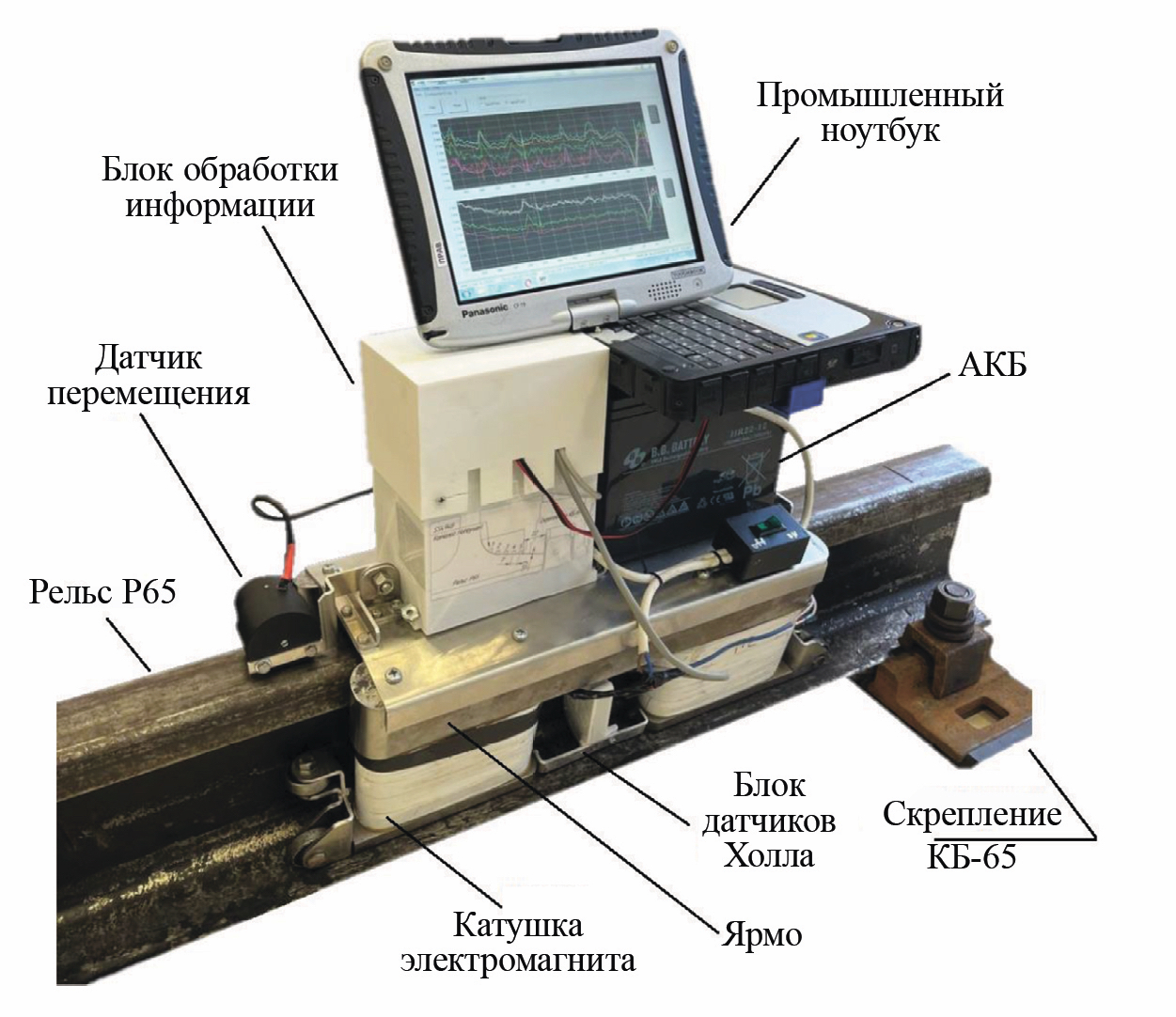

Fig. 9. Layout of the magnetization and information retrieval system.
Download (802KB)
11.

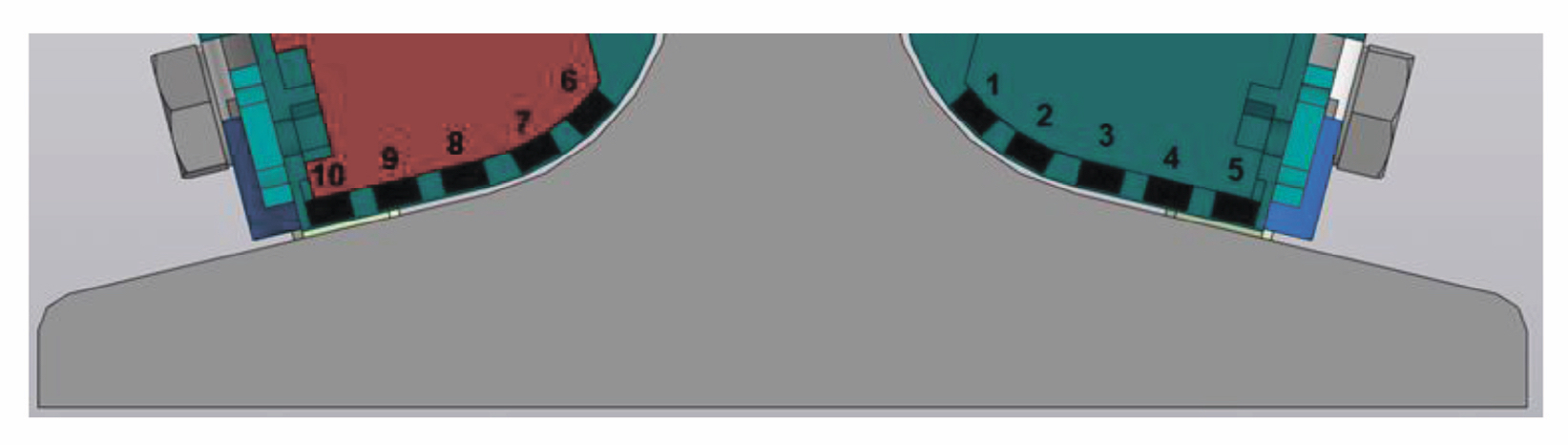

Fig. 10. Placement of Hall sensors on the surface of the sole feathers.
Download (237KB)
12.

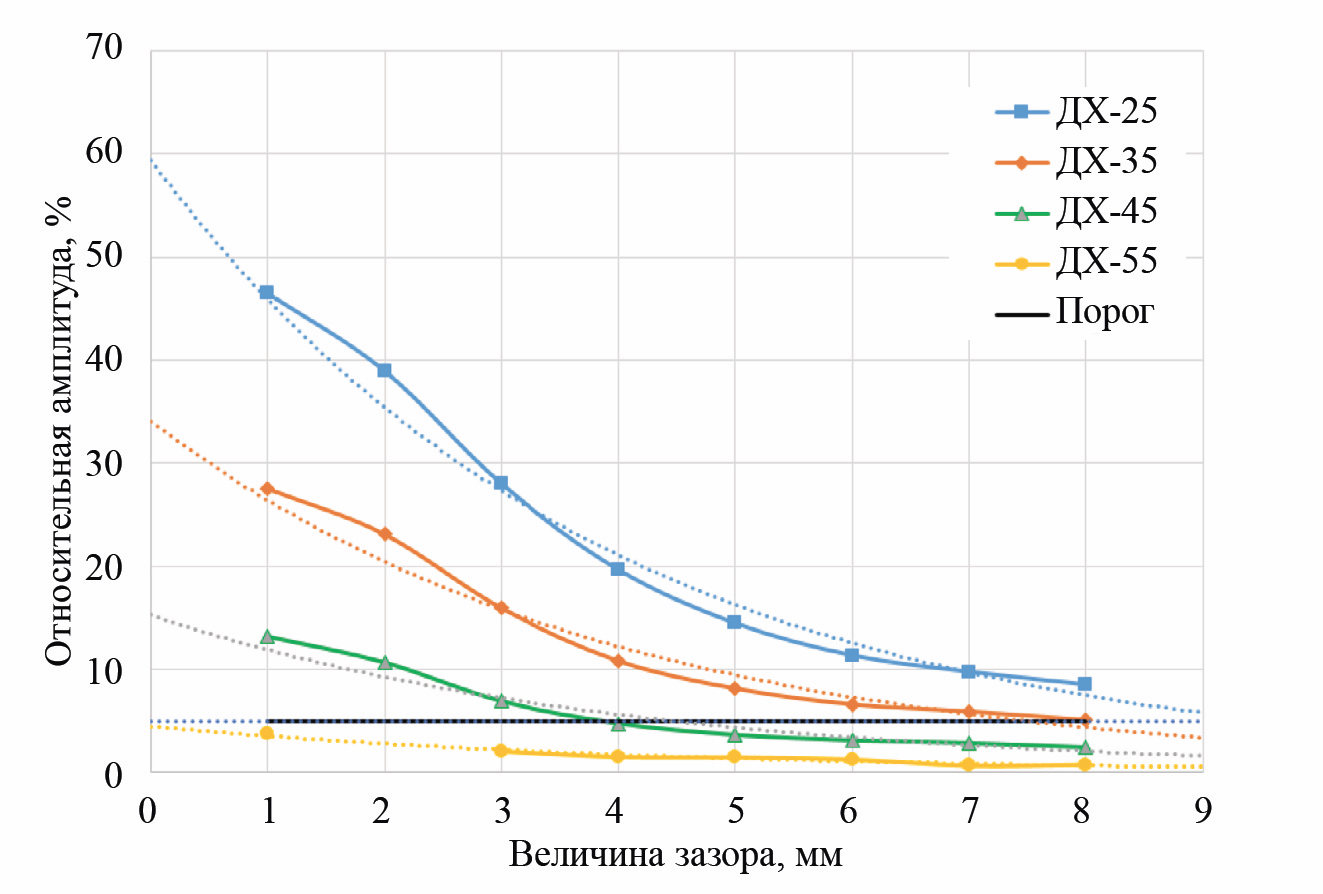

Fig. 11. The dependence of the level of the relative amplitude of the signal on the defect model (9 mm high in the sole feather) when the gap between the poles of the electromagnet and the sole feather changes.
Download (373KB)
13.

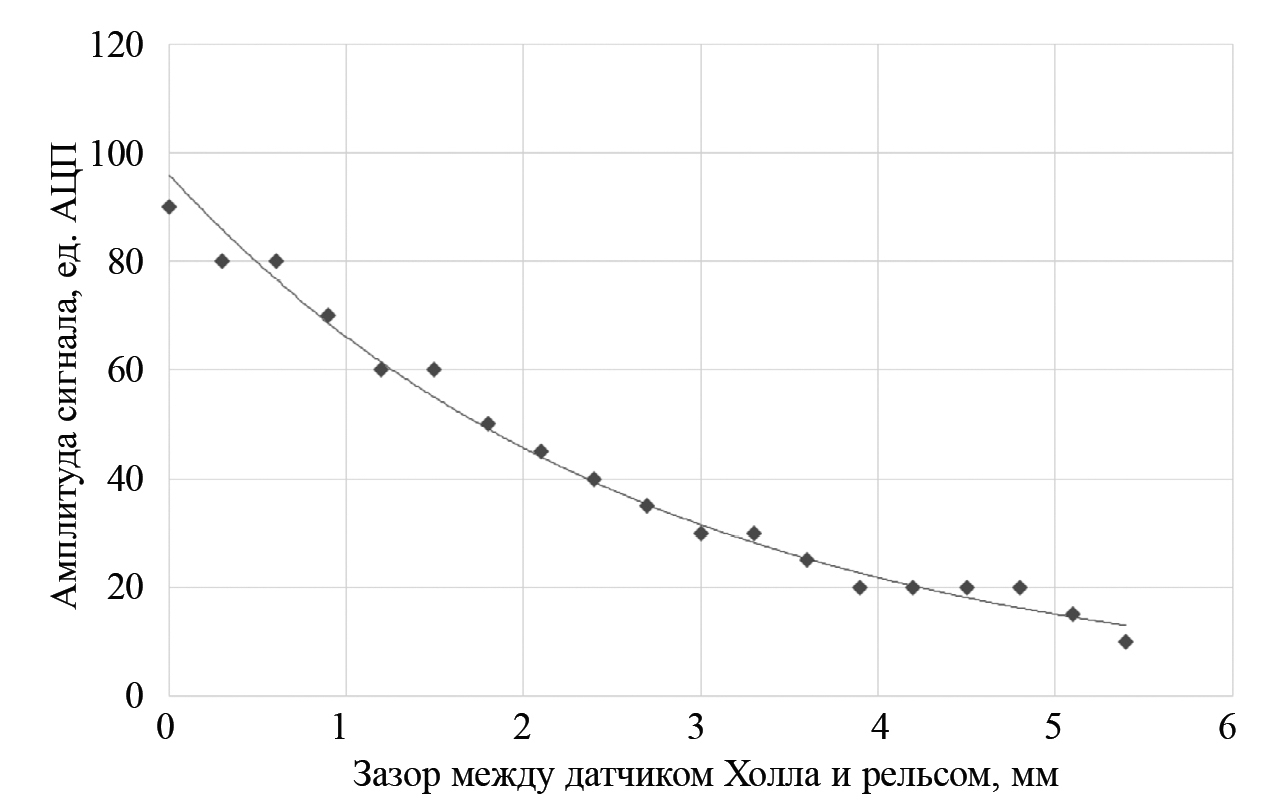

Fig. 12. Graph of the dependence of the amplitude of the Hall sensor signal on the size of the gap between the Hall sensor and the surface of the sole feather.
Download (123KB)
14.

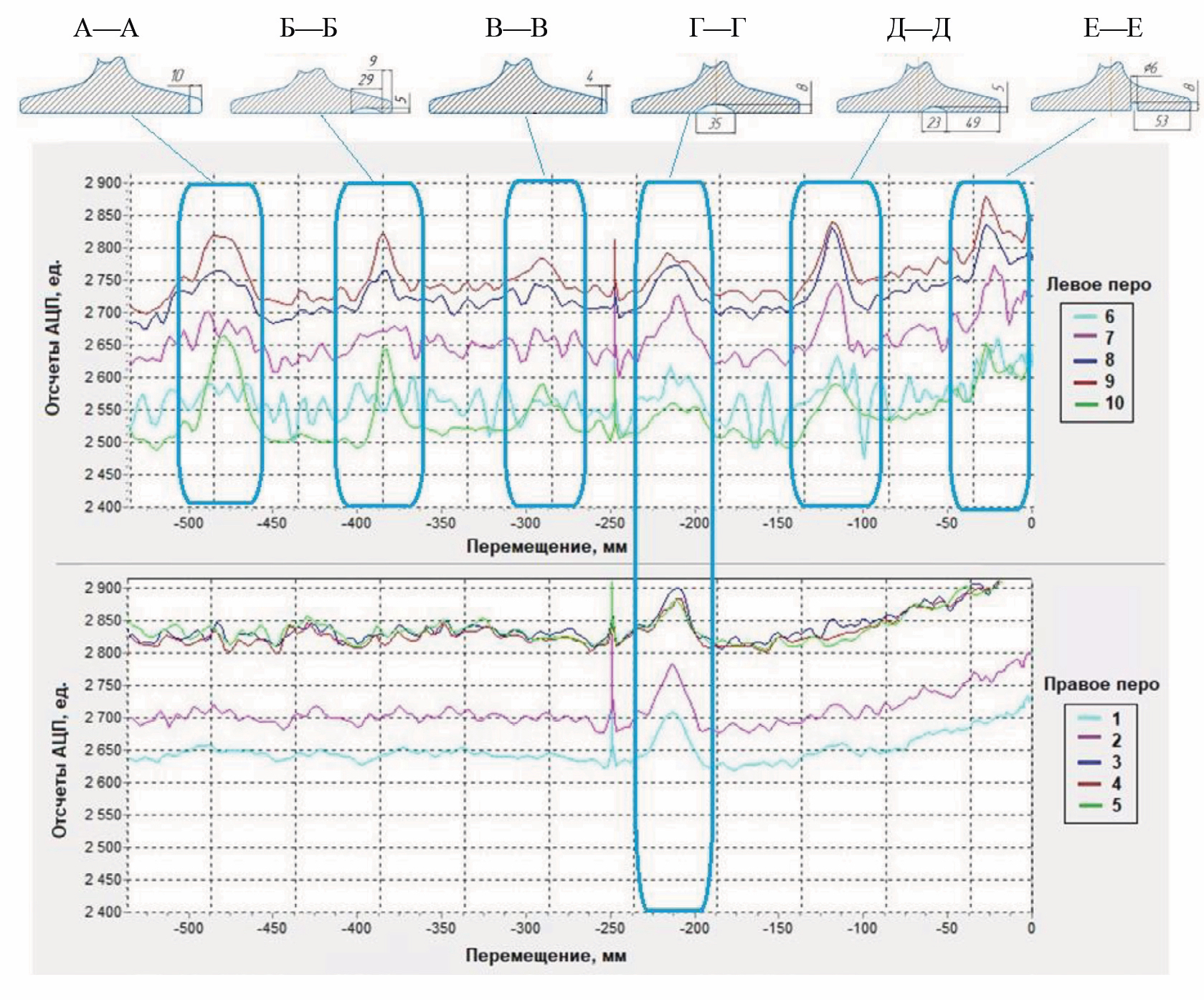

Fig. 13. Signals received from crack models when scanning with a layout: the upper part corresponds to one feather, the lower part corresponds to another feather of the sole of the rail (channel number corresponds to pos. DX in Fig. 9).
