Derivatives of (2-carbamoyl ethyl)diphenylphosphine oxides: synthesis and extraction properties with respect to actinides and lanthanides

Мұқаба

Дәйексөз келтіру

Толық мәтін

Ашық рұқсат Ашық рұқсат
Рұқсат жабық Рұқсат берілді
Рұқсат жабық Тек жазылушылар үшін

Аннотация

A series of (2–carbamoyl ethyl)diphenylphosphine oxides (KFO) has been synthesized from commercially available reagents — diphenyl chlorophosphine and acrylamides. The influence of the number of ligand fragments of Ph2P(O)(CH2)2C(O), the nature of the oligoyl radical binding these fragments, as well as the presence of additional coordination centers in the KEFO molecule on the extraction properties of KEFO with respect to actinides and lanthanides was investigated. It was found that N,N′-methylene-bis[3-(diphenylphosphoryl) has the greatest efficiency in the extraction of actinidespropionamide] (III), in which two diphenylphosphorylpropionyl radicals are bound by a rigid HNCH2NH linker (the degree of extraction of U(VI) reaches ~73%, and Th(IV) — ~85%), while in the case of lanthanides, on the contrary, ligand V, containing the maximum amount of this kind of phosphoryl carbonyl radicals attached to a conformationally non-rigid nitrogenous heterocyclic matrix, as well as KEFO (II), containing an additional C=O group in an alkyl radical attached to a nitrogen atom, has significant advantages carbamoyl fragment (when using this compound, gadolinium extraction is close to 92%). The obtained data show that highly effective and selective extractants of both 4f and 5f elements can be created on the basis of (2-carbamoyl ethyl)diphenylphosphine oxide structure.

Толық мәтін

Рұқсат жабық

Авторлар туралы

A. Safiulina

Bochvar High-Technology Research Institute of Inorganic Materials; Mendeleev University of Chemical Technology of Russia

Хат алмасуға жауапты Автор.
Email: AMSafiulina@bochvar.ru
Ресей, Moscow, 123098; Moscow, 125047

A. Lizunov

Bochvar High-Technology Research Institute of Inorganic Materials

Email: AMSafiulina@bochvar.ru
Ресей, Moscow, 123098

E. Goryunov

Nesmeyanov Institute of Organoelement Compounds of the Russian Academy of Sciences

Email: AMSafiulina@bochvar.ru
Ресей, Moscow, 119334

G. Bodrin

Nesmeyanov Institute of Organoelement Compounds of the Russian Academy of Sciences

Email: AMSafiulina@bochvar.ru
Ресей, Moscow, 119334

I. Goryunova

Nesmeyanov Institute of Organoelement Compounds of the Russian Academy of Sciences

Email: AMSafiulina@bochvar.ru
Ресей, Moscow, 119334

T. Strelkova

Nesmeyanov Institute of Organoelement Compounds of the Russian Academy of Sciences

Email: AMSafiulina@bochvar.ru
Ресей, Moscow, 119334

M. Grigor'ev

Frumkin Institute of Physical Chemistry and Electrochemistry of the Russian Academy of Sciences

Email: AMSafiulina@bochvar.ru
Ресей, Moscow, 119071

V. Brel'

Nesmeyanov Institute of Organoelement Compounds of the Russian Academy of Sciences

Email: AMSafiulina@bochvar.ru
Ресей, Moscow, 119334

I. Tananaev

Federal Research Center “Kola Scientific Center of the Russian Academy of Sciences”; Tananaev Institute of Chemistry and Technology of Rare Elements and Mineral Raw Materials, RAS

Email: AMSafiulina@bochvar.ru
Ресей, Apatity, 184209; Apatity, 184209

Әдебиет тізімі

  1. Тананаев И.Г., Мясоедов Б.Ф. // Радиохимия. 2016. Т. 58. № 3. С. 257. [Tananaev I.G., Myasoedov B.F. // Radiochemistry. 2016. V. 58. № 3. P. 257. https://doi.org/10.1134/S1066362216030061]
  2. Leoncini A., Huskens J., Verboom W. // Chem. Soc. Rev. 2017. V. 46. № 23. P. 7229. https://doi.org/10.1039/C7CS00574A
  3. Wang C.-Z., Shi W.-Q., Lan J.-H. et al. // Inorg. Chem. 2013. V. 52. № 19. P. 10904. https://doi.org/10.1021/ic400895d
  4. Wang C.-Zh., Lan J.-H., Zhao Yu.-L. et al. // Inorg. Chem. 2013. V. 52. № 1. P. 196. https://doi.org/10.1021/ic301592f
  5. Matveeva A.G., Kudryavtsev I.Yu., Pasechnik M.P. et al. // Polyhedron. 2018. V. 142. P. 71. https://doi.org/10.1016/j.poly.2017.12.025
  6. Gorden A.E.V., DeVore II M.A., Maynard B.A. // Inorg. Chem. 2013. V. 52. № 7. P. 3445. https://doi.org/10.1021/ic300887p
  7. Schurhammer R., Erhart V., Troxler L., Wipff G. // J. Chem. Soc., Perkin Trans. 2. 1999. № 11. Р. 2423. https://doi.org/10.1039/A906720E
  8. Кабачник М.И., Медведь Т.Я., Дятлова Н.М. и др. // Успехи химии. 1968. Т. 37. № 7. С. 1161. [Kabachnik M.I., Medved’ T.Ya., Dyatlova N.M. et al. // Russ. Chem. Rev. 1968. V. 37. № 7. P. 503. https://doi.org/10.1070/RC1968v037n07ABEH001662]
  9. Мастрюкова Т.А., Артюшин О.И., Одинец И.Л., Тананаев И.Г. // Российский химический журнал. Журнал Российского химического общества им. Д.И. Менделеева. 2005. Т. 49. № 2. С. 86.
  10. Розен A.M., Николотова З.И., Карташева Н.А. // Докл. АН СССР. 1975. Т. 222. № 5. С. 1151.
  11. Розен A.M., Николотова З.И., Карташева Н.А. // Радиохимия. 1975. Т. 17. № 2. С. 237.
  12. Кабачник М.И., Мясоедов Б.Ф., Мастрюкова Т.А., Чмутова М.К. // Изв. РАН. Сер. хим. 1996. № 11. С. 2624.
  13. Розен А.М. // Российский химический журнал. Журнал Российского химического общества им. Д.И. Менделеева. 1996. Т. 40. № 6. С. 42.
  14. Розен А.М., Крупнов Б.В. // Успехи химии. 1996. Т. 65. № 11. С. 1052. [Rozen A.M., Krupnov B.V. // Russ. Chem. Rev. 1996. V. 65. № 11. P. 973. https://doi.org/10.1070/RC1996v065n11ABEH000241]
  15. Шарова Е.В., Артюшин О.И., Одинец И.Л. // Успехи химии. 2014. Т. 83. № 2. С. 95. [Sharova E.V., Artyushin O.I., Odinets I.L. // Russ. Chem. Rev. 2014. V. 83. № 2. Р. 95. https://doi.org/10.1070/RC2014v083n02ABEH004384]
  16. Matveev P., Mohapatra P.K., Kalmykov S.N., Petrov V. // Solvent Extr. Ion Exch. 2021. V. 39. № 7. Р. 679. https://doi.org/10.1080/07366299.2020.1856998
  17. Медведь Т.Я., Чмутова М.К., Нестерова Н.П. и др. // Изв. АН СССР. Сер. хим. 1981. № 9. С. 2112.
  18. Chmutova М.К., Kochetkova N.E., Koiro O.E. et al. // J. Radioanal. Chem. 1983. V. 80. № 1–2. P. 63. https://doi.org/10.1007/BF02517648
  19. Myasoedov B.F., Chmutova М.К., Kochetkova N.E. et al. // Solvent Extr. Ion Exch. 1986. V. 4. № 1. Р. 61. https://doi.org/10.1080/07366298608917853
  20. Туранов А.Н., Карандашев В.К., Яркевич А.Н. и др. // Радиохимия. 2002. Т. 44. № 6. С. 506. [Turanov A.N., Karandashev V.K., Yarkevich A.N. et al. // Radiochemistry. 2002. V. 44. № 6. Р. 559.]
  21. Туранов А.Н., Карандашев В.К., Яркевич А.Н. и др. // Радиохимия. 2004. Т. 46. № 5. С. 427. [Turanov A.N., Karandashev V.K., Yarkevich A.N. et al. // Radiochemistry. 2004. V. 46. № 5. Р. 461. https://doi.org/10.1007/s11137-005-0010-0]
  22. Туранов А.Н., Карандашев В.К., Яркевич А.Н. // Радиохимия. 2016. Т. 58. № 4. С. 336. [Turanov A.N., Karandashev V.K., Yarkevich A.N. // Radiochemistry. 2016. V. 58. № 4. Р. 338. https://doi.org/10.1134/s106636221604007x]
  23. Coupez B., Boehme C., Wipff G. // Phys. Chem. Chem. Phys. 2002. V. 4. № 23. P. 5716. https://doi.org/ 10.1039b207177k
  24. Horwitz E.P., Martin K.A., Diamond H., Kaplan L. // Solvent Extr. Ion Exch. 1986. V. 4. № 3. Р. 449. https://doi.org/10.1080/07366298608917877
  25. Gatrone R.C., Kaplan L., Horwitz E.P. // Solvent Extr. Ion Exch. 1987. V. 5. № 6. Р. 1075. https://doi.org/ 10.1080/07366298708918611
  26. Gatrone R.C., Horwitz E.P., Rickert P.G., Diamond H. // Solvent Extr. Ion Exch. 1989. V. 7. № 5. Р. 793. https://doi.org/10.1080/07360298908962338
  27. Chiarizia R., Horwitz E.P. // Solvent Extr. Ion Exch. 1992. V. 10. № 1. Р. 108. http://dx.doi.org/10.1080/ 07366299208918094
  28. Саввин С.Б. Органические реагенты группы арсеназо III. М.: Атомиздат, 1971. 352 c.
  29. Matveeva A.G., Vologzhanina A.V., Goryunov E.I. et al. // Dalton Trans. 2016. V. 45. № 12. P. 5162. https://doi.org/10.1039/c5dt04963f
  30. Сафиулина А.М., Борисова Н.Е., Лизунов А.В. и др. // Журн. неорган. химии. 2022. Т. 67. № 4. С. 513. [Safiulina A.M., Borisova N.E., Lizunov A.V. et al. // Russ. J. Inorg. Chem. 2022. V. 67. № 4. Р. 524. https://doi.org/10.31857/S0044457X2204016X]
  31. Матвеева А.Г., Григорьев М.С., Дворянчикова Т.К. и др. // Изв. АН. Сер. хим. 2012. № 2. С. 397. [Matveeva A.G., Grigoriev M.S., Dvoryanchikova T.K. et al. // Russ. Chem. Bull. 2012. V. 61. № 2. P. 399. https://doi.org/10.1007/s11172-012-0056-z]
  32. Яцимирский К.Б., Костромина Н.А., Шека З.А. и др. Химия комплексных соединений редкоземельных элементов. Киев: Наук. думка, 1966. 493 с.
  33. Сафиулина А.М., Синегрибова О.А., Матвеева А.Г. и др. // Журн. неорган. химии. 2012. Т. 57. № 1. С. 115. [Safiulina A.M., Sinegribova O.A., Matveeva A.G. et al. // Russ. J. Inorg. Chem. 2012. V. 57. № 1. P. 108. https://doi.org/10.1134/S0036023612010196
  34. Сафиулина А.М., Лизунов А.В., Алыпов И.В. и др. // Аналитика. 2022. Т. 12. № 5. С. 340. https://doi.org/10.22184/2227-572X.2022.12.5.340.350
  35. Сафиулина А.М., Борисова Н.Е., Лизунов А.В. и др. // Журн. неорган. химии. 2022. Т. 67. № 9. С. 1283. [Safiulina A.M., Borisova N.E., Lizunov A.V. et al. // Russ. J. Inorg. Chem. 2022. V. 67. № 9. Р. 1416. https://doi.org/10.31857/S0044457X22090100]
  36. Babecki R., Platt A.W.G., Russell D.R. // Inorg. Chim. Acta. 1990. V. 171. № 1. P. 25. https://doi.org/10.1016/S0020-1693(00)84658-7
  37. Bowen S.M., Duesler E.N., Paine R.T. // Inorg. Chim. Acta. 1982. V. 61. P. 155. https://doi.org/10.1016/S0020-1693(00)89134-3
  38. Шарова Е.В., Артюшин О.И., Нелюбина Ю.В. и др. // Изв. АН. Сер. хим. 2008. № 9. С. 1856. [Sharova E.V., Artyushin O.I., Nelyubina Yu.V. et al. // Russ. Chemic. Bull. 2008. V. 57. № 9. P. 1890. https://doi.org/10.1007/s11172-008-0255-9]
  39. Матросов Е.И., Горюнов Е.И., Баулина Т.В. и др. // Докл. АН. 2010. Т. 432. № 2. С. 191. [Matrosov E.I., Goryunov E.I., Baulina T.V. et al. // Dokl. Chem. 2010. V. 432. Part 1. P. 136. https://doi.org/10.1134/S0012500810050058]

Қосымша файлдар

Қосымша файлдар
Әрекет
1. JATS XML
Жүктеу

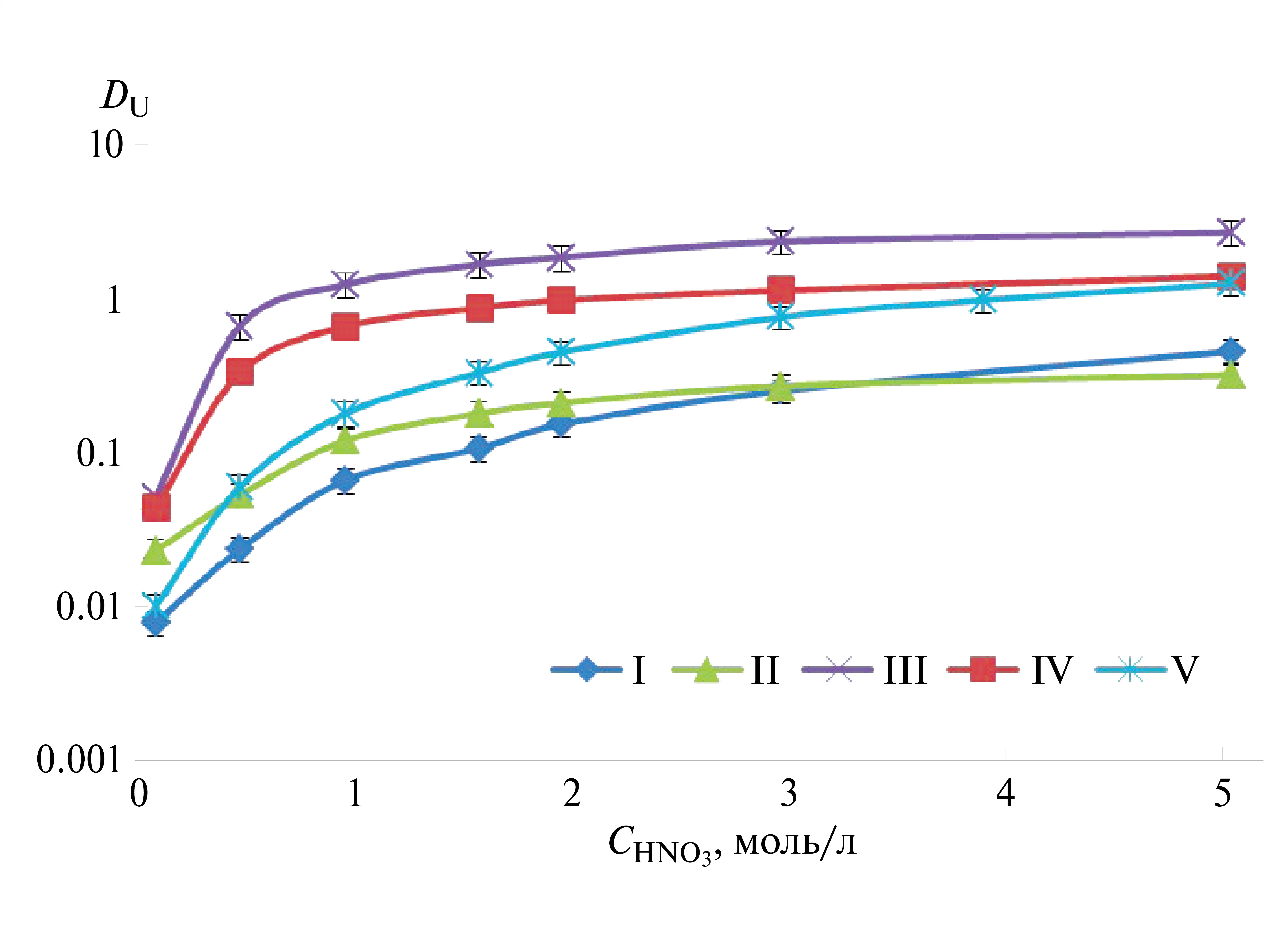

2. Fig. 1. Dependence of the distribution coefficients of uranium(VI) on the concentration of nitric acid during extraction with 0.01 mol/L solutions of compounds I–V in chloroform with a content of 0.025 mmol/L uranium(VI) in the initial solution.

Жүктеу (858KB)
Метадеректер

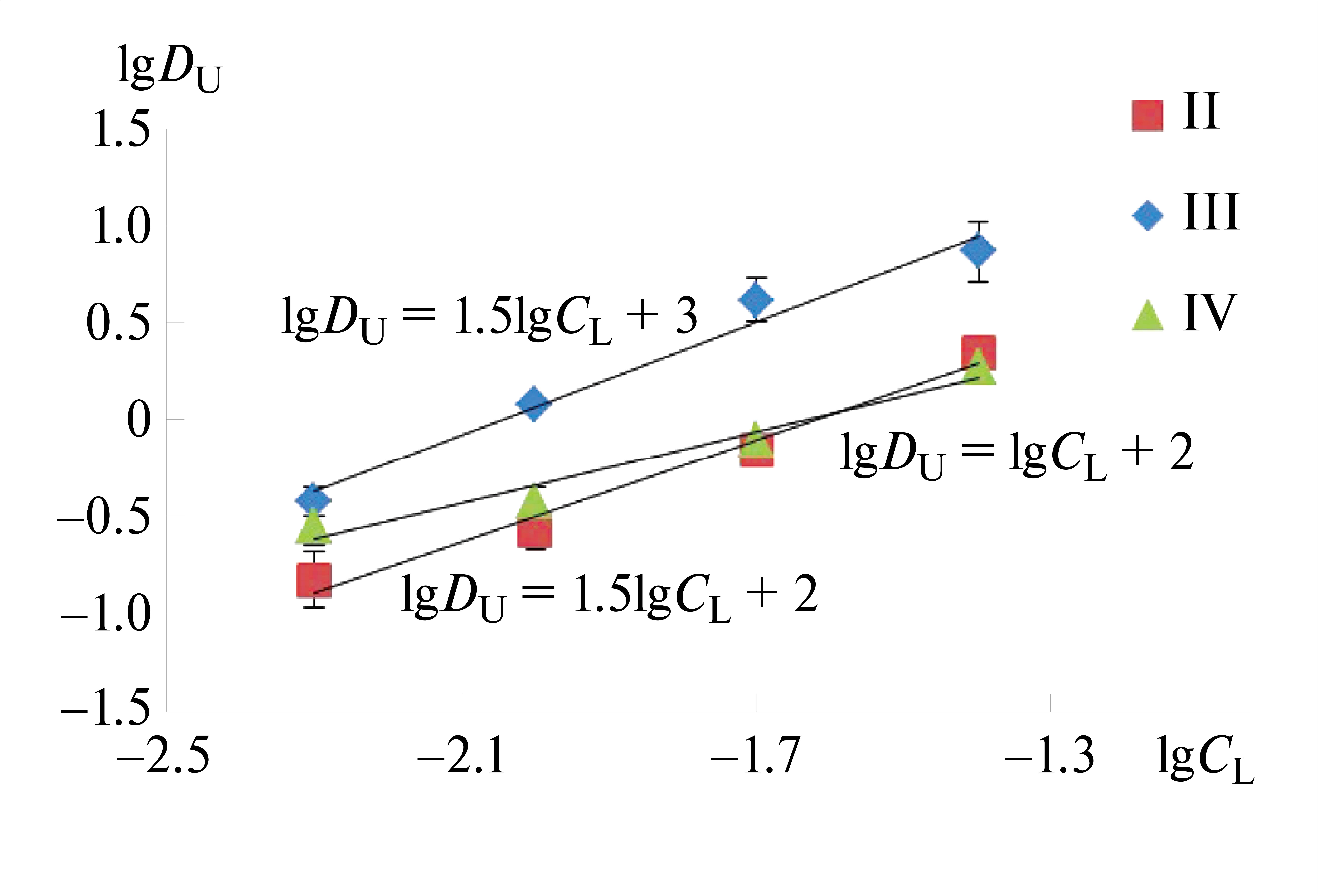

3. Fig. 2. Logarithmic dependences of the distribution coefficients of U(VI) on the concentration of ligand CL during extraction with compounds II, III and IV from 1 mol/L HNO3 in CHCl3 (initial concentration of uranyl nitrate in the aqueous phase 0.025 mmol/L).

Жүктеу (753KB)
Метадеректер

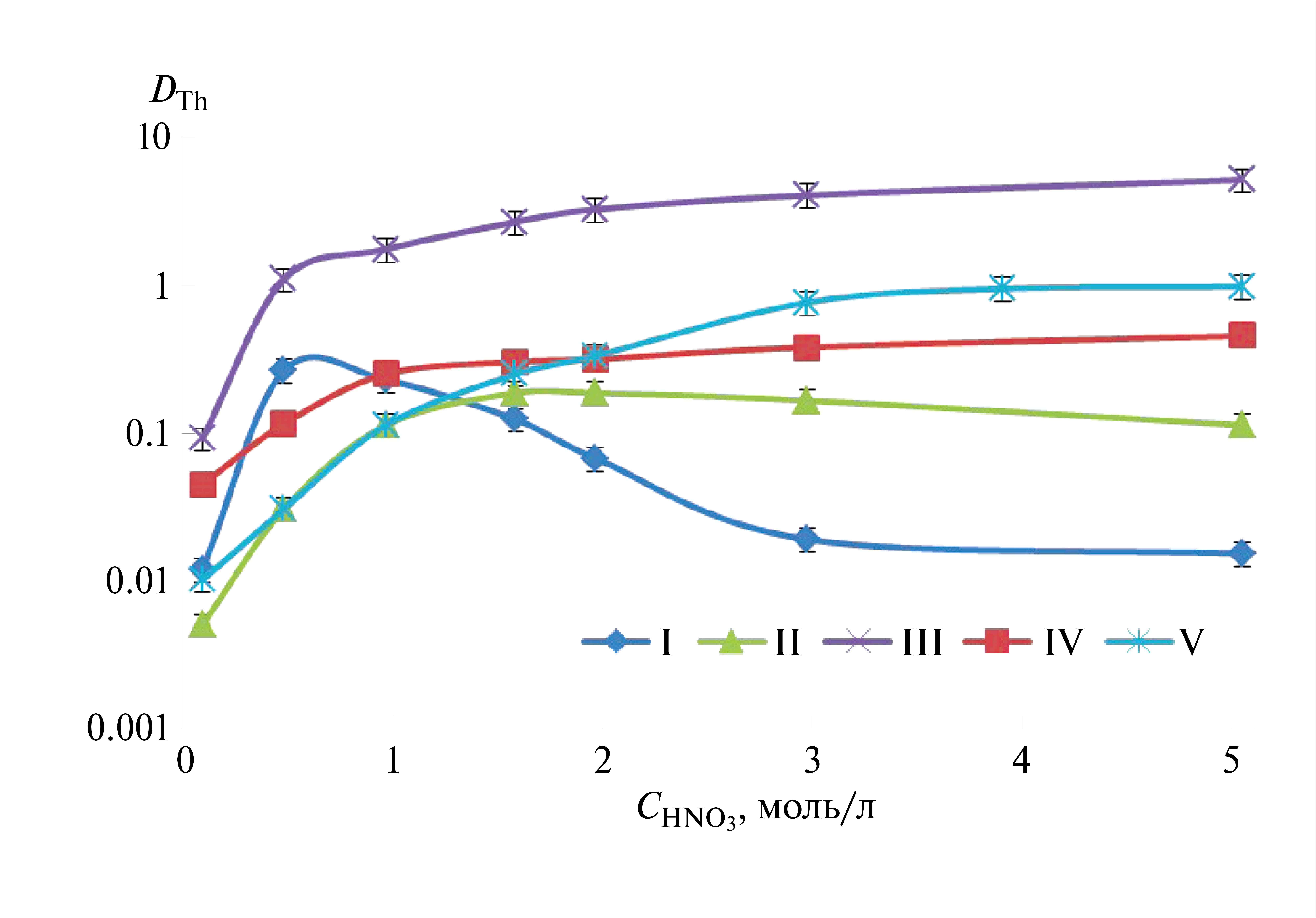

4. Fig. 3. Dependence of the distribution coefficients of thorium(IV) on the concentration of nitric acid during extraction with 0.01 mol/L solutions of compounds I–V in chloroform with a content of 0.025 mmol/L thorium(IV) in the initial solution.

Жүктеу (794KB)
Метадеректер

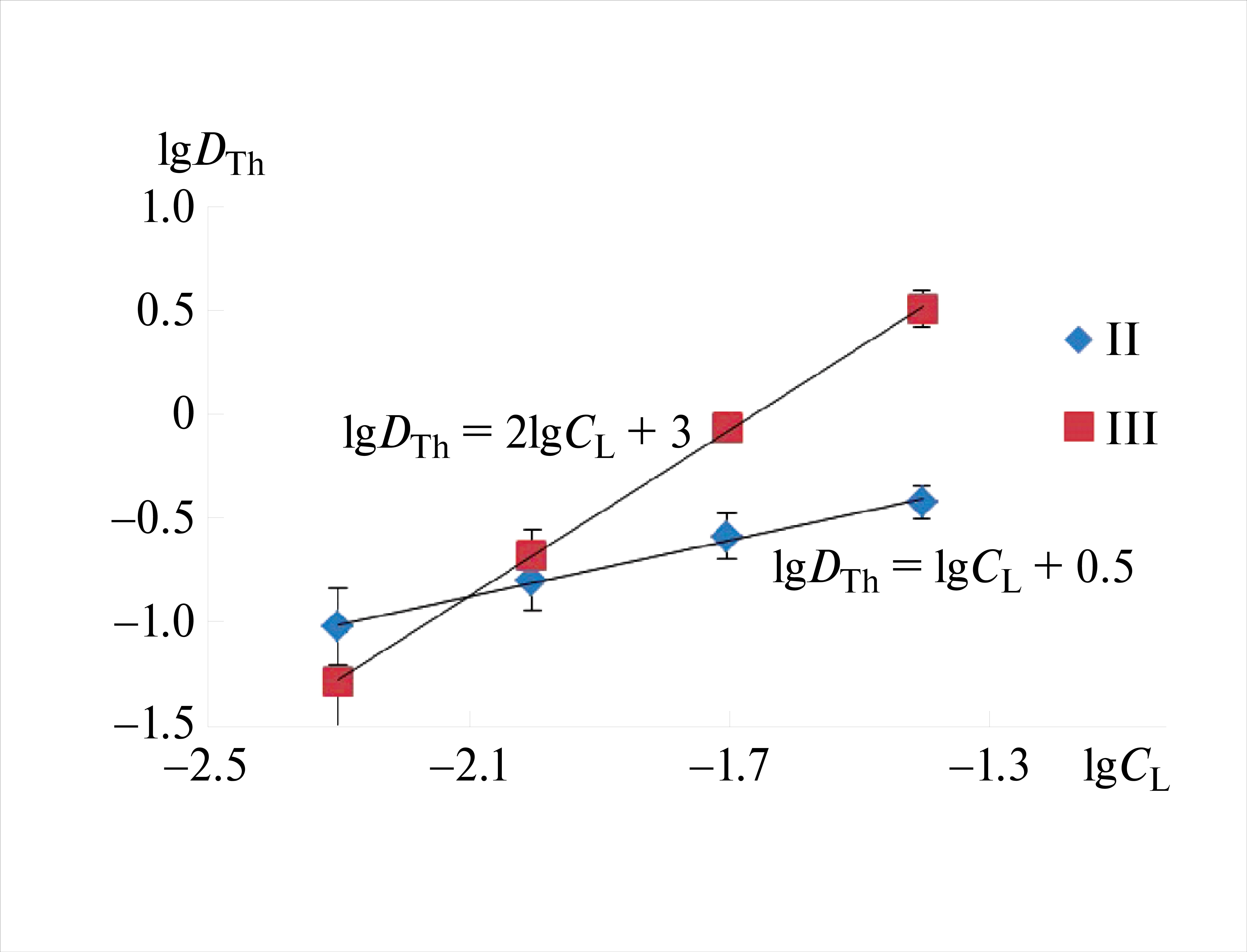

5. Fig. 4. Logarithmic dependences of the distribution coefficients of Th(VI) on the concentration of ligand CL during extraction with compounds II and III from 1 mol/L HNO3 in CHCl3 (initial concentration of thorium nitrate in the aqueous phase 0.025 mmol/L).

Жүктеу (535KB)
Метадеректер

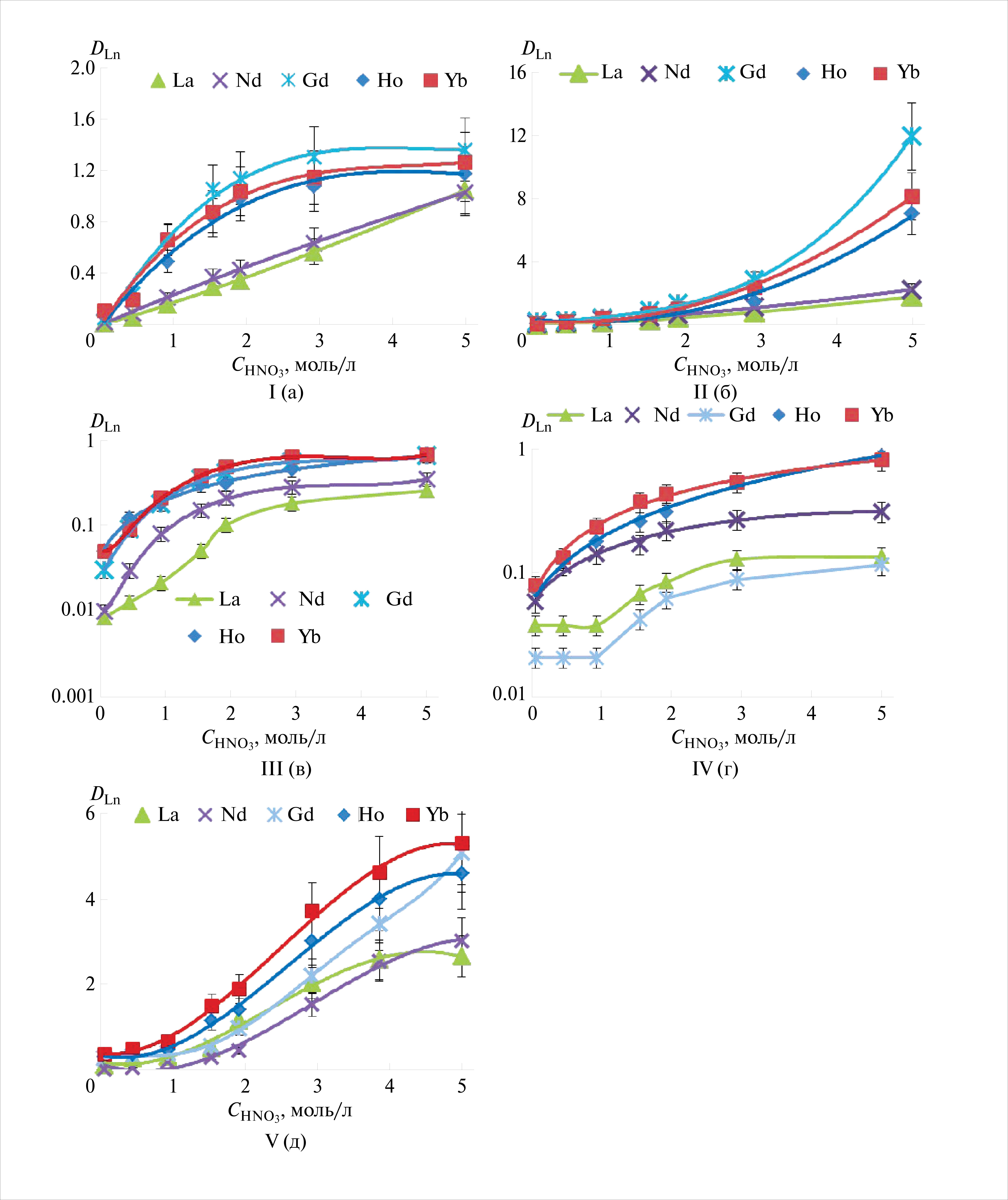

6. Fig. 5. Dependence of the distribution coefficients of La(III), Nd(III), Gd(III), Ho(III) and Yb(III) on the concentration of nitric acid during extraction with 0.01 mol/L solutions of ligands I (a), II (b) , III (c), IV (d) and V (e) in chloroform at a content of 0.025 mmol/L lanthanide in the initial solution.

Жүктеу (1MB)
Метадеректер

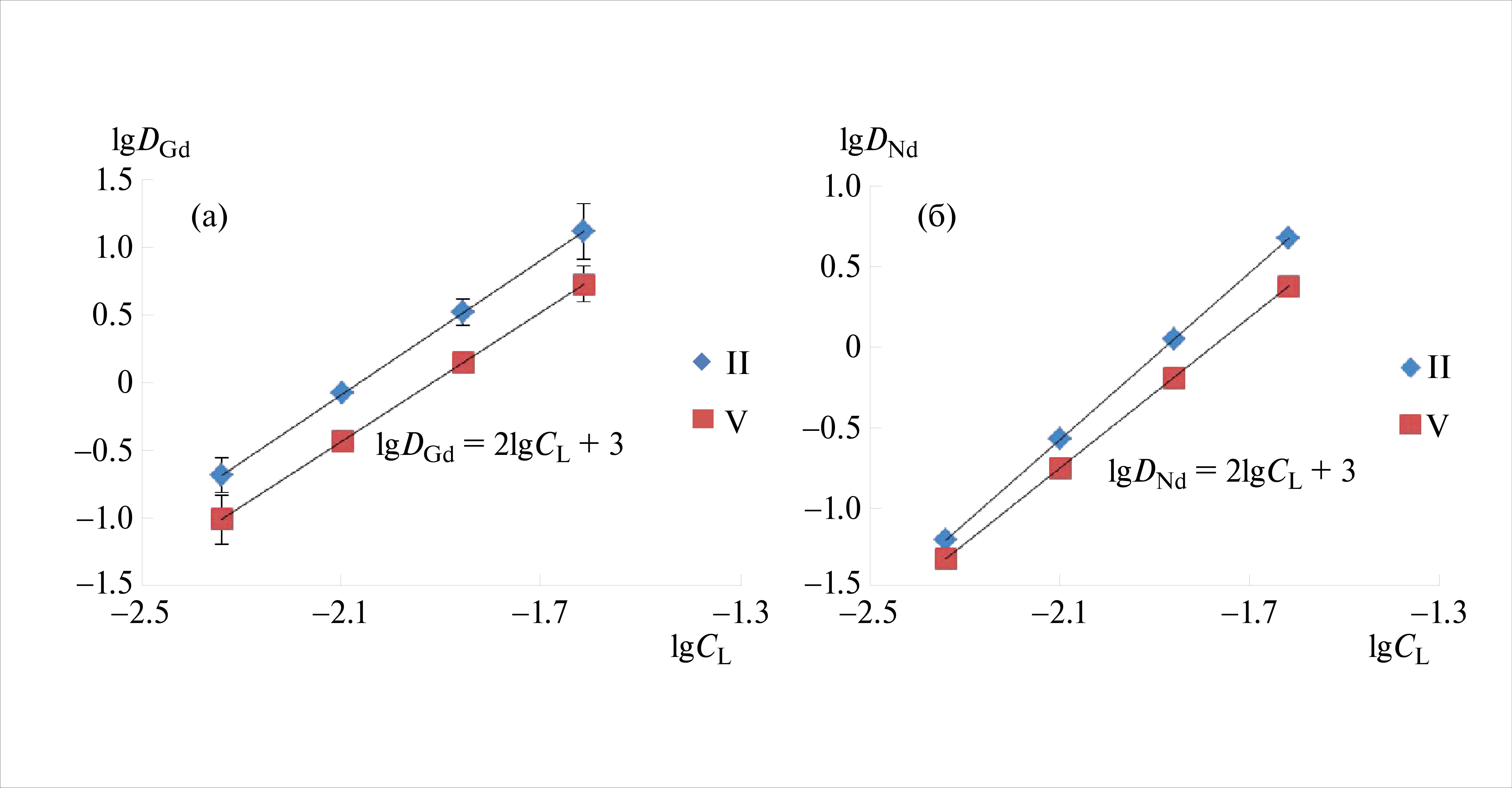

7. Fig. 6. Logarithmic dependences of the distribution coefficients of Gd(III) (a) and Nd(III) (b) on the concentration of ligand CL during extraction with compounds II and V from 1 mol/L HNO3 in CHCl3 (initial concentration of Ln(III) in the aqueous phase 0.025 mmol/l).

Жүктеу (407KB)
Метадеректер

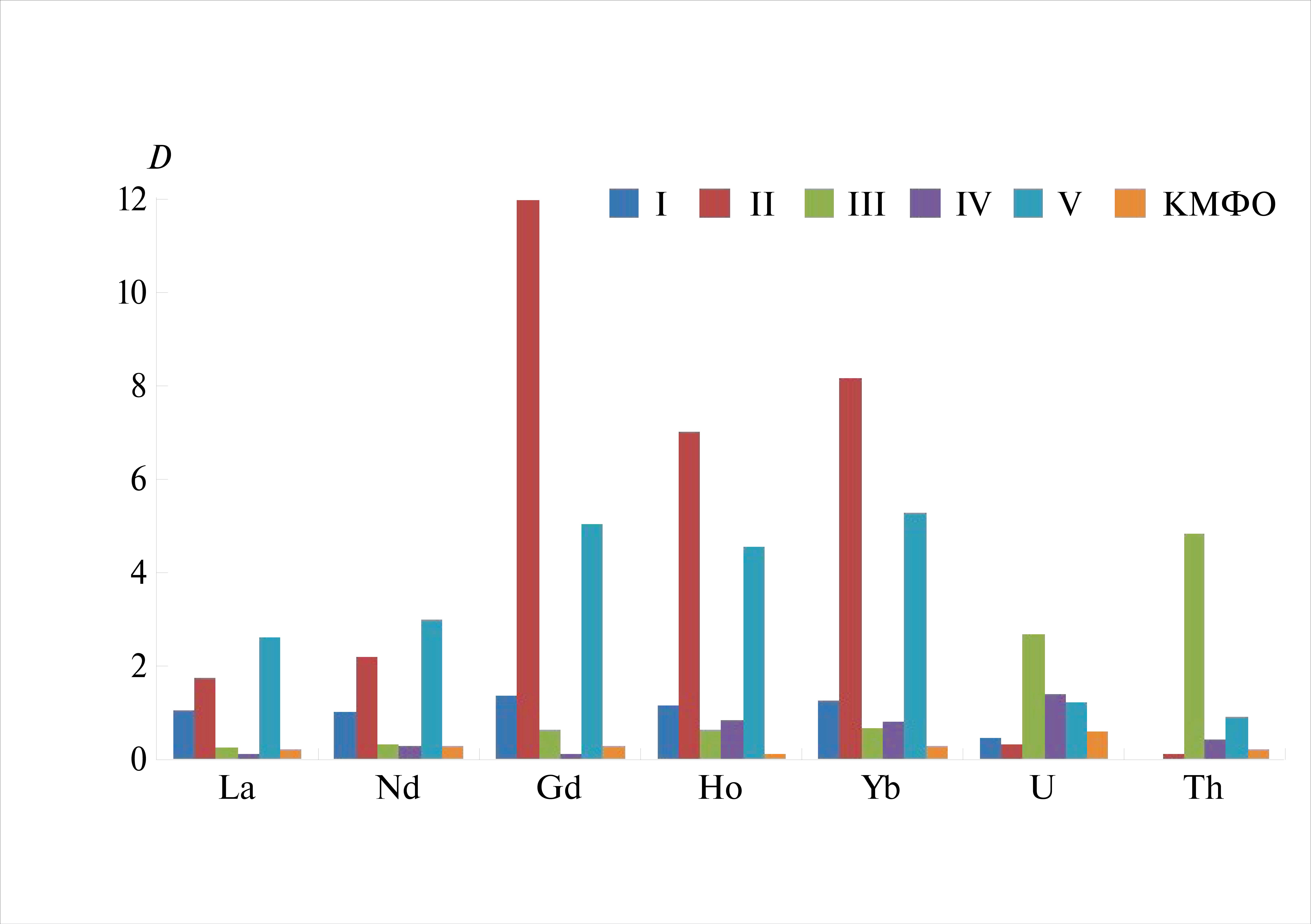

8. Fig. 7. Distribution coefficients of f-elements during extraction with 0.01 mol/L solutions of CEPO I–V and CMPO in chloroform from 5 mol/L HNO3.

Жүктеу (417KB)
Метадеректер

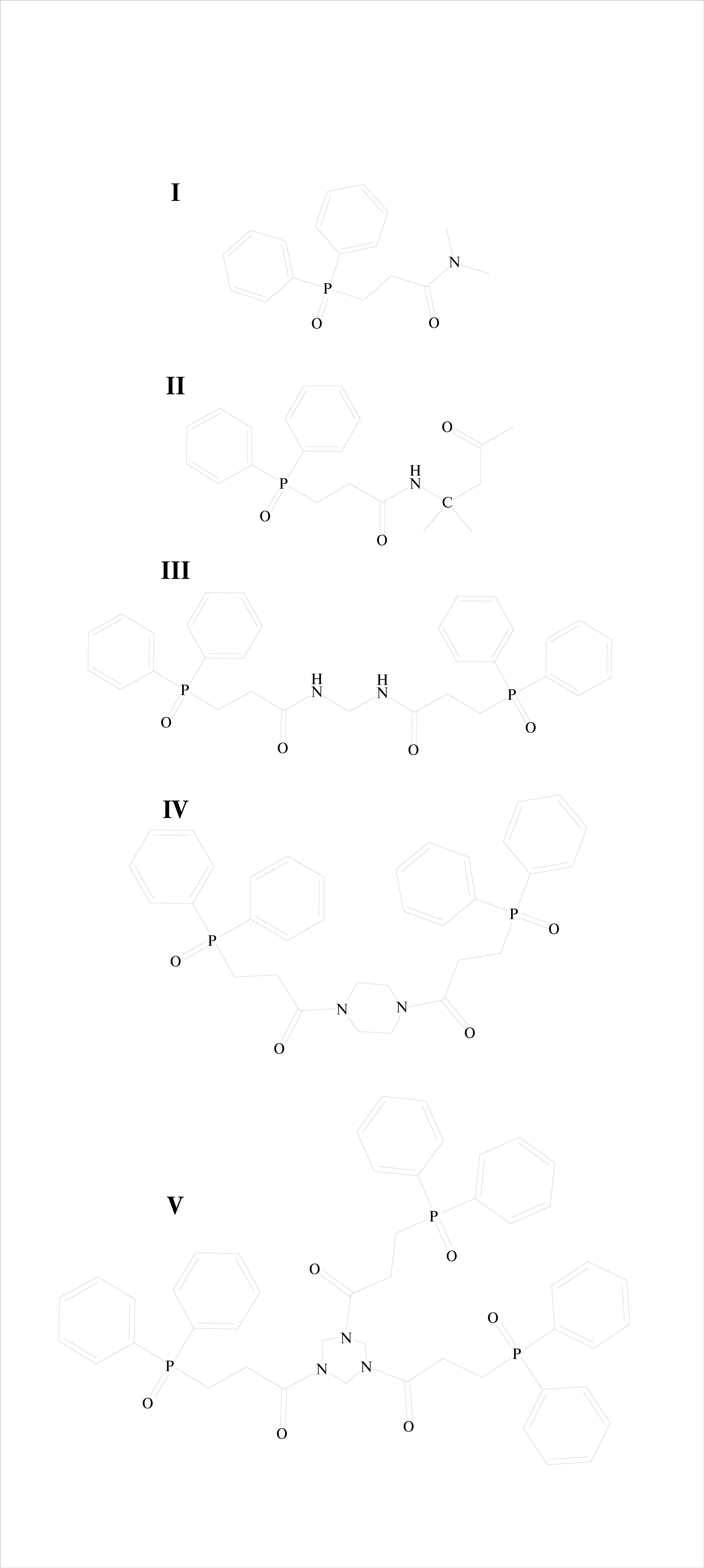

9. Scheme

Жүктеу (533KB)
Метадеректер
