CALPHAD Modelling of Ag–Pd–Sn Ternary System

A. S. Pavlenko; Павленко А. С.; G. P. Zhmurko; Жмурко Г. П.; E. G. Kabanova; Кабанова Е. Г.; M. A. Kareva; Карева М. А.; E. A. Ptashkina; Пташкина Е. А.; V. N. Kuznetsov; Кузнецов В. Н.

doi:10.31857/S0044453723090145

CALPHAD Modelling of Ag–Pd–Sn Ternary System

Autores: Pavlenko A.¹, Zhmurko G.¹, Kabanova E.¹, Kareva M.¹, Ptashkina E.¹, Kuznetsov V.¹
Afiliações:
1. Department of Chemistry, Lomonosov Moscow State University
Edição: Volume 97, Nº 9 (2023)
Páginas: 1329-1335
Seção: ХЕМОИНФОРМАТИКА И КОМПЬЮТЕРНОЕ МОДЕЛИРОВАНИЕ
URL: https://journals.rcsi.science/0044-4537/article/view/136668
DOI: https://doi.org/10.31857/S0044453723090145
EDN: https://elibrary.ru/XOYJQW
ID: 136668

Citar

Texto integral

Acesso aberto
Acesso é fechado

Acesso está concedido
Acesso é fechado

Somente assinantes

Resumo
Sobre autores
Bibliografia
Arquivos suplementares
Estatísticas

Resumo

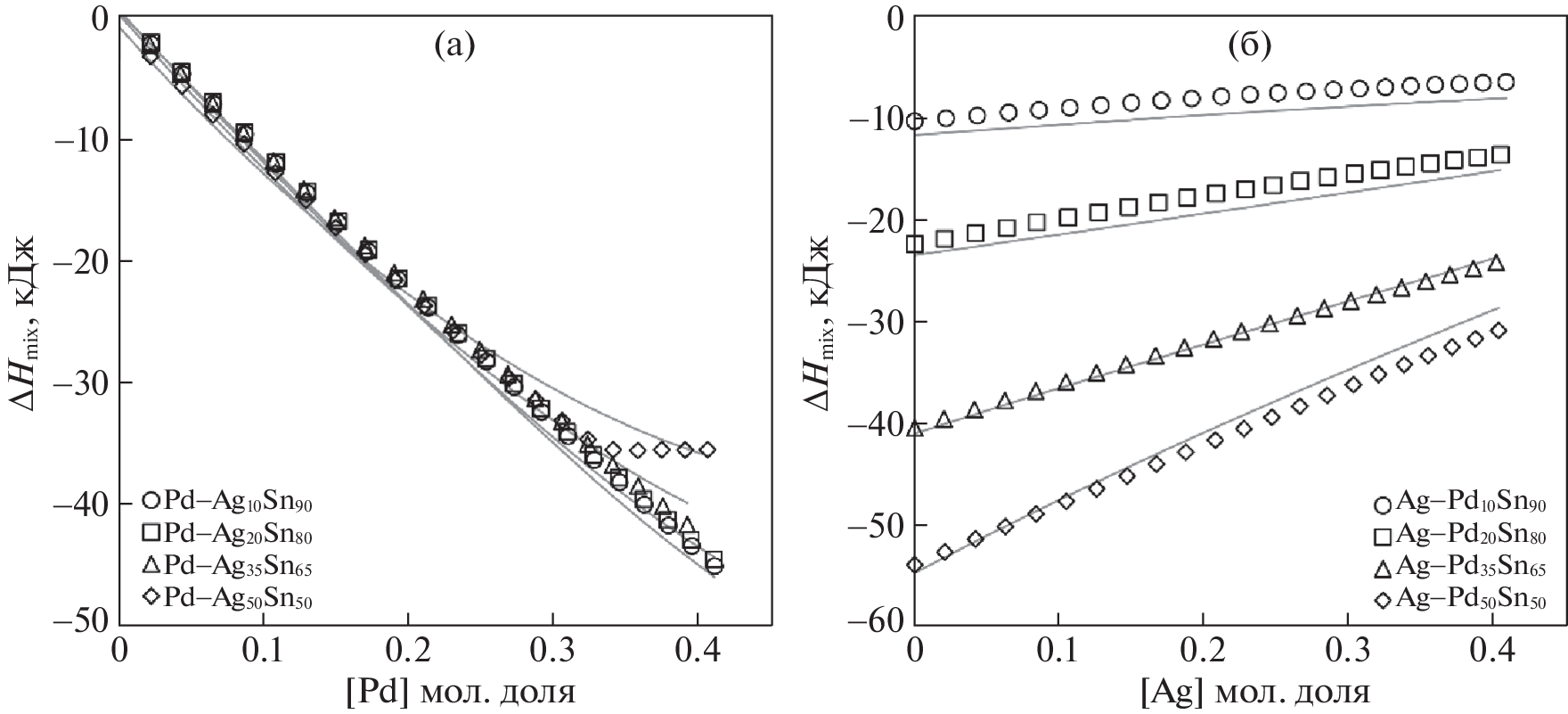

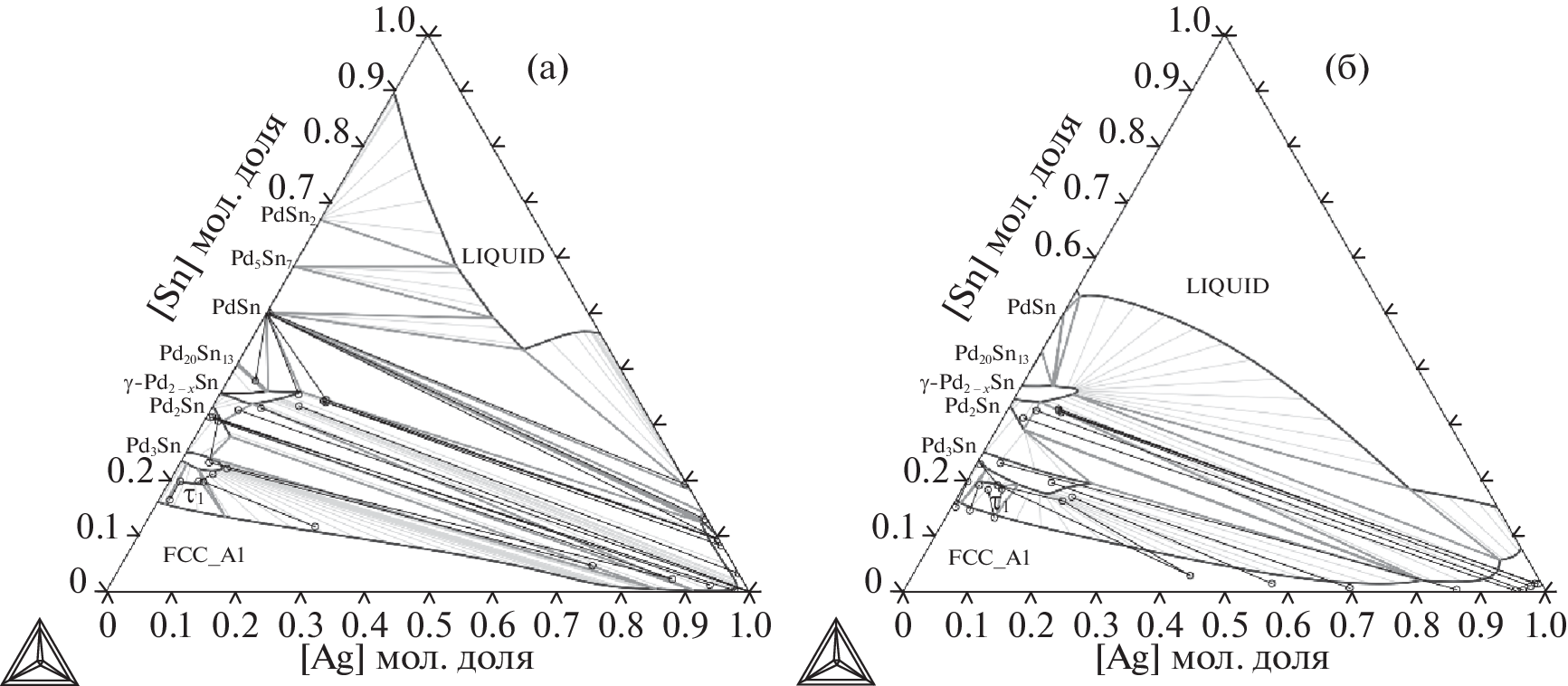

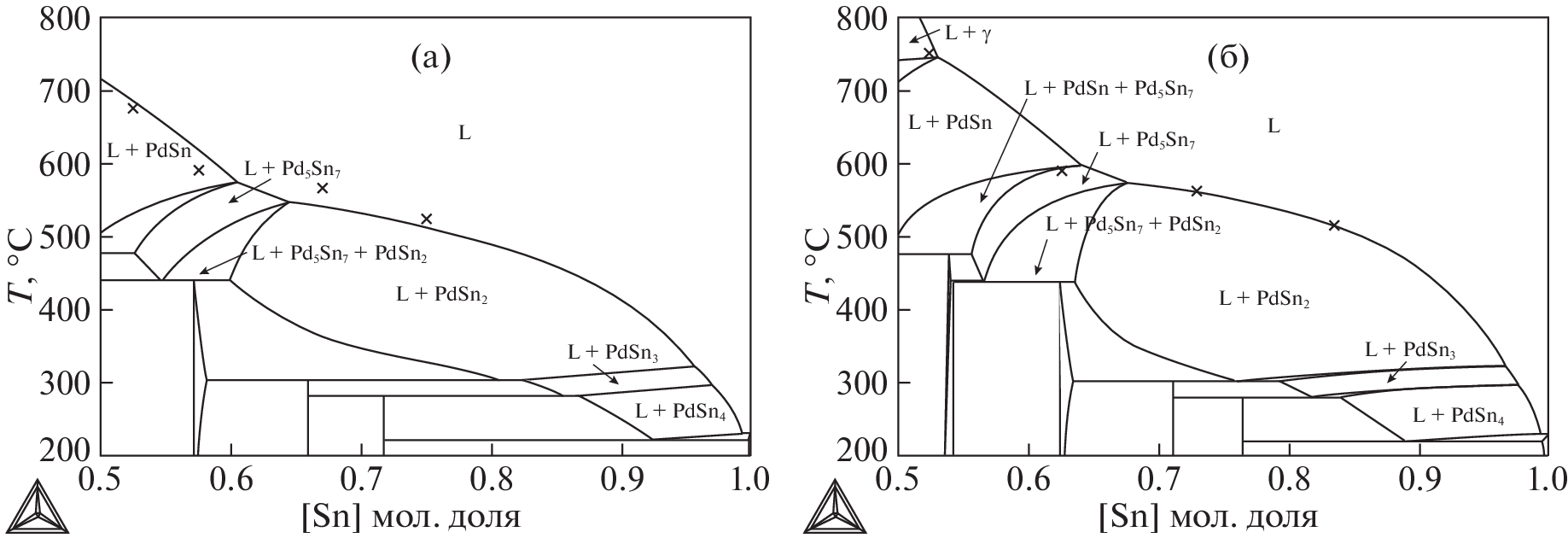

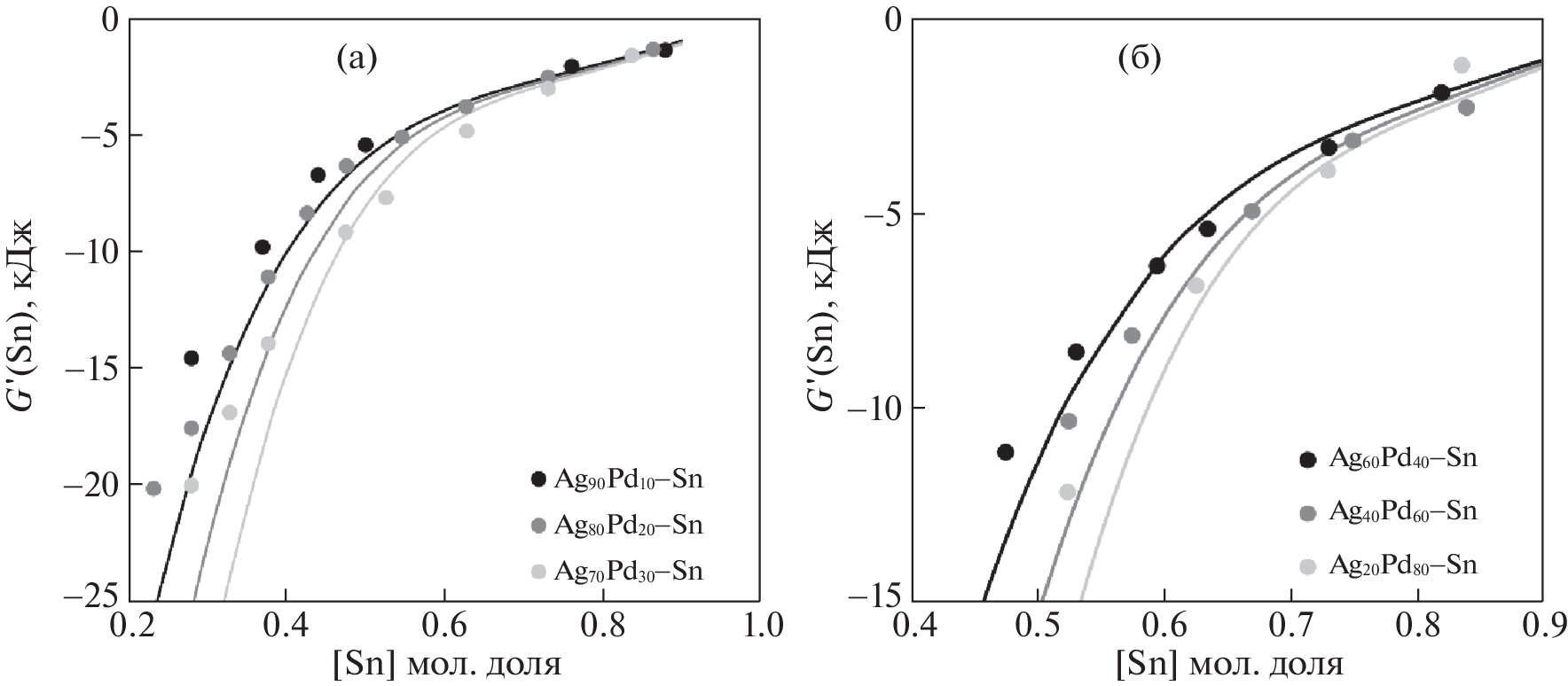

CALPHAD modelling of the Ag–Pd–Sn ternary system has been performed. The disordered phases, the melt and the fcc phase were described using the substitutional solution model. Sublattice models were used to describe intermetallic compounds and the ternary phase. The two-sublattice model (Ag,Pd)4(Ag, Sn) used for the ternary phase made it possible to reproduce the inclination of its homogeneity range. The results of the thermodynamic calculation of the Ag–Pd–Sn system are in good agreement with the experimental data on phase equilibria and enthalpies of formation of the liquid. The agreement with the data on the partial Gibbs energy of tin in the liquid is somewhat worse.

Palavras-chave

palladium alloys, phase equilibria, thermodynamic modeling

Bibliografia

Shin H.-J., Kwon Y.H., Seol H.-J. // J. Mech. Behav. Biomed. Mater. 2020. V. 107. P. 103728. https://doi.org/10.1016/j.jmbbm.2020.103728
Zhang R., Peng M., Ling L. et al. // Chem. Eng. Sci. 2019. V. 199. P. 64–78. https://doi.org/10.1016/j.ces.2019.01.018
Zerdoumi R., Armbrüster M. // ACS Appl. Energy Mater. 2021. V. 4. № 10. P. 11279. https://doi.org/10.1021/acsaem.1c02119
Lee C.Y., Yang S.P., Yang C.H. et al. // Surf. Coat. Technol. 2020. V. 395. P. 125879. https://doi.org/10.1016/j.surfcoat.2020.125879
Sundman B., Lukas H.L., Fries S.G. Computational Thermodynamics: The Calphad Method. New York: Cambridge University Press, 2007. C. 313.
Pavlenko A.S., Ptashkina E.A., Kabanova E.G. et al. // Calphad. 2023. V. 81. P. 102533. https://doi.org/10.1016/j.calphad.2023.102533
Laurie G.H., Pratt. J.N. // J. Chem. Soc., Faraday Trans. 1964. V. 60. P. 1391–1401. https://doi.org/10.1039/TF9646001391
Luef C., Paul A., Flandorfer H. et al. // J. Alloys Compd. 2005. V. 391. P. 67–76. https://doi.org/10.1016/j.jallcom.2004.08.056
Pavlenko A.S., Kabanova E.G., Kuznetsov V.N. // Russ. J. Phys. Chem. A. 2020. V. 94. № 13. P. 2691. https://doi.org/10.1134/s0036024420130178
Thermo-Calc Software PURE5/SGTE Pure Element Database. https://thermocalc.com/about-us/methodology/the-calphad-methodology/assessment-of-thermodynamic-data/
Ghosh G., Kantner C., Olson G.B. // J. Phase Equilibria. 1999. V. 20. № 3. 295. https://doi.org/10.1361/105497199770335811
Gierlotka W., Huang Y.C., Chen S.W. // Metall. Mater. Trans. A. 2008. V. 39. № 13. P. 3199. https://doi.org/10.1007/s11661-008-9671-6
Vassilev G., Gandova V., Milcheva N. et al. // Calphad. 2013. V. 43. P. 133. https://doi.org/10.1016/j.calphad.2013.03.003
Cui S., Wang J., You Z. et al. // Intermetallics. 2020. V. 126. P. 106945. https://doi.org/10.1016/j.intermet.2020.106945
Redlich O., Kister A.T. // Ind. Eng. Chem. 1948. V. 40. № 2. P. 345. https://doi.org/10.1021/ie50458a036
Toop G.W. // Trans. Metall. Soc. AIME. 1965. V. 233. № 5. P. 850.
Andersson J.-O., Helander T., Höglund L. et al. // Calphad. 2002. V. 26. № 2. P. 273. https://doi.org/10.1016/s0364-5916(02)00037-8
Pavlenko A.S., Ptashkina E.A., Zhmurko G.P. et al. // Rus. J. Phys. Chem. A. 2023. V. 97. P. 42. https://doi.org/10.1134/S0036024423010235
Pavlenko A.S., Kabanova E.G., Kareva M.A. et al. // Materials. 2023. V. 16. № 4. P. 1690. https://doi.org/10.3390/ma16041690
Kuznetsov V.N., Kabanova E.G. // Calphad. 2015. V. 100. № 51. P. 346. https://doi.org/10.1016/j.calphad.2015.01.011
Cui S., Wang J., Jung I.H. // Metall. Mater. Trans. A: Phys. Metall. Mater. Sci. 2022. V. 53. № 12. P. 4296. https://doi.org/10.1007/s11661-022-06825-9
