Modeling the frequency characteristics of the waveguide structure of a heterodyne receiver with sideband division for the range 211...275 GHz
- Авторлар: Tretyakov I.1,2, Khudchenko A.1,3, Cherny R.1, Likhachev S.1
-
Мекемелер:
- Astro Space Center of P.N. Lebedev Physical Institute RAS
- Moscow Pedagogical State University
- Kotelnikov Institute of Radioengineering and Electronics, Russian Academy of Sciences
- Шығарылым: Том 68, № 9 (2023)
- Беттер: 904-909
- Бөлім: К 70-ЛЕТИЮ ИРЭ ИМ. В.А. КОТЕЛЬНИКОВА РАН
- URL: https://journals.rcsi.science/0033-8494/article/view/138420
- DOI: https://doi.org/10.31857/S0033849423090243
- EDN: https://elibrary.ru/RHTEEX
- ID: 138420
Дәйексөз келтіру
Аннотация

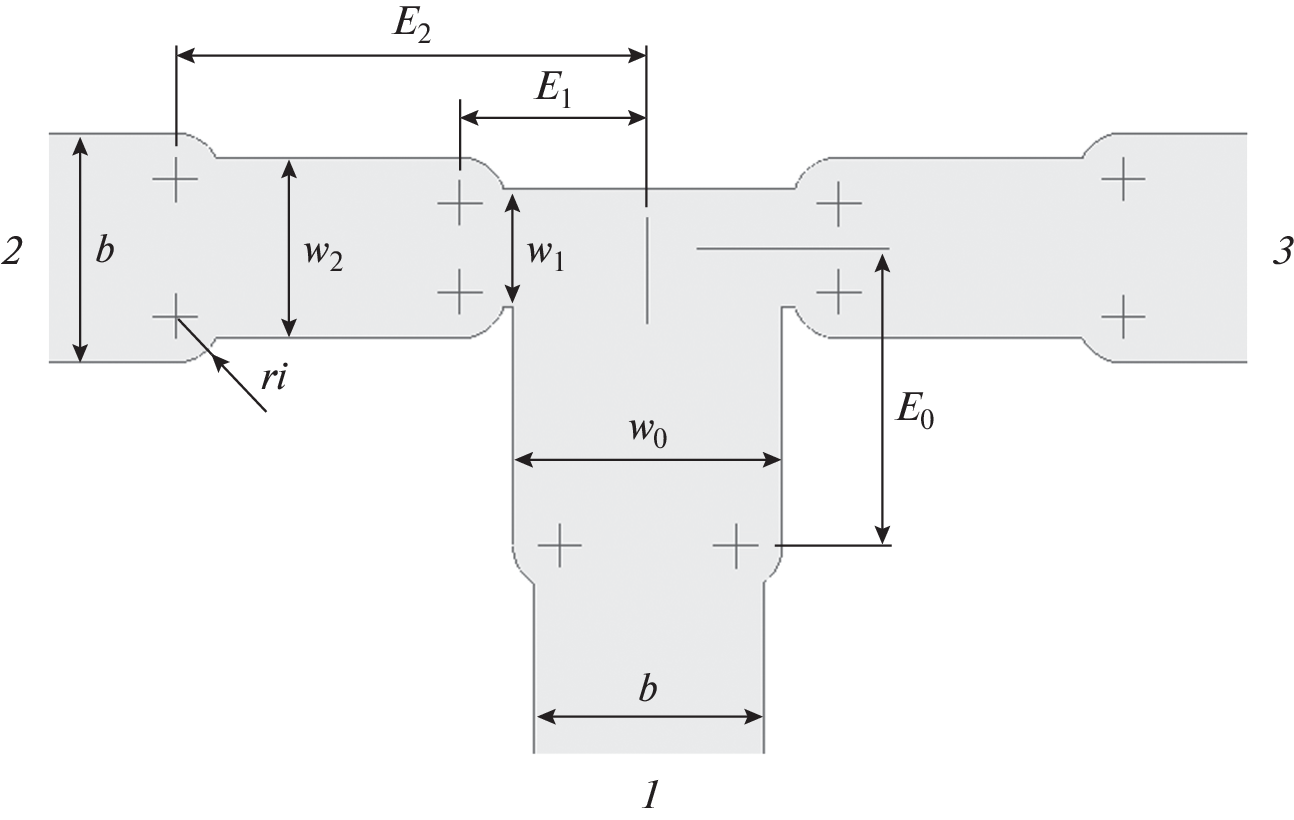

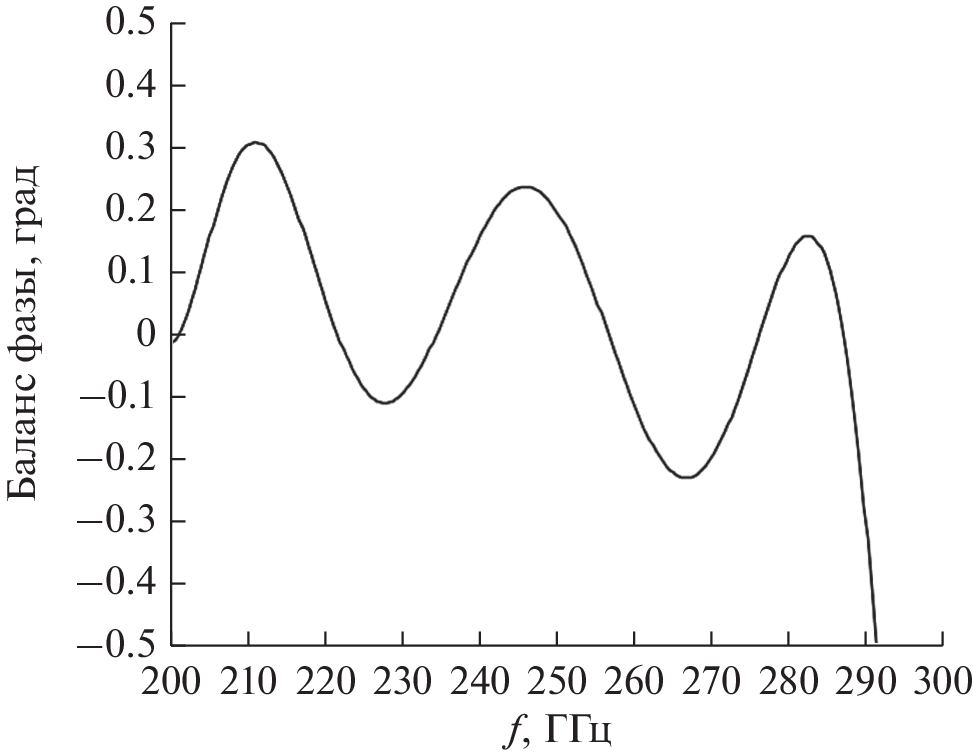

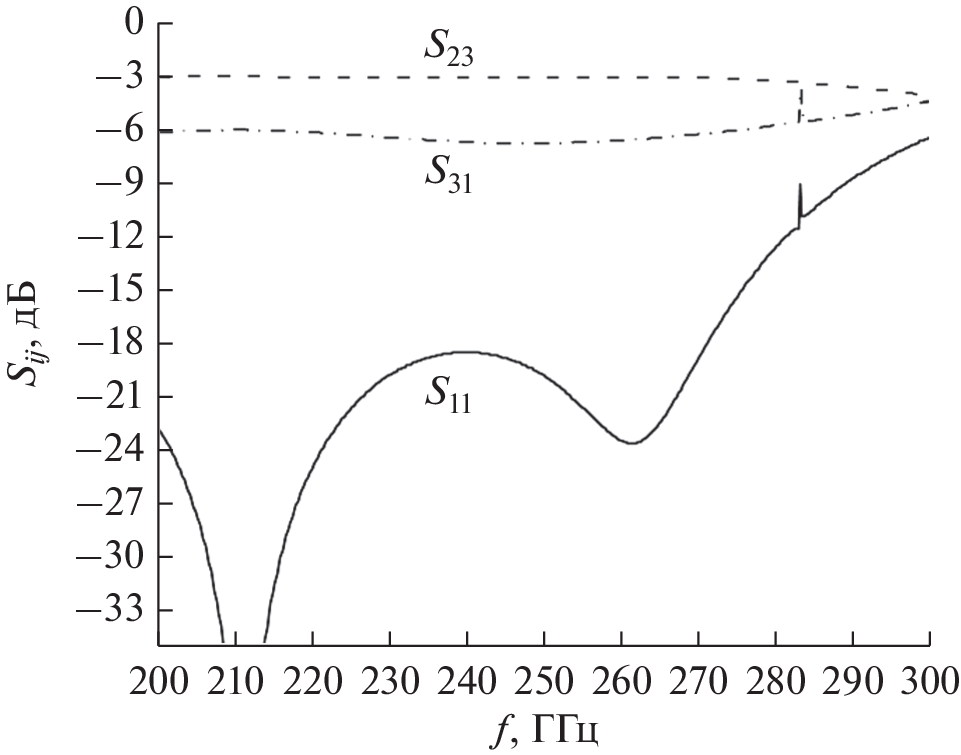

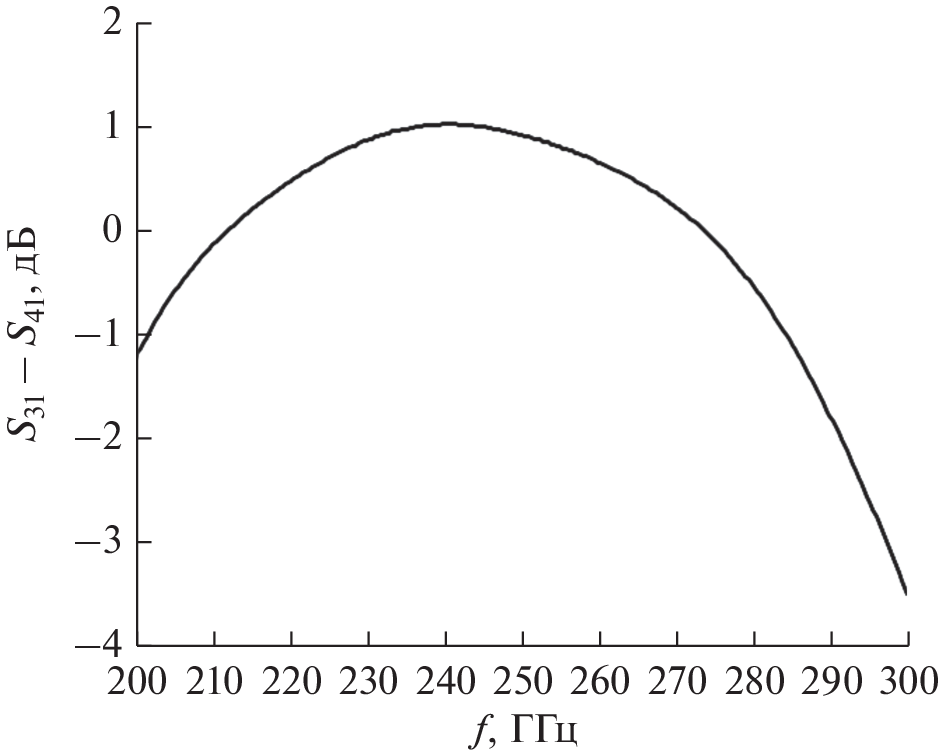

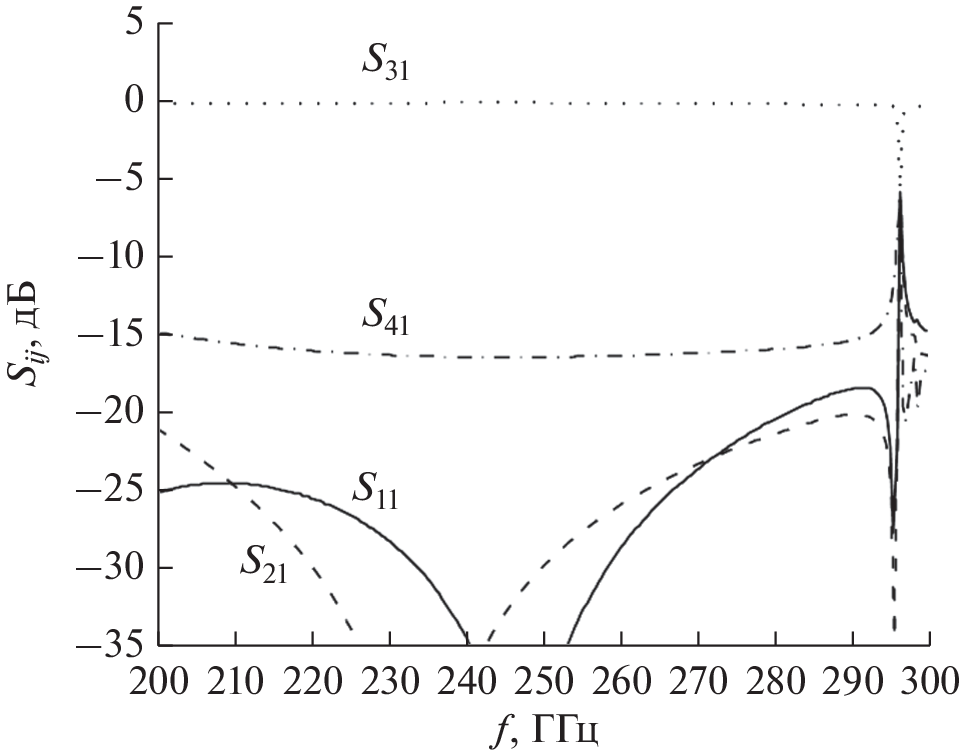

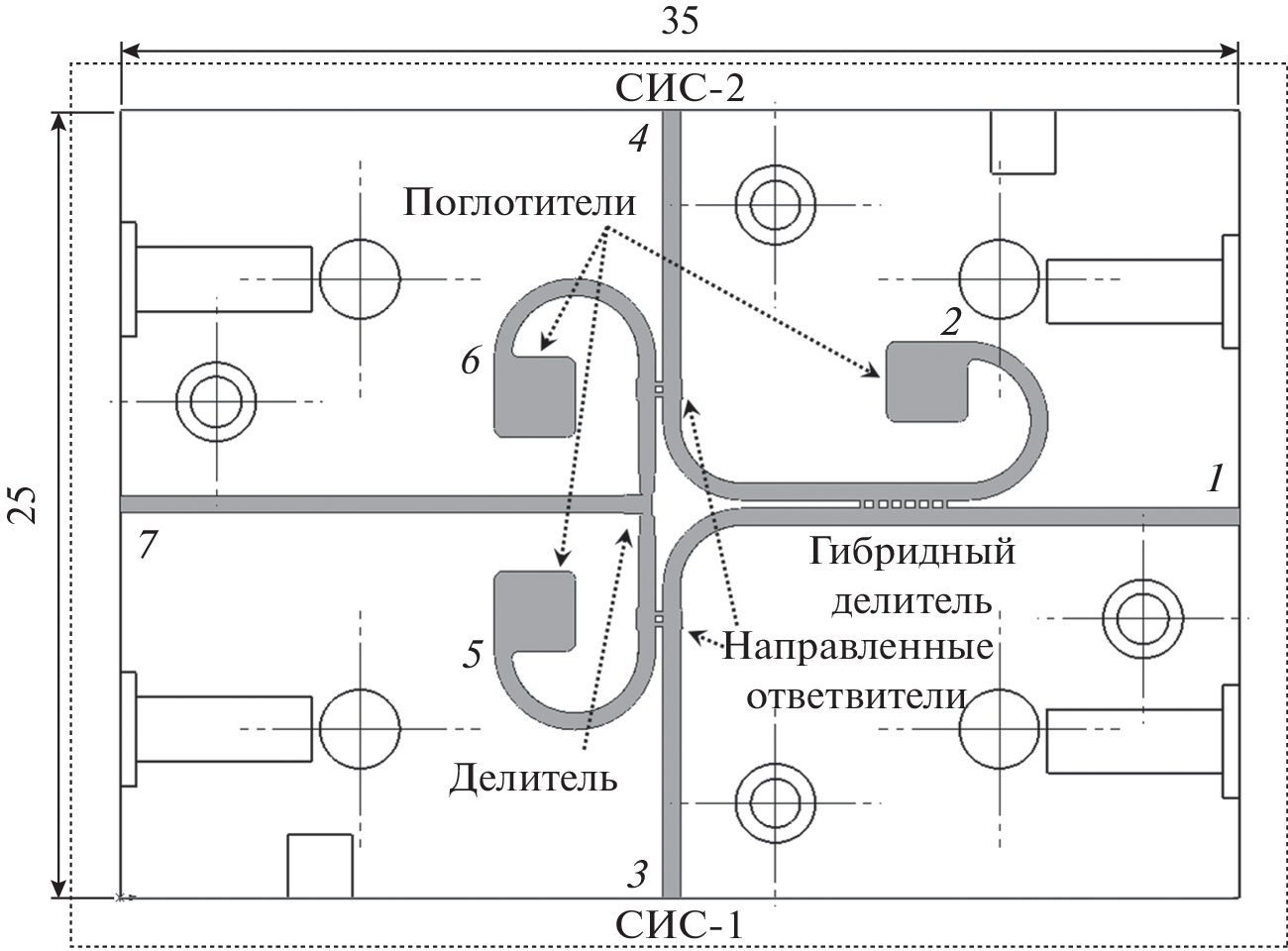

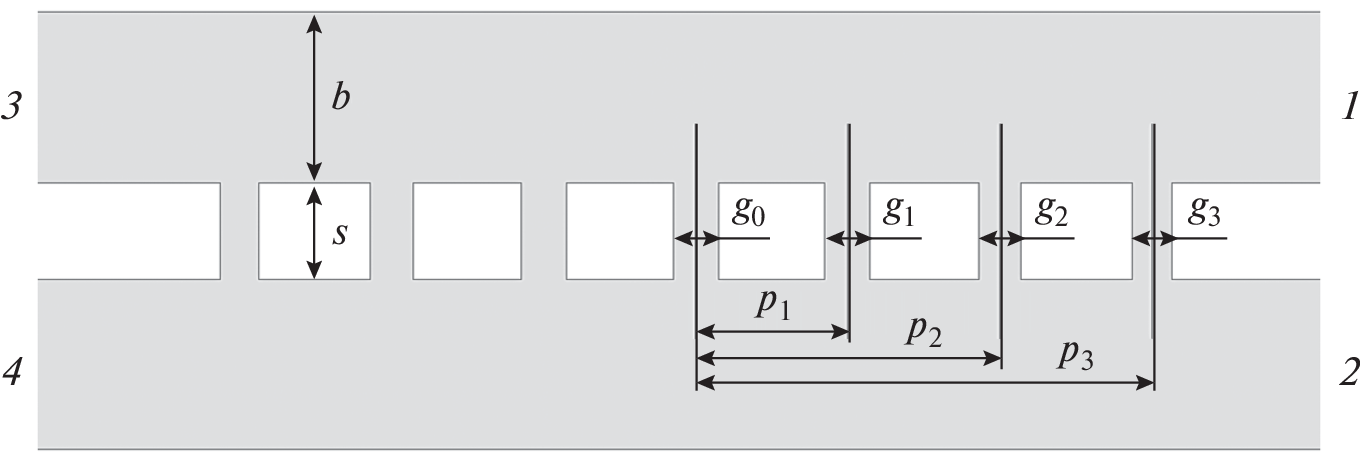

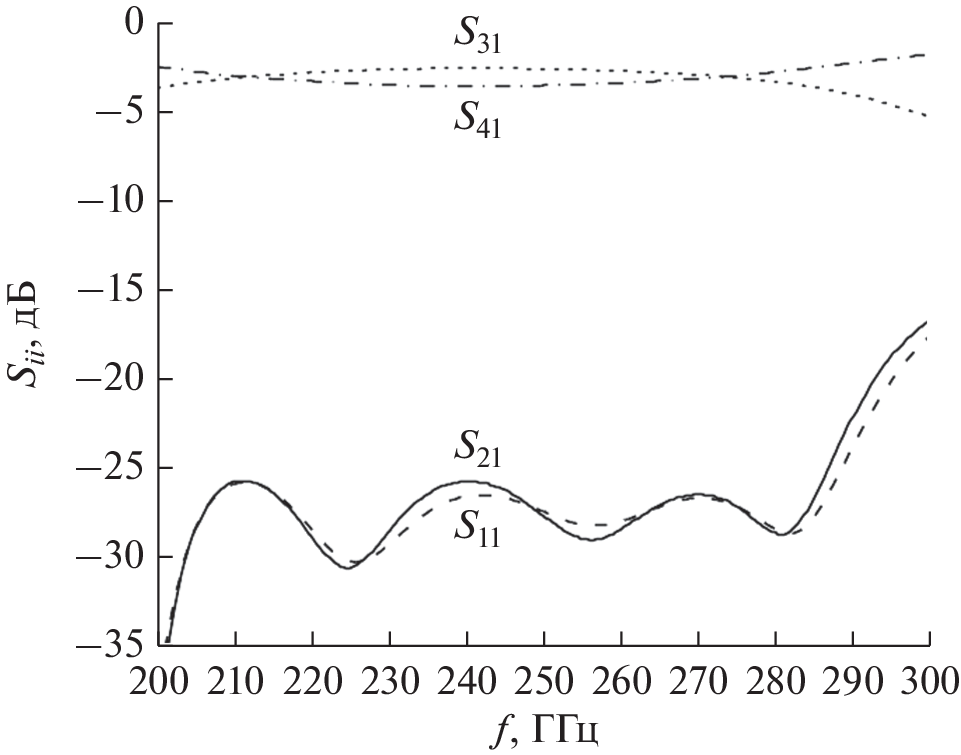

The microwave properties of the components of the waveguide structure of a heterodyne receiver in the 211...275 GHz range with sideband separation based on a pair of superconductor–insulator–superconductor (SIS) tunnel junctions are described. The following elements of the waveguide were studied structures: hybrid four-port splitter, directional coupler, T-shaped splitter body and waveguide absorber. S parameters were calculated for all elements. For hybrid divider additionally shows a phase balance with deviations of less than 0.4 degrees, and an amplitude balance within 1 dB. The expected level of quality of band separation in a band separation receiver using the studied waveguide elements is analyzed; its value is more than –25 dB. The waveguide elements are designed taking into account the fact that the block will be manufactured using precision milling; the minimum dimensions of the waveguide structure are limited by the diameter of the cutter used; in our case, 100 μm was chosen. All numerical calculations were performed using the finite interval method in the HFSS package.
Авторлар туралы
I. Tretyakov
Astro Space Center of P.N. Lebedev Physical Institute RAS; Moscow Pedagogical State University
Email: tretyakov@asc.rssi.ru
Moscow, 117997, Russia; Moscow, 119991, Russia
A. Khudchenko
Astro Space Center of P.N. Lebedev Physical Institute RAS; Kotelnikov Institute of Radioengineering and Electronics, Russian Academy of Sciences
Email: tretyakov@asc.rssi.ru
Moscow, 117997, Russia; Moscow, 125009 Russia
R. Cherny
Astro Space Center of P.N. Lebedev Physical Institute RAS
Email: tretyakov@asc.rssi.ru
Moscow, 117997, Russia
S. Likhachev
Astro Space Center of P.N. Lebedev Physical Institute RAS
Хат алмасуға жауапты Автор.
Email: tretyakov@asc.rssi.ru
Moscow, 117997, Russia
Әдебиет тізімі
- Kerr A.R., Feldman M.J., Pan S.-K. // Proc. Eighth Int. Symp. on Space Terahertz Technology. Cambridge MA. 25–27 Mar. 1997. Harvard-Smithsonian Center for Astrophysics, 1997. P. 101.
- Rudakov K.I., Khudchenko A.V., Filippenko L.V. et al. // Appl. Sci. 2021. V. 11. № 21. P. 10087.
- Balega Yu.Yu., Baryshev A.M., Bubnov G.M. et al. // Radiophysics and Quantum Electronics. 2020. V. 63. № 7. P.479.
- Рудаков К.И., Дмитриев П.Н., Барышев А.М. и др. // Изв. вузов. Радиофизика. 2019. Т. 62. № 7. С. 613.
- Pickett H.M., Poynter R.L., Cohen E.A. et al. // J. Quantum Spectroscopy Radiative Transfer. 1998. V. 60. P. 883.
- Новиков И.Д., Лихачев С.Ф., Щекинов Ю.А. и др. // Успехи физ. наук. 2021. Т. 191. № 4. С. 404.
- Лихачёв С.Ф., Рудницкий А.Г., Андрианов А.С. и др. // Космич. исслед. 2024. № 1. С. 78.
- Hesper R., Khudchenko A., Baryshev A.M. // IEEE Trans. 2017. V. TST-7. № 6, P. 686.
- Kerr A.R., Moseley H., Wollack E. et al. MF-112 and MF-116: Compact Waveguide Loads and fts Measurements at Room Temperature and 5 K. ALMA memo 494, 2004.
- Mena F.P., Baryshev A.M. Design and Simulation of a Waveguide Load for ALMA-band 9. ALMA memo 513, 2005.
- Hesper R., Khudchenko A., Baryshev A.M. et al. // Proc. SPIE. 2016. V. 9914. Article No. 9914G.
