IN-LINE METHOD OF X-RAY PHASE-CONTRAST MICRO-CT USING A WIDE-FOCUS LABORATORY SOURCE
- 作者: Krivonosov Y.1, Buzmakov A.1, Asadchikov V.1, Fyodorova A.2
-
隶属关系:
- Shubnikov Institute of Crystallography, Federal Scientific Research Centre “Crystallography and Photonics,” Russian Academy of Sciences, Moscow, 119333 Russia
- Moscow Pedagogical State University, Moscow, 119571 Russia
- 期: 卷 68, 编号 2 (2023)
- 页面: 189-195
- 栏目: ДИФРАКЦИЯ И РАССЕЯНИЕ ИОНИЗИРУЮЩИХ ИЗЛУЧЕНИЙ
- URL: https://journals.rcsi.science/0023-4761/article/view/137355
- DOI: https://doi.org/10.31857/S0023476123020108
- EDN: https://elibrary.ru/BQGLEO
- ID: 137355
如何引用文章
详细

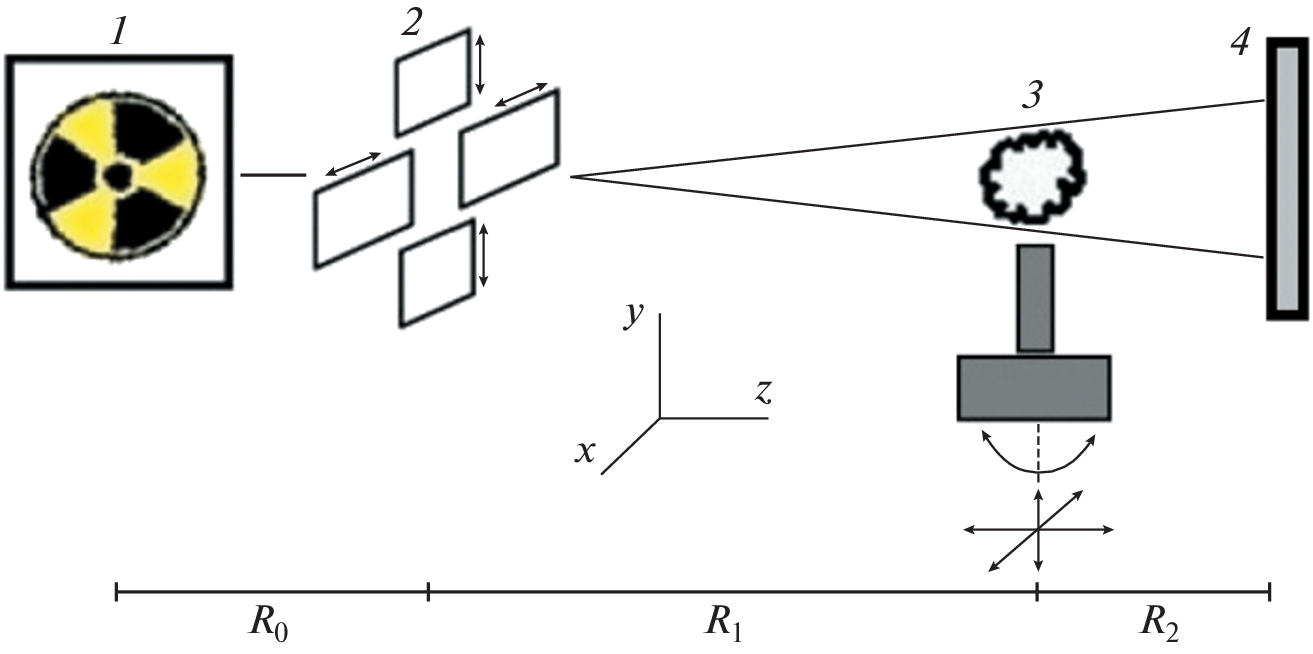

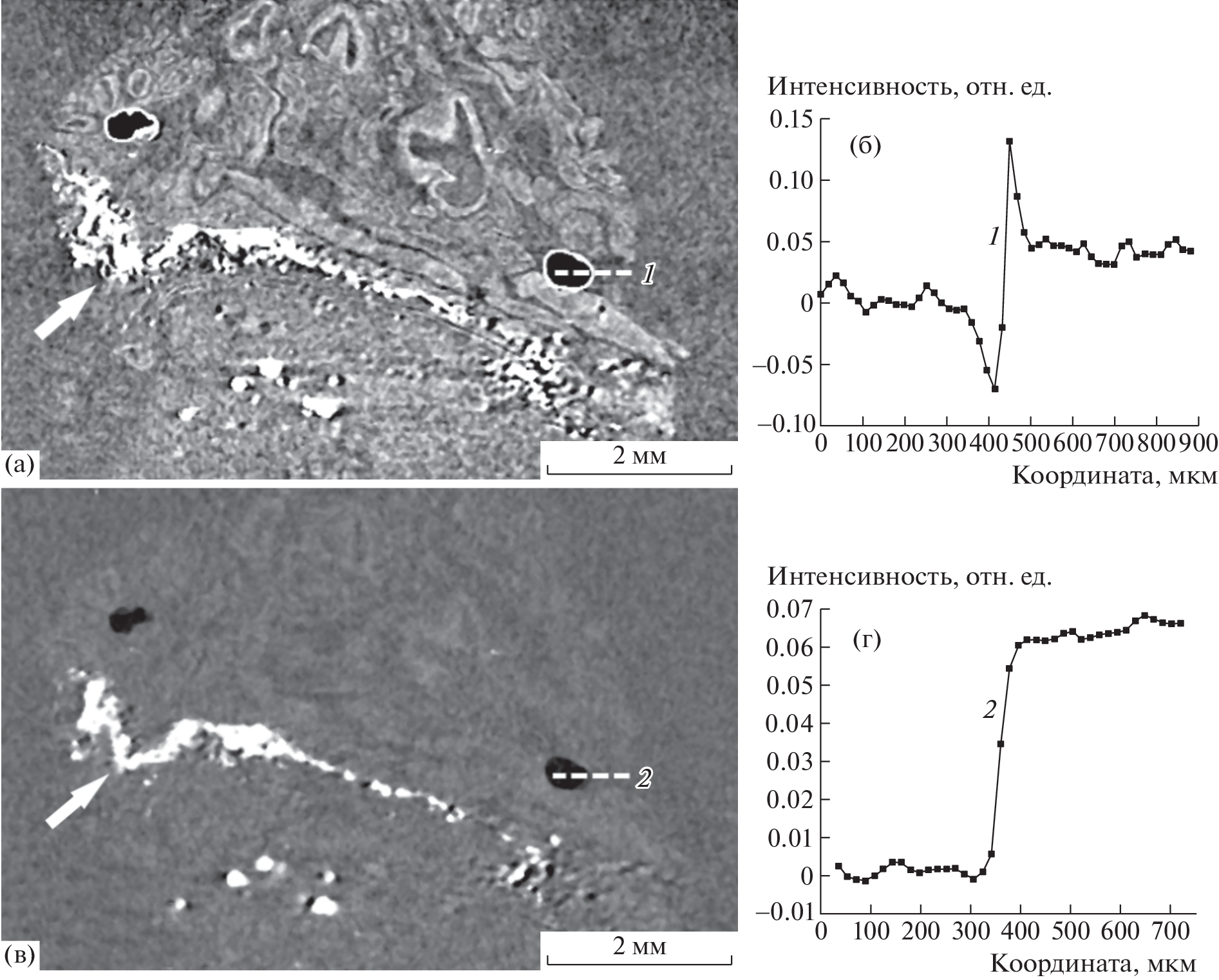

An experimental implementation of the “in-line” method of X-ray phase contrast using a standard wide-focus X-ray tube as a polychromatic source is described. Using the proposed experimental scheme, in vitro tomographic measurements of a sample of human brain pineal gland are carried out, and the morphological structure of the soft tissues of this organ is visualized based on the results obtained. The advantage of phase-contrast tomography in comparison with traditional absorption tomography for studying the structural features of soft tissues is experimentally demonstrated. The “in-line” phase-contrast scheme, implemented on a laboratory setup, allows tomographic study of samples with linear dimensions of several millimeters and a resolution of ∼20 μm.
作者简介
Yu. Krivonosov
Shubnikov Institute of Crystallography, Federal Scientific Research Centre “Crystallography and Photonics,” Russian Academy of Sciences, Moscow, 119333 Russia
Email: Yuri.S.Krivonosov@yandex.ru
Россия, Москва
A. Buzmakov
Shubnikov Institute of Crystallography, Federal Scientific Research Centre “Crystallography and Photonics,” Russian Academy of Sciences, Moscow, 119333 Russia
Email: Yuri.S.Krivonosov@yandex.ru
Россия, Москва
V. Asadchikov
Shubnikov Institute of Crystallography, Federal Scientific Research Centre “Crystallography and Photonics,” Russian Academy of Sciences, Moscow, 119333 Russia
Email: Yuri.S.Krivonosov@yandex.ru
Россия, Москва
A. Fyodorova
Moscow Pedagogical State University, Moscow, 119571 Russia
编辑信件的主要联系方式.
Email: Yuri.S.Krivonosov@yandex.ru
Россия, Москва
参考
- Legland D., Alvarado C., Badel E. et al. // Appl. Sci. 2022. V. 12. № 7. P. 3454. https://doi.org/10.3390/app12073454
- Zhang X., Wei L., Yao L. et al. // Exp. Therm. Fluid Sci. 2022. P. 110771. https://doi.org/10.1016/j.expthermflusci.2022.110771
- Massimi L., Bukreeva I., Santamaria G. et al. // NeuroImage. 2019. V. 184. P. 490. https://doi.org/10.1016/j.neuroimage.2018.09.044
- Massimi L., Suaris T., Hagen C. K. et al. // Sci. Rep. 2021. V. 11. № 1. P. 1. https://doi.org/10.1038/s41598-021-83330-w
- Barbone G.E., Bravin A., Mittone A. et al. // Radiology. 2021. V. 298 (1). P. 135. https://doi.org/10.1148/radiol.2020201622
- Лидер В.В., Ковальчук М.В. // Кристаллография. 2003. Т. 58. № 6. С. 764. https://doi.org/10.7868/S0023476113050068
- Mayo S., Endrizzi M. Handbook of Advanced Non-Destructive Evaluation / Eds. Ida AG. N., Meyendorf N. Switzerland: Springer Nature, 2018. P. 1. https://doi.org/10.1007/978-3-319-30050-4_54-1
- Snigirev A., Snigireva I., Kohn V. et al. // Rev. Sci. Instrum. 1995. V. 66. P. 5486. https://doi.org/10.1063/1.1146073
- Cloetens P., Barrett R., Baruchel J. et al. // J. Phys. D: Appl. Phys. 1996. V. 29. № 1. P. 133. https://doi.org/10.1088/0022-3727/29/1/023
- Wilkins S.W., Gureyev T.E., Gao D. et al. // Nature. 1996. V. 384. P. 335. https://doi.org/10.1038/384335a0
- Brombal L., Kallon G., Jiang J. et al. // Phys. Rev. Appl. 2019. V. 11. № 3. P. 034004. https://doi.org/10.1103/PhysRevApplied.11.034004
- Massimi L., Suaris T., Hagen C. K. et al. // IEEE Trans. Med. Imaging. 2021. V. 41. № 5. P. 1188. https://doi.org/10.1109/TMI.2021.3137964
- Shaker K., Häggmark I., Reichmann J. et al. // Commun. Phys. 2021. V. 4 № 1. P. 1. https://doi.org/10.1038/s42005-021-00760-8
- Zhou S.A., Brahme A. // Phys. Med. 2008. V. 24. № 3. P. 129. https://doi.org/10.1016/j.ejmp.2008.05.006
- Peterzol A., Olivo A., Rigon L. et al. // Med. Phys. 2005.V. 32. № 12. P. 3617. https://doi.org/10.1118/1.2126207
- Krivonosov Yu.S., Asadchikov V.E., Buzmakov A.V. // Crystallography Reports. 2020. V. 65. № 4. P. 503. https://doi.org/10.1134/S1063774520040136
- Nesterets Y.I., Gureyev T.E., Dimmock M.R. // J. Phys. D: Appl. Phys. 2018. V. 51. № 11. P. 115402. https://doi.org/10.1088/1361-6463/aaacee
- López-Muñoz F., Boya J., Marín F. et al. // J. Pineal Res. 1996. V. 20. № 3. P. 115. https://doi.org/10.1111/j.1600-079x.1996.tb00247.x
- Kunz D., Schmitz S., Mahlberg R. et al. // Neuropsychopharmacology. 1999. V. 21. № 6. P. 765. https://doi.org/10.1016/S0893-133X(99)00069-X
- Paganin D., Mayo S.C., Gureyev T.E. et al. // J. Microsc. 2002. V. 206. № 1. P. 33. https://doi.org/10.1046/j.1365-2818.2002.01010.x
- Bukreeva I., Junemann O., Cedola A. et al. // J. Struct. Biol. 2020. V. 212. № 3. P. 107659. https://doi.org/10.1016/j.jsb.2020.107659
- Migga A., Schulz G., Rodgers G. et al. // J. Med. Imaging. 2022. V. 9. № 3. P. 031507. https://doi.org/10.1117/1.JMI.9.3.031507
