Microsegregation of Alloying Elements on deformation Structural defects in Granular Nickel Alloy

I. L. Svetlov; Светлов И. Л.; D. V. Zaitsev; Зайцев Д. В.; M. M. Karashaev; Карашаев М. М.; A. I. Epishin; Епишин А. И.; N. V. Petrushin; Петрушин Н. В.

doi:10.31857/S0015323023600296

Microsegregation of Alloying Elements on deformation Structural defects in Granular Nickel Alloy

Authors: Svetlov I.L.¹, Zaitsev D.V.¹, Karashaev M.M.¹, Epishin A.I.², Petrushin N.V.¹
Affiliations:
1. NRC «KURCHATOV INSTITUTE» ALL-RUSSIAN SCIENTIFIC RESEARCH INSTITUTE OF AVIATION MATERIALS
2. The Institute of Structural Macrokinetics, Russian Academy of Sciences
Issue: Vol 124, No 6 (2023)
Pages: 517-523
Section: СТРУКТУРА, ФАЗОВЫЕ ПРЕВРАЩЕНИЯ И ДИФФУЗИЯ
URL: https://journals.rcsi.science/0015-3230/article/view/139454
DOI: https://doi.org/10.31857/S0015323023600296
EDN: https://elibrary.ru/WVJWFN
ID: 139454

Cite item

Full Text

Open Access
Restricted Access

Access granted
Restricted Access

Subscription Access

Abstract
About the authors
References
Supplementary files
Statistics

Abstract

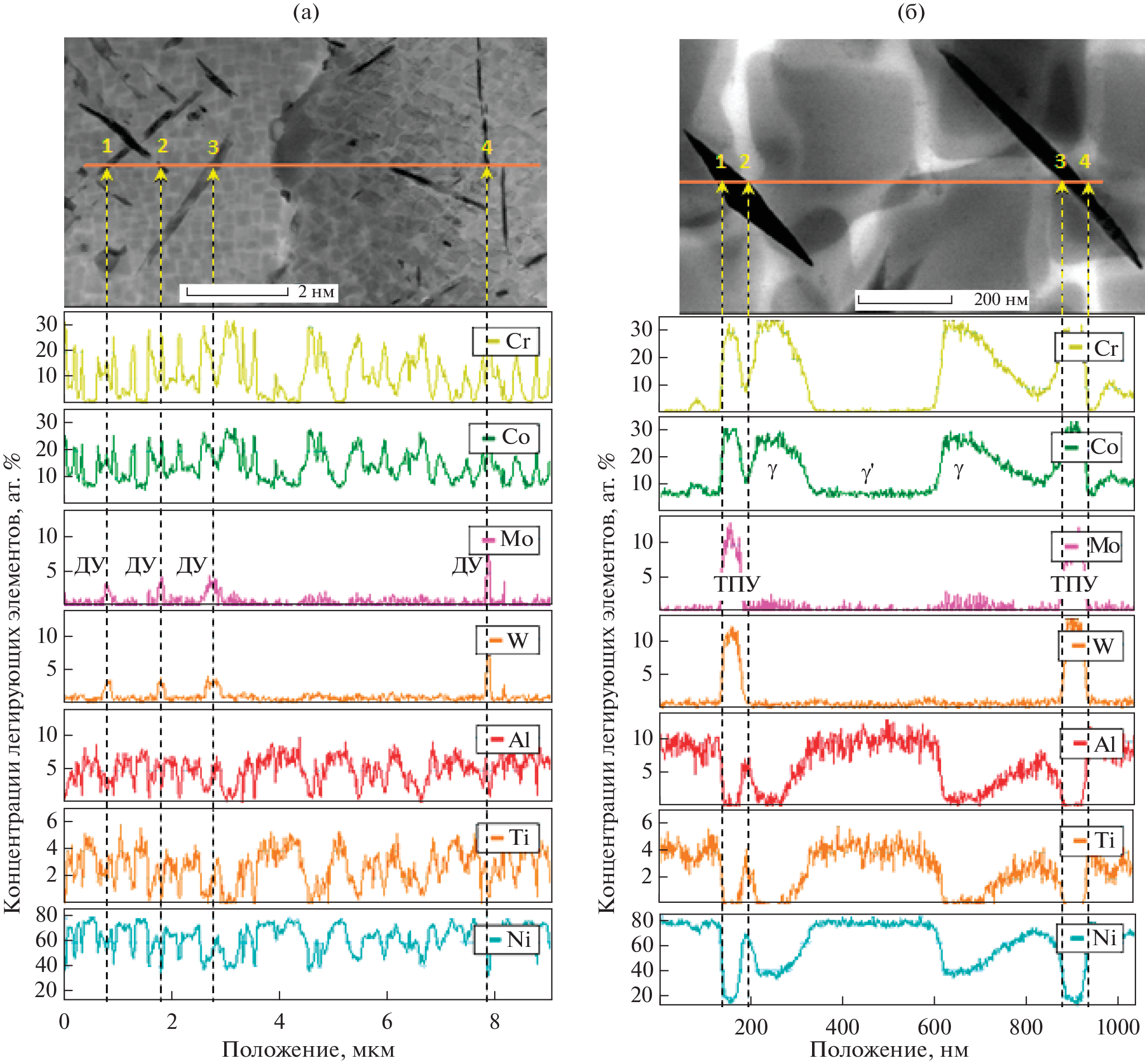

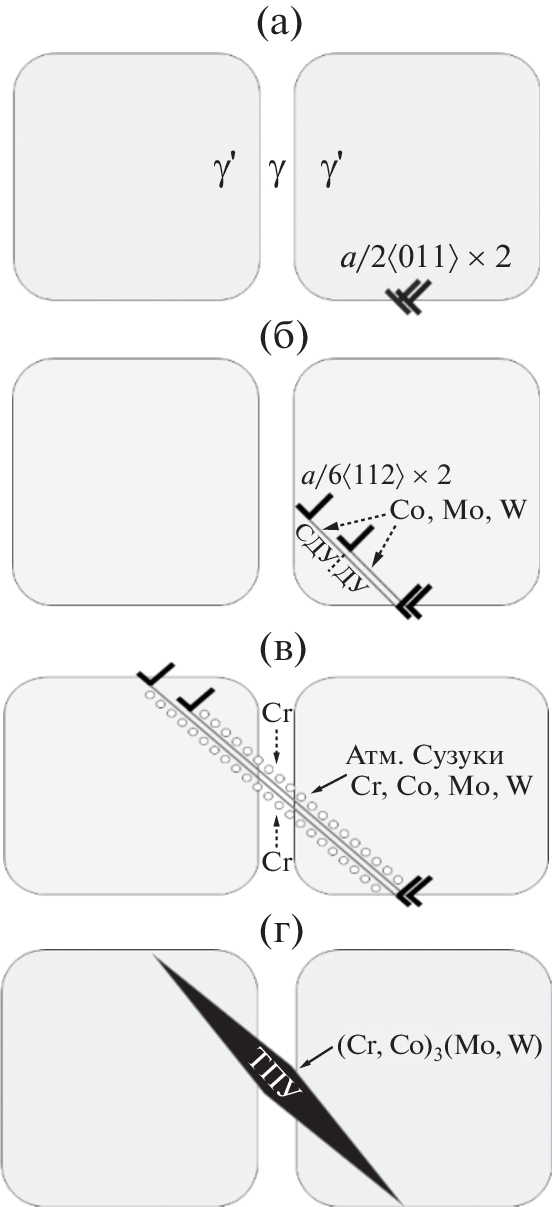

Samples cut from a disk blank of Russian granulated nickel-based superalloy VZH178P were tested for tensile strength at room temperature and long-term creep at temperature of 750 °C. Transmission electron microscopy showed that, in both cases, stacking faults and microtwins formed during plastic deformation of the alloy. During long-term creep at 750 °C, the alloying elements Cr, Co, Mo, and W segregate on the stacking faults, leading first to the formation of Suzuki atmospheres and then to the nucleation and growth of TCP particles with stoichiometry (Co,Cr)3(Mo,W).

Keywords

powder-metallurgy nickel-base superalloys, plastic deformation, stacking faults, phase transformationsects, phase transformations

References

Vorontsov V.A., Kovarik L., Mills M.J., Rae C.M.F. High-resolution electron microscopy of dislocation ribbons in a CMSX-4 superalloy single crystal // Acta Mater. 2012. V. 60. P. 4866–4878.
Smith T.M., Esser B.D., Antolin N., Viswanatan G.B., Hanlon T., Wessman A., Windl M.D., McComb D.W., Mills M.J. Segregation and η phase formation along stacking faults during creep at intermediate temperatures in Ni-base superalloys // Acta Mater. 2015. V. 100. P. 19‒31.
Viswanathan G.B., Sarosi P.M., Henry M.F., Whitis D.D., Milligan W.W., Mills M.J. Investigation of creep deformation mechanisms at intermediate temperatures in René 88 DT // Acta Mater. 2005. V. 53. P. 3041–3057.
Рогожкин С.В., Бер Л.Б., Никитин А.А., Хомич А.А., Разницын А., Лукьянчук А.А., Шутов А.С. Карашаев М.М., Залужный А.Г. Исследование гранулированного никелевого сплава методом атомно-зондовой томографии // ФММ. 2020. Т. 121. № 1. С. 1‒12.
Бер Л.Б., Рогожкин С.В., Хомич А.А., Залужный А.Г. Распределение атомов легирующих элементов между частицами γ- и γ'-фаз в жаропрочном никелевом сплаве // ФММ. 2022. Т. 123. № 2. С. 177‒191.
Unocic R.R., Vismanathan G.B., Sarosi P.M., Karthikeyan S., Mills J.L. Mechanisms of creep deformation in polycrystalline Ni-base disk superalloy // Mater. Sci. Eng. A. 2008. V. 483–484. P. 25‒32.
Lilensten L. Antonov S., Gault B., Tin S., Kontis P. Enhanced creep performance in a polycrystalline superalloy driven by atomic-scale phase transformation along planar faults // Acta Mater. 2021. V. 202. P. 232‒242.
Egan A.J., Xue F., Rao Y., Sparks G., Marquis E., Ghazisaeidi M., Tin S., Mills M.J. Local phase transformation strengthening at microtwin boundaries in nickel based superalloy // Acta Mater. 2022. V. 238. 118206. https://doi.org/j.actamat.2022.118206
Kovarik L., Unocic R.R., Li Ju., Sarosi P., Shen C., Wang Y., Mills M.J. Microtwinning and other shearing mechanisms at intermediate temperatures in Ni-based superalloys // Progress in Mater. Sci. 2009. V. 54. P. 839–873.
Smith T.M., Gabb T.P., Wertz K.N., Evans L.J., Egan A.J., Mills M.J. Enhancing the creep strength of next-generation disk superalloys via local phase transformation strengthening // Superalloys 2020. Pennsylvania: Minerals, Metals, Materials Series. P. 726–736.
Smith T.M., Zarkevich N.F., Egan A.J., Stuckner J., Gabb T.P., Lawson J.W., Mills M.J. Utilizing local phase transformation strengthening for nickel-base superalloys // Comm Mater. 2021. V. 2. Art. 106. P. 1–9.
Lilensten L., Kurnsteiner P., Mianroodi J.R., Cervellon A., Moverare J., Segersall M., Antonov S., Kontis P. Segregation of solutes at dislocation: a new alloy design parameter for advanced superalloys // Superalloys. 2020. Pennsylvania: Minerals, Metals, Materials Series. P. 41–51.
Feng L., Egan A.J., Mills M.J., Wang Y. Dynamic localized phase transformation at stacking faults during creep deformation and new criterion for superalloys design // MRS Communications. 2022. V. 12. P. 991‒1001.
Зайцев Д.В., Сбитнева С.В., Бер Л.Б., Заводов А.В. Определение химического состава частиц основных фаз в изделиях из гранулируемого никелевого жаропрочного сплава ЭП741НП // Труды ВИАМ. 2016. № 9(45). С. 61–71. https://doi.org/10.18577/2307-6046-2016-0-9-8-8
Link T., Epishin A., Fedelich B. Inhomogeneity of misfit stresses in nickel-base superalloys: effect on propagation of matrix dislocation loops // Philos. Mag. 2009. V. 89. P. 1141‒1159.
