Stability of Northern Eurasia Based on Satellite Geodesy Data

G. E. Melnik; Мельник Г. Э.; G. M. Steblov; Стеблов Г. М.

doi:10.31857/S0002333724020074

Stability of Northern Eurasia Based on Satellite Geodesy Data

作者: Melnik G.E.¹^,2^,3, Steblov G.M.¹^,2
隶属关系:
1. Schmidt Institute of Physics of the Earth, Russian Academy of Sciences
2. Institute of Earthquake Prediction Theory and Mathematical Geophysics, Russian Academy of Sciences
3. Public Law Company “Roskadastr”
期: 编号 2 (2024)
页面: 85-97
栏目: Articles
URL: https://journals.rcsi.science/0002-3337/article/view/255570
DOI: https://doi.org/10.31857/S0002333724020074
EDN: https://elibrary.ru/BLQUTJ
ID: 255570

如何引用文章

全文:

开放存取

##reader.subscriptionAccessGranted##
受限制的访问

订阅存取

详细
全文:
作者简介
参考
补充文件
统计

详细

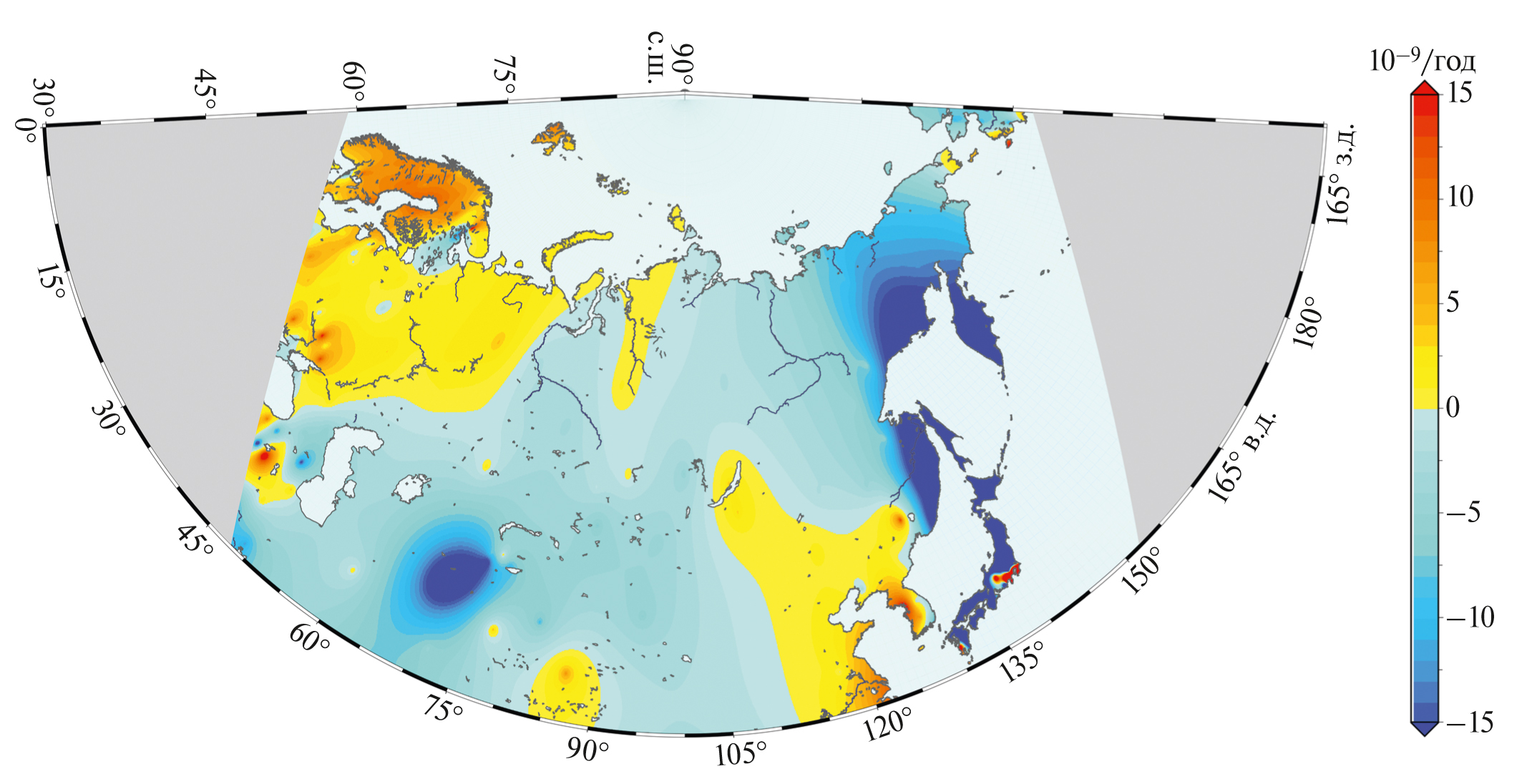

The geodynamics of Northern Eurasia has been analyzed based on repeated satellite positioning with GNSS stations throughout the Russian Federation territory from 2015 to the present. The study utilized two sources of data: observations from the stations of the Russian Fundamental Astro-Geodetic Network (FAGN) and stations of the International GNSS Service (IGS) with permanent satellite tracking. This data set allowed to estimate correctness of the block kinematics of the Eurasian plate in three tectonic plate motion models: NUVEL-1A, NNR-MORVEL-56, and ITRF2014. The analysis of the misfits between the observed and model velocities has shown that these misfits have a systematic component in the vicinity of the East European Platform which differs for each of three models. In addition to analyzing the block kinematics of the Eurasian plate, we also evaluated its internal stability. To do this, we calculated the areal deformations of Northern Eurasia using the finite element method. For this purpose, we added the observations processing results from the global data set of the Nevada Geodetic Laboratory to the processing results from two original data sets. Besides interplate boundary deformations which are consistent with existing ideas of the geodynamics of Northern Eurasia, the strain field analysis also revealed intraplate deformations distributed consistently with the configuration of the Northern Eurasia cratons.

关键词

geodynamics, GNSS, tectonic plate motion models, surface deformation field, Northern Eurasia

全文:

作者简介

G. Melnik

Schmidt Institute of Physics of the Earth, Russian Academy of Sciences; Institute of Earthquake Prediction Theory and Mathematical Geophysics, Russian Academy of Sciences; Public Law Company “Roskadastr”

编辑信件的主要联系方式.
Email: melnik@ifz.ru
俄罗斯联邦, Moscow; Moscow; Moscow

G. Steblov

Schmidt Institute of Physics of the Earth, Russian Academy of Sciences; Institute of Earthquake Prediction Theory and Mathematical Geophysics, Russian Academy of Sciences

Email: steblov@ifz.ru
俄罗斯联邦, Moscow; Moscow

参考

Гусева Т.В., Крупенникова И.С., Мокрова А.Н., Передерин В.П., Розенберг Н.К. Спутниковый мониторинг и сейсмическая активность северо-запада России // Геофизические исследования. 2020. Т. 21. № 1. С. 24–32. doi.org/10.21455/gr2020.1-2
Мельник Г.Э., Стеблов Г.М., Галаганов О.Н., Крупенникова И.С., Мокрова А.Н., Розенберг Н.К., Передерин Ф.В., Передерин В.П. Исследование постледниковых движений Фенноскандии по данным глобальных навигационных спутниковых систем // Геодезия и картография. 2022. № 2. С. 26–36. doi: 10.22389/0016-7126-2022-980-2-26-36
Тимофеев В.Ю., Ардюков Д.Г., Бойко Е.В. Тектонические и постсейсмические движения Алтае-Саянского региона по GPS данным // Интерэкспо Гео-Сибирь. 2008. Т. 3. № 2. С. 274–278.
Altamimi Z. et al. ITRF2014 plate motion model //Geophysical Journal International. 2017. V. 209. № 3. P. 1906–1912.
Argus D.F., Gordon R.G. No‐net‐rotation model of current plate velocities incorporating plate motion model NUVEL‐1 // Geophysical research letters. 1991. V. 18. № 11. P. 2039-2042.
Argus D. et al. NNR-MORVEL56: No-net-rotation model of geologically current plate motions// AGU Fall Meeting Abstracts. 2010. V. 2010. P. G43A-0819.
Blewitt G., Hammond W.C., Kreemer C. Harnessing the GPS data explosion for interdisciplinary science // Eos. 2018. V. 99. DOI: https://doi.org/10.1029/2018EO104623
Delaunay B. et al. Sur la sphere vide //Izv. Akad. Nauk SSSR. Otdelenie Matematicheskii i Estestvennyka Nauk. 1934. V. 7. № 793–800. P. 1–2.
Fernandes R.M.S. et al. The relative motion between Africa and Eurasia as derived from ITRF2000 and GPS data //Geophysical Research Letters. 2003. V. 30. № 16.
Herring T.A., King R.W., McClusky S.C. Introduction to GAMIT/GLOBK. Massachusetts Institute of Technology. Massachusetts: Cambridge. 2010.
Wessel P., et al. The generic mapping tools, version 6. Geochemistry, Geo-physics, Geosystems. 2019. P. 5556–5564.

补充文件

附件文件

动作

1. JATS XML

下载

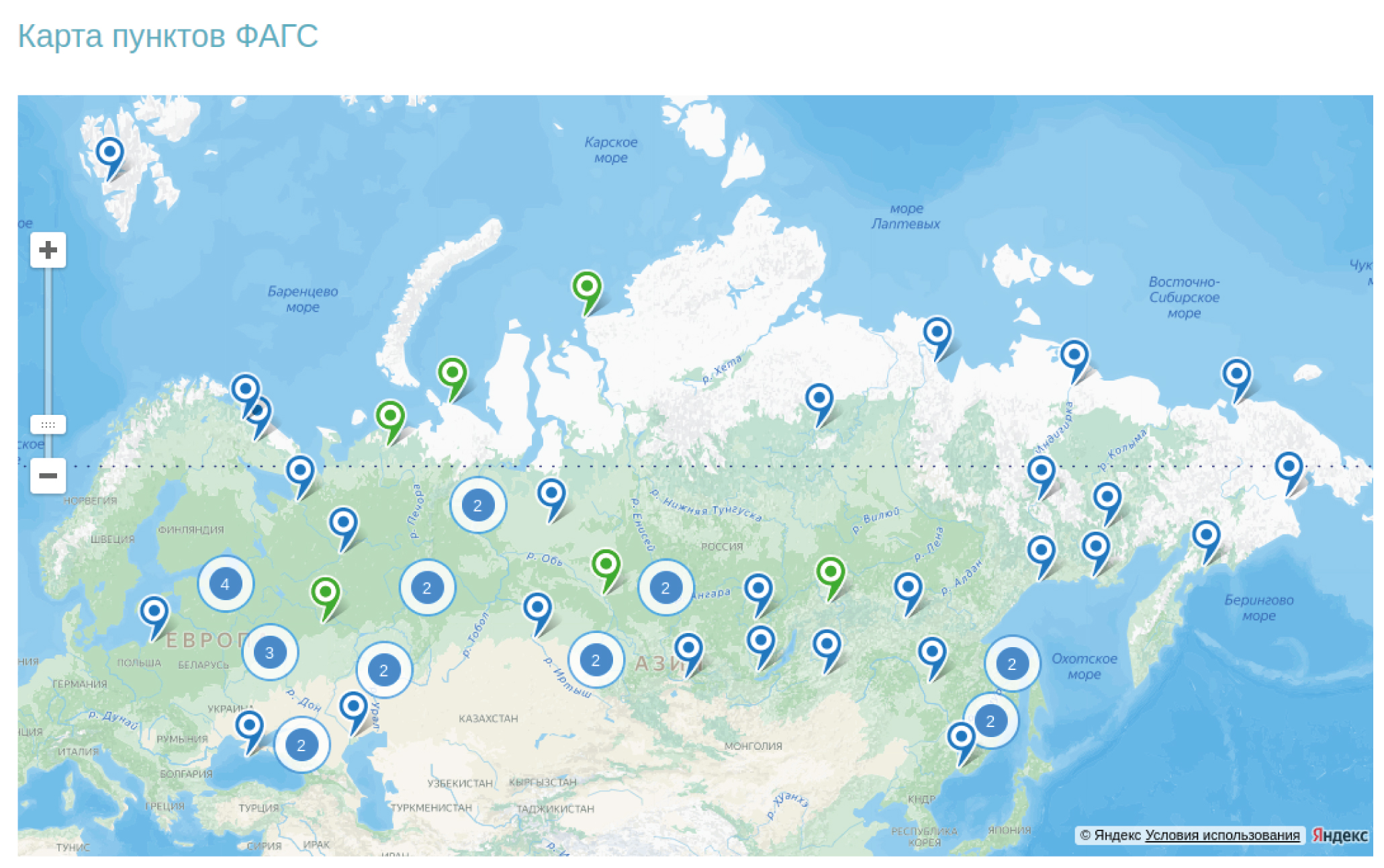

2. Fig. 1. Schematic of FAGS locations (https://rgs-centre.ru/).

下载 (1MB)

索引源数据

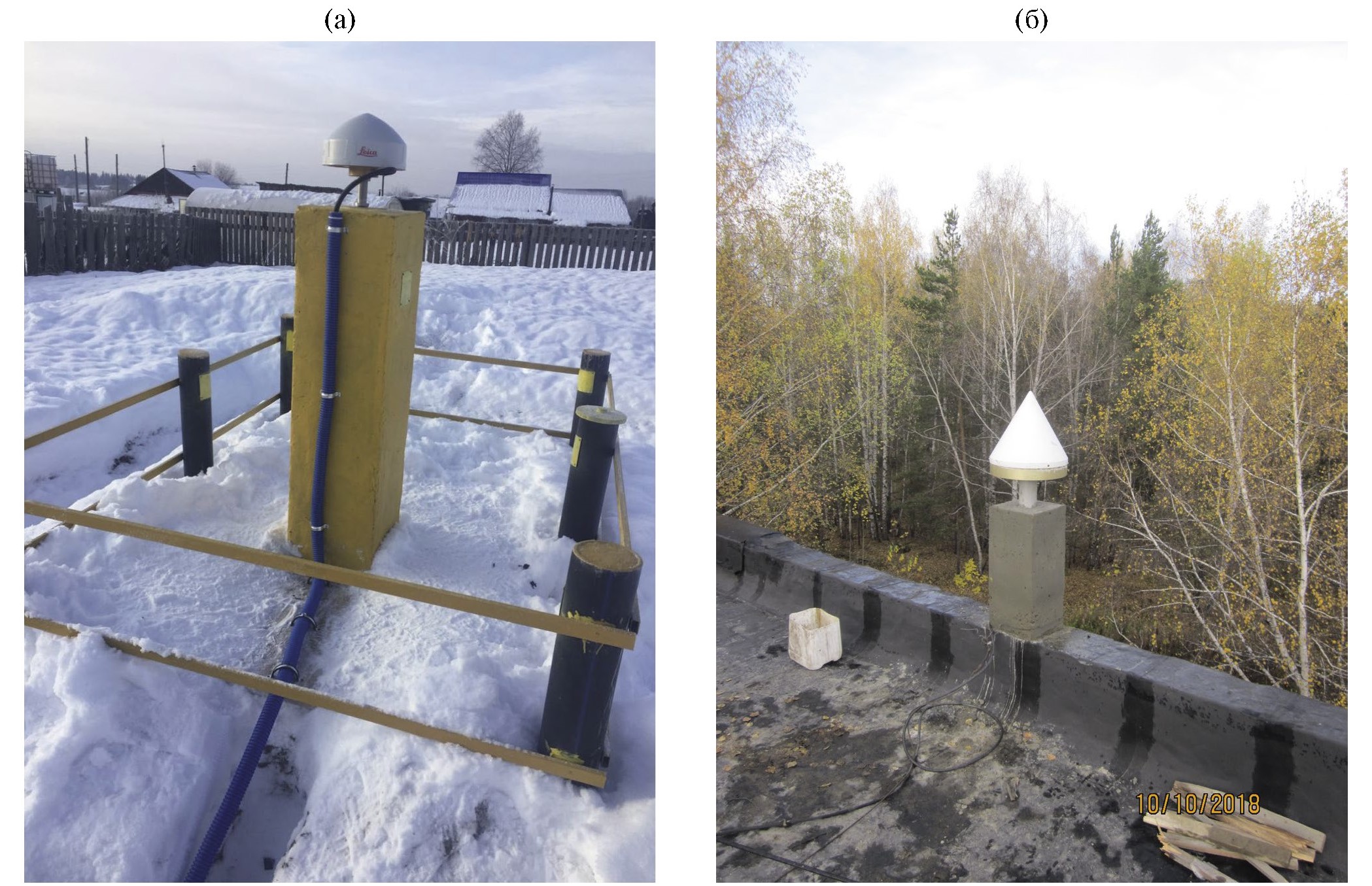

3. Fig. 2. Examples of working centers of FAGS points in the cities of Nyrob (left) and Yekaterinburg (right).

下载 (593KB)

索引源数据

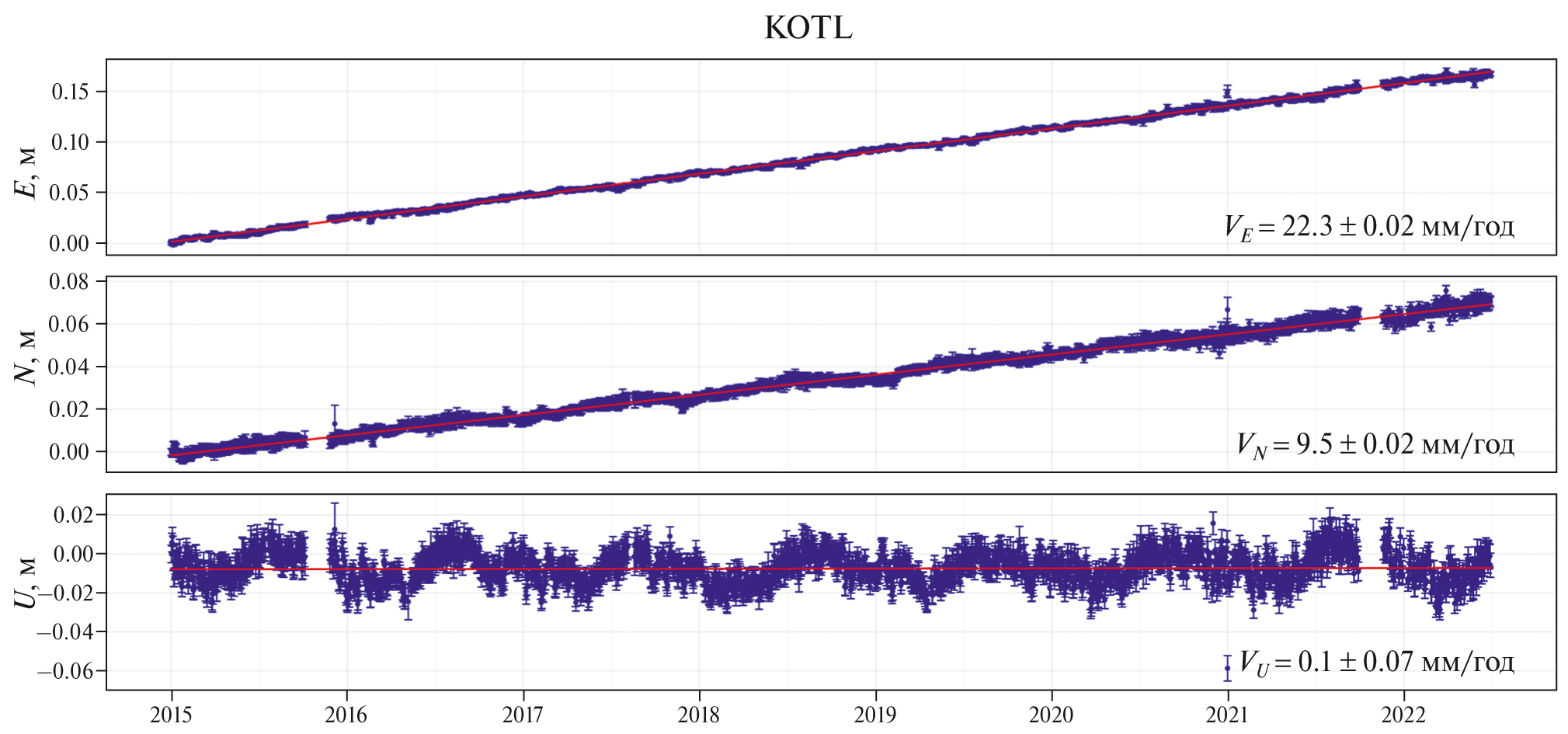

4. Fig. 3. Time series and linear trend of the coordinates of the FAGS point located in the city of Kotlas, Arkhangelsk region.

下载 (622KB)

索引源数据

5. Fig. 4. Map of horizontal velocities of FAGS points according to GNSS data in the all-Earth geocentric coordinate system ITRF2014.

下载 (1MB)

索引源数据

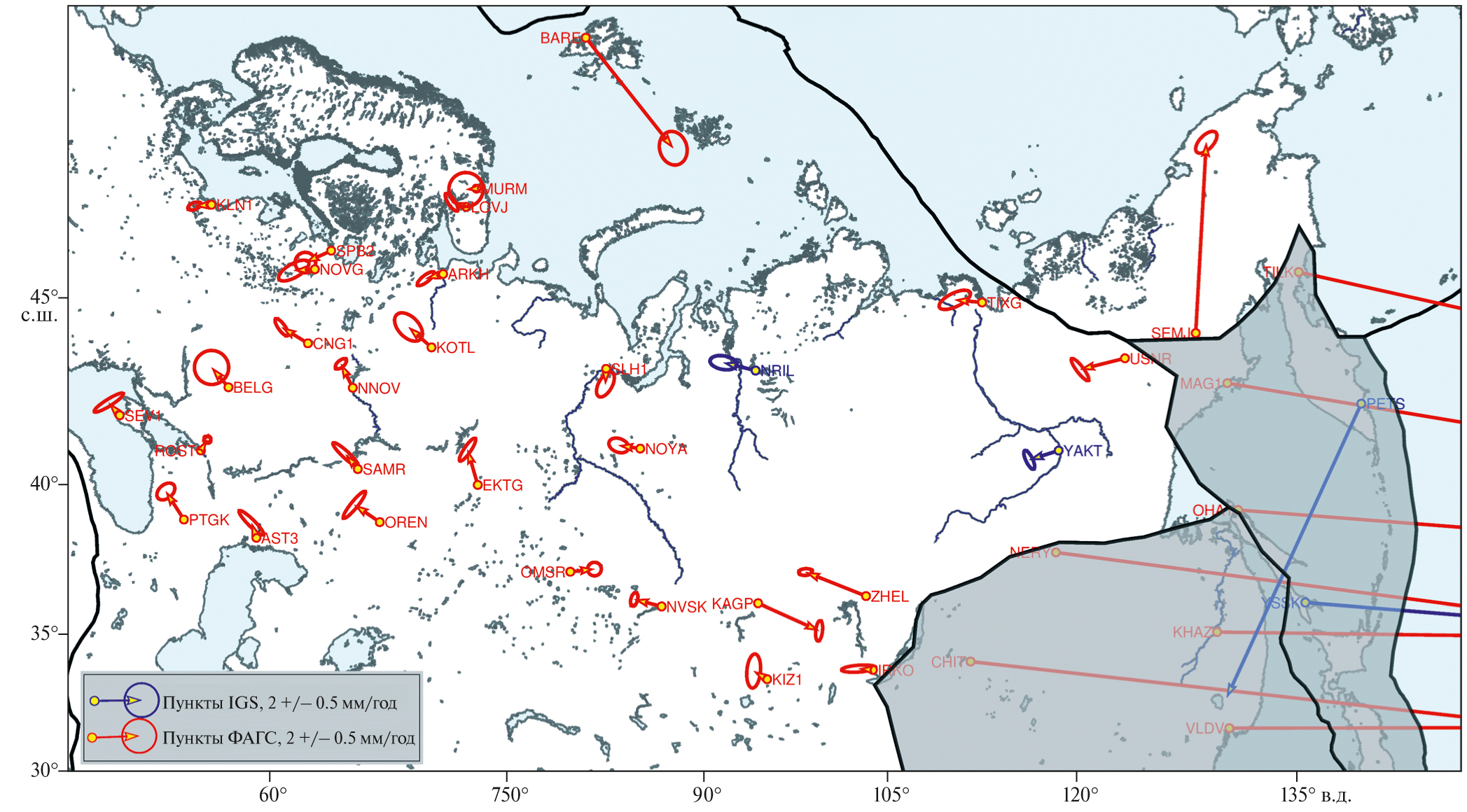

6. Fig. 5. Velocity mismatch map of FAGS points with model velocities determined by NNR-MORVEL56.

下载 (1MB)

索引源数据

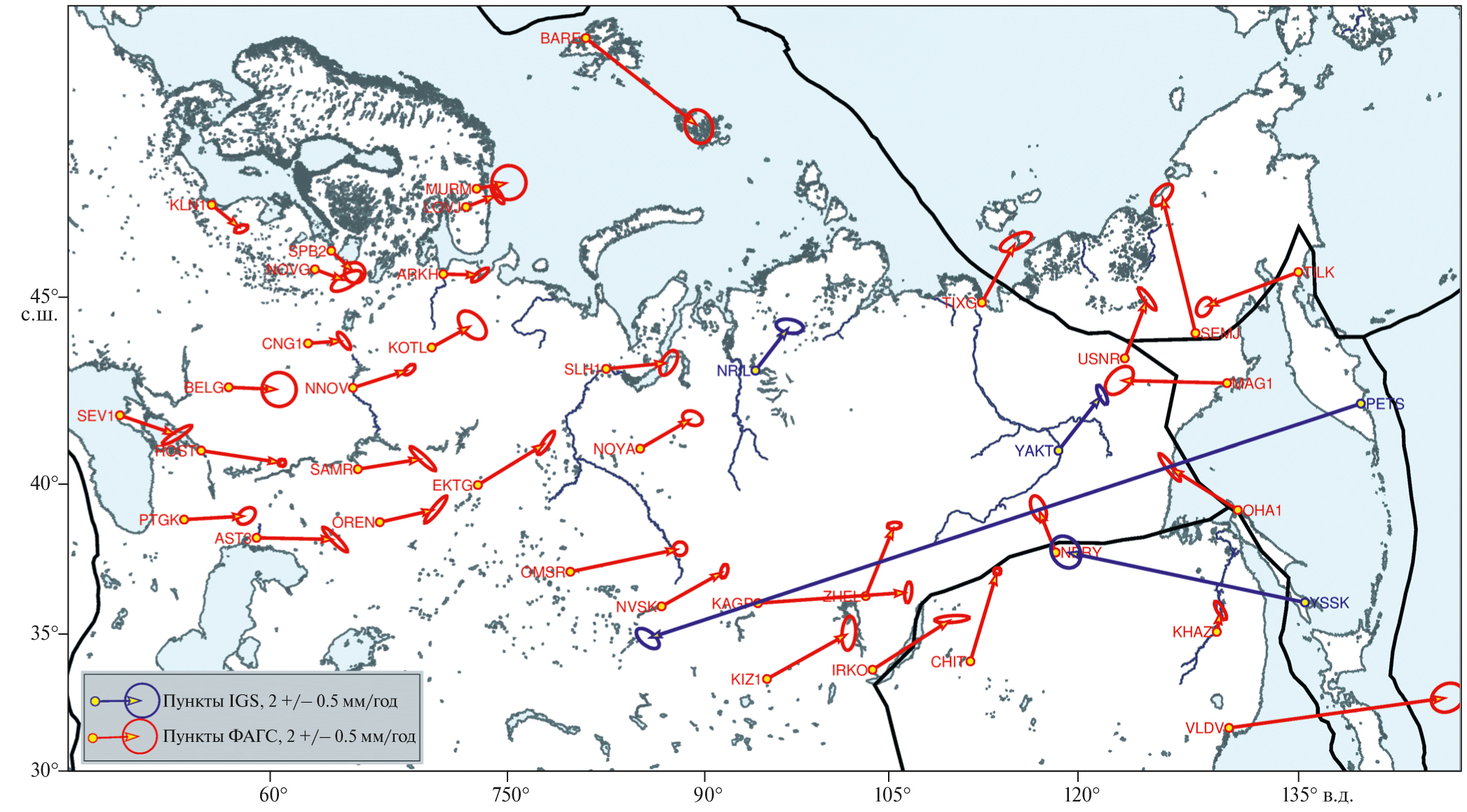

7. Fig. 6. Map of velocity mismatches of FAGS points with model velocities determined by NUVEL-1A.

下载 (1MB)

索引源数据

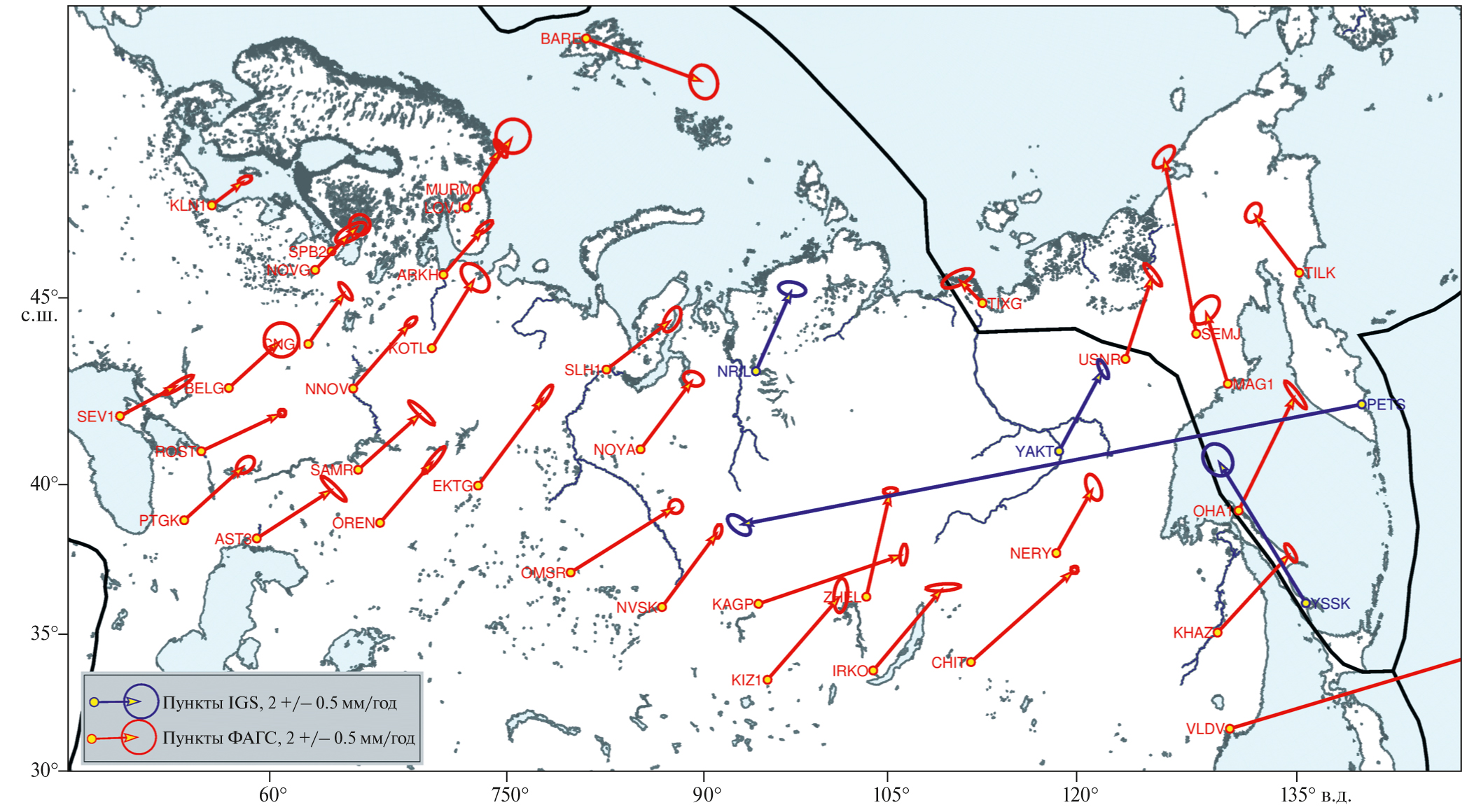

8. Fig. 7. Velocity mismatch map of FAGS points with model velocities determined by ITRF2014.

下载 (1MB)

索引源数据

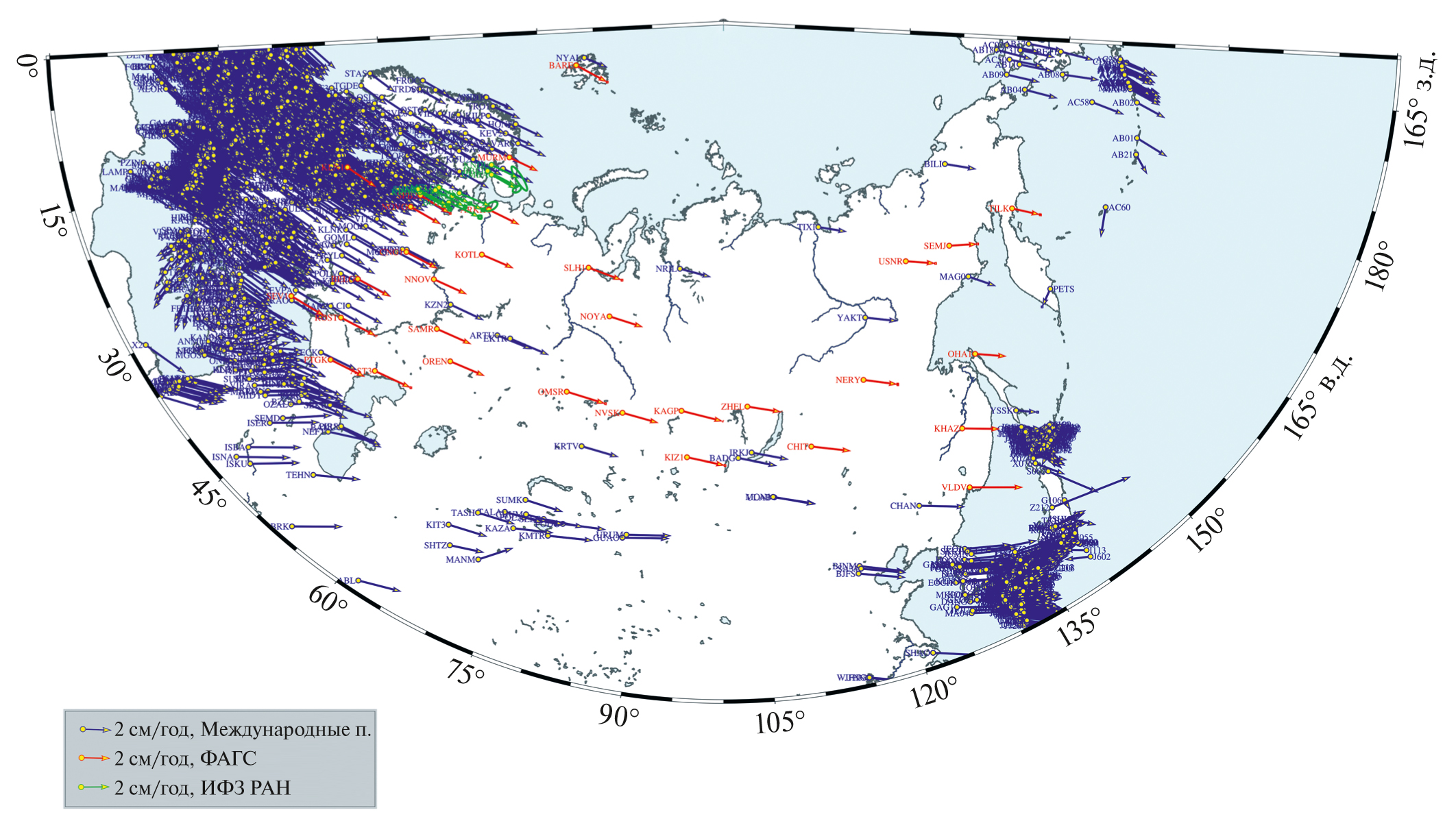

9. Fig. 8. Velocity map of the geodetic points used to estimate the area deformations. International points are shown in blue, FAGS points in red and periodically observed expedition points of IFZ RAS in green.

下载 (1MB)

索引源数据

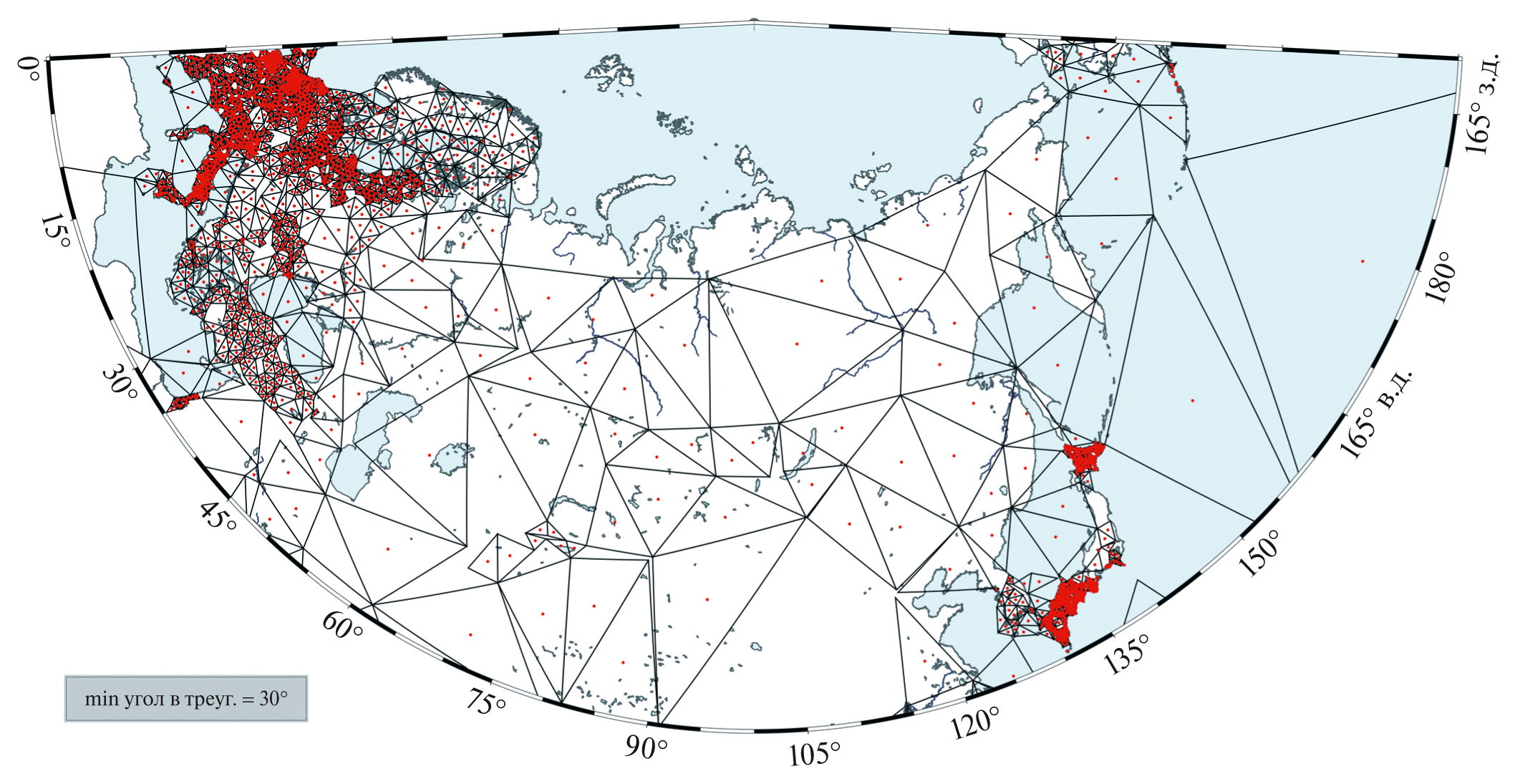

10. Fig. 9. Triangulation constructed from the original observation points. Red dots indicate the centers of triangles involved in the calculation of deformations.
