An estimate of chlorine fugacity in the low water fluid of the system С-О-(Н)-NaCl in the cumulus of ultrabasic-basic intrusions

Cover Page

Cite item

Full Text

Open Access Open Access
Restricted Access Access granted
Restricted Access Subscription Access

Abstract

At high PT parameters of the cumulates of ultramafic-mafic intrusions at low fO2 (below the QFM buffer), platinum dissolves in the fluid with CO as a carbonyl complex of the native metal. The high solubility of platinum as PtCl2 in brines with NaCl, which is associated with the formation of low-sulfide PGE deposits, is achieved at high oxygen fugacity (above the NNO buffer). It is assumed that at low oxygen fugacity in the low water CO–CO2 fluid, native Pt can also be converted into a cation-soluble form by chlorination. Experimental data (Р = 200 MPa, Т = 950oC, fO2 < QFM and fluid CO–CO2) on the reaction of NaCl with magnetite and chromite, accessor minerals of mafic-ultramafic intrusions, with the formation of iron and chromium chlorides are presented. As shown by thermodynamic calculations, the equilibrium in the FeCl3–FeCl2 pair provides the high chlorine fugacity (fCl2). This fugacity is only 3–4 orders of magnitude lower than fCl2 in the Pt–PtCl2 equilibrium and 2.5–3 orders of magnitude higher than in the aqueous fluid 1 M HCl at the same P–T–fO2 parameters.

Full Text

Restricted Access

About the authors

A. G. Simakin

Korzhinskii Institute of Experimental Mineralogy, Russian Academy of Sciences

Author for correspondence.
Email: simakin@iem.ac.ru
Russian Federation, Chernogolovka

O. Yu. Shaposhnikova

Korzhinskii Institute of Experimental Mineralogy, Russian Academy of Sciences

Email: simakin@iem.ac.ru
Russian Federation, Chernogolovka

V. N. Devyatova

Korzhinskii Institute of Experimental Mineralogy, Russian Academy of Sciences

Email: simakin@iem.ac.ru
Russian Federation, Chernogolovka

S. I. Isaenko

Institute of Geology of the Komi Scientific Center, Ural Branch of the Russian Academy of Sciences

Email: simakin@iem.ac.ru
Russian Federation, Syktyvkar

D. D. Eremin

Lomonosov Moscow State University

Email: simakin@iem.ac.ru
Russian Federation, Moscow

References

  1. Мочалов А. Г., Якубович О. В., Стюарт Ф. М., Бортников Н. С. Новые свидетельства полицикличности платинометалльных россыпеобразующих формаций щелочно-ультраосновного массива Кондер: результаты 190Pt-4He-датирования // Доклады Российской Академии Наук. Науки о Земле. 2021. Т. 498(1). С. 23–30. https://doi.org/10.31857/S2686739721050108
  2. Boudreau A. E., Mathez E. A., McCallum I. S. Halogen geochemistry of the Stillwater and Bushveld complexes: evidence for transport of the platinum-group elements by Cl-rich fluids // Journal of Petrology. 1986. V. 27 (4). P. 967–986. https://doi.org/10.1093/petrology/27.4.967
  3. Orlova G. P., Ryabchikov I. D., Distler V. V., Gladyshev G. D. Platinum migration in fluids during the formation of magmatic sulfides // International Geology Review. 1987. V. 29 (3). P. 360–362. https://doi.org/10.1080/00206818709466152
  4. Shmulovich K. I., Bukhtiyarov P. G., Persikov E. S. Gold dissolution in dry salt melts in the presence of SiO2 as a function of P(O2) // Geochem. Int. 2018. V. 56. P. 240–245. https://doi.org/10.1134/S0016702918030084
  5. Simakin A., Salova T., Borisova A. Y., Pokrovski G. S., Shaposhnikova O., Tyutyunnik O., Bondarenko G., Nekrasov A., Isaenko S. I. Experimental study of Pt solubility in the CO-CO2 fluid at low fO2 and subsolidus conditions of the ultramafic-mafic intrusions // Minerals. 2021. V. 11. P. 225. https://doi.org/10.3390/min11020225
  6. Sullivan N. A., Zajacz Z. J., Brenan M., Tsay A. The solubility of platinum in magmatic brines: Insights into the mobility of PGE in ore-forming environments // Geochimica et Cosmochimica Acta. 2022. V. 316. P. 253–272.
  7. Kim J. H., Woo S. I. Chemical dry etching of platinum using Cl2/CO gas mixture // Chemistry of Materials. 1998. V. 10 (11). P. 3576–3582. https://doi.org/10.1021/cm980337o
  8. Mathez E. A., Dietrich V. J., Holloway J. R., Boudreau A. E. Carbon distribution in the Stillwater complex and evolution of vapor during crystallization of Stillwater and Bushveld magmas // Journal of Petrology. 1989. V. 30 (1). P. 153–173. https://doi.org/10.1093/petrology/30.1.153
  9. Barin I. Thermochemical data of pure substances. Weinheim. New York: VCH, 1995. P. 1885. https://doi.org/10.1002/978352761982
  10. Thomas R. W., Wood B. J. The chemical behavior of chlorine in silicate melts // Geochimica et Cosmochimica Acta. 2021. V. 294. P. 28–42. https://doi.org/10.1016/j.gca.2020.11.018
  11. Boudreau A. E. Melt and Fluid Inclusion Evidence. In hydromagmatic processes and platinum-group element deposits in layered intrusions // Cambridge: Cambridge University Press. 2019. P. 101–113.
  12. Alcaraz, L., Sotillo B., Marco J. F., Alguacil F. J., Fernández P., López F. A. Obtention and characterization of ferrous chloride FeCl2·4H2O from water pickling liquors // Materials. 2021. V. 14. P. 4840. https://doi.org/10.3390/ma14174840
  13. Meneses F. Qi R., Healey A. J., You Yi, Robertson I. O., Scholten S. C., Keerthi A., Harrison G., Hollenberg L. C.L., Radha B., Tetienne J.-P. Stray magnetic field imaging of thin exfoliated iron halides flakes // [cond-mat.mtrl-sci]. 2023. https://doi.org/10.48550/arXiv.2307.10561
  14. Scholten L., Schmidt C., Lecumberri-Sanchez P., Newville M., Lanzirotti A., Sirbescu M. C., Steele-MacInnis M. Solubility and speciation of iron in hydrothermal fluids // Geochimica et Cosmochimica Acta. 2019. V. 252. P. 126–143. https://doi.org/10.1016/j.gca.2019.03.001
  15. Churakov S. V., Gottschalk M. Perturbation theory based equation of state for polar molecular fluids: II. Fluid mixtures // Geochimica et Cosmochimica Acta. 2003. V. 67(13). P. 2415–2425. https://doi.org/10.1016/S0016-7037(02)01348-0
  16. Hanf N. W., Sole M. J. High-temperature hydrolysis of sodium chloride // Transactions of the Faraday Society. 1970. V. 66. P. 3065–3074. https://doi.org/10.1039/TF9706603065
  17. Aranovich L. Ya., Newton R. C. H2O activity in concentrated KCl and KCl–NaCl solutions at high temperatures and pressures measured by the brucite-periclase equilibrium // Contributions to Mineralogy and Petrology. 1997. V. 127. P. 261–271. https://doi.org/10.1007/s004100050279
  18. Hanley J. J., Mungall J. E., Pettke T., Spooner E. T. C., Bray C. J. Fluid and halide melt inclusions of magmatic origin in the ultramafic and lower banded series, Stillwater Complex, Montana, USA // Journal of Petrology. 2008. V. 49 (6). P. 1133–1160. https://doi.org/10.1093/petrology/egn020

Supplementary files

Supplementary Files
Action
1. JATS XML
Download

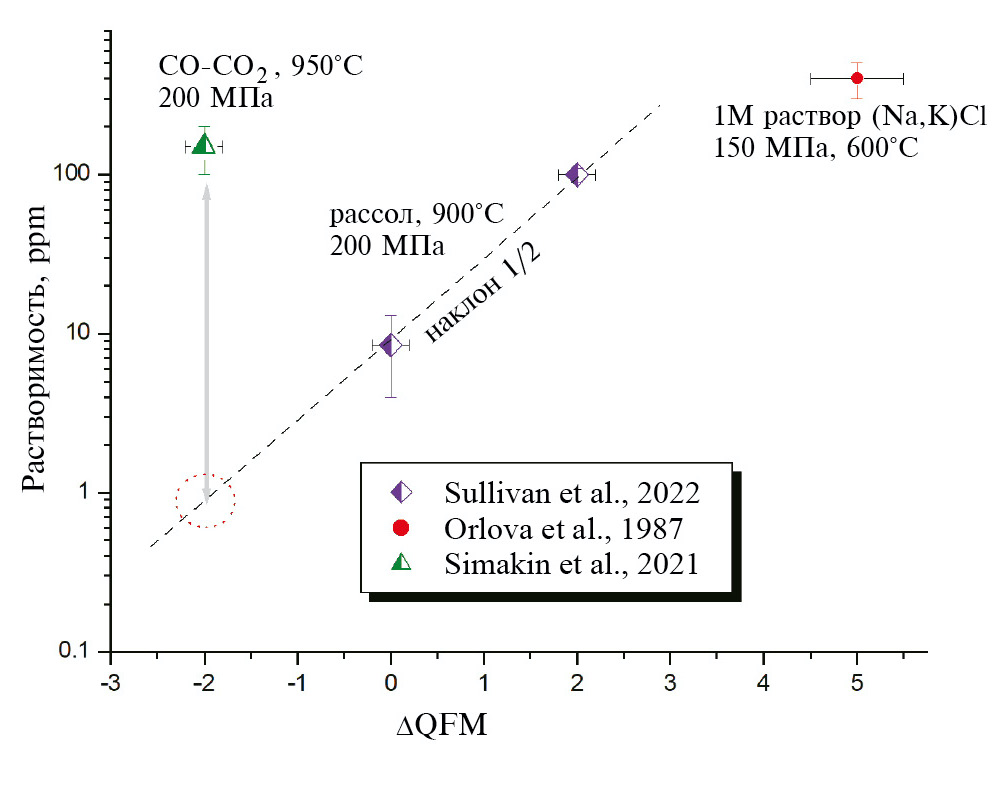

2. Fig. 1. Experimental data on the solubility of platinum in a fluid at high temperature, depending on the volatility of oxygen. The dotted circle marks the solubility in brine at low oxygen volatility, obtained by extrapolation (according to [6]).

Download (89KB)
Indexing metadata
3. Fig. 2. Chlorine volatility equilibrium in a metal–chloride pair, calculated using a thermodynamic database [9]. The data for PtCl2 and PdCl2 are extrapolated to high T (dotted line). The volatility of chlorine is shown separately, providing a chlorine content of about 1 wt. % in the dry melt of basalt at 1400 °C [10]. Chlorine volatiles corresponding to FeCl3–FeCl2 (FFC) equilibria with oxygen volatiles equal to NNO and CCO are also shown. The volatility of chlorine in 1M HCl aqueous fluid (P = 200 MPa) calculated by the reaction of 2HCl+1/2O2 = H2O+Cl2 at two oxygen volatiles (CCO and NNO buffers) is shown separately.

Download (99KB)
Indexing metadata

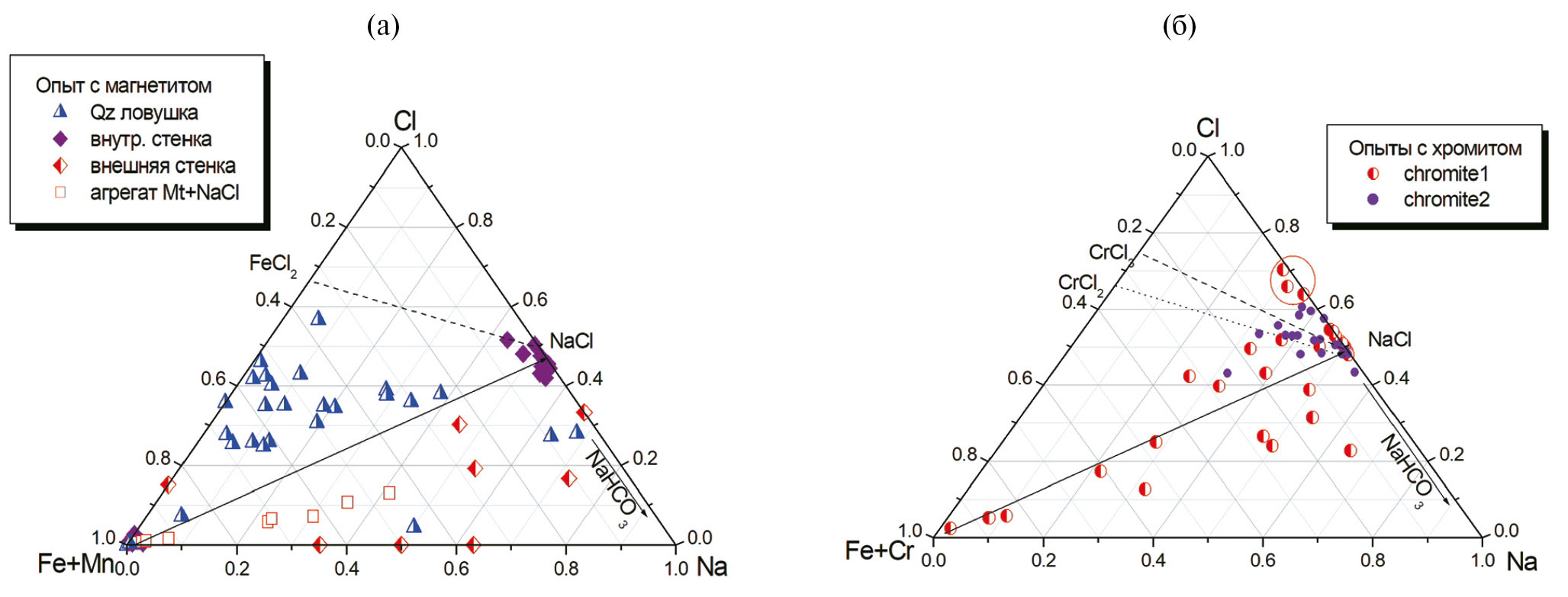

4. Fig. 3. Microprobe analyses (atomic fractions) of aggregates of finely dispersed phases, products of chlorine-containing fluid generation reactions; a) experiment O75 system with iron: on the walls of the inner ampoule, outer ampoule, quartz trap and magnetite, b) two experiments with chromite: the first experiment with 10% NaCl, the second with 1% NaCl. The composition points inside the Fe(Cr)–NaCl–Na triangles reflect the presence of sodium chlorine-free phases (Na2CO3, NaHCO3, etc.). 3b shows that a number of compounds extend beyond the triangle (Fe+Cr)–CrCl3–NaCl, which reflects the presence of chlorides other than sodium and chromium (+ iron) chlorides, presumably magnesium chlorides.

Download (211KB)
Indexing metadata

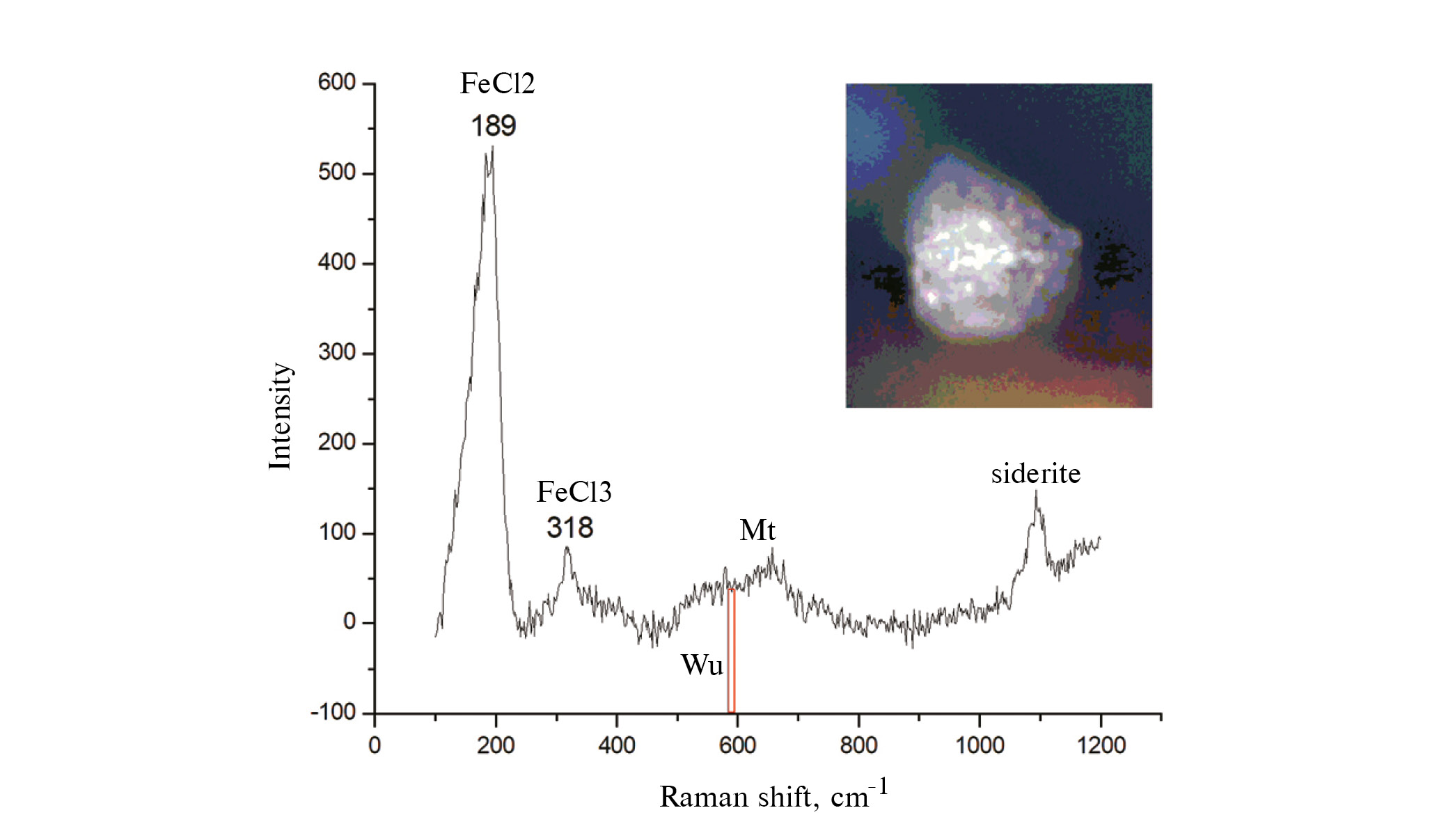

5. Fig. 4. Micro-Raman spectrum of magnetite and NaCl reaction products in the O89 experiment. There is also a line of undecomposed siderite, the source of the fluid. The lines of wustite and magnetite merge into a solid strip.

Download (186KB)
Indexing metadata

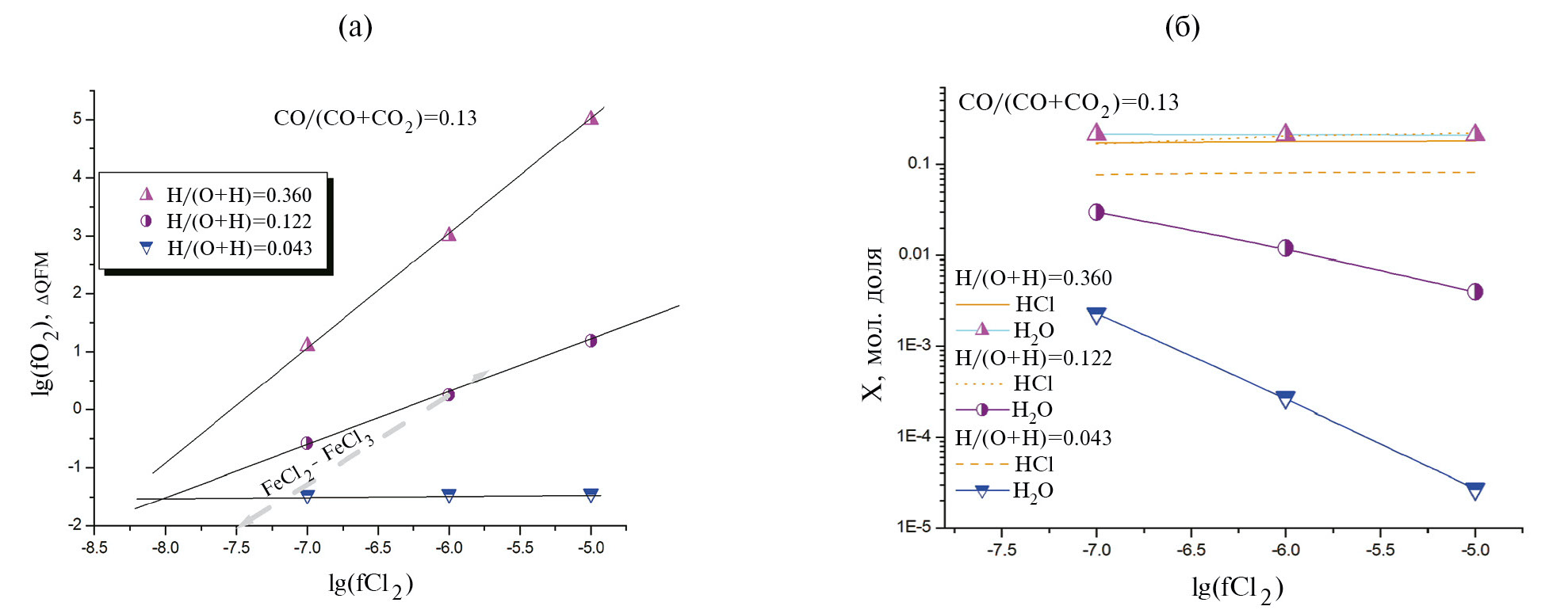

6. Fig. 5. Calculated according to reactions (9) in a low–water fluid C–O-H–Cl (ratio H/(O+H)≈H2O are indicated on the charts): a) oxygen volatility, a dotted line corresponding to the FeCl2–FeCl3 buffer in the presence of magnetite at various fO2; b) molar fractions of H2O and HCl depending on lg(XCl2).

Download (153KB)
Indexing metadata
7. Application
Download (4MB)
Indexing metadata
