Results of long-term measurements of particulate matter in Lake Baikal
- Authors: Vologina E.G.1, Sturm M.2, Budnev N.M.3
-
Affiliations:
- Institute of the Earth’s Crust of the Siberian Branch of the Russian Academy of Sciences
- Swiss Federal Institute of Aquatic Science and Technology (Eawag)
- Irkutsk State University
- Issue: No 4 (2022)
- Pages: 1606-1609
- Section: Articles
- URL: https://journals.rcsi.science/2658-3518/article/view/288342
- DOI: https://doi.org/10.31951/2658-3518-2022-A-4-1606
- ID: 288342
Cite item
Full Text
Abstract
For the first time, data on average annual particle fluxes in Lake Baikal from the past 22 years are presented. Sampling was carried out using sediment traps, which were installed at a mooring in the deep part of the Southern Basin of the lake (depth 1366 m) from March 1999 to March 2021. The total annual fluxes of sedimentary material during this period varied from 11.5 g m-2 y-1 to 208 g m-2 y-1. The peaks of fluxes correspond to the years of massive blooms of diatoms. Average total annual fluxes generally increase in the second half of the study period (since 2010), simultaneously with a change of the dominant diatom genera. We assume that the recent climate warming is responsible for these developments.
Full Text
Introduction
Over the last decades, significant climate changes have been recorded, which have a sincere impact on the environment of our planet.
The aim of this research is to study the variability of vertical fluxes and material composition of particles in Lake Baikal, using data of sediment trap measurements. Such a study is important for an understanding of processes of recent sedimentation under conditions of climate change.
Materials and methods
During 22 years from March 1999 to March 2021, the collection and analysis of sedimentary matter from different depths of the water column of the Southern Baikal was performed. The work was carried out near the Baikal Neutrino Telescope observatory (51°46.076’ N 104°24948’ E) at a water depth of 1366 m by using a mooring with integrating cylindrical sediment traps (Vologina and Sturm, 2017). Details of the exposure data are given in Table. The sampled material was freeze-dried on an FD ALPHA instrument and weighed on an analytical balance OHAUS Pioneer. The total annual fluxes of particulate matter (TAF) were calculated in grams per square meter per year (g m-2 y-1). The qualitative composition of the sedimentary matter was determined in smear slides under a SK14 light microscope (PZO WARSZAWA, Poland) with a magnification of 100x and 400x. Preliminary data have been published in (Sturm et al., 2015).
Table. Details of the exposure of integrating sediment traps in Southern Baikal between 1999 and 2020.
Years | Dates | Exposure, days | Number of traps | Water depth, m |
1999 | 11.03.1999–06.03.2000 | 361 | 15 | 100–1362 |
2000 | 09.03.2000–08.03.2001 | 364 | 15 | 100–1362 |
2001 | 09.03.2001–07.03.2002 | 363 | 14 | 100–1350 |
2002 | 08.03.2002–09.03.2003 | 366 | 14 | 100–1350 |
2003 | 11.03.2003–08.03.2004 | 363 | 14 | 100–1350 |
2004 | 11.03.2004–07.03.2005 | 361 | 18 | 50–1350 |
2005 | 08.03.2005–06.03.2006 | 363 | 18 | 50–1350 |
2006 | 12.03.2006-07.03.2007 | 360 | 18 | 50–1350 |
2007 | 11.03.2007-05.03.2008 | 360 | 18 | 30–1350 |
2008 | 09.03.2008-05.03.2009 | 361 | 18 | 30–1350 |
2009 | 08.03.2009-05.03.2010 | 361 | 17 | 50–1350 |
2010 | 14.03.2010–07.03.2011 | 358 | 10 | 100–1350 |
2011 | 09.03.2011–09.03.2012 | 366 | 10 | 100–1350 |
2012 | 11.03.2012–09.03.2013 | 363 | 10 | 100–1350 |
2013 | 10.03.2013–09.03.2014 | 364 | 10 | 100–1350 |
2014 | 11.03.2014–15.03.2015 | 369 | 10 | 100–1350 |
2015 | 07.03.2015–05.03.2016 | 364 | 10 | 100–1350 |
2016 | 07.03.2016–07.03.2017 | 365 | 10 | 107–1359 |
2017 | 08.03.2017–06.03.2018 | 363 | 10 | 100–1363 |
2018 | 08.03.2018–05.03.2019 | 362 | 10 | 100–1363 |
2019 | 06.03.2019–04.03.2020 | 364 | 10 | 100–1363 |
2020 | 06.03.2020–17.03.2021 | 376 | 10 | 100–1363 |
Results and discussion
The description of smear slides indicates that the collected material contains biogenic and terrigenic particles. The biogenic part consists mainly of valves of diatom species of the genera Aulacoseira, Synedra, Cyclotella and amphipods (Gammarus genus). Additionally sponge spicules are also observed. Allochthonous biogenic material is represented by pollen particles. The terrigenous material consists mainly of mineral particles of clay size with a little content of silt.
TAF varied significantly during the observation period from 11.5 g m-2 y-1 (2006) to 208 g m-2 y-1 (2014), with an average value of 89.6 g m-2 y-1 (Fig.). Average TAF values from March 1999 to March 2010 amount 75.1 g m-2 y-1, and from March 2010 to March 2021 104 g m-2 y-1. Thus, the total amount of sedimentary matter that entered Baikal over the past 11 years has distinctly increased. It should be noted that values of the lowest traps (about 15 m above the lake floor) were not taken into account in the weight calculations, in order to exclude effects of sediment resuspension at the water/sediment interface, which took place in almost every year. For example, in 2004 TAF was 79.8 g m-2 y-1 at a depth of 1350 m, while at depths from 50 to 1200 m this value did not exceed 44.6 g m-2 y-1. Obviously, the high TAF values were associated with the resuspension of bottom sediments by currents and the activities of aquatic organisms.

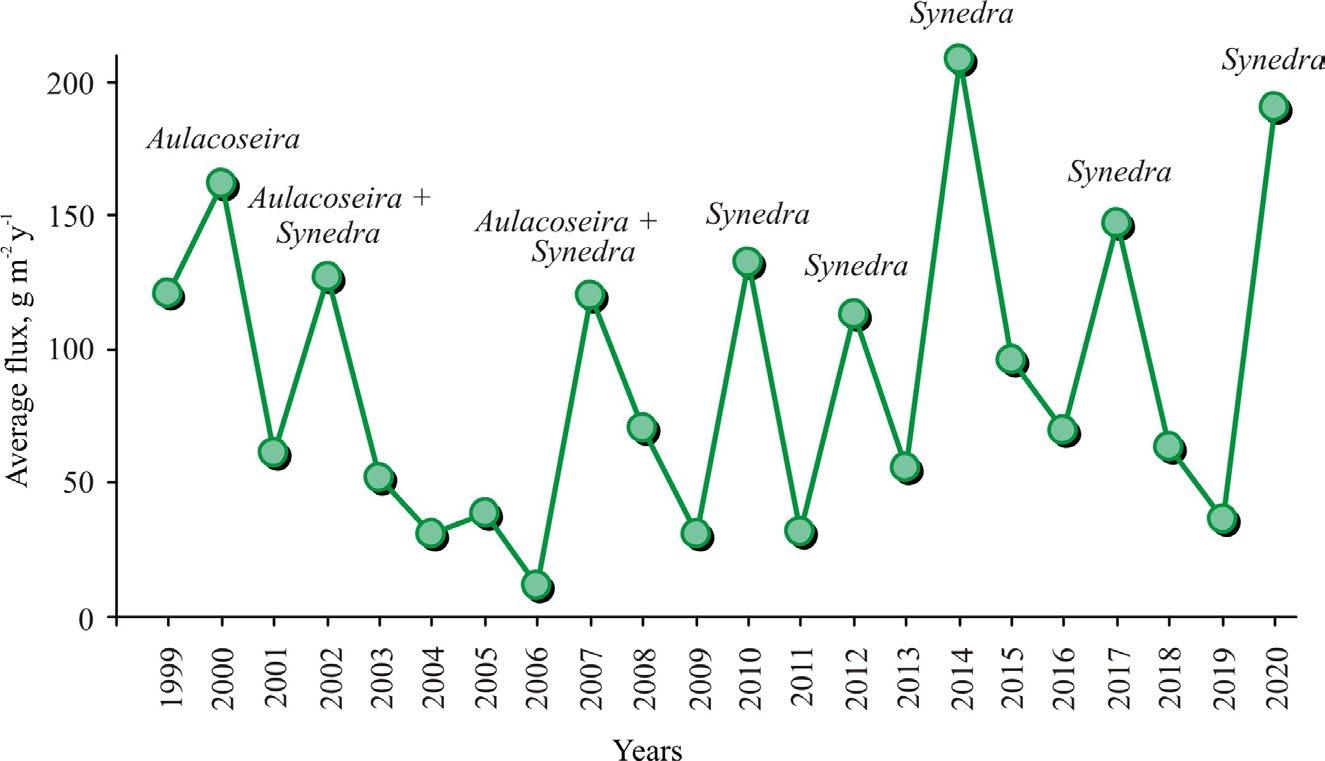

Fig. Total annual fluxes (g m-2 y-1) in Southern Baikal between March 1999 and March 2021. Predominant genera of diatoms are indicated.
Peaks of TAF were observed in 2000, 2002, 2007, 2010, 2012, 2014, 2017 and 2020 (Fig.) and correspond to years mass blooms of diatoms. Diatoms of the genus Aulacoseira dominated in the sedimentary material sampled in 2000. Aulacoseira together with Synedra dominated in 2002 and 2007. Then, starting from 2010, species of the genus Synedra were the predominant diatoms (peaks recorded in 2010, 2012, 2014, 2017 and 2020; Fig.).
It is known that the abundance and biomass of diatoms vary in different years and seasons (Votintsev et al., 1975; Popovskaya, 1977; 2000; Jewson and Granin, 2014). This explains the significant fluctuations in TAF over the past 22 years. The literature describes the so-called “Melosira years”, when there was a significant increase in the bloom of species of the genus Melosira (now renamed as the genus Aulacoseira) (Kozhova, 1961; Kozhov, 1962; Antipova, 1963; Evstafyev et al., 2010). According to published data, 2000 was a “Melosira year” (Evstafyev et al., 2010; Jewson and Granin, 2014). This phenomenon was also recorded by us in the study of sedimentary matter taken by sediment traps from March 2000 to March 2001 (Vologina and Sturm, 2017). Aulacoseira was the predominant diatom genus in 2000. In 2002 and 2007 Aulacoseira and Synedra were the two main genera. The composition of diatoms in 2010, 2012, 2014, 2017 and 2020 was dominated by Synedra (Fig.). This period (2010–2021) was also associated with increased average TAF values.
It is noteworthy that species of the genus Aulacoseira are cold-loving diatoms (Votintsev et al., 1975; Chernyaeva et al., 2008). The dominance of the genus Synedra, observed in recent years, both in the water column and in the surface bottom sediments of Southern Baikal (Roberts et al., 2018; Vologina et al., 2019; Bondarenko et al., 2020; Vologina et al., 2020) is probably associated with climate warming. This is also revealed by an increased pelagic eutrophication of Southern Baikal (Izmest’eva et al., 2016). This conclusion is indirectly confirmed by results of the BDP-96 drill core from underwater Akademichesky Ridge of Lake Baikal, where the abundance peaks of Synedra are associated with warm isotopic stages (Khursevich et al., 2001).
Conclusions
Monitoring of vertical particle fluxes carried out over the past 22 years using sediment traps in South Baikal allows us to reach the following main conclusions. The total annual flux of particulate material that settled on the lake floor of Baikal varied significantly during the study period. Maximum TAF values occur in years with massive diatom blooms. Between 1999-2021 a change in the dominant species of diatom genera has been observed: Aulacoseira prevailed in 2000; Aulacoseira together with Synedra in 2002 and 2007; Synedra dominated since 2010 (2010, 2012, 2014, 2017, 2020). Simultaneously, the average TAF has increased over the past 11 years. This and the decrease of cold-adapted diatoms are believed to have been caused by climate warming during the last years.
Acknowledgments
The authors are sincerely grateful to the members of the expedition NIIPF ISU for invaluable assistance in carrying out the work. The authors are also deeply grateful to I. Brunner (EAWAG) and E.G. Polyakova (IZK SB RAS) for analytical work and assistance in preparing samples for analysis. The study was carried out thanks to a long-term international collaboration supported by EAWAG (project no. 85145); cooperation between EAWAG, IEC SB RAS and NIIPF ISU and within the framework of the state task of IEC SB RAS (No. 0346-2019-0005) and ISU (FZZE-2020-0017). The equipment of the Central Collective Use Center «Geodynamics and Geochronology» of the IEC SB RAS was partially involved in the work.
Conflict of interest
The authors declare no competing interest.
About the authors
E. G. Vologina
Institute of the Earth’s Crust of the Siberian Branch of the Russian Academy of Sciences
Author for correspondence.
Email: vologina@crust.irk.ru
Russian Federation, 128, Lermontov St., Irkutsk, 664033
M. Sturm
Swiss Federal Institute of Aquatic Science and Technology (Eawag)
Email: vologina@crust.irk.ru
Switzerland, 133, Überlandstrasse, Dübendorf, CH-8600
N. M. Budnev
Irkutsk State University
Email: vologina@crust.irk.ru
Russian Federation, 1, K. Marx St., Irkutsk, 664003
References
- Antipova N.L. 1963. Variations in numbers of melosira species in the Lake Baikal plankton. Trudy Vsesoyuznogo Gidrobiologicheskogo Obshchestva AN SSSR [Transactions of the USSR Hydrobiological Society] 13: 235-241. (in Russian)
- Bondarenko N.A., Vorobyova S.S., Zhuchenko N.A. et al. 2020. Current state of phytoplankton in the littoral area of Lake Baikal, spring 2017. Journal of Great Lakes Research 46: 17-28. doi: 10.1016/j.jglr.2019.10.001
- Chernyaeva G.P., Rasskazov S.V., Rasskazov G.S. et al. 2008. Distribution of Aulacosira baicalensis (K. Meyer) Simonsen (Bacillariophyta) in the Late Cenozoic lakes of Eastern Siberia. In: XII All-Russian Palynological Conference, pp. 214-217. (in Russian)
- Evstafyev V.K., Bondarenko N.A., Melnik N.G. 2010. Analysis of longterm dynamics in key components of the food web in deep-water Lake Baikal. Izvestiya Irkutskogo gosudarstvennogo universiteta. Seriya «Biologiya. Ekologiya» [Bulletin of the Irkutsk State University. Series “Biology. Ecology”] 3(1): 3-11. (in Russian)
- Izmest’eva L.R., Moore M.V., Hampton S.E. et al. 2016. Lake-wide physical and biological trends associated with warming in Lake Baikal. Journal of Great Lakes Research 42: 6-17. doi: 10.1016/j.jglr.2015.11.006
- Jewson D.H., Granin N.G. 2014. Cyclical size change and population dynamics of a planktonic diatom, Aulacoseira baicalensis, in Lake Baikal. European Journal of Phycology 50(1): 1-19. doi: 10.1080/09670262.2014.979450
- Khursevich G.K., Karabanov E.B., Prokopenko A.A. et al. 2001. Detailed diatom biostratigraphy of Baikal sediments during the Brunhes Chron and climatic factors of species formation. Geologiya i Geofizika [Geology and Geophysics] 42(1-2): 108129. (in Russian)
- Kozhov M.M. 1962. Biologiya ozera Baikal [Biology of Lake Baikal]. Moscow: Izd. AN SSSR. (in Russian)
- Kozhova O.M. 1961. Periodic changes in the evolution of Lake Baikal phytoplankton. Trudy Vsesoyuznogo Gidrobiologicheskogo Obshchestva AN SSSR [Transactions of the USSR Hydrobiological Society] 11: 28-43. (in Russian)
- Popovskaya G.I. 1977. Dynamics of deepwater phytoplankton. In: Bekman M.Yu. (Ed.), Biologicheskaya produktivnostʹ pelagiali Baikala i yeye izmenchivostʹ [Hemipelagic biological productivity of Lake Baikal and its variability]. Novosibirsk, pp. 5-39. (in Russian)
- Popovskaya G.I. 2000. Ecological monitoring of phytoplankton in Lake Baikal. Aquatic Ecosystem Health and Management 3: 215-225. doi: 10.1016/S1463-4988(00)00021-X
- Roberts S., Swann G.E.A., McGowan S. et al. 2018. Diatom evidence of 20th century ecosystem change in Lake Baikal, Siberia. PLOS ONE 13(12). doi: 10.1371/journal.pone.0208765
- Sturm M., Vologina E.G., Budnev N.M. et al. 2015. Results of 20 years of sediment trap monitoring. Particle dynamics in ocean-like Lake Baikal. In: 9th Symposium for European Freshwater Sciences «Freshwater sciences coming home», p. 165.
- Vologina E.G., Sturm M. 2017. Particulate fluxes in South Baikal: evidence from sediment trap Experiments. Russian Geology and Geophysics 58: 1045-1052. doi: 10.15372/GiG20170904
- Vologina E.G., Sturm M., Budnev N.M. 2019. The results of experiments with sediment traps in South Baikal from March 2013 to March 2015. In: XXIII International Scientific Conference (School) on marine geology “Geology of the seas and oceans”, pp. 20-24.
- Vologina E.G., Sturm M., Vorob’eva S.S. et al. 2020. Late Holocene sediments in the profound abyss of Southern Lake Baikal. Limnology and Freshwater Biology 2020(4): 585-587. doi: 10.31951/2658-3518-2020-A-4-585
- Votintsev K.K., Meshcheryakova A.I., Popovskaya G.I. 1975. Krugovorot organicheskogo veshchestva v ozere Baikal [Turnover of organic matter in Lake Baikal]. Novosibirsk: Nauka. (in Russian)
