Preparation of Nonwoven Carbon Materials from Fabrics Based on Flax Cellulose and Viscose Fibers

I. S. Makarov; Макаров И. С.; A. G. Smyslov; Смыслов А. Г.; D. N. Chernenko; Черненко Д. Н.; M. I. Vinogradov; Виноградов М. И.; S. A. Legkov; Легков С. А.; I. S. Levin; Левин И. С.; N. A. Arkharova; Архарова Н. А.; V. G. Kulichikhin; Куличихин В. Г.

doi:10.31857/S2308112023700530

Preparation of Nonwoven Carbon Materials from Fabrics Based on Flax Cellulose and Viscose Fibers

Authors: Makarov I.S.¹, Smyslov A.G.², Chernenko D.N.¹, Vinogradov M.I.¹, Legkov S.A.¹, Levin I.S.¹, Arkharova N.A.³, Kulichikhin V.G.¹
Affiliations:
1. Topchiev Institute of Petrochemical Synthesis, Russian Academy of Sciences
2. LLC Linum
3. Shubnikov Institute of Crystallography, Federal Research Center “Crystallography and Photonics,” Russian Academy of Sciences
Issue: Vol 65, No 3 (2023)
Pages: 175-185
Section: СТРУКТУРА И СВОЙСТВА
URL: https://journals.rcsi.science/2308-1120/article/view/135321
DOI: https://doi.org/10.31857/S2308112023700530
EDN: https://elibrary.ru/MLHCHY
ID: 135321

Cite item

Full Text

Open Access
Restricted Access

Access granted
Restricted Access

Subscription Access

Abstract
About the authors
References
Supplementary files
Statistics

Abstract

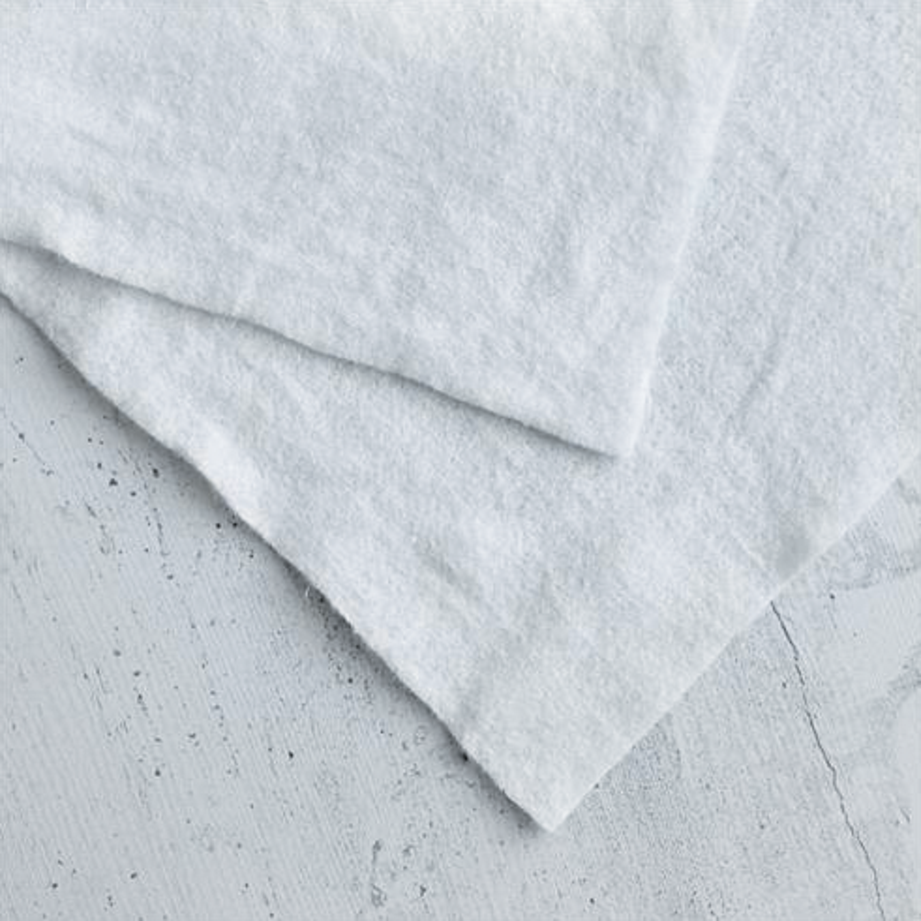

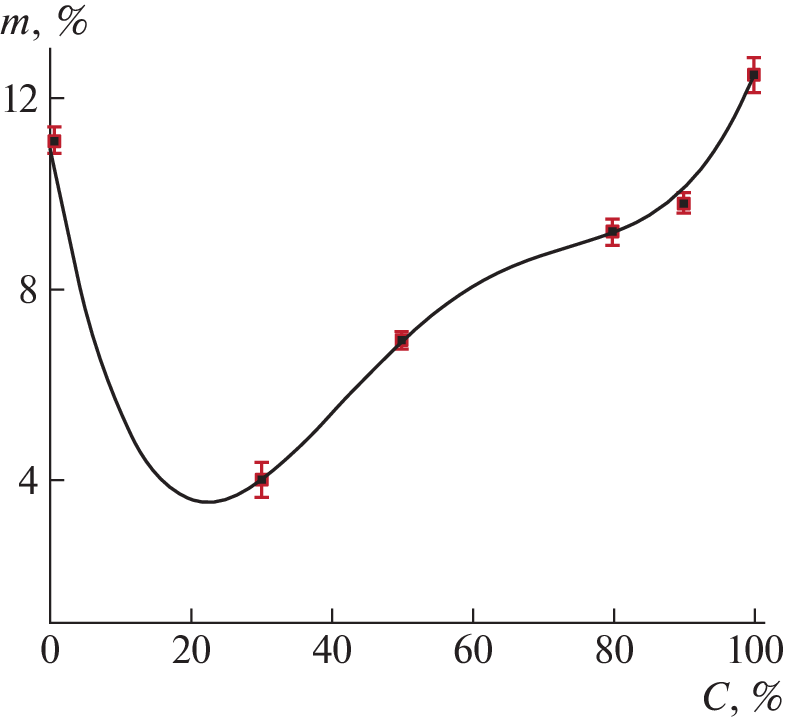

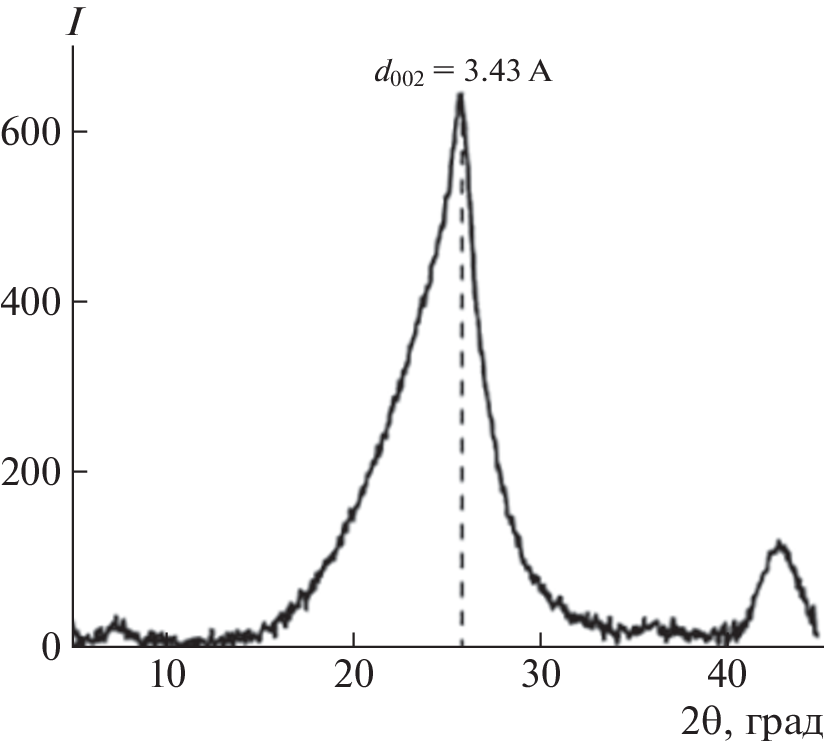

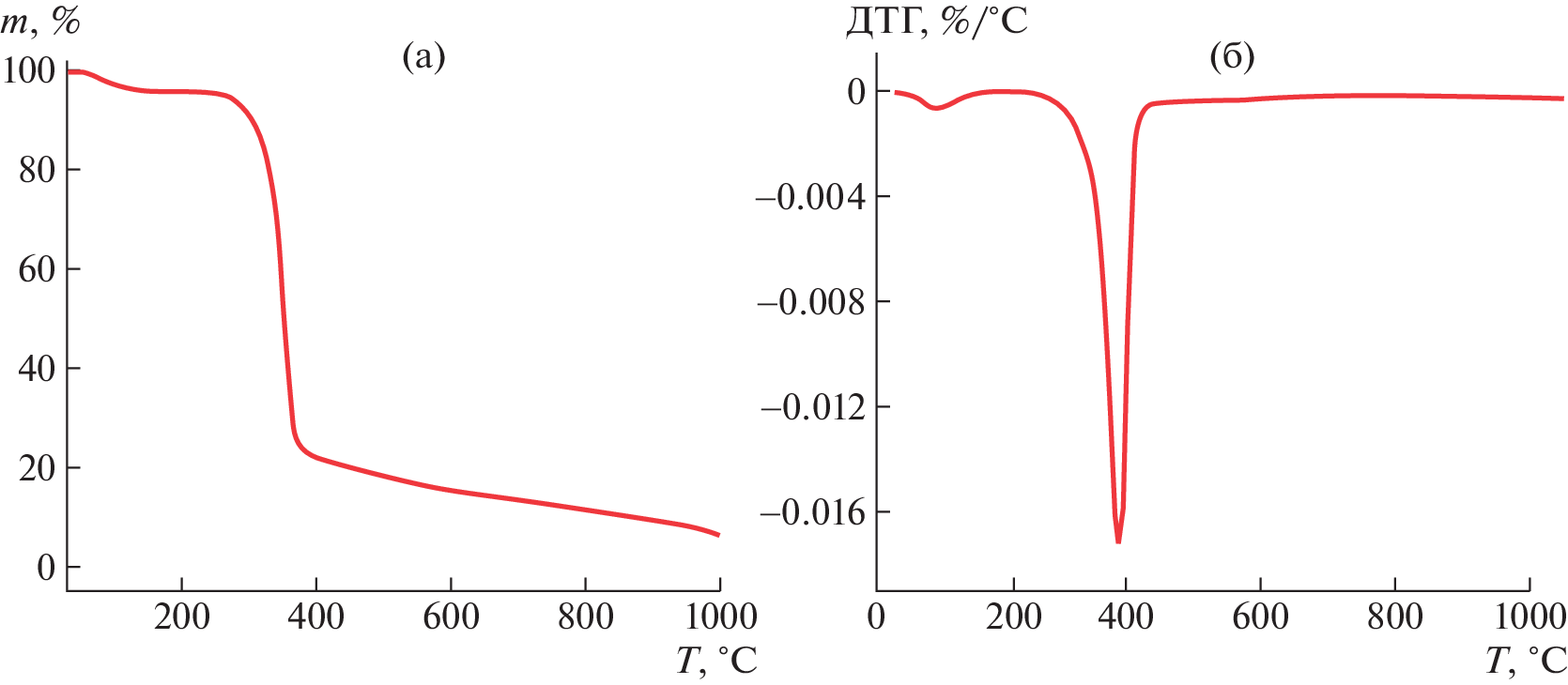

A method for obtaining nonwoven carbon materials by the staged heat treatment of cellulose felt is developed. Fabrics produced from fibrous flax cellulose and viscose fibers by needle punching are used as nonwoven precursors. To obtain carbon fabric precursors the optimum ratios of components are chosen from the data on the formation of nonwoven fabrics and the thermal analysis of various blend formulations. It is shown that the content of flax fibers in the system should be at least 50%. Viscose fibers play the role of a reinforcing material and so far cannot be fully excluded from the system. With an increase in the content of flax cellulose the value of carbon yield grows. The mechanical properties of the carbon felt are provided by the physical network of friction and dispersion contacts between individual fibers. Upon heat treatment of the composite nonwoven material, the morphological features of precursor fibers remain unchanged. The interplanar distances of carbon layers in the carbon material are calculated using X-ray diffraction analysis and transmission electron microscopy. The fraction of carbon upon heat treatment to 1700°С is at least 90%, and after graphitization to 2400°С the purity of the product is above 99%. The maximum values of carbon yield at this temperature may be as high as 25‒27%. The coefficients of thermal conductivity of the carbon felt are measured, and the values obtained are 30% lower than the corresponding parameters of carbon fabrics.

References

Fitzer E., Edie D.D., Johnson D.J. // Carbon Fibers Filaments and Composites. 1st ed. / Ed. by J.L. Figueiredo, C.A. Bernardo, R.T.K. Baker, K.J. Huttinger. New York: Springer, 1989. P. 582.
Torokhov V.G., Chukov D.I., Tcherdyntsev V.V., Sherif G., Zadorozhnyy M.Y., Stepashkin A.A., Larin I.I., Medvedeva E.V. // Polymers. 2022. V. 14. P. 2956.
Kulichikhin V.G., Skvortsov I.Yu., Mironova M.I., Ozerin A.N., Kurkin T.S., Berkovich A.K., Frenkin E.I., Malkin A.Ya. // Adv. Polym. Technol. 2018. V. 37. № 4. P. 1099.
Grishin D.F., Grishin I.D. // Fibre Chem. 2019. V. 50. P. 514.
Пат. 2045472 Россия 1995.
Пат. 2256013 Россия. 2005.
Daulbayev Ch., Kaidar B., Sultanov F., Bakbolat B. Smagulova G., Mansurov Z. // South African J. Chem. Eng. 2021. V. 38. P. 9.
Naslain R. // Advanced Inorganic Fibers / Ed. by F.T. Wallenberger, R. Naslain, J.B. Macchesney, H.D. Ackler. Boston: Springer, 2000. P. 346.
Ahn H., Yeo S.Y., Lee B.S. // Polymers. 2021. V. 13. P. 2863.
Maksimov N.M., Toms R.V., Balashov M.S., Gerval’d A.Yu., Prokopov N.I., Plutalova A.V., Kuzin M.S., Skvor-tsov I.Yu., Kulichikhin V.G., Chernikova E.V. // Polymer Science. B. 2022. V. 64. № 5. P. 670.
Makarov I.S., Golova L.K., Mironova M.V., Vinogradov M.I., Kulichikhin V.G. // IOP Conf. Ser. Mater. Sci. Eng. 2018. V. 347. P. 012032.
Zaitsev A., Moisan S., Poncin-Epaillard F. // Cellulose. 2021. V. 28. P. 1973.
Lysenko V.A., Kriskovets M.V. // Fibre Chem. 2018. V. 50. P. 280.
Perepelkin K.E. // Fibre Chem. 2008. V. 40. № 1. P. 10.
Golova L.K., Makarov I.S., Matukhina E.V., Kuptsov S.A., Shambilova G.K., Kulichikhin V.G. // Polymer Science. A. 2008. V. 50. № 6. P. 665.
Nag S., Mitra J., Karmakar P.G. // Int. J. Agriculture, Environment and Biotechnol. 2015. V. 8. № 4. P. 805.
Kukin G.N., Soloviev L.N., Koblyakov L.I. Textile materials science (fibers and threads): Textbook for universities. 2nd ed. Moscow: Legprombytizdat, 1989. P. 352.
Golova L.K. // Ross. Khim. Zh. 2002. V. 46. № 1. P. 49.
Strunk P., Lindgren A., Eliasson B., Agnemo R. // Cellulose Chem. Technol. 2012. V. 46. № 9–10. P. 559.
Hernberg S., Tolonen M., Nurminen M. // Scandinavian J. Work, Environment & Health. 1976. V. 2. № 1. P. 27.
Gomez-Campos A., Vialle C., Rouilly A., Sablayrolles C., Hamelin L. // J. Clean. Prod. 2021. V. 281. P. 125177.
Пат. 2793403 Россия. 2023.
Wizon I., Robertson J.A. // J. Polym. Sci., Polym. Symp. 1967. V. 19. P. 267.
Golova L.K., Makarov I.S., Bondarenko G.N., Mironova M.V., Berkovich A.K., Shandryuk G.A., Vinogradov M.I., Bermeshev M.V., Kulichikhin V.G. // Polymer Science B. 2020. V. 62. № 2. P. 152.
Пат. 2258773 Россия. 2004.
Bai B.C., Im J.S., Lee Y.S. // Carbon lett. 2017. V. 23. P. 69.
Черненко Д.Н. Дис. … канд. техн. наук. М.: НИИграфит, 2015.
Пат. 2429316 Россия. 2010.
Пат. 2671709 Россия. 2017.
Пат. 2045472 Россия. 1995.
Пат. 2748551 Россия. 2021.
Fronczak M., Kowalik M., Bystrzejewski M. // Chemistry Select. 2018. V. 3. № 28. P. 8259.
Li H., Feng Y., Tang L., Yang F. // BioResources. 2021. V. 16. № 1. P. 1296.
Vukcevic M., Kalijadis A., Radisic M., Pejic B., Kostic M., Lausevic Z., Lausevic M. // Chem. Eng. J. 2012. V. 211–212. P. 224.
Li Ch., Sun M., Ji X., Han S., Wang X., Tian Y., Feng J. // J. Separ. Sci. 2019. V. 42. № 12. P. 2155.
Пат. 2779000 Россия. 2022.
ГОСТ 6840-78. “Метод определения содержания альфа-целлюлозы”.
ГОСТ 6841-77. “Целлюлоза. Метод определения смол и жиров”.
ГОСТ 25438-82. “Методы определения характеристической вязкости”.
ГОСТ 16932-93. “Целлюлоза. Определение содержания сухого вещества”.
Gindl W., Keckes J. // Polymer. 2005. V. 46. № 23. P. 10221.
Capart R., Khezami L., Burnhamb A.K. // Thermochim. Acta. 2004. V. 417. № 1. P. 79.
Mironova M., Makarov I., Golova L., Vinogradov M., Shandryuk G., Levin I. // Fibers. 2019. V. 7. P. 84.
Wu Ch., Wang Z., Huang J., Williams P.T. // Fuel. 2013. V. 106. P. 697.
Zimniewska M., Zbrowski A., Konczewicz W., Majcher A., Przybylski J., Matecki K., Wisniewski M., Kicinska-Jakubowska A., Mankowski J. // Fibres & Textiles in Eastern Europe. 2017. V. 25. № 3 (123). P. 26.
Пат. 2502836 Россия. 2013.
Cho S.Y., Yun Y.S., Jin H.J. // Macromol. Res. 2014. V. 22. № 7. P. 753.
Ergun S. // Carbon. 1968. V. 6. № 2. P. 141.
Franklin R.E. // Acta Crystallogr. 1951. V. 4. P. 253.
Seehra M.S., Pavlovic A.S. // Carbon. 1993. V. 31. № 4. P. 557.
Kwiecinska B., Suarez-Ruiz I., Paluszkiewicz C., Rodrigues S. // Int. J. Coal Geol. 2010. V. 84. № 3–4. P. 206.
Kwiecinska B. // Prace Mineralogiczne. 1980. V. 67. P. 1.
ГОСТ 29104.1. “Ткани технические. Методы определения линейных размеров, линейной и поверхностной плотностей”.
ГОСТ 17818.4-90. “Графит. Метод определения зольности”.
ГОСТ Р ИСО 10119. “Волокно углеродное. Методы определения плотности”.
