Molybdenum Texture Effect on High Temperature Oxidation Resistance of Cr/Mo-Coated Zr–1Nb Alloy

A. V. Abdulmenova; Абдульменова А. В.; M. S. Syrtanov; Сыртанов М. С.; E. B. Kashkarov; Кашкаров Е. Б.; D. V. Sidelev; Сиделев Д. В.

doi:10.31857/S102809602306002X

Molybdenum Texture Effect on High Temperature Oxidation Resistance of Cr/Mo-Coated Zr–1Nb Alloy

Авторлар: Abdulmenova A.V.¹, Syrtanov M.S.¹, Kashkarov E.B.¹, Sidelev D.V.¹
Мекемелер:
1. National Research Tomsk Polytechnic University
Шығарылым: № 6 (2023)
Беттер: 39-44
Бөлім: Articles
URL: https://journals.rcsi.science/1028-0960/article/view/137766
DOI: https://doi.org/10.31857/S102809602306002X
EDN: https://elibrary.ru/DHMMDZ
ID: 137766

Дәйексөз келтіру

Толық мәтін

Ашық рұқсат
Рұқсат жабық

Рұқсат берілді
Рұқсат жабық

Тек жазылушылар үшін

Аннотация
Авторлар туралы
Әдебиет тізімі
Қосымша файлдар
Статистика

Аннотация

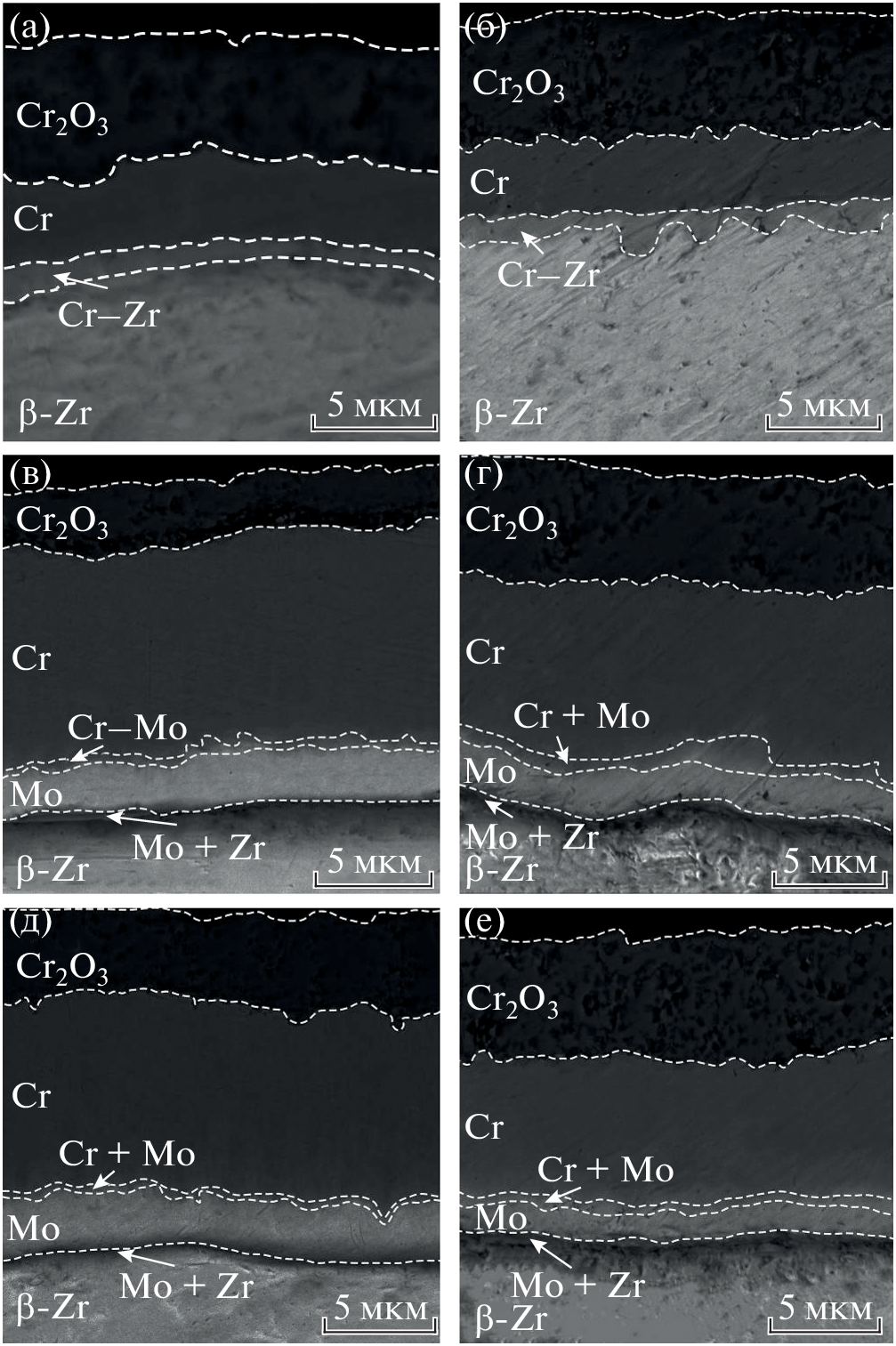

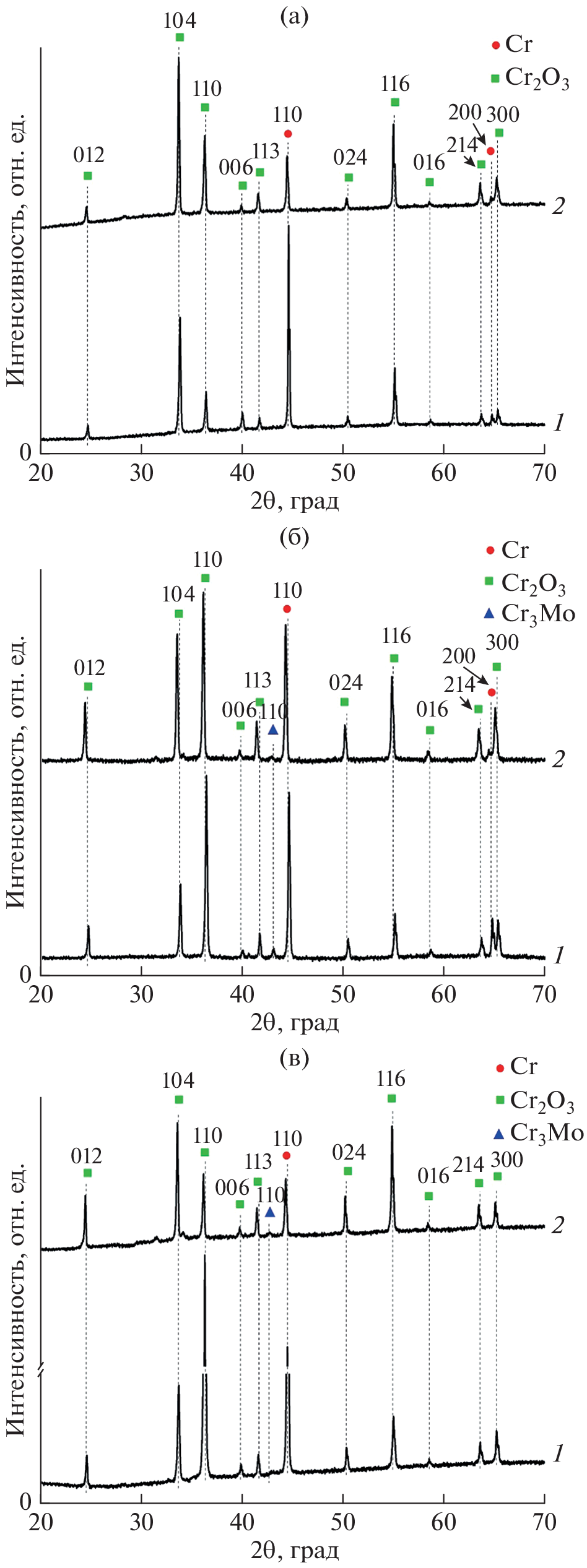

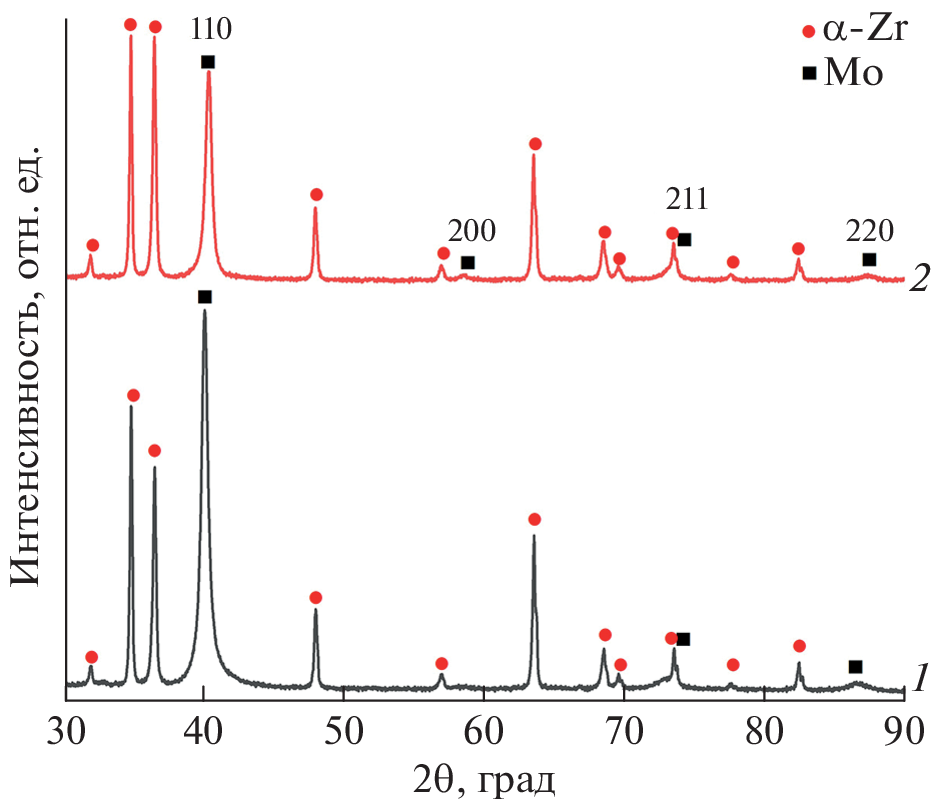

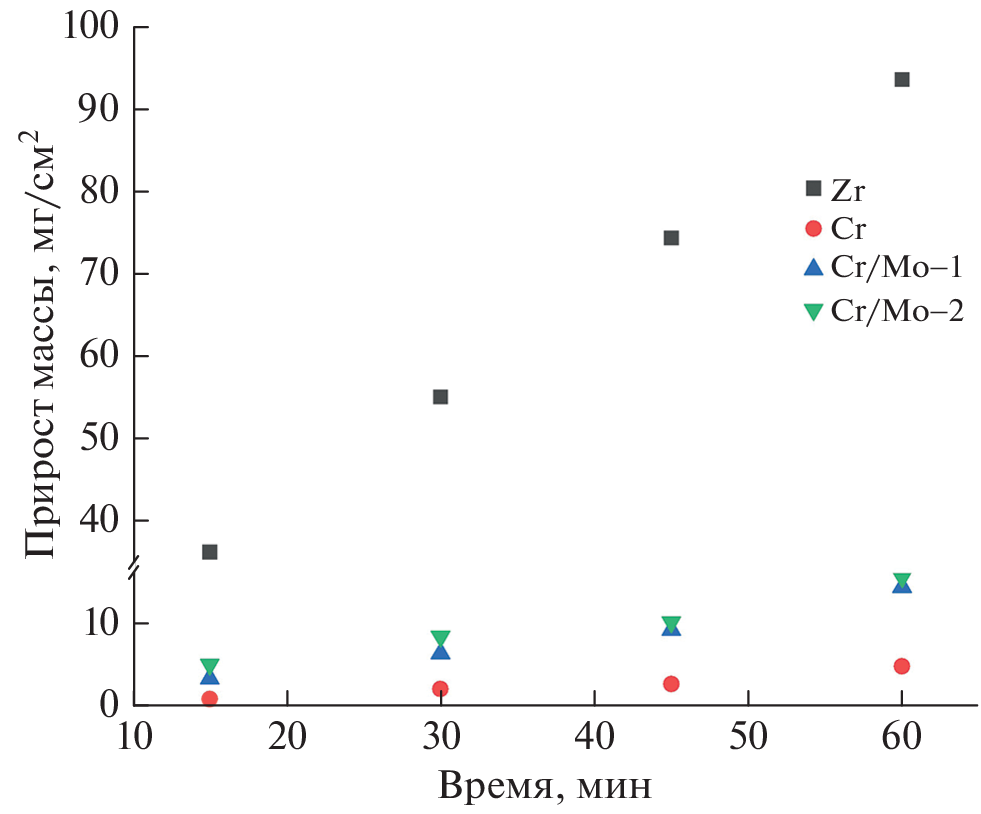

The effect of the crystal structure of the Mo sublayer on the resistance of the Zr–1Nb zirconium alloy with a Cr/Mo coating to high-temperature oxidation in air were studied. Three types of coating were deposited by magnetron sputtering: a single-layer Cr coating with a thickness of 8 μm, bilayer coatings with a Mo sublayer (3 μm) of various textures and an outer protective Cr layer (8 μm). Different textures of molybdenum layers were formed by changing the configuration of the magnetron sputtering system. Coated samples were oxidized in an atmospheric furnace at 1100°C for 15, 30, 45 and 60 min. The results of X-ray diffraction and scanning electron microscopy showed that applying Mo sublayer limited the Cr–Zr interdiffusion. Diffusion of Mo leads to the formation of interdiffusion layers Cr–Mo and Mo–Zr. Faster diffusion is observed at the Cr–Mo interface. The thickness of the residual Cr layer in bilayer coatings is greater than in a single-layer one under similar oxidation conditions.

Негізгі сөздер

zirconium alloy, magnetron sputtering, protective coating, barrier sublayer, high-temperature oxidation, chromium, molybdenum, X-ray diffraction.

Әдебиет тізімі

Terrani K.A. // J. Nucl. Mater. 2018. V. 501. P. 13. https://doi.org/10.1016/j.jnucmat.2017.12.043
Bragg-Sitton S. // Nucl. News. 2014. V. 57. № 3. P. 83.
Bischoff J., Delafoy C., Vauglin C., Barberis P., Roubeyrie C., Perche D., Duthoo D., Schuster F., Brachet J.C., Schweitzer E.W., Nimishakavi K. // Nucl. Engin. Technol. 2018. V. 50. P. 223. https://doi.org/10.1016/j.net.2017.12.004
Khatkhatay F., Jiao L., Jian J., Zhang W., Jiao Z., Gan J., Zhang H., Zhang X., Wang H. // J. Nucl. Mater. 2014. V. 451. Iss. 1–3. P. 346. https://doi.org/10.1016/j.jnucmat.2014.04.010
Li W., Wang Z., Shuai J., Xu B., Wang A., Ke P. // Ceram. Intern. 2019. V. 45. Iss. 11. P. 13912. https://doi.org/10.1016/j.ceramint.2019.04.089
Tang C., Stueber M., Seifert H.J., Steinbrueck M. // Corrosion Rev. 2017. V. 35. Iss. 3. P. 141. https://doi.org/10.1515/corrrev-2017-0010
Tallman D., Anasori B., Barsoum M.A. // Mater. Res. Lett. 2013. V. 1. Iss. 3. P. 115. https://doi.org/10.1080/21663831.2013.806364
Park D.J., Kim H.G., Jung Y., Park J.H., Yang J.H., Koo Y.H. // J. Nucl. Mater. 2016. V. 482. P. 75. https://doi.org/10.1016/j.jnucmat.2016.10.021
Brachet J.C., Le Saux M., Le Flem M., Urvoy S., Rouesne E., Guilbert T., Cobac C., Lahogue F., Rousselot J., Tupin M., Billaud P., Hossepied C., Schuster F., Lomello F., Billard A., Velisa G., Monsifrot E., Bischoff J., Ambard A. // Proc. TopFuel. 2015. P. 1.
Yang J., Steinbrück M., Tang C., Große M., Liu J., Zhang J., Yun D., Wang S. // J. Alloys Compd. 2022. V. 895. P. 162450. https://doi.org/10.1016/j.jallcom.2021.162450
Chen H., Wang X., Zhang R. // Coatings. 2020. V. 10 P. 808. https://doi.org/10.3390/coatings10090808
Jiang J., Du M., Pan Z., Yuan M., Ma X., Wang B. // Mater. Design. 2021. V. 212. № 110168. P. 1. https://doi.org/10.1016/j.matdes.2021.110168
Wang X., Liao Y., Xu C., Guan H., Zhu M., Gao C., Jin X., Pang P., Du J., Liao B., Xue W. // J. Alloys Compd. 2021. V. 883. № 160798. P. 1. https://doi.org/10.1016/j.jallcom.2021.160798
Krejčí J., Ševeček M., Kabátová J., Manoch F., Kočí J., Cvrček L., Málek J., Krum S., Šutta P., Bublíková P., Halodová P., Namburi H.K. // Proc. TopFuel. 2018. P. 1.
Kashkarov E., Afornu B., Sidelev D., Krinitcyn M., Gouws V., Lider A. // Coatings. 2021. V. 11. № 5. P. 1. https://doi.org/10.3390/coatings11050557
Wei T., Zhang R., Yang H., Liu H., Qiu S., Wang Y., Du P., He K., Hu X., Dong C. // Corros. Sci. 2019. V. 158. № 108077. P. 1. https://doi.org/10.1016/j.corsci.2019.06.029
Syrtanov M.S., Kashkarov E.B., Abdulmenova A.V., Sidelev D.V. // Surf. Coat. Technol. 2022. V. 439. № 128459. P. 1. https://doi.org/10.1016/j.surfcoat.2022.128459
Yeom H., Maier B., Johnson G., Dabney T., Walters J., Sridharan K. // J. Nucl. Mater. 2018. V. 507. P. 306. https://doi.org/10.1016/j.jnucmat.2018.05.014
Sidelev D.V., Kashkarov E.B., Syrtanov M.S., Krivo- bokov V.P. // Surf. Coat. Technol. 2019. V. 369. P. 69. https://doi.org/10.1016/j.surfcoat.2019.04.057
Stylianou R., Stylianoua R., Tkadletza M., Schalka N., Penoyb M., Czettlc C., Mitterera C. // Surf. Coat. Technol. 2019. V. 359. P. 314. http://doi.org/10.1016/j.surfcoat.2018.12.095
