Modeling of the Influence of Temperature on the Emission Properties of a Cathode with a Thin Insulating Film in a Glow Gas Discharge and the Discharge Voltage–Current Characteristic
- Autores: Bondarenko G.1, Kristya V.2, Fisher M.2
-
Afiliações:
- National Research University Higher School of Economics
- Bauman Moscow State Technical University, Kaluga Branch
- Edição: Nº 1 (2023)
- Páginas: 92-98
- Seção: Articles
- URL: https://journals.rcsi.science/1028-0960/article/view/137665
- DOI: https://doi.org/10.31857/S1028096023010065
- EDN: https://elibrary.ru/BKPCCE
- ID: 137665
Citar
Resumo

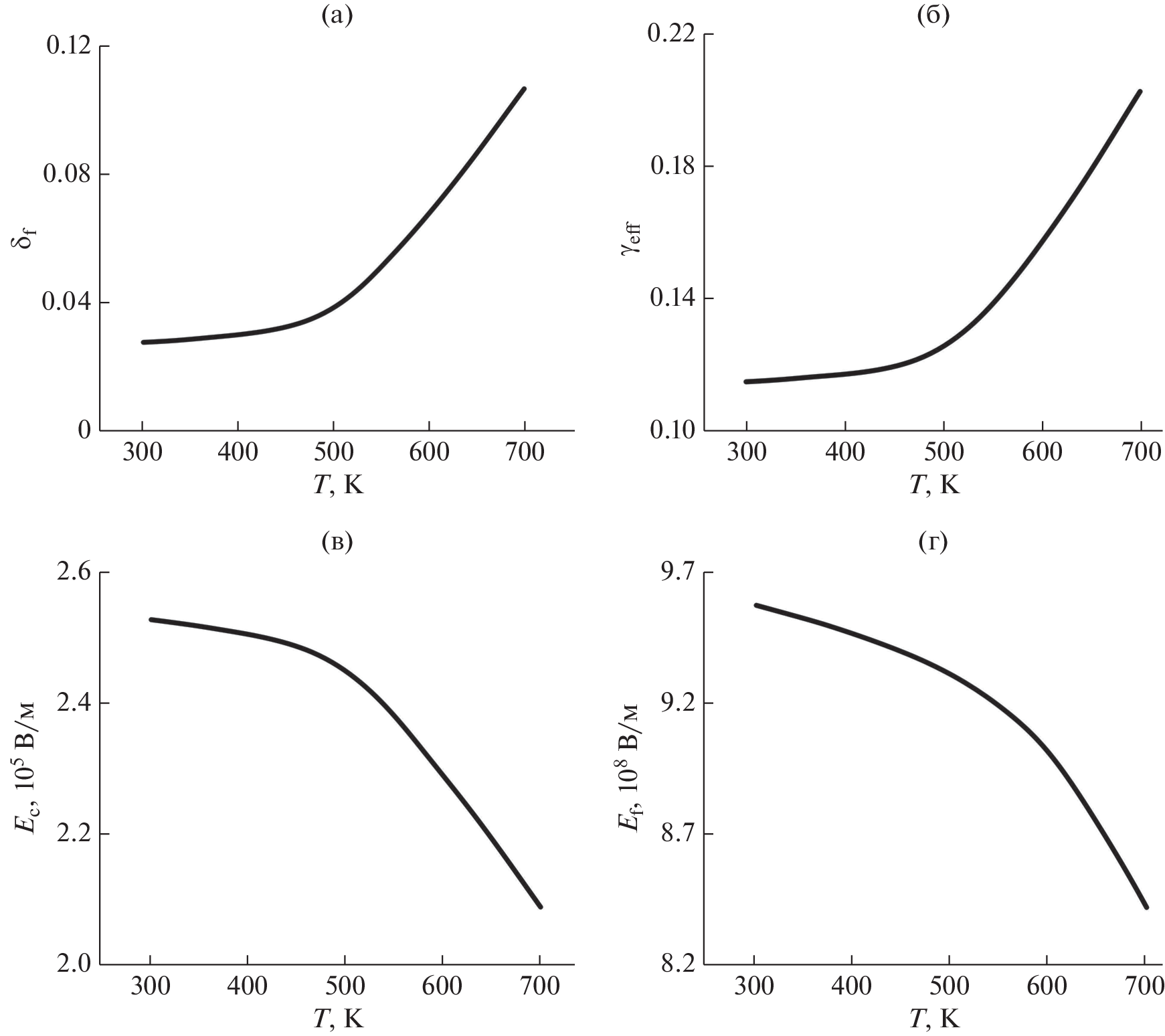

A model of glow gas discharge in the presence of a thin insulating film on the cathode is formulated. It takes into account that under discharge current flow, due to the bombardment of the cathode by ions, positive charges accumulate on the film and generate strong electric field in it. As a result, field emission of electrons from the cathode metal substrate into the film starts, which, with an increase in its temperature, transforms into thermal-field emission. Electrons move in the film, being accelerated by the electric field and decelerated in collisions with phonons, and some of them leave the film into the discharge, increasing the effective ion-electron emission yield of the cathode. The electric field strength in the film is determined from the condition that the density of the discharge current and the density of the emission current from the cathode metal substrate into the film are equal. The dependences of the film emission efficiency, the effective ion-electron emission yield of the cathode, and the discharge characteristics on the cathode temperature are calculated. It is shown that already at a temperature exceeding room temperature by several hundred degrees, the temperature enhancement of field electron emission from the metal substrate into the film can noticeably influence the cathode emission properties and the discharge voltage-current characteristic.
Sobre autores
G. Bondarenko
National Research University Higher School of Economics
Autor responsável pela correspondência
Email: gbondarenko@hse.ru
Russia, 101000, Moscow
V. Kristya
Bauman Moscow State Technical University, Kaluga Branch
Autor responsável pela correspondência
Email: kristya@bmstu.ru
Russia, 248000, Kaluga
M. Fisher
Bauman Moscow State Technical University, Kaluga Branch
Autor responsável pela correspondência
Email: fishermr@bmstu.ru
Russia, 248000, Kaluga
Bibliografia
- Райзер Ю.П. Физика газового разряда. Долгопрудный: ИД “Интеллект”, 2009. 736 с.
- Кудрявцев А.А., Смирнов А.С., Цендин Л.Д. Физика тлеющего разряда. С.-Пб.: Лань, 2010. 512 с.
- Byszewski W.W., Li Y.M., Budinger A.B., Gregor P.D. // Plasma Sources Sci. Technol. 1996. V. 5. № 4. P. 720. https://www.doi.org./10.1088/0963-0252/5/4/014
- Hadrath S., Beck M., Garner R.C., Lieder G., Ehlbeck J. // J. Phys. D. 2007. V. 40. № 1. P. 163. https://www.doi.org./10.1088/0022-3727/40/1/009
- Murphy E.L., Good R.H. // Phys. Rev. 1956. V. 102. № 6. P. 1464. https://doi.org./10.1103/PhysRev.102.1464
- Modinos A. Field, Thermionic, and Secondary Electron Emission Spectroscopy. N.Y.: Springer Science, 1984. 376 p.
- Ptitsin V.E. // J. Phys.: Conf. Ser. 2011. V. 291. P. 012019. https://www.doi.org./10.1088/1742-6596/291/1/012019
- Radmilović-Radjenović M., Radjenović B. // Plasma Sources Sci. Technol. 2008. V. 17. № 2. P. 024005. https://www.doi.org./10.1088/0963-0252/17/2/024005
- Venkattraman A. // Appl. Phys. Lett. 2014. V. 104. № 19. P. 194101. https://www.doi.org./10.1063/1.4876606
- Haase J.R., Go D.B. // // J. Phys. D. 2016. V. 49. № 5. P. 055206. https://www.doi.org./10.1088/0022-3727/49/5/055206
- Benilov M.S., Benilova L.G. // J. Appl. Phys. 2013. V. 114. № 6. 063307. https://www.doi.org./10.1063/1.4818325
- Riedel M., Düsterhöft H., Nagel F. // Vacuum. 2001. V. 61. № 2–4. P. 169. https://www.doi.org./10.1016/S0042-207X(01)00112-9
- Bondarenko G.G., Fisher M.R., Kristya V.I., Prassitski V.V. // Vacuum. 2004. V. 73. P. 155. https://www.doi.org./10.1016/j.vacuum.2003.12.004
- Hadrath S., Ehlbeck J., Lieder G., Sigeneger F. // J. Phys. D. 2005. V. 38. № 17. P. 3285. https://www.doi.org./10.1088/0022-3727/38/17/S33
- Suzuki M., Sagawa M., Kusunoki T., Nishimura E., Ikeda M., Tsuji K. // IEEE Trans. Electron Devices. 2012. V. 59. № 8. P. 2256. https://www.doi.org./10.1109/TED.2012.2197625
- Bondarenko G.G., Fisher M.R., Kristya V.I. // Vacuum. 2016. V. 129. P. 188. https://www.doi.org./10.1016/j.vacuum.2016.01.008
- Doughty D.K., Den Hartog E.A., Lawler J.E. // Appl. Phys. Lett. 1985. V. 46. № 4. P. 352. https://www.doi.org./10.1063/1.95628
- Jensen K.L. // J. Appl. Phys. 2007. V. 102. № 2. P. 024911. https://www.doi.org./10.1063/1.2752122
- Dionne M., Coulombe S., Meunier J.-L. // J. Phys. D. 2008. V. 41. № 24. P. 245304. https://www.doi.org./10.1088/0022-3727/41/24/245304
- Егоров Н.В., Шешин Е.П. // Поверхность. Рентген., синхротр. и нейтрон. исслед. 2017. № 3. С. 5. https://www.doi.org./10.7868/S0207352817030088
- Holgate J.T., Coppins M. // Phys. Rev. Appl. 2017. V. 7. № 4. P. 044019. https://www.doi.org./10.1103/PhysRevApplied.7.044019
- Jensen K.L. // J. Appl. Phys. 2019. V. 126. № 6. P. 065302. https://doi.org/10.1063/1.5109676
- Bondarenko G.G., Kristya V.I., Savichkin D.O. // Vacuum. 2018. V. 149. P. 114. https://www.doi.org./10.1016/j.vacuum.2017.12.028
- Кристя В.И., Мьо Ти Ха, Фишер М.Р. // Изв. РАН. Сер. физ. 2020. Т. 84. №. 6. С. 846. https://www.doi.org./10.31857/S0367676520060149
- Phelps A.V., Petrović Z.Lj. // Plasma Sources Sci. Technol. 1999. V. 8. № 3. P. R21. https://www.doi.org./10.1088/0963-0252/8/3/201
- Forbes R.G. // Solid-State Electronics. 2001. V. 45. № 6. P. 779. https://www.doi.org./10.1016/S0038-1101(00)00208-2
- Rumbach P., Go D.B. // J. Appl. Phys. 2012. V. 112. № 10. P. 103302. https://www.doi.org./10.1063/1.4764344
- Бондаренко Г.Г., Фишер М.Р., Мьо Ти Ха, Кристя В.И. // Изв. вузов. Физика. 2019. Т. 62. № 1. С. 72.
- Kusunoki T., Sagawa M., Suzuki M., Ishizaka A., Tsuji K. // IEEE Trans. Electron Devices. 2002. V. 49. № 6. P. 1059. https://www.doi.org./10.1109/TED.2002.1003743
- Bondarenko G.G., Fisher M.R., Kristya V.I., Bondariev V. // High Temp. Material Proc. 2022. V. 26. № 1. P. 17. https://www.doi.org./10.1615/HighTempMatProc. 2021041820
- Кристя В.И., Мьо Ти Ха // Поверхность. Рентген., синхротр. и нейтрон. исслед. 2020. № 5. С. 63. https://www.doi.org./10.31857/S1028096020030103
- Arkhipenko V.I., Kirillov A.A., Safronau Y.A., Simonchik L.V., Zgirouski S.M. // Plasma Sources Sci. Technol. 2009. V. 18. № 4. P. 045013. https://www.doi.org./10.1088/0963-0252/18/4/045013
- Кристя В.И., Фишер М.Р. // Изв. РАН. Сер. физ. 2012. Т. 76. № 5. С. 673.
- Кристя В.И., Йе Наинг Тун // Изв. РАН. Сер. физ. 2014. Т. 78. № 6. С. 752. https://www.doi.org./10.7868/S0367676514060179
- Крютченко О.Н., Маннанов А.Ф., Носов А.А., Степанов В.А., Чиркин М.В. // Поверхность. Физика, химия, механика. 1994. № 6. С. 93.
- Forbes R.G. // Appl. Phys. Lett. 2006. V. 89. № 11. P. 113122. https://www.doi.org./10.1063/1.2354582
- Зыкова Е.В., Кучеренко Е.Т., Айвазов В.Я. // Радиотехника и электроника. 1979. Т. 24. № 7. С. 1464.
- Rózsa K., Gallagher A., Donkó Z. // Phys. Rev. E. 1995. V. 52. № 1. P. 913. https://www.doi.org./10.1103/PhysRevE.52.913
