Email this article Laminar Swirling Wall Jets
- Authors: Gaifullin A.M.1, Shcheglov A.S.1
-
Affiliations:
- Central Aerohydrodynamic Institute (TsAGI)
- Issue: No 6 (2023)
- Pages: 67-74
- Section: Articles
- URL: https://journals.rcsi.science/1024-7084/article/view/231736
- DOI: https://doi.org/10.31857/S1024708423600343
- EDN: https://elibrary.ru/TWTIDE
- ID: 231736
Cite item
Open Access
Access granted
Subscription Access
Abstract

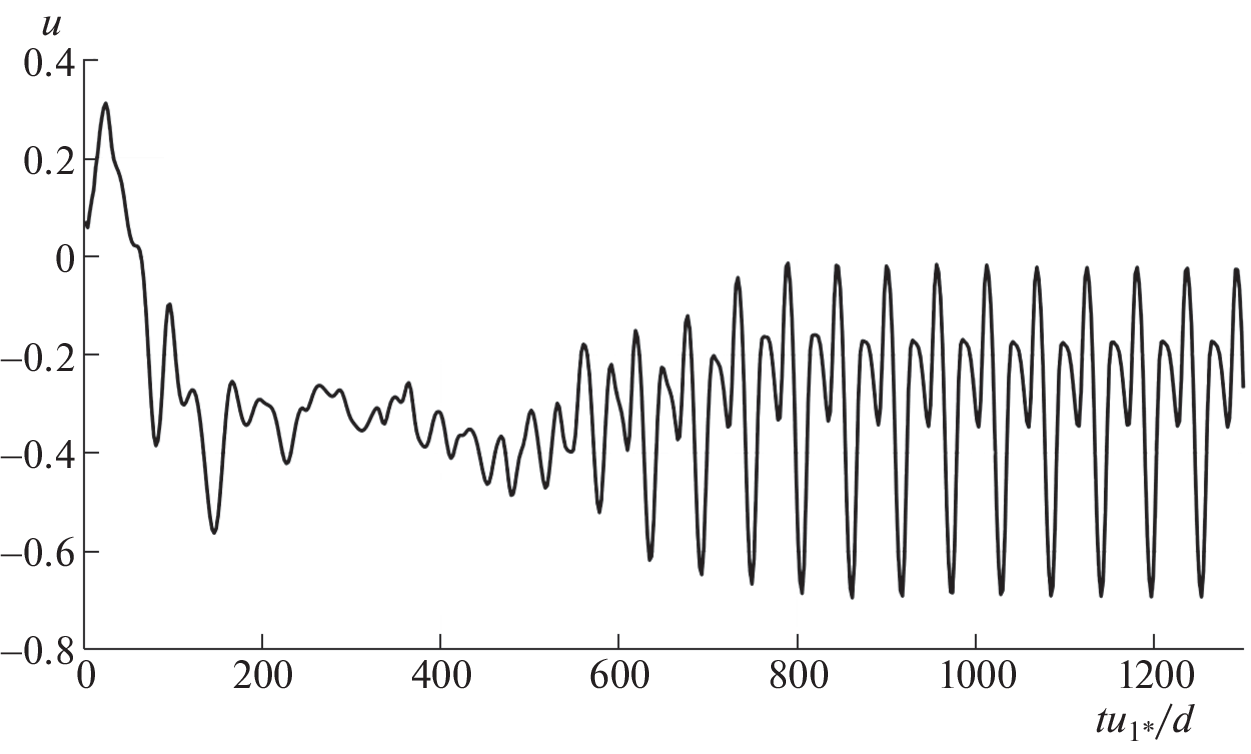

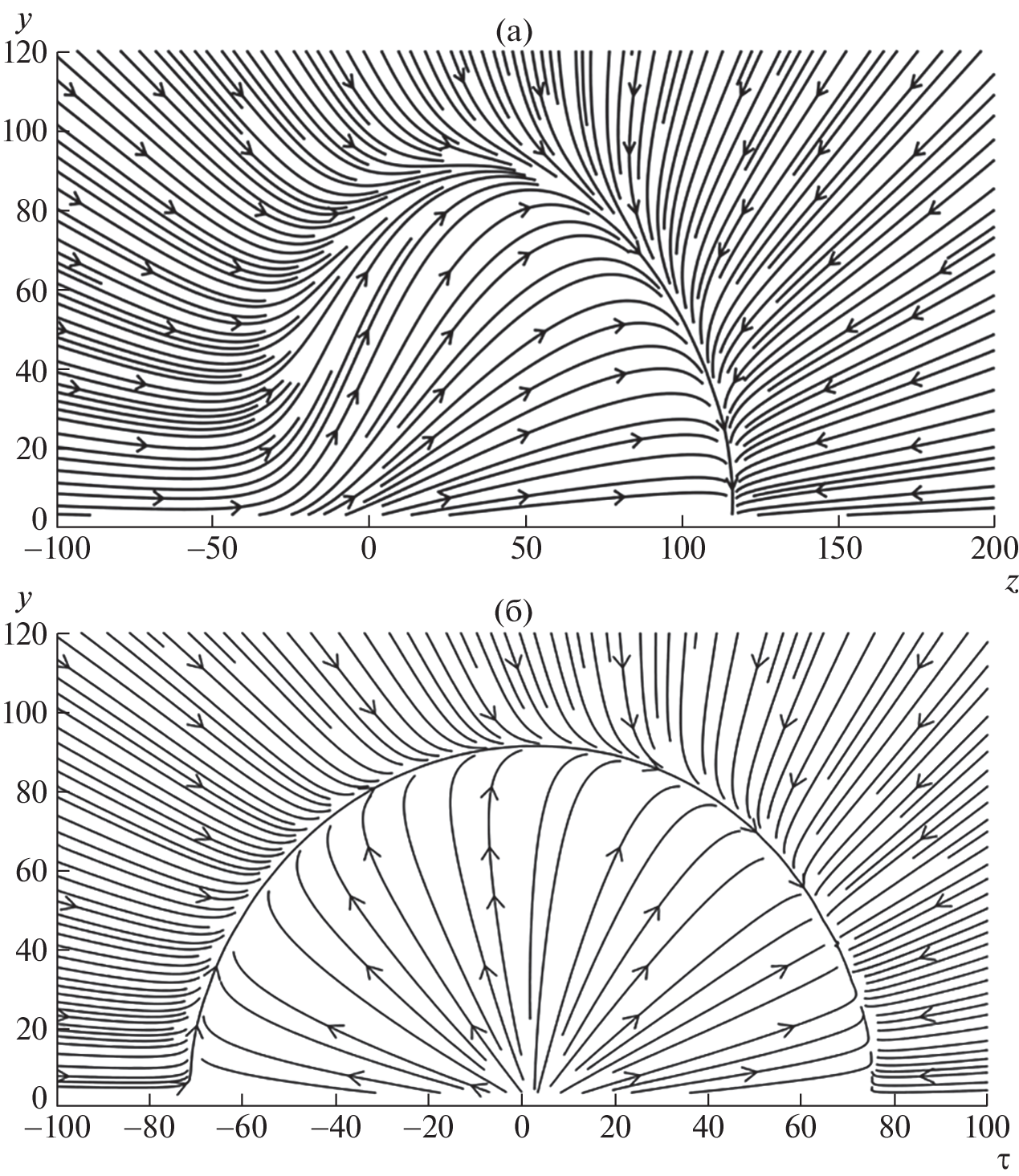

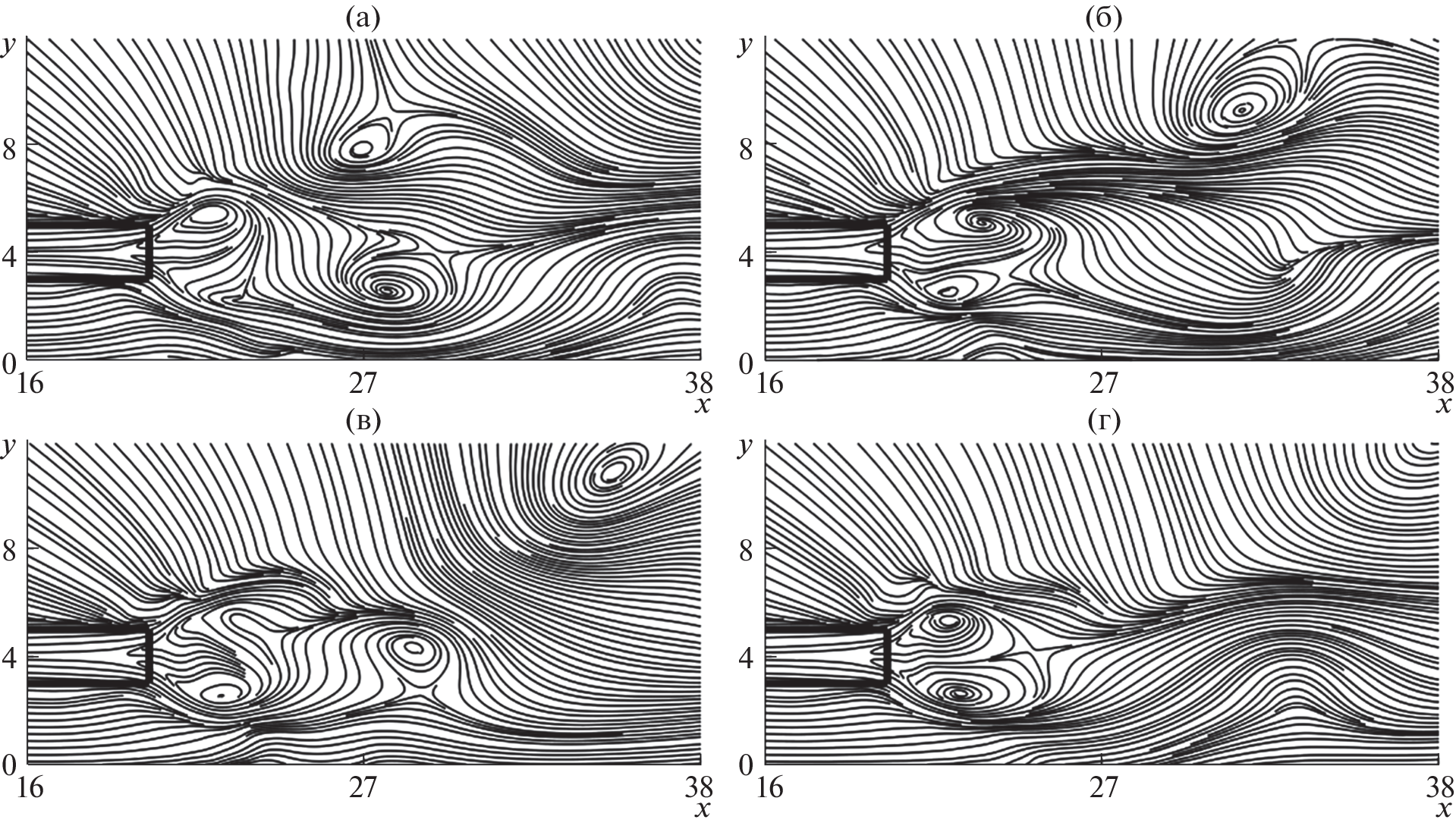

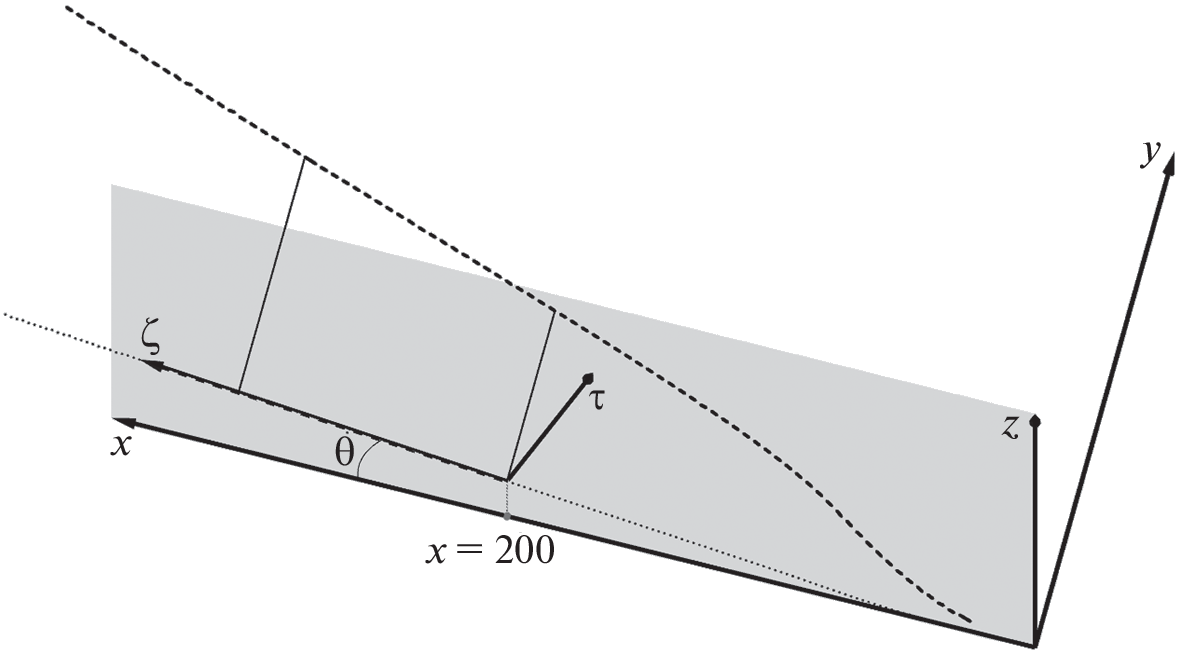

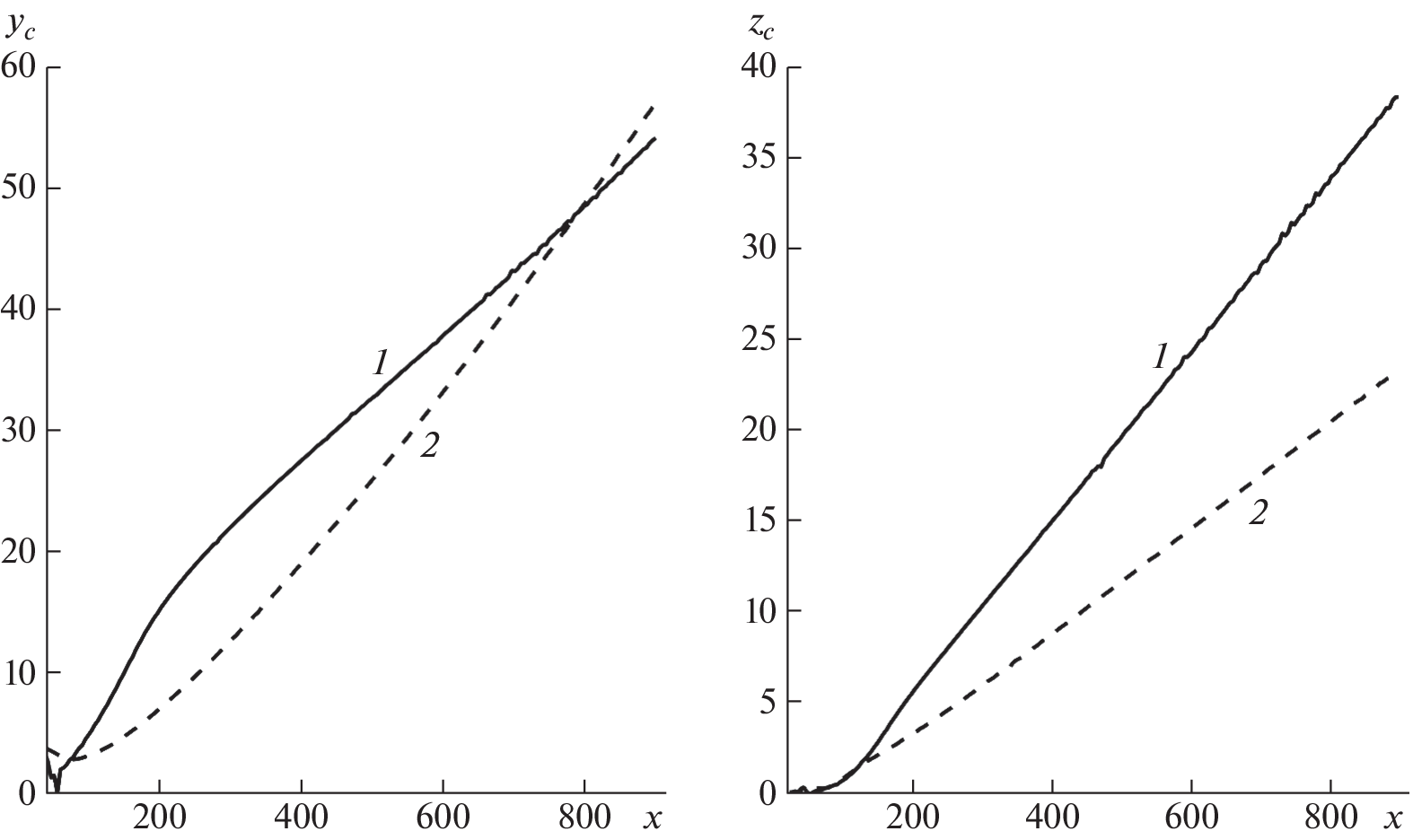

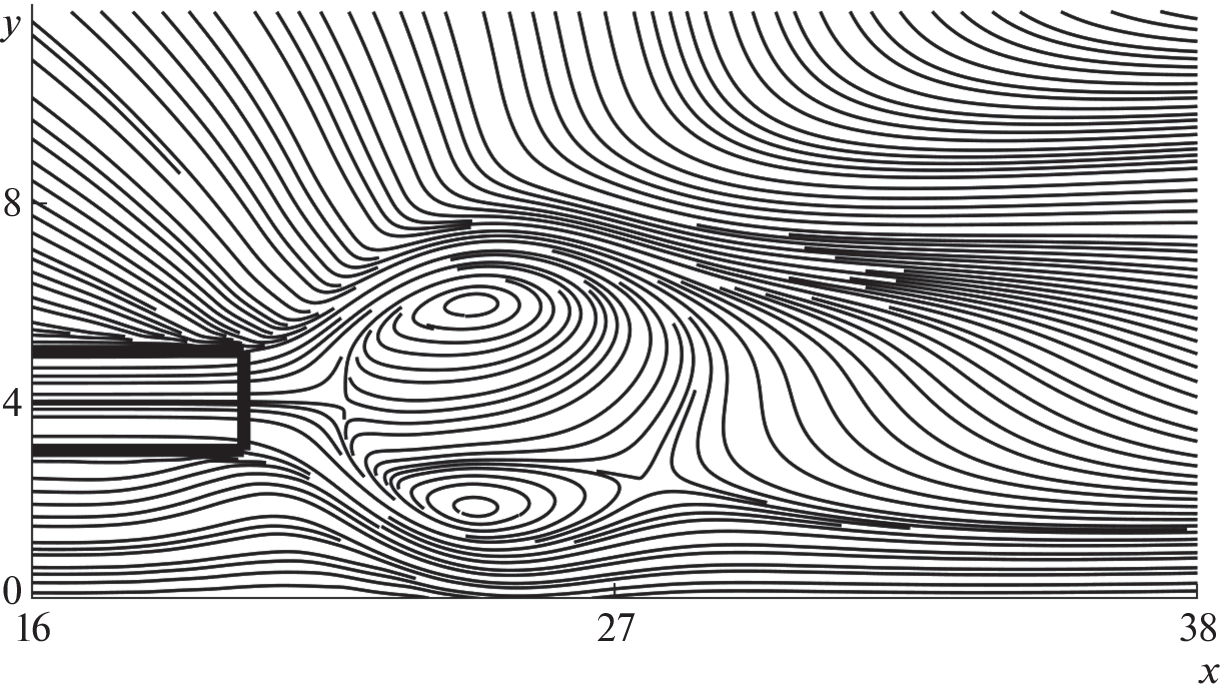

The problem of determining the characteristics of a laminar swirling wall jet of an incompressible fluid is considered. Numerical solutions of the Navier–Stokes equations are obtained in the stationary and non-statitonary formulations. It is shown that the jet characteristics obey a self-similar law at large distances from the jet source, as in the case of a three-dimensional laminar non-swirling jet, but in our case the jet propagates at a certain angle to the initial direction of jet blowing. With a large swirling of flow in the jet, regions of recirculation flow appear and the jet flow becomes unsteady.
About the authors
A. M. Gaifullin
Central Aerohydrodynamic Institute (TsAGI)
Email: gaifullin@tsagi.ru
Zhukovskii, Moscow oblast, Russia
A. S. Shcheglov
Central Aerohydrodynamic Institute (TsAGI)
Author for correspondence.
Email: shcheglov@phystech.edu
Zhukovskii, Moscow oblast, Russia
References
- Wygnanski I., Katz Y., Horev E. On the applicability of various scaling laws to the turbulent wall jet // J. Fluid Mech. 1992.
- Schneider M.E., Goldstein R.J. Laser Doppler measurement of turbulence parameters in a two-dimensional plane wall jet // Phys. Fluids. 1994. V. 6. P. 3116–3129.
- Eriksson J., Karlsson R., Persson J. An experimental study of a two-dimensional plane turbulent wall jet // Exp. Fluids. 1998.
- Eriksson J. Experimental studies of the plane turbulent wall jet: PhD thesis / Eriksson J. – Stockholm, Sweden: Royal Institute of Technology. Department of Mechanics. 2003.
- Sun H., Ewing D. Effect of initial and boundary conditions on development of three-dimensional wall jets // 40th AIAA ASME. 2002. P. 733.
- Agelin-Chaab M., Tachie M.F. Characteristics of turbulent three-dimensional wall jets // ASME. J. Fluids Eng. 2011. V. 133. № 2.
- Namgyal L., Hall J. Reynolds stress distribution and turbulence generated secondary flow in the turbulent three-dimensional wall jet // J. Fluid Mech. 2016. V. 800. P. 613–644.
- Inoue Y., Yano H., Yamashita S. Experimental study on a three-dimensional wall jet // JFST. 2007. V. 2. № 3. P. 655–664.
- Hall J.W., Ewing D. Three-dimensional turbulent wall jets issuing from moderate-aspect-ratio rectangular channels // AIAA J. 2007. V. 45. P. 1177–1186.
- Newman B., Patel R., Savage S., Tjio H. three-dimensional wall jet originating from a circular orifice // AEQ. 1972. V. 23. № 3. P. 188–200.
- Matsuda H., Iida S., Hayakawa M. Coherent structures in a three-dimensional wall jet // ASME. J. Fluids Eng. 1990. V. 112. № 4. P. 462–467.
- Padmanabham G., Lakshmana Gowda B.H. Mean and turbulence characteristics of a class of three-dimensional wall jets–Part 1: Mean flow characteristics // ASME. J. Fluids Eng. 1991. V. 113. № 4. P. 620–628.
- Pani B.S., Rajaratnam N. Swirling Circular Turbulent Wall Jets // JHR. 1976. V. 14. № 2. P. 145–154.
- Dejoan A., Leschziner M. Large eddy simulation of a plane turbulent wall jet // Phys. Fluids. 2005. V. 17.
- Naqavi I.Z., Tyacke J.C., Tucker P.G. Direct numerical simulation of a wall jet: flow physics // J. Fluid Mech. 2018. V. 852. P. 507–542.
- Гайфуллин А.М., Щеглов А.С. Структура течения в трехмерной пристенной турбулентной струе. // ПММ.2023. №2. С. 226–239.
- Craft T., Launder B. On the spreading mechanism of the three-dimensional turbulent wall jet. // J. Fluid Mech. 2001. V. 435. P. 305–326.
- Kakka P., Anupindi K. Flow and thermal characteristics of three-dimensional turbulent wall jet // Phys. Fluids. 2021. V. 33. № 2.
- Khosronejad A., Rennie C.D. Three-dimensional numerical modeling of unconfined and confined wall-jet flow with two different turbulence models // Can. J. Civ. Eng. 2010. V. 37. № 4. P. 576–587.
- Акатнов Н.И. Распространение плоской ламинарной струи вязкой жидкости вдоль твердой стенки // Труды ЛПИ. 1953. № 5. С. 24–31.
- Glauert M.B. The wall jet // J. Fluid Mech. 1956. V. 1. P. 625–643.
- Krechetnikov R., Lipatov I. Hidden invariances in problems of two-dimensional and three-dimensional wall jets for Newtonian and non-Newtonian fluids // SIAP. 2002. V. 62. № 6. P. 1837–1855.
- Бут И.И., Гайфуллин А.М., Жвик В.В. Дальнее поле трехмерной пристенной ламинарной струи // Изв. РАН. МЖГ. 2021. № 6. С. 51–61.
- Баренблатт Г.И. Автомодельные явления – анализ размерностей и скейлинг. – Долгопрудный: Интеллект, 2009.
- Гайфуллин А.М., Жвик В.В. Взаимодействие двух противоположно закрученных затопленных струй. // Изв. РАН МЖГ. № 3. 2019. С. 48–57.
- Жвик В.В. Инварианты и асимптотики осесимметричных закрученных затопленных струй // ПМТФ. 2020. Т. 61. № 2. С. 92–108.
