Distinctive Features of Plume Formation on Collision of Two Laminar Gas Jets

V. V. Kozlov; Козлов В. В.; Yu. A. Litvinenko; Литвиненко Ю. А.; M. M. Katasonov; Катасонов М. М.; D. V. Sarychev; Сарычев Д. В.; A. G. Shmakov; Шмаков А. Г.

doi:10.31857/S1024708422601007

Distinctive Features of Plume Formation on Collision of Two Laminar Gas Jets

Authors: Kozlov V.V.¹, Litvinenko Y.A.¹, Katasonov M.M.¹, Sarychev D.V.¹, Shmakov A.G.¹
Affiliations:
1. Khristianovich Institute of Theoretical and Applied Mechanics of the Siberian Branch of Russian Academy of Sciences
Issue: No 4 (2023)
Pages: 131-136
Section: Articles
URL: https://journals.rcsi.science/1024-7084/article/view/135109
DOI: https://doi.org/10.31857/S1024708422601007
EDN: https://elibrary.ru/WKERLL
ID: 135109

Cite item

Full Text

Open Access
Restricted Access

Access granted
Restricted Access

Subscription Access

Abstract
About the authors
References
Supplementary files
Statistics

Abstract

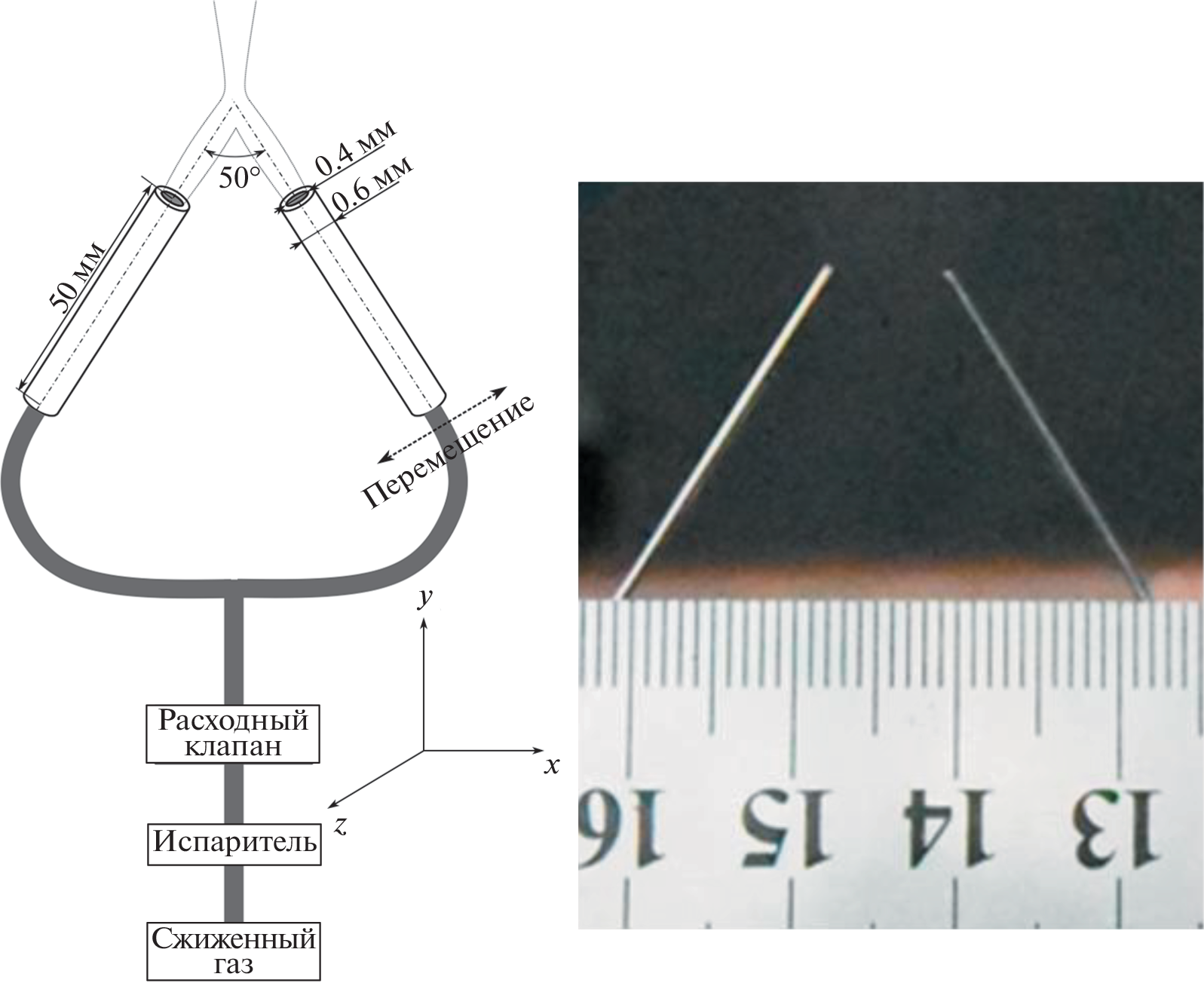

The results of an investigation of the interaction between two colliding axisymmetric laminar microjets of propane-butane mixture with and without diffusion combustion are presented. The gas mixture components flow out through round tubes at the same velocities. In the course of the experiments the lateral position of the tubes with respect to each other was varied with conservation of the angle between them. The distinctive features of the resulting jet formation are established as functions of the transverse position of the tubes. If the tubes lie in the same plane, then the resulting jet is formed in the plane orthogonal to them. This process can be observable in the case of the interaction between the jets both with and without flame. With increase in the jet outflow velocity a region of local discontinuity of the flame front is found to exist.

Keywords

collision of gas microjets, plume deformation, diffusion plume, laminar jets

References

Грек Г.Р., Козлов В.В., Литвиненко Ю.А. Устойчивость дозвуковых струйных течений и горение: Учеб. пособ. 2-е изд., перераб. и доп. // Новосиб. гос. ун-т. Новосибирск, 2013. 240 с.
Кулумбаев Э.Б., Никуличева Т.Б. Взаимодействие плазменных струй в двухструйной электрической дуге // Теплофизика высоких температур. 2012. Т. 50. № 4. С. 483–490.
Laurendeau E., Jordan P., Bonnet J.P., Delville J., Parnaudeau P., and Lamballais E. Subsonic jet noise reduction by fluidic control: The interaction region and the global effect // Phys. Fluids. 2008. V. 20. P. 101519.
Жилкин Б.П., Зайков Н.С., Кисельников А.Ю., Худяков П.Ю. Особенности изменения термической структуры газовых импактных струй // Изв. РАН. МЖГ. 2013. № 2. С. 104–111.
Navish Wadhwa and Sunghwan Jung Non-coalescence of jets // Phys. Fluids. 2011. V. 23. P. 091105.
