Experimental Study of Energy Separation in Compressible Air Cross Flow Over a Pair of Side-by-Side Circular Cylinders

Yu. A. Vinogradov; Виноградов Ю. А.; A. G. Zditovets; Здитовец А. Г.; N. A. Kiselev; Киселёв Н. А.; S. S. Popovich; Попович С. С.

doi:10.31857/S0568528122600904

Experimental Study of Energy Separation in Compressible Air Cross Flow Over a Pair of Side-by-Side Circular Cylinders

Authors: Vinogradov Y.A.¹, Zditovets A.G.¹, Kiselev N.A.¹, Popovich S.S.¹
Affiliations:
1. Moscow State University, Institute of Mechanics
Issue: No 2 (2023)
Pages: 102-112
Section: Articles
URL: https://journals.rcsi.science/1024-7084/article/view/135079
DOI: https://doi.org/10.31857/S0568528122600904
EDN: https://elibrary.ru/NTSOFA
ID: 135079

Cite item

Full Text

Open Access
Restricted Access

Access granted
Restricted Access

Subscription Access

Abstract
About the authors
References
Supplementary files
Statistics

Abstract

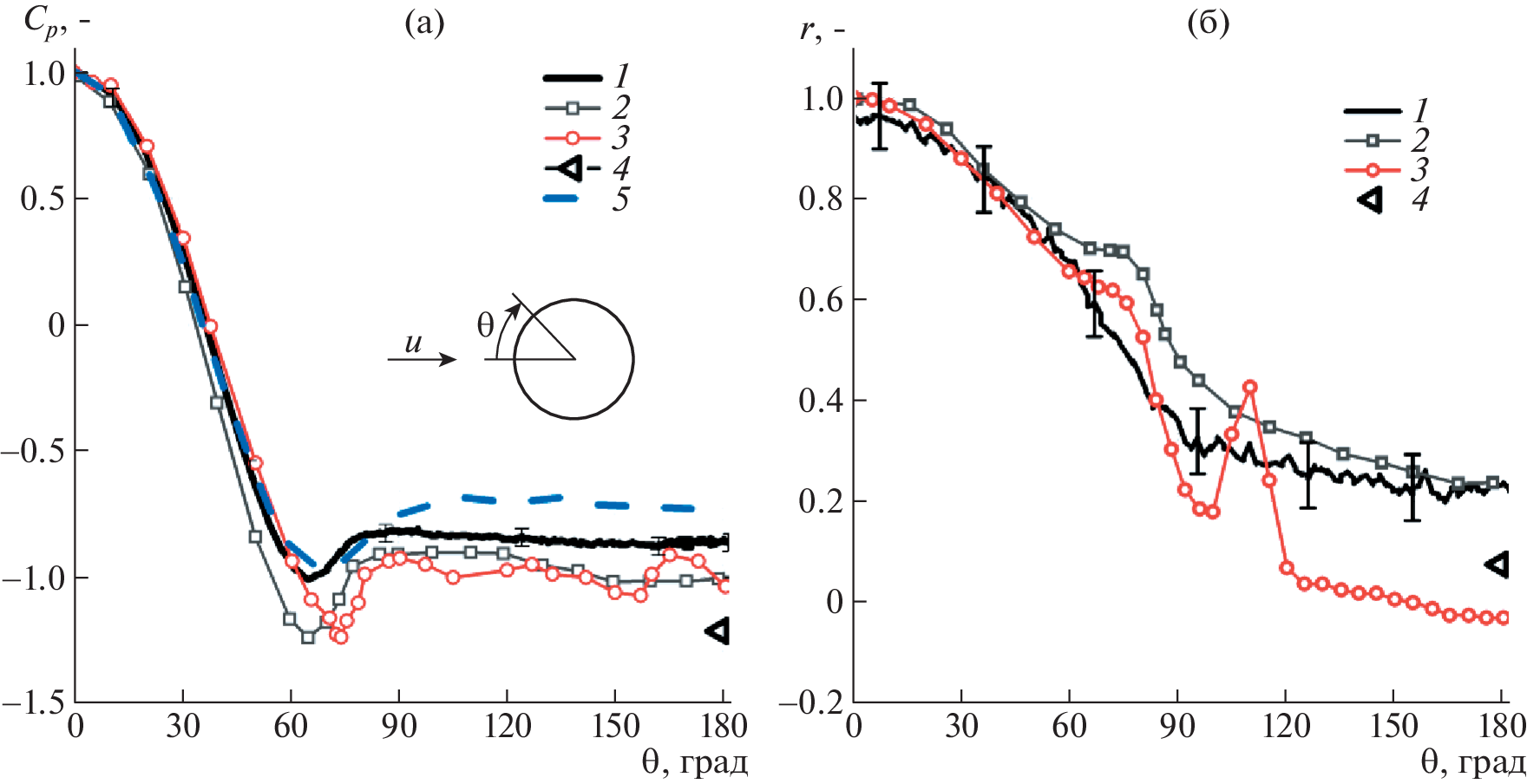

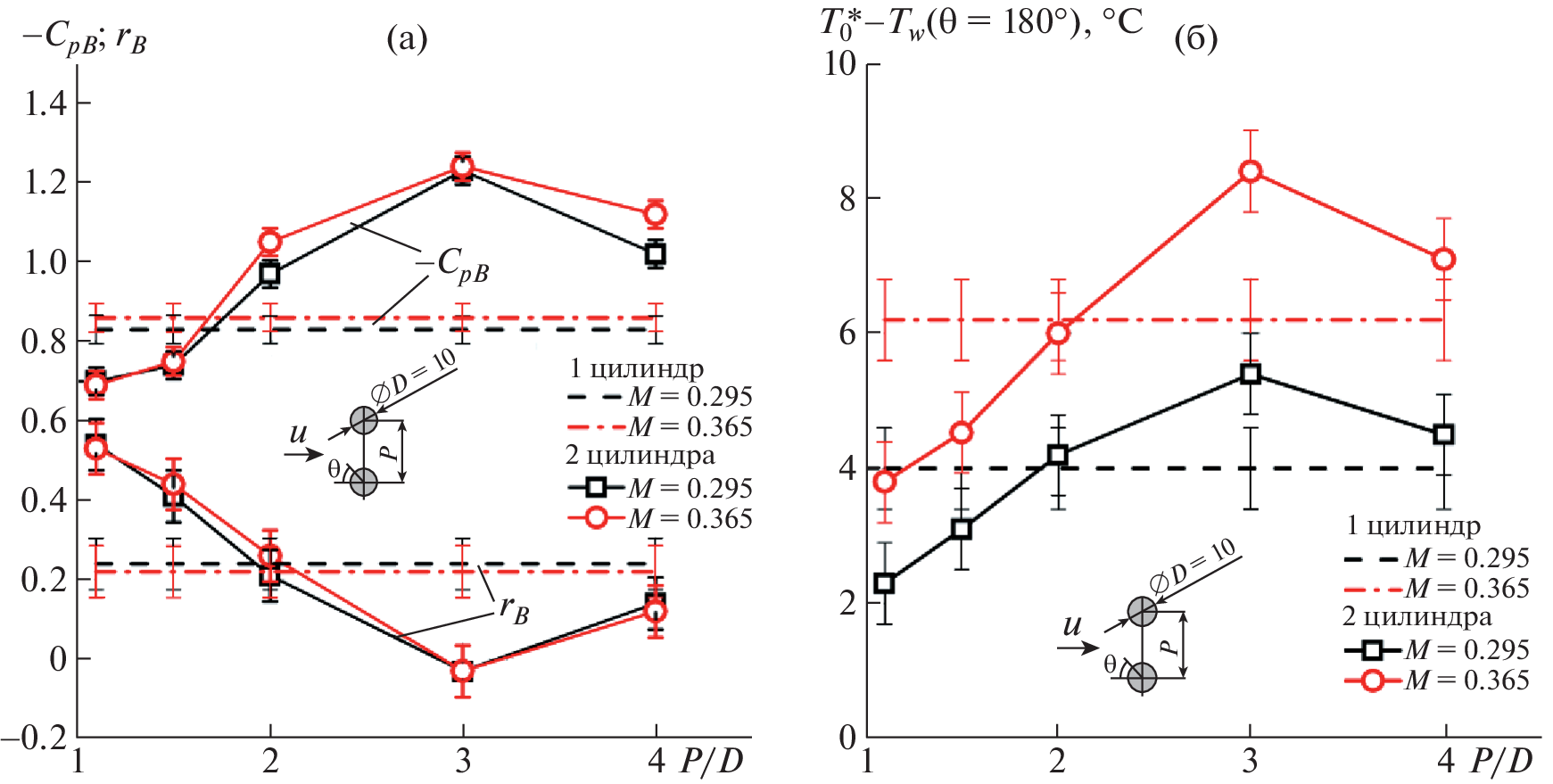

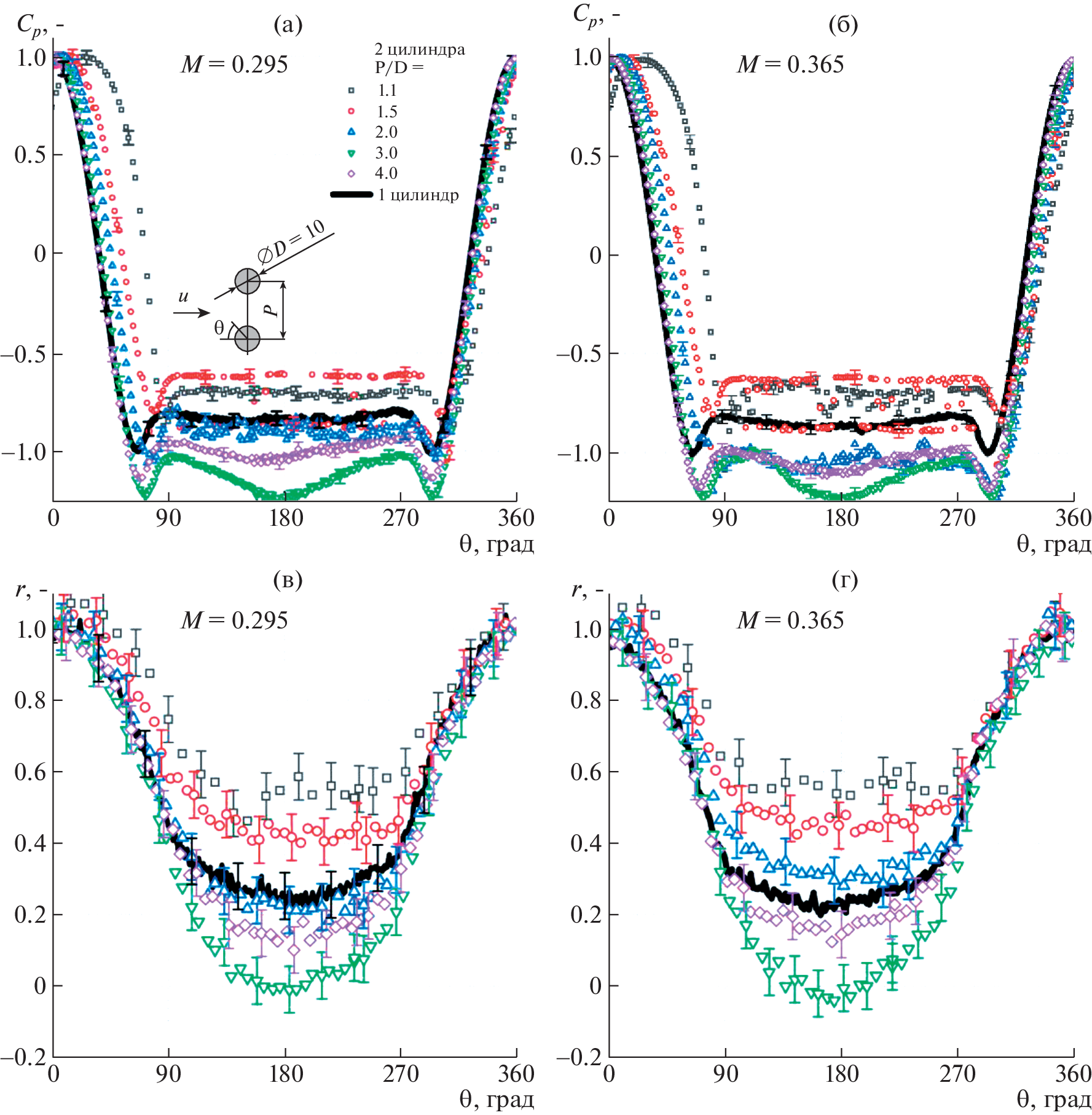

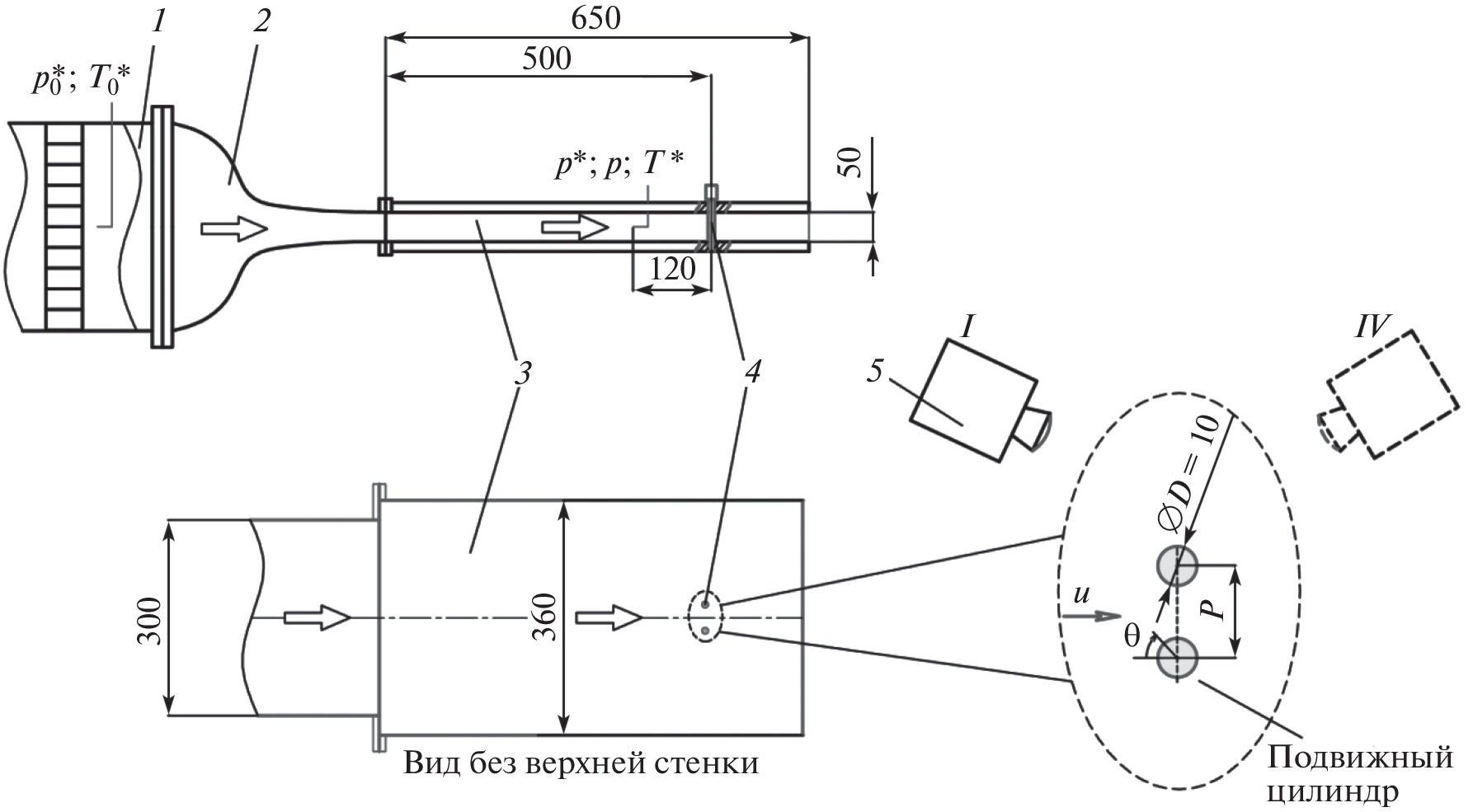

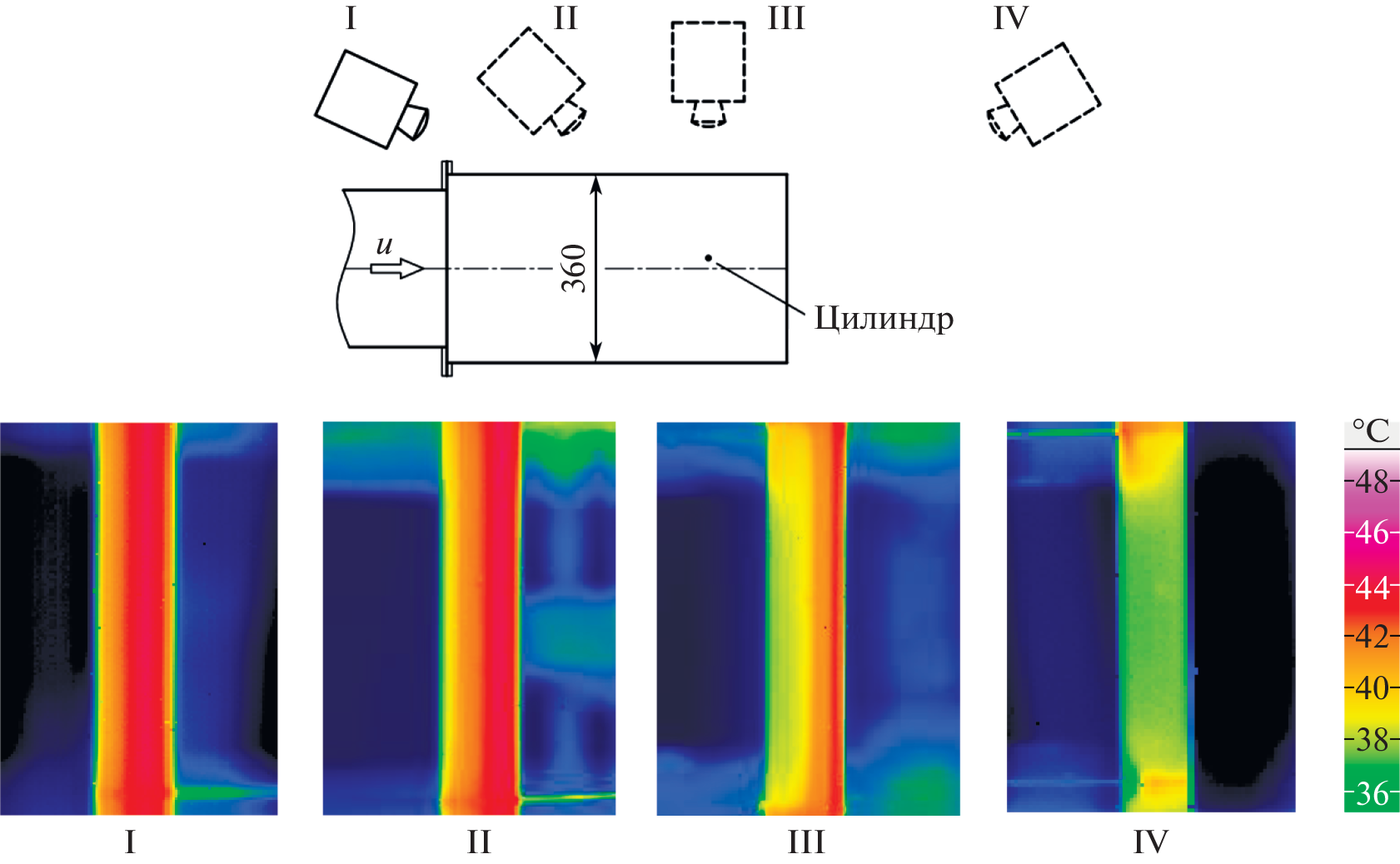

The influence of the distance between two circular side-by-side cylinders in a cross flow on the surface distribution of temperature and static pressure is experimentally studied. The studies were carried out at free-stream Mach numbers M equal to 0.295 and 0.365 and Reynolds numbers ReD equal to 6.4 × 104 and 7.9 × 104, respectively. The surface distributions of the pressure coefficient and the temperature recovery factor for one of the cylinders are obtained. It is shown that, depending on the distance between the cylinders, the pressure coefficient and temperature recovery factor can be both higher and lower than the values obtained in the flow over a single cylinder with the same free-stream parameters.

Keywords

energy separation, cross flow, circular cylinder, pressure coefficient, temperature recovery factor

References

Eckert E.R.G. Energy separation in fluid streams // Int. Commun. Heat Mass Transf. 1986. V. 13. № 2. P. 127–143. https://doi.org/10.1016/0735-1933(86)90053-9
Eiamsa-ard S., Promvonge P. Review of Ranque–Hilsch effects in vortex tubes // Renew. Sust. Energ. Rev. 2008. V. 2. № 7. P. 1822–1842. https://doi.org/10.1016/j.rser.2007.03.006
Raman G., Srinivasan K. The powered resonance tube: From Hartmann’s discovery to current active flow control applications // Prog. Aerosp. Scie. 2009. V. 45. № 4–5. P. 97–123. https://doi.org/10.1016/j.paerosci.2009.05.001
Леонтьев А.И. Температурная стратификация сверхзвукового газового потока // ДАН. 1997. Т. 354. № 4. С. 475–477.
Golubkina I.V., Osiptsov A.N., Compressible gas-droplet flow and heat transfer behind a condensation shock in an expanding channel // Int. J. Therm. Sci. 2022. V. 179. P. 107576. https://doi.org/10.1016/j.ijthermalsci.2022.107576
Leontiev A.I., Zditovets A.G., Vinogradov Y.A., Strongin M.M., Kiselev N.A. Experimental investigation of the machine-free method of temperature separation of air flows based on the energy separation effect in a compressible boundary layer // Exp. Therm. Fluid Sci. 2017. V. 88. P. 202–219. https://doi.org/10.1016/j.expthermflusci.2017.05.021
Вигдорович И.И., Леонтьев А.И. Энергоразделение газов с малыми и большими числами Прандтля // Изв. РАН. МЖГ. 2013. № 6. С. 117–134.
Vinogradov Y.A., Zditovets A.G., Leontiev A.I., Popovich S.S., Strongin M.M. Experimental research of shock wave processes influence on machineless gas flow energy separation effect // J. Phys. Conf. Ser. 2017. V. 891. № 1. P. 012080. https://doi.org/10.1088/1742-6596/891/1/012080
Макаров М.С., Макарова С.Н. Эффективность энергоразделения при течении сжимаемого газа в плоском канале // Теплофизика и аэромеханика. 2013. Т. 20. № 6. С. 777–787.
Leontiev A.I., Zditovets A.G., Kiselev N.A., Vinogradov Y.A., Strongin M.M. Experimental investigation of energy (temperature) separation of a high-velocity air flow in a cylindrical channel with a permeable wall // Exp. Therm. Fluid Sci. 2019. V. 105. P. 206–215. https://doi.org/10.1016/j.expthermflusci.2019.04.002
Khazov D.E., Leontiev A.I., Zditovets A.G., Kiselev N.A., Vinogradov Y.A. Energy separation in a channel with permeable wall // Energy. 2022. V. 239. P. 122427. https://doi.org/10.1016/j.energy.2021.122427
Бирюк В.В., Веретенников С.В., Гурьянов А.И., Пиралишвили Ш.А. Вихревой эффект. Технические приложения. М: ООО “Научтехлитиздат”, 2014. 216 c. ISBN:978-5-93728-143-2.
Eckert E., Weise W. Messungen der temperaturverteilung auf der oberflache schnell angestromter unbeheizter korper // Forsch. Geb. Ing. Wesen. 1942. V. 13. № 6. P. 246–254. https://doi.org/10.1007/BF02585343
Ryan L.F. Experiments on Aerodynamic CoolingExperiments on aerodynamic cooling. PhD thesis. Swiss Federal Institute of Technology. Zurich. 1951. https://doi.org/10.3929/ethz-a-000092033
Popovich S.S., Kiselev N.A., Zditovets A.G., Vinogradov Y.A. Experimental study of the adiabatic wall temperature of a cylinder in a supersonic cross flow // J. Phys. Conf. Ser. 2021. V. 2039. № 1. P. 012029. https://doi.org/10.1088/1742-6596/2039/1/012029
Попович С.С., Леонтьев А.И., Лущик В.Г., Макарова М.С. Коэффициент восстановления температуры в сжимаемом турбулентном пограничном слое // Теплофиз. выс. темп. 2022. Т. 60. № 3. С. 455–480. https://doi.org/10.31857/S0040364422030115
Thomann H. Measurements of the recovery temperature in the wake of a cylinder and of a wedge at Mach numbers between 0.5 and 3. Tech. Rep. Report 84, National Aeronautical Research Institute (FFA), Sweden, 1959.
Kurosaka M., Gertz J.B., Graham J.E., Goodman J.R., Sundaram P., Riner W.C., Kuroda H., Hankey W.L. Energy separation in vortex street // J. Fluid Mech. 1987. V. 178. P. 1–29. https://doi.org/10.1017/S0022112087001095
Kulkarni K.S., Goldstein R.J. Energy separation in the wake of a cylinder: Effect of Reynolds number and acoustic resonance // Int. J. Heat Mass Transf. 2009. V. 52. № 17–18. P. 3994–4000. https://doi.org/10.1016/j.ijheatmasstransfer.2009.03.024
Burazer J. Energy separation in transient and steady-state flow across the cylinder // J. Theor. Appl. Mech. 2018. V. 45. № 1. P. 83–94. https://doi.org/10.2298/TAM171130006B
Aleksyuk A.I., Osiptsov A.N. Direct numerical simulation of energy separation effect in the near wake behind a circular cylinder // Int. J. Heat Mass Transf. 2018. V. 119. P. 665–677. https://doi.org/10.1016/j.ijheatmasstransfer.2017.11.133
Aleksyuk A.I. The Eckert–Weise effect and energy separation under the f low interference behind side-by-side cylinders // J. Fluid Mech. 2021. V. 915. P. A95. https://doi.org/10.1017/jfm.2021.128
Алексюк А.И. Области пониженной полной энтальпии в ближнем следе за телом в потоке вязкого газа // Изв. РАН. МЖГ. 2022. № 1. С. 69–80. https://doi.org/10.31857/S0568528122010017
Aleksyuk A.I. Influence of vortex street structure on the efficiency of energy separation // Int. J. Heat Mass Transf. 2019. V. 135. P. 284–293. https://doi.org/10.1016/j.ijheatmasstransfer.2019.01.103
Zdravkovich M.M. The effects of interference between circular cylinders in cross flow // J. Fluids Struct. 1987. V. 1. № 2. P. 239–261. https://doi.org/10.1016/S0889-9746(87)90355-0
Shapiro A.H. The Dynamics and Thermodynamics of Compressible Fluid Flow. New York: The Ronald Press Company. Vol. 1. 1953.
ГОСТ Р 54500.3-2011 / Руководство ИСО/МЭК 98-3:2008 https://docs.cntd.ru/document/1200088855
Williamson C.H.K. Vortex Dynamics in the Cylinder Wake // Annu. Rev. Fluid Mech. 1996. V. 28. № 1. P. 477–539. https://doi.org/10.1146/annurev.fl.28.010196.002401
Szepessy S., Bearman P.W. Aspect ratio and end plate effects on vortex shedding from a circular cylinder // J. Fluid Mech. 1992. V. 234. № 1. P. 191. https://doi.org/10.1017/S0022112092000752
Nagata T., Noguchi A., Kusama K., Nonomura T., Komuro A., Ando A., Asai K. Experimental investigation on compressible flow over a circular cylinder at Reynolds number of between 1000 and 5000 // J. Fluid Mech. 2020. V. 893. P. A13. https://doi.org/10.1017/jfm.2020.221
Mahbub Alam M., Moriya M., Sakamoto H. Aerodynamic characteristics of two side-by-side circular cylinders and application of wavelet analysis on the switching phenomenon // J. Fluids Struct. 2003. V. 18 № 3–4. P. 325–346. https://doi.org/10.1016/j.jfluidstructs.2003.07.005
