Peculiarities of excitation of the Earth–ionosphere waveguide at frequencies above the frequency of the first transverse resonance

A. V. Larchenko; Ларченко А. В.; O. M. Lebed; Лебедь О. М.; S. V. Pilgaev; Пильгаев С. В.; D. I. Sidorenko; Сидоренко Д. И.; Yu. V. Fedorenko; Федоренко Ю. В.

doi:10.31857/S036767652270048X

Peculiarities of excitation of the Earth–ionosphere waveguide at frequencies above the frequency of the first transverse resonance

Autores: Larchenko A.¹, Lebed O.¹, Pilgaev S.¹, Sidorenko D.¹, Fedorenko Y.¹
Afiliações:
1. Polar Geophysical Institute
Edição: Volume 87, Nº 2 (2023)
Páginas: 278-285
Seção: Articles
URL: https://journals.rcsi.science/0367-6765/article/view/135284
DOI: https://doi.org/10.31857/S036767652270048X
EDN: https://elibrary.ru/AIXQDM
ID: 135284

Citar

Texto integral

Acesso aberto
Acesso é fechado

Acesso está concedido
Acesso é fechado

Somente assinantes

Resumo
Sobre autores
Bibliografia
Arquivos suplementares
Estatísticas

Resumo

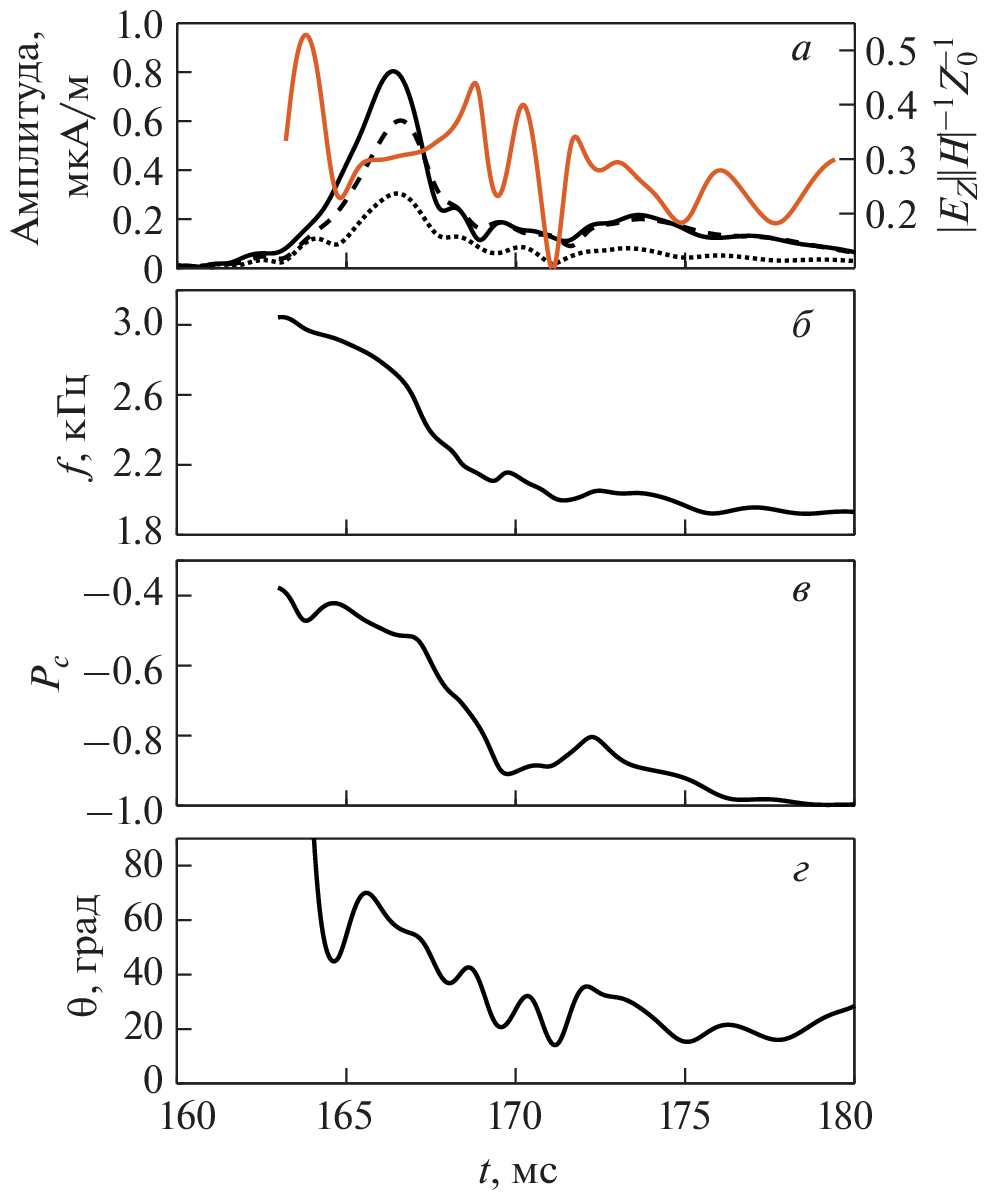

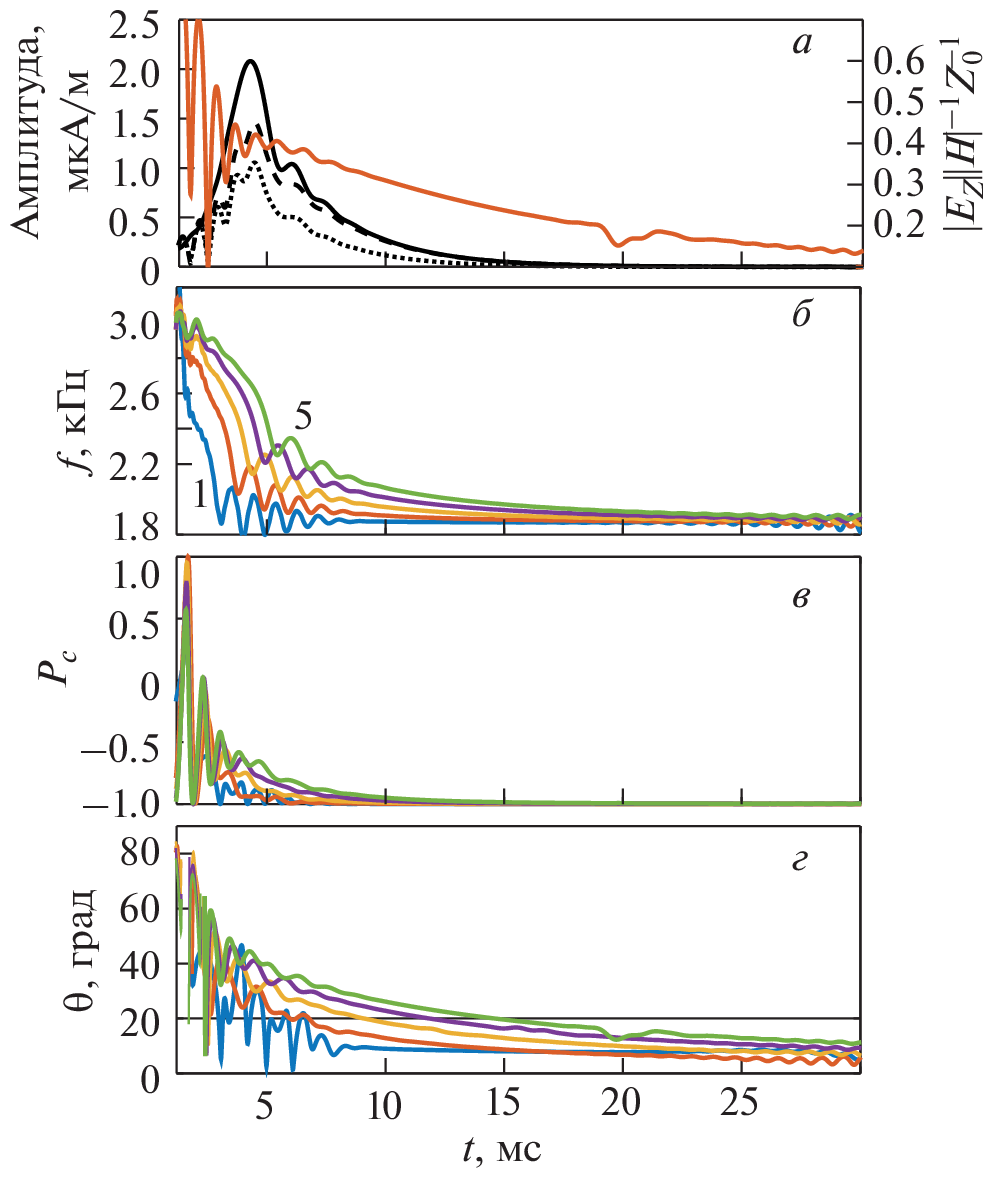

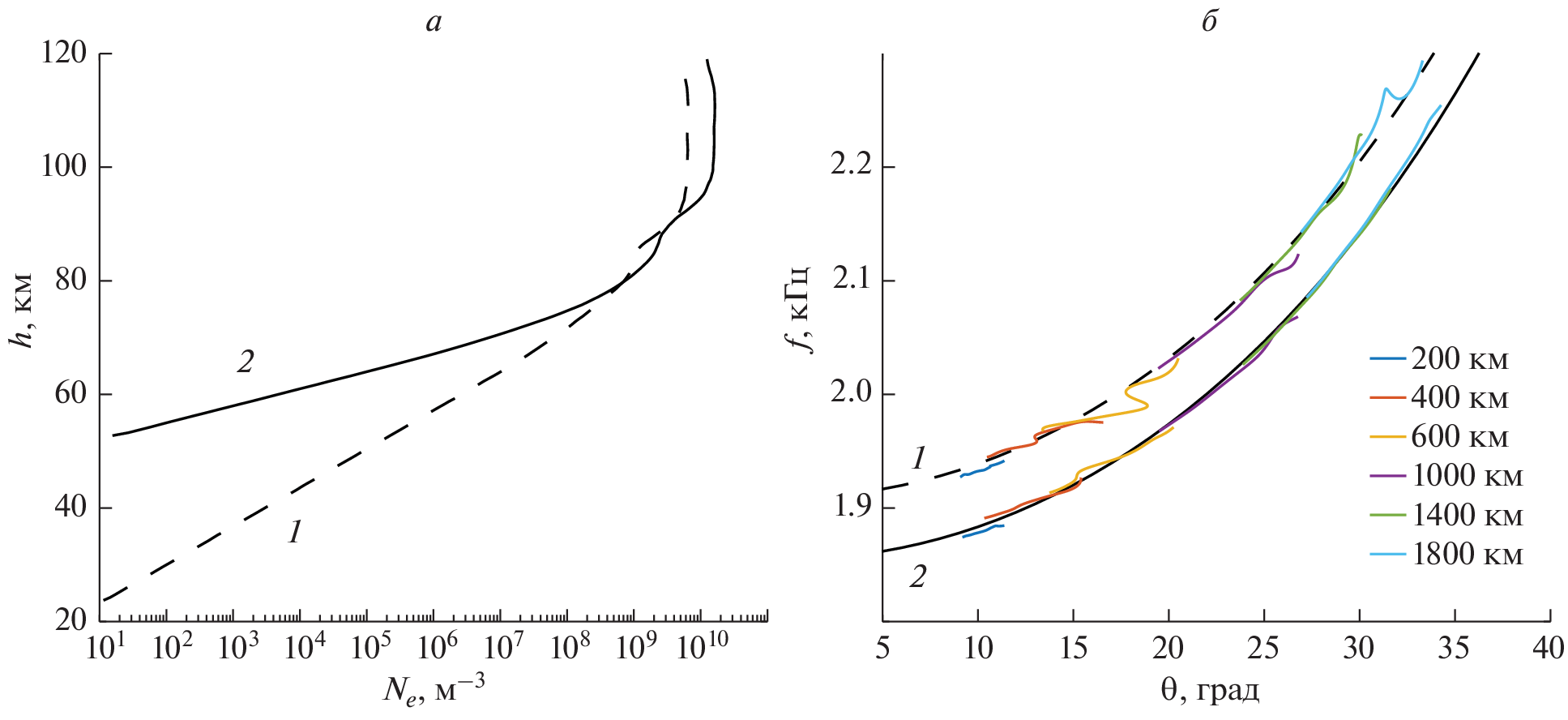

Experimental data on the registration of signals from tweek-atmospherics and an ionospheric source formed because of heating of the ionosphere at frequencies higher than the frequency of the first transverse resonance of the Earth–ionosphere waveguide (~1.8 kHz) are considered. It is shown that, far from the source, at frequencies near the resonance, almost complete circular left-hand polarization of the horizontal magnetic field is observed, and the angles of incidence are small and range from 10° to 35°. A joint analysis of observational data and simulation results showed that it is possible to calculate the effective reflection height from estimates of the incidence angle, which can be used to diagnose the lower ionosphere. But, in the case of an ionospheric source, it is important to take into account the inhomogeneity of its radiation pattern.

Bibliografia

Yamashita M. // J. Atm. Terr. Phys. 1978. V. 40. No. 2. P. 151.
Ohya H., Shiokawa K., Miyoshi Y. // Earth Planets Space. 2008. V. 60. P. 837.
Maurya A.K., Singh R., Veenadhari B. et al. // J. Geophys. Res. 2012. V. 117. Art. No. A05301.
Tsuruda K., Hayashi K. // J. Atm. Terr. Phys. 1975. V. 37. No. 9. P. 1193.
Fedorenko Yu.V., Tereshchenko E.D., Pilgaev S.V. et al. // Radio Sci. 2014. V. 49. No. 12. P. 1 254.
Ларченко А.В., Лебедь О.М., Благовещенская Н.Ф. и др. // Изв. вузов. Радиофиз. 2019. Т. 62. № 6. С. 429; Larchenko A.V., Lebed’ O.M., Pilgaev S.V. et al. // Radiophys. Quant. Electron. 2019. V. 62. No. 6. P. 385.
Ostapenko A.A., Titova E.E., Nickolaenko A.P. et al. // Ann. Geophys. 2010. V. 28. No. 1. P. 193.
Shvets A.V., Hayakawa M. // J. Atm. Terr. Phys. 1975. V. 37. No. 9. P. 1193.
Пильгаев С.В., Ларченко А.В., Федоренко Ю.В. и др. // ПТЭ. 2021. № 5. С. 115; Pil’gaev S.V., Larchenko A.V., Fedorenko Y.V. et al. // Instrum. Exper. Tech. 2021. V. 64. No. 5. P. 744.
Пильгаев С.В., Ларченко А.В., Филатов М.В. и др. // ПТЭ. 2018. № 6. С. 49; Pilgaev S.V., Larchenko A.V., Filatov M.V. et al. // Pil’gaev S.V., Larchenko A.V., Fedorenko Y.V. et al. // Instrum. Exper. Tech. 2018. V. 61. No. 6. P. 809.
Лебедь О.М., Федоренко Ю.В., Благовещенская Н.Ф. и др. // Геомагн. и аэрон. 2017. Т. 6, № 57. С. 751; Lebed’ O.M., Fedorenko Y.V., Larchenko A.V. et al. // Geomagn. Aeron. 2017. Т. 57. No. 6. С. 698.
Рытов С.М. Введение в статистическую радиофизику. Ч. 1. Случайные процессы. М.: Наука: ГРФМЛ, 1976. 494 с.
Lehtinen N.G., Inan U.S. // J. Geophys. Res. Space Phys. 2008. V. 113. No. 6. Art. No. 06301.
Li H.F., He W., He Q.Q., Zheng J.J. // Adv. Engin. Res. 2016. V. 115. P. 259.
Moore R. ELF/VLF wave generation by modulated HF heating of the auroral electrojet: PhD thesis. Stanford University, 2007. 107 p.
Rietveld M.T., Mauelshagen H.P., Stubbe P. et al. // J. Geophys. Res. Space Phys. 1987. V. 92. No. A8. Art. No. 8707.
Rietveld M.T., Stubbe P., Kopka H. // Radio Sci. 1989. V. 24. No. 3. P. 270.
Cohen M.B., Golkowski M., Inan U.S. // Geophys. Res. Lett. 2008. V. 35. No. L02. Art. No. 02806.
www.geomag.bgs.ac.uk/data_service/models_compass/ igrf_calc.html.
https://ccmc.gsfc.nasa.gov/modelweb/models/msis_vitmo.php.
https://ccmc.gsfc.nasa.gov/modelweb/models/iri2016_ vitmo.php.
Korja T., Engels M., Zhamaletdinov A.A. et al. // Earth Planets Space. 2002. V. 54. No. 5. P. 535.
