Second-order optical differentiator based on a composite metal–dielectric–metal structure
- Authors: Kashapov A.I.1,2, Bezus E.A.1,2, Bykov D.A.1,2, Doskolovich L.L.1,2
-
Affiliations:
- Image Processing Systems Institute of RAS – Branch of the Federal Scientific Research Centre “Crystallography and Photonics” of the Russian Academy of Sciences
- Samara National Research University
- Issue: Vol 87, No 1 (2023)
- Pages: 19-24
- Section: Articles
- URL: https://journals.rcsi.science/0367-6765/article/view/135240
- DOI: https://doi.org/10.31857/S036767652270003X
- EDN: https://elibrary.ru/JGSRSI
- ID: 135240
Cite item
Open Access
Access granted
Subscription Access
Abstract

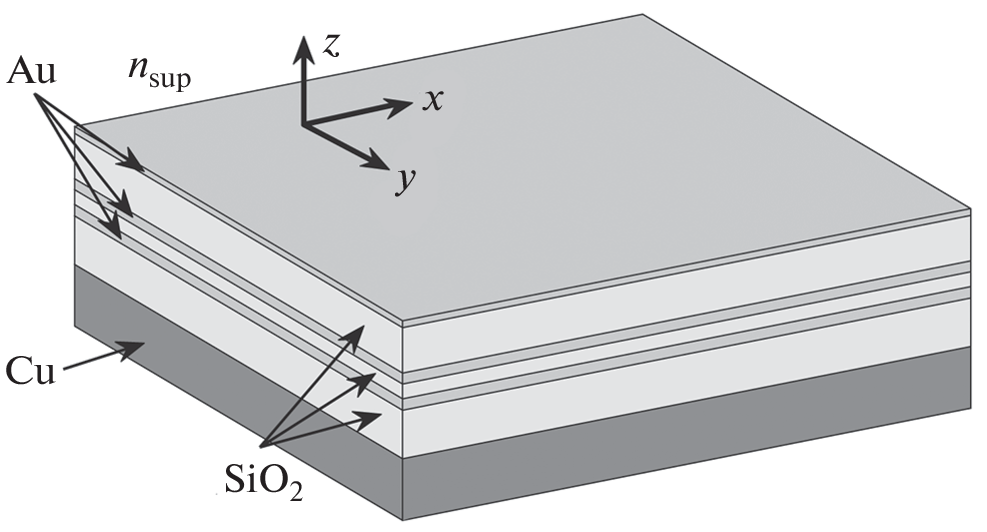

Optical properties of a composite structure consisting of two sequentially arranged three-layer metal-dielectric-metal structures (MDM-structures) are considered. It is shown that such a composite MDM-structure can perform second-order spatiotemporal differentiation with high quality at normal incidence. The obtained results can find application in creating systems for analog optical computing and optical information processing.
About the authors
A. I. Kashapov
Image Processing Systems Institute of RAS – Branch of the Federal Scientific Research Centre “Crystallography and Photonics” of the Russian Academy of Sciences; Samara National Research University
Author for correspondence.
Email: ar.kashapov@outllok.com
Russia, 443001, Samara; Russia, 443086, Samara
E. A. Bezus
Image Processing Systems Institute of RAS – Branch of the Federal Scientific Research Centre “Crystallography and Photonics” of the Russian Academy of Sciences; Samara National Research University
Email: ar.kashapov@outllok.com
Russia, 443001, Samara; Russia, 443086, Samara
D. A. Bykov
Image Processing Systems Institute of RAS – Branch of the Federal Scientific Research Centre “Crystallography and Photonics” of the Russian Academy of Sciences; Samara National Research University
Email: ar.kashapov@outllok.com
Russia, 443001, Samara; Russia, 443086, Samara
L. L. Doskolovich
Image Processing Systems Institute of RAS – Branch of the Federal Scientific Research Centre “Crystallography and Photonics” of the Russian Academy of Sciences; Samara National Research University
Email: ar.kashapov@outllok.com
Russia, 443001, Samara; Russia, 443086, Samara
References
- Silva A., Monticone F., Castaldi G. et al. // Science. 2014. V. 343. P. 161.
- Zhou Y., Zheng H., Kravchenko I.I., Valentine J. // Nature Photon. 2020. V. 14. P. 316.
- Bykov D.A., Doskolovich L.L., Soifer V.A. // Opt. Lett. 2011. V. 36. P. 3509.
- Doskolovich L.L., Bykov D.A., Bezus E.A., Soifer V.A. // Opt. Lett. 2014. V. 39. P. 1278.
- Golovastikov N.V., Doskolovich L.L., Bezus E.A. et al. // J. Exp. Theor. Phys. 2018. V. 127. P. 202.
- Karimi A., Zarifkar A., Miri M. // J. Opt. Soc. Amer. B. 2019. V. 36. P. 1738.
- Kashapov A.I., Doskolovich L.L., Bezus E.A. et al. // J. Optics. 2021. V. 23. No. 2. Art. No. 023501.
- Zhang J., Ying Q., Ruan Z. // Opt. Lett. 2019. V. 44. P. 4511.
- Golovastikov N.V., Bykov D.A., Doskolovich L.L. // Opt. Lett. 2015. V. 40. P. 3492.
- https://refractiveindex.info.
- Johnson P.B., Christy R.W. // Phys. Rev. B. 1972. V. 6. No. 12. P. 4370.
- Moharam M.G., Pommet D.A., Grann E.B. Gaylord T.K. // J. Opt. Soc. Amer. A. 1995. V. 12. P. 1077.
